视图解析与模板引擎

视图解析：SpringBoot默认不支持 JSP，需要引入第三方模板引擎技术实现页面渲染。

1、视图解析

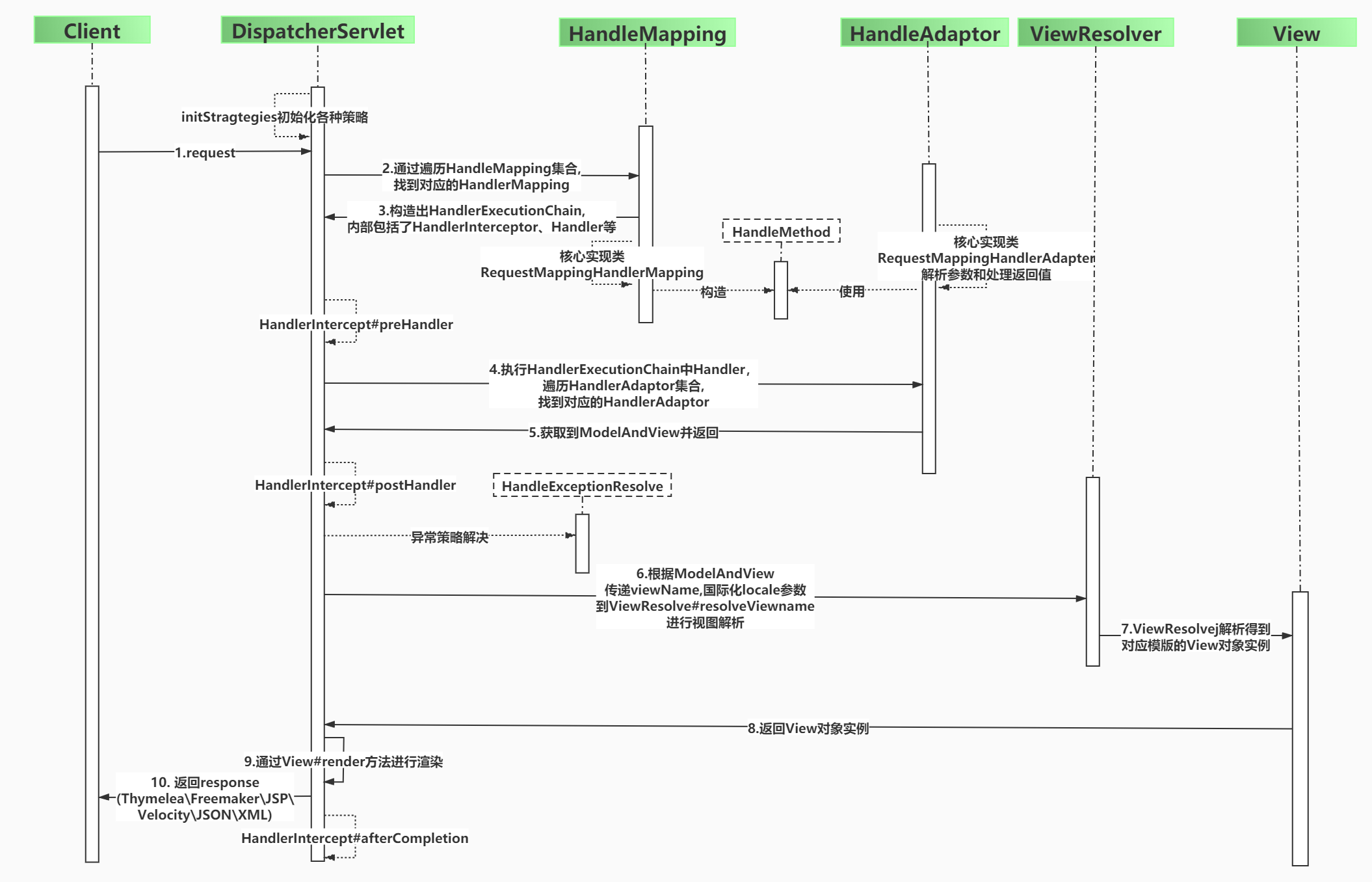

1、视图解析原理流程

1、目标方法处理的过程中，所有数据都会被放在 ModelAndViewContainer 里面。包括数据和视图地址（想要去的路径【重定向、跳转】）

2、方法的参数是一个自定义类型对象（从请求参数中确定的），把他重新放在 ModelAndViewContainer

3、任何目标方法执行完成以后都会返回 ModelAndView（数据和视图地址）。

4、【DispatchServlet的方法】processDispatchResult 处理派发结果（页面改如何响应）

1、render(mv, request, response); 进行页面渲染逻辑【渲染】

- 1、根据方法的String返回值得到 View 对象【定义了页面的渲染逻辑】

- - 1、所有的视图解析器尝试是否能根据当前返回值得到View对象
  - 2、得到了 redirect:/main.html --> Thymeleaf new RedirectView()
  - 3、ContentNegotiationViewResolver 里面包含了下面所有的视图解析器，内部还是利用下面所有视图解析器得到视图对象。
  - 4、view.render(mv.getModelInternal(), request, response); 视图对象调用自定义的render进行页面渲染工作

- - - RedirectView 如何渲染【重定向到一个页面】
    - 1、获取目标url地址
    - 2、response.sendRedirect(encodedURL); RedirectView的renderMergedOutputModel--sendRedirect--response.sendRedirect(encodedURL)
    - 3、执行了response.sendRedirect(encodedURL)页面就被渲染处理器，然后DispatchServlet执行结束；（最后有些清除数据啊，恢复啊在finally中完成的就不管了）

例如：视图解析器

ViewNameMethodReturnValueHandler

1、方法返回一个String字符串
return "redirect:/main.html"//重定向一个地址
return "login"//返回某个地址

2、ViewNameMethodReturnValueHandler

@Override
public boolean supportsReturnType(MethodParameter returnType) {
    //取出返回值类型
	Class<?> paramType = returnType.getParameterType();
    //如果是void或者是String类型
	return (void.class == paramType || CharSequence.class.isAssignableFrom(paramType));
}

@Override
public void handleReturnValue(@Nullable Object returnValue, MethodParameter returnType,
		ModelAndViewContainer mavContainer, NativeWebRequest webRequest) throws Exception {
    //如果是string类型，取出返回值
	if (returnValue instanceof CharSequence) {
		//取出返回值
		String viewName = returnValue.toString();
		mavContainer.setViewName(viewName);
		//看看这个地址是不是重定向【如何判断】
		if (isRedirectViewName(viewName)) {
			mavContainer.setRedirectModelScenario(true);
		}
	}
	else if (returnValue != null) {
		// should not happen
		throw new UnsupportedOperationException("Unexpected return type: " +
				returnType.getParameterType().getName() + " in method: " + returnType.getMethod());
	}
}

//看看是不是包含：redirect
protected boolean isRedirectViewName(String viewName) {
	return (PatternMatchUtils.simpleMatch(this.redirectPatterns, viewName) || viewName.startsWith("redirect:"));
}

上图方式的返回值处理过程分析

视图解析：

- 返回值以 forward: 开始： new InternalResourceView(forwardUrl); --> 转发request.getRequestDispatcher(path).forward(request, response);【转发：servlet基础里面的转发如何写】
- 返回值以 redirect: 开始： new RedirectView() --》 render就是重定向-->response.sendRedirect(encodedURL) 重定向【也是servlet基础】
- 返回值是普通字符串： new ThymeleafView（）--->

【自定义视图】

（导出excel）

import net.sf.jxls.exception.ParsePropertyException;
import net.sf.jxls.transformer.XLSTransformer;
import org.apache.commons.io.FileUtils;
import org.apache.commons.lang.NotImplementedException;
import org.apache.poi.openxml4j.exceptions.InvalidFormatException;
import org.apache.poi.ss.usermodel.Workbook;
import org.springframework.util.ResourceUtils;
import org.springframework.web.servlet.view.AbstractView;

import javax.servlet.ServletOutputStream;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.*;
import java.net.URLEncoder;
import java.util.List;
import java.util.Map;

/**
 * 导出Excel
 *
 *
 */
public class ExcelView<T extends Partition> extends AbstractView {

    private String filename;
    private String templateName;

    private List<T> objectList = null;

    public static final String CONTENT_TYPE = "application/vnd.ms-excel";
    public static final String TEMPLATE_PATH = "classpath:template/excel/";
    public static final String FORMAT = ".xls";

    public ExcelView() {
    }

    public ExcelView(String templateName) {
        this(templateName, templateName);
    }

    public ExcelView(String templateName, String filename) {
        this.templateName = templateName;
        this.filename = filename;
    }

    public ExcelView(String templateName, List<T> objectList) {
        this(templateName);

        this.objectList = objectList;
    }

    @Override
    protected void renderMergedOutputModel(Map<String, Object> beanParams, HttpServletRequest request, HttpServletResponse response) throws Exception {
        response.setContentType(CONTENT_TYPE);
        //String fileName = new String(filename.getBytes("UTF-8"),"UTF-8");
        String fileName = URLEncoder.encode(filename, "UTF-8");
        response.setHeader("Access-Control-Expose-Headers", "Content-Disposition");
        response.setHeader("Content-Disposition", "attachment; filename="+fileName);

        ServletOutputStream os = response.getOutputStream();

        File template = ResourceUtils.getFile(TEMPLATE_PATH + templateName + FORMAT);
        String path = template.getPath();
        if (this.objectList == null) {
            if (beanParams.isEmpty()) { // 下载模板
                FileUtils.copyFile(template, os);
            } else {
                sheetExport(beanParams, os, path);
            }
        } else {
            multiSheetsExport(beanParams, os, path);
        }
    }

    @SuppressWarnings("unchecked")
    private void multiSheetsExport(Map<String, Object> beanParams, ServletOutputStream os, String path) throws Exception {
        final MultipleSheetsList sheetsList = new MultipleSheetsList(path, "query");

        PartitionExecutor.execute(this.objectList, new PartitionCallback<T>() {
            @Override
            public void execute(List<T> partList) {
                sheetsList.addSheet("", partList);
            }
        });
        if (!beanParams.isEmpty()) {
            sheetsList.addBeanParams(beanParams);
        }
        sheetsList.storeTo(os);
        throw new NotImplementedException("未实现");
    }

    private void sheetExport(Map<String, Object> beanParams, ServletOutputStream os, String path) throws InvalidFormatException, IOException {
        try {
            XLSTransformer transformer = new XLSTransformer();
            InputStream is = new BufferedInputStream(new FileInputStream(path));
            Workbook workbook = transformer.transformXLS(is, beanParams);
            workbook.write(os);
            is.close();
            os.flush();
            os.close();
        } catch (ParsePropertyException e) {
            e.printStackTrace();
        } catch (InvalidFormatException e) {
            e.printStackTrace();
        } catch (IOException e) {
            e.printStackTrace();
        }
    }
}

/**
 * 如何使用
 *
 */
@RequestMapping(value = "/export", method = RequestMethod.POST)
public Object xxx(){
	Map<String, Object> model = new HashMap<>();
	model.put("earningCount",放内容);
	return new ModelAndView(new ExcelView("material_earning", "辅材核算.xls"), model);
}

1、视图解析器(内容协商视图处理器支持解析的类型)

this.viewResolvers = {ArrayList@5104}  size = 5
 0 = {ContentNegotiatingViewResolver@5139} 内容协商视图解析器
 1 = {BeanNameViewResolver@5140} beanName视图解析器
看看容器有没有要处理的这个组件（bean）
 2 = {ThymeleafViewResolver@5141} Thymeleaf视图解析器
 3 = {ViewResolverComposite@5142} view视图解析器
 4 = {InternalResourceViewResolver@5143} InternalResource视图解析器

View返回值--resolveViewName方法执行

（1）ContentNegotiatingViewResolver的resolveViewName
1、获取当前请求的媒体类型，然后根据里面的viewResolvers视图处理器（循环遍历）
List<View> 返回list
List-Add  View view = viewResolver.resolveViewName(viewName, locale);找到能处理的视图，返回
//拿到返回的list，找到最佳匹配
View bestView = getBestView(candidateViews, requestedMediaTypes, attrs)
（2）BeanNameViewResolver的resolveViewName
从spring容器中获取看看是否存在beanName=viewName的，代码如下
ApplicationContext.containsBean(viewName)如果不存在返回null
如果存在return context.getBean(viewName, View.class)，取出当前视图对应的bean
（3）ViewResolverComposite的resolveViewName
又通过这个view视图解析器组合的viewResolvers
viewResolver.resolveViewName查找能否处理的视图，找到然后return
（4）InternalResourceViewResolver的resolveViewName
InternalResourceViewResolver
  --extends--UrlBasedViewResolver
    --extends--AbstractCachingViewResolver

【AbstractCachingViewResolver基类中】
@Override
@Nullable
public View resolveViewName(String viewName, Locale locale) throws Exception {
    //判断是否需要开启缓存，如果不需要直接createView，如果需要则设置属性的cacheLimit值>0即可
	if (!isCache()) {
		return createView(viewName, locale);
	}
	else {
        //看看当前处理视图名称是否存在缓存没的，

        //获取缓存的key，通过（viewName + '_' + locale）组装；locale是本地化语言，例如zh_CN等等，这里可以给不同的语音类型缓存不同的视图信息
		Object cacheKey = getCacheKey(viewName, locale);
        //从缓存中取，如果缓存中没得，那就自己创建
		View view = this.viewAccessCache.get(cacheKey);
        //如果缓存中没得，那就自己创建呗
		if (view == null) {
            //由于所有的bean都是单实例，所以这里如果要保证bean的唯一性，首先的做好线程安全
            //这里通过synchronized来，然后viewCreationCache就是带存放的集合
			synchronized (this.viewCreationCache) {
                //为了双重确保（这里在从已创建的view里面取一次）如果还是为空，则需要自己创建了
				view = this.viewCreationCache.get(cacheKey);
				if (view == null) {
					// Ask the subclass to create the View object.
                    //创建视图
					view = createView(viewName, locale);
					if (view == null && this.cacheUnresolved) {
						view = UNRESOLVED_VIEW;
					}
					if (view != null && this.cacheFilter.filter(view, viewName, locale)) {
						this.viewAccessCache.put(cacheKey, view);
						this.viewCreationCache.put(cacheKey, view);
					}
				}
			}
		}
		else {
			if (logger.isTraceEnabled()) {
				logger.trace(formatKey(cacheKey) + "served from cache");
			}
		}
		return (view != UNRESOLVED_VIEW ? view : null);
	}
}


//由于这里是InternalResourceViewResolver
AbstractUrlBasedView view = (AbstractUrlBasedView) BeanUtils.instantiateClass(viewClass);

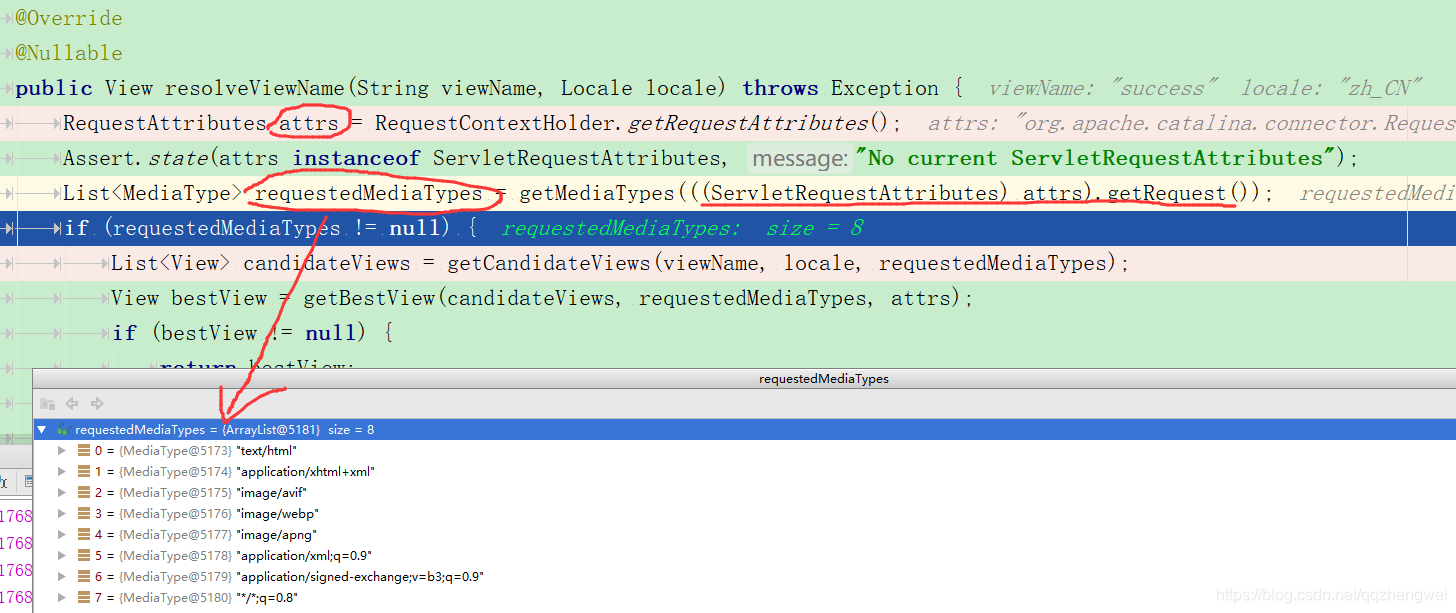

【ContentNegotiatingViewResolver】内容协商视图解析器

@Override
@Nullable
public View resolveViewName(String viewName, Locale locale) throws Exception {
    //获取当前线程中缓存的RequestAttributes
	RequestAttributes attrs = RequestContextHolder.getRequestAttributes();
	//拿到request后，获取当前请求携带的支持响应的媒体类型
	List<MediaType> requestedMediaTypes = getMediaTypes(((ServletRequestAttributes) attrs).getRequest());
	if (requestedMediaTypes != null) {
		List<View> candidateViews = getCandidateViews(viewName, locale, requestedMediaTypes);
		View bestView = getBestView(candidateViews, requestedMediaTypes, attrs);
		if (bestView != null) {
			return bestView;//【最终返回了ThymeleafView这个视图对象】
		}
	}

	String mediaTypeInfo = logger.isDebugEnabled() && requestedMediaTypes != null ?
			" given " + requestedMediaTypes.toString() : "";

	if (this.useNotAcceptableStatusCode) {
		if (logger.isDebugEnabled()) {
			logger.debug("Using 406 NOT_ACCEPTABLE" + mediaTypeInfo);
		}
		return NOT_ACCEPTABLE_VIEW;
	}
	else {
		logger.debug("View remains unresolved" + mediaTypeInfo);
		return null;
	}
}

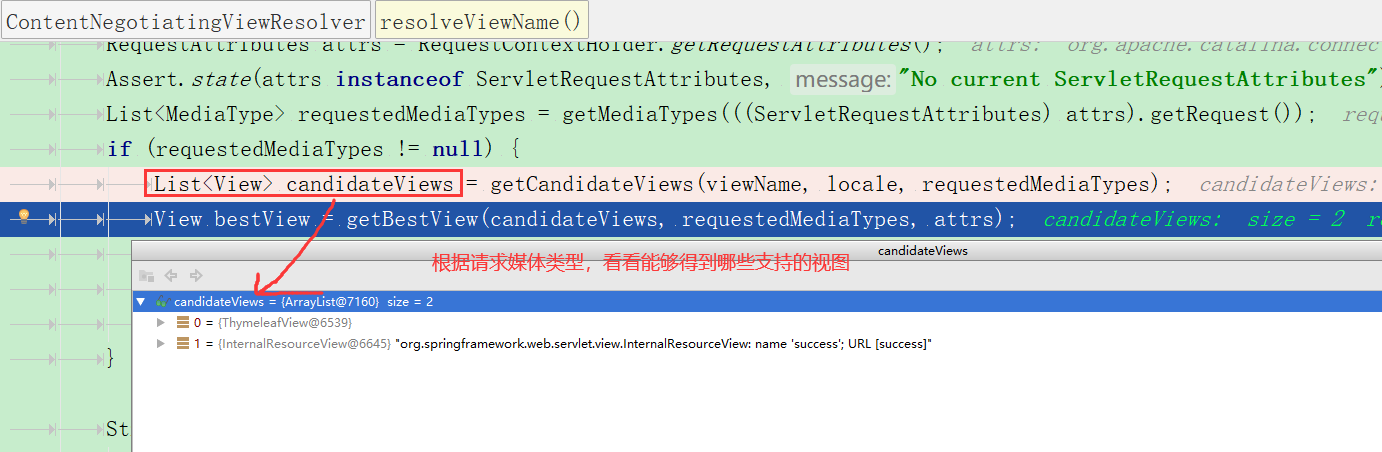

getCandidateViews
//这里拿到的是ThymeleafViewResolver 视图解析器
//里面最终的逻辑就是创建一个视图解析器，然后放到内置缓存中
private List<View> getCandidateViews(String viewName, Locale locale, List<MediaType> requestedMediaTypes)
		throws Exception {

	List<View> candidateViews = new ArrayList<>();
	if (this.viewResolvers != null) {
		Assert.state(this.contentNegotiationManager != null, "No ContentNegotiationManager set");
		for (ViewResolver viewResolver : this.viewResolvers) {
		    //拿到所有的视图解析器，然后解析视图
			View view = viewResolver.resolveViewName(viewName, locale);
			if (view != null) {
				candidateViews.add(view);
			}
			for (MediaType requestedMediaType : requestedMediaTypes) {
				List<String> extensions = this.contentNegotiationManager.resolveFileExtensions(requestedMediaType);
				for (String extension : extensions) {
					String viewNameWithExtension = viewName + '.' + extension;
					view = viewResolver.resolveViewName(viewNameWithExtension, locale);
					if (view != null) {
						candidateViews.add(view);
					}
				}
			}
		}
	}
	if (!CollectionUtils.isEmpty(this.defaultViews)) {
		candidateViews.addAll(this.defaultViews);
	}
	return candidateViews;
}

2、模板引擎-Thymeleaf

1、thymeleaf简介

Thymeleaf is a modern server-side Java template engine for both web and standalone environments, capable of processing HTML, XML, JavaScript, CSS and even plain text.

现代化、服务端Java模板引擎

2、基本语法

1、表达式

表达式名字	语法	用途
变量取值	${...}	获取请求域、session域、对象等值
选择变量	*{...}	获取上下文对象值
消息	#{...}	获取国际化等值
链接	@{...}	生成链接
片段表达式	~{...}	jsp:include 作用，引入公共页面片段

2、字面量

文本值: 'one text' , 'Another one!' ,…数字: 0 , 34 , 3.0 , 12.3 ,…布尔值: true , false

空值: null

变量： one，two，.... 变量不能有空格

3、文本操作

字符串拼接: +

变量替换: |The name is ${name}|

4、数学运算

运算符: + , - , * , / , %

5、布尔运算

运算符: and , or

一元运算: ! , not

6、比较运算

比较: > , < , >= , <= ( gt , lt , ge , le )等式: == , != ( eq , ne )

7、条件运算

If-then: (if) ? (then)

If-then-else: (if) ? (then) : (else)

Default: (value) ?: (defaultvalue)

8、特殊操作

无操作： _

3、设置属性值-th:attr

设置单个值

<form action="subscribe.html" th:attr="action=@{/subscribe}">
  <fieldset>
    <input type="text" name="email" />
    <input type="submit" value="Subscribe!" th:attr="value=#{subscribe.submit}"/>
  </fieldset>
</form>

设置多个值

<img src="../../images/gtvglogo.png"  th:attr="src=@{/images/gtvglogo.png},title=#{logo},alt=#{logo}" />

以上两个的代替写法 th:xxxx

<input type="submit" value="Subscribe!" th:value="#{subscribe.submit}"/>
<form action="subscribe.html" th:action="@{/subscribe}">

所有h5兼容的标签写法

https://www.thymeleaf.org/doc/tutorials/3.0/usingthymeleaf.html#setting-value-to-specific-attributes

4、迭代

<tr th:each="prod : ${prods}">
        <td th:text="${prod.name}">Onions</td>
        <td th:text="${prod.price}">2.41</td>
        <td th:text="${prod.inStock}? #{true} : #{false}">yes</td>
</tr>

<tr th:each="prod,iterStat : ${prods}" th:class="${iterStat.odd}? 'odd'">
  <td th:text="${prod.name}">Onions</td>
  <td th:text="${prod.price}">2.41</td>
  <td th:text="${prod.inStock}? #{true} : #{false}">yes</td>
</tr>

5、条件运算

<a href="comments.html"
th:href="@{/product/comments(prodId=${prod.id})}"
th:if="${not #lists.isEmpty(prod.comments)}">view</a>

<div th:switch="${user.role}">
  <p th:case="'admin'">User is an administrator</p>
  <p th:case="#{roles.manager}">User is a manager</p>
  <p th:case="*">User is some other thing</p>
</div>

6、属性优先级

3、thymeleaf使用

1、引入Starter

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-thymeleaf</artifactId>
        </dependency>

2、自动配置好了thymeleaf

@Configuration(proxyBeanMethods = false)
@EnableConfigurationProperties(ThymeleafProperties.class)
@ConditionalOnClass({ TemplateMode.class, SpringTemplateEngine.class })
@AutoConfigureAfter({ WebMvcAutoConfiguration.class, WebFluxAutoConfiguration.class })
public class ThymeleafAutoConfiguration { }

自动配好的策略

1、所有thymeleaf的配置值都在 ThymeleafProperties
2、配置好了 SpringTemplateEngine
3、配好了 ThymeleafViewResolver
4、我们只需要直接开发页面

    public static final String DEFAULT_PREFIX = "classpath:/templates/";

    public static final String DEFAULT_SUFFIX = ".html";  //xxx.html

3、页面开发

<!DOCTYPE html>
<html lang="en" xmlns:th="http://www.thymeleaf.org">
<head>
    <meta charset="UTF-8">
    <title>Title</title>
</head>
<body>
<h1 th:text="${msg}">哈哈</h1>
<h2>
    <a href="www.atguigu.com" th:href="${link}">去百度</a>  <br/>
    <a href="www.atguigu.com" th:href="@{link}">去百度2</a>
</h2>
</body>
</html>

4、构建后台管理系统

1、项目创建

thymeleaf、web-starter、devtools、lombok

2、静态资源处理

自动配置好，我们只需要把所有静态资源放到 static 文件夹下

3、路径构建

th:action="@{/login}"

4、模板抽取

th:insert/replace/include

官方文档：https://www.thymeleaf.org/doc/tutorials/3.0/usingthymeleaf.html#template-layout

insert/replace/include区别

<footer th:fragment="copy">
  &copy; 2011 The Good Thymes Virtual Grocery
</footer>

…included three times in host <div> tags, like this:

<body>

  ...

  <div th:insert="footer :: copy"></div>

  <div th:replace="footer :: copy"></div>

  <div th:include="footer :: copy"></div>

</body>

…will result in:

<body>

  ...

  <div>
    <footer>
      &copy; 2011 The Good Thymes Virtual Grocery
    </footer>
  </div>

  <footer>
    &copy; 2011 The Good Thymes Virtual Grocery
  </footer>

  <div>
    &copy; 2011 The Good Thymes Virtual Grocery
  </div>

</body>

5、页面跳转

    @PostMapping("/login")
    public String main(User user, HttpSession session, Model model){

        if(StringUtils.hasLength(user.getUserName()) && "123456".equals(user.getPassword())){
            //把登陆成功的用户保存起来
            session.setAttribute("loginUser",user);
            //登录成功重定向到main.html;  重定向防止表单重复提交
            return "redirect:/main.html";
        }else {
            model.addAttribute("msg","账号密码错误");
            //回到登录页面
            return "login";
        }

    }

6、数据渲染

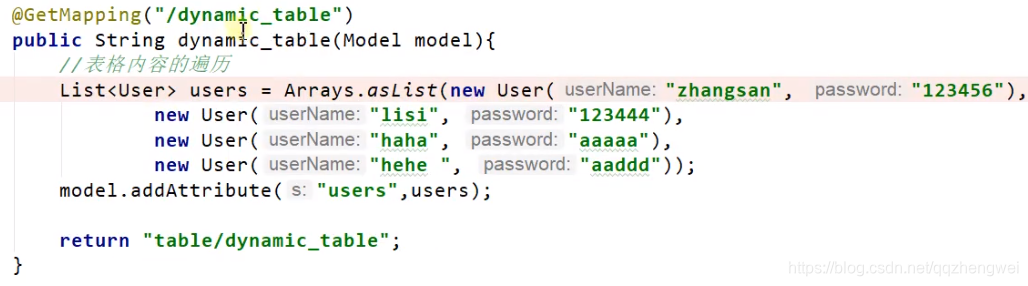

    @GetMapping("/dynamic_table")
    public String dynamic_table(Model model){
        //表格内容的遍历
        List<User> users = Arrays.asList(new User("zhangsan", "123456"),
                new User("lisi", "123444"),
                new User("haha", "aaaaa"),
                new User("hehe ", "aaddd"));
        model.addAttribute("users",users);

        return "table/dynamic_table";
    }

        <table class="display table table-bordered" id="hidden-table-info">
        <thead>
        <tr>
            <th>#</th>
            <th>用户名</th>
            <th>密码</th>
        </tr>
        </thead>
        <tbody>
        <tr class="gradeX" th:each="user,stats:${users}">
            <td th:text="${stats.count}">Trident</td>
            <td th:text="${user.userName}">Internet</td>
            <td >[[${user.password}]]</td>
        </tr>
        </tbody>
        </table>

7、视图渲染过程：从前端到后台

引用

1.SpingMVC架构设计时序图

SpringBoot分析原理篇-SpringMVC视图渲染过程详细源码

视图渲染过程：从前端到后台

按照一般思考的流程，这里直接从DispatcherServlet前端控制器的方法render()开始分析。

DispatcherServlet入口

init()：DispatcherServlet 继承FrameworkServlet；而FrameworkServlet继承HttpServletBean，并实现了ApplicationContextAware接口，HttpServletBean实现init()方法，加载web.xml中DispatcherServlet配置，调用FrameworkServlet # initServletBean()。
initServletBean()：FrameworkServlet # initServletBean()，调用FrameworkServlet#initWebApplicationContext()。
initWebApplicationContext()：FrameworkServlet#initWebApplicationContext()，初始化WebApplicationContext 容器(IOC容器)；调用FrameworkServlet#createWebApplicationContext(WebApplicationContext)
createWebApplicationContext(WebApplicationContext)：获取或生成容器，调用DispatcherServlet#onRefresh(ApplicationContext)。[^1]
onRefresh(ApplicationContext)： DispatcherServlet 的onRefresh() 方法，用于在ApplicationContext刷新后进行策略组件的初始化。
initStrategies(ApplicationContext)：DispatcherServlet 的initStrategies(ApplicationContext):初始化9个策略组件。
doService():：设置request的相关属性
doDispatch()：前端控制器DispatcherServlet在doDispatch( )方法中去获取HandlerMapping和HandlerAdapter。
processDispatchResult(processedRequest, response, mappedHandler, mv, dispatchException)：异常分析，存在ModelAndView后调用render方法进行渲染，渲染完成后调用HandlerInterceptor拦截器的afterCompletion方法。
render(): 解析视图名称获取对应View，调用View的render方法通过Model来渲染视图。

DispatcherServlet#Render()源码如下：

@SuppressWarnings("serial")
public class DispatcherServlet extends FrameworkServlet {

    ... ...

	/**
	 * Render the given ModelAndView.//
	 * <p>This is the last stage in handling a request. It may involve resolving the view by name.
	 * @param mv the ModelAndView to render
	 * @param request current HTTP servlet request
	 * @param response current HTTP servlet response
	 * @throws ServletException if view is missing or cannot be resolved
	 * @throws Exception if there's a problem rendering the view
	 */
	protected void render(ModelAndView mv, HttpServletRequest request, HttpServletResponse response) throws Exception {
	    // 根据request中的Accept-language请求头信息对应国际化响应方式
		// Determine locale for request and apply it to the response.
		Locale locale =
				(this.localeResolver != null ? this.localeResolver.resolveLocale(request) : request.getLocale());
		//设置响应的国际化
		response.setLocale(locale);

		View view;
		String viewName = mv.getViewName();
		if (viewName != null) {
		     //ViewName视图名称：由前缀，返回值，后缀组成
		     //mv.getModelInternal()返回ModelMap，ModelMap继承LinkedHashMap<String, Object>，该参数可以为空
		     //locale:国际化
		     //视图名不为空，通过循环viewResolve，获取到对应的视图解析器，如Thymeleaf的视图解析器为：ThymeleafViewResolver，通过视图解析器获取对应的View对象实例
			// We need to resolve the view name.
			view = resolveViewName(viewName, mv.getModelInternal(), locale, request);
			if (view == null) {
				throw new ServletException("Could not resolve view with name '" + mv.getViewName() +
						"' in servlet with name '" + getServletName() + "'");
			}
		}
		else {
		    //不需要进行向上查询，没有视图名，但ModelAndView object包含这个View Object
			// No need to lookup: the ModelAndView object contains the actual View object.
			view = mv.getView();
			if (view == null) {
				throw new ServletException("ModelAndView [" + mv + "] neither contains a view name nor a " +
						"View object in servlet with name '" + getServletName() + "'");
			}
		}

		// Delegate to the View object for rendering.
		if (logger.isTraceEnabled()) {
			logger.trace("Rendering view [" + view + "] ");
		}
		try {
			if (mv.getStatus() != null) {
			    //设置响应的状态码
				response.setStatus(mv.getStatus().value());
			}
			//开始渲染：调用具体的View对象，进行视图渲染
			view.render(mv.getModelInternal(), request, response);
		}
		catch (Exception ex) {
			if (logger.isDebugEnabled()) {
				logger.debug("Error rendering view [" + view + "]", ex);
			}
			throw ex;
		}
	}
	... ...
}

View#render(model,request,response)方法

SpringMVC用于处理视图最重要的两个接口是ViewResolver和View,
View接口最主要的方法是这个Render的方法。

package org.springframework.web.servlet;

/**
 * MVC View主要用于web交互，渲染内容，展示model，单个视图可以展示多个model属性
 * MVC View for a web interaction. Implementations are responsible for rendering
 * content, and exposing the model. A single view exposes multiple model attributes.
 * 亚马逊这本书《Expert One-On-One J2EE Design and Development》里面有相关MVC类和函数的分析
 * <p>This class and the MVC approach associated with it is discussed in Chapter 12 of
 * <a href="https://www.amazon.com/exec/obidos/tg/detail/-/0764543857/">Expert One-On-One J2EE Design and Development</a>
 * by Rod Johnson (Wrox, 2002).
 *
 * <p>View implementations may differ widely. An obvious implementation would be
 * JSP-based. Other implementations might be XSLT-based, or use an HTML generation library.
 * This interface is designed to avoid restricting the range of possible implementations.
 *
 * <p>Views should be beans. They are likely to be instantiated as beans by a ViewResolver.
 * As this interface is stateless, view implementations should be thread-safe.
 *
 */
public interface View {

	String RESPONSE_STATUS_ATTRIBUTE = View.class.getName() + ".responseStatus";
	String PATH_VARIABLES = View.class.getName() + ".pathVariables";
	String SELECTED_CONTENT_TYPE = View.class.getName() + ".selectedContentType";

	/**
	 * Return the content type of the view, if predetermined.
	 * <p>Can be used to check the view's content type upfront,
	 * i.e. before an actual rendering attempt.
	 * @return the content type String (optionally including a character set),
	 * or {@code null} if not predetermined
	 */
	@Nullable
	default String getContentType() {
		return null;
	}

	/**
	 * Model传进来的时候要去渲染，Model是一个上下文传递的数据源，request是一个请求源，response响应源。
	 * Render the view given the specified model.
	 * <p>The first step will be preparing the request: In the JSP case, this would mean
	 * setting model objects as request attributes. The second step will be the actual
	 * rendering of the view, for example including the JSP via a RequestDispatcher.
	 * @param model a Map with name Strings as keys and corresponding model
	 * objects as values (Map can also be {@code null} in case of empty model)
	 * @param request current HTTP request
	 * @param response he HTTP response we are building
	 * @throws Exception if rendering failed
	 */
	void render(@Nullable Map<String, ?> model, HttpServletRequest request, HttpServletResponse response)
			throws Exception;
}

薇薇

关注

0
点赞
踩
0

收藏

觉得还不错? 一键收藏
0
评论
SpringBoot2核心技术-核心功能-02-Web开发-04

视图解析与模板引擎视图解析：SpringBoot默认不支持 JSP，需要引入第三方模板引擎技术实现页面渲染。1、视图解析1、视图解析原理流程1、目标方法处理的过程中，所有数据都会被放在 ModelAndViewContainer 里面。包括数据和视图地址（想要去的路径【重定向、跳转】）2、方法的参数是一个自定义类型对象（从请求参数中确定的），把他重新放在 ModelAndViewContainer 3、任何目标方法执行完成以后都会返回 ModelAndView（数据和视图地址）。
复制链接

扫一扫
