一.开发思路、与开发成果。
1.所编写的聊天框是通过TextInput的组件输入咱们想发送的内容,然后点击发送按钮发送内容,但是我们应该想 如何获取到TextInput组件中内容,并且怎么发送,发送到哪里这是问题所在。 所以为我们需要自己来构建函数,首先.我们构建一个send()来连接所发送的数据,然后就是搭建一个聊天界面,并对button按钮添加点击事件就差不多完成了。

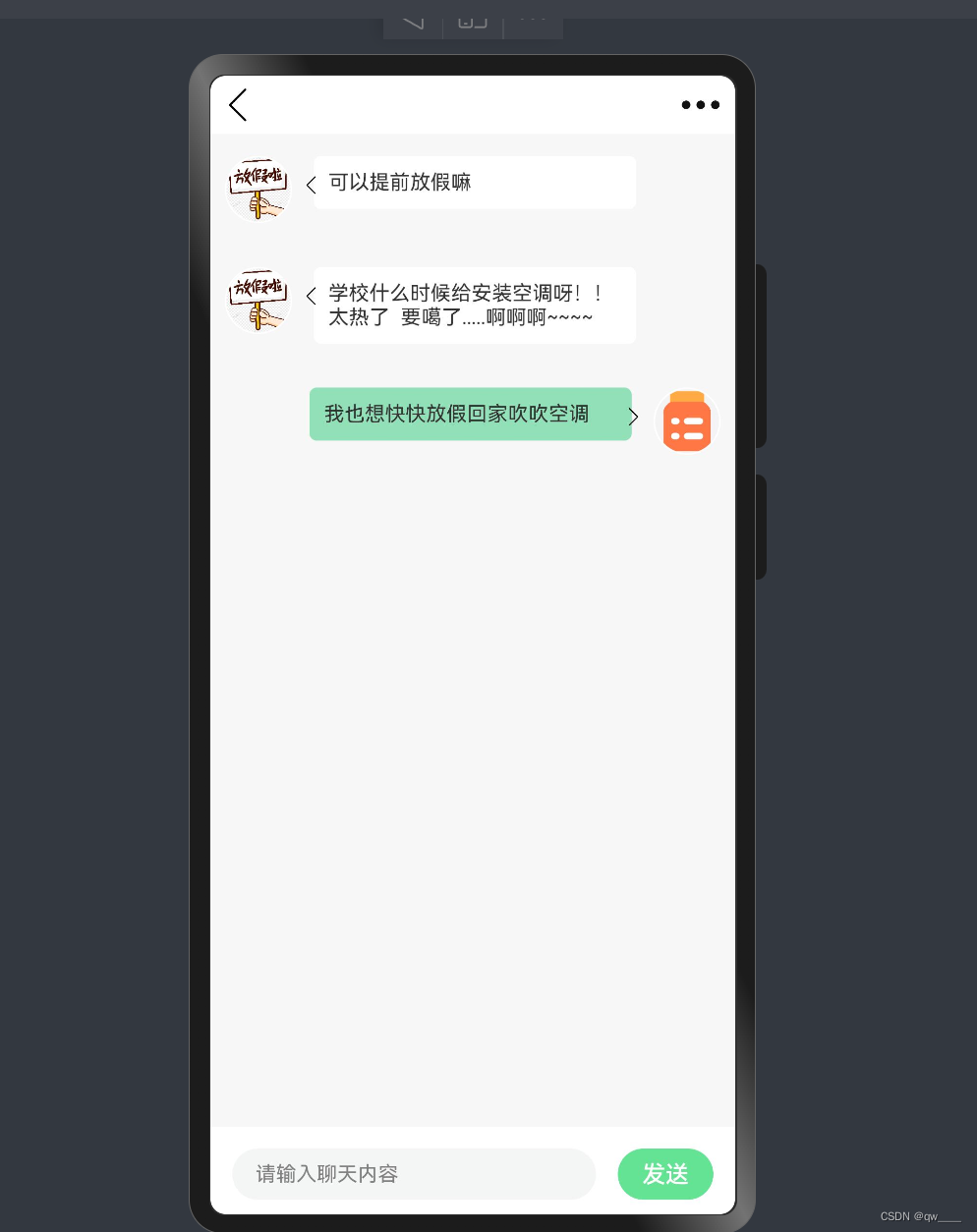

结果如下:
二.具体开发流程。
1.内容的显示
因为没有做数据持久化,所以如果想要在聊天框内显示内容先自己搭建一个(其中头像是通过网络请求而来的)
2.搭建聊天框的框架、布局、基础属性的添加。
通过基础组件搭建框架(Row Column...)搭建页面布局,并通过坐标的形式定位消息框中>的位置和通过rotate属性进行添加旋转属性从而达到简单消息框的实现。
3.创建连接发送数据send()。
send(options: UDPSendOptions, callback: AsyncCallback<void>): void 通过UDPSocket连接发送数据。
三.码源。

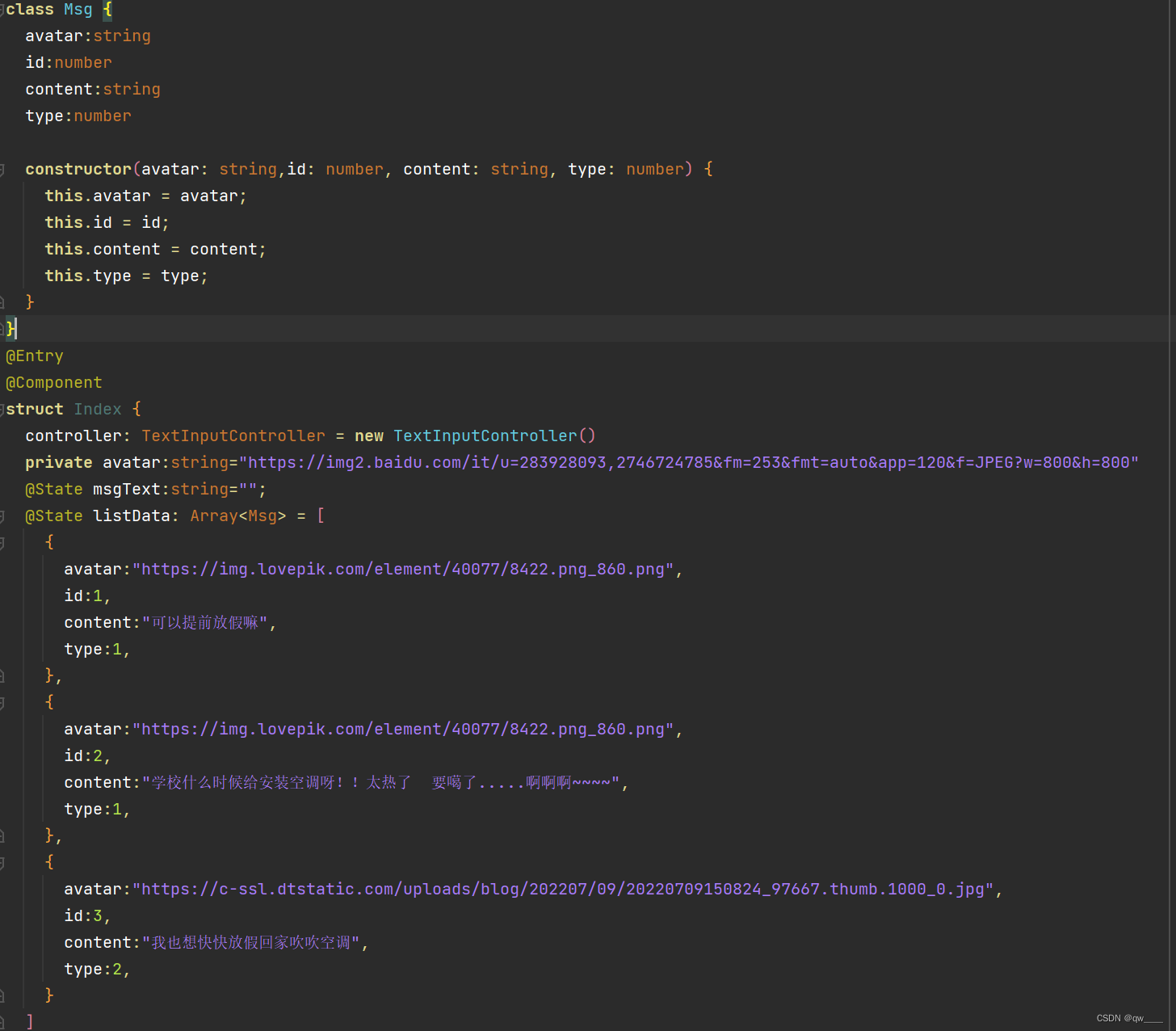

class Msg {
avatar:string
id:number
content:string
type:number
constructor(avatar: string,id: number, content: string, type: number) {
this.avatar = avatar;
this.id = id;
this.content = content;
this.type = type;
}
}
@Entry
@Component
struct Index {
controller: TextInputController = new TextInputController()
private avatar:string="https://img2.baidu.com/it/u=283928093,2746724785&fm=253&fmt=auto&app=120&f=JPEG?w=800&h=800"
@State msgText:string="";
@State listData: Array<Msg> = [
{
avatar:"https://img.lovepik.com/element/40077/8422.png_860.png",
id:1,
content:"可以提前放假嘛",
type:1,
},
{
avatar:"https://img.lovepik.com/element/40077/8422.png_860.png",
id:2,
content:"学校什么时候给安装空调呀!!太热了 要噶了.....啊啊啊~~~~",
type:1,
},
{
avatar:"https://c-ssl.dtstatic.com/uploads/blog/202207/09/20220709150824_97667.thumb.1000_0.jpg",
id:3,
content:"我也想快快放假回家吹吹空调",
type:2,
}
]
send(){
if(!this.msgText){
return;
}
this.listData.push(
new Msg(this.avatar,this.listData.length+2, this.msgText, 2)
);
setTimeout(()=>{
this.msgText = null
},100)
}

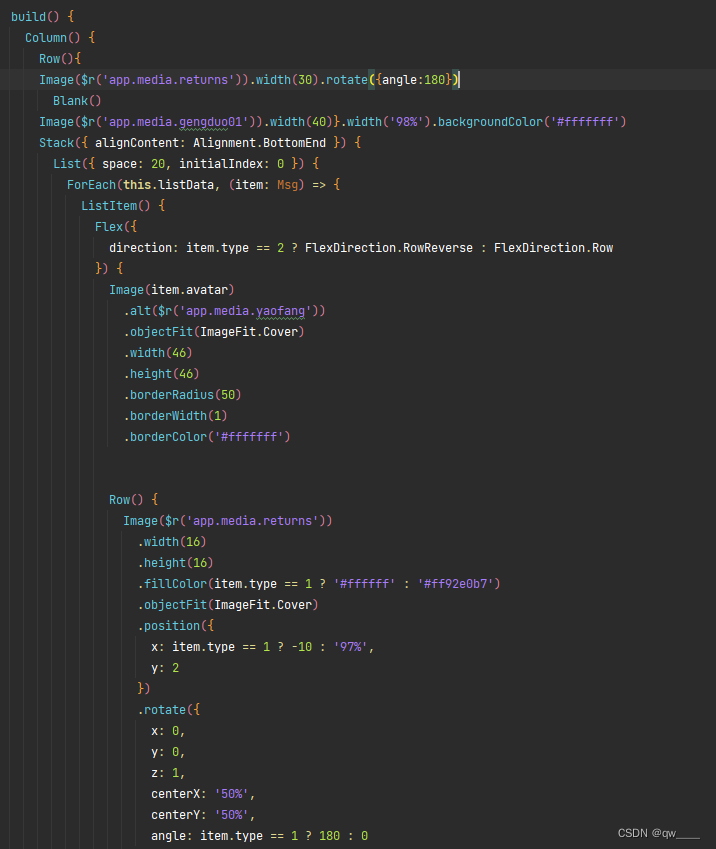

build() {
Column() {
Row(){
Image($r('app.media.returns')).width(30).rotate({angle:180})
Blank()
Image($r('app.media.gengduo01')).width(40)}.width('98%').backgroundColor('#fffffff')
Stack({ alignContent: Alignment.BottomEnd }) {
List({ space: 20, initialIndex: 0 }) {
ForEach(this.listData, (item: Msg) => {
ListItem() {
Flex({
direction: item.type == 2 ? FlexDirection.RowReverse : FlexDirection.Row
}) {
Image(item.avatar)
.alt($r('app.media.yaofang'))
.objectFit(ImageFit.Cover)
.width(46)
.height(46)
.borderRadius(50)
.borderWidth(1)
.borderColor('#fffffff')
Row() {
Image($r('app.media.returns'))
.width(16)
.height(16)
.fillColor(item.type == 1 ? '#ffffff' : '#ff92e0b7')
.objectFit(ImageFit.Cover)
.position({
x: item.type == 1 ? -10 : '97%',
y: 2
})
.rotate({
x: 0,
y: 0,
z: 1,
centerX: '50%',
centerY: '50%',
angle: item.type == 1 ? 180 : 0
})
Row() {
Text(item.content)
.fontSize(14)
.fontColor('#333333')
}
.padding({ right: 10, left: 10 })
}
.justifyContent(FlexAlign.Start)
.align(Alignment.Start)
.padding({
top: 10,
bottom: 10
})
.width('65%')
.margin({ left: item.type == 1 ? 15 : 0, right: item.type == 1 ? 0 : 15 })
.backgroundColor(item.type == 1 ? '#ffffff' : '#ff92e0b7')
.borderRadius(5)
}
.width('100%')
.padding({
top: 10,
right: 10,
left: 10
})
}.onClick(() => {
console.log('111')
})
}, (item) => item.id)
}.zIndex(1)
.width('100%')
.height('100%')
.padding({ bottom: 80 })
Column() {
Flex({ direction: FlexDirection.Row, justifyContent: FlexAlign.SpaceBetween,
alignItems: ItemAlign.Center }) {
Row() {
TextInput({ text: this.msgText, placeholder: '请输入聊天内容', controller: this.controller })
.placeholderColor(Color.Grey)
.placeholderFont({ size: 14, weight: 400 })
.caretColor(Color.Blue)
.height(35)
.fontSize(14)
.margin({ left: 15 })
.fontColor(Color.Black)
.onChange((value: string) => {
this.msgText = value
})
}
.flexGrow(1)
Button('发送')
.margin(15)
.fontSize(16)
.width(100)
.height(35)
.backgroundColor('#ff64e394')
.onClick(() => {
this.send()
})
}
.width('100%')
.backgroundColor('#ffffff')
.margin({bottom:35})
}
.width('100%')
.zIndex(100)
}.width('100%')
.height('100%')
.backgroundColor('#f7f7f7').padding({ top: 5 })
}
}
}
