Redission延迟消息队列解决方案



修改redis配置文件

该功能需要redis单节点，集群的没验证过，有时间的小伙伴可以验证一下。找到redis.conf文件，修改notify-keyspace-events。配置文件修改后需要重新启动redis。

#  Example 2: to get the stream of the expired keys subscribing to channel
#             name __keyevent@0__:expired use:
#
#  notify-keyspace-events Ex
#
#  By default all notifications are disabled because most users don't need
#  this feature and the feature has some overhead. Note that if you don't
#  specify at least one of K or E, no events will be delivered.



notify-keyspace-events Ex

修改pom配置文件

以下三种依赖都行，随便选择一个就行。

		<dependency>
			<groupId>com.zengtengpeng</groupId>
			<artifactId>redisson-spring-boot-starter</artifactId>
			<version>1.0.8</version>
		</dependency>

   		<!-- redis 依赖 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-redis</artifactId>
        </dependency>

<dependency>
    <groupId>org.redisson</groupId>
    <artifactId>redisson-spring-boot-starter</artifactId>
    <version>3.11.0</version>
</dependency>

核心代码

RedisDelayQueueTestRunner.java

package cn.renkai721.redisDelay;


import lombok.extern.slf4j.Slf4j;
import org.springframework.boot.CommandLineRunner;
import org.springframework.stereotype.Component;

import javax.annotation.Resource;
import java.util.concurrent.TimeUnit;

/**
 * @author renkai721@163.com
 * @Description: 启动延迟队列 （如果是微服务，避免被其他服务消费，应该把此RUNNER和ENUM提取到其他相关delay的上一级）
 * @date 2023-07-21 08:20
 */
@Slf4j
@Component
public class RedisDelayQueueTestRunner implements CommandLineRunner {
    public static String pms_delay_key_mqtt_client_timeout = "pms_delay_key_mqtt_client_timeout";

    @Resource
    private RedisDelayQueueUtil redisDelayQueueUtil;

    @Override
    public void run(String... args) {
        // 我这里只是用runner代替一下，实际中下面的代码应该出现在事件触发的接口中
        // 自己需要用到的业务数据组合成KEY
        String key = "F2300006";
        redisDelayQueueUtil.addDelayQueue(key, 96, TimeUnit.SECONDS, pms_delay_key_mqtt_client_timeout);
        key = "F2300007";
        redisDelayQueueUtil.addDelayQueue(key, 125, TimeUnit.SECONDS, pms_delay_key_mqtt_client_timeout);
        key = "F2300008";
        redisDelayQueueUtil.addDelayQueue(key, 125, TimeUnit.SECONDS, pms_delay_key_mqtt_client_timeout);

    }
}

RedisDelayQueueRunner.java

package cn.renkai721.redisDelay;


import lombok.extern.slf4j.Slf4j;
import org.redisson.api.RBlockingDeque;
import org.redisson.api.RedissonClient;
import org.springframework.boot.CommandLineRunner;
import org.springframework.stereotype.Component;

import javax.annotation.Resource;

/**
 * @author renkai721@163.com
 * @Description: 启动延迟队列
 * @date 2023-07-21 08:20
 */
@Slf4j
@Component
public class RedisDelayQueueRunner implements CommandLineRunner {

    @Resource
    private RedissonClient redissonClient;
    @Resource
    private RedisDelayQueueUtil redisDelayQueueUtil;

    @Override
    public void run(String... args) {

            RBlockingDeque<String> blockingDeque = redissonClient.getBlockingDeque(RedisDelayQueueTestRunner.pms_delay_key_mqtt_client_timeout);
            // 避免消息伪丢失（应用重启未消费），官网推荐
            redissonClient.getDelayedQueue(blockingDeque) ;
            new Thread(() -> {
                while (true) {
                    try {
                        String msg = blockingDeque.take();
                        if(msg != null) {
                            // 这里处理自己的业务逻辑
                            // ...
                            log.info("Redis延迟队列触发，请及时处理您的业务。msg={}",msg);
                            // 处理完业务逻辑，需要删除延迟队列
                            redisDelayQueueUtil.removeDelayedQueue(msg, RedisDelayQueueTestRunner.pms_delay_key_mqtt_client_timeout);
                        }
                    } catch (InterruptedException e) {
                        log.error("(Redis延迟队列异常中断) {}", e.getMessage());
                    }
                }
            }).start();


    }
}

RedisDelayQueueUtil.java

package cn.renkai721.redisDelay;
import lombok.NonNull;
import lombok.extern.slf4j.Slf4j;
import org.apache.commons.lang3.StringUtils;
import org.redisson.api.RBlockingDeque;
import org.redisson.api.RDelayedQueue;
import org.redisson.api.RedissonClient;
import org.springframework.stereotype.Component;

import javax.annotation.Resource;
import java.time.Duration;
import java.time.LocalDateTime;
import java.util.Map;
import java.util.Objects;
import java.util.concurrent.TimeUnit;

/**
 * @author renkai721@163.com
 * @Description: 延迟队列工具
 * @date 2023-07-21 08:20
 */
@Slf4j
@Component
public class RedisDelayQueueUtil {
    @Resource
    private RedissonClient redissonClient;

    public <T> void addDelayQueue(T value, LocalDateTime endTime, String queueCode) {
        long seconds = Duration.between(LocalDateTime.now(), endTime).getSeconds();
        if (seconds > 0) {
            addDelayQueue(value, seconds, TimeUnit.SECONDS, queueCode);
        }
    }
    public <T> void addDelayQueue(T value, long delay, String queueCode) {
        addDelayQueue(value, delay, TimeUnit.SECONDS, queueCode);
    }
    /**
     * 添加延迟队列
     * @param value 队列值
     * @param delay 延迟时间
     * @param timeUnit 时间单位
     * @param queueCode 队列键
     * @param <T> 泛型
     */
    public <T> void addDelayQueue(T value, long delay, TimeUnit timeUnit, String queueCode){
        try {
            RBlockingDeque<Object> blockingDeque = redissonClient.getBlockingDeque(queueCode);
            RDelayedQueue<Object> delayedQueue = redissonClient.getDelayedQueue(blockingDeque);
            delayedQueue.offer(value, delay, timeUnit);
//            log.info("(添加延时队列成功) 队列键：{}，队列值：{}，延迟时间：{}", queueCode, value, timeUnit.toSeconds(delay) + "秒");
            //释放队列
            delayedQueue.destroy();
        } catch (Exception e) {
//            log.error("(添加延时队列失败) {}", e.getMessage());
            throw new RuntimeException("(添加延时队列失败)");
        }
    }


    /**
     * 获取延迟队列
     * @param queueCode 队列主键
     * @param <T> 泛型
     * @return
     * @throws InterruptedException
     */
    public <T> T getDelayQueue(String queueCode) throws InterruptedException {
        RBlockingDeque<Map> blockingDeque = redissonClient.getBlockingDeque(queueCode);
        //避免消息伪丢失（应用重启未消费），官网推荐
        redissonClient.getDelayedQueue(blockingDeque) ;
        T value  = (T) blockingDeque.take();
        return value;
    }


    public boolean removeDelayedQueue(@NonNull Object o, @NonNull String queueCode) {
        if (StringUtils.isBlank(queueCode) || Objects.isNull(o)) {
            return false;
        }
        try {
            RBlockingDeque<Object> blockingDeque = redissonClient.getBlockingDeque(queueCode);
            RDelayedQueue<Object> delayedQueue = redissonClient.getDelayedQueue(blockingDeque);
            boolean flag = delayedQueue.remove(o);
            if(flag){
//                log.info("(删除延时队列保证唯一性) 队列键：{}，队列值：{}", queueCode, o);
            }
            delayedQueue.destroy();
            return flag;
        } catch (Exception e) {
//            log.error("(删除延时队列异常) 队列键：{}，队列值：{},错误信息：{}",queueCode, o, e.getMessage());
            throw new RuntimeException("(删除延时队列异常)");
        }

    }
}

测试结果

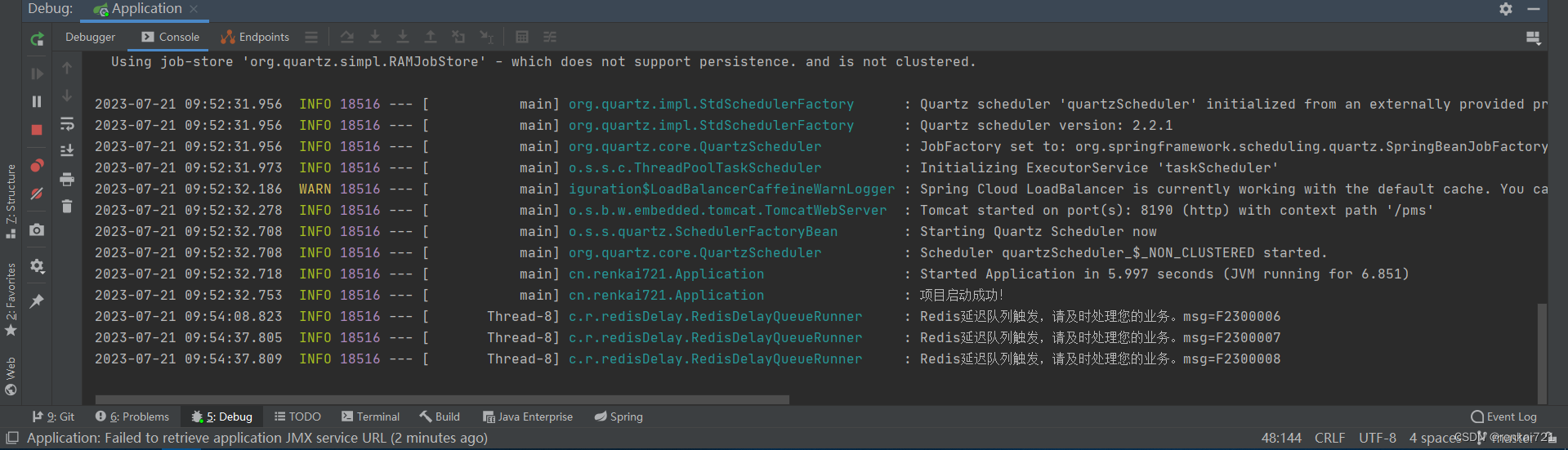

大家看到的下图是开了一个服务的结果。我好奇这种演示消息队列在微服务下会不会重复消费，于是我们服务部署了2台，它尽然自己做了重复消费的逻辑，不需要我们单独加锁处理重复消费的问题。真的很棒！

 -------------以上就是redis key过期后callback的功能代码了----------

-------------以上就是Redission延迟消息队列解决方案代码了---------

知识扩展

如果小伙伴需要监听的类型比较多，比如说用户离线监听，订单超时未支付，优惠卷过期提醒等多业务的时候，就要在RedisDelayQueueRunner类里面监听多个KEY了，这时候会显的代码不美观，这时候可以参考一下另一位博主的枚举做法。
