android 5.0.X上实用SVG，其中包含科学计数法时出现crash

很坑的问题，但是很大，在所有Android5.0设备上，app直接crash。google baidu 都没用，无果，一点一点的排查。最终找到原因。因为项目中使用了很多SVG，SVG都是使用工具生成出来的，所以避免不了默写SVG包含科学计数法。
问题来了，SVG中的科学计数法是啥样？

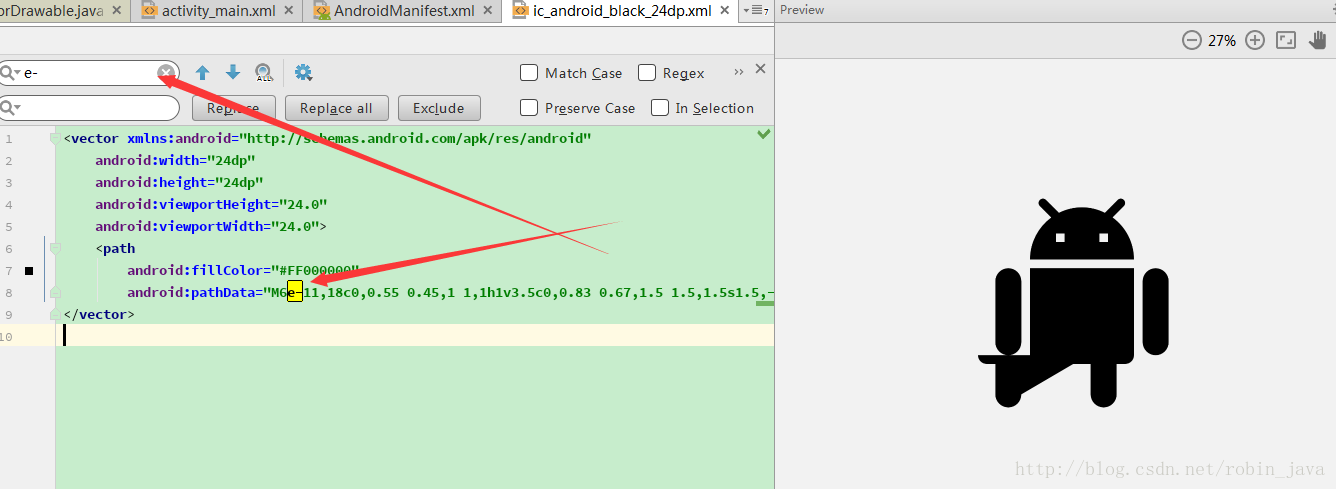

直接搜‘e-’像这样

如果包含这种，你运行在Android5.0的设备上，应该直接crash，具体如下

04-10 09:33:25.713 19306-19306/com.robin.myapplication E/AndroidRuntime: FATAL EXCEPTION: main
                                                                         Process: com.robin.myapplication, PID: 19306
                                                                         java.lang.ArrayIndexOutOfBoundsException: length=1; index=1
                                                                             at android.util.PathParser$PathDataNode.addCommand(PathParser.java:335)
                                                                             at android.util.PathParser$PathDataNode.nodesToPath(PathParser.java:260)
                                                                             at android.graphics.drawable.VectorDrawable$VPath.toPath(VectorDrawable.java:1265)
                                                                             at android.graphics.drawable.VectorDrawable$VPathRenderer.drawPath(VectorDrawable.java:950)
                                                                             at android.graphics.drawable.VectorDrawable$VPathRenderer.drawGroupTree(VectorDrawable.java:931)
                                                                             at android.graphics.drawable.VectorDrawable$VPathRenderer.draw(VectorDrawable.java:938)
                                                                             at android.graphics.drawable.VectorDrawable$VectorDrawableState.updateCachedBitmap(VectorDrawable.java:705)
                                                                             at android.graphics.drawable.VectorDrawable.draw(VectorDrawable.java:280)
                                                                             at android.view.View.getDrawableRenderNode(View.java:15396)
                                                                             at android.view.View.drawBackground(View.java:15347)
                                                                             at android.view.View.draw(View.java:15113)
                                                                             at android.view.View.updateDisplayListIfDirty(View.java:14056)
                                                                             at android.view.View.getDisplayList(View.java:14079)
                                                                             at android.view.View.draw(View.java:14846)
                                                                             at android.view.ViewGroup.drawChild(ViewGroup.java:3404)
                                                                             at android.view.ViewGroup.dispatchDraw(ViewGroup.java:3198)
                                                                             at android.view.View.updateDisplayListIfDirty(View.java:14051)
                                                                             at android.view.View.getDisplayList(View.java:14079)
                                                                             at android.view.View.draw(View.java:14846)
                                                                             at android.view.ViewGroup.drawChild(ViewGroup.java:3404)
                                                                             at android.view.ViewGroup.dispatchDraw(ViewGroup.java:3198)
                                                                             at android.view.View.updateDisplayListIfDirty(View.java:14051)
                                                                             at android.view.View.getDisplayList(View.java:14079)
                                                                             at android.view.View.draw(View.java:14846)
                                                                             at android.view.ViewGroup.drawChild(ViewGroup.java:3404)
                                                                             at android.view.ViewGroup.dispatchDraw(ViewGroup.java:3198)
                                                                             at android.view.View.updateDisplayListIfDirty(View.java:14051)
                                                                             at android.view.View.getDisplayList(View.java:14079)
                                                                             at android.view.View.draw(View.java:14846)
                                                                             at android.view.ViewGroup.drawChild(ViewGroup.java:3404)
                                                                             at android.view.ViewGroup.dispatchDraw(ViewGroup.java:3198)
                                                                             at android.view.View.updateDisplayListIfDirty(View.java:14051)
                                                                             at android.view.View.getDisplayList(View.java:14079)
                                                                             at android.view.View.draw(View.java:14846)
                                                                             at android.view.ViewGroup.drawChild(ViewGroup.java:3404)
                                                                             at android.view.ViewGroup.dispatchDraw(ViewGroup.java:3198)
                                                                             at android.view.View.updateDisplayListIfDirty(View.java:14051)
                                                                             at android.view.View.getDisplayList(View.java:14079)
                                                                             at android.view.View.draw(View.java:14846)
                                                                             at android.view.ViewGroup.drawChild(ViewGroup.java:3404)
                                                                             at android.view.ViewGroup.dispatchDraw(ViewGroup.java:3198)
                                                                             at android.view.View.draw(View.java:15125)
                                                                             at android.widget.FrameLayout.draw(FrameLayout.java:592)
                                                                             at com.android.internal.policy.impl.PhoneWindow$DecorView.draw(PhoneWindow.java:2595)
                                                                             at android.view.View.updateDisplayListIfDirty(View.java:14056)
                                                                             at android.view.View.getDisplayList(View.java:14079)
                                                                             at android.view.ThreadedRenderer.updateViewTreeDisplayList(ThreadedRenderer.java:266)
                                                                             at android.view.ThreadedRenderer.updateRootDisplayList(ThreadedRenderer.java:272)
                                                                             at android.view.ThreadedRenderer.draw(ThreadedRenderer.java:311)
                                                                             at android.view.ViewRootImpl.draw(ViewRootImpl.java:2492)
                                                                             at android.view.ViewRootImpl.performDraw(ViewRootImpl.java:2337)
                                                                             at android.view.ViewRootImpl.performTraversals(ViewRootImpl.java:1968)
                                                                             at android.view.ViewRootImpl.doTraversal(ViewRootImpl.java:1054)
                                                                             at android.view.ViewRootImpl$TraversalRunnable.run(ViewRootImpl.java:5779)
                                                                             at android.view.Choreographer$CallbackRecord.run(Choreographer.java:767)
                                                                             at android.view.Choreographer.doCallbacks(Choreographer.java:580)
                                                                             at android.view.Choreographer.doFrame(Choreographer.java:550)
                                                                             at android.view.Choreographer$FrameDisplayEventReceiver.run(Choreographer.java:753)
                                                                             at android.os.Handler.handleCallback(Handler.java:739)
                                                                             at android.os.Handler.dispatchMessage(Handler.java:95)
                                                                             at android.os.Looper.loop(Looper.java:135)
                                                                             at android.app.ActivityThread.main(ActivityThread.java:5264)
                                                                            at

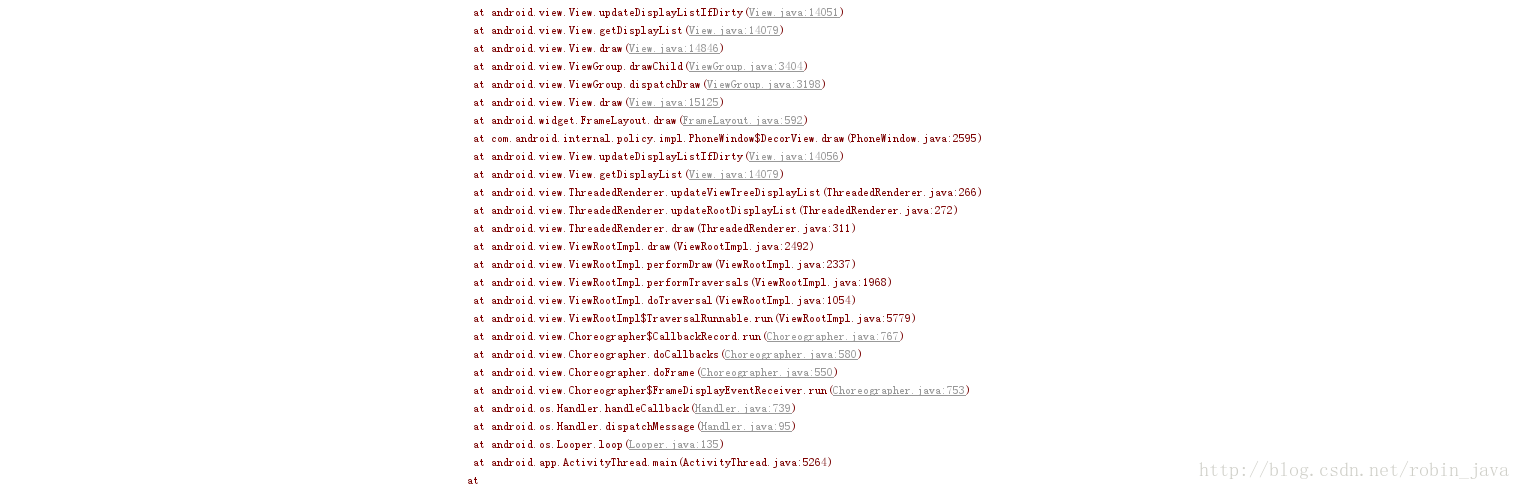

截图如下：


关于解决方案：要是工具（PhotoShop）转出来的带有科学计数法，比如2.567e-10,那么我们就要转化成小数格式。（学前班的数学老师告诉过我，要把科学计数法转换成小数，小数点向前移动一位，不足补零）所以，
2.567e-10=0.0000000002567，大家可以看一下效果，跟科学计数法相同，说明可以代替科学计数法。
附赠一个web端的转SVG网站
http://inloop.github.io/svg2android/
