🚨 问题现象
在 uni-app 项目在支付宝小程序调试 时控制台报错:
TypeError: Converting circular structure to JSON
--> starting at object with constructor 'Object'
--- property '_renderProxy' closes the circle
🔍 问题根源
数据中存在 循环引用结构,常见场景:
- Vue 实例被存入
data
(如this.self = this
) - 父子组件双向引用
- 嵌套对象相互引用(如
a.ref = b; b.ref = a
) - 第三方库返回含观察者对象(
__ob__
)
🚀 完整解决方案
一、智能检测定位
1. 循环引用探测器
import { Vue, Component } from 'vue-property-decorator'
@Component
export default class CircularReferenceDetector extends Vue {
// 可视化路径检测
checkDataSafety() {
const detect = (obj: any, path: string[] = []): boolean => {
const seen = new WeakSet()
let found = false
const _scan = (current: any, currentPath: string[]) => {
if (typeof current !== 'object' || current === null) return
if (seen.has(current)) {
console.error(`🔥 循环引用路径: %c${currentPath.join('.')}`,
'color: #ff4757; font-weight: bold')
found = true
return
}
seen.add(current)
Object.keys(current).forEach(key => {
_scan(current[key], [...currentPath, key])
})
seen.delete(current)
}
_scan(obj, path)
return found
}

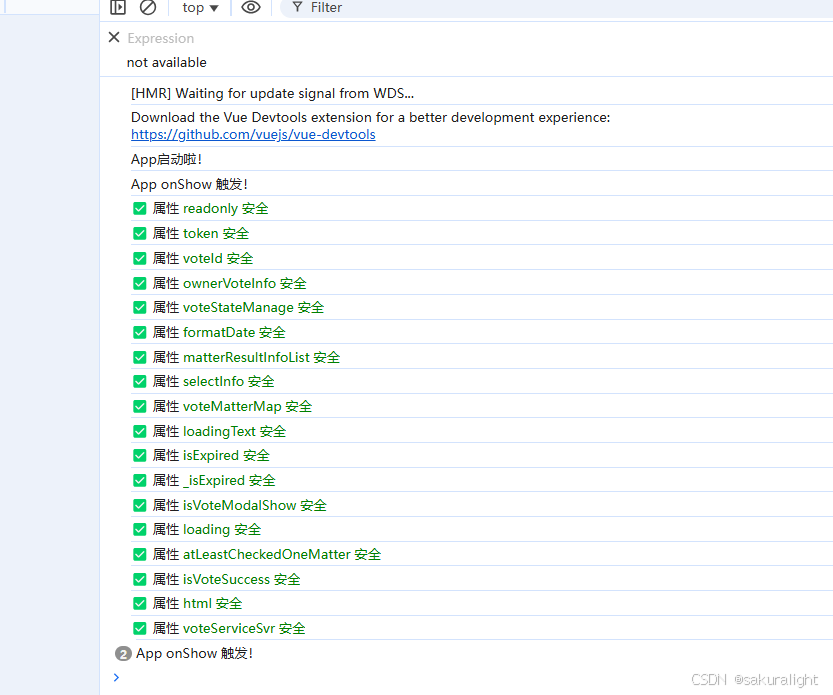

Object.keys(this.$data).forEach(key => {
detect((this.$data as any)[key], [key]) ||
console.log(`✅ %c${key} 安全`, 'color: #2ed573')
})
}
mounted() {
this.checkDataSafety()
}
}
2. 使用方法
// 在需要检测的组件中混入
import CircularReferenceDetector from '@/mixins/circular-detector'
@Component({
mixins: [CircularReferenceDetector]
})
export default class UserComponent extends Vue {
// 组件逻辑...
}
二、安全修复方案
1. 危险引用转私有属性
@Component
export default class SafeComponent extends Vue {
// ❌ 危险写法
// private dangerousRef = this
// ✅ 安全写法(非响应式)
private _internalRef!: Vue
created() {
Object.defineProperty(this, '_internalRef', {
value: this,
writable: false,
enumerable: false, // 关键!避免被遍历
configurable: false
})
}
}
2. 安全数据克隆
// utils/safe-clone.ts
import _ from 'lodash'
export const safeClone = <T>(data: T): T => {
return _.cloneDeepWith(data, value => {
// 过滤 Vue 内部属性
if (value?.__ob__) return undefined
// 阻断组件实例克隆
if (value instanceof Vue) return '[Vue Instance]'
})
}
// 使用示例
const originalData = this.$data
const cleanData = safeClone(originalData)
三、防御性编码规范
1. 数据定义三原则
原则 | 正确示例 | 错误示例 |
---|---|---|
避免自我引用 | 使用非响应式私有属性 | data() { self: this } |
嵌套对象层级控制 | 不超过3层 | 无限嵌套结构 |
第三方数据消毒 | 使用安全克隆函数 | 直接使用原始数据 |
2. 组件引用准则
@Component
export default class RelationComponent extends Vue {
// ✅ 安全子组件引用
@Ref('child')
readonly childComponent!: InstanceType<typeof ChildComponent>
// ✅ 安全父组件通信
@Prop({ default: null })
readonly parentRef!: Vue | null
}
四、工程化防护
1. ESLint 配置(.eslintrc.js)
module.exports = {
rules: {
'no-unsafe-references': ['error', {
forbiddenProperties: ['_renderProxy', '__ob__'],
checkTemplateLiterals: true
}],
'vue/no-cyclic-props': 'error'
}
}
2. 单元测试模板
// tests/unit/circular-check.spec.ts
describe('循环引用检测套件', () => {
const components = [Component1, Component2, Component3]
components.forEach(Component => {
test(`${Component.name} 数据安全`, () => {
const wrapper = mount(Component)
expect(() => wrapper.vm.checkDataSafety()).not.toThrow()
})
})
}
🛡️ 高级防护方案
1. 内存快照分析
// Chrome DevTools 操作指南
1. 打开开发者工具 → Memory 面板
2. 点击 "Take heap snapshot"
3. 搜索栏输入 "Circular"
4. 检查红色标记的循环引用链
2. 支付宝小程序特殊处理
// manifest.json 优化配置
{
"mp-alipay": {
"optimization": {
"transpileRuntime": true,
"forcePatchQuery": true,
"dataSecurity": {
"enable": true,
"excludeProperties": ["_internalRef"]
}
}
}
}
