ABAP动态编程-动态生成报表、动态屏幕

目录

前言

一、动态生成报表并调用

二、动态生成屏幕并调用

总结

前言

        本文主要讲述ABAP编程中根据逻辑自动生成报表及屏幕（依托语句GENERATE DYNPRO）的实现示例及简单说明。

一、动态生成报表并调用
        代码示例：

  " Create report
  INSERT REPORT lv_program FROM lt_codes STATE 'A'.
  COMMIT WORK AND WAIT.
  " Execute
  SUBMIT (lv_program) WITH SELECTION-TABLE lt_rsparams AND RETURN.
  " Delete
  DELETE REPORT lv_program.
        PS: 该种方式生成报表不会刷新所用处清单，可临时生成报表并调用来执行动态逻辑，缺点是和主程序交互麻烦。lv_program为程序名，lt_code 为代码，注意每行代码长度。

二、动态生成屏幕并调用
        代码示例：

DATA: lv_tabname TYPE tabname VALUE 'T001'.

DATA: ls_dynpro_header TYPE d020s,
      lt_feild_list    TYPE TABLE OF d021s,
      ls_feild_list    TYPE d021s,
      lt_flow_logic    TYPE TABLE OF d022s,
      ls_flow_logic    TYPE d022s,
      lt_matchcode     TYPE TABLE OF d023s,
      ls_matchcode     TYPE d023s,
      lv_message       TYPE text240,
      lv_lines         TYPE i,
      lv_word          TYPE char72.

DATA: BEGIN OF ls_dynp_id,
        prog LIKE d020s-prog,
        dnum LIKE d020s-dnum,
      END OF ls_dynp_id.

ls_dynp_id-prog = sy-repid.
ls_dynp_id-dnum = 9001.

CLEAR: ls_dynpro_header.
ls_dynpro_header-prog = sy-repid.
ls_dynpro_header-dnum = 9001.
ls_dynpro_header-fnum = 9001.
ls_dynpro_header-mili = 192.
ls_dynpro_header-mico = 37.
ls_dynpro_header-noli = 27.
ls_dynpro_header-noco = 121.
ls_dynpro_header-cuan = 'G'.
ls_dynpro_header-spra = '1'.
ls_dynpro_header-dgen = sy-datum.
ls_dynpro_header-tgen = sy-uzeit.

CLEAR ls_feild_list.
ls_feild_list-fnam = 'TEXT001'.
ls_feild_list-fmb1 = '30'.
ls_feild_list-leng = '0A'.
ls_feild_list-line = '02'.
ls_feild_list-coln = '02'.
ls_feild_list-type = 'CHAR'.
ls_feild_list-ityp = 'C'.
ls_feild_list-stxt = 'Table Name'.
APPEND ls_feild_list TO lt_feild_list.

CLEAR ls_feild_list.
ls_feild_list-fnam = 'lv_tabname'.
ls_feild_list-flg1 = '80'.
ls_feild_list-flg3 = '80'.
ls_feild_list-line = '02'.
ls_feild_list-leng = '10'.
ls_feild_list-coln = '0F'.
ls_feild_list-type = 'CHAR'.
ls_feild_list-ityp = 'C'.
ls_feild_list-stxt = '________________'.
APPEND ls_feild_list TO lt_feild_list.

CLEAR ls_feild_list.
ls_feild_list-fnam = ''.
ls_feild_list-flg1 = '80'.
ls_feild_list-flg2 = '10'.
ls_feild_list-line = 'FF'.
ls_feild_list-leng = '14'.
ls_feild_list-coln = '01'.
ls_feild_list-type = 'CHAR'.
ls_feild_list-ltyp = 'O'.
ls_feild_list-stxt = '________________'.
APPEND ls_feild_list TO lt_feild_list.

" 逻辑流代码
lt_flow_logic = VALUE #( ( line = `PROCESS BEFORE OUTPUT.`       )
                         ( line = `  MODULE STATUS_9001.`        )
                         ( line = `  `                           )
                         ( line = `PROCESS AFTER INPUT.`         )
                         ( line = `  MODULE USER_COMMAND_9001.`  )
                        ).
" 屏幕参数
lt_matchcode = VALUE #( ( type = '' content = '' ) ).

DELETE DYNPRO ls_dynp_id.

GENERATE DYNPRO ls_dynpro_header lt_feild_list lt_flow_logic lt_matchcode ID ls_dynp_id
             MESSAGE lv_message
             LINE lv_lines WORD lv_word.

CALL SCREEN ls_dynp_id-dnum.
DELETE DYNPRO ls_dynp_id.

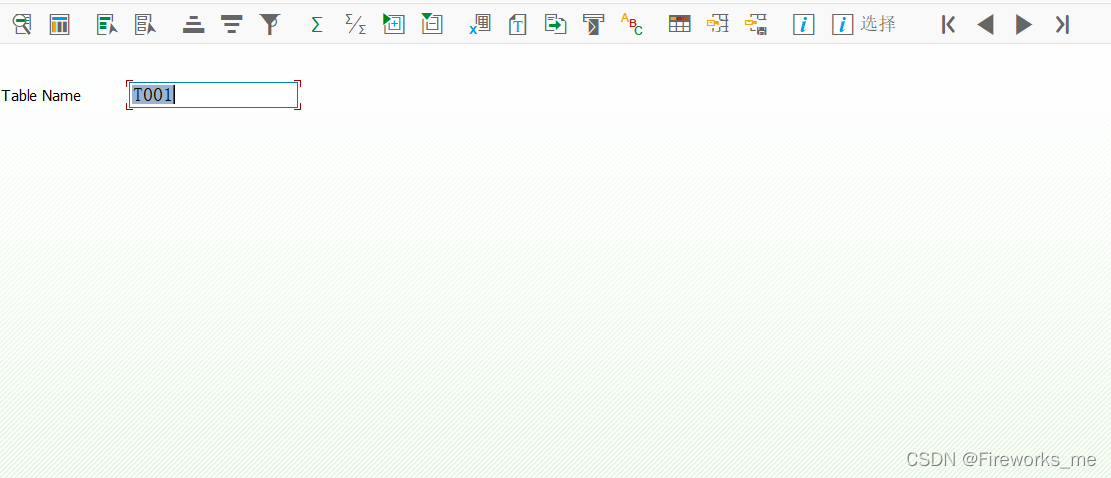

          效果：



        可动态生成屏幕,即用即生成,用完即弃.该代码生成的屏幕缺点是不会关联所用处清单,即在SE80中无法查看,如果要永久生成使用如下代码.

DATA: lv_tabname TYPE tabname VALUE 'T001'.

DATA: ls_dynpro_header TYPE d020s,
      lt_feild_list    TYPE TABLE OF d021s,
      ls_feild_list    TYPE d021s,
      lt_flow_logic    TYPE TABLE OF d022s,
      ls_flow_logic    TYPE d022s,
      lt_matchcode     TYPE TABLE OF d023s,
      ls_matchcode     TYPE d023s,
      lv_message       TYPE text240,
      lv_lines         TYPE i,
      lv_word          TYPE char72.

DATA: BEGIN OF ls_dynp_id,
        prog LIKE d020s-prog,
        dnum LIKE d020s-dnum,
      END OF ls_dynp_id.

DATA: lv_obj_name TYPE e071-obj_name.

ls_dynp_id-prog = sy-repid.
ls_dynp_id-dnum = 9001.

CLEAR: ls_dynpro_header.
ls_dynpro_header-prog = sy-repid.
ls_dynpro_header-dnum = 9001.
ls_dynpro_header-fnum = 9001.
ls_dynpro_header-mili = 192.
ls_dynpro_header-mico = 37.
ls_dynpro_header-noli = 27.
ls_dynpro_header-noco = 121.
ls_dynpro_header-cuan = 'G'.
ls_dynpro_header-spra = '1'.
ls_dynpro_header-dgen = sy-datum.
ls_dynpro_header-tgen = sy-uzeit.

CLEAR ls_feild_list.
ls_feild_list-fnam = 'TEXT001'.
ls_feild_list-fmb1 = '30'.
ls_feild_list-leng = '0A'.
ls_feild_list-line = '02'.
ls_feild_list-coln = '02'.
ls_feild_list-type = 'CHAR'.
ls_feild_list-ityp = 'C'.
ls_feild_list-stxt = 'Table Name'.
APPEND ls_feild_list TO lt_feild_list.

CLEAR ls_feild_list.
ls_feild_list-fnam = 'lv_tabname'.
ls_feild_list-flg1 = '80'.
ls_feild_list-flg3 = '80'.
ls_feild_list-line = '02'.
ls_feild_list-leng = '10'.
ls_feild_list-coln = '0F'.
ls_feild_list-type = 'CHAR'.
ls_feild_list-ityp = 'C'.
ls_feild_list-stxt = '________________'.
APPEND ls_feild_list TO lt_feild_list.

CLEAR ls_feild_list.
ls_feild_list-fnam = ''.
ls_feild_list-flg1 = '80'.
ls_feild_list-flg2 = '10'.
ls_feild_list-line = 'FF'.
ls_feild_list-leng = '14'.
ls_feild_list-coln = '01'.
ls_feild_list-type = 'CHAR'.
ls_feild_list-ltyp = 'O'.
ls_feild_list-stxt = '________________'.
APPEND ls_feild_list TO lt_feild_list.

" 逻辑流代码
lt_flow_logic = VALUE #( ( line = `PROCESS BEFORE OUTPUT.`       )
                         ( line = `  MODULE STATUS_9001.`        )
                         ( line = `  `                           )
                         ( line = `PROCESS AFTER INPUT.`         )
                         ( line = `  MODULE USER_COMMAND_9001.`  )
                        ).
" 屏幕参数
lt_matchcode = VALUE #( ( type = '' content = '' ) ).

DELETE DYNPRO ls_dynp_id.

CALL FUNCTION 'RPY_DYNPRO_INSERT_NATIVE'
  EXPORTING
    header             = ls_dynpro_header
    dynprotext         = 'Generated dynpro'
  TABLES
    fieldlist          = lt_feild_list
    flowlogic          = lt_flow_logic
    params             = lt_matchcode
  EXCEPTIONS
    cancelled          = 1
    already_exists     = 2
    program_not_exists = 3
    not_executed       = 4
    OTHERS             = 5.
IF sy-subrc <> 0.

ENDIF.

GENERATE DYNPRO ls_dynpro_header lt_feild_list lt_flow_logic lt_matchcode ID ls_dynp_id
             MESSAGE lv_message
             LINE lv_lines WORD lv_word.

CALL FUNCTION 'RS_WORKING_AREA_ACTIVE_CHECK'
  EXCEPTIONS
    nok    = 1
    OTHERS = 2.
IF sy-subrc = 0.
  lv_obj_name = ls_dynp_id.
  CALL FUNCTION 'RS_WORKING_AREA_INIT'.
  CALL FUNCTION 'RS_DELETE_FROM_WORKING_AREA'
    EXPORTING
      object   = 'DYNP'
      obj_name = lv_obj_name
    EXCEPTIONS
      OTHERS   = 1.
ENDIF.

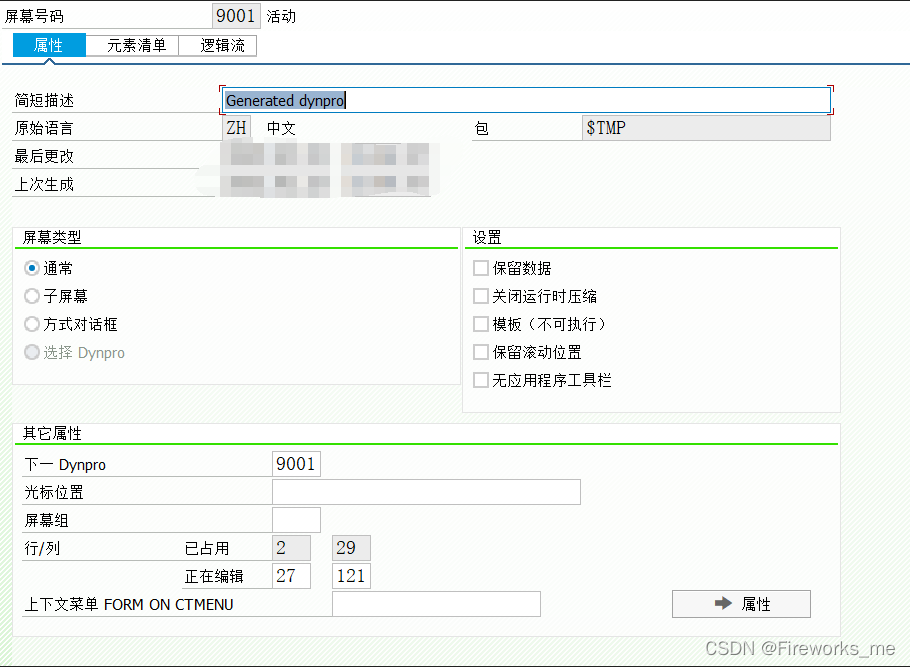

        生成屏幕展示：



         可以使用如下代码获取屏幕参数参考

DATA: ls_dynpro_header TYPE d020s,
      lt_feild_list    TYPE TABLE OF d021s,
      lt_flow_logic    TYPE TABLE OF d022s,
      lt_matchcode     TYPE TABLE OF d023s.

DATA: BEGIN OF ls_dynp_id,
        prog LIKE d020s-prog,
        dnum LIKE d020s-dnum,
      END OF ls_dynp_id.

ls_dynp_id-prog = sy-repid.
ls_dynp_id-dnum = 9001.
IMPORT DYNPRO  ls_dynpro_header lt_feild_list lt_flow_logic lt_matchcode ID ls_dynp_id.
         PS: 屏幕生成可以选择动态生成，临时使用，也可以选择永久生成，自动化编程，参考SM30。注意动态屏幕生成和选择动态选择屏幕时两回事。

总结
        1. 报表和屏幕的动态生成，可以作为实现代码的动态效果的一种方式，每次执行都动态生成，也可以作为自动化编程的一种，生成永久的代码，这部分可参考SM30.

        2. 其它永久生成abap开发对象的方式可以参考abapgit源码。
————————————————
