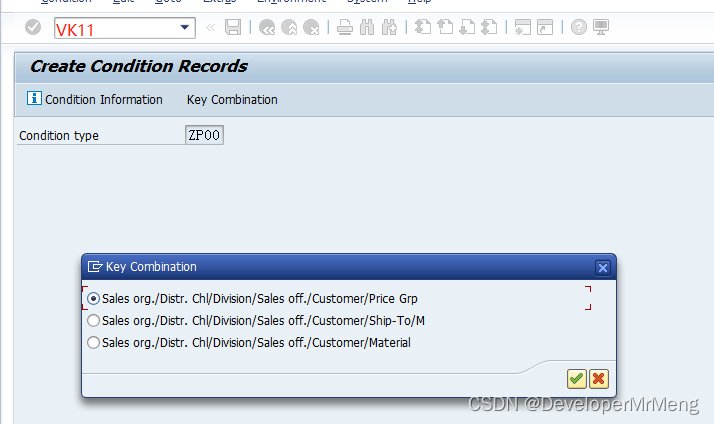

最近项目成员碰到一个需求，有一个关于定价批导的需求，期望是能像VK11前台一样，输入条件类型后，自动显示所有的关键字组合，并根据选择的组合来动态下载模板及上传，因为每种组合的Key字段都不一样，模板也会不一样。

其实这个问题难点只在于如何动态生成选择屏幕字段，动态下载模板借助OLE可以轻松实现，动态上传借助指针也可以轻松实现。我之前的帖子中有可以达到类似效果的参考代码：

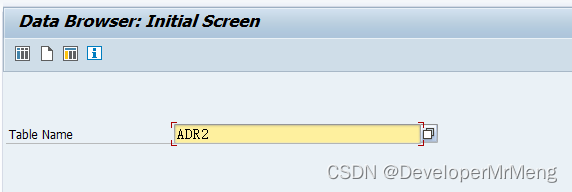

通过ABAP代码实现批导创建SAP表/结构/数据元素/域（SE11/BAPI）https://blog.csdn.net/DeveloperMrMeng/article/details/128257812?spm=1001.2014.3001.5501 MD61计划独立需求导入BAPI【按日维度/动态模板/动态字段】https://blog.csdn.net/DeveloperMrMeng/article/details/125024469?spm=1001.2014.3001.5501虽然那个需求最终并没有选择进行动态编程，但我还是比较好奇这个需求应该如何实现，其实SAP有一些标准事务也有类似的效果，比如SE16，在输入表名后，回车显示的选择屏幕就是动态生成的。

做完手头工作后，我对这个标准程序进行了DEBUG，最终在函数RS_TABLE_LIST_CREATE中发现其生成原理，在该函数中还可以窥探到动态生成屏幕的原理，这里不多赘述。

实现该功能的核心语法如下：

READ REPORT prog INTO itab [MAXIMUM WIDTH INTO wid].

DELETE REPORT prog.

INSERT REPORT prog FROM itab
              [MAXIMUM WIDTH INTO wid]
              { [KEEPING DIRECTORY ENTRY]
              | { [PROGRAM TYPE pt]
                  [FIXED-POINT ARITHMETIC fp]
                  [VERSION vs] }
              | [DIRECTORY ENTRY dir] }.

GENERATE REPORT prog [error_handling].

READ TEXTPOOL prog INTO itab LANGUAGE lang.

DELETE TEXTPOOL prog LANGUAGE lg.

INSERT TEXTPOOL prog FROM itab LANGUAGE lang.

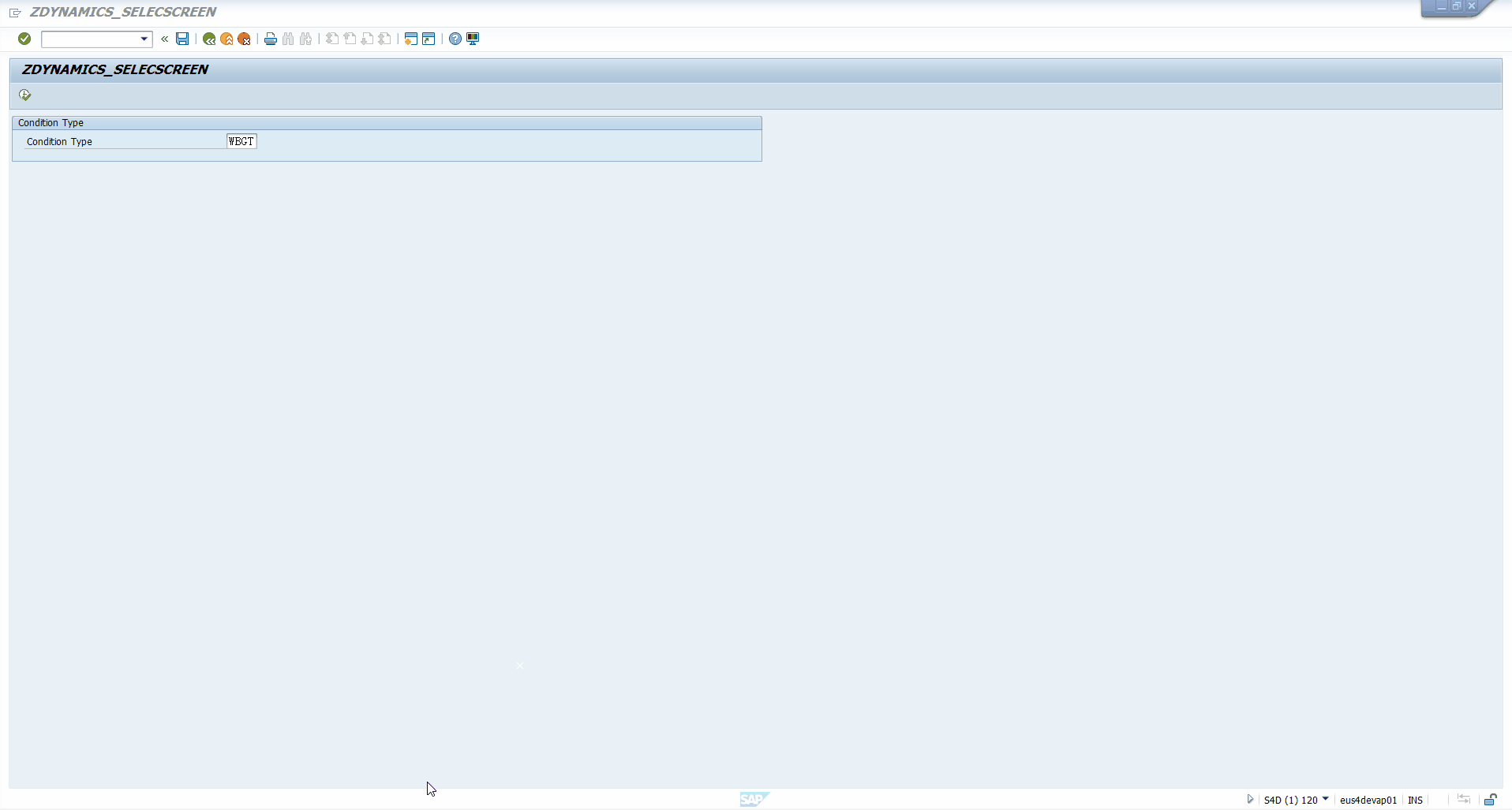

以下为demo效果：

实现原理：

注：通过F1查看其中一些语法说明可以发现，涉及到 DELETE 的语法通常会标注仅用于SAP内部使用，不建议在实际生产中进行使用，应该是担心误删掉一些标准代码，所以本文只是对这种实现方式进行测试及说明，如需实际使用，一定要慎重，并且搭配SYNTAX-CHECK语法或者一些错误检查附加项进行使用。

实现源码：

程序ZGENERATE_SELECSCREEN：

*&---------------------------------------------------------------------*
*& REPORT ZGENERATE_SELECSCREEN
*&---------------------------------------------------------------------*
*&
*&---------------------------------------------------------------------*
REPORT zgenerate_selecscreen.

DATA:
  gv_error TYPE flag.

SELECTION-SCREEN BEGIN OF BLOCK b1 WITH FRAME TITLE TEXT-001.
  PARAMETERS:p_type TYPE t682i-kozgf MODIF ID m3.
SELECTION-SCREEN END OF BLOCK b1.

*&---------------------------------------------------------------------*
*& AT SELECTION-SCREEN OUT
*&---------------------------------------------------------------------*
AT SELECTION-SCREEN.
* Generate selection screen
  PERFORM frm_genarate_selscr.

START-OF-SELECTION.

*&---------------------------------------------------------------------*
*& Form frm_genarate_selscr
*&---------------------------------------------------------------------*
*& Generate selection screen
*&---------------------------------------------------------------------*
FORM frm_genarate_selscr .
  DATA:
    lt_prog        TYPE STANDARD TABLE OF string,
    lt_prog_new    TYPE STANDARD TABLE OF string,
    lt_text_pool   TYPE STANDARD TABLE OF textpool,
    ls_text_pool   TYPE textpool,
    lv_prog        TYPE sy-repid,
    lv_bt_name     TYPE string,
    ls_new_code    TYPE string,
    lv_ucomm       TYPE string,
    lv_symbol      TYPE char1 VALUE '.',
    lv_begin_tabix TYPE sy-tabix,
    lv_end_tabix   TYPE sy-tabix,
    lv_text_symbol TYPE numc3.

  lv_prog = 'ZDYNAMICS_SCREEN'.

  SELECT a~kvewe,
         a~kappl,
         a~kozgf,
         a~kolnr,
         b~gstru,
         b~gstxt
    FROM t682i AS a
    LEFT OUTER JOIN tmc1t AS b
      ON concat( a~kvewe,a~kotabnr ) = b~gstru
     AND b~spras = @sy-langu
   WHERE a~kozgf = @p_type
     AND a~kvewe = 'A'
     AND a~kappl = 'V'
  INTO TABLE @DATA(lt_condtype_info).

  SORT lt_condtype_info BY gstru ASCENDING.
  DELETE ADJACENT DUPLICATES FROM lt_condtype_info COMPARING gstru.

  DATA(lv_lines) = lines( lt_condtype_info ).

  IF lt_condtype_info IS INITIAL.
    gv_error = abap_on.
    MESSAGE 'Error Condition Type' TYPE 'E'.
  ELSE.
*   Get source code
    READ REPORT lv_prog INTO lt_prog.

*   Get text pool
    READ TEXTPOOL lv_prog INTO lt_text_pool LANGUAGE sy-langu.

    LOOP AT lt_prog INTO DATA(ls_prog).
      IF ls_prog CS '*DYNAMIC SCREEN BEGIN*'.
        lv_begin_tabix = sy-tabix.
      ENDIF.
      IF ls_prog CS '*DYNAMIC SCREEN END*'.
        lv_end_tabix = sy-tabix.
        EXIT.
      ENDIF.
    ENDLOOP.

    LOOP AT lt_prog INTO ls_prog.
      IF sy-tabix > lv_begin_tabix AND sy-tabix < lv_end_tabix.
        CONTINUE.
      ENDIF.
      APPEND ls_prog TO lt_prog_new.
    ENDLOOP.

    IF lines( lt_condtype_info ) > 1.
*     Add Begin Block
      ls_new_code = 'SELECTION-SCREEN BEGIN OF BLOCK b3 WITH FRAME TITLE TEXT-003.'.
      lv_begin_tabix = lv_begin_tabix + 1.
      INSERT ls_new_code INTO lt_prog_new INDEX lv_begin_tabix.

      ls_text_pool-id     = 'I'.
      ls_text_pool-key    = '003'.
      ls_text_pool-entry  = TEXT-003.
      ls_text_pool-length = 50.
      DELETE lt_text_pool WHERE id = 'I' AND key = '003'.
      APPEND ls_text_pool TO lt_text_pool.
      CLEAR ls_text_pool.

      lv_text_symbol = 900.

*     Add Radiobutton
      LOOP AT lt_condtype_info INTO DATA(ls_condtype_info).
        IF sy-tabix = 1.
          lv_ucomm = ` DEFAULT 'X'`.
        ELSE.
          lv_ucomm = ''.
        ENDIF.

        lv_bt_name = 'RB_' && ls_condtype_info-gstru.

        ls_new_code = 'SELECTION-SCREEN BEGIN OF LINE.'.
        lv_begin_tabix = lv_begin_tabix + 1.
        INSERT ls_new_code INTO lt_prog_new INDEX lv_begin_tabix.

        ls_new_code = 'PARAMETERS:rb_' && ls_condtype_info-gstru &&
                      ' RADIOBUTTON GROUP grp2' && lv_ucomm && lv_symbol.
        lv_begin_tabix = lv_begin_tabix + 1.
        INSERT ls_new_code INTO lt_prog_new INDEX lv_begin_tabix.

        ADD 1 TO lv_text_symbol.
        ls_new_code = 'SELECTION-SCREEN COMMENT 5(79) TEXT-' && lv_text_symbol && ` FOR FIELD ` && lv_bt_name &&  '.'.
        lv_begin_tabix = lv_begin_tabix + 1.
        INSERT ls_new_code INTO lt_prog_new INDEX lv_begin_tabix.

        ls_new_code = 'SELECTION-SCREEN END OF LINE.'.
        lv_begin_tabix = lv_begin_tabix + 1.
        INSERT ls_new_code INTO lt_prog_new INDEX lv_begin_tabix.

        ls_text_pool-id      = 'I'.
        ls_text_pool-key     = lv_text_symbol.
        ls_text_pool-entry   = ls_condtype_info-gstxt.
        ls_text_pool-length  = 100.
        DELETE lt_text_pool WHERE id = 'I' AND key = lv_text_symbol.
        APPEND ls_text_pool TO lt_text_pool.

************************************************************************
*       The standard selection text has a maximum length of 30 characters
************************************************************************
*        ls_new_code = 'PARAMETERS:rb_' && ls_condtype_info-gstru &&
*                      ' TYPE char1 RADIOBUTTON GROUP grp2' && lv_ucomm && lv_symbol.
*
*        lv_begin_tabix = lv_begin_tabix + 1.
*        INSERT ls_new_code INTO lt_prog_new INDEX lv_begin_tabix.
*
*        ls_text_pool-id      = 'S'.
*        ls_text_pool-key     = lv_bt_name.
*        ls_text_pool-entry+8 = ls_condtype_info-gstxt.
*        ls_text_pool-length  = 50.
*        DELETE lt_text_pool WHERE id = 'S' AND key = lv_bt_name.
*        APPEND ls_text_pool TO lt_text_pool.
************************************************************************

        CLEAR:
          ls_new_code,
          ls_text_pool.
      ENDLOOP.

*     Add End Block
      ls_new_code = 'SELECTION-SCREEN END OF BLOCK b3.'.
      lv_begin_tabix = lv_begin_tabix + 1.
      INSERT ls_new_code INTO lt_prog_new INDEX lv_begin_tabix.
    ENDIF.

    DELETE REPORT lv_prog.

    DELETE TEXTPOOL lv_prog LANGUAGE sy-langu.

    INSERT REPORT lv_prog FROM lt_prog_new.

    INSERT TEXTPOOL lv_prog FROM lt_text_pool LANGUAGE sy-langu.

    GENERATE REPORT lv_prog MESSAGE DATA(lv_err).

    SUBMIT (lv_prog) WITH p_type = p_type VIA SELECTION-SCREEN AND RETURN.
  ENDIF.
ENDFORM.

程序ZDYNAMICS_SCREEN：

*&---------------------------------------------------------------------*
*& Report ZDYNAMICS_SCREEN
*&---------------------------------------------------------------------*
*&
*&---------------------------------------------------------------------*
REPORT zdynamics_screen.

SELECTION-SCREEN BEGIN OF BLOCK b1 WITH FRAME TITLE TEXT-001.
  PARAMETERS:p_type TYPE t682i-kozgf MODIF ID m3.
SELECTION-SCREEN END OF BLOCK b1.

*************************DYNAMIC SCREEN BEGIN***************************
* ...
**************************DYNAMIC SCREEN END****************************

SELECTION-SCREEN BEGIN OF BLOCK b2 WITH FRAME TITLE TEXT-002.
  PARAMETERS:rb_down TYPE char1 RADIOBUTTON GROUP grp1 USER-COMMAND cre,
             rb_upld TYPE char1 RADIOBUTTON GROUP grp1 DEFAULT 'X'.
  PARAMETERS:p_path TYPE rlgrap-filename MODIF ID m2 MEMORY ID m1.
SELECTION-SCREEN END OF BLOCK b2.


AT SELECTION-SCREEN OUTPUT.
* Screen modify
  PERFORM frm_modify_screen.

START-OF-SELECTION.
* Get which on radiobutton has be choosed.
  PERFORM frm_get_sel_bt.

*&---------------------------------------------------------------------*
*& Form FRM_MODIFY_SCREEN
*&---------------------------------------------------------------------*
*& Screen Modify
*&---------------------------------------------------------------------*
FORM frm_modify_screen .
  LOOP AT SCREEN.
    IF screen-name = 'P_TYPE'.
      screen-input = 0.
    ENDIF.
    IF screen-group1 = 'M2'.
      IF rb_upld = abap_on.
        screen-active = 1.
      ELSE.
        screen-active = 0.
      ENDIF.
    ENDIF.
    MODIFY SCREEN.
  ENDLOOP.
ENDFORM.
*&---------------------------------------------------------------------*
*& Form FRM_GET_SEL_BT
*&---------------------------------------------------------------------*
*& Get which on radiobutton has be choosed.
*&---------------------------------------------------------------------*
FORM frm_get_sel_bt .
  DATA:
    lv_bt_name TYPE string,
    lv_msg     TYPE string.

  SELECT a~kvewe,
         a~kappl,
         a~kozgf,
         a~kolnr,
         b~gstru,
         b~gstxt
    FROM t682i AS a
    LEFT OUTER JOIN tmc1t AS b
      ON concat( a~kvewe,a~kotabnr ) = b~gstru
     AND b~spras = @sy-langu
   WHERE a~kozgf = @p_type
     AND a~kvewe = 'A'
     AND a~kappl = 'V'
  INTO TABLE @DATA(lt_condtype_info).

  SORT lt_condtype_info BY gstru ASCENDING.
  DELETE ADJACENT DUPLICATES FROM lt_condtype_info COMPARING gstru.

  DATA(lv_lines) = lines( lt_condtype_info ).

  IF lines( lt_condtype_info ) > 1.
    LOOP AT lt_condtype_info INTO DATA(ls_condtype_info).
      lv_bt_name = 'RB_' && ls_condtype_info-gstru.
      ASSIGN (lv_bt_name) TO FIELD-SYMBOL(<fs_bt>).
      IF <fs_bt> IS ASSIGNED.
        IF <fs_bt> = 'X'.
          lv_msg = |You choose the button { lv_bt_name }|.
          EXIT.
        ENDIF.
      ENDIF.
    ENDLOOP.
  ELSE.
    READ TABLE lt_condtype_info INTO ls_condtype_info INDEX 1.
    lv_bt_name = 'RB_' && ls_condtype_info-gstru.
    lv_msg = |You choose the button { lv_bt_name }|.
  ENDIF.

  WRITE lv_msg.
ENDFORM.

由于标准的Selection Text的长度只有30位，而本例中按钮描述超过了30位，所以可以采用SELECTION-SCREEN BEGIN OF LINE的方式去进行选择屏幕生成。

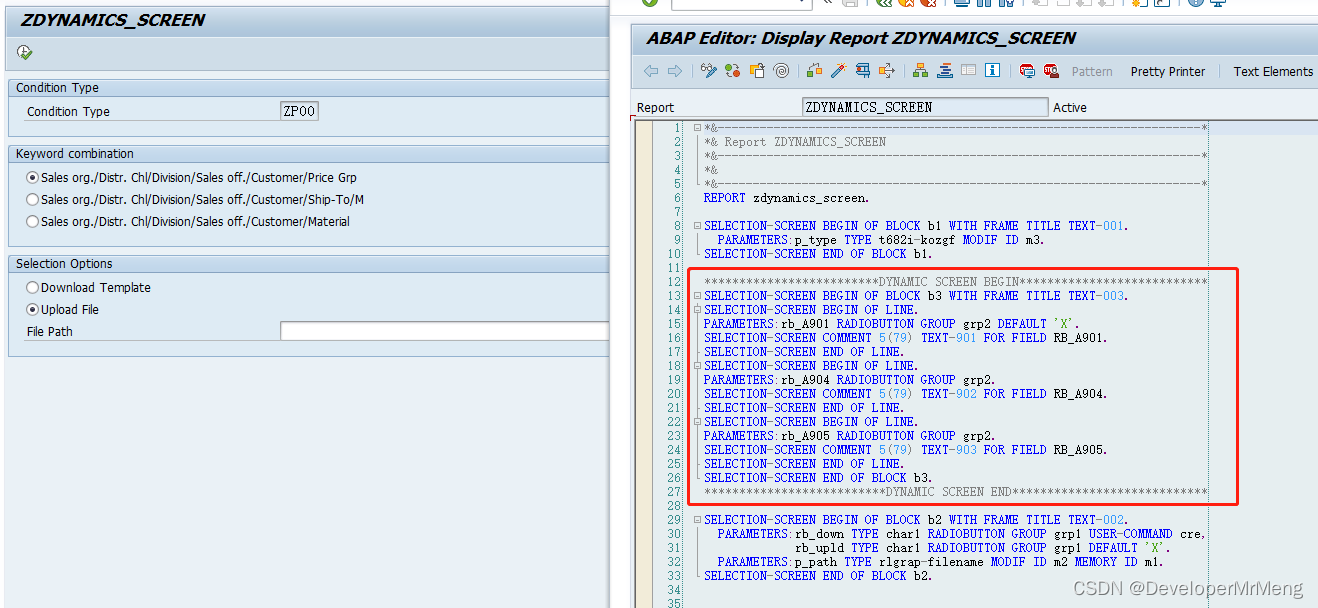

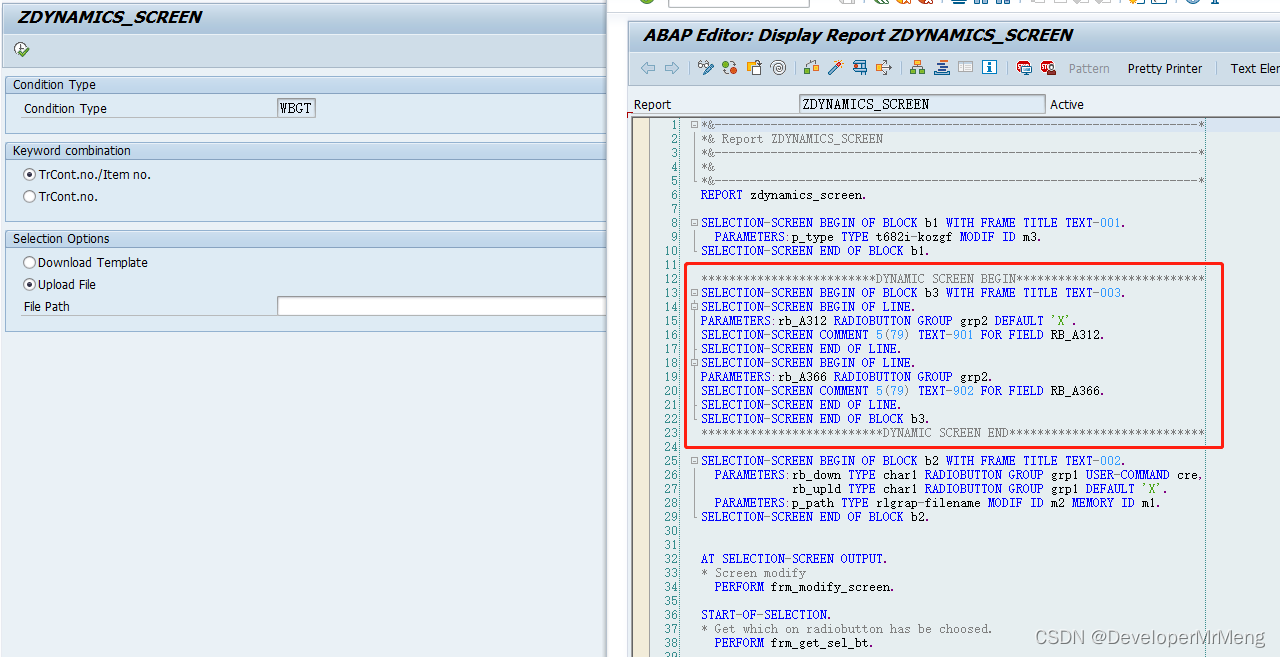

以下为选择不同条件类型后，实际生成的动态代码：
