Automate packaging NiceGUI apps with PyInstaller and releasing them with Github Actions

这是我之前在个人网站上发布的一篇旧博客文章。我正在将所有内容转移到CSDN。感谢阅读！

---

Having learned the practice of CI/CD, I decided to apply this technique to continuously deliver some of my projects starting with a recent NiceGUI app – File Copier.

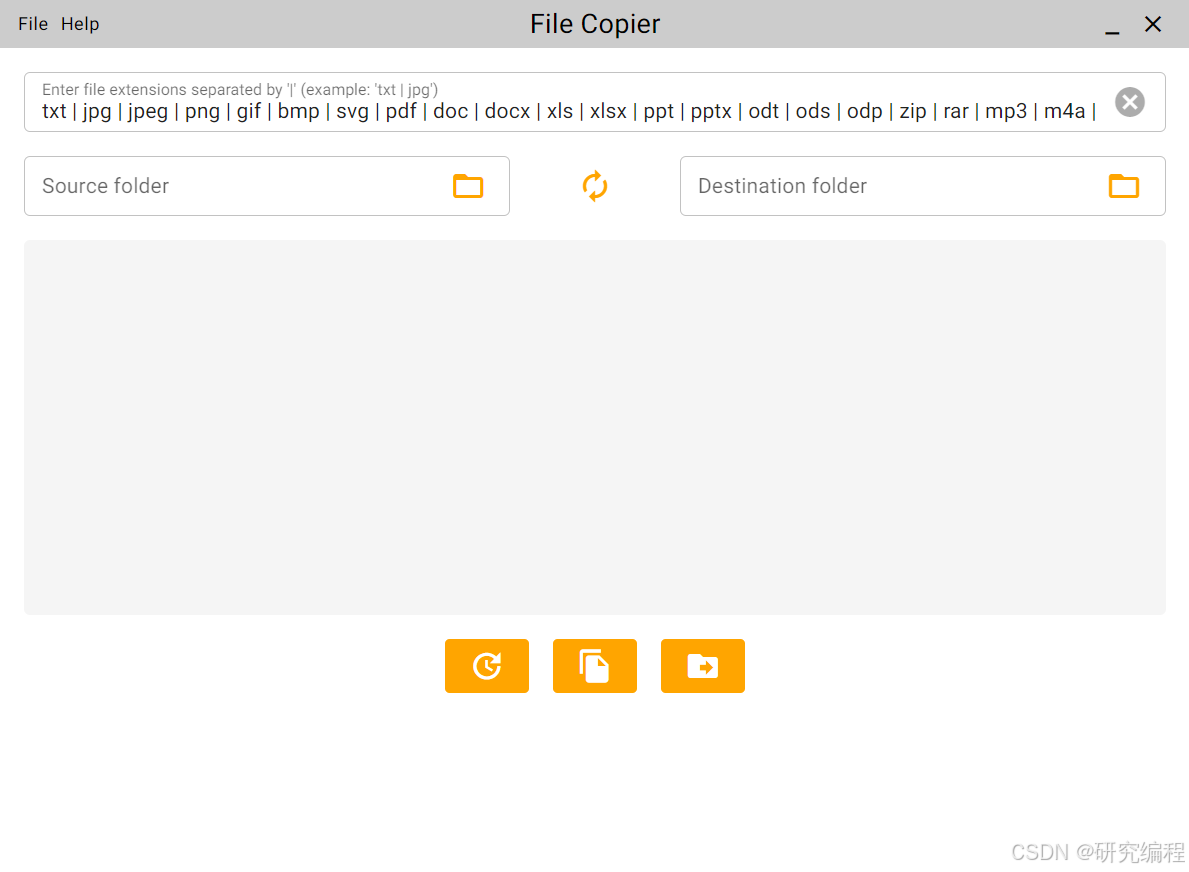

如果您在PC上的微信文件夹中有需要的文件，并且不想打开每个子文件夹来搜索这些文件，您可以使用File Copier。只需将其指向微信文件夹位置，指定文件类型名，它就会将所有内容复制到一个目标文件夹中。在一个文件夹而不是数百个文件夹中很容易找到重要文件。我没有找到任何这样的应用，所以我自己做了一个。

该应用程序未经测试，因此仅用于学习目的

Initially, I went to Github Marketplace and searched for pre-build PyInstaller actions. Because I’m packaging for the Windows platform I ended up selecting PyInstaller Windows which is the most popular action in the category at the time of writing.

- name: PyInstaller Windows
  uses: JackMcKew/pyinstaller-action-windows@main
  with:
    path: src

The above code snippet shows how easy it is to integrate this action into the workflow. However, I encountered three problems with this approach:

• the first one is architectural – despite being Windows-oriented, this action runs inside a Linux (Ubuntu) container and uses Wine for cross-compilation. The reason for this is that PyInstaller currently does not cross-compile executables meaning that it cannot produce .exe files on Linux, therefore there is the need for a translation layer – Wine. Since 2021, Github gives you the ability to run workflows inside a Windows container which reduces the complexity and basically makes the aforementioned action obsolete.
• the second problem is related to NiceGUI and the way it needs to be discovered by PyInstaller. It requires the use of an intermediary step – running a build.py file by the Python interpreter. Since PyInstaller Windows abstracts away the run steps, there is no way to properly configure NiceGUI for PyInstaller.
• the third one is also architectural and requires generating a .spec file on a local machine before committing it into a remote repository for later use in an actual workflow, which in my opinion, defeats the purpose of CI/CD.

With that said, there was the need for an alternative approach. Below is what I was able to come up with.

name: Python application

on:
  push:
    tags:
      - v*

permissions:
  contents: write

jobs:
  build:
    runs-on: windows-2019

    steps:
      - uses: actions/checkout@v3
      - name: Set up Python
        uses: actions/setup-python@v3
        with:
          # python-version: "3.8"
          # python-version: "3.9"
          python-version: "3.10"
      - name: Install dependencies
        run: |
          python -m pip install --upgrade pip
          python -m pip install -r requirements.txt
      - name: PyInstaller
        run: |
          python build.py

      - name: Release
        uses: technote-space/action-gh-release@v2
        if: startsWith(github.ref, 'refs/tags/')
        with:
          files: ./dist/file-copier.exe
          GITHUB_TOKEN: ${{ secrets.GITHUB_TOKEN }}

First, we set up the trigger – a push event on the tags which help us mark a commit for release. We can add tags with the folloing command: git tag -a v1.0 -m "Release version 1.0". Later when we push changes to the main branch we also push them on the tag: git push origin main v1.0 which activates the release action.

Second, we set up write access to the repository for uploading a compiled executable to releases. Then, we specify the container for the jobs to run inside of – in this case windows-2019. Now onto the actual workflow:

• we set up Python 3.10 environment and install our project requirements
• we run the build.py file as documented here but with minor modifications. First is the “–name” that specifies the filename of our future executable – in my case file-copier.exe. Second is the --onefile flag. Currently, it is not possible to correctly package pywebview with PyInstaller (which is what nicegui internally depends on) on Github Actions with the --onedir flag due to a regression in another package – pythonnet. One comment proposed to downgrade pythonnet from version 3 to version 2.5.2, however because there is no binary wheel available for version 2.5.2 for Python 3.10, building it from source inside Github Actions results in an error due to a missing compiler. One possible way to resolve this error is to try older versions of Python – 3.9 or 3.8. Another problem I faced is that executables built with the --onefile flag may false-trigger an antivirus on the end-user machine, as --onefile executables unpack themselves on each run which is similar to how many malicious programs behave. In this case, the antivirus can delete the executable. One can instruct the user to restore the file from quarantine and assure him or her of its safety. As I said, one can try different Python versions to try and downgrade the pythonnet package and test the result.

Update: While it is possible to downgrade and build the pythonnet package with Python 3.8 and 3.9 in a Windows container on Github Actions, running the final executable still results in an exception.

import os
import subprocess
from pathlib import Path

import nicegui

cmd = [
    "python",
    "-m",
    "PyInstaller",
    "--noconfirm",
    "main.py",  # your main file with ui.run()
    #
    "--name",
    "file-copier",  # name of your app
    #
    # "--onedir",
    "--onefile",
    #
    "--windowed",  # prevent console appearing, only use with ui.run(native=True, ...)
    #
    "--add-data",
    f"{Path(nicegui.__file__).parent}{os.pathsep}nicegui",
]
subprocess.call(cmd)

• finally, we set up the release action technote-space/action-gh-release@v2 and point it to the newly built executable ./dist/file-copier.exe

After all these steps are done with, we can see the v1.0 release on the repository page.
