在做地图相关应用时,常常遇到地图风格与UI界面不搭配的问题,如果在制图时就制作多种风格的地图,耗时耗力,超出成本控制。这里推荐一种快捷的方法,可在前端快速更改地图成任意风格,使色调与UI搭配。
先上一张图,白色风格地图快速改成蓝调地图的效果。
在这里插入图片描述
整体流程参照了该博客
https://segmentfault.com/a/1190000041703873
简洁说一下流程。

1.svg标签复制

把该网站html里的svg标签全部复制到自己地图网站的body标签里。
https://codepen.io/stoumann/pen/MWeNmyb

2.地图截图上传并调色

截图自己的地图(需要调整风格的地图),上传到该网站进行CSS调色。
https://codepen.io/stoumann/pen/MWeNmyb
在该网站可点击预置的风格,不满意可通过滑块微调。(也可基于预置风格深入调整,不过预置风格一般来说足够用了。)
调整完成后的参数在网站的CSS code栏目里面。

3.把调色结果CSS样式赋给地图div

复制上述网站里的CSS code内容(CSS code里的url已自动关联了svg,不用关注),赋给地图div的style。

4.注意事项

地图里的 marker 等图标div颜色也会被改变,为了让这些图标保持原样,可以给这些图标加上如下CSS样式filter: ;

5.小试牛刀

以下是个人小试牛刀的结果。

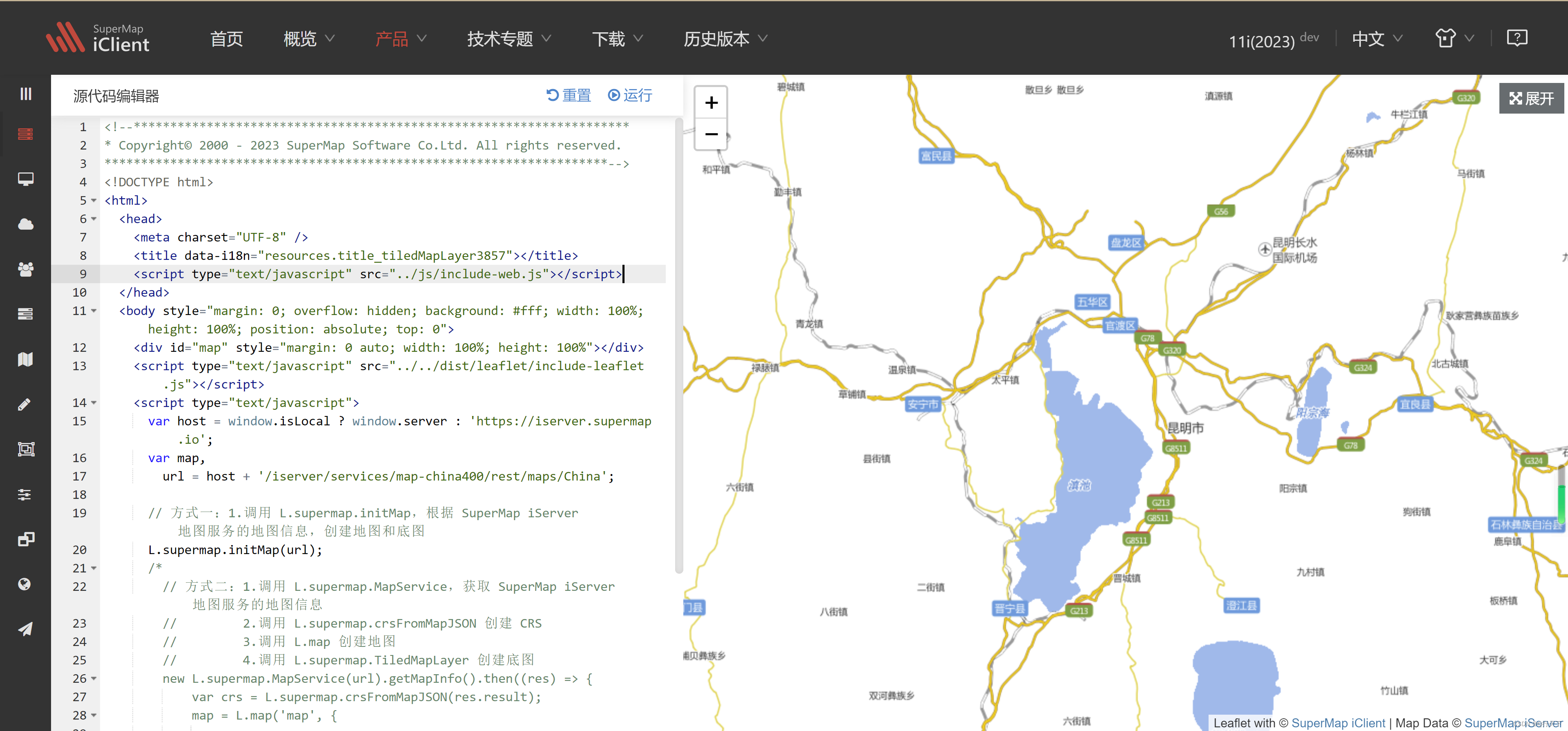

原始白底地图为
https://iclient.supermap.io/dev/examples/leaflet/editor.html#01_tiledMapLayer3857
在这里插入图片描述

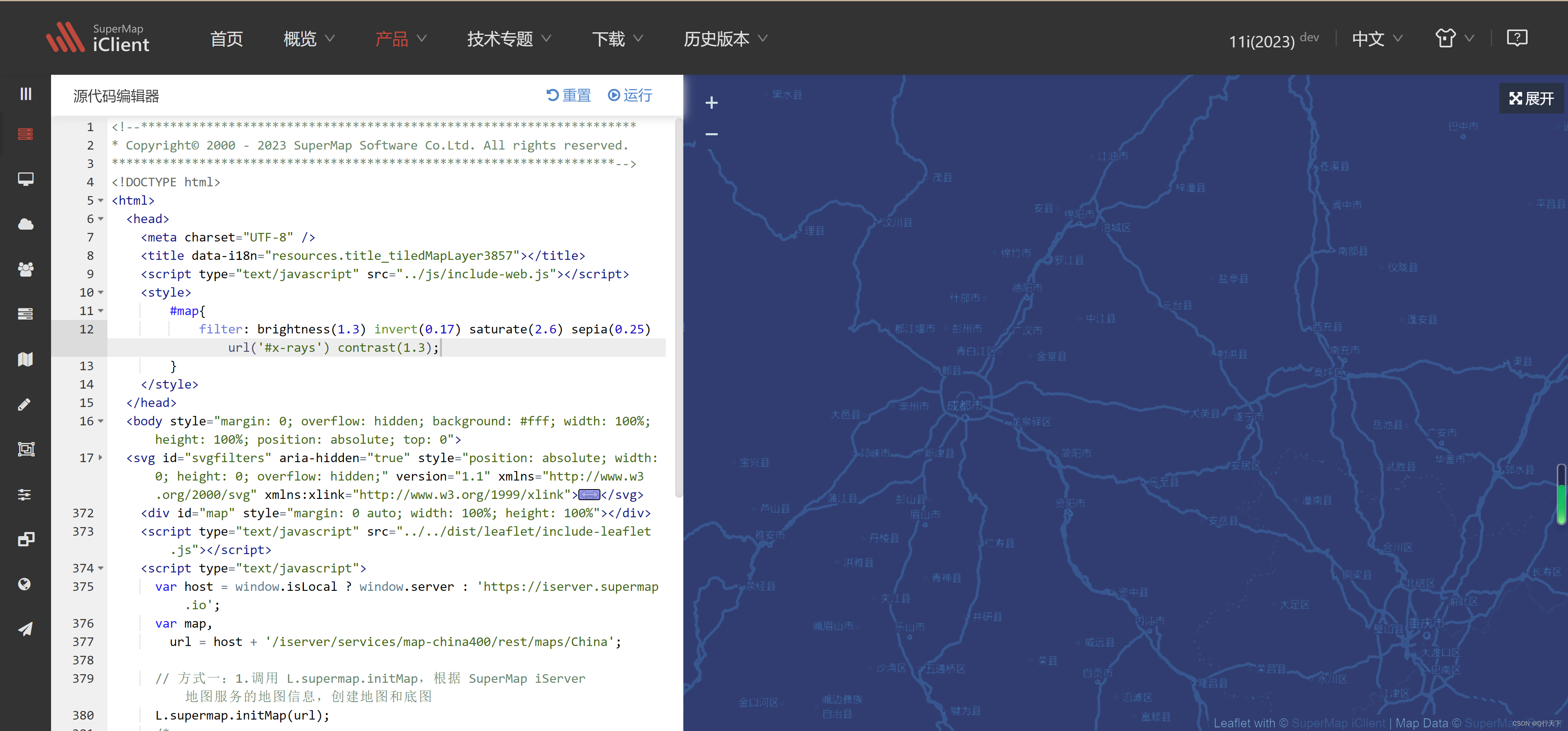

以下为变成蓝底地图的代码,直接把代码粘在源码窗口运行即可。
在这里插入图片描述

<!--********************************************************************
* Copyright© 2000 - 2023 SuperMap Software Co.Ltd. All rights reserved.
*********************************************************************-->
<!DOCTYPE html>
<html>
  <head>
    <meta charset="UTF-8" />
    <title data-i18n="resources.title_tiledMapLayer3857"></title>
    <script type="text/javascript" src="../js/include-web.js"></script>
    <style>
        #map{
            filter: brightness(1.3) invert(0.17) saturate(2.6) sepia(0.25) url('#x-rays') contrast(1.3);
        }
    </style>
  </head>
  <body style="margin: 0; overflow: hidden; background: #fff; width: 100%; height: 100%; position: absolute; top: 0">
  <svg id="svgfilters" aria-hidden="true" style="position: absolute; width: 0; height: 0; overflow: hidden;" version="1.1" xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink">
		<defs>
			<filter id="teal-white" x="-10%" y="-10%" width="120%" height="120%" filterUnits="objectBoundingBox" primitiveUnits="userSpaceOnUse" color-interpolation-filters="sRGB">
				<feColorMatrix type="matrix" values=".33 .33 .33 0 0
					.33 .33 .33 0 0
					.33 .33 .33 0 0
					0 0 0 1 0" in="SourceGraphic" result="colormatrix"/>
				<feComponentTransfer in="colormatrix" result="componentTransfer">
					<feFuncR type="table" tableValues="0.03 1"/>
					<feFuncG type="table" tableValues="0.57 1"/>
					<feFuncB type="table" tableValues="0.49 1"/>
					<feFuncA type="table" tableValues="0 1"/>
				</feComponentTransfer>
				<feBlend mode="normal" in="componentTransfer" in2="SourceGraphic" result="blend"/>
			</filter>
			<filter id="teal-lightgreen" x="-10%" y="-10%" width="120%" height="120%" filterUnits="objectBoundingBox" primitiveUnits="userSpaceOnUse" color-interpolation-filters="sRGB">
				<feColorMatrix type="matrix" values=".33 .33 .33 0 0
					.33 .33 .33 0 0
					.33 .33 .33 0 0
					0 0 0 1 0" in="SourceGraphic" result="colormatrix"/>
				<feComponentTransfer in="colormatrix" result="componentTransfer">
					<feFuncR type="table" tableValues="0.03 0.8"/>
					<feFuncG type="table" tableValues="0.57 1"/>
					<feFuncB type="table" tableValues="0.49 0.53"/>
					<feFuncA type="table" tableValues="0 1"/>
				</feComponentTransfer>
				<feBlend mode="normal" in="componentTransfer" in2="SourceGraphic" result="blend"/>
			</filter>
			<filter id="sepia" x="-10%" y="-10%" width="120%" height="120%" filterUnits="objectBoundingBox" primitiveUnits="userSpaceOnUse" color-interpolation-filters="sRGB">
				<feColorMatrix type="matrix" values=".33 .33 .33 0 0
					.33 .33 .33 0 0
					.33 .33 .33 0 0
					0 0 0 1 0" in="SourceGraphic" result="colormatrix"/>
				<feComponentTransfer in="colormatrix" result="componentTransfer">
					<feFuncR type="table" tableValues="0.26 0.95"/>
					<feFuncG type="table" tableValues="0.19 0.78"/>
					<feFuncB type="table" tableValues="0.11 0.59"/>
					<feFuncA type="table" tableValues="0 1"/>
				</feComponentTransfer>
				<feBlend mode="normal" in="componentTransfer" in2="SourceGraphic" result="blend"/>
			</filter>
			<filter id="purple-sepia" x="-10%" y="-10%" width="120%" height="120%" filterUnits="objectBoundingBox" primitiveUnits="userSpaceOnUse" color-interpolation-filters="sRGB">
				<feColorMatrix type="matrix" values=".33 .33 .33 0 0
					.33 .33 .33 0 0
					.33 .33 .33 0 0
					0 0 0 1 0" in="SourceGraphic" result="colormatrix"/>
				<feComponentTransfer in="colormatrix" result="componentTransfer">
					<feFuncR type="table" tableValues="0.43 0.97"/>
					<feFuncG type="table" tableValues="0.06 0.88"/>
					<feFuncB type="table" tableValues="0.37 0.79"/>
					<feFuncA type="table" tableValues="0 1"/>
				</feComponentTransfer>
				<feBlend mode="normal" in="componentTransfer" in2="SourceGraphic" result="blend"/>
			</filter>
			<filter id="cherry-icecream" x="-10%" y="-10%" width="120%" height="120%" filterUnits="objectBoundingBox" primitiveUnits="userSpaceOnUse" color-interpolation-filters="sRGB">
				<feColorMatrix type="matrix" values=".33 .33 .33 0 0
					.33 .33 .33 0 0
					.33 .33 .33 0 0
					0 0 0 1 0" in="SourceGraphic" result="colormatrix"/>
				<feComponentTransfer in="colormatrix" result="componentTransfer">
					<feFuncR type="table" tableValues="0.84 1"/>
					<feFuncG type="table" tableValues="0.05 0.94"/>
					<feFuncB type="table" tableValues="0.37 0.61"/>
					<feFuncA type="table" tableValues="0 1"/>
				</feComponentTransfer>
				<feBlend mode="normal" in="componentTransfer" in2="SourceGraphic" result="blend"/>
			</filter>
			<filter id="blackCurrant-and-mint" x="-10%" y="-10%" width="120%" height="120%" filterUnits="objectBoundingBox" primitiveUnits="userSpaceOnUse" color-interpolation-filters="sRGB">
				<feColorMatrix type="matrix" values=".33 .33 .33 0 0
					.33 .33 .33 0 0
					.33 .33 .33 0 0
					0 0 0 1 0" in="SourceGraphic" result="colormatrix"/>
				<feComponentTransfer in="colormatrix" result="componentTransfer">
					<feFuncR type="table" tableValues="0.75 0.53"/>
					<feFuncG type="table" tableValues="0.25 0.97"/>
					<feFuncB type="table" tableValues="0.64 0.77"/>
					<feFuncA type="table" tableValues="0 1"/>
				</feComponentTransfer>
				<feBlend mode="normal" in="componentTransfer" in2="SourceGraphic" result="blend"/>
			</filter>
			<filter id="sea" x="-10%" y="-10%" width="120%" height="120%" filterUnits="objectBoundingBox" primitiveUnits="userSpaceOnUse" color-interpolation-filters="sRGB">
				<feColorMatrix type="matrix" values=".33 .33 .33 0 0
					.33 .33 .33 0 0
					.33 .33 .33 0 0
					0 0 0 1 0" in="SourceGraphic" result="colormatrix"/>
				<feComponentTransfer in="colormatrix" result="componentTransfer">
					<feFuncR type="table" tableValues="0.02 0.13 0.8"/>
					<feFuncG type="table" tableValues="0.02 0.47 0.97"/>
					<feFuncB type="table" tableValues="0.26 0.52 0.48"/>
					<feFuncA type="table" tableValues="0 1"/>
				</feComponentTransfer>
				<feBlend mode="normal" in="componentTransfer" in2="SourceGraphic" result="blend"/>
			</filter>
			<filter id="warm-sea" x="-10%" y="-10%" width="120%" height="120%" filterUnits="objectBoundingBox" primitiveUnits="userSpaceOnUse" color-interpolation-filters="sRGB">
				<feColorMatrix type="matrix" values=".33 .33 .33 0 0
					.33 .33 .33 0 0
					.33 .33 .33 0 0
					0 0 0 1 0" in="SourceGraphic" result="colormatrix"/>
				<feComponentTransfer in="colormatrix" result="componentTransfer">
					<feFuncR type="table" tableValues="0.29 0.01 0.97"/>
					<feFuncG type="table" tableValues="0.12 0.52 0.94"/>
					<feFuncB type="table" tableValues="0.37 0.59 0.47"/>
					<feFuncA type="table" tableValues="0 1"/>
				</feComponentTransfer>
				<feBlend mode="normal" in="componentTransfer" in2="SourceGraphic" result="blend"/>
			</filter>
			<filter id="spring-grass" x="-10%" y="-10%" width="120%" height="120%" filterUnits="objectBoundingBox" primitiveUnits="userSpaceOnUse" color-interpolation-filters="sRGB">
				<feColorMatrix type="matrix" values=".33 .33 .33 0 0
					.33 .33 .33 0 0
					.33 .33 .33 0 0
					0 0 0 1 0" in="SourceGraphic" result="colormatrix"/>
				<feComponentTransfer in="colormatrix" result="componentTransfer">
					<feFuncR type="table" tableValues="0 0.38 0.92"/>
					<feFuncG type="table" tableValues="0.5 0.8 1"/>
					<feFuncB type="table" tableValues="0.5 0.56 0.74"/>
					<feFuncA type="table" tableValues="0 1"/>
				</feComponentTransfer>
				<feBlend mode="normal" in="componentTransfer" in2="SourceGraphic" result="blend"/>
			</filter>
			<filter id="red-sunset-with-purple" x="-10%" y="-10%" width="120%" height="120%" filterUnits="objectBoundingBox" primitiveUnits="userSpaceOnUse" color-interpolation-filters="sRGB">
				<feColorMatrix type="matrix" values=".33 .33 .33 0 0
					.33 .33 .33 0 0
					.33 .33 .33 0 0
					0 0 0 1 0" in="SourceGraphic" result="colormatrix"/>
				<feComponentTransfer in="colormatrix" result="componentTransfer">
					<feFuncR type="table" tableValues="0.52 0.86 0.97"/>
					<feFuncG type="table" tableValues="0 0.08 0.81"/>
					<feFuncB type="table" tableValues="0.51 0.24 0.05"/>
					<feFuncA type="table" tableValues="0 1"/>
				</feComponentTransfer>
				<feBlend mode="normal" in="componentTransfer" in2="SourceGraphic" result="blend"/>
			</filter>
			<filter id="red-sunset" x="-10%" y="-10%" width="120%" height="120%" filterUnits="objectBoundingBox" primitiveUnits="userSpaceOnUse" color-interpolation-filters="sRGB">
				<feColorMatrix type="matrix" values=".33 .33 .33 0 0
					.33 .33 .33 0 0
					.33 .33 .33 0 0
					0 0 0 1 0" in="SourceGraphic" result="colormatrix"/>
				<feComponentTransfer in="colormatrix" result="componentTransfer">
					<feFuncR type="table" tableValues="0.27 0.86 0.97"/>
					<feFuncG type="table" tableValues="0.01 0.08 0.81"/>
					<feFuncB type="table" tableValues="0.02 0.24 0.05"/>
					<feFuncA type="table" tableValues="0 1"/>
				</feComponentTransfer>
				<feBlend mode="normal" in="componentTransfer" in2="SourceGraphic" result="blend"/>
			</filter>
			<filter id="gold-sunset" x="-10%" y="-10%" width="120%" height="120%" filterUnits="objectBoundingBox" primitiveUnits="userSpaceOnUse" color-interpolation-filters="sRGB">
				<feColorMatrix type="matrix" values=".33 .33 .33 0 0
					.33 .33 .33 0 0
					.33 .33 .33 0 0
					0 0 0 1 0" in="SourceGraphic" result="colormatrix"/>
				<feComponentTransfer in="colormatrix" result="componentTransfer">
					<feFuncR type="table" tableValues="0.27 0.86 1"/>
					<feFuncG type="table" tableValues="0.01 0.31 0.95"/>
					<feFuncB type="table" tableValues="0.02 0.02 0.02"/>
					<feFuncA type="table" tableValues="0 1"/>
				</feComponentTransfer>
				<feBlend mode="normal" in="componentTransfer" in2="SourceGraphic" result="blend"/>
			</filter>
			<filter id="dark-crimson-sepia" x="-10%" y="-10%" width="120%" height="120%" filterUnits="objectBoundingBox" primitiveUnits="userSpaceOnUse" color-interpolation-filters="sRGB">
				<feColorMatrix type="matrix" values=".33 .33 .33 0 0
					.33 .33 .33 0 0
					.33 .33 .33 0 0
					0 0 0 1 0" in="SourceGraphic" result="colormatrix"/>
				<feComponentTransfer in="colormatrix" result="componentTransfer">
					<feFuncR type="table" tableValues="0.01 0.52 0.97"/>
					<feFuncG type="table" tableValues="0 0.05 0.81"/>
					<feFuncB type="table" tableValues="0.02 0.29 0.61"/>
					<feFuncA type="table" tableValues="0 1"/>
				</feComponentTransfer>
				<feBlend mode="normal" in="componentTransfer" in2="SourceGraphic" result="blend"/>
			</filter>
			<filter id="dark-blue-sepia" x="-10%" y="-10%" width="120%" height="120%" filterUnits="objectBoundingBox" primitiveUnits="userSpaceOnUse" color-interpolation-filters="sRGB">
				<feColorMatrix type="matrix" values=".33 .33 .33 0 0
					.33 .33 .33 0 0
					.33 .33 .33 0 0
					0 0 0 1 0" in="SourceGraphic" result="colormatrix"/>
				<feComponentTransfer in="colormatrix" result="componentTransfer">
					<feFuncR type="table" tableValues="0.29 0.15 0.97"/>
					<feFuncG type="table" tableValues="0.04 0.39 0.93"/>
					<feFuncB type="table" tableValues="0.32 0.52 0.73"/>
					<feFuncA type="table" tableValues="0 1"/>
				</feComponentTransfer>
				<feBlend mode="normal" in="componentTransfer" in2="SourceGraphic" result="blend"/>
			</filter>
			<filter id="dark-green-sepia" x="-10%" y="-10%" width="120%" height="120%" filterUnits="objectBoundingBox" primitiveUnits="userSpaceOnUse" color-interpolation-filters="sRGB">
				<feColorMatrix type="matrix" values=".33 .33 .33 0 0
					.33 .33 .33 0 0
					.33 .33 .33 0 0
					0 0 0 1 0" in="SourceGraphic" result="colormatrix"/>
				<feComponentTransfer in="colormatrix" result="componentTransfer">
					<feFuncR type="table" tableValues="0.25 0.39 0.96"/>
					<feFuncG type="table" tableValues="0.16 0.52 0.97"/>
					<feFuncB type="table" tableValues="0.06 0.39 0.78"/>
					<feFuncA type="table" tableValues="0 1"/>
				</feComponentTransfer>
				<feBlend mode="normal" in="componentTransfer" in2="SourceGraphic" result="blend"/>
			</filter>
			<filter id="x-rays" x="-10%" y="-10%" width="120%" height="120%" filterUnits="objectBoundingBox" primitiveUnits="userSpaceOnUse" color-interpolation-filters="sRGB">
				<feColorMatrix type="matrix" values=".33 .33 .33 0 0
					.33 .33 .33 0 0
					.33 .33 .33 0 0
					0 0 0 1 0" in="SourceGraphic" result="colormatrix"/>
				<feComponentTransfer in="colormatrix" result="componentTransfer">
					<feFuncR type="table" tableValues="0.98 0.3 0.25"/>
					<feFuncG type="table" tableValues="1 0.44 0.24"/>
					<feFuncB type="table" tableValues="0.91 0.62 0.39"/>
					<feFuncA type="table" tableValues="0 1"/>
				</feComponentTransfer>
				<feBlend mode="normal" in="componentTransfer" in2="SourceGraphic" result="blend"/>
			</filter>
			<filter id="warm-x-rays" x="-10%" y="-10%" width="120%" height="120%" filterUnits="objectBoundingBox" primitiveUnits="userSpaceOnUse" color-interpolation-filters="sRGB">
				<feColorMatrix type="matrix" values=".33 .33 .33 0 0
					.33 .33 .33 0 0
					.33 .33 .33 0 0
					0 0 0 1 0" in="SourceGraphic" result="colormatrix"/>
				<feComponentTransfer in="colormatrix" result="componentTransfer">
					<feFuncR type="table" tableValues="0.98 0.75 0.51"/>
					<feFuncG type="table" tableValues="1 0.45 0.11"/>
					<feFuncB type="table" tableValues="0.91 0.39 0.29"/>
					<feFuncA type="table" tableValues="0 1"/>
				</feComponentTransfer>
				<feBlend mode="normal" in="componentTransfer" in2="SourceGraphic" result="blend"/>
			</filter>
			<filter id="golden-x-rays" x="-10%" y="-10%" width="120%" height="120%" filterUnits="objectBoundingBox" primitiveUnits="userSpaceOnUse" color-interpolation-filters="sRGB">
				<feColorMatrix type="matrix" values=".33 .33 .33 0 0
					.33 .33 .33 0 0
					.33 .33 .33 0 0
					0 0 0 1 0" in="SourceGraphic" result="colormatrix"/>
				<feComponentTransfer in="colormatrix" result="componentTransfer">
					<feFuncR type="table" tableValues="0.98 1 0.94"/>
					<feFuncG type="table" tableValues="1 0.98 0.44"/>
					<feFuncB type="table" tableValues="0.91 0.43 0.02"/>
					<feFuncA type="table" tableValues="0 1"/>
				</feComponentTransfer>
				<feBlend mode="normal" in="componentTransfer" in2="SourceGraphic" result="blend"/>
			</filter>
			<filter id="purple-warm" x="-10%" y="-10%" width="120%" height="120%" filterUnits="objectBoundingBox" primitiveUnits="userSpaceOnUse" color-interpolation-filters="sRGB">
				<feColorMatrix type="matrix" values=".33 .33 .33 0 0
					.33 .33 .33 0 0
					.33 .33 .33 0 0
					0 0 0 1 0" in="SourceGraphic" result="colormatrix"/>
				<feComponentTransfer in="colormatrix" result="componentTransfer">
					<feFuncR type="table" tableValues="0.52 0.97 1"/>
					<feFuncG type="table" tableValues="0 0.62 1"/>
					<feFuncB type="table" tableValues="0.51 0.39 0.89"/>
					<feFuncA type="table" tableValues="0 1"/>
				</feComponentTransfer>
				<feBlend mode="normal" in="componentTransfer" in2="SourceGraphic" result="blend"/>
			</filter>
			<filter id="green-pink-acid" x="-10%" y="-10%" width="120%" height="120%" filterUnits="objectBoundingBox" primitiveUnits="userSpaceOnUse" color-interpolation-filters="sRGB">
				<feColorMatrix type="matrix" values=".33 .33 .33 0 0
					.33 .33 .33 0 0
					.33 .33 .33 0 0
					0 0 0 1 0" in="SourceGraphic" result="colormatrix"/>
				<feComponentTransfer in="colormatrix" result="componentTransfer">
					<feFuncR type="table" tableValues="1 0.98 0.1"/>
					<feFuncG type="table" tableValues="0.17 1 0.82"/>
					<feFuncB type="table" tableValues="0.7 0.84 0.67"/>
					<feFuncA type="table" tableValues="0 1"/>
				</feComponentTransfer>
				<feBlend mode="normal" in="componentTransfer" in2="SourceGraphic" result="blend"/>
			</filter>
			<filter id="yellow-blue-acid" x="-10%" y="-10%" width="120%" height="120%" filterUnits="objectBoundingBox" primitiveUnits="userSpaceOnUse" color-interpolation-filters="sRGB">
				<feColorMatrix type="matrix" values=".33 .33 .33 0 0
					.33 .33 .33 0 0
					.33 .33 .33 0 0
					0 0 0 1 0" in="SourceGraphic" result="colormatrix"/>
				<feComponentTransfer in="colormatrix" result="componentTransfer">
					<feFuncR type="table" tableValues="0.01 0.97 0.89"/>
					<feFuncG type="table" tableValues="0.38 1 1"/>
					<feFuncB type="table" tableValues="1 0.89 0.01"/>
					<feFuncA type="table" tableValues="0 1"/>
				</feComponentTransfer>
				<feBlend mode="normal" in="componentTransfer" in2="SourceGraphic" result="blend"/>
			</filter>
			<filter id="noise" x="0%" y="0%" width="100%" height="100%">
				<feTurbulence baseFrequency="0.01 0.4" result="NOISE" numOctaves="2" />
				<feDisplacementMap in="SourceGraphic" in2="NOISE" scale="20" xChannelSelector="R" yChannelSelector="R"></feDisplacementMap>
			</filter>
			<filter id="squiggly-0">
				<feTurbulence id="turbulence1" baseFrequency="0.02" numOctaves="3" result="noise" seed="0" />
				<feDisplacementMap id="displacement" in="SourceGraphic" in2="noise" scale="6" />
			</filter>
			<filter id="squiggly-1">
				<feTurbulence id="turbulence2" baseFrequency="0.02" numOctaves="3" result="noise" seed="1" />
				<feDisplacementMap in="SourceGraphic" in2="noise" scale="8" />
			</filter>
			<filter id="squiggly-2">
				<feTurbulence id="turbulence3" baseFrequency="0.02" numOctaves="3" result="noise" seed="2" />
				<feDisplacementMap in="SourceGraphic" in2="noise" scale="6" />
			</filter>
			<filter id="squiggly-3">
				<feTurbulence id="turbulence4" baseFrequency="0.02" numOctaves="3" result="noise" seed="3" />
				<feDisplacementMap in="SourceGraphic" in2="noise" scale="8" />
			</filter>
			<filter id="squiggly-4">
				<feTurbulence id="turbulence5" baseFrequency="0.02" numOctaves="3" result="noise" seed="4" />
				<feDisplacementMap in="SourceGraphic" in2="noise" scale="6" />
			</filter>
			<filter id="posterize">
				<feComponentTransfer>
					<feFuncR type="discrete" tableValues="0 .5 1" />
				</feComponentTransfer>
			</filter>
			<filter id="dancing" x="-20%" y="-20%" width="140%" height="140%" filterUnits="objectBoundingBox" primitiveUnits="userSpaceOnUse" color-interpolation-filters="linearRGB">
				<feMorphology operator="dilate" radius="4 4" in="SourceAlpha" result="morphology"/>
				<feFlood flood-color="#30597E" flood-opacity="1" result="flood"/>
				<feComposite in="flood" in2="morphology" operator="in" result="composite"/>
				<feComposite in="composite" in2="SourceAlpha" operator="out" result="composite1"/>
				<feTurbulence type="fractalNoise" baseFrequency="0.01 0.02" numOctaves="1" seed="0" stitchTiles="stitch" result="turbulence"/>
				<feDisplacementMap in="composite1" in2="turbulence" scale="17" xChannelSelector="A" yChannelSelector="A" result="displacementMap"/>
				<feMerge result="merge">
					<feMergeNode in="SourceGraphic"/>
					<feMergeNode in="displacementMap"/>
					</feMerge>
			</filter>
			<filter id="drops" x="-20%" y="-20%" width="140%" height="140%" filterUnits="objectBoundingBox" primitiveUnits="userSpaceOnUse" color-interpolation-filters="sRGB">
				<feTurbulence type="turbulence" baseFrequency="0.05 0.05" numOctaves="1" seed="3" stitchTiles="stitch" result="turbulence"/>
				<feComposite in="turbulence" in2="SourceGraphic" operator="in" result="composite"/>
				<feColorMatrix type="matrix" values="1 0 0 0 0
					0 1 0 0 0
					0 0 1 0 0
					0 0 0 25 -2" in="composite" result="colormatrix"/>
				<feComposite in="SourceGraphic" in2="colormatrix" operator="in" result="composite1"/>
				<feGaussianBlur stdDeviation="3 3" in="composite1" result="blur"/>
				<feSpecularLighting surfaceScale="2" specularConstant="1" specularExponent="20" lighting-color="#fffffd" in="blur" result="specularLighting">
					<feDistantLight azimuth="-90" elevation="150"/>
				</feSpecularLighting>
				<feSpecularLighting surfaceScale="2" specularConstant="1" specularExponent="20" lighting-color="#cae1fe" in="blur" result="specularLighting1">
					<feDistantLight azimuth="90" elevation="150"/>
				</feSpecularLighting>
				<feSpecularLighting surfaceScale="7" specularConstant="1" specularExponent="35" lighting-color="#fcfeff" in="blur" result="specularLighting2">
					<fePointLight x="150" y="50" z="300"/>
				</feSpecularLighting>
				<feComposite in="specularLighting" in2="composite1" operator="in" result="composite2"/>
				<feComposite in="specularLighting2" in2="composite1" operator="in" result="composite3"/>
				<feComposite in="specularLighting1" in2="composite1" operator="in" result="composite4"/>
				<feBlend mode="multiply" in="composite4" in2="SourceGraphic" result="blend"/>
				<feBlend in="composite2" in2="blend" result="blend1"/>
				<feBlend in="composite3" in2="blend1" result="blend2"/>
			</filter>
			<filter id="grain">
				<feTurbulence baseFrequency="0.60,0.90" result="colorNoise" />
				<feColorMatrix in="colorNoise" type="matrix" values=".33 .33 .33 0 0 .33 .33 .33 0 0 .33 .33 .33 0 0 0 0 0 1 0"/>
				<feComposite operator="in" in2="SourceGraphic" result="monoNoise"/>
				<feBlend in="SourceGraphic" in2="monoNoise" mode="multiply" />
			</filter>
			<filter id="fluffy" x="0%" y="0%" width="100%" height="100%">
				 <feTurbulence type="fractalNoise" baseFrequency="0.04" result="fluffyNoise" numOctaves="5" />
				<feColorMatrix in="fluffyNoise" type="matrix" values=".33 .33 .33 0 0 .33 .33 .33 0 0 .33 .33 .33 0 0 0 0 0 1 0"/>
				<feComposite operator="in" in2="SourceGraphic" result="monoFluffyNoise"/>
				<feBlend in="SourceGraphic" in2="monoFluffyNoise" mode="screen" />
			</filter>
		</defs>
	</svg>
    <div id="map" style="margin: 0 auto; width: 100%; height: 100%"></div>
    <script type="text/javascript" src="../../dist/leaflet/include-leaflet.js"></script>
    <script type="text/javascript">
      var host = window.isLocal ? window.server : 'https://iserver.supermap.io';
      var map,
        url = host + '/iserver/services/map-china400/rest/maps/China';

      // 方式一:1.调用 L.supermap.initMap,根据 SuperMap iServer 地图服务的地图信息,创建地图和底图
      L.supermap.initMap(url);
      /*
        // 方式二:1.调用 L.supermap.MapService,获取 SuperMap iServer 地图服务的地图信息
        //         2.调用 L.supermap.crsFromMapJSON 创建 CRS
        //         3.调用 L.map 创建地图
        //         4.调用 L.supermap.TiledMapLayer 创建底图
        new L.supermap.MapService(url).getMapInfo().then((res) => {
            var crs = L.supermap.crsFromMapJSON(res.result);
            map = L.map('map', {
              crs: crs,
              center: [0, 0],
              maxZoom: 18,
              zoom: 1
            });
            new L.supermap.TiledMapLayer(url).addTo(map);
        });
      */
    </script>
  </body>
</html>

天地图风格更改

可以采用上面3个步骤的方法。也可以采用该方法
https://www.cnblogs.com/naycy/p/16742451.html

  • 0
    点赞
  • 0
    收藏
    觉得还不错? 一键收藏
  • 打赏
    打赏
  • 0
    评论

“相关推荐”对你有帮助么?

  • 非常没帮助
  • 没帮助
  • 一般
  • 有帮助
  • 非常有帮助
提交
评论
添加红包

请填写红包祝福语或标题

红包个数最小为10个

红包金额最低5元

当前余额3.43前往充值 >
需支付:10.00
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包

打赏作者

Q行天下

你的鼓励将是我创作的最大动力

¥1 ¥2 ¥4 ¥6 ¥10 ¥20
扫码支付:¥1
获取中
扫码支付

您的余额不足,请更换扫码支付或充值

打赏作者

实付
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明:

1.余额是钱包充值的虚拟货币,按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载,可以购买VIP、付费专栏及课程。

余额充值
