数字量产工具：输入系统-触摸屏单元测试

软件总框图

触摸屏单元测试

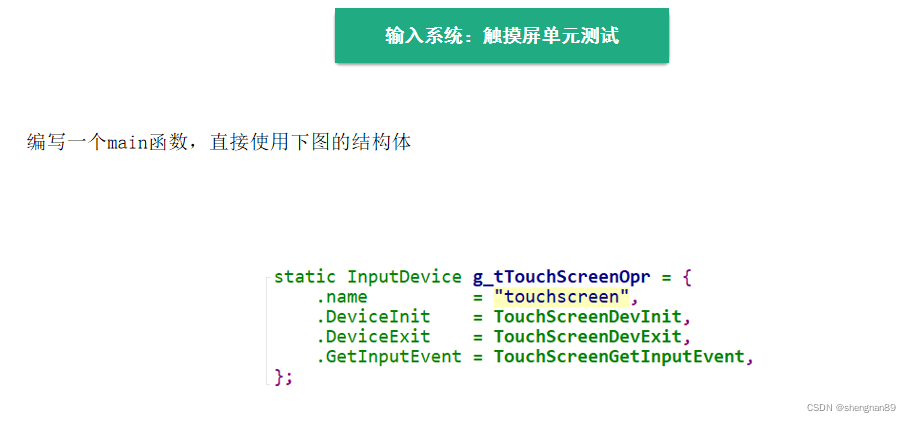

编写一个main函数，使用下面结构体进行测试

static InputDevice g_tTouchscreenDev = {

    .name = "touchscreen",
    .GetInputEvent = TouchscreenGetInputEvent,
    .DeviceInit = TouchscreenDeviceInit,
    .DeviceExit = TouchscreenDeviceExit,

};

main函数部分测试代码：

int main(int argc, char **argv)
{
    InputEvent event;
    int ret;
    g_tTouchscreenDev.DeviceInit();
    while (1)
    {
        ret = g_tTouchscreenDev.GetInputEvent(&event);
        if (ret)
        {
            printf("GetInputEvent err\r\n");
            return -1;
        }
        else
        {
            printf("iType       =%d\r\n", event.iType);
            printf("iX          =%d\r\n", event.iX);
            printf("iY          =%d\r\n", event.iY);
            printf("iPressure   =%d\r\n", event.iPressure);
        }
    }
    return 0;
}

touchscreen.c

#include "input_manager.h"
#include <tslib.h>
#include <stdio.h>

struct tsdev *g_ts;

static int TouchscreenGetInputEvent(PInputEvent ptInputEvent)
{
    struct ts_sample samp;
    int ret;

    ret = ts_read(g_ts, &samp, 1);

    if (ret != 1)
        return -1;

    ptInputEvent->iType = INPUT_TYPE_TOUCH;
    ptInputEvent->iX = samp.x;
    ptInputEvent->iY = samp.y;
    ptInputEvent->iPressure = samp.pressure;
    ptInputEvent->tTime = samp.tv;

    return 0;
}

static int TouchscreenDeviceInit(void)
{
    /* 打开并配置触摸屏设备 */
    g_ts = ts_setup(NULL, 0);
    if (!g_ts)
    {
        printf("ts_setup err\n");
        return -1;
    }
    return 0;
}
static int TouchscreenDeviceExit(void)
{
    ts_close(g_ts);
    return 0;
}

static InputDevice g_tTouchscreenDev = {

    .name = "touchscreen",
    .GetInputEvent = TouchscreenGetInputEvent,
    .DeviceInit = TouchscreenDeviceInit,
    .DeviceExit = TouchscreenDeviceExit,

};

#if 1

int main(int argc, char **argv)
{
    InputEvent event;
    int ret;
    g_tTouchscreenDev.DeviceInit();
    while (1)
    {
        ret = g_tTouchscreenDev.GetInputEvent(&event);
        if (ret)
        {
            printf("GetInputEvent err\r\n");
            return -1;
        }
        else
        {
            printf("iType       =%d\r\n", event.iType);
            printf("iX          =%d\r\n", event.iX);
            printf("iY          =%d\r\n", event.iY);
            printf("iPressure   =%d\r\n", event.iPressure);
        }
    }
    return 0;
}

#endif

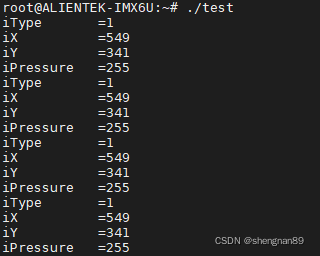

编译测试：

总结：

增加main.c 内容

1. 使用g_tTouchscreenDev.DeviceInit()实现触摸屏设备的初始化。
2. 使用g_tTouchscreenDev.GetInputEvent(&event)获取触摸屏输入事件的数据，并打印出坐标、压力和输入事件的类型。
