引言
- 这是端对端文本检测和识别论文阅读第二篇，也是目前整个方向中最好的算法，出自百度之手，并且已经开源集成到PaddleOCR中
- 同时PaddleOCR中对该算法也有一些简单的介绍，详细可以参考PaddleOCR-PGNet
- 本文主要对文中各个模块做简单介绍并给出相对应的PaddleOCR代码，以作学习之用。
基于PaddleOCR推理阶段代码对应

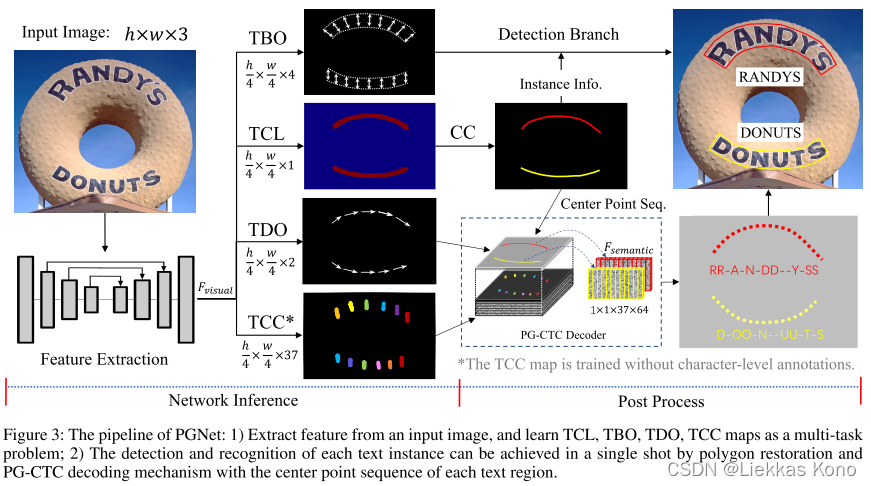

- 整个网络结构图如下：
- 主要结构可以分为三个部分Backbone+FPN、四个分支部分、loss部分和后处理部分。
Backbone + FPN部分
- Backbone有两种一种是server版ResNet50，一种是mobile版EfficientNet-B0。但是Repo中只给出了server版的模型。下面以ResNet50版作为例子，给出相关部分源码与论文对应关系。
- 因为整个PGNet合并到了PaddleOCR中，所有各个部分结构关系与其他算法实现都类似。Backbone主要位于
ppocr/modeling/backbones/e2e_resnet_vd_pg.py处，以下是forward部分代码，值得注意的是out中多添加前两层的特征用于后续的FPN。class ResNet(nn.Layer): def __init__(self, in_channels=3, layers=50, **kwargs): super(ResNet, self).__init__() # 此处省略一些代码 def forward(self, inputs): # 这里将开头特征也加入到FPN中 out = [inputs] y = self.conv1_1(inputs) # 经过一层卷积之后的，也加入到FPN中 out.append(y) y = self.pool2d_max(y) for block in self.stages: y = block(y) out.append(y) return out - FPN部分主要是将ResNet的7个输出，分为两部分
- 第一部分FPN Down Fusion(c0→c1→c2)
- 第二部分FPN Up Fusion(c6→c5→c4→c3→c2)
- 最终将两部分特征对应相加，得到论文中提到的 F v i s u a l F_{visual} Fvisual特征
- 这样可以利用到各个尺度下特征信息。具体代码主要位于
ppocr/modeling/necks/pg_fpn.py，以下为关键代码:
class PGFPN(nn.Layer):
def __init__(self, in_channels, **kwargs):
super(PGFPN, self).__init__()
# 省略一些代码
pass
def forward(self, x):
c0, c1, c2, c3, c4, c5, c6 = x
# c0 shape: [1, 3, 768, 1408]
# c1 shape: [1, 64, 384, 704]
# c2 shape: [1, 256, 192, 352]
# c3 shape: [1, 512, 96, 176]
# c4 shape: [1, 1024, 48, 88]
# c5 shape: [1, 2048, 24, 44]
# c6 shape: [1, 2048, 12, 22]
# FPN_Down_Fusion
f = [c0, c1, c2]
g = [None, None, None]
h = [None, None, None]
h[0] = self.conv_bn_layer_1(f[0])
h[1] = self.conv_bn_layer_2(f[1])
h[2] = self.conv_bn_layer_3(f[2])
# 经过上面运算之后
# h[0] shape: [1, 32, 768, 1408]
# h[1] shape: [1, 64, 384, 704]
# h[2] shape: [1, 128, 192, 352]
g[0] = self.conv_bn_layer_4(h[0])
g[1] = paddle.add(g[0], h[1])
g[1] = F.relu(g[1])
g[1] = self.conv_bn_layer_5(g[1])
g[1] = self.conv_bn_layer_6(g[1])
g[2] = paddle.add(g[1], h[2])
g[2] = F.relu(g[2])
g[2] = self.conv_bn_layer_7(g[2])
# 经过上面运算之后
# g[0] shape: [1, 64, 384, 704]
# g[1] shape: [1, 128, 192, 352]
# g[2] shape: [1, 128, 192, 352]
f_down = self.conv_bn_layer_8(g[2])
# f_down shape: [1, 128, 192, 352]
# FPN UP Fusion
f1 = [c6, c5, c4, c3, c2]
g = [None, None, None, None, None]
h = [None, None, None, None, None]
h[0] = self.conv_h0(f1[0])
h[1] = self.conv_h1(f1[1])
h[2] = self.conv_h2(f1[2])
h[3] = self.conv_h3(f1[3])
h[4] = self.conv_h4(f1[4])
# h[0] shape: [1, 256, 12, 22]
# h[1] shape: [1, 256, 24, 44]
# h[2] shape: [1, 192, 48, 88]
# h[3] shape: [1, 192, 96, 176]
# h[4] shape: [1, 128, 192, 352]
g[0] = self.dconv0(h[0])
g[1] = paddle.add(g[0], h[1])
g[1] = F.relu(g[1])
g[1] = self.conv_g1(g[1])
g[1] = self.dconv1(g[1])
g[2] = paddle.add(g[1], h[2])
g[2] = F.relu(g[2])
g[2] = self.conv_g2(g[2])
g[2] = self.dconv2(g[2])
g[3] = paddle.add(g[2], h[3])
g[3] = F.relu(g[3])
g[3] = self.conv_g3(g[3])
g[3] = self.dconv3(g[3])
g[4] = paddle.add(x=g[3], y=h[4])
g[4] = F.relu(g[4])
g[4] = self.conv_g4(g[4])
# g[0] shape: [1, 256, 24, 44]
# g[1] shape: [1, 192, 48, 88]
# g[2] shape: [1, 192, 96, 176]
# g[3] shape: [1, 128, 192, 352]
# g[4] shape: [1, 128, 192, 352]
f_up = self.convf(g[4])
# f_down shape: [1, 128, 192, 352]
# f_up shape: [1, 128, 192, 352]
f_common = paddle.add(f_down, f_up)
f_common = F.relu(f_common)
# f_common shape: [1, 128, 192, 352]
return f_common
四个分支部分
- 这四个部分(Text center line (TCL)、Text border offset (TBO)、Text direction offset (TDO)、Text character classification map (TCC))在代码中均是由一系列 1 × 1 1\times1 1×1和 3 × 3 3\times3 3×3卷积实现，在实现的该部分代码中，四个分支部分并无明显区别。
- 论文中提到了同一backbone下有无Graph Refinement Module(GRM)模块的两种形式，通过查看源码，并无找到GRM的部分，看来，开源的是没有GRM的形式。
- 主要代码位于
ppocr/modeling/heads/e2e_pg_head.py中，主要代码如下：class PGHead(nn.Layer): def __init__(self, in_channels, **kwargs): super(PGHead, self).__init__() # 省略声明代码 pass def forward(self, x, targets=None): f_score = self.conv_f_score1(x) f_score = self.conv_f_score2(f_score) f_score = self.conv_f_score3(f_score) f_score = self.conv1(f_score) f_score = F.sigmoid(f_score) # f_border f_border = self.conv_f_boder1(x) f_border = self.conv_f_boder2(f_border) f_border = self.conv_f_boder3(f_border) f_border = self.conv2(f_border) f_char = self.conv_f_char1(x) f_char = self.conv_f_char2(f_char) f_char = self.conv_f_char3(f_char) f_char = self.conv_f_char4(f_char) f_char = self.conv_f_char5(f_char) f_char = self.conv3(f_char) f_direction = self.conv_f_direc1(x) f_direction = self.conv_f_direc2(f_direction) f_direction = self.conv_f_direc3(f_direction) f_direction = self.conv4(f_direction) # f_score shape: [1, 1, 192, 352] # f_border shape: [1, 1, 192, 352] # f_char shape: [1, 1, 192, 352] # f_direction shape: [1, 1, 192, 352] predicts = {} predicts['f_score'] = f_score predicts['f_border'] = f_border predicts['f_char'] = f_char predicts['f_direction'] = f_direction return predicts
Loss部分
- 四个分支部分虽说实现并无明显区别，但是loss部分直接就能决定哪个分支学习什么， 从而在训练中赋予各个分支不同功能。
- loss实现部分主要位于
ppocr/losses/e2e_pg_loss.py处，四个分支均有对应的loss，主要代码如下：- 其中TCL分支采用的是Dice Loss，该loss源于医疗中图像分割中
- TBO和TDO采用的是Smooth L 1 L_{1} L1 Loss
- TCC采用的是PG-CTC Loss.
class PGLoss(nn.Layer): def __init__(self, tcl_bs, max_text_length, max_text_nums, pad_num, eps=1e-6, **kwargs): super(PGLoss, self).__init__() self.tcl_bs = tcl_bs self.max_text_nums = max_text_nums self.max_text_length = max_text_length self.pad_num = pad_num self.dice_loss = DiceLoss(eps=eps) def border_loss(self, f_border, l_border, l_score, l_mask): l_border_split, l_border_norm = paddle.tensor.split( l_border, num_or_sections=[4, 1], axis=1) f_border_split = f_border b, c, h, w = l_border_norm.shape l_border_norm_split = paddle.expand( x=l_border_norm, shape=[b, 4 * c, h, w]) b, c, h, w = l_score.shape l_border_score = paddle.expand(x=l_score, shape=[b, 4 * c, h, w]) b, c, h, w = l_mask.shape l_border_mask = paddle.expand(x=l_mask, shape=[b, 4 * c, h, w]) border_diff = l_border_split - f_border_split abs_border_diff = paddle.abs(border_diff) border_sign = abs_border_diff < 1.0 border_sign = paddle.cast(border_sign, dtype='float32') border_sign.stop_gradient = True border_in_loss = 0.5 * abs_border_diff * abs_border_diff * border_sign + \ (abs_border_diff - 0.5) * (1.0 - border_sign) border_out_loss = l_border_norm_split * border_in_loss border_loss = paddle.sum(border_out_loss * l_border_score * l_border_mask) / \ (paddle.sum(l_border_score * l_border_mask) + 1e-5) return border_loss def direction_loss(self, f_direction, l_direction, l_score, l_mask): l_direction_split, l_direction_norm = paddle.tensor.split( l_direction, num_or_sections=[2, 1], axis=1) f_direction_split = f_direction b, c, h, w = l_direction_norm.shape l_direction_norm_split = paddle.expand( x=l_direction_norm, shape=[b, 2 * c, h, w]) b, c, h, w = l_score.shape l_direction_score = paddle.expand(x=l_score, shape=[b, 2 * c, h, w]) b, c, h, w = l_mask.shape l_direction_mask = paddle.expand(x=l_mask, shape=[b, 2 * c, h, w]) direction_diff = l_direction_split - f_direction_split abs_direction_diff = paddle.abs(direction_diff) direction_sign = abs_direction_diff < 1.0 direction_sign = paddle.cast(direction_sign, dtype='float32') direction_sign.stop_gradient = True direction_in_loss = 0.5 * abs_direction_diff * abs_direction_diff * direction_sign + \ (abs_direction_diff - 0.5) * (1.0 - direction_sign) direction_out_loss = l_direction_norm_split * direction_in_loss direction_loss = paddle.sum(direction_out_loss * l_direction_score * l_direction_mask) / \ (paddle.sum(l_direction_score * l_direction_mask) + 1e-5) return direction_loss def ctcloss(self, f_char, tcl_pos, tcl_mask, tcl_label, label_t): f_char = paddle.transpose(f_char, [0, 2, 3, 1]) tcl_pos = paddle.reshape(tcl_pos, [-1, 3]) tcl_pos = paddle.cast(tcl_pos, dtype=int) f_tcl_char = paddle.gather_nd(f_char, tcl_pos) f_tcl_char = paddle.reshape(f_tcl_char, [-1, 64, 37]) # len(Lexicon_Table)+1 f_tcl_char_fg, f_tcl_char_bg = paddle.split(f_tcl_char, [36, 1], axis=2) f_tcl_char_bg = f_tcl_char_bg * tcl_mask + (1.0 - tcl_mask) * 20.0 b, c, l = tcl_mask.shape tcl_mask_fg = paddle.expand(x=tcl_mask, shape=[b, c, 36 * l]) tcl_mask_fg.stop_gradient = True f_tcl_char_fg = f_tcl_char_fg * tcl_mask_fg + (1.0 - tcl_mask_fg) * ( -20.0) f_tcl_char_mask = paddle.concat([f_tcl_char_fg, f_tcl_char_bg], axis=2) f_tcl_char_ld = paddle.transpose(f_tcl_char_mask, (1, 0, 2)) N, B, _ = f_tcl_char_ld.shape input_lengths = paddle.to_tensor([N] * B, dtype='int64') cost = paddle.nn.functional.ctc_loss( log_probs=f_tcl_char_ld, labels=tcl_label, input_lengths=input_lengths, label_lengths=label_t, blank=self.pad_num, reduction='none') cost = cost.mean() return cost def forward(self, predicts, labels): images, tcl_maps, tcl_label_maps, border_maps \ , direction_maps, training_masks, label_list, pos_list, pos_mask = labels # for all the batch_size pos_list, pos_mask, label_list, label_t = pre_process( label_list, pos_list, pos_mask, self.max_text_length, self.max_text_nums, self.pad_num, self.tcl_bs) f_score, f_border = predicts['f_score'], predicts['f_border'], f_direction, f_char = predicts['f_direction'], predicts['f_char'] score_loss = self.dice_loss(f_score, tcl_maps, training_masks) border_loss = self.border_loss(f_border, border_maps, tcl_maps, training_masks) direction_loss = self.direction_loss(f_direction, direction_maps, tcl_maps, training_masks) ctc_loss = self.ctcloss(f_char, pos_list, pos_mask, label_list, label_t) loss_all = score_loss + border_loss + direction_loss + 5 * ctc_loss losses = { 'loss': loss_all, "score_loss": score_loss, "border_loss": border_loss, "direction_loss": direction_loss, "ctc_loss": ctc_loss } return losses
后处理部分
- 主要位于
ppocr/postprocess/pg_postprocess.py和ppocr/utils/e2e_utils/pgnet_pp_utils.py下，提供了两种不同的版本，一个fast，一个slow。 - 这部分需要有空了仔细研究一下，暂时先不写了
总结
主要具备以下优势：
- 整个网络没有NMS和RoI操作，有效提升了整体推理时间
- 设计PGNet-CTC Loss用于训练，不需要字符级别标注
- 引入恢复文本行阅读顺序策略，可以识别非传统方向的文本
- 加入GRM模块可以有效提升CTC识别精度
不足之处：
- 因为论文中主要针对英文和数字的数据集做的相关实验，不知道在中英文上效果如何，暂时不得而知。
可以探索之处：
- 查看是否支持转ONNX模型，以及在ONNXRuntime支持下，推理速度和精度如何？
