问题场景

微服务A通过feign调用微服务B
使用了Hystrix并开启了线程隔离模式（默认模式），所以A调用B的请求会单独起一个子线程的方式去调用
现在需要将微服务A中ThreadLocal里的数据，放入feign请求B时的http header中（这里的http请求会在子线程中）

要解决如上问题，需要做两件事情

找到可以给feign调用添加header的切入点，在这里获取主线程ThreadLocal中的数据并添加到header中
找到Hystrix开启新的子线程的切入点，在线程执行run方法的先后分别做数据传递和数据清理工作

实现

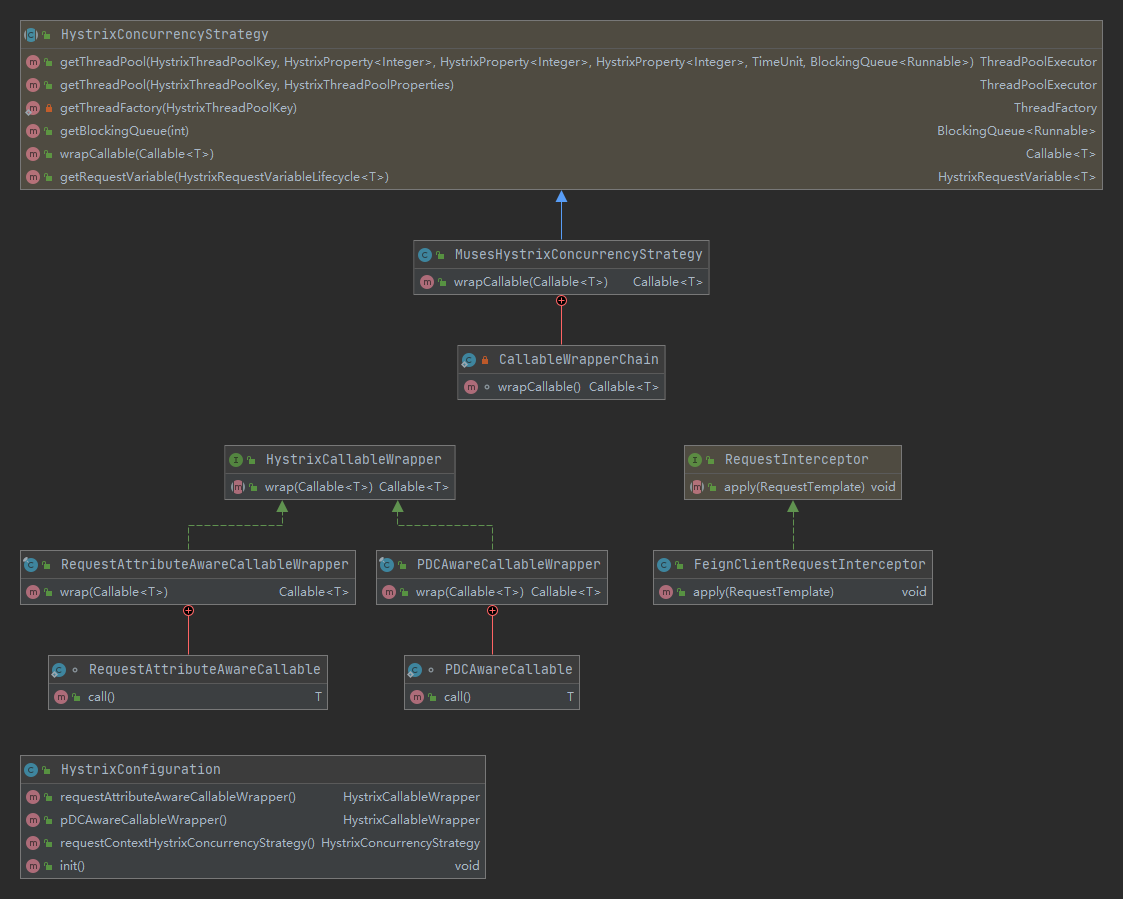

细节本人就不做过多赘述，下面先给UML类图，描述出类之间的关系，然后给出具体的实现类源码，拷贝到项目中即可食用。

上菜谱：

在这里插入图片描述
解释一下上面类的清单（有底色的两个类/接口是jar包中的）：

RequestInterceptor 来自jar包，请求拦截器接口
FeignClientRequestInterceptor 扩展请求拦截器接口，添加header
HystrixConfiguration 自实现配置类
HystrixConcurrencyStrategy 来自jar包，用于使用默认实现为系统的并发相关方面定义不同的行为或实现。
MusesHystrixConcurrencyStrategy 扩展 HystrixConcurrencyStrategy 并重写 wrapCallable 方法
HystrixCallableWrapper 自定义接口用于包装 HystrixCallable 的 call 方法，以达到可以无限扩展
PDCAwareCallableWrapper 实现接口 HystrixCallableWrapper，添加PDC数据
PDCAwareCallable 内部类，具体对 call 的包装
RequestAttributeAwareCallableWrapper 实现接口 HystrixCallableWrapper，用于拷贝 RequestAttribute 上限文数据
RequestAttributeAwareCallable 内部类，具体对 call 的包装

注：
1.文中的PDC就是我项目中用户操作ThreadLocal的工具类，带有 get 和 put 方法，就这样。
2.HystrixCallableWrapper 抽象定义方法，以后直接实现该接口即可完成无限扩展。

下面是文件源码

/**
 * 与 Hystrix 相关的公共配置
 *
 * @author shanhy
 * @date 2020/9/17 13:48
 */
@Slf4j
@Configuration
public class HystrixConfiguration {

    @Autowired(required = false)
    private List<HystrixCallableWrapper> wrappers;

    @Bean
    public HystrixCallableWrapper requestAttributeAwareCallableWrapper() {
        return new RequestAttributeAwareCallableWrapper();
    }

    @Bean
    public HystrixCallableWrapper pDCAwareCallableWrapper() {
        return new PDCAwareCallableWrapper();
    }

    @Bean
    public HystrixConcurrencyStrategy requestContextHystrixConcurrencyStrategy() {
        return new MusesHystrixConcurrencyStrategy(wrappers);
    }

    @PostConstruct
    public void init() {
        if (!Collections.isEmpty(wrappers)) {
            try {
                HystrixConcurrencyStrategy strategy = HystrixPlugins.getInstance().getConcurrencyStrategy();
                if (strategy instanceof MusesHystrixConcurrencyStrategy) {
                    return;
                }
                HystrixConcurrencyStrategy hystrixConcurrencyStrategy = new MusesHystrixConcurrencyStrategy(wrappers);

                // 获取原来的相关数据配置
                HystrixCommandExecutionHook commandExecutionHook = HystrixPlugins
                        .getInstance().getCommandExecutionHook();
                HystrixEventNotifier eventNotifier = HystrixPlugins.getInstance()
                        .getEventNotifier();
                HystrixMetricsPublisher metricsPublisher = HystrixPlugins.getInstance()
                        .getMetricsPublisher();
                HystrixPropertiesStrategy propertiesStrategy = HystrixPlugins.getInstance()
                        .getPropertiesStrategy();

                // 打印日志
                if (log.isDebugEnabled()) {
                    log.debug("Current Hystrix plugins configuration is [concurrencyStrategy [{}], eventNotifier [{}], metricPublisher [{}], propertiesStrategy [{}]]",
                            hystrixConcurrencyStrategy, eventNotifier, metricsPublisher, propertiesStrategy);
                    log.debug("Registering Muses Hystrix Concurrency Strategy.");
                }

                // 重置再重新填充
                // 直接设置会触发异常 Caused by: java.lang.IllegalStateException: Another strategy was already registered.
                HystrixPlugins.reset();
                HystrixPlugins.getInstance().registerConcurrencyStrategy(hystrixConcurrencyStrategy);
                HystrixPlugins.getInstance()
                        .registerCommandExecutionHook(commandExecutionHook);
                HystrixPlugins.getInstance().registerEventNotifier(eventNotifier);
                HystrixPlugins.getInstance().registerMetricsPublisher(metricsPublisher);
                HystrixPlugins.getInstance().registerPropertiesStrategy(propertiesStrategy);
            } catch (Exception e) {
                log.error("Failed to register Muses Hystrix Concurrency Strategy", e);
            }
        }
    }
}

/**
 * 用于包装hystrix中Callable实例的接口
 *
 * @author shanhy
 * @date 2020/9/17 13:42
 */
public interface HystrixCallableWrapper {

    /**
     * 包装Callable实例
     *
     * @param callable 待包装实例
     * @param <T>      返回类型
     * @return 包装后的实例
     */
    <T> Callable<T> wrap(Callable<T> callable);

}

/**
 * 实现HystrixCallableWrapper接口，实现PDC数据在父子线程之间的传递
 *
 * @author shanhy
 * @date 2020/9/17 13:44
 */
public final class PDCAwareCallableWrapper implements HystrixCallableWrapper {

    @Override
    public <T> Callable<T> wrap(Callable<T> callable) {
        return new PDCAwareCallable<>(callable, PDC.getCopyOfContextMap());
    }

    static class PDCAwareCallable<T> implements Callable<T> {

        private final Callable<T> delegate;
        private final Map<String, Object> contextMap;

        PDCAwareCallable(Callable<T> callable, Map<String, Object> contextMap) {
            this.delegate = callable;
            this.contextMap = contextMap;
        }

        @Override
        public T call() throws Exception {
            try {
                if(Objects.nonNull(contextMap))
                    PDC.setContextMap(contextMap);
                return delegate.call();
            } finally {
                PDC.clear();
            }
        }
    }
}

/**
 * 实现HystrixCallableWrapper接口，定义一个包装RequestContextHolder上下文处理的实现类
 * 当有多个HystrixCallableWrapper实现类的时候，方法getOrder决定执行顺序
 *
 * @author shanhy
 * @date 2020/9/17 13:44
 */
public final class RequestAttributeAwareCallableWrapper implements HystrixCallableWrapper {

    @Override
    public <T> Callable<T> wrap(Callable<T> callable) {
        return new RequestAttributeAwareCallable<>(callable, RequestContextHolder.getRequestAttributes());
    }

    static class RequestAttributeAwareCallable<T> implements Callable<T> {

        private final Callable<T> delegate;
        private final RequestAttributes requestAttributes;

        RequestAttributeAwareCallable(Callable<T> callable, RequestAttributes requestAttributes) {
            this.delegate = callable;
            this.requestAttributes = requestAttributes;
        }

        @Override
        public T call() throws Exception {
            try {
                RequestContextHolder.setRequestAttributes(requestAttributes);
                return delegate.call();
            } finally {
                RequestContextHolder.resetRequestAttributes();
            }
        }
    }
}

/**
 * 类似 SecurityContextConcurrencyStrategy，插件式扩展实现：被执行目标方法执行前后的处理包装
 *
 * @author shanhy
 * @date 2020/9/17 13:42
 */
public class MusesHystrixConcurrencyStrategy extends HystrixConcurrencyStrategy {

    private final Collection<HystrixCallableWrapper> wrappers;

    public MusesHystrixConcurrencyStrategy(Collection<HystrixCallableWrapper> wrappers) {
        this.wrappers = wrappers;
    }

    @Override
    public <T> Callable<T> wrapCallable(Callable<T> callable) {
        return new CallableWrapperChain<>(callable, wrappers.iterator()).wrapCallable();
    }

    private static class CallableWrapperChain<T> {

        private final Callable<T> callable;

        private final Iterator<HystrixCallableWrapper> wrappers;

        CallableWrapperChain(Callable<T> callable, Iterator<HystrixCallableWrapper> wrappers) {
            this.callable = callable;
            this.wrappers = wrappers;
        }

        Callable<T> wrapCallable() {
            Callable<T> delegate = callable;
            while (wrappers.hasNext()) {
                delegate = wrappers.next().wrap(delegate);
            }
            return delegate;
        }
    }
}

/**
 * feign拦截器 处理userID orgId
 *
 * @author shanhy
 * @CreateDate 2020/8/18 19:36
 */
@Slf4j
@Component
@ConditionalOnClass(RequestInterceptor.class)
@SuppressWarnings("unused")
public class FeignClientRequestInterceptor implements RequestInterceptor {

    @Override
    public void apply(RequestTemplate requestTemplate) {
        requestTemplate.header(MusesDataContext.CONTEXT_CURRENT_ID_USER, PDC.get(MusesDataContext.CONTEXT_CURRENT_ID_USER));
        requestTemplate.header(MusesDataContext.CONTEXT_CURRENT_ID_ORG, PDC.get(MusesDataContext.CONTEXT_CURRENT_ID_ORG));
    }
}

（END）
