准备

jdk1.8.0_77

zeromq-4.1.4

python-2.7.6

libsodium-1.0.11

jzmq

storm-0.9.1

zookeeper-3.4.6

我用的是三台ubutun系统的机器，分别是

hostname	Ip
node1	192.168.43.150
slave1	192.168.43.130
node2	192.168.43.151

开始安装

环境变量

首先配置好环境变量，如下,是我/etc/profile下的内容：

# /etc/profile: system-wide .profile file for the Bourne shell (sh(1))
# and Bourne compatible shells (bash(1), ksh(1), ash(1), ...).

if [ "$PS1" ]; then
  if [ "$BASH" ] && [ "$BASH" != "/bin/sh" ]; then
    # The file bash.bashrc already sets the default PS1.
    # PS1='\h:\w\$ '
    if [ -f /etc/bash.bashrc ]; then
      . /etc/bash.bashrc
    fi
  else
    if [ "`id -u`" -eq 0 ]; then
      PS1='# '
    else
      PS1='$ '
    fi
  fi
fi

# The default umask is now handled by pam_umask.
# See pam_umask(8) and /etc/login.defs.

if [ -d /etc/profile.d ]; then
  for i in /etc/profile.d/*.sh; do
    if [ -r $i ]; then
      . $i
    fi
  done
  unset i
fi

export JAVA_HOME=/home/spark/opt/jdk1.8.0_77
export PYTHON_HOME=/home/spark/opt/python-2.7.9
export HADOOP_HOME=/home/spark/opt/hadoop-2.6.0
export SPARK_HOME=/home/spark/opt/spark-1.6.1-bin-hadoop2.6
export HBASE_HOME=/home/spark/opt/hbase-0.98
export ZOOK_HOME=/home/spark/opt/zookeeper-3.4.6
export HIVE_HOME=/home/spark/opt/hive
export SCALA_HOME=/home/spark/opt/scala-2.10.6
export NUTCH_HOME=/home/spark/opt/nutch-1.6
export MAHOUT_HOME=/home/spark/opt/mahout-0.9
export SQOOP_HOME=/home/spark/opt/sqoop-1.4.6
export FLUME_HOME=/home/spark/opt/flume-1.6.0
export KAFKA_HOME=/home/spark/opt/kafka
export MONGODB_HOME=/home/spark/opt/mongodb
export REDIS_HOME=/home/spark/opt/redis-3.2.1
export M2_HOME=/home/spark/opt/maven
export STORM_HOME=/home/spark/opt/storm-0.9.1
# set tomcat environment
export CATALINA_HOME=/home/spark/www/tomcat
export CATALINA_BASE=/home/spark/www/tomcat

export PATH=$JAVA_HOME/bin:$KAFKA_HOME/bin:$PYTHON_HOME/python:$M2_HOME/bin:$FLUME_HOME/bin:$SCALA_HOME/bin:$HADOOP_HOME/bin:$SQOOP_HOME/bin:$SPARK_HOME/bin:$HBASE_HOME/bin:$ZOOK_HOME/bin:$HIVE_HOME/bin:$CATALINA_HOME/bin:$NUTCH_HOME/runtime/local/bin:$MAHOUT_HOME/bin:$MONGODB_HOME/bin:$REDIS_HOME/src:$STORM_HOME/bin:$PATH
export CLASSPATH=.:$CLASSPATH:$JAVA_HOME/lib/dt.jar:$JAVA_HOME/lib/tools.jar:$HIVE_HOME/lib:$MAHOUT_HOME/lib

这样配置好以后咯文件的检索路径是没问题了，记得使用前要source /etc/profile一下。

配置zookeeper

将下载好的zookeeper解压，进入到解压文件里，首先输入下面命令

cp /home/spark/opt/zookeeper-3.4.6/conf/zoo_sample.cfg  /home/spark/opt/zookeeper-3.4.6/conf/zoo.cfg

接着编辑zoo.cfg文件，编辑内容如下：

# The number of milliseconds of each tick
tickTime=2000
# The number of ticks that the initial
# synchronization phase can take
initLimit=10
# The number of ticks that can pass between
# sending a request and getting an acknowledgement
syncLimit=5
# the directory where the snapshot is stored.
# do not use /tmp for storage, /tmp here is just
# example sakes.
dataDir=/home/spark/opt/zookeeper-3.4.6/data
# the port at which the clients will connect
clientPort=2181
# the maximum number of client connections.
# increase this if you need to handle more clients
#maxClientCnxns=60
#
# Be sure to read the maintenance section of the
# administrator guide before turning on autopurge.
#
# http://zookeeper.apache.org/doc/current/zookeeperAdmin.html#sc_maintenance
#
# The number of snapshots to retain in dataDir
#autopurge.snapRetainCount=3
# Purge task interval in hours
# Set to "0" to disable auto purge feature
#autopurge.purgeInterval=1

server.1=192.168.43.150:2888:3888
server.2=192.168.43.130:2888:3888
server.3=192.168.43.151:2888:3888

然后保存退出，接着要将上面你自己配置的文件目录创建出来，不然启动的时候会在日志里报找不到文件的错误，这里zookeeper锁的机制我就回头有时间再给大家写一个专门一片文章来详细介绍，这里主要是将他能够启动起来。

创建完个文件之后给配置myid文件在dataDir目录下新建myid文件，打开并写入id号，id号即为zoo.cfg文件中server.后的数字，如server.1=IP1:2888:3888即表示IP1机器中的myid号为1。接着将zookeeper文件分发到其他两个子节点机器上去，分别修改myid为2，3。

接着进行启动测试。在三台机器上都输入下面命令：

root>zkServer.sh start
root>jps

如果jps之后出现QuorumPeerMain，三台机器都有的话说明zookeeper配置成功。

storm依赖

libtool

下载地址：http://mirrors.ustc.edu.cn/gnu/libtool/

我使用的是libtool-2.4.2.tar.gz

 tar -xzvf libtool-2.4.2.tar.gz
            cd libtool-2.4.2
            ./configure --prefix=/usr/local
            make
            make instal

m4

下载地址：http://ftp.gnu.org/gnu/m4/

我下载的是：m4-1.4.17.tar.gz

tar -xzvf m4-1.4.17.tar.gz
           cd m4-1.4.17
           ./configure --prefix=/usr/local
           make
           make install

automake

下载地址：http://ftp.gnu.org/gnu/automake/

我下载的是：automake-1.14.tar.gz

tar xzvf automake-1.14.tar.gz
           cd automake-1.14
           ./configure --prefix=/usr/local
           make
           make install

autoconf

下载地址：http://ftp.gnu.org/gnu/autoconf/

我下载的是：autoconf-2.69.tar.gz

 tar -xzvf autoconf-2.69.tar.gz
           cd autoconf-2.69
           ./configure --prefix=/usr/local
           make
           make install

安装ZeroMQ

跟上面打安装步骤类似，先是下载安装包，下载地址：http://download.zeromq.org/

我使用的是最新版本的 zeromq-4.0.3.tar.gz

tar -xzvf zeromq-4.0.3.tar.gz
cd zeromq-4.0.3
<pre><span style="color:#0000ff;">sudo</span> ./configure --prefix=/usr CC=<span style="color:#800000;">"</span><span style="color:#800000;">gcc -m64</span><span style="color:#800000;">"</span> PKG_CONFIG_PATH=<span style="color:#800000;">"</span><span style="color:#800000;">/usr/lib64/pkgconfig</span><span style="color:#800000;">"</span> --libdir=/usr/lib64 && <span style="color:#0000ff;">sudo</span> <span style="color:#0000ff;">make</span> && <span style="color:#0000ff;">sudo</span> <span style="color:#0000ff;">make</span> <span style="color:#0000ff;">install</span>

安装JZMQ

下载地址：https://github.com/zeromq/jzmq

直接下载.zip文件就可以了。我使用的是jzmq-master.zip

unzip jzmq-master.zip

 unzip jzmq-master.zip
 cd jzmq-master
 ./autogen.sh
<pre name="code" class="plain"> ./configure --prefix=/usr/local
 make
 make install

安装libsodium-1.0.11

sudo tar zxf libsodium-1.0.11.tar.gz
cd libsodium-1.0.11
sudo ./configure CC="gcc -m64" --prefix=/usr --libdir=/usr/lib64 && sudo make && sudo make install

上面的执行过程都必须在能够编译gcc的环境下进行。

Storm

1、Storm安装

http://mirrors.cnnic.cn/apache/incubator/storm/apache-storm-0.9.1-incubating/apache-storm-0.9.1-incubating.tar.gz

# tar xvzf apache-storm-0.9.1-incubating.tar.gz -C /usr/local

# rm -f apache-storm-0.9.1-incubating.tar.gz

# cd /usr/local

# mv apache-storm-0.9.1-incubating storm-0.9.1

# rm -f storm && ln -s storm-0.9.1 storm

# vim /etc/profile

export STORM_HOME=/usr/local/storm

export PATH=$PATH:$STORM_HOME/bin

# source /etc/profile

2、Storm配置

# mkdir -p /data/storm/{data,logs}

(1)、日志路径修改

# sed -i 's#${storm.home}#/data/storm#g' /usr/local/storm/logback/cluster.xml

(2)、主配置

# vim /usr/local/storm/conf/storm.yaml

drpc.servers:

 - "192.168.43.150"

 - "192.168.43.130"

 - "192.168.43.151"


storm.zookeeper.servers:

- "192.168.43.150"

- "192.168.43.130"

- "192.168.43.151"


storm.local.dir:"/data/storm/data"


nimbus.host:"192.168.43.150"

nimbus.thrift.port: 6627

nimbus.thrift.max_buffer_size:1048576

nimbus.childopts:"-Xmx1024m"

nimbus.task.timeout.secs:30

nimbus.supervisor.timeout.secs:60

nimbus.monitor.freq.secs:10

nimbus.cleanup.inbox.freq.secs:600

nimbus.inbox.jar.expiration.secs:3600

nimbus.task.launch.secs:240

nimbus.reassign: true

nimbus.file.copy.expiration.secs:600

nimbus.topology.validator:"backtype.storm.nimbus.DefaultTopologyValidator"


storm.zookeeper.port: 2181

storm.zookeeper.root:"/data/storm/zkinfo"

storm.cluster.mode:"distributed"

storm.local.mode.zmq:false


ui.port: 8888

ui.childopts:"-Xmx768m"


logviewer.port: 8000

logviewer.childopts:"-Xmx128m"

logviewer.appender.name:"A1"


supervisor.slots.ports:

    - 6700

    - 6701

    - 6702

    - 6703


supervisor.childopts:"-Xmx1024m"

supervisor.worker.start.timeout.secs:240

supervisor.worker.timeout.secs:30

supervisor.monitor.frequency.secs:3

supervisor.heartbeat.frequency.secs:5

supervisor.enable: true


worker.childopts:"-Xmx2048m"

topology.max.spout.pending:5000


storm.zookeeper.session.timeout:20

storm.zookeeper.connection.timeout:10

storm.zookeeper.retry.times:10

storm.zookeeper.retry.interval:30

storm.zookeeper.retry.intervalceiling.millis:30000


storm.thrift.transport:"backtype.storm.security.auth.SimpleTransportPlugin"

storm.messaging.transport:"backtype.storm.messaging.netty.Context"

storm.messaging.netty.server_worker_threads:1

storm.messaging.netty.client_worker_threads:1

storm.messaging.netty.buffer_size:5242880

storm.messaging.netty.max_retries:100

storm.messaging.netty.max_wait_ms:1000

storm.messaging.netty.min_wait_ms:100

storm.messaging.netty.transfer.batch.size:262144

storm.messaging.netty.flush.check.interval.ms:10

3、服务启动

(1)、Nimbus节点

# nohup storm/bin/storm nimbus >/dev/null 2>&1 &

# nohup storm/bin/storm ui >/dev/null 2>&1 &

(2)、Supervisor节点

# nohup storm/bin/storm supervisor >/dev/null 2>&1 &

# nohup storm/bin/storm logviewer >/dev/null 2>&1 &

【注意】

如果启动不了，需要查看一下在“/etc/hosts”里，是否设置了主机名

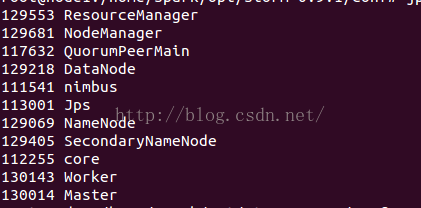

启动成功后会看见如下几个进程

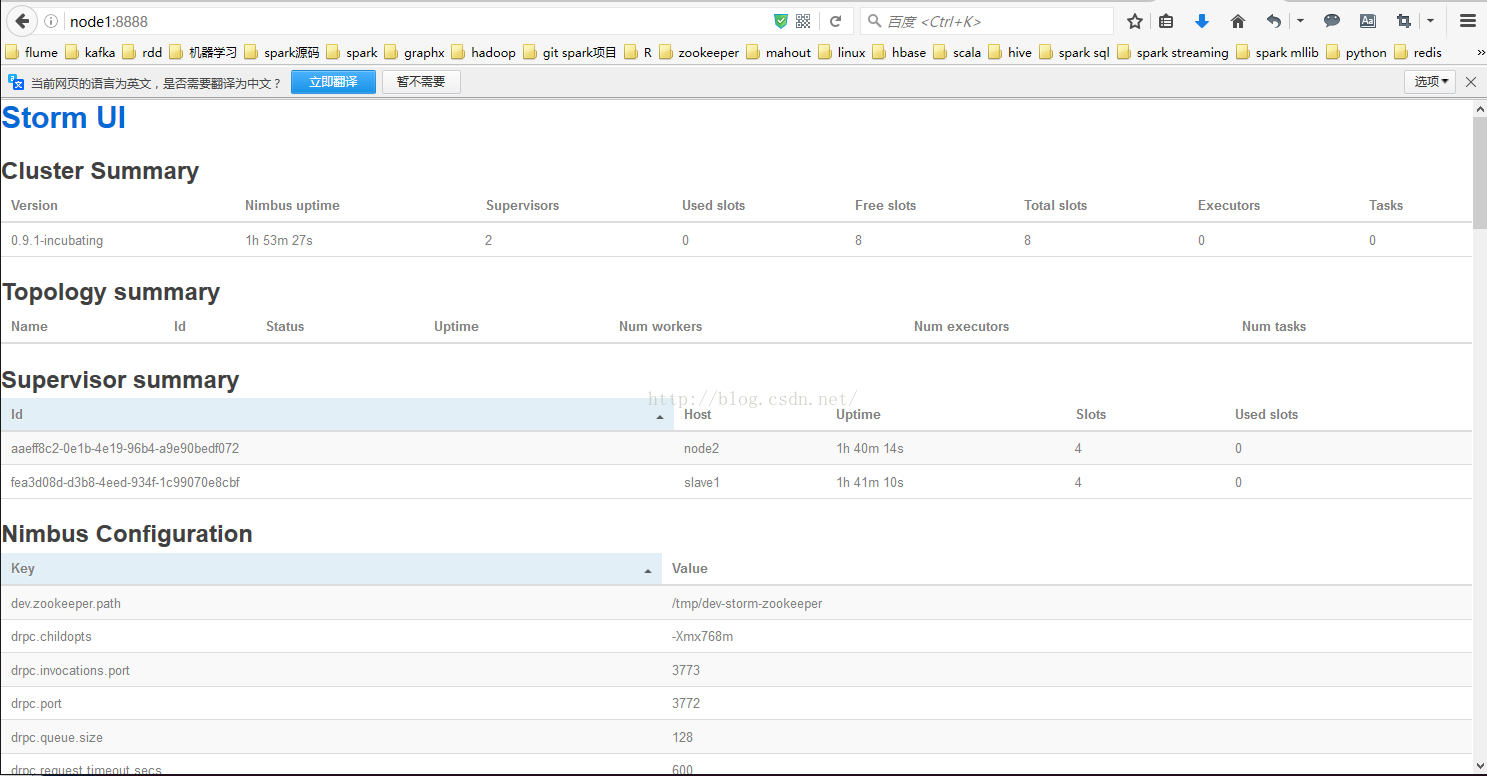

ui启动成功看上面进行是否有core这个进程，接着在火狐浏览器上输入node1:8888,出出现如下界面说明配置成功：
