AdminLTE 是一款基于 Bootstrap 的前端界面库，免费开源。本篇基于上次完成的代码，引入 AdminLTE 界面框架。完成后界面效果如下：

AdminLTE 可以从其官网或者 Github 网站下载，有 3.0+ 版和 2.0+ 版，我们选择 3.1.0 版。下载解压后可以通过框架提供的示例来探索用法。在 AdminLTE 目录下，有 index1.html, index2.html 和 index3.html 以及 starter.html 四个文件都可以了解到 AdminLTE 界面的风格。将 AdminLTE 的 dist 文件夹拷贝到 www/libs/adminlte 文件夹下，将 plugins 文件夹下的 fontawesome-free 拷贝到 www/libs/adminlte/plugins 文件夹下。

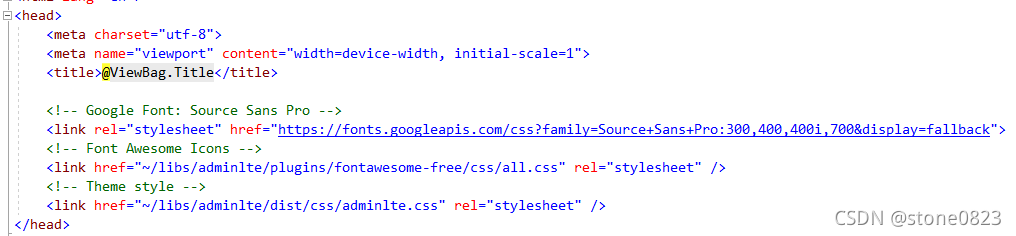

项目的主界面基于 starter.html 进行修改。在上篇的基础上，改写 _Layout.cshtml 文件。css 连接部分，移除 bootstrap css 样式，引入 adminlte css 样式。

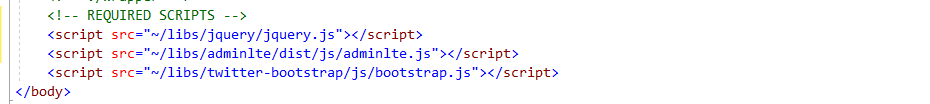

引入 adminlte 所需的 javascript 脚本：

AdminLTE 最重要的作用是处理布局，完成后的 _Layout.cshtml 代码如下：

<!DOCTYPE html>

<html lang="en">
<head>
    <meta charset="utf-8">
    <meta name="viewport" content="width=device-width, initial-scale=1">
    <title>@ViewBag.Title</title>

    <!-- Google Font: Source Sans Pro -->
    <link rel="stylesheet" href="https://fonts.googleapis.com/css?family=Source+Sans+Pro:300,400,400i,700&display=fallback">
    <!-- Font Awesome Icons -->
    <link href="~/libs/adminlte/plugins/fontawesome-free/css/all.css" rel="stylesheet" />
    <!-- Theme style -->
    <link href="~/libs/adminlte/dist/css/adminlte.css" rel="stylesheet" />
</head>

<body class="hold-transition sidebar-mini">
    <div class="wrapper">

        <!-- Navbar -->
        <nav class="main-header navbar navbar-expand navbar-white navbar-light">
            <!-- Left navbar links -->
            <ul class="navbar-nav">
                <li class="nav-item">
                    <a class="nav-link" data-widget="pushmenu" href="#" role="button"><i class="fas fa-bars"></i></a>
                </li>
            </ul>

            <!-- Right navbar links -->
            <ul class="navbar-nav ml-auto">
                <!-- Navbar Search -->
                <li class="nav-item">
                    <a class="nav-link" data-widget="navbar-search" href="#" role="button">
                        <i class="fas fa-search"></i>
                    </a>
                    <div class="navbar-search-block">
                        <form class="form-inline">
                            <div class="input-group input-group-sm">
                                <input class="form-control form-control-navbar" type="search" placeholder="Search" aria-label="Search">
                                <div class="input-group-append">
                                    <button class="btn btn-navbar" type="submit">
                                        <i class="fas fa-search"></i>
                                    </button>
                                    <button class="btn btn-navbar" type="button" data-widget="navbar-search">
                                        <i class="fas fa-times"></i>
                                    </button>
                                </div>
                            </div>
                        </form>
                    </div>
                </li>

                <!-- Messages Dropdown Menu -->
                <li class="nav-item dropdown">
                    <a class="nav-link" data-toggle="dropdown" href="#">
                        <i class="far fa-comments"></i>
                        <span class="badge badge-danger navbar-badge">3</span>
                    </a>
                    <div class="dropdown-menu dropdown-menu-lg dropdown-menu-right">
                        <a href="#" class="dropdown-item">
                            <!-- Message Start -->
                            <div class="media">
                                <img src="dist/img/user1-128x128.jpg" alt="User Avatar" class="img-size-50 mr-3 img-circle">
                                <div class="media-body">
                                    <h3 class="dropdown-item-title">
                                        Brad Diesel
                                        <span class="float-right text-sm text-danger"><i class="fas fa-star"></i></span>
                                    </h3>
                                    <p class="text-sm">Call me whenever you can...</p>
                                    <p class="text-sm text-muted"><i class="far fa-clock mr-1"></i> 4 Hours Ago</p>
                                </div>
                            </div>
                            <!-- Message End -->
                        </a>
                        <div class="dropdown-divider"></div>
                        <a href="#" class="dropdown-item">
                            <!-- Message Start -->
                            <div class="media">
                                <img src="dist/img/user8-128x128.jpg" alt="User Avatar" class="img-size-50 img-circle mr-3">
                                <div class="media-body">
                                    <h3 class="dropdown-item-title">
                                        John Pierce
                                        <span class="float-right text-sm text-muted"><i class="fas fa-star"></i></span>
                                    </h3>
                                    <p class="text-sm">I got your message bro</p>
                                    <p class="text-sm text-muted"><i class="far fa-clock mr-1"></i> 4 Hours Ago</p>
                                </div>
                            </div>
                            <!-- Message End -->
                        </a>
                        <div class="dropdown-divider"></div>
                        <a href="#" class="dropdown-item">
                            <!-- Message Start -->
                            <div class="media">
                                <img src="dist/img/user3-128x128.jpg" alt="User Avatar" class="img-size-50 img-circle mr-3">
                                <div class="media-body">
                                    <h3 class="dropdown-item-title">
                                        Nora Silvester
                                        <span class="float-right text-sm text-warning"><i class="fas fa-star"></i></span>
                                    </h3>
                                    <p class="text-sm">The subject goes here</p>
                                    <p class="text-sm text-muted"><i class="far fa-clock mr-1"></i> 4 Hours Ago</p>
                                </div>
                            </div>
                            <!-- Message End -->
                        </a>
                        <div class="dropdown-divider"></div>
                        <a href="#" class="dropdown-item dropdown-footer">See All Messages</a>
                    </div>
                </li>
                <!-- Notifications Dropdown Menu -->
                <li class="nav-item dropdown">
                    <a class="nav-link" data-toggle="dropdown" href="#">
                        <i class="far fa-bell"></i>
                        <span class="badge badge-warning navbar-badge">15</span>
                    </a>
                    <div class="dropdown-menu dropdown-menu-lg dropdown-menu-right">
                        <span class="dropdown-header">15 Notifications</span>
                        <div class="dropdown-divider"></div>
                        <a href="#" class="dropdown-item">
                            <i class="fas fa-envelope mr-2"></i> 4 new messages
                            <span class="float-right text-muted text-sm">3 mins</span>
                        </a>
                        <div class="dropdown-divider"></div>
                        <a href="#" class="dropdown-item">
                            <i class="fas fa-users mr-2"></i> 8 friend requests
                            <span class="float-right text-muted text-sm">12 hours</span>
                        </a>
                        <div class="dropdown-divider"></div>
                        <a href="#" class="dropdown-item">
                            <i class="fas fa-file mr-2"></i> 3 new reports
                            <span class="float-right text-muted text-sm">2 days</span>
                        </a>
                        <div class="dropdown-divider"></div>
                        <a href="#" class="dropdown-item dropdown-footer">See All Notifications</a>
                    </div>
                </li>
                <li class="nav-item">
                    <a class="nav-link" data-widget="fullscreen" href="#" role="button">
                        <i class="fas fa-expand-arrows-alt"></i>
                    </a>
                </li>
                <li class="nav-item">
                    <a class="nav-link" data-widget="control-sidebar" data-slide="true" href="#" role="button">
                        <i class="fas fa-th-large"></i>
                    </a>
                </li>
            </ul>
        </nav>
        <!-- /.navbar -->
        <!-- Main Sidebar Container -->
        <aside class="main-sidebar sidebar-dark-primary elevation-4">
            <!-- Brand Logo -->
            <a href="#" class="brand-link">
                <img src="~/libs/adminlte/dist/img/AdminLTELogo.png" alt="AdminLTE Logo" class="brand-image img-circle elevation-3" style="opacity: .8">
                <span class="brand-text font-weight-light">学生信息管理系统</span>
            </a>

            <!-- Sidebar -->
            <div class="sidebar">
                <!-- Sidebar user panel (optional) -->
                <div class="user-panel mt-3 pb-3 mb-3 d-flex">
                    <div class="image">
                        <img src="~/libs/adminlte/dist/img/user3-128x128.jpg" class="img-circle elevation-2" alt="User Image">
                    </div>
                    <div class="info">
                        <a href="#" class="d-block">Administrator</a>
                    </div>
                </div>
            </div>
            <!-- /.sidebar -->
        </aside>

        <!-- Content Wrapper. Contains page content -->
        <div class="content-wrapper">
            <div class="content-header"></div>
            <!-- 内容区域 -->
            <div class="content">
                <div class="container-fluid">
                    @RenderBody()
                </div>
            </div> <!-- /.content -->
        </div>
        <!-- /.content-wrapper -->
        <!-- Control Sidebar -->
        <aside class="control-sidebar control-sidebar-dark">
            <!-- Control sidebar content goes here -->
            <div class="p-3">
                <h5>Title</h5>
                <p>Sidebar content</p>
            </div>
        </aside>
        <!-- /.control-sidebar -->
        <!-- Main Footer -->
        <footer class="main-footer">
            <!-- To the right -->
            <div class="float-right d-none d-sm-inline">
                Anything you want
            </div>
            <!-- Default to the left -->
            <strong>Copyright &copy; 2014-2021 <a href="#">Stone Wang</a>.</strong> All rights reserved.
        </footer>
    </div>
    <!-- ./wrapper -->
    <!-- REQUIRED SCRIPTS -->
    <script src="~/libs/adminlte/dist/js/adminlte.js"></script>
    <script src="~/libs/jquery/jquery.js"></script>
    <script src="~/libs/twitter-bootstrap/js/bootstrap.js"></script>
</body>
</html>

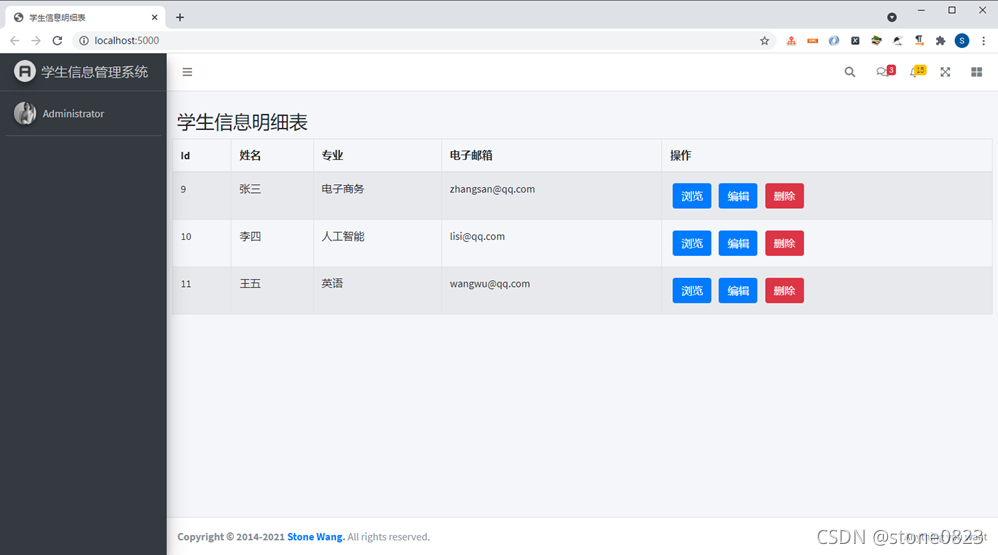

运行程序，可以看到界面风格已经改变。

源码

源码托管在 gitee 上，https://gitee.com/stonewm/aspnetcore-studentmanagement，为了记录完整的编写过程，重要步骤提交 tag 以方便查看和对比。本次代码 tag 为 v0.08。可以通过 git checkout v0.08 查看到对应代码。
