第一:什么是负载均衡呢?
在互联网高速发展的时代,大数据量、高并发等是互联网网站提及最多的。如何处理高并发带来的系统性能问题,最终大家都会使用负载均衡机制。它是根据某种负载策略把请求分发到集群中的每一台服务器上,让整个服务器群来处理网站的请求。
公司比较有钱的,可以购买专门负责负载均衡的硬件(如:F5),效果肯定会很好。对于大部分公司,会选择廉价有效的方法扩展整个系统的架构,来增加服务器的吞吐量和处理能力,以及承载能力。
第二:我今天想说的是Tomcat+Nginx搭建集群,和SpringSession和Redis组合实现Session共享
这篇文章需要亲爱的读者知道:
Nginx的配置和安装
SpringSession的配置和安装
Redis的配置和安装(主要是用java来操作Redis)
1)首先我们要搭建一个环境,SpringMVC+Spring
我们都很清楚,搭建环境有两种,一种maven,一种普通导jar包

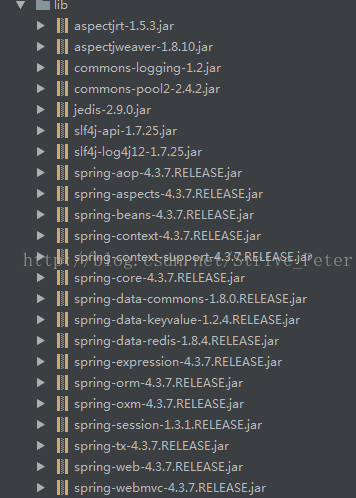

我今天用第二种,第一步导jar包
第二步:配置web.xml文件
<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_3_1.xsd"
version="3.1">
<context-param>
<param-name>contextConfigLocation</param-name>
<param-value>classpath:applicationContext.xml</param-value>
</context-param>
<listener>
<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
</listener>
<!--注意,filter的name必须为springSessionRepositoryFilter-->
<filter>
<filter-name>springSessionRepositoryFilter</filter-name>
<filter-class>org.springframework.web.filter.DelegatingFilterProxy</filter-class>
</filter>
<filter-mapping>
<filter-name>springSessionRepositoryFilter</filter-name>
<url-pattern>/*</url-pattern>
</filter-mapping>
<servlet>
<servlet-name>springmvc</servlet-name>
<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
<init-param>
<param-name>contextConfigLocation</param-name>
<param-value>classpath:spring-servlet.xml</param-value>
</init-param>
<load-on-startup>1</load-on-startup>
</servlet>
<servlet-mapping>
<servlet-name>springmvc</servlet-name>
<url-pattern>/</url-pattern>
</servlet-mapping>
</web-app>
第三步:配置spring-servlet.xml和applicationContext.xml
spring-servlet.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xmlns:mvc="http://www.springframework.org/schema/mvc"
xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc.xsd">
<context:component-scan base-package="org.peter" use-default-filters="false">
<context:include-filter type="annotation" expression="org.springframework.stereotype.Controller"/>
</context:component-scan>
<mvc:annotation-driven/>
</beans>
applicationContext.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd">
<context:component-scan base-package="org.peter" use-default-filters="false">
<context:include-filter type="annotation" expression="org.springframework.stereotype.Service"/>
<context:include-filter type="annotation" expression="org.springframework.stereotype.Repository"/>
</context:component-scan>
<bean class="org.springframework.session.data.redis.config.annotation.web.http.RedisHttpSessionConfiguration"/>
<bean class="org.springframework.data.redis.connection.jedis.JedisConnectionFactory">
<property name="hostName" value="192.168.42.128"/>
<property name="port" value="6379"/>
<property name="database" value="0"/>
</bean>
</beans>
第三步:我们创建一个Controller来做测试
package org.peter.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpSession;
/**
* Created by sang on 2017/6/14.
*/
@RestController
public class HelloController {
@RequestMapping("/hello")
public String hello() {
return "hello";
}
@RequestMapping("/reg")
public void reg(HttpSession session, String name) {
session.setAttribute("name", name);
}
@RequestMapping(value = "/login", produces = "text/html;charset=utf-8")
public String login(HttpSession session, HttpServletRequest req) {
return session.getAttribute("name").toString()+"-------------"+req.getServletContext().getRealPath("/");
}
}
第四步:写个jsp的页面
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
<title>Title</title>
</head>
<body>
<form action="/reg">
<input type="text" name="name"><input type="submit" value="提交">
</form>
<form action="/login">
<input type="submit" value="获取">
</form>
</body>
</html>

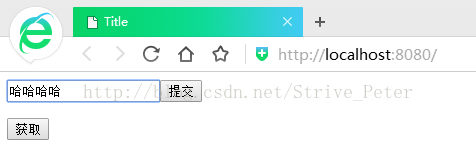

当我向httpsession中写数据时,这些数据会自动存储到redis缓存/数据库中。在返回session数据时我加上了项目部署路径,是为了在部署到集群上之后区分这个请求是由哪台服务器处理的。启动项目,页面如下:

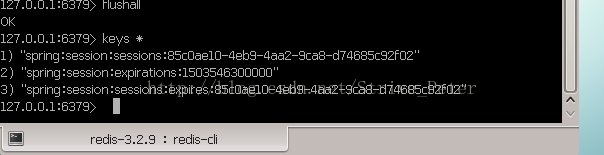

点击提交,会将数据保存到redis 中,如下:

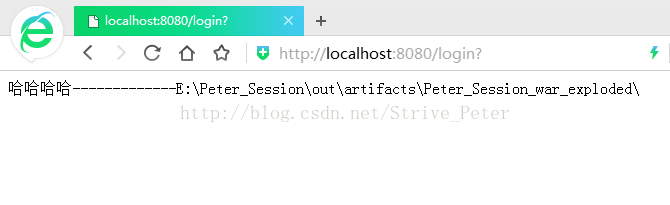

然后再回到起始页面,点击获取按钮,即可以拿到Session中的值,如下:
结果是ok的,到这里我的环境就搭建好。
注意:一定要将你的Redis缓存打开。如果连接出现了错误
在我的博客中有一篇关于redis的安装
