datax入门（data-web的简单使用）——02

1. 前言

1.1 关于data-web官网

1.1.1 源码下载

https://gitee.com/liuersusu/datax-web.

1.1.2 datax-Web部署手册

1.1.2.1 Linux环境部署手册

• 如下：
  https://github.com/WeiYe-Jing/datax-web/blob/master/doc/datax-web/datax-web-deploy.md.


1.1.2.2 本地开发环境部署手册

• 如下：
  https://github.com/WeiYe-Jing/datax-web/blob/master/userGuid.md.

1.2 关于datax入门

2. 下载之后打包、启动、登录

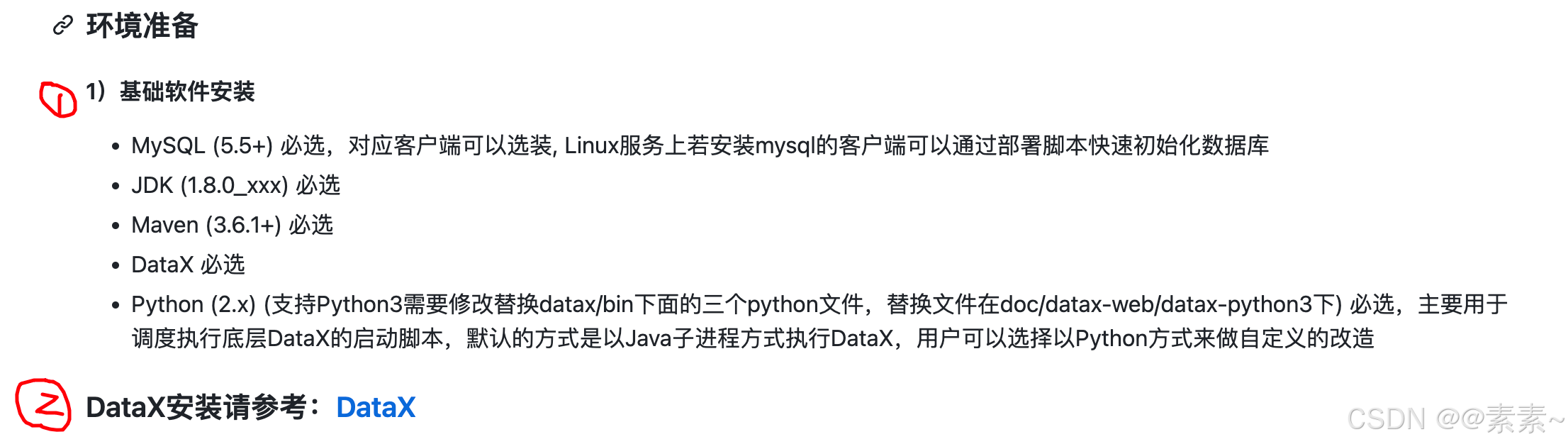

2.1 我的本地环境

• JDK1.8，maven3.9.0，python3.11，mysql8

2.2 修改配置

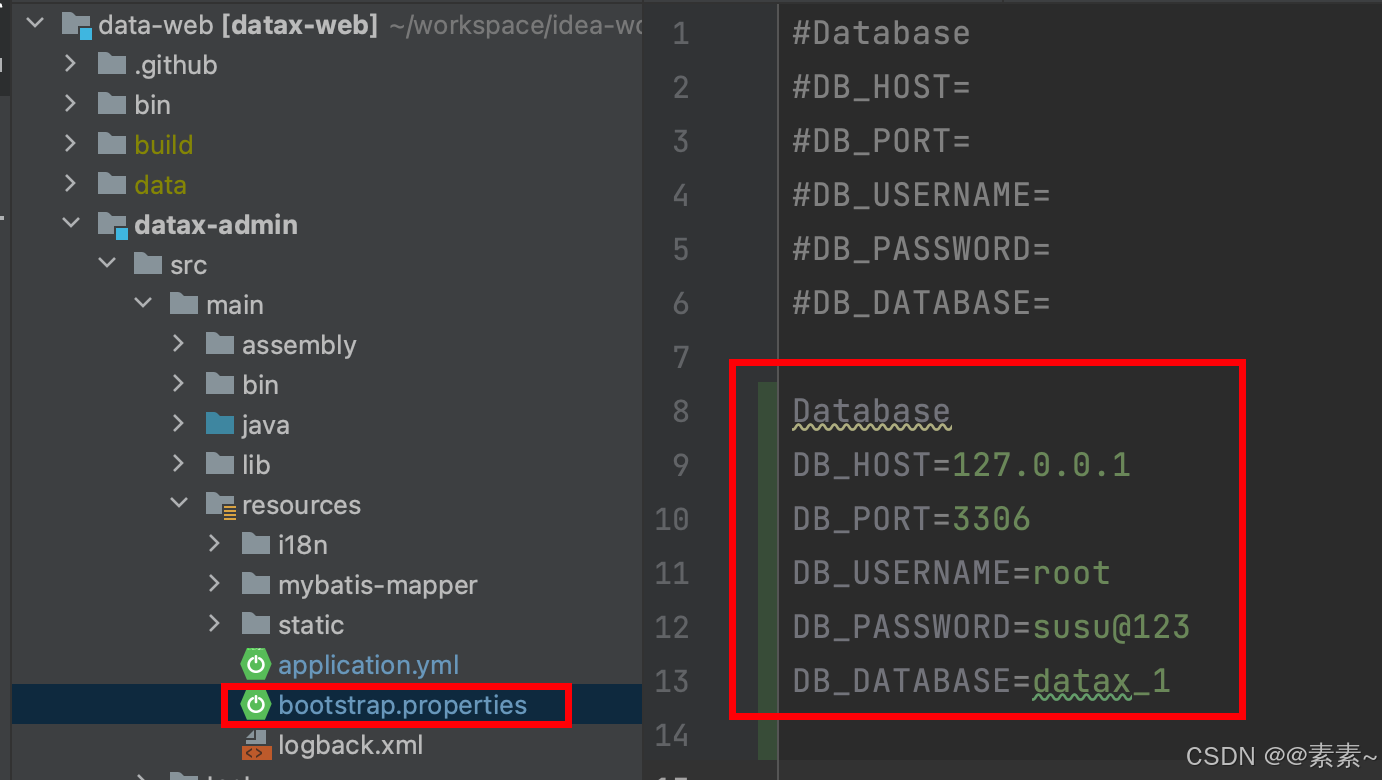

• 如下：

• datax-admin->application.yml如下：

  server:
    port: 8080
  #  port: ${server.port}
  spring:
    #数据源
  #  datasource:
  #    #    username: root
  #    #password: root
  #    #url: jdbc:mysql://localhost:3306/datax_web?serverTimezone=Asia/Shanghai&useLegacyDatetimeCode=false&useSSL=false&nullNamePatternMatchesAll=true&useUnicode=true&characterEncoding=UTF-8
  #    password: ${DB_PASSWORD:password}
  #    username: ${DB_USERNAME:username}
  #    url: jdbc:mysql://${DB_HOST:127.0.0.1}:${DB_PORT:3306}/${DB_DATABASE:dataxweb}?serverTimezone=Asia/Shanghai&useLegacyDatetimeCode=false&useSSL=false&nullNamePatternMatchesAll=true&useUnicode=true&characterEncoding=UTF-8
  #    driver-class-name: com.mysql.jdbc.Driver
    datasource:
      #    username: root
      #password: root
      #url: jdbc:mysql://localhost:3306/datax_web?serverTimezone=Asia/Shanghai&useLegacyDatetimeCode=false&useSSL=false&nullNamePatternMatchesAll=true&useUnicode=true&characterEncoding=UTF-8
      username: root
      password: susu@123
      url: jdbc:mysql://127.0.0.1:3306/datax_1?serverTimezone=Asia/Shanghai&useLegacyDatetimeCode=false&useSSL=false&nullNamePatternMatchesAll=true&useUnicode=true&characterEncoding=UTF-8
      driver-class-name: com.mysql.jdbc.Driver


      hikari:
        ## 最小空闲连接数量
        minimum-idle: 5
        ## 空闲连接存活最大时间，默认600000（10分钟）
        idle-timeout: 180000
        ## 连接池最大连接数，默认是10
        maximum-pool-size: 10
        ## 数据库连接超时时间,默认30秒，即30000
        connection-timeout: 30000
        connection-test-query: SELECT 1
        ##此属性控制池中连接的最长生命周期，值0表示无限生命周期，默认1800000即30分钟
        max-lifetime: 1800000

    # datax-web email
    mail:
      host: smtp.qq.com
      port: 25
      username: xxx@qq.com
      password: xxx
  #    username: ${mail.username}
  #    password: ${mail.password}
      properties:
        mail:
          smtp:
            auth: true
            starttls:
              enable: true
              required: true
          socketFactory:
            class: javax.net.ssl.SSLSocketFactory


  management:
    health:
      mail:
        enabled: false
    server:
      servlet:
        context-path: /actuator

  mybatis-plus:
    # mapper.xml文件扫描
    mapper-locations: classpath*:/mybatis-mapper/*Mapper.xml
    # 实体扫描，多个package用逗号或者分号分隔
    #typeAliasesPackage: com.yibo.essyncclient.*.entity
    global-config:
      # 数据库相关配置
      db-config:
        # 主键类型  AUTO:"数据库ID自增", INPUT:"用户输入ID", ID_WORKER:"全局唯一ID (数字类型唯一ID)", UUID:"全局唯一ID UUID";
        id-type: AUTO
        # 字段策略 IGNORED:"忽略判断",NOT_NULL:"非 NULL 判断"),NOT_EMPTY:"非空判断"
        field-strategy: NOT_NULL
        # 驼峰下划线转换
        column-underline: true
        # 逻辑删除
        logic-delete-value: 0
        logic-not-delete-value: 1
        # 数据库类型
        db-type: mysql
      banner: false
    # mybatis原生配置
    configuration:
      map-underscore-to-camel-case: true
      cache-enabled: false
      call-setters-on-nulls: true
      jdbc-type-for-null: 'null'
      type-handlers-package: com.wugui.datax.admin.core.handler

  # 配置mybatis-plus打印sql日志
  logging:
    level:
      com.wugui.datax.admin.mapper: info
  path: ./data/applogs/admin
  #  level:
  #    com.wugui.datax.admin.mapper: error
  #    path: ${data.path}/applogs/admin



  #datax-job, access token
  datax:
    job:
      accessToken:
      #i18n (default empty as chinese, "en" as english)
      i18n:
      ## triggerpool max size
      triggerpool:
        fast:
          max: 200
        slow:
          max: 100
        ### log retention days
      logretentiondays: 30

  datasource:
    aes:
      key: AD42F6697B035B75


• datax-executor–>application.yml

  # web port
  server:
  #  port: ${server.port}
    port: 8081

  # log config
  logging:
    config: classpath:logback.xml
  #  path: ${data.path}/applogs/executor/jobhandler
    path: ./data/applogs/executor/jobhandler

  datax:
    job:
      admin:
        ### datax admin address list, such as "http://address" or "http://address01,http://address02"
        addresses: http://127.0.0.1:8080
  #      addresses: http://127.0.0.1:${datax.admin.port}
      executor:
        appname: datax-executor
        ip:
        port: 9999
  #      port: ${executor.port:9999}
        ### job log path
        logpath: ./data/applogs/executor/jobhandler
  #      logpath: ${data.path}/applogs/executor/jobhandler
        ### job log retention days
        logretentiondays: 30
      ### job, access token
      accessToken:

    executor:
      jsonpath: /Users/susu/datax_use/data/applogs
  #    jsonpath: D:\\temp\\executor\\json\\
  #    jsonpath: ${json.path}

    pypath: /Users/susu/study_down/about_datax/datax/bin/datax.py
  #  pypath: F:\tools\datax\bin\datax.py
  #  pypath: ${python.path}


2.3 初始化sql脚本、启动

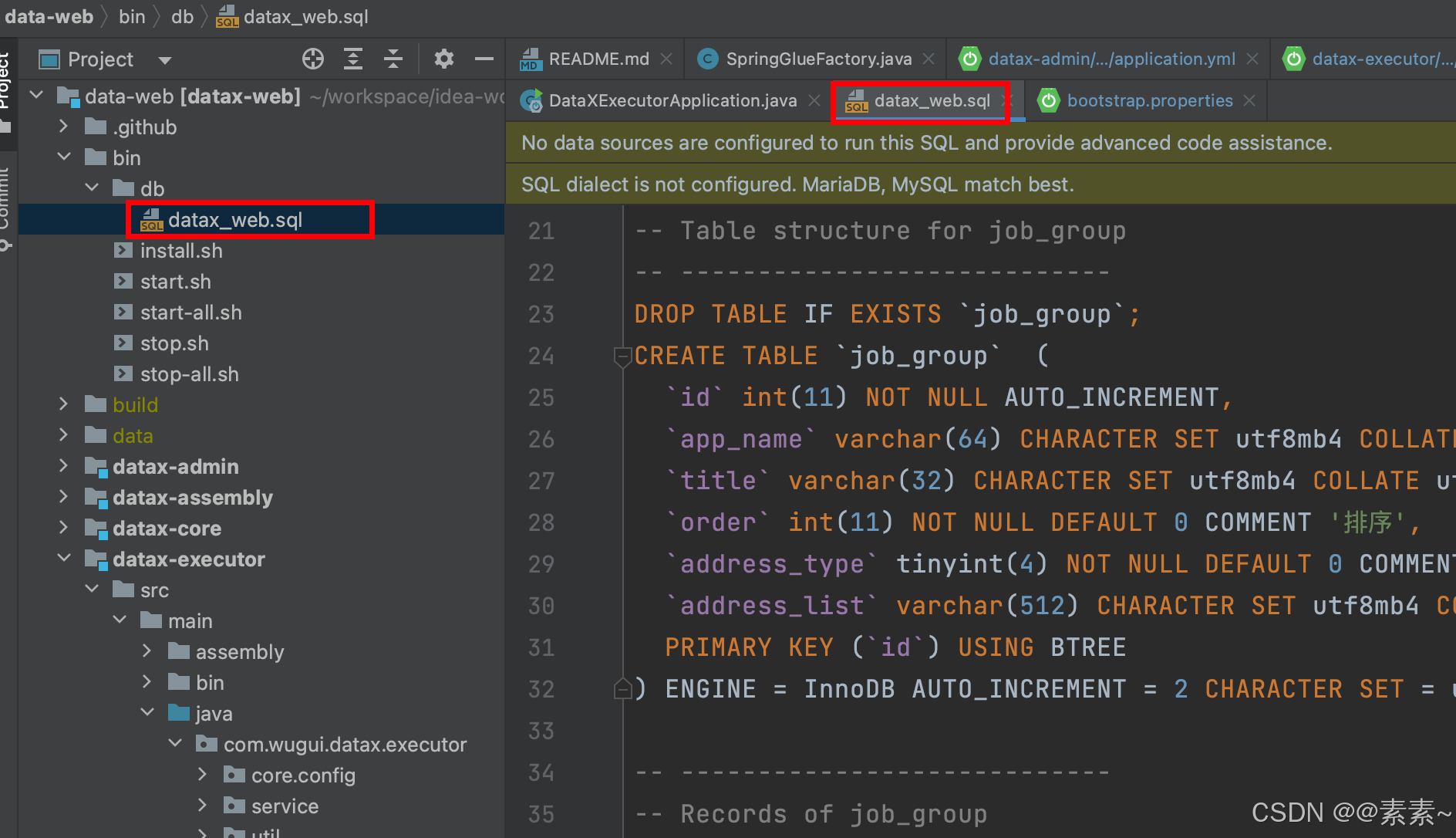

• 下载的项目里有datax_web.sql文件，执行就行：


  /*
   Navicat Premium Data Transfer

   Source Server         : localhost
   Source Server Type    : MySQL
   Source Server Version : 50725
   Source Host           : localhost:3306
   Source Schema         : datax_web

   Target Server Type    : MySQL
   Target Server Version : 50725
   File Encoding         : 65001

   Date: 15/12/2019 22:27:10
  */

  SET NAMES utf8mb4;
  SET FOREIGN_KEY_CHECKS = 0;

  -- ----------------------------
  -- Table structure for job_group
  -- ----------------------------
  DROP TABLE IF EXISTS `job_group`;
  CREATE TABLE `job_group`  (
    `id` int(11) NOT NULL AUTO_INCREMENT,
    `app_name` varchar(64) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL COMMENT '执行器AppName',
    `title` varchar(32) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL COMMENT '执行器名称',
    `order` int(11) NOT NULL DEFAULT 0 COMMENT '排序',
    `address_type` tinyint(4) NOT NULL DEFAULT 0 COMMENT '执行器地址类型：0=自动注册、1=手动录入',
    `address_list` varchar(512) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '执行器地址列表，多地址逗号分隔',
    PRIMARY KEY (`id`) USING BTREE
  ) ENGINE = InnoDB AUTO_INCREMENT = 2 CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci ROW_FORMAT = Dynamic;

  -- ----------------------------
  -- Records of job_group
  -- ----------------------------
  INSERT INTO `job_group` VALUES (1, 'datax-executor', 'datax执行器', 1, 0, NULL);

  -- ----------------------------
  -- Table structure for job_info
  -- ----------------------------
  DROP TABLE IF EXISTS `job_info`;
  CREATE TABLE `job_info`  (
    `id` int(11) NOT NULL AUTO_INCREMENT,
    `job_group` int(11) NOT NULL COMMENT '执行器主键ID',
    `job_cron` varchar(128) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL COMMENT '任务执行CRON',
    `job_desc` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL,
    `add_time` datetime(0) NULL DEFAULT NULL,
    `update_time` datetime(0) NULL DEFAULT NULL,
    `author` varchar(64) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '作者',
    `alarm_email` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '报警邮件',
    `executor_route_strategy` varchar(50) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '执行器路由策略',
    `executor_handler` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '执行器任务handler',
    `executor_param` varchar(512) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '执行器任务参数',
    `executor_block_strategy` varchar(50) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '阻塞处理策略',
    `executor_timeout` int(11) NOT NULL DEFAULT 0 COMMENT '任务执行超时时间，单位秒',
    `executor_fail_retry_count` int(11) NOT NULL DEFAULT 0 COMMENT '失败重试次数',
    `glue_type` varchar(50) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL COMMENT 'GLUE类型',
    `glue_source` mediumtext CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL COMMENT 'GLUE源代码',
    `glue_remark` varchar(128) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT 'GLUE备注',
    `glue_updatetime` datetime(0) NULL DEFAULT NULL COMMENT 'GLUE更新时间',
    `child_jobid` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '子任务ID，多个逗号分隔',
    `trigger_status` tinyint(4) NOT NULL DEFAULT 0 COMMENT '调度状态：0-停止，1-运行',
    `trigger_last_time` bigint(13) NOT NULL DEFAULT 0 COMMENT '上次调度时间',
    `trigger_next_time` bigint(13) NOT NULL DEFAULT 0 COMMENT '下次调度时间',
    `job_json` text CHARACTER SET utf8 COLLATE utf8_general_ci NULL COMMENT 'datax运行脚本',
    PRIMARY KEY (`id`) USING BTREE
  ) ENGINE = InnoDB AUTO_INCREMENT = 7 CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci ROW_FORMAT = Dynamic;


  -- ----------------------------
  -- Table structure for job_jdbc_datasource
  -- ----------------------------
  DROP TABLE IF EXISTS `job_jdbc_datasource`;
  CREATE TABLE `job_jdbc_datasource`  (
    `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT '自增主键',
    `datasource_name` varchar(200) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL COMMENT '数据源名称',
    `datasource_group` varchar(200) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT 'Default' COMMENT '数据源分组',
    `jdbc_username` varchar(100) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL COMMENT '用户名',
    `jdbc_password` varchar(200) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL COMMENT '密码',
    `jdbc_url` varchar(500) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL COMMENT 'jdbc url',
    `jdbc_driver_class` varchar(200) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT 'jdbc驱动类',
    `status` tinyint(1) NOT NULL DEFAULT 1 COMMENT '状态：0删除 1启用 2禁用',
    `create_by` varchar(20) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '创建人',
    `create_date` datetime(0) NULL DEFAULT CURRENT_TIMESTAMP(0) COMMENT '创建时间',
    `update_by` varchar(20) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '更新人',
    `update_date` datetime(0) NULL DEFAULT NULL COMMENT '更新时间',
    `comments` varchar(1000) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '备注',
    PRIMARY KEY (`id`) USING BTREE
  ) ENGINE = InnoDB AUTO_INCREMENT = 6 CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci COMMENT = 'jdbc数据源配置' ROW_FORMAT = Dynamic;


  -- ----------------------------
  -- Table structure for job_lock
  -- ----------------------------
  DROP TABLE IF EXISTS `job_lock`;
  CREATE TABLE `job_lock`  (
    `lock_name` varchar(50) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL COMMENT '锁名称',
    PRIMARY KEY (`lock_name`) USING BTREE
  ) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci ROW_FORMAT = Dynamic;

  -- ----------------------------
  -- Records of job_lock
  -- ----------------------------
  INSERT INTO `job_lock` VALUES ('schedule_lock');

  -- ----------------------------
  -- Table structure for job_log
  -- ----------------------------
  DROP TABLE IF EXISTS `job_log`;
  CREATE TABLE `job_log`  (
    `id` bigint(20) NOT NULL AUTO_INCREMENT,
    `job_group` int(11) NOT NULL COMMENT '执行器主键ID',
    `job_id` int(11) NOT NULL COMMENT '任务，主键ID',
    `job_desc` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL,
    `executor_address` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '执行器地址，本次执行的地址',
    `executor_handler` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '执行器任务handler',
    `executor_param` varchar(512) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '执行器任务参数',
    `executor_sharding_param` varchar(20) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '执行器任务分片参数，格式如 1/2',
    `executor_fail_retry_count` int(11) NULL DEFAULT 0 COMMENT '失败重试次数',
    `trigger_time` datetime(0) NULL DEFAULT NULL COMMENT '调度-时间',
    `trigger_code` int(11) NOT NULL COMMENT '调度-结果',
    `trigger_msg` text CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL COMMENT '调度-日志',
    `handle_time` datetime(0) NULL DEFAULT NULL COMMENT '执行-时间',
    `handle_code` int(11) NOT NULL COMMENT '执行-状态',
    `handle_msg` text CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL COMMENT '执行-日志',
    `alarm_status` tinyint(4) NOT NULL DEFAULT 0 COMMENT '告警状态：0-默认、1-无需告警、2-告警成功、3-告警失败',
    `process_id` varchar(20) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT 'datax进程Id',
    `max_id` bigint(20) NULL DEFAULT NULL COMMENT '增量表max id',
    PRIMARY KEY (`id`) USING BTREE,
    INDEX `I_trigger_time`(`trigger_time`) USING BTREE,
    INDEX `I_handle_code`(`handle_code`) USING BTREE
  ) ENGINE = InnoDB AUTO_INCREMENT = 0 CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci ROW_FORMAT = Dynamic;

  -- ----------------------------
  -- Table structure for job_log_report
  -- ----------------------------
  DROP TABLE IF EXISTS `job_log_report`;
  CREATE TABLE `job_log_report`  (
    `id` int(11) NOT NULL AUTO_INCREMENT,
    `trigger_day` datetime(0) NULL DEFAULT NULL COMMENT '调度-时间',
    `running_count` int(11) NOT NULL DEFAULT 0 COMMENT '运行中-日志数量',
    `suc_count` int(11) NOT NULL DEFAULT 0 COMMENT '执行成功-日志数量',
    `fail_count` int(11) NOT NULL DEFAULT 0 COMMENT '执行失败-日志数量',
    PRIMARY KEY (`id`) USING BTREE,
    UNIQUE INDEX `i_trigger_day`(`trigger_day`) USING BTREE
  ) ENGINE = InnoDB AUTO_INCREMENT = 28 CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci ROW_FORMAT = Dynamic;

  -- ----------------------------
  -- Records of job_log_report
  -- ----------------------------
  INSERT INTO `job_log_report` VALUES (20, '2019-12-07 00:00:00', 0, 0, 0);
  INSERT INTO `job_log_report` VALUES (21, '2019-12-10 00:00:00', 77, 52, 23);
  INSERT INTO `job_log_report` VALUES (22, '2019-12-11 00:00:00', 9, 2, 11);
  INSERT INTO `job_log_report` VALUES (23, '2019-12-13 00:00:00', 9, 48, 74);
  INSERT INTO `job_log_report` VALUES (24, '2019-12-12 00:00:00', 10, 8, 30);
  INSERT INTO `job_log_report` VALUES (25, '2019-12-14 00:00:00', 78, 45, 66);
  INSERT INTO `job_log_report` VALUES (26, '2019-12-15 00:00:00', 24, 76, 9);
  INSERT INTO `job_log_report` VALUES (27, '2019-12-16 00:00:00', 23, 85, 10);

  -- ----------------------------
  -- Table structure for job_logglue
  -- ----------------------------
  DROP TABLE IF EXISTS `job_logglue`;
  CREATE TABLE `job_logglue`  (
    `id` int(11) NOT NULL AUTO_INCREMENT,
    `job_id` int(11) NOT NULL COMMENT '任务，主键ID',
    `glue_type` varchar(50) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT 'GLUE类型',
    `glue_source` mediumtext CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL COMMENT 'GLUE源代码',
    `glue_remark` varchar(128) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL COMMENT 'GLUE备注',
    `add_time` datetime(0) NULL DEFAULT NULL,
    `update_time` datetime(0) NULL DEFAULT NULL,
    PRIMARY KEY (`id`) USING BTREE
  ) ENGINE = InnoDB AUTO_INCREMENT = 1 CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci ROW_FORMAT = Dynamic;

  -- ----------------------------
  -- Table structure for job_registry
  -- ----------------------------
  DROP TABLE IF EXISTS `job_registry`;
  CREATE TABLE `job_registry`  (
    `id` int(11) NOT NULL AUTO_INCREMENT,
    `registry_group` varchar(50) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL,
    `registry_key` varchar(191) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL,
    `registry_value` varchar(191) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL,
    `update_time` datetime(0) NULL DEFAULT NULL,
    PRIMARY KEY (`id`) USING BTREE,
    INDEX `i_g_k_v`(`registry_group`, `registry_key`, `registry_value`) USING BTREE
  ) ENGINE = InnoDB AUTO_INCREMENT = 26 CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci ROW_FORMAT = Dynamic;



  -- ----------------------------
  -- Table structure for job_user
  -- ----------------------------
  DROP TABLE IF EXISTS `job_user`;
  CREATE TABLE `job_user`  (
    `id` int(11) NOT NULL AUTO_INCREMENT,
    `username` varchar(50) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL COMMENT '账号',
    `password` varchar(100) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL COMMENT '密码',
    `role` varchar(50) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '角色：0-普通用户、1-管理员',
    `permission` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '权限：执行器ID列表，多个逗号分割',
    PRIMARY KEY (`id`) USING BTREE,
    UNIQUE INDEX `i_username`(`username`) USING BTREE
  ) ENGINE = InnoDB AUTO_INCREMENT = 10 CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci ROW_FORMAT = Dynamic;

  -- ----------------------------
  -- Records of job_user
  -- ----------------------------
  INSERT INTO `job_user` VALUES (1, 'admin', '$2a$10$2KCqRbra0Yn2TwvkZxtfLuWuUP5KyCWsljO/ci5pLD27pqR3TV1vy', 'ROLE_ADMIN', NULL);



  /**
  v2.1.1脚本更新
  */
  ALTER TABLE `job_info`
  ADD COLUMN `replace_param` VARCHAR(100) NULL DEFAULT NULL COMMENT '动态参数' AFTER `job_json`,
  ADD COLUMN `jvm_param` VARCHAR(200) NULL DEFAULT NULL COMMENT 'jvm参数' AFTER `replace_param`,
  ADD COLUMN `time_offset` INT(11) NULL DEFAULT '0'COMMENT '时间偏移量'  AFTER `jvm_param`;
  /**
  增量改版脚本更新
   */
  ALTER TABLE `job_info` DROP COLUMN `time_offset`;
  ALTER TABLE `job_info`
  ADD COLUMN `inc_start_time` DATETIME NULL DEFAULT NULL COMMENT '增量初始时间' AFTER `jvm_param`;

  -- ----------------------------
  -- Table structure for job_template
  -- ----------------------------
  DROP TABLE IF EXISTS `job_template`;
  CREATE TABLE `job_template`  (
    `id` int(11) NOT NULL AUTO_INCREMENT,
    `job_group` int(11) NOT NULL COMMENT '执行器主键ID',
    `job_cron` varchar(128) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL COMMENT '任务执行CRON',
    `job_desc` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL,
    `add_time` datetime(0) NULL DEFAULT NULL,
    `update_time` datetime(0) NULL DEFAULT NULL,
    `user_id` int(11) NOT NULL COMMENT '修改用户',
    `alarm_email` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '报警邮件',
    `executor_route_strategy` varchar(50) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '执行器路由策略',
    `executor_handler` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '执行器任务handler',
    `executor_param` varchar(512) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '执行器参数',
    `executor_block_strategy` varchar(50) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '阻塞处理策略',
    `executor_timeout` int(11) NOT NULL DEFAULT 0 COMMENT '任务执行超时时间，单位秒',
    `executor_fail_retry_count` int(11) NOT NULL DEFAULT 0 COMMENT '失败重试次数',
    `glue_type` varchar(50) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL COMMENT 'GLUE类型',
    `glue_source` mediumtext CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL COMMENT 'GLUE源代码',
    `glue_remark` varchar(128) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT 'GLUE备注',
    `glue_updatetime` datetime(0) NULL DEFAULT NULL COMMENT 'GLUE更新时间',
    `child_jobid` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '子任务ID，多个逗号分隔',
    `trigger_last_time` bigint(13) NOT NULL DEFAULT 0 COMMENT '上次调度时间',
    `trigger_next_time` bigint(13) NOT NULL DEFAULT 0 COMMENT '下次调度时间',
    `job_json` text CHARACTER SET utf8 COLLATE utf8_general_ci NULL COMMENT 'datax运行脚本',
    `jvm_param` varchar(200) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT 'jvm参数',
    `project_id` int(11) NULL DEFAULT NULL COMMENT '所属项目Id',
    PRIMARY KEY (`id`) USING BTREE
  ) ENGINE = InnoDB AUTO_INCREMENT = 22 CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci ROW_FORMAT = Dynamic;

  /**
  添加数据源字段
   */
  ALTER TABLE `job_jdbc_datasource`
  ADD COLUMN `datasource` VARCHAR(45) NOT NULL COMMENT '数据源' AFTER `datasource_name`;

  /**
  添加分区字段
   */
  ALTER TABLE `job_info`
  ADD COLUMN `partition_info` VARCHAR(100) NULL DEFAULT NULL COMMENT '分区信息' AFTER `inc_start_time`;

  /**
  2.1.1版本新增----------------------------------------------------------------------------------------------
   */

  /**
  最近一次执行状态
   */
  ALTER TABLE `job_info`
  ADD COLUMN `last_handle_code` INT(11) NULL DEFAULT '0' COMMENT '最近一次执行状态' AFTER `partition_info`;

  /**
  zookeeper地址
   */
  ALTER TABLE `job_jdbc_datasource`
  ADD COLUMN `zk_adress` VARCHAR(200) NULL DEFAULT NULL AFTER `jdbc_driver_class`;

  ALTER TABLE `job_info`
  CHANGE COLUMN `executor_timeout` `executor_timeout` INT(11) NOT NULL DEFAULT '0' COMMENT '任务执行超时时间，单位分钟' ;

  /**
  用户名密码改为非必填
   */
  ALTER TABLE `job_jdbc_datasource`
  CHANGE COLUMN `jdbc_username` `jdbc_username` VARCHAR(100) CHARACTER SET 'utf8mb4' NULL DEFAULT NULL COMMENT '用户名' ,
  CHANGE COLUMN `jdbc_password` `jdbc_password` VARCHAR(200) CHARACTER SET 'utf8mb4' NULL DEFAULT NULL COMMENT '密码' ;
  /**
  添加mongodb数据库名字段
   */
  ALTER TABLE `job_jdbc_datasource`
  ADD COLUMN `database_name` VARCHAR(45) NULL DEFAULT NULL COMMENT '数据库名' AFTER `datasource_group`;
  /**
  添加执行器资源字段
   */
  ALTER TABLE `job_registry`
  ADD COLUMN `cpu_usage` DOUBLE NULL AFTER `registry_value`,
  ADD COLUMN `memory_usage` DOUBLE NULL AFTER `cpu_usage`,
  ADD COLUMN `load_average` DOUBLE NULL AFTER `memory_usage`;

  -- ----------------------------
  -- Table structure for job_permission
  -- ----------------------------
  DROP TABLE IF EXISTS `job_permission`;
  CREATE TABLE `job_permission`  (
    `id` int(11) NOT NULL AUTO_INCREMENT COMMENT '主键',
    `name` varchar(50) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL COMMENT '权限名',
    `description` varchar(11) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '权限描述',
    `url` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL,
    `pid` int(11) NULL DEFAULT NULL,
    PRIMARY KEY (`id`) USING BTREE
  ) ENGINE = InnoDB AUTO_INCREMENT = 3 CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci ROW_FORMAT = Dynamic;



  ALTER TABLE `job_info`
  ADD COLUMN `replace_param_type` varchar(255) NULL COMMENT '增量时间格式' AFTER `last_handle_code`;


  ALTER TABLE `job_info`
  ADD COLUMN `project_id` int(11) NULL COMMENT '所属项目id' AFTER `job_desc`;

  ALTER TABLE `job_info`
  ADD COLUMN `reader_table` VARCHAR(255) NULL COMMENT 'reader表名称' AFTER `replace_param_type`,
  ADD COLUMN `primary_key` VARCHAR(50) NULL COMMENT '增量表主键' AFTER `reader_table`,
  ADD COLUMN `inc_start_id` VARCHAR(20) NULL COMMENT '增量初始id' AFTER `primary_key`,
  ADD COLUMN `increment_type` TINYINT(4) NULL COMMENT '增量类型' AFTER `inc_start_id`,
  ADD COLUMN `datasource_id` BIGINT(11) NULL COMMENT '数据源id' AFTER `increment_type`;

  CREATE TABLE `job_project`  (
    `id` int(11) NOT NULL AUTO_INCREMENT COMMENT 'key',
    `name` varchar(100) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT 'project name',
    `description` varchar(200) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL,
    `user_id` int(11) NULL DEFAULT NULL COMMENT 'creator id',
    `flag` tinyint(4) NULL DEFAULT 1 COMMENT '0 not available, 1 available',
    `create_time` datetime(0) NULL DEFAULT CURRENT_TIMESTAMP(0) COMMENT 'create time',
    `update_time` datetime(0) NULL DEFAULT CURRENT_TIMESTAMP(0) COMMENT 'update time',
    PRIMARY KEY (`id`) USING BTREE
  ) ENGINE = InnoDB AUTO_INCREMENT = 1 CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci ROW_FORMAT = Dynamic;


  ALTER TABLE `job_info`
  CHANGE COLUMN `author` `user_id` INT(11) NOT NULL COMMENT '修改用户' ;

  ALTER TABLE `job_info`
  CHANGE COLUMN `increment_type` `increment_type` TINYINT(4) NULL DEFAULT 0 COMMENT '增量类型' ;

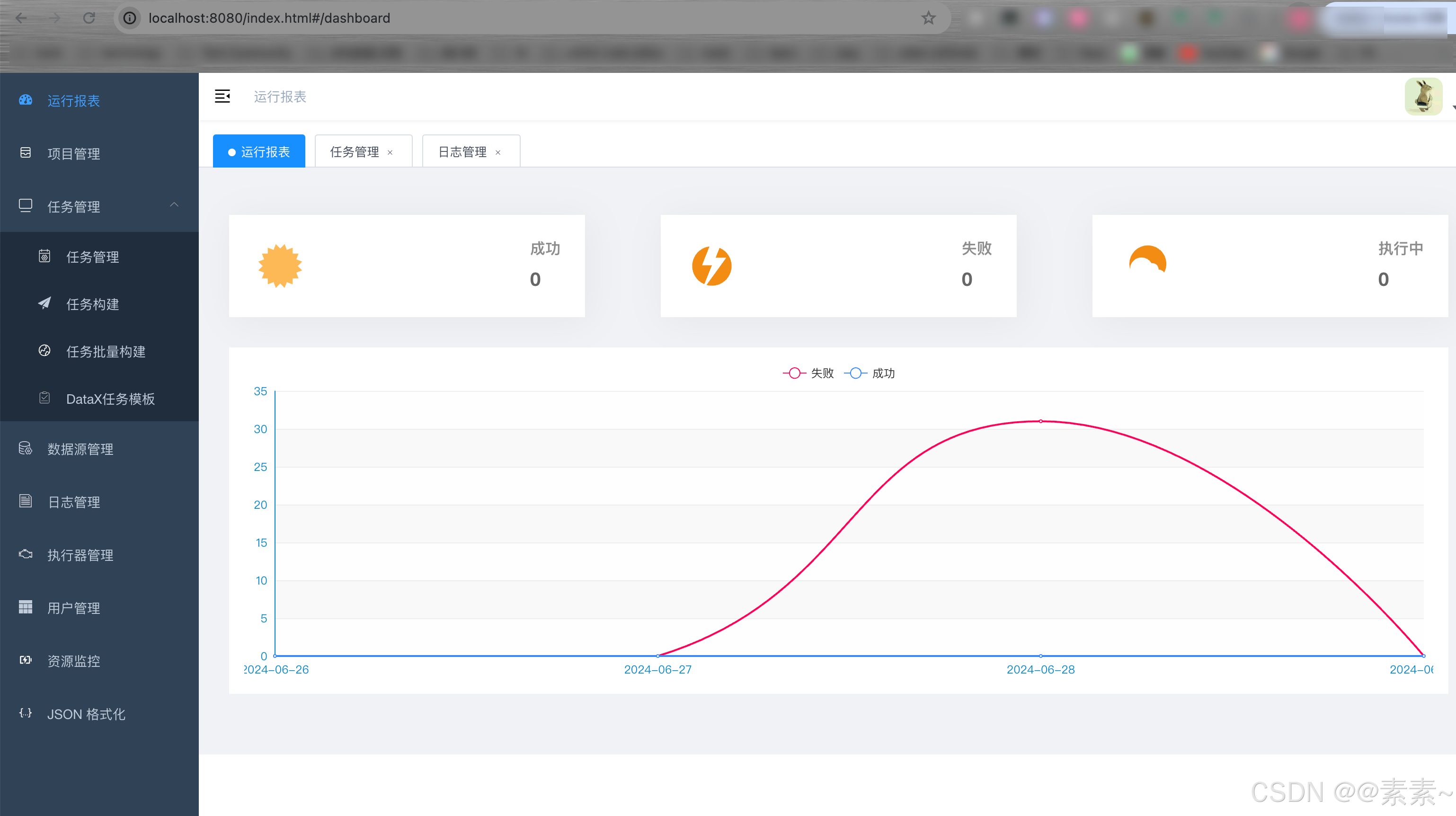

2.4 登录

• 地址：

  http://localhost:8080/index.html#/dashboard


• 默认管理员用户名：admin 密码：123456


3. 其他说明

3.1 python安装

• 通过官网下载安装
  • 官网地址：https://www.python.org/downloads/.
  • 参考：python-01（入门基础篇）.
    通过这种方式安装会自动添加环境变量。
• 通过homebrew安装

3.2 问题

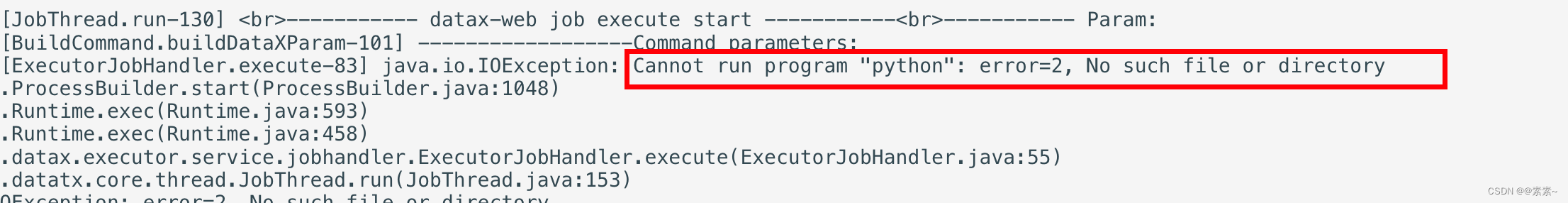

• 如果遇到下面的问题：

   Cannot run program "python": error=2, No such file or directory



• 解决问题：

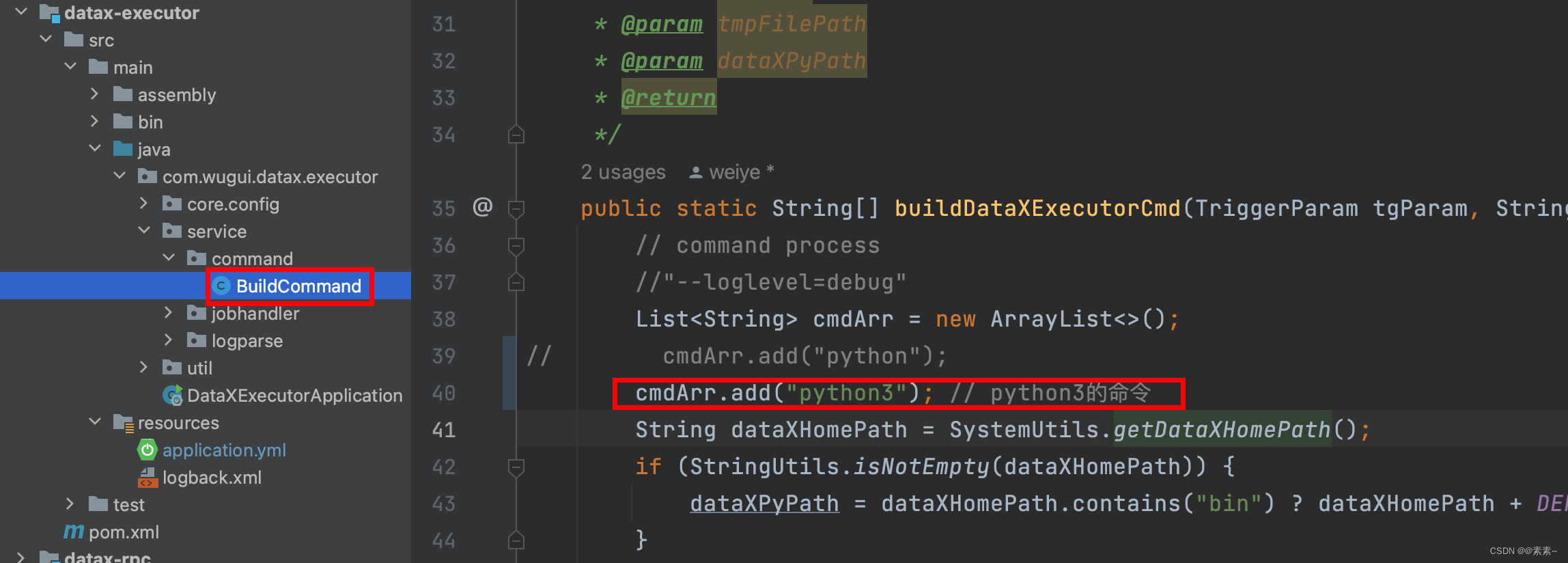

  • 如果安装的是python3，换一下命令，把python换成python3（我的是Mac版的，其他的不清楚）：

• 或者查看一下环境变量是否配置。
