1.环境准备
npm install echarts --save
在main.js 引入
import * as echarts from 'echarts';
Vue.prototype.$echarts = echarts;
2.准备需要使用到的数据

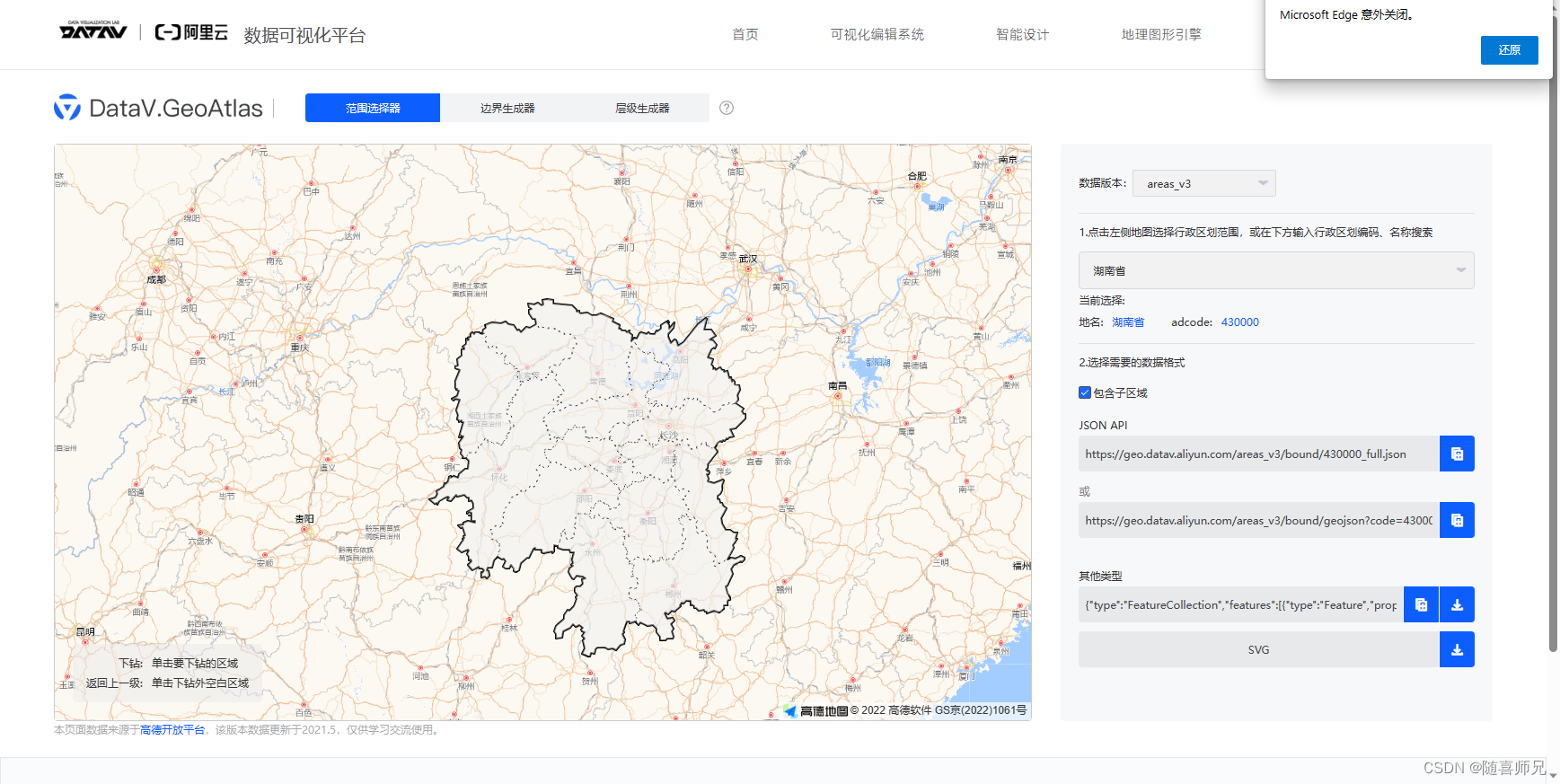

选择出湖南地图 看到右侧卡片其他类型 点击下载
tip:如果只需要展示湖南省地图,下载湖南省地图就行如果需要有下钻地图的操作
需要下载每个地级市的json文件
all_hunan.json 文件在网上比较难找我直接复制在下面。
[
{
"adcode": "430100",
"name": "长沙市"
}, {
"adcode": "430200",
"name": "株洲市"
}, {
"adcode": "430300",
"name": "湘潭市"
}, {
"adcode": "430400",
"name": "衡阳市"
}, {
"adcode": "430500",
"name": "邵阳市"
}, {
"adcode": "430600",
"name": "岳阳市"
}, {
"adcode": "430700",
"name": "常德市"
}, {
"adcode": "430800",
"name": "张家界市"
}, {
"adcode": "430900",
"name": "益阳市"
}, {
"adcode": "431000",
"name": "郴州市"
}, {
"adcode": "431100",
"name": "永州市"
}, {
"adcode": "431200",
"name": "怀化市"
}, {
"adcode": "431300",
"name": "娄底市"
}, {
"adcode": "433100",
"name": "湘西土家族苗族自治州"
}]

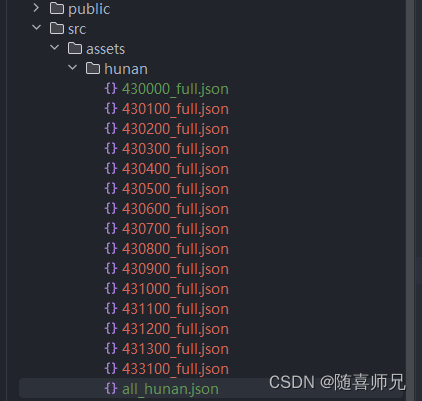

之后就是下载每个地级市的json,在下载完所有地级市数据后将 文件重命名,主要是方便做下钻。

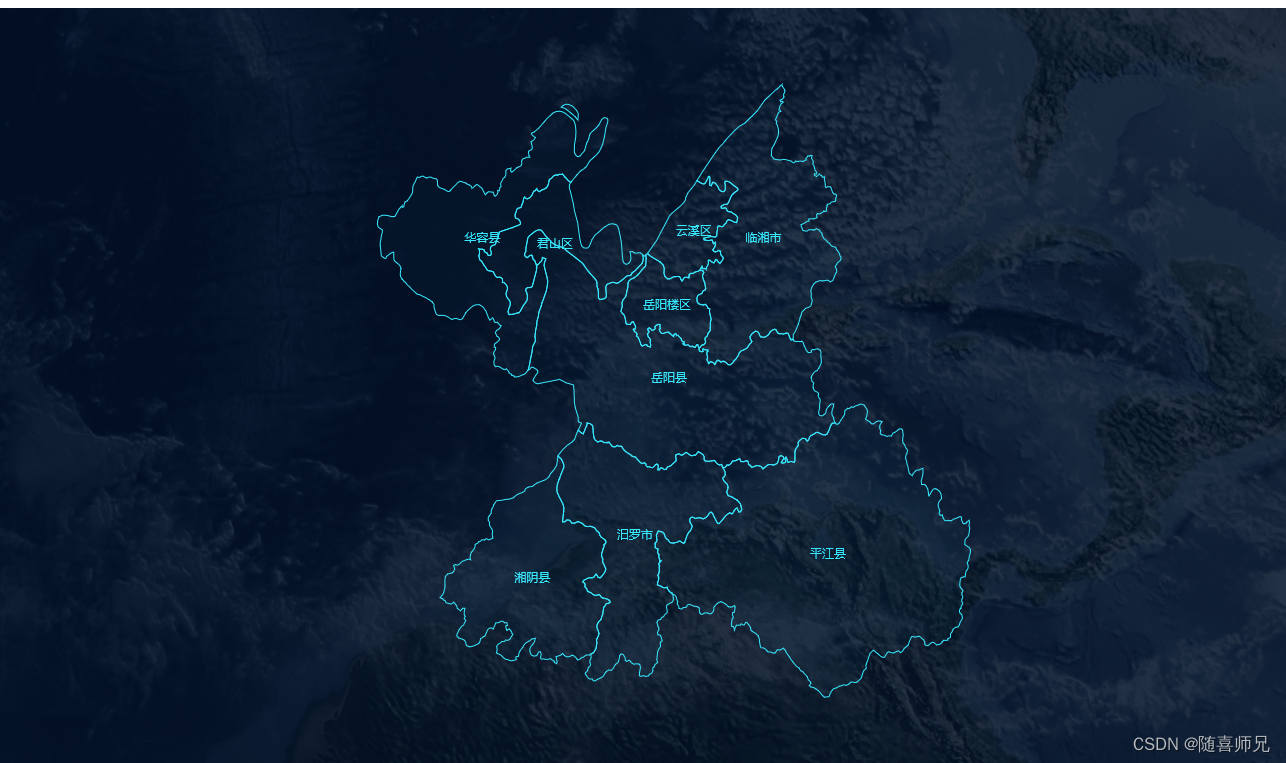

3.显示湖南地图
<template>
<div className="center-cmp" id="centermap">
<div className="map" ref="mapChart" style="width:100%;height:100%;"></div>
</div>
</template>
methods: {
initMapChart() {
const el = this.$refs.mapChart
const echarts = require('echarts')
const myChart = echarts.init(el)
let geoJson = require('@/assets/hunan/430000_full.json')
echarts.registerMap('geo', geoJson)
const option = {
// 这里渲染地图
geo: {
map: 'geo', // 上面引入的数据名
show: true,
roam: false, // 关闭拖拽
label: {
show: true,
color: '#38eaff',
},
itemStyle: {
areaColor: 'rgba(15,84,116,0.07)', // 地图区域的颜色(没有数据时会按照这个颜色显示)
borderColor: '#38eaff', // 地图区域的边框
borderWidth: 1
},
emphasis: { // 高亮的显示设置
label: {
color: '#feffff',
},
itemStyle: {
areaColor: 'rgba(15,140,217,0.67)',
}
},
select: { // 选中显示设置
label: {
color: '#feffff',
},
itemStyle: {
areaColor: 'rgba(15,140,217,0.67)',
}
}
},
}
myChart.setOption(option)
window.addEventListener('resize', function () {
myChart.resize()
})
}
},
mounted() {
this.initMapChart()
}

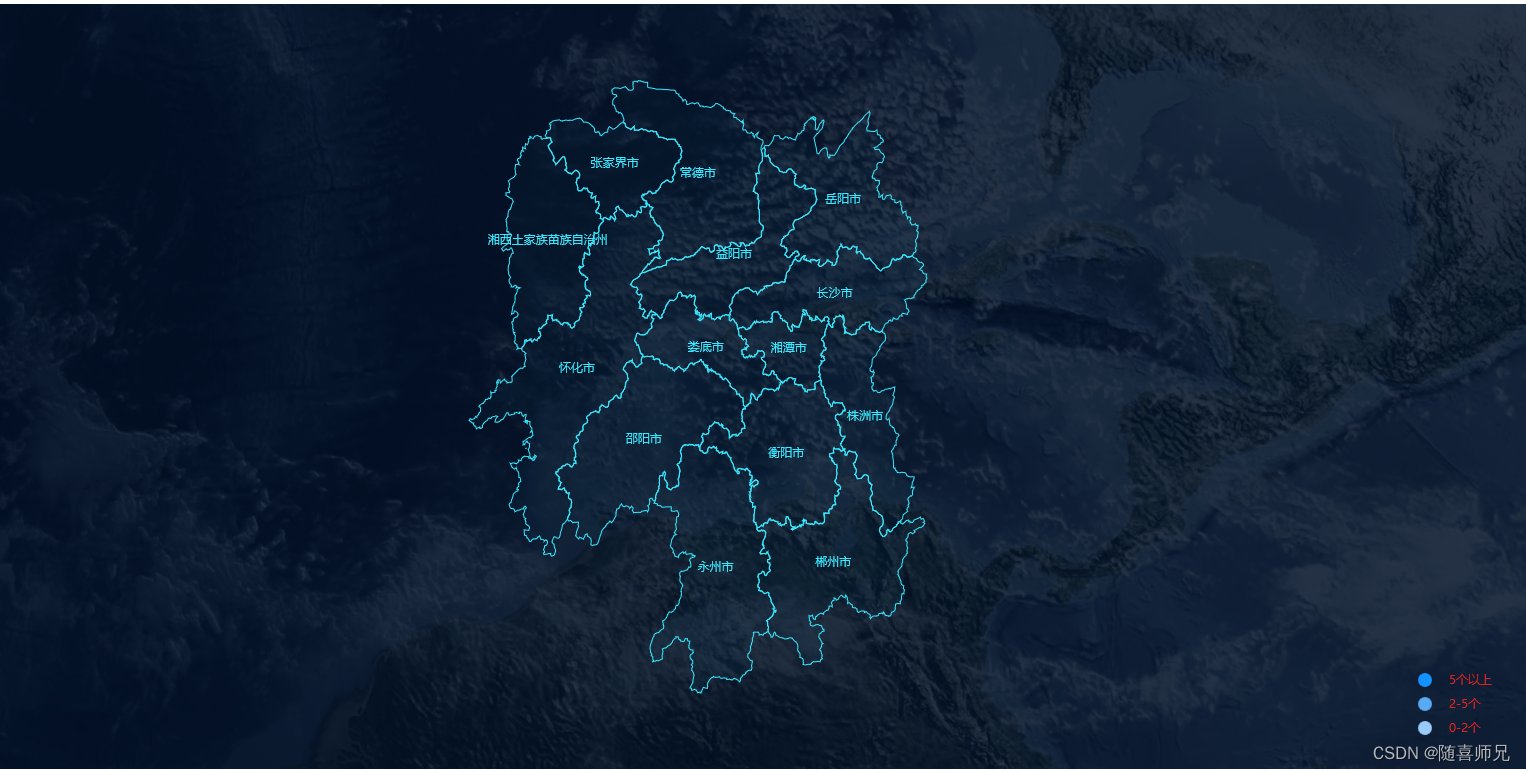

4.显示下钻地级市地图
methods: {
initChart: function () {
const echarts = require('echarts')
const el = this.$refs.mapChart
const chart = echarts.init(el)
let alladcode = require('@/assets/hunan/all_hunan.json')
let chinaGeoJson = require('@/assets/hunan/430000_full.json')
this.initMapChart(chinaGeoJson, '湖南省', chart, alladcode)
},
//获取地图json数据
getGeoJson(jsonName) {
return require('@/assets/hunan/' + jsonName)
},
initMapChart(geoJson, name, chart, alladcode) {
const el = this.$refs.mapChart
const echarts = require('echarts')
const myChart = echarts.init(el)
echarts.registerMap('geo', geoJson)
const option = {
// 数据映射
visualMap: {
show: true,
type: 'piecewise', // 分段标签
min: 0, // 最小值
max: 50, // 最大值,不设置为无限大
right: 30, // 距离右侧位置
bottom: 30, // 距离底部位置
orient: 'vertical', // 组件竖直放置
align: 'left', // 色块在左
textGap: 14, // 文字主体之间的距离
itemSymbol: 'circle', // 右下角映射组件使用圆点形状
seriesIndex: 0, // 指定取哪个系列的数据(series.data),若不设置则会影响图上标点颜色设置。
// 一以下是分段式视觉映射组件的每一段的范围
// gt:大于、gte:大于等于、lt:小于、lte:小于等于。
textStyle: {
color: '#dc2222'//文字颜色
},
pieces: [
{
gt: 5,
label: '5个以上',
color: '#1492FF',//图元颜色
},
{
gte: 2,
lte: 5,
label: '2-5个',
color: '#59AAF5'
},
{
gte: 0,
lt: 2,
label: '0-2个',
color: '#99CBF9'
}
]
/*
pieces或者inRange内设置颜色试验时都能生效,个人认为需要传入组件控制颜色时
再选择用inRange,两个都存在并给予不同的颜色,显示以pieces为主。
*/
},
geo: {
map: 'geo', // 上面引入的数据名
show: true,
roam: false, // 关闭拖拽
label: {
show: true,
color: '#38eaff',
fillOpacity: 0.3,
},
itemStyle: {
areaColor: 'rgba(15,84,116,0.07)', // 地图区域的颜色(没有数据时会按照这个颜色显示)
borderColor: '#38eaff', // 地图区域的边框
borderWidth: 1
},
emphasis: { // 高亮的显示设置
label: {
color: '#feffff',
},
itemStyle: {
areaColor: 'rgba(15,140,217,0.67)',
}
},
select: { // 选中显示设置
label: {
color: '#feffff',
},
itemStyle: {
areaColor: 'rgba(15,140,217,0.67)',
}
}
},
series: [
// 配置数据的显示
{
type: 'map', // 类型map
geoIndex: 0, // 指定geo属性后,series-map.map 属性,以及 series-map.itemStyle 等样式配置不再起作用,而是采用 geo 中的相应属性。
data: []
},
// 以下配置了图中白色标记圆点的显示
{
type: 'scatter', // 类型:散点
coordinateSystem: 'geo', // 使用地理坐标系
itemStyle: {
color: {
type: 'radial', // 径向渐变,前三个参数分别是圆心 x, y 和半径
x: 0.5,
y: 0.5,
r: 0.5,
colorStops: [
{
offset: 0.5,
color: '#fff' // 50% 处的颜色
},
{
offset: 1,
color: 'rgb(0 0 0 / 0%)' // 100% 处的颜色
}
],
global: false // 缺省为 false
},
borderColor: '#fff', // 边框白色
borderWidth: 1 // 边框宽度
},
symbolSize: 10, // 散点大小
data: [],
zlevel: 1
}
]
}
myChart.setOption(option)
myChart.getZr().on('click', params => {
if (params.target) {
//画布非空白区
return;
} else {
//画布空白区 返回上一级
let alladcode = require('@/assets/hunan/all_hunan.json')
let regionGeoJson = this.getGeoJson(430000 + '_full.json');
this.initMapChart(regionGeoJson, '湖南省', myChart, alladcode)
}
});
// 解绑click事件
myChart.off("click");
//给地图添加监听事件
myChart.on('click', params => {
if (alladcode) {
let clickRegion = alladcode.filter(areaJson => areaJson.name === params.name);
let clickRegionCode;
if (clickRegion) {
clickRegionCode = clickRegion[0].adcode;
} else {
clickRegionCode = 430000;
}
let regionGeoJson = this.getGeoJson(clickRegionCode + '_full.json');
this.$emit('setName', params.name)
this.initMapChart(regionGeoJson, params.name, myChart, clickRegion[0].city)
}
})
window.addEventListener('resize', function () {
myChart.resize()
})
}
},
mounted() {
this.initChart()
}
