一、应用场景
针对实时处理的数据需要及时能够搜索出来时,可以选择elasticsearch来支持这一业务。当然还可以选择其他的内存数据库,如redis。而elasticsearch除了强大的全文索引能力外,还支持分布式存储,可以将其作为分布式计算框架的底座,用于存储热数据或者温数据等。常见的组合方式有elasticsearch与sparkstreaming以及flink进行配合共同完成实时或流式处理的场景。
在本次案例中,我们将演示将商品信息数据通过nc发送,由sparkstreaming通过socket读取实时数据流并对其进行简单处理,最后写入到es中。
二、环境说明
- 数据生产工具:nc (本案例安装在虚拟机中)
- 数据处理框架:sparkstreaming,版本2.12
- 数据存储框架:elasticsearch
- 开发工具IDEA
- es集群:3台节点 (本案例安装在虚拟机中)
- http通讯端口:9200
三、实验步骤
-
各种环境搭建,如es、idea等请自行搭建
-
启动idea,创建maven项目
-
添加依赖至pom.xml中
<dependencies> <dependency> <groupId>org.apache.spark</groupId> <artifactId>spark-core_2.12</artifactId> <version>3.0.0</version> </dependency> <dependency> <groupId>org.apache.spark</groupId> <artifactId>spark-streaming_2.12</artifactId> <version>3.0.0</version> </dependency> <dependency> <groupId>org.elasticsearch</groupId> <artifactId>elasticsearch</artifactId> <version>7.8.0</version> </dependency> <!-- elasticsearch 的客户端 --> <dependency> <groupId>org.elasticsearch.client</groupId> <artifactId>elasticsearch-rest-high-level-client</artifactId> <version>7.8.0</version> </dependency> <!-- elasticsearch 依赖 2.x 的 log4j --> <dependency> <groupId>org.apache.logging.log4j</groupId> <artifactId>log4j-api</artifactId> <version>2.8.2</version> </dependency> <dependency> <groupId>org.apache.logging.log4j</groupId> <artifactId>log4j-core</artifactId> <version>2.8.2</version> </dependency> </dependencies>
-
添加scala框架的支持,或者在pom.xml中自行添加
-
编写sparkstreaming客户端程序,完成代码如下:
package com.suben.es.sstream import org.apache.http.HttpHost import org.apache.spark.SparkConf import org.apache.spark.storage.StorageLevel import org.apache.spark.streaming.dstream.ReceiverInputDStream import org.apache.spark.streaming.{Seconds, StreamingContext} import org.elasticsearch.action.index.IndexRequest import org.elasticsearch.client.{RequestOptions, RestClient, RestHighLevelClient} import org.elasticsearch.common.xcontent.XContentType import java.util.Date object SparkStreamingESTest { val INDEX_NAME = "stream" def main(args: Array[String]): Unit = { val sparkConf = new SparkConf().setMaster("local[*]").setAppName("SparkStreamingOperateES") val streamingContext = new StreamingContext(sparkConf, Seconds(3)) // 读取TCP端口数据,即nc发送过来的数据 val inputDStream: ReceiverInputDStream[String] = streamingContext.socketTextStream("hadoop003", 12345, StorageLevel.MEMORY_ONLY) // 对数据进行处理 inputDStream.foreachRDD(rdd => { println(">>>>>>>>>>>>" + new Date()) rdd.foreach(data => { println("==========接收到的数据>>>>>>>>>>>>", data) if (data != null && !"".equals(data)) { // 将数据写入到elasticsearch索引为shopping中去 // 0. 处理数据,假如输入数据格式如下:9,小米手机,手机,2008.0,http://www.suben.com/xm.jpg val splits = data.split(",") // 选择第一个元素作为id val id = splits(0) // 1. 编写es客户端代码 val client = new RestHighLevelClient(RestClient.builder(new HttpHost("hadoop002", 9200, "http"))) // 2. 创建请求对象 val request = new IndexRequest(); // 3. 设置索引和id request.index(INDEX_NAME).id(id) // 4. 将splits数组中的数据转成json字符串 val productJson = s""" | { "id":"${splits(0)}", | "title":"${splits(1)}", | "category":"${splits(2)}", | "price":"${splits(3)}", | "images":"${splits(4)}" } |""".stripMargin; println("===productJson===", productJson) // 6. 将jsonObject封装到request中 request.source(productJson, XContentType.JSON) // 7. 请求添加文档 val response = client.index(request, RequestOptions.DEFAULT) System.out.println("_index:" + response.getIndex()); System.out.println("_id:" + response.getId()); System.out.println("_result:" + response.getResult()); client.close() } }) }) // 启动程序 streamingContext.start() // 等待执行结果 streamingContext.awaitTermination() } }
-
启动nc,命令如下:
nc -l -p 12345
-
启动sparkstreaming客户端程序
-
在nc中添加测试数据,回车,观察es中有无数据被写入
10,[10]华为手机,手机,3008.0,http://www.suben.com/hw.jpg
11,[11]华为手机,手机,3008.0,http://www.suben.com/hw.jpg
12,[12]华为手机,手机,3008.0,http://www.suben.com/hw.jpg
13,[13]华为手机,手机,3008.0,http://www.suben.com/hw.jpg

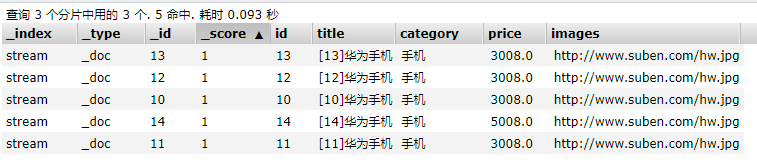

14,[14]华为手机,手机,5008.0,http://www.suben.com/hw.jpg在chrome浏览器插件elasticsearch-head中数据被成功写入es中:
四、思考
上述实验仅仅实现了简单的将通过nc数据逐条或者多条输入,是手动的方式操作的。假如是真实业务场景,如电商系统一直源源不断地产生数据,如需模拟这种场景,又该如何实现呢?欢迎大家在评论区给我言,我们一起讨论,相互学习吧!
