Java Agent（五）OpenJdk/Instrument包源码分析

简介

在介绍instrument是什么之前，先来看几个定义：
JVMTI（JVM tool interface）：它是JVM提供的一系列native编程接口。
Agent：与JVM进行通信的外部进程，它们通过调用JVMTI进行交互，可进行的操作包括设置JVM回调函数、获取当前虚拟机状态信息等
Instrument：Jdk提供的"java.lang.instrument"包，与JVM进行交互，可以看作为一个Instrument Agent。

https://www.ibm.com/developerworks/cn/java/j-lo-jpda2/index.html?ca=drs-

整体流程

接上文，当JVM接收到execute(“load”,“instrument”,“false”,options)命令之后，开始进行动态链接库的加载。

• "load"命令——对应load_agent方法：

1. 接收参数：op->arg(0)、 op->arg(1)、op->arg(2)；（“instrument”、是否绝对路径、agentpath=args）
2. 判断 if（arg(0)==“instrument”)先加载"java.instrument"模块，再load_agent_library

• load_agent_library：

1. 首先加载动态库:“libinstrument.so”，加载instrument Agent（JVM定义Linux系统中，加载的动态链接库名字是"lib"+args(0)+".so"）
2. 调用库中的Agent_OnAttach方法。

从Agent_OnAttach开始，是libinstrument.so中的内容：

关于libInstrument.so库，我认为可以当做是一个底层Agent。

它直接调用了JVMTI提供的回调方法，然后加载我们自定义的agent，避免了我们自己的agent与JVMTI直接通信。

源码分析

// Implementation of "load" command.
static jint load_agent(AttachOperation* op, outputStream* out) {
  // get agent name and options
  const char* agent = op->arg(0);
  const char* absParam = op->arg(1);
  const char* options = op->arg(2);

  // If loading a java agent then need to ensure that the java.instrument module is loaded
  if (strcmp(agent, "instrument") == 0) {
    Thread* THREAD = Thread::current();
    ResourceMark rm(THREAD);
    HandleMark hm(THREAD);
    JavaValue result(T_OBJECT);
    Handle h_module_name = java_lang_String::create_from_str("java.instrument", THREAD);
    JavaCalls::call_static(&result,
                           SystemDictionary::module_Modules_klass(),
                           vmSymbols::loadModule_name(),
                           vmSymbols::loadModule_signature(),
                           h_module_name,
                           THREAD);
    if (HAS_PENDING_EXCEPTION) {
      java_lang_Throwable::print(PENDING_EXCEPTION, out);
      CLEAR_PENDING_EXCEPTION;
      return JNI_ERR;
    }
  }

  return JvmtiExport::load_agent_library(agent, absParam, options, out);
}

接收到的三个参数对应我们发送命令时的三个：“instrument”、是否绝对路径、agentpath=args；
先加载java.instrument模块，再加载Agent，调用JvmtiExport::load_agent_library(agent, absParam, options, out)，当成功时返回码为0.

jint JvmtiExport::load_agent_library(const char *agent, const char *absParam,
                                     const char *options, outputStream* st) {
  char ebuf[1024];
  char buffer[JVM_MAXPATHLEN];
  void* library = NULL;
  jint result = JNI_ERR;
  const char *on_attach_symbols[] = AGENT_ONATTACH_SYMBOLS;
  size_t num_symbol_entries = ARRAY_SIZE(on_attach_symbols);

  // The abs paramter should be "true" or "false"
  bool is_absolute_path = (absParam != NULL) && (strcmp(absParam,"true")==0);

  // Initially marked as invalid. It will be set to valid if we can find the agent
  AgentLibrary *agent_lib = new AgentLibrary(agent, options, is_absolute_path, NULL);

  // Check for statically linked in agent. If not found then if the path is
  // absolute we attempt to load the library. Otherwise we try to load it
  // from the standard dll directory.

  if (!os::find_builtin_agent(agent_lib, on_attach_symbols, num_symbol_entries)) {
    if (is_absolute_path) {
      library = os::dll_load(agent, ebuf, sizeof ebuf);
    } else {
      // Try to load the agent from the standard dll directory
      if (os::dll_locate_lib(buffer, sizeof(buffer), Arguments::get_dll_dir(),
                             agent)) {
        library = os::dll_load(buffer, ebuf, sizeof ebuf);
      }
      if (library == NULL) {
        // not found - try OS default library path
        if (os::dll_build_name(buffer, sizeof(buffer), agent)) {
          library = os::dll_load(buffer, ebuf, sizeof ebuf);
        }
      }
    }
    if (library != NULL) {
      agent_lib->set_os_lib(library);
      agent_lib->set_valid();
    }
  }
  // If the library was loaded then we attempt to invoke the Agent_OnAttach
  // function
  if (agent_lib->valid()) {
    // Lookup the Agent_OnAttach function
    OnAttachEntry_t on_attach_entry = NULL;
    on_attach_entry = CAST_TO_FN_PTR(OnAttachEntry_t,
       os::find_agent_function(agent_lib, false, on_attach_symbols, num_symbol_entries));
    if (on_attach_entry == NULL) {
      // Agent_OnAttach missing - unload library
      if (!agent_lib->is_static_lib()) {
        os::dll_unload(library);
      }
      delete agent_lib;
    } else {
      // Invoke the Agent_OnAttach function
      JavaThread* THREAD = JavaThread::current();
      {
        extern struct JavaVM_ main_vm;
        JvmtiThreadEventMark jem(THREAD);
        JvmtiJavaThreadEventTransition jet(THREAD);

        result = (*on_attach_entry)(&main_vm, (char*)options, NULL);
      }

      // Agent_OnAttach may have used JNI
      if (HAS_PENDING_EXCEPTION) {
        CLEAR_PENDING_EXCEPTION;
      }

      // If OnAttach returns JNI_OK then we add it to the list of
      // agent libraries so that we can call Agent_OnUnload later.
      if (result == JNI_OK) {
        Arguments::add_loaded_agent(agent_lib);
      } else {
        delete agent_lib;
      }

      // Agent_OnAttach executed so completion status is JNI_OK
      st->print_cr("%d", result);
      result = JNI_OK;
    }
  }
  return result;
}

在linux中，首先要加载动态库，库的名字由dll_build_name(buffer, sizeof(buffer), agent)获得：“lib”+传入的agentlib名字+".so"，即"libinstrument.so"。
on_attach_entry = CAST_TO_FN_PTR(OnAttachEntry_t, os::find_agent_function(agent_lib, false, on_attach_symbols, num_symbol_entries));这行代码负责在库中找Agent_OnAttach方法。
（find_agent_function支持找的方法：Agent_On(Un)Load/Attach）
libinstrument.so中的instrument agent，实现了Agent_OnLoad和Agent_OnAttach两方法，javaAgent功能就是由此实现的：
Agent_OnLoad对应虚拟机启动时加载，Agent_OnAttach对应启动后加载。
加载类库成功后，调用Agent_OnAttach方法。传参：vm、options(agentpath=args)、null
Agent_OnAttach：

/*
 *  This will be called once each time a tool attaches to the VM and loads
 *  the JPLIS library.
 */
JNIEXPORT jint JNICALL
Agent_OnAttach(JavaVM* vm, char *args, void * reserved) {
    JPLISInitializationError initerror  = JPLIS_INIT_ERROR_NONE;
    jint                     result     = JNI_OK;
    JPLISAgent *             agent      = NULL;
    JNIEnv *                 jni_env    = NULL;

    /*
     * Need JNIEnv - guaranteed to be called from thread that is already
     * attached to VM
     */
    result = (*vm)->GetEnv(vm, (void**)&jni_env, JNI_VERSION_1_2);
    jplis_assert(result==JNI_OK);

    initerror = createNewJPLISAgent(vm, &agent);
    if ( initerror == JPLIS_INIT_ERROR_NONE ) {
        int             oldLen, newLen;
        char *          jarfile;
        char *          options;
        jarAttribute*   attributes;
        char *          agentClass;
        char *          bootClassPath;
        jboolean        success;

        /*
         * Parse <jarfile>[=options] into jarfile and options
         */
        if (parseArgumentTail(args, &jarfile, &options) != 0) {
            return JNI_ENOMEM;
        }

        /*
         * Open the JAR file and parse the manifest
         */
        attributes = readAttributes( jarfile );
        if (attributes == NULL) {
            fprintf(stderr, "Error opening zip file or JAR manifest missing: %s\n", jarfile);
            free(jarfile);
            if (options != NULL) free(options);
            return AGENT_ERROR_BADJAR;
        }

        agentClass = getAttribute(attributes, "Agent-Class");
        if (agentClass == NULL) {
            fprintf(stderr, "Failed to find Agent-Class manifest attribute from %s\n",
                jarfile);
            free(jarfile);
            if (options != NULL) free(options);
            freeAttributes(attributes);
            return AGENT_ERROR_BADJAR;
        }

        /*
         * Add the jarfile to the system class path
         */
        if (appendClassPath(agent, jarfile)) {
            fprintf(stderr, "Unable to add %s to system class path "
                "- not supported by system class loader or configuration error!\n",
                jarfile);
            free(jarfile);
            if (options != NULL) free(options);
            freeAttributes(attributes);
            return AGENT_ERROR_NOTONCP;
        }

        /*
         * The value of the Agent-Class attribute becomes the agent
         * class name. The manifest is in UTF8 so need to convert to
         * modified UTF8 (see JNI spec).
         */
        oldLen = strlen(agentClass);
        newLen = modifiedUtf8LengthOfUtf8(agentClass, oldLen);
        if (newLen == oldLen) {
            agentClass = strdup(agentClass);
        } else {
            char* str = (char*)malloc( newLen+1 );
            if (str != NULL) {
                convertUtf8ToModifiedUtf8(agentClass, oldLen, str, newLen);
            }
            agentClass = str;
        }
        if (agentClass == NULL) {
            free(jarfile);
            if (options != NULL) free(options);
            freeAttributes(attributes);
            return JNI_ENOMEM;
        }

        /*
         * If the Boot-Class-Path attribute is specified then we process
         * each URL - in the live phase only JAR files will be added.
         */
        bootClassPath = getAttribute(attributes, "Boot-Class-Path");
        if (bootClassPath != NULL) {
            appendBootClassPath(agent, jarfile, bootClassPath);
        }

        /*
         * Convert JAR attributes into agent capabilities
         */
        convertCapabilityAtrributes(attributes, agent);

        /*
         * Create the java.lang.instrument.Instrumentation instance
         */
        success = createInstrumentationImpl(jni_env, agent);
        jplis_assert(success);

        /*
         *  Turn on the ClassFileLoadHook.
         */
        if (success) {
            success = setLivePhaseEventHandlers(agent);
            jplis_assert(success);
        }

        /*
         * Start the agent
         */
        if (success) {
            success = startJavaAgent(agent,
                                     jni_env,
                                     agentClass,
                                     options,
                                     agent->mAgentmainCaller);
        }

        if (!success) {
            fprintf(stderr, "Agent failed to start!\n");
            result = AGENT_ERROR_STARTFAIL;
        }

        /*
         * Clean-up
         */
        free(jarfile);
        if (options != NULL) free(options);
        free(agentClass);
        freeAttributes(attributes);
    }

    return result;
}

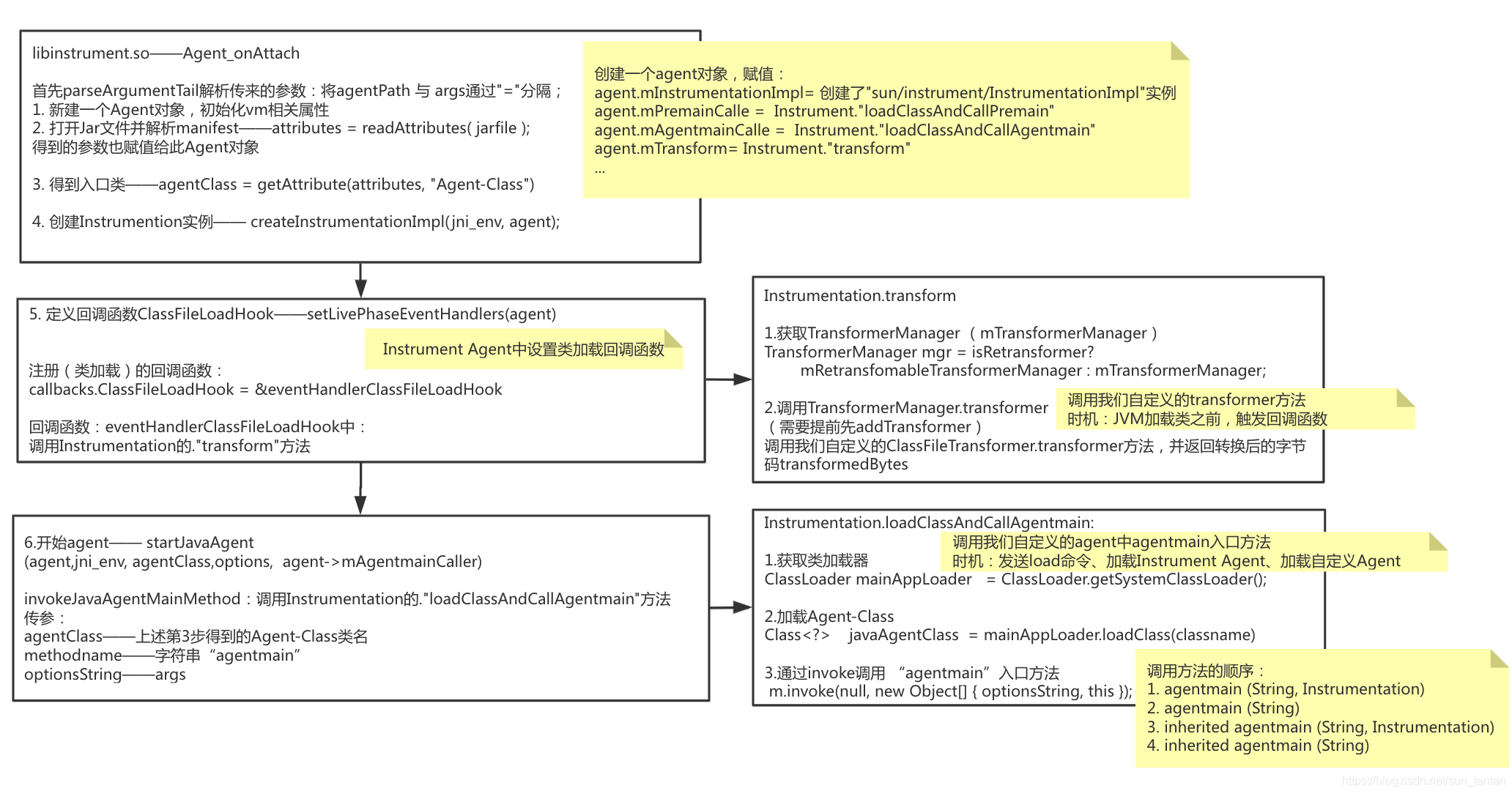

首先(parseArgumentTail(args, &jarfile, &options)解析传来的参数：将agentPath 与 args通过"="分隔；

1. 打开Jar文件并解析manifest——attributes = readAttributes( jarfile );，
2. 得到入口类——agentClass = getAttribute(attributes, “Agent-Class”)
3. 将agentPath加入到System class path
4. 创建Instrumention实例——success = createInstrumentationImpl(jni_env, agent);
5. 打开ClassFileLoadHook——success = setLivePhaseEventHandlers(agent)
6. 开始agent——startJavaAgent(agent,jni_env, agentClass,options, agent->mAgentmainCaller)

第五步：setLivePhaseEventHandlers

jboolean
setLivePhaseEventHandlers(  JPLISAgent * agent) {
    jvmtiEventCallbacks callbacks;
    jvmtiEnv *          jvmtienv = jvmti(agent);
    jvmtiError          jvmtierror;

    /* first swap out the handlers (switch from the VMInit handler, which we do not need,
     * to the ClassFileLoadHook handler, which is what the agents need from now on)
     */
    memset(&callbacks, 0, sizeof(callbacks));
    callbacks.ClassFileLoadHook = &eventHandlerClassFileLoadHook;

    jvmtierror = (*jvmtienv)->SetEventCallbacks( jvmtienv,
                                                 &callbacks,
                                                 sizeof(callbacks));
    check_phase_ret_false(jvmtierror);
    jplis_assert(jvmtierror == JVMTI_ERROR_NONE);


    if ( jvmtierror == JVMTI_ERROR_NONE ) {
        /* turn off VMInit */
        jvmtierror = (*jvmtienv)->SetEventNotificationMode(
                                                    jvmtienv,
                                                    JVMTI_DISABLE,
                                                    JVMTI_EVENT_VM_INIT,
                                                    NULL /* all threads */);
        check_phase_ret_false(jvmtierror);
        jplis_assert(jvmtierror == JVMTI_ERROR_NONE);
    }

    if ( jvmtierror == JVMTI_ERROR_NONE ) {
        /* turn on ClassFileLoadHook */
        jvmtierror = (*jvmtienv)->SetEventNotificationMode(
                                                    jvmtienv,
                                                    JVMTI_ENABLE,
                                                    JVMTI_EVENT_CLASS_FILE_LOAD_HOOK,
                                                    NULL /* all threads */);
        check_phase_ret_false(jvmtierror);
        jplis_assert(jvmtierror == JVMTI_ERROR_NONE);
    }

    return (jvmtierror == JVMTI_ERROR_NONE);
}

JVM中定义的关于类加载的回调：钩子函数eventHandlerClassFileLoadHook

eventHandlerClassFileLoadHook(  jvmtiEnv *              jvmtienv,
                                JNIEnv *                jnienv,
                                jclass                  class_being_redefined,
                                jobject                 loader,
                                const char*             name,
                                jobject                 protectionDomain,
                                jint                    class_data_len,
                                const unsigned char*    class_data,
                                jint*                   new_class_data_len,
                                unsigned char**         new_class_data) {
    JPLISEnvironment * environment  = NULL;

    environment = getJPLISEnvironment(jvmtienv);

    /* if something is internally inconsistent (no agent), just silently return without touching the buffer */
    if ( environment != NULL ) {
        jthrowable outstandingException = preserveThrowable(jnienv);
        transformClassFile( environment->mAgent,
                            jnienv,
                            loader,
                            name,
                            class_being_redefined,
                            protectionDomain,
                            class_data_len,
                            class_data,
                            new_class_data_len,
                            new_class_data,
                            environment->mIsRetransformer);
        restoreThrowable(jnienv, outstandingException);
    }
}

transformClassFile方法中：

transformedBufferObject = (*jnienv)->CallObjectMethod(
                                    jnienv,
                                    agent->mInstrumentationImpl,
                                    agent->mTransform,
                                    loaderObject,
                                    classNameStringObject,
                                    classBeingRedefined,
                                    protectionDomain,
                                    classFileBufferObject,
                                    is_retransformer);

第六步：

startJavaAgent( JPLISAgent *    agent,
                JNIEnv *        jnienv,
                const char *    classname,
                const char *    optionsString,
                jmethodID       agentMainMethod) {
    jboolean    success = JNI_FALSE;
    jstring classNameObject = NULL;
    jstring optionsStringObject = NULL;

    success = commandStringIntoJavaStrings(    jnienv,
                                               classname,
                                               optionsString,
                                               &classNameObject,
                                               &optionsStringObject);

    if (success) {
        success = invokeJavaAgentMainMethod(   jnienv,
                                               agent->mInstrumentationImpl,
                                               agentMainMethod,
                                               classNameObject,
                                               optionsStringObject);
    }

    return success;
}

其中的invokeJavaAgentMainMethod，通过调用mInstrumentationImpl.loadClassAndStartAgent实现初始化调用我们自定义的agentMain方法。

loadClassAndCallAgentmain(  String  classname,
                            String  optionsString)
        throws Throwable {

    loadClassAndStartAgent( classname, "agentmain", optionsString );
}

// Attempt to load and start an agent
private void
loadClassAndStartAgent( String  classname,
                        String  methodname,
                        String  optionsString)
        throws Throwable {

    ClassLoader mainAppLoader   = ClassLoader.getSystemClassLoader();
    Class<?>    javaAgentClass  = mainAppLoader.loadClass(classname);

    Method m = null;
    NoSuchMethodException firstExc = null;
    boolean twoArgAgent = false;

    // The agent class must have a premain or agentmain method that
    // has 1 or 2 arguments. We check in the following order:
    //
    // 1) declared with a signature of (String, Instrumentation)
    // 2) declared with a signature of (String)
    // 3) inherited with a signature of (String, Instrumentation)
    // 4) inherited with a signature of (String)
    //
    // So the declared version of either 1-arg or 2-arg always takes
    // primary precedence over an inherited version. After that, the
    // 2-arg version takes precedence over the 1-arg version.
    //
    // If no method is found then we throw the NoSuchMethodException
    // from the first attempt so that the exception text indicates
    // the lookup failed for the 2-arg method (same as JDK5.0).

    try {
        m = javaAgentClass.getDeclaredMethod( methodname,
                             new Class<?>[] {
                                 String.class,
                                 java.lang.instrument.Instrumentation.class
                             }
                           );
        twoArgAgent = true;
    } catch (NoSuchMethodException x) {
        // remember the NoSuchMethodException
        firstExc = x;
    }

    if (m == null) {
        // now try the declared 1-arg method
        try {
            m = javaAgentClass.getDeclaredMethod(methodname,
                                             new Class<?>[] { String.class });
        } catch (NoSuchMethodException x) {
            // ignore this exception because we'll try
            // two arg inheritance next
        }
    }

    if (m == null) {
        // now try the inherited 2-arg method
        try {
            m = javaAgentClass.getMethod( methodname,
                             new Class<?>[] {
                                 String.class,
                                 java.lang.instrument.Instrumentation.class
                             }
                           );
            twoArgAgent = true;
        } catch (NoSuchMethodException x) {
            // ignore this exception because we'll try
            // one arg inheritance next
        }
    }

    if (m == null) {
        // finally try the inherited 1-arg method
        try {
            m = javaAgentClass.getMethod(methodname,
                                         new Class<?>[] { String.class });
        } catch (NoSuchMethodException x) {
            // none of the methods exists so we throw the
            // first NoSuchMethodException as per 5.0
            throw firstExc;
        }
    }

    // the premain method should not be required to be public,
    // make it accessible so we can call it
    // Note: The spec says the following:
    //     The agent class must implement a public static premain method...
    setAccessible(m, true);

    // invoke the 1 or 2-arg method
    if (twoArgAgent) {
        m.invoke(null, new Object[] { optionsString, this });
    } else {
        m.invoke(null, new Object[] { optionsString });
    }

    // don't let others access a non-public premain method
    setAccessible(m, false);
}
