swagger 生成接口文档，并导出html和pdf的过程

这里写目录标题

swagger 生成接口文档，并导出html和pdf的过程
swagger 生成接口文档
swagger导出pdf和html
解决乱码问题：
- **一、**

swagger 生成接口文档

1.springboot版本：

 <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.1.3.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>

2.导入swagger相关的依赖：

 <dependency>
     <groupId>com.github.xiaoymin</groupId>
     <artifactId>swagger-bootstrap-ui</artifactId>
     <version>1.9.5</version>
 </dependency>

<!-- swagger的依赖 -->
<dependency>
    <groupId>io.springfox</groupId>
    <artifactId>springfox-swagger2</artifactId>
    <version>2.6.1</version>
</dependency>

3.API

package com.example.config;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.ParameterBuilder;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.schema.ModelRef;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.service.Parameter;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;

import java.util.ArrayList;
import java.util.List;

/**
 * 蓝色界面
 */
@Configuration
@EnableSwagger2
public class SwaggerConfig {
	/**
	 * @Description 构建API基本信息
	 * @Param []
	 * @return springfox.documentation.service.ApiInfo
	 **/
	private ApiInfo buildApiInfo() {
		return new ApiInfoBuilder()
				.title("接口说明文档")
				.description("说明文档简介")
				.contact("sunrj")
				.version("1.0")
				.build();
	}

	@Bean
	public Docket docket() {
		/*
		 *  全局配置信息（可以不用）例如：token
		 */
		Parameter token = new ParameterBuilder().name("token")
				.description("用户令牌")
				.parameterType("header")
				.modelRef(new ModelRef("String"))
				.build();
		List<Parameter> parameters = new ArrayList<>();
		parameters.add(token);

		return new Docket(DocumentationType.SWAGGER_2)
				.globalOperationParameters(parameters)  //传入全局配置
				.apiInfo(buildApiInfo())  //传入api首页信息
				.select() //进行筛选
				//通过package筛选，
				.apis(RequestHandlerSelectors.basePackage("com.example.controller"))
				//构建api
				.build();
	}

}

3.controller
这里swagger的参数不做任何介绍，具体参数意思的大家自行百度

@RestController
@RequestMapping(value = "user", produces = MediaType.APPLICATION_JSON_VALUE)
@Api(value = "用户信息管理", tags ={"UserController"}, description = "用户基本信息操作API", consumes = MediaType.APPLICATION_JSON_VALUE, produces = MediaType.APPLICATION_JSON_VALUE)
public class UserController {

    @Autowired
    private UserService userService;

    @Ignore
    @RequestMapping(value = "loginUser",method = RequestMethod.POST )
    @ApiOperation(value = "/loginUser", notes="通过用户名密码验证是否登陆成功")
    //@ApiImplicitParam(paramType="query", name = "user", value = "登录的用户名和密码信息", required = true, dataType = "User")
    public ResponseServer loginUser(User user){
        return userService.loginUser(user);
    }


    /**
     * 查询当前用户拥有的问卷调查列表
     * @return
     */
    //@RequestMapping("queryUserSurveyList")
    @RequestMapping(value = "queryUserSurveyList",method = RequestMethod.POST )
    @ApiOperation(value = "/queryUserSurveyList", notes="查询当前用户拥有的问卷调查列表")
    public ResponseServer queryUserSurveyList(User userSel){
        return userService.queryUserSurveyList(userSel.getName());
    }

    @RequestMapping(value = "queryUserAll",method = RequestMethod.GET )
    @ApiOperation(value = "/queryUserAll", notes="查询所有用户")
    public ResponseServer queryUserAll(){
        return userService.queryUserAll();
    }

    @RequestMapping(value = "insertUser",method =RequestMethod.POST )
    @ApiOperation(value = "/insertUser", notes="增加用户")
    public ResponseServer insertUser(@RequestBody User user){
        return userService.insertUser(user);
    }


    @ApiOperation(value = "/deleteUser", notes="通过id删除用户信息")
    @RequestMapping(value = "deleteUser",method =RequestMethod.DELETE )
    @ApiImplicitParam(paramType="query", name = "userId", value = "删除的用户Id", required = true, dataType = "int")
    public ResponseServer deleteUser( Integer userId){
        return userService.deleteUser(userId);
    }


    @ApiOperation(value = "/updateUser", notes="通过id修改用户信息")
    @RequestMapping(value = "updateUser",method =RequestMethod.PUT )
    public ResponseServer updateUser(@RequestBody User user){
        return userService.updateUser(user);
    }
}

4.model

package com.example.model;


import com.baomidou.mybatisplus.annotation.IdType;
import com.baomidou.mybatisplus.annotation.TableField;
import com.baomidou.mybatisplus.annotation.TableId;
import com.baomidou.mybatisplus.annotation.TableName;
import io.swagger.annotations.ApiModel;
import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;


@ApiModel(value="User", description = "用户的实体对象")
@AllArgsConstructor
@NoArgsConstructor
@Data
@TableName("t_user")
public class User {

    //@ApiModelProperty(value="userId" ,required=false)
    @TableId(value = "user_id", type = IdType.AUTO)
    @TableField(value = "user_id", exist = true)
    private Integer userId;

   // @ApiModelProperty(value="name" ,required=false)
    @TableField(value = "user_name", exist = true)
    private String name;

   // @ApiModelProperty(value="password" ,required=false)
    @TableField(value = "user_password", exist = true)
    private String password;


}

然后就成功了，启动程序：

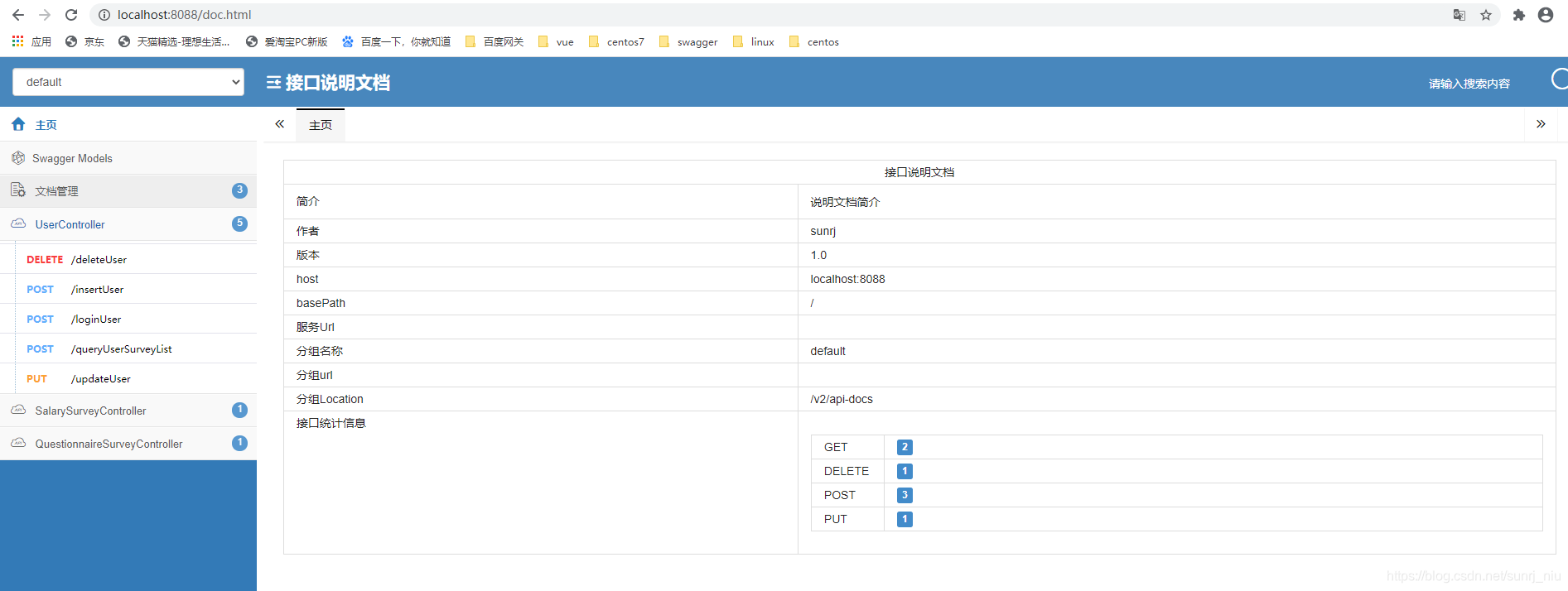

访问：
http://localhost:8080/doc.html
成功：
在这里插入图片描述

还有另外一种页面，这里swagger的管理UI页面的依赖需要改成这个：

   <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger-ui</artifactId>
            <version>2.7.0</version>
        </dependency>

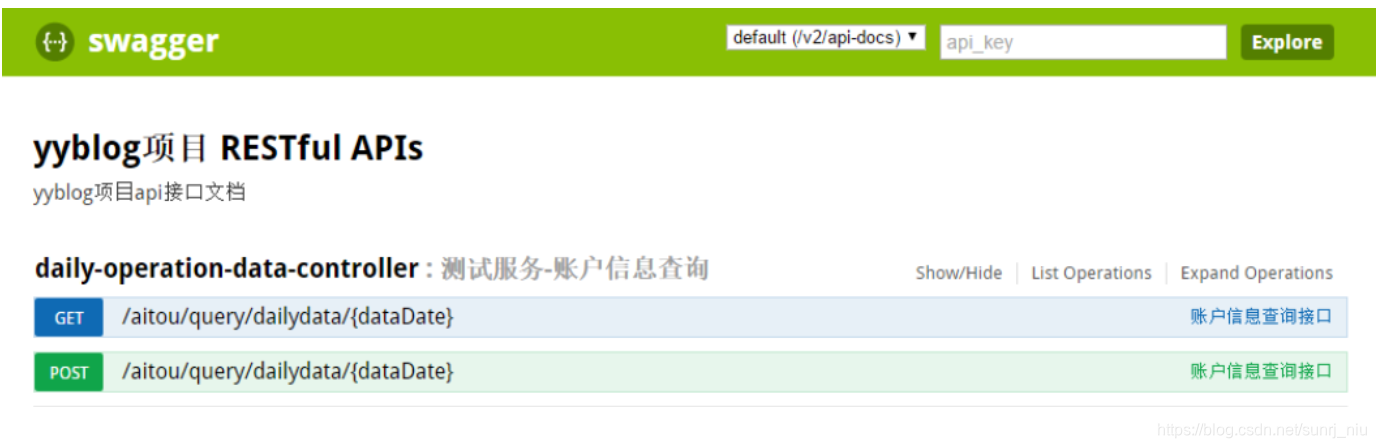

访问路径：
http://localhost:8088/swagger-ui.html
在这里插入图片描述

就可以了

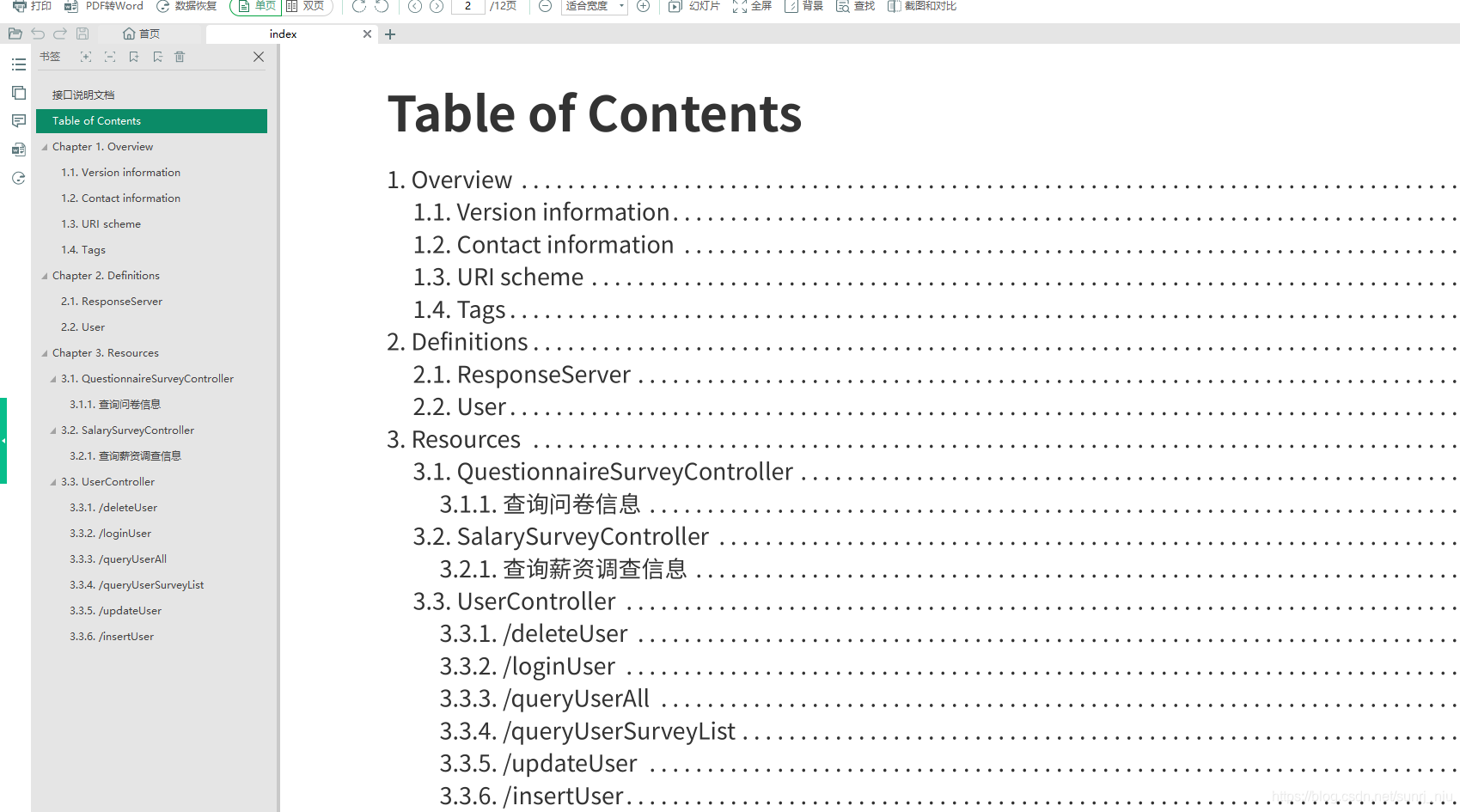

swagger导出pdf和html

其实很简单，就是修改测试类，和配置文件
1.测试类

package com.example;


import static org.springframework.restdocs.mockmvc.RestDocumentationRequestBuilders.get;
import static org.springframework.restdocs.operation.preprocess.Preprocessors.preprocessResponse;
import static org.springframework.restdocs.operation.preprocess.Preprocessors.prettyPrint;
import static org.springframework.test.web.servlet.result.MockMvcResultMatchers.status;

import org.junit.After;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.autoconfigure.restdocs.AutoConfigureRestDocs;
import org.springframework.boot.test.autoconfigure.web.servlet.AutoConfigureMockMvc;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.http.MediaType;
import org.springframework.restdocs.mockmvc.MockMvcRestDocumentation;
import org.springframework.test.context.junit4.SpringRunner;
import org.springframework.test.web.servlet.MockMvc;

import io.github.robwin.markup.builder.MarkupLanguage;
import io.github.robwin.swagger2markup.GroupBy;
import io.github.robwin.swagger2markup.Swagger2MarkupConverter;
import springfox.documentation.staticdocs.SwaggerResultHandler;

@AutoConfigureMockMvc
@AutoConfigureRestDocs(outputDir = "target/generated-snippets")
@RunWith(SpringRunner.class)
@SpringBootTest
public class WeikangDemoApplicationTests {

    private String snippetDir = "target/generated-snippets";
    private String outputDir = "target/asciidoc";

    @Autowired
    private MockMvc mockMvc;

    @After
    public void Test() throws Exception {
        // 得到swagger.json,写入outputDir目录中
        mockMvc.perform(get("/v2/api-docs").accept(MediaType.APPLICATION_JSON))
                .andDo(SwaggerResultHandler.outputDirectory(outputDir).build()).andExpect(status().isOk()).andReturn();

        // 读取上一步生成的swagger.json转成asciiDoc,写入到outputDir
        // 这个outputDir必须和插件里面<generated></generated>标签配置一致
        Swagger2MarkupConverter.from(outputDir + "/swagger.json").withPathsGroupedBy(GroupBy.TAGS)// 按tag排序
                .withMarkupLanguage(MarkupLanguage.ASCIIDOC)// 格式
                .withExamples(snippetDir).build().intoFolder(outputDir);// 输出
    }


    /**
     *
     * Description: 一定要有测试方法，调用方法不限制
     *
     * @param
     * @return void
     * @throws
     * @Author lkf
     * Create Date: 2020年9月27日 下午4:46:11
     */
    @Test
    public void TestApi() throws Exception {

        mockMvc.perform(get("/user/queryUserAll").accept(MediaType.APPLICATION_JSON))
                .andExpect(status().isOk())
                .andDo(MockMvcRestDocumentation.document("queryUserAll", preprocessResponse(prettyPrint())));

    }


}

2.配置文件

<properties>
        <java.version>1.8</java.version>

        <!--swgger2markup 配置信息-->
        <asciidoctor.input.directory>${project.basedir}/docs/asciidoc</asciidoctor.input.directory>
        <generated.asciidoc.directory>${project.build.directory}/asciidoc</generated.asciidoc.directory>
        <asciidoctor.html.output.directory>${project.build.directory}/asciidoc/html</asciidoctor.html.output.directory>
        <asciidoctor.pdf.output.directory>${project.build.directory}/asciidoc/pdf</asciidoctor.pdf.output.directory>

    </properties>

  <!--离线文档-->
        <dependency>
            <groupId>org.springframework.restdocs</groupId>
            <artifactId>spring-restdocs-mockmvc</artifactId>
            <scope>test</scope>
        </dependency>

        <!--springfox-staticdocs 生成静态文档-->
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-staticdocs</artifactId>
            <version>2.6.1</version>
            <scope>test</scope>
        </dependency>

<build>
        <finalName>springboot_swagger</finalName>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>

            <!--<plugin>
               <groupId>org.springframework.boot</groupId>
               <artifactId>spring-boot-maven-plugin</artifactId>
           </plugin>-->
            <!--Maven通过Maven Surefire Plugin插件执行单元测试-->
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-surefire-plugin</artifactId>
                <configuration>
                    <testFailureIgnore>true</testFailureIgnore>
                </configuration>
            </plugin>
            <!--通过Asciidoctor使得asciidoc生成其他的文档格式，例如：PDF 或者HTML5-->
            <plugin>
                <groupId>org.asciidoctor</groupId>
                <artifactId>asciidoctor-maven-plugin</artifactId>
                <version>1.5.3</version>
                <!--生成PDF-->
                <dependencies>
                    <dependency>
                        <groupId>org.asciidoctor</groupId>
                        <artifactId>asciidoctorj-pdf</artifactId>
                        <version>1.5.0-alpha.14</version>
                    </dependency>
                    <!-- Comment this section to use the default jruby artifact provided by the plugin -->
                    <dependency>
                        <groupId>org.jruby</groupId>
                        <artifactId>jruby-complete</artifactId>
                        <version>1.7.21</version>
                    </dependency>
                </dependencies>

                <!--文档生成配置-->
                <configuration>
                    <sourceDirectory>${asciidoctor.input.directory}</sourceDirectory>
                    <sourceDocumentName>index.adoc</sourceDocumentName>
                    <attributes>
                        <doctype>book</doctype>
                        <toc>left</toc>
                        <toclevels>3</toclevels>
                        <numbered></numbered>
                        <hardbreaks></hardbreaks>
                        <sectlinks></sectlinks>
                        <sectanchors></sectanchors>
                        <generated>${generated.asciidoc.directory}</generated>
                    </attributes>
                </configuration>
                <!--因为每次执行只能处理一个后端，所以对于每个想要的输出类型，都是独立分开执行-->
                <executions>
                    <!--html5-->
                    <execution>
                        <id>output-html</id>
                        <phase>test</phase>
                        <goals>
                            <goal>process-asciidoc</goal>
                        </goals>
                        <configuration>
                            <backend>html5</backend>
                            <outputDirectory>${asciidoctor.html.output.directory}</outputDirectory>
                        </configuration>
                    </execution>
                    <!--pdf-->
                    <execution>
                        <id>output-pdf</id>
                        <phase>test</phase>
                        <goals>
                            <goal>process-asciidoc</goal>
                        </goals>
                        <configuration>
                            <backend>pdf</backend>
                            <outputDirectory>${asciidoctor.pdf.output.directory}</outputDirectory>

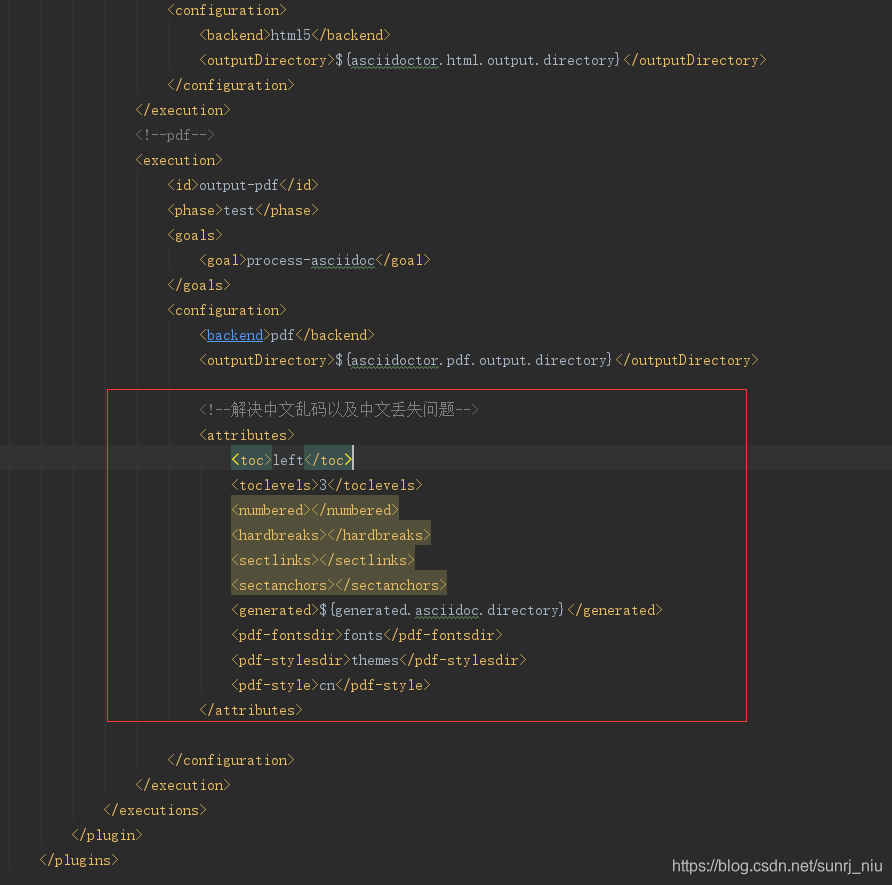

                            <!--解决中文乱码以及中文丢失问题-->
                            <attributes>
                                <toc>left</toc>
                                <toclevels>3</toclevels>
                                <numbered></numbered>
                                <hardbreaks></hardbreaks>
                                <sectlinks></sectlinks>
                                <sectanchors></sectanchors>
                                <generated>${generated.asciidoc.directory}</generated>
                                <pdf-fontsdir>fonts</pdf-fontsdir>
                                <pdf-stylesdir>themes</pdf-stylesdir>
                                <pdf-style>cn</pdf-style>
                            </attributes>

                        </configuration>
                    </execution>
                </executions>
            </plugin>
        </plugins>


    </build>

解决乱码问题：

我这里上springboot 2.1.3.RELEASE的版本
解决方案：

一、

一种是下载字体（RobotoMono 开头和 KaiGenGothicCN 开头的字体文件）和theme文件（Source code (zip)）。

字体下载链接：https://github.com/chloerei/asciidoctor-pdf-cjk-kai_gen_gothic/releases

然后在项目的资源目录下创建fonts和themes两个目录，把下载的8个字体文件复制到fonts目录下，解压asciidoctor-pdf-cjk-kai_gen_gothic-0.1.0-fonts.zip文件，把data\themes\下的cn-theme.yml复制到themes目录下

pom.xml配置，
如图：

在这里插入图片描述
这样就可以解决，网上还有别的方式。大家可以按照自己的版本解决

执行：
1.先执行测试类

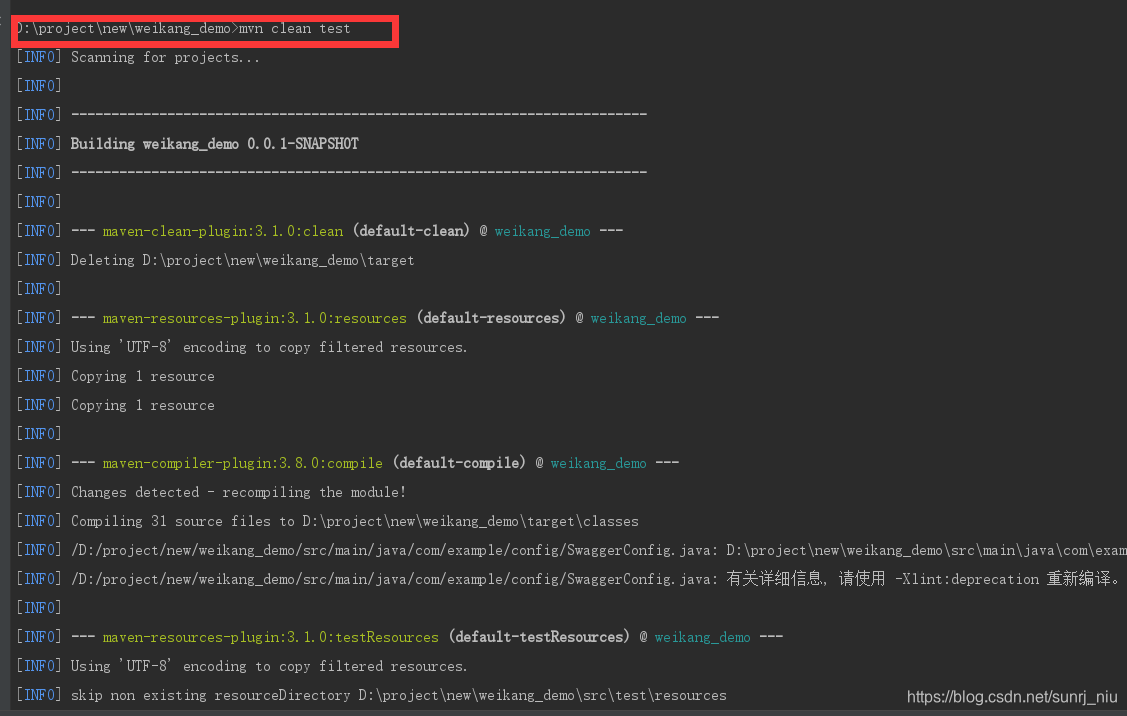

2.命令 mvn clean test
在这里插入图片描述

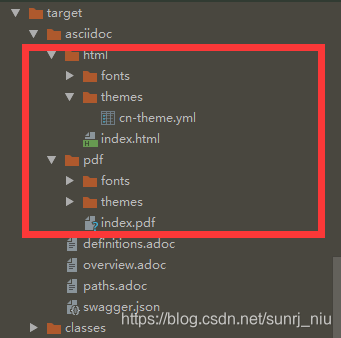

然后就生成了：

具体需要什么文档，大家按需求进行配置即可

YOLO—yeah

关注

6
点赞
踩
37

收藏

觉得还不错? 一键收藏
0
评论
swagger 生成接口文档，并导出html和pdf的过程

swagger 生成接口文档，并导出html和pdf的过程这里写目录标题swagger 生成接口文档，并导出html和pdf的过程swagger 生成接口文档swagger导出pdf和html解决乱码问题：**一、**swagger 生成接口文档1.springboot版本： <parent> <groupId>org.springframework.boot</groupId> <artifactId>spring-b
复制链接

扫一扫
