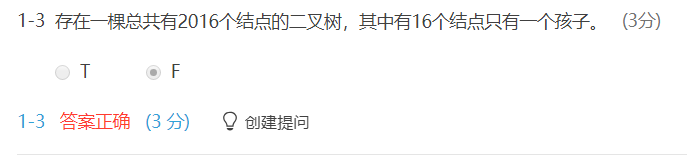

分析: 假设没有孩子的结点(叶结点)个数为n₀,只有一个孩子的结点(度为1的结点)个数为n₁,有两个孩子的结点(度为2的结点)个数为n₂。
则n₀+n₁+n₂=2016
∵n₀=n₂+1(二叉树的性质:叶结点个数等于度为2的结点个数加1) ∴n₀+n₁+n₂=2016
⇨n₂+1+16+n₂=2016 ⇨2n₂=1999 n₂除不尽,所以答案错误。

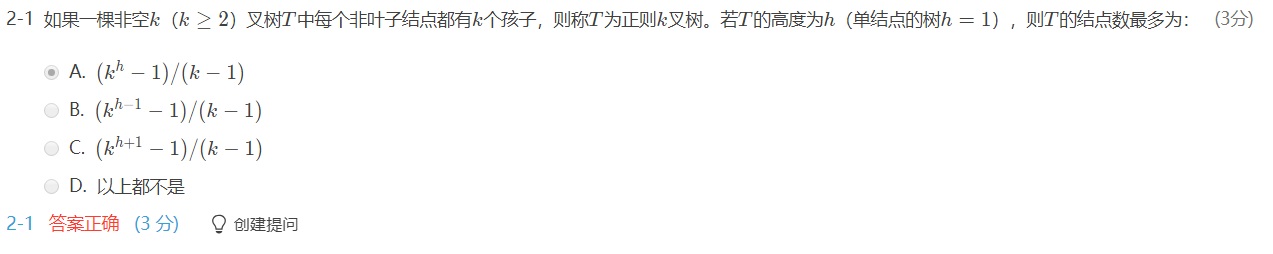

等比数列求和,a0=1

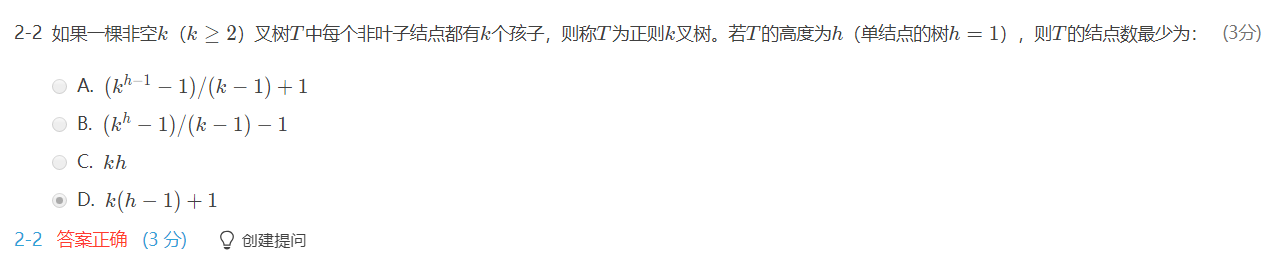

从第二层开始,每增加一层,结点数加k
总结点数:K(h-1)+1(根结点)

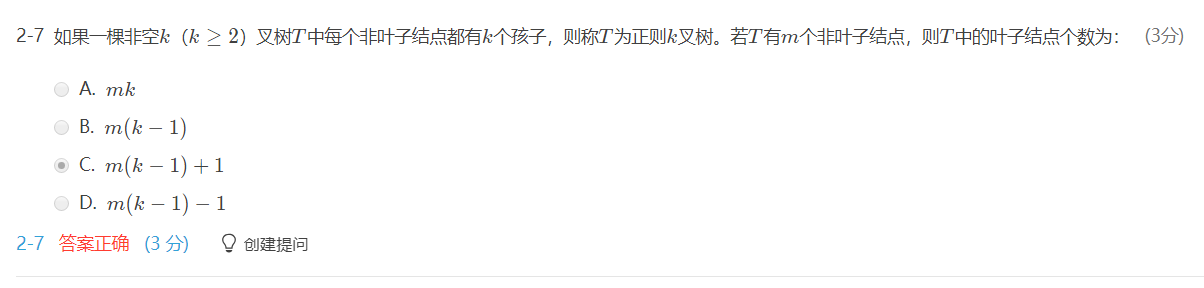

总结点数mk+1
非叶子结点数m
叶子结点数 mk+1-m=m(k-1)+1

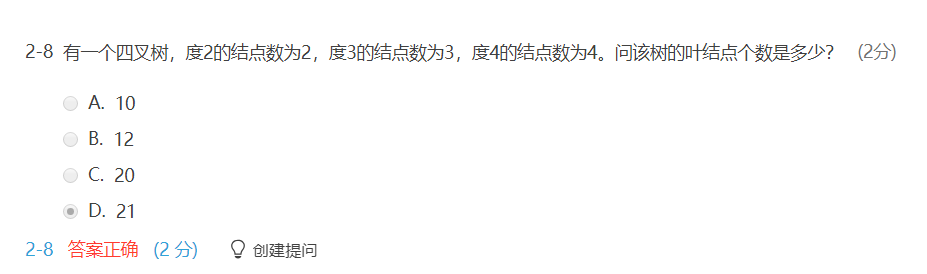

四叉树度为4,
法一:按照边的关系有e=n(总结点数)-1
得n1+2n2+3n3+4n4=n0+n1+n2+n3+n4-1
n1+2x2+3x3+4x4=n0+n1+2+3+4-1;
n0=21
法二:总结点数=总度数+1(根结点)
得n0+n1+n2+n3+n4=n1+2n2+3n3+4n4+1;
n0+n1+2+3+4=n1+2x2+3x3+4x4+1
n0=21.

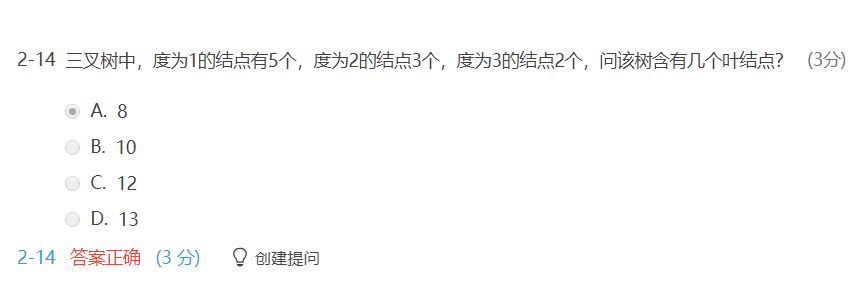

同上题,将三叉树看作度为3的树即可
2-11
在一棵度为4的树T中,若有20个度为4的结点,10个度为3的结点,1个度为2的结点,10个度为1的结点,则树T的叶结点个数是:(3分)
A.41
B.82
C.113
D.122
树中的总结点数=总度数+1
设叶结点数为n
则20x4+10x3+1x2+10x1=20+10+1+10+n
n=82
6-4 二叉树求深度和叶子数 (20分)
编写函数计算二叉树的深度以及叶子节点数。二叉树采用二叉链表存储结构
函数接口定义:
int GetDepthOfBiTree ( BiTree T);
int LeafCount(BiTree T);
其中 T
是用户传入的参数,表示二叉树根节点的地址。函数须返回二叉树的深度(也称为高度)。
裁判测试程序样例:
//头文件包含
#include<stdlib.h>
#include<stdio.h>
#include<malloc.h>
//函数状态码定义
#define TRUE 1
#define FALSE 0
#define OK 1
#define ERROR 0
#define OVERFLOW -1
#define INFEASIBLE -2
#define NULL 0
typedef int Status;
//二叉链表存储结构定义
typedef int TElemType;
typedef struct BiTNode{
TElemType data;
struct BiTNode *lchild, *rchild;
} BiTNode, *BiTree;
//创建二叉树各结点,输入零代表创建空树
//采用递归的思想创建
//递归边界:空树如何创建呢:直接输入0;
//递归关系:非空树的创建问题,可以归结为先创建根节点,输入其数据域值;再创建左子树;最后创建右子树。左右子树递归即可完成创建!
Status CreateBiTree(BiTree &T){
TElemType e;
scanf("%d",&e);
if(e==0)T=NULL;
else{
T=(BiTree)malloc(sizeof(BiTNode));
if(!T)exit(OVERFLOW);
T->data=e;
CreateBiTree(T->lchild);
CreateBiTree(T->rchild);
}
return OK;
}
//下面是需要实现的函数的声明
int GetDepthOfBiTree ( BiTree T);
int LeafCount(BiTree T);
//下面是主函数
int main()
{
BiTree T;
int depth, numberOfLeaves;
CreateBiTree(T);
depth= GetDepthOfBiTree(T);
numberOfLeaves=LeafCount(T);
printf("%d %d\n",depth,numberOfLeaves);
}
/* 请在这里填写答案 */
输入样例:
1 3 0 0 5 7 0 0 0
3 2
答案:
//思路:一求树深:用递归;递归边界:空树深度为0;递归关系:不空时,整颗树的深度为各子树深度最大值加1
//二求叶子数:递归边界:空树叶子数为0;单节点二叉树叶子数为1;递归关系:其他情况下,二叉树的叶子数为左右子树叶子数之和
//注意:空树为最基本的情况
int GetDepthOfBiTree ( BiTree T)
{
int d;
if(!T)
{
d=0;
}
else
{
if(GetDepthOfBiTree(T->lchild)>=GetDepthOfBiTree(T->rchild))
{
d=GetDepthOfBiTree(T->lchild) +1;
}
else d=GetDepthOfBiTree(T->rchild)+1;
}
return d;
}
int LeafCount(BiTree T)
{
if(!T)
{
return 0;
}
else if(!T->lchild&&!T->rchild)
{
return 1;
}
else
{
return LeafCount(T->lchild)+LeafCount(T->rchild);
}
}
6-2 二叉树求结点数 (15分)
编写函数计算二叉树中的节点个数。二叉树采用二叉链表存储结构。
函数接口定义:
int NodeCountOfBiTree ( BiTree T);
其中 T
是二叉树根节点的地址。
裁判测试程序样例:
//头文件包含
#include<stdlib.h>
#include<stdio.h>
#include<malloc.h>
//函数状态码定义
#define TRUE 1
#define FALSE 0
#define OK 1
#define ERROR 0
#define OVERFLOW -1
#define INFEASIBLE -2
typedef int Status;
//二叉链表存储结构定义
typedef int TElemType;
typedef struct BiTNode{
TElemType data;
struct BiTNode *lchild, *rchild;
} BiTNode, *BiTree;
//创建二叉树各结点,输入0代表创建空树。
//采用递归的思想创建
//递归边界:空树如何创建呢:直接输入0;
//递归关系:非空树的创建问题,可以归结为先创建根节点,输入其数据域值;再创建左子树;最后创建右子树。左右子树递归即可完成创建!
Status CreateBiTree(BiTree &T){
TElemType e;
scanf("%d",&e);
if(e==0)T=NULL;
else{
T=(BiTree)malloc(sizeof(BiTNode));
if(!T)exit(OVERFLOW);
T->data=e;
CreateBiTree(T->lchild);
CreateBiTree(T->rchild);
}
return OK;
}
//下面是需要实现的函数的声明
int NodeCountOfBiTree ( BiTree T);
//下面是主函数
int main()
{
BiTree T;
int n;
CreateBiTree(T); //先序递归创建二叉树
n= NodeCountOfBiTree(T);
printf("%d",n);
return 0;
}
/* 请在这里填写答案 */
输入样例(注意输入0代表空子树):
1 3 0 0 5 3 0 0 0
输出样例:
4
//思路:递归边界:空树节点数为0
//递归关系:非空时,二叉树节点数为 左子树节点数+右子树节点数+ 1. 子树节点数递归可得
int NodeCountOfBiTree ( BiTree T)
{
int NodeNumber;
if(!T)
{
NodeNumber= 0;
}
else
{
NodeNumber= NodeCountOfBiTree(T->lchild)+ NodeCountOfBiTree(T->rchild)+1;
}
return NodeNumber;
}
