注意：OpenWrt 24.10.0-rc7版本开始支持AN8855版本的小米AX3000T路由器

下载ssh破解工具：

git clone https://github.com/openwrt-xiaomi/xmir-patcher.git

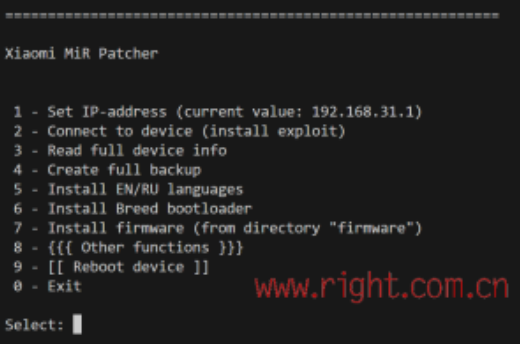

运行：2 Connect to device
在这里插入图片描述
然后ssh连接上路由器：

ssh -o StrictHostKeyChecking=no -o HostKeyAlgorithms=+ssh-rsa -o PubkeyAcceptedAlgorithms=+ssh-rsa -v root@192.168.31.1

将mt7981_ax3000t_an8855-fip-fixed-parts-multi-layout.bin通过mobaxterm或xshell放到路由器/tmp目录下，跳转tmp目录执行：

mtd write mt7981_ax3000t_an8855-fip-fixed-parts-multi-layout.bin FIP

然后重新启动板子，在串口选择：7. Start Web failsafe

  *** U-Boot Boot Menu ***

      1. Startup system (Default)
      2. Upgrade firmware
      3. Upgrade ATF BL2
      4. Upgrade ATF FIP
      5. Upgrade single image
      6. Load image
      7. Start Web failsafe
      0. U-Boot console


  Press UP/DOWN to move, ENTER to select, ESC to quit

然后访问192.168.1.1
进入后layout选择default
刷新选择openwrt最新软件包：
openwrt-24.10.0-mediatek-filogic-xiaomi_mi-router-ax3000t-squashfs-sysupgrade.bin
等待更新完成

如何救砖：
先执行下面这个命令，再把AX3000T电源插上
.\mtk_uartboot.exe -s COM7 -p .\mt7981-ddr3-bl2.bin -a -f .\mt7981_ax3000t_an8855-fip-fixed-parts-multi-layout.bin --brom-load-baudrate 115200 --bl2-load-baudrate 115200
命令执行完，不要下电，直接用串口工具打开，按上下键选择Upgrade ATF BL2和Upgrade ATF FIP回车依次执行，执行完成救回来了。

mtk_uartboot - 0.1.1
Using serial port: COM7
Handshake...
hw code: 0x7981
hw sub code: 0x8a00
hw ver: 0xca00
sw ver: 0x1
Baud rate set to 115200
sending payload to 0x201000...
Checksum: 0x55cf
Setting baudrate back to 115200
Jumping to 0x201000 in aarch64...
Waiting for BL2. Message below:
==================================
NOTICE:  BL2: v2.10.0   (release):v2.4-rc0-5845-gbacca82a8-dirty
NOTICE:  BL2: Built : 20:18:08, Feb  2 2024
NOTICE:  WDT: Cold boot
NOTICE:  WDT: disabled
NOTICE:  EMI: Using DDR3 settings
NOTICE:  EMI: Detected DRAM size: 256MB
NOTICE:  EMI: complex R/W mem test passed
NOTICE:  CPU: MT7981 (1298MHz)
NOTICE:  Starting UART download handshake ...
==================================
BL2 UART DL version: 0x10
Baudrate set to: 115200
FIP sent.
==================================
NOTICE:  Received FIP 0xb9bd1 @ 0x40400000 ...
==================================
