soul之http长轮询数据同步

1.【soul-admin】开始http长轮询数据同步

soul:
  sync:
    http:
      enabled: true

2.【soul-bootstrap】中添加http长轮询

<dependency>
    <groupId>org.dromara</groupId>
    <artifactId>soul-spring-boot-starter-sync-data-http</artifactId>
    <version>${project.version}</version>
</dependency>

3.【soul-bootstrap】添加http长轮询设置

soul:
  sync:
    http:
      url: http://localhost:9095

4.启动【soul-admin】和【soul-bootstrap】即完成数据同步。

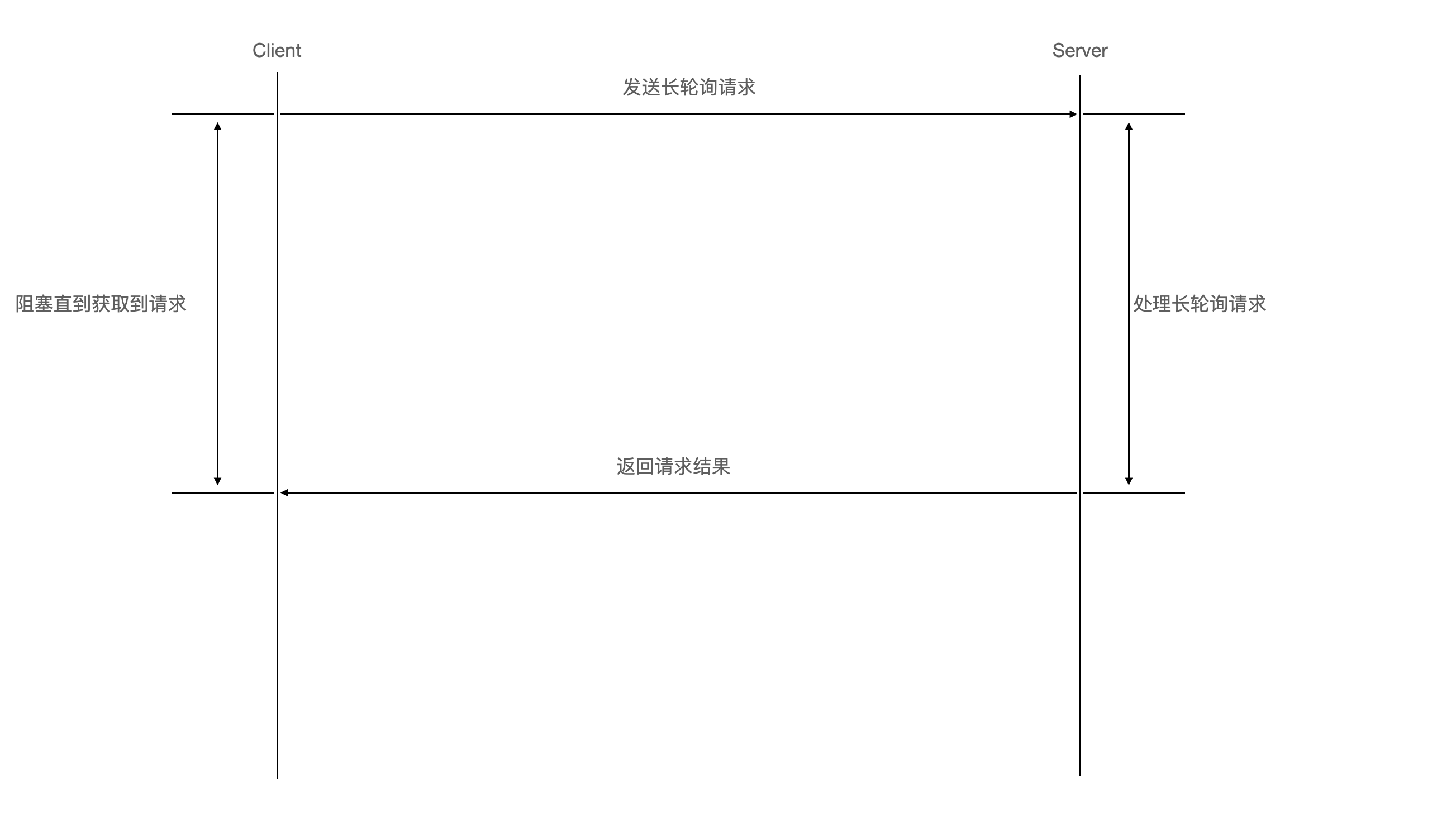

如上所示，客户端发送请求会阻塞到服务器处理完请求（可以设置规定时间为阻塞时间上限，然后关闭连接），而服务器是通过长时间处理完请求获取到返回数据并进行返回。以上是完成一次长轮询，完成一次长轮询后则可以开始下一次轮询。

---

【soul-admin】提供数据

上述第一步开启如下配置:

    @Configuration
    @ConditionalOnProperty(name = "soul.sync.http.enabled", havingValue = "true")
    @EnableConfigurationProperties(HttpSyncProperties.class)
    static class HttpLongPollingListener {

        @Bean
        @ConditionalOnMissingBean(HttpLongPollingDataChangedListener.class)
        public HttpLongPollingDataChangedListener httpLongPollingDataChangedListener(final HttpSyncProperties httpSyncProperties) {
            return new HttpLongPollingDataChangedListener(httpSyncProperties);
        }

    }

数据变更监听器如下:


public class HttpLongPollingDataChangedListener extends AbstractDataChangedListener {

    private static final String X_REAL_IP = "X-Real-IP";

    private static final String X_FORWARDED_FOR = "X-Forwarded-For";

    private static final String X_FORWARDED_FOR_SPLIT_SYMBOL = ",";

    private static final ReentrantLock LOCK = new ReentrantLock();

    /**
     * Blocked client.
     */
    private final BlockingQueue<LongPollingClient> clients;

    private final ScheduledExecutorService scheduler;

    private final HttpSyncProperties httpSyncProperties;

    /**
     * Instantiates a new Http long polling data changed listener.
     * @param httpSyncProperties the HttpSyncProperties
     */
    public HttpLongPollingDataChangedListener(final HttpSyncProperties httpSyncProperties) {
        this.clients = new ArrayBlockingQueue<>(1024);
        this.scheduler = new ScheduledThreadPoolExecutor(1,
                SoulThreadFactory.create("long-polling", true));
        this.httpSyncProperties = httpSyncProperties;
    }

    @Override
    protected void afterInitialize() {
        long syncInterval = httpSyncProperties.getRefreshInterval().toMillis(); // 启动定时任务更新本地数据
        // Periodically check the data for changes and update the cache
        scheduler.scheduleWithFixedDelay(() -> {
            log.info("http sync strategy refresh config start.");
            try {
                this.refreshLocalCache();
                log.info("http sync strategy refresh config success.");
            } catch (Exception e) {
                log.error("http sync strategy refresh config error!", e);
            }
        }, syncInterval, syncInterval, TimeUnit.MILLISECONDS);
        log.info("http sync strategy refresh interval: {}ms", syncInterval);
    }

    /**
     * If the configuration data changes, the group information for the change is immediately responded.
     * Otherwise, the client's request thread is blocked until any data changes or the specified timeout is reached.
     *
     * @param request  the request
     * @param response the response
     */
    public void doLongPolling(final HttpServletRequest request, final HttpServletResponse response) {

        // compare group md5
        List<ConfigGroupEnum> changedGroup = compareChangedGroup(request);
        String clientIp = getRemoteIp(request);

        // response immediately.
        if (CollectionUtils.isNotEmpty(changedGroup)) {
            this.generateResponse(response, changedGroup);
            log.info("send response with the changed group, ip={}, group={}", clientIp, changedGroup);
            return;
        }

        // listen for configuration changed.
        final AsyncContext asyncContext = request.startAsync();

        // AsyncContext.settimeout() does not timeout properly, so you have to control it yourself
        asyncContext.setTimeout(0L);

        // block client's thread.
        scheduler.execute(new LongPollingClient(asyncContext, clientIp, HttpConstants.SERVER_MAX_HOLD_TIMEOUT));
    }

    // 比较得到已经被变更的数据
    private List<ConfigGroupEnum> compareChangedGroup(final HttpServletRequest request) {
        List<ConfigGroupEnum> changedGroup = new ArrayList<>(ConfigGroupEnum.values().length);
        for (ConfigGroupEnum group : ConfigGroupEnum.values()) {
            // md5,lastModifyTime
            String[] params = StringUtils.split(request.getParameter(group.name()), ',');
            if (params == null || params.length != 2) {
                throw new SoulException("group param invalid:" + request.getParameter(group.name()));
            }
            String clientMd5 = params[0];
            long clientModifyTime = NumberUtils.toLong(params[1]);
            ConfigDataCache serverCache = CACHE.get(group.name());
            // do check.
            if (this.checkCacheDelayAndUpdate(serverCache, clientMd5, clientModifyTime)) {
                changedGroup.add(group);
            }
        }
        return changedGroup;
    }

    /**
     * check whether the client needs to update the cache.
     * @param serverCache the admin local cache
     * @param clientMd5 the client md5 value
     * @param clientModifyTime the client last modify time
     * @return true: the client needs to be updated, false: not need.
     */
    private boolean checkCacheDelayAndUpdate(final ConfigDataCache serverCache, final String clientMd5, final long clientModifyTime) {

        // is the same, doesn't need to be updated
        if (StringUtils.equals(clientMd5, serverCache.getMd5())) {
            return false;
        }

        // if the md5 value is different, it is necessary to compare lastModifyTime.
        long lastModifyTime = serverCache.getLastModifyTime();
        if (lastModifyTime >= clientModifyTime) {
            // the client's config is out of date.
            return true;
        }

        // the lastModifyTime before client, then the local cache needs to be updated.
        // Considering the concurrency problem, admin must lock,
        // otherwise it may cause the request from soul-web to update the cache concurrently, causing excessive db pressure
        boolean locked = false;
        try {
            locked = LOCK.tryLock(5, TimeUnit.SECONDS);
        } catch (InterruptedException e) {
            Thread.currentThread().interrupt();
            return true;
        }
        if (locked) {
            try {
                ConfigDataCache latest = CACHE.get(serverCache.getGroup());
                if (latest != serverCache) {
                    // the cache of admin was updated. if the md5 value is the same, there's no need to update.
                    return !StringUtils.equals(clientMd5, latest.getMd5());
                }
                // load cache from db.
                this.refreshLocalCache();
                latest = CACHE.get(serverCache.getGroup());
                return !StringUtils.equals(clientMd5, latest.getMd5());
            } finally {
                LOCK.unlock();
            }
        }

        // not locked, the client need to be updated.
        return true;

    }

    /**
     * Send response datagram.
     *
     * @param response      the response
     * @param changedGroups the changed groups
     */
    private void generateResponse(final HttpServletResponse response, final List<ConfigGroupEnum> changedGroups) {
        try {
            response.setHeader("Pragma", "no-cache");
            response.setDateHeader("Expires", 0);
            response.setHeader("Cache-Control", "no-cache,no-store");
            response.setContentType(MediaType.APPLICATION_JSON_VALUE);
            response.setStatus(HttpServletResponse.SC_OK);
            response.getWriter().println(GsonUtils.getInstance().toJson(SoulAdminResult.success(SoulResultMessage.SUCCESS, changedGroups)));
        } catch (IOException ex) {
            log.error("Sending response failed.", ex);
        }
    }

    /**
     * get real client ip.
     *
     * @param request the request
     * @return the remote ip
     */
    private static String getRemoteIp(final HttpServletRequest request) {
        String xForwardedFor = request.getHeader(X_FORWARDED_FOR);
        if (!StringUtils.isBlank(xForwardedFor)) {
            return xForwardedFor.split(X_FORWARDED_FOR_SPLIT_SYMBOL)[0].trim();
        }
        String header = request.getHeader(X_REAL_IP);
        return StringUtils.isBlank(header) ? request.getRemoteAddr() : header;
    }

    /**
     * When a group's data changes, the thread is created to notify the client asynchronously.
     */
    class DataChangeTask implements Runnable {

        /**
         * The Group where the data has changed.
         */
        private final ConfigGroupEnum groupKey;

        /**
         * The Change time.
         */
        private final long changeTime = System.currentTimeMillis();

        /**
         * Instantiates a new Data change task.
         *
         * @param groupKey the group key
         */
        DataChangeTask(final ConfigGroupEnum groupKey) {
            this.groupKey = groupKey;
        }

        @Override
        public void run() {
            for (Iterator<LongPollingClient> iter = clients.iterator(); iter.hasNext();) {
                LongPollingClient client = iter.next();
                iter.remove();
                client.sendResponse(Collections.singletonList(groupKey));
                log.info("send response with the changed group,ip={}, group={}, changeTime={}", client.ip, groupKey, changeTime);
            }
        }
    }

    /**
     * If you exceed {@link HttpConstants#SERVER_MAX_HOLD_TIMEOUT} and still have no data change,
     * empty data is returned. If the data changes within this time frame, the DataChangeTask
     * cancellations the timed task and responds to the changed group data.
     */
    class LongPollingClient implements Runnable {

        /**
         * The Async context.
         */
        private final AsyncContext asyncContext;

        /**
         * The Ip.
         */
        private final String ip;

        /**
         * The Timeout time.
         */
        private final long timeoutTime;

        /**
         * The Async timeout future.
         */
        private Future<?> asyncTimeoutFuture;

        /**
         * Instantiates a new Long polling client.
         *
         * @param ac          the ac
         * @param ip          the ip
         * @param timeoutTime the timeout time
         */
        LongPollingClient(final AsyncContext ac, final String ip, final long timeoutTime) {
            this.asyncContext = ac;
            this.ip = ip;
            this.timeoutTime = timeoutTime;
        }

        @Override
        public void run() {
            this.asyncTimeoutFuture = scheduler.schedule(() -> {
                clients.remove(LongPollingClient.this);
                List<ConfigGroupEnum> changedGroups = compareChangedGroup((HttpServletRequest) asyncContext.getRequest());
                sendResponse(changedGroups);
            }, timeoutTime, TimeUnit.MILLISECONDS);
            clients.add(this);
        }

        /**
         * Send response.
         *
         * @param changedGroups the changed groups
         */
        void sendResponse(final List<ConfigGroupEnum> changedGroups) {
            // cancel scheduler
            if (null != asyncTimeoutFuture) {
                asyncTimeoutFuture.cancel(false);
            }
            // 异步发送请求来完成HTTP长轮询
            generateResponse((HttpServletResponse) asyncContext.getResponse(), changedGroups);
            asyncContext.complete();
        }
    }

}

对外提供的接口信息是

@ConditionalOnBean(HttpLongPollingDataChangedListener.class)
@RestController
@RequestMapping("/configs")
@Slf4j
public class ConfigController {

    @Resource
    private HttpLongPollingDataChangedListener longPollingListener;

    /**
     * Fetch configs soul result.
     *
     * @param groupKeys the group keys
     * @return the soul result
     */
    @GetMapping("/fetch")
    public SoulAdminResult fetchConfigs(@NotNull final String[] groupKeys) {
        Map<String, ConfigData<?>> result = Maps.newHashMap();
        for (String groupKey : groupKeys) {
            ConfigData<?> data = longPollingListener.fetchConfig(ConfigGroupEnum.valueOf(groupKey));
            result.put(groupKey, data);
        }
        return SoulAdminResult.success(SoulResultMessage.SUCCESS, result);
    }

    /**
     * Listener.
     *
     * @param request  the request
     * @param response the response
     */
    @PostMapping(value = "/listener")
    public void listener(final HttpServletRequest request, final HttpServletResponse response) {
        longPollingListener.doLongPolling(request, response);
    }

}

【soul-bootstrap】读取数据

上述第三步开启如下配置

@Configuration
@ConditionalOnClass(HttpSyncDataService.class)
@ConditionalOnProperty(prefix = "soul.sync.http", name = "url")
@Slf4j
public class HttpSyncDataConfiguration {

    /**
     * Http sync data service.
     *
     * @param httpConfig        the http config
     * @param pluginSubscriber the plugin subscriber
     * @param metaSubscribers   the meta subscribers
     * @param authSubscribers   the auth subscribers
     * @return the sync data service
     */
    @Bean
    public SyncDataService httpSyncDataService(final ObjectProvider<HttpConfig> httpConfig, final ObjectProvider<PluginDataSubscriber> pluginSubscriber,
                                           final ObjectProvider<List<MetaDataSubscriber>> metaSubscribers, final ObjectProvider<List<AuthDataSubscriber>> authSubscribers) {
        log.info("you use http long pull sync soul data");
        return new HttpSyncDataService(Objects.requireNonNull(httpConfig.getIfAvailable()), Objects.requireNonNull(pluginSubscriber.getIfAvailable()),
                metaSubscribers.getIfAvailable(Collections::emptyList), authSubscribers.getIfAvailable(Collections::emptyList));
    }

    /**
     * Http config http config.
     *
     * @return the http config
     */
    @Bean
    @ConfigurationProperties(prefix = "soul.sync.http")
    public HttpConfig httpConfig() {
        return new HttpConfig();
    }
}

public class HttpSyncDataService implements SyncDataService, AutoCloseable {

    private static final AtomicBoolean RUNNING = new AtomicBoolean(false);

    private static final Gson GSON = new Gson();

    /**
     * default: 10s.
     */
    private Duration connectionTimeout = Duration.ofSeconds(10);

    /**
     * only use for http long polling.
     */
    private RestTemplate httpClient;

    private ExecutorService executor;

    private HttpConfig httpConfig;

    private List<String> serverList;

    private DataRefreshFactory factory;

    public HttpSyncDataService(final HttpConfig httpConfig, final PluginDataSubscriber pluginDataSubscriber,
                               final List<MetaDataSubscriber> metaDataSubscribers, final List<AuthDataSubscriber> authDataSubscribers) {
        this.factory = new DataRefreshFactory(pluginDataSubscriber, metaDataSubscribers, authDataSubscribers);
        this.httpConfig = httpConfig;
        this.serverList = Lists.newArrayList(Splitter.on(",").split(httpConfig.getUrl()));
        this.httpClient = createRestTemplate();
        this.start();
    }

    private void start() {
        // It could be initialized multiple times, so you need to control that.
        if (RUNNING.compareAndSet(false, true)) {
            // fetch all group configs.
            this.fetchGroupConfig(ConfigGroupEnum.values());
            int threadSize = serverList.size();
            this.executor = new ThreadPoolExecutor(threadSize, threadSize, 60L, TimeUnit.SECONDS,
                    new LinkedBlockingQueue<>(),
                    SoulThreadFactory.create("http-long-polling", true));
            // start long polling, each server creates a thread to listen for changes.
            this.serverList.forEach(server -> this.executor.execute(new HttpLongPollingTask(server))); // 每个服务器开一个线程进行维护
        } else {
            log.info("soul http long polling was started, executor=[{}]", executor);
        }
    }

    private void fetchGroupConfig(final ConfigGroupEnum... groups) throws SoulException {
        for (int index = 0; index < this.serverList.size(); index++) {
            String server = serverList.get(index);
            try {
                this.doFetchGroupConfig(server, groups);
                break;
            } catch (SoulException e) {
                // no available server, throw exception.
                if (index >= serverList.size() - 1) {
                    throw e;
                }
                log.warn("fetch config fail, try another one: {}", serverList.get(index + 1));
            }
        }
    }

    private void doFetchGroupConfig(final String server, final ConfigGroupEnum... groups) {
        StringBuilder params = new StringBuilder();
        for (ConfigGroupEnum groupKey : groups) {
            params.append("groupKeys").append("=").append(groupKey.name()).append("&");
        }
        String url = server + "/configs/fetch?" + StringUtils.removeEnd(params.toString(), "&");
        log.info("request configs: [{}]", url);
        String json = null;
        try {
            json = this.httpClient.getForObject(url, String.class);
        } catch (RestClientException e) {
            String message = String.format("fetch config fail from server[%s], %s", url, e.getMessage());
            log.warn(message);
            throw new SoulException(message, e);
        }
        // update local cache
        boolean updated = this.updateCacheWithJson(json);
        if (updated) {
            log.info("get latest configs: [{}]", json);
            return;
        }
        // not updated. it is likely that the current config server has not been updated yet. wait a moment.
        log.info("The config of the server[{}] has not been updated or is out of date. Wait for 30s to listen for changes again.", server);
        ThreadUtils.sleep(TimeUnit.SECONDS, 30);
    }

    /**
     * update local cache.
     * @param json the response from config server.
     * @return true: the local cache was updated. false: not updated.
     */
    private boolean updateCacheWithJson(final String json) {
        JsonObject jsonObject = GSON.fromJson(json, JsonObject.class);
        JsonObject data = jsonObject.getAsJsonObject("data");
        // if the config cache will be updated?
        return factory.executor(data);
    }

    @SuppressWarnings("unchecked")
    private void doLongPolling(final String server) {
        MultiValueMap<String, String> params = new LinkedMultiValueMap<>(8);
        for (ConfigGroupEnum group : ConfigGroupEnum.values()) {
            ConfigData<?> cacheConfig = factory.cacheConfigData(group);
            String value = String.join(",", cacheConfig.getMd5(), String.valueOf(cacheConfig.getLastModifyTime()));
            params.put(group.name(), Lists.newArrayList(value));
        }
        HttpHeaders headers = new HttpHeaders();
        headers.setContentType(MediaType.APPLICATION_FORM_URLENCODED);
        HttpEntity httpEntity = new HttpEntity(params, headers);
        String listenerUrl = server + "/configs/listener"; // 获取配置变更列表
        log.debug("request listener configs: [{}]", listenerUrl);
        JsonArray groupJson = null;
        try {
            String json = this.httpClient.postForEntity(listenerUrl, httpEntity, String.class).getBody();
            log.debug("listener result: [{}]", json);
            groupJson = GSON.fromJson(json, JsonObject.class).getAsJsonArray("data");
        } catch (RestClientException e) {
            String message = String.format("listener configs fail, server:[%s], %s", server, e.getMessage());
            throw new SoulException(message, e);
        }
        if (groupJson != null) {
            // fetch group configuration async.
            ConfigGroupEnum[] changedGroups = GSON.fromJson(groupJson, ConfigGroupEnum[].class);
            if (ArrayUtils.isNotEmpty(changedGroups)) {
                log.info("Group config changed: {}", Arrays.toString(changedGroups));
                this.doFetchGroupConfig(server, changedGroups); // 获取变更的配置数据
            }
        }
    }

    @Override
    public void close() throws Exception {
        RUNNING.set(false);
        if (executor != null) {
            executor.shutdownNow();
            // help gc
            executor = null;
        }
    }

    class HttpLongPollingTask implements Runnable {

        private String server;

        private final int retryTimes = 3;

        HttpLongPollingTask(final String server) {
            this.server = server;
        }

        @Override
        public void run() {
            while (RUNNING.get()) {
                for (int time = 1; time <= retryTimes; time++) {
                    try {
                        doLongPolling(server); // 读取数据，并更新配置
                    } catch (Exception e) {
                        // print warnning log.
                        if (time < retryTimes) {
                            log.warn("Long polling failed, tried {} times, {} times left, will be suspended for a while! {}",
                                    time, retryTimes - time, e.getMessage());
                            ThreadUtils.sleep(TimeUnit.SECONDS, 5);
                            continue;
                        }
                        // print error, then suspended for a while.
                        log.error("Long polling failed, try again after 5 minutes!", e);
                        ThreadUtils.sleep(TimeUnit.MINUTES, 5);
                    }
                }
            }
            log.warn("Stop http long polling.");
        }
    }
}

以上就是soul使用HTTP轮询来进行数据同步的基本流程
