5G NR - 下行同步(DL Synchronization)学习笔记2 - SSB介绍

Overview：

//38.300-5.2.4(文字颜色与图中不同信号/信道对应)

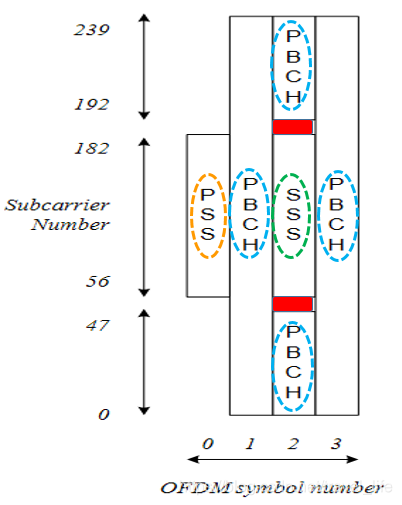

The Synchronization Signal and PBCH block (SSB) consists of primary and secondary synchronization signals (PSS, SSS), each occupying 1 symbol and 127 subcarriers, and PBCH spanning across 3 OFDM symbols and 240 subcarriers, but on one symbol leaving an unused part in the middle for SSS as show in Figure 5.2.4-1. The possibletime l ocations of SSBs within a half-frame are determined by sub-carrier spacing and the periodicity of the half-frames where SSBs are transmitted is configured by the network. During a half-frame, different SSBs may be transmitted in different spatial directions (i.e. using different beams, spanning the coverage area of a cell(see page-5)).

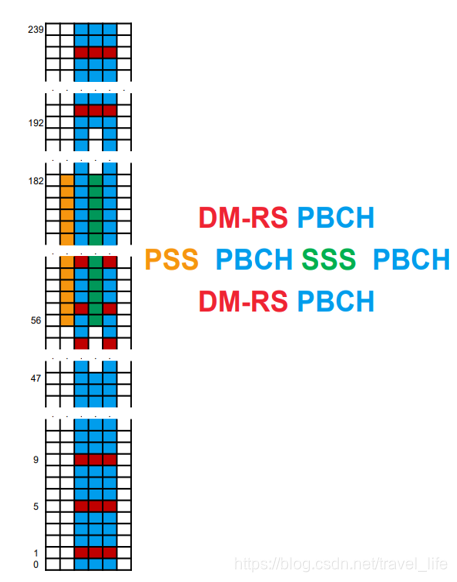

放大到RE粒度看(根据Cell ID不同，DM-RS位置会不同)：

---
