本文介绍了如何利用SQLServer和SSRS提高用友U8流程审批效率。通过分析U8数据库中的WFAudit和Table_Task表，结合不同单据类型，展示了如何创建折叠明细表来跟踪审批状态和时间。文章详细阐述了实现步骤，并提供了SQL查询思路，但指出生产订单部分仍存在问题，欢迎交流讨论。

摘要生成于 C知道 ，由 DeepSeek-R1 满血版支持， 前往体验 >

文章目录

1、 需求及效果

1.1 需求

想要查看U8的审批流程，查看流程在哪个节点或人停留的时间，这个单据整个流程走下来需要的时间。可以更加直观方便的查看审批效率

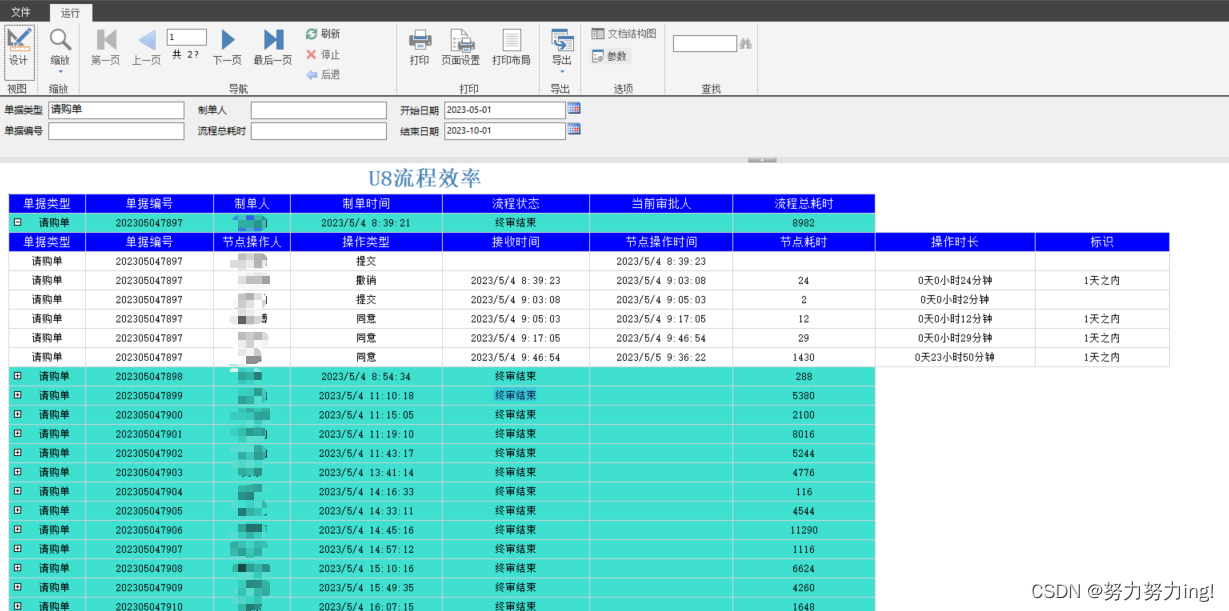

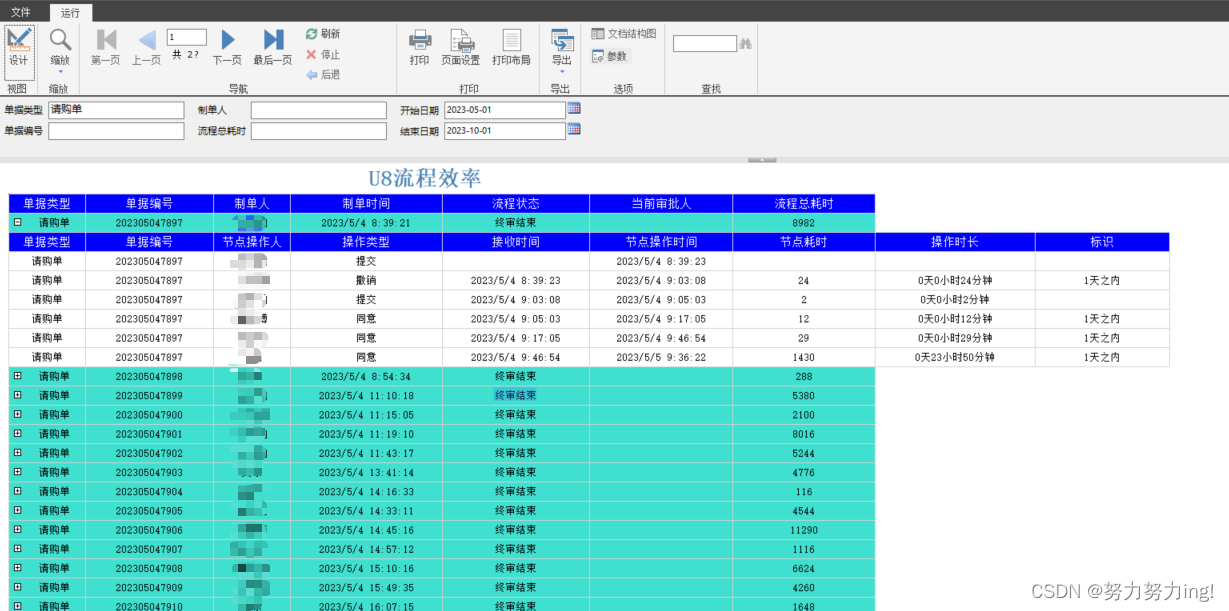

1.2 效果

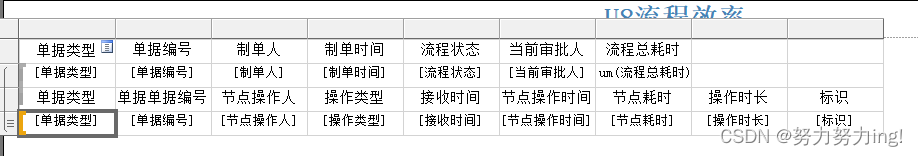

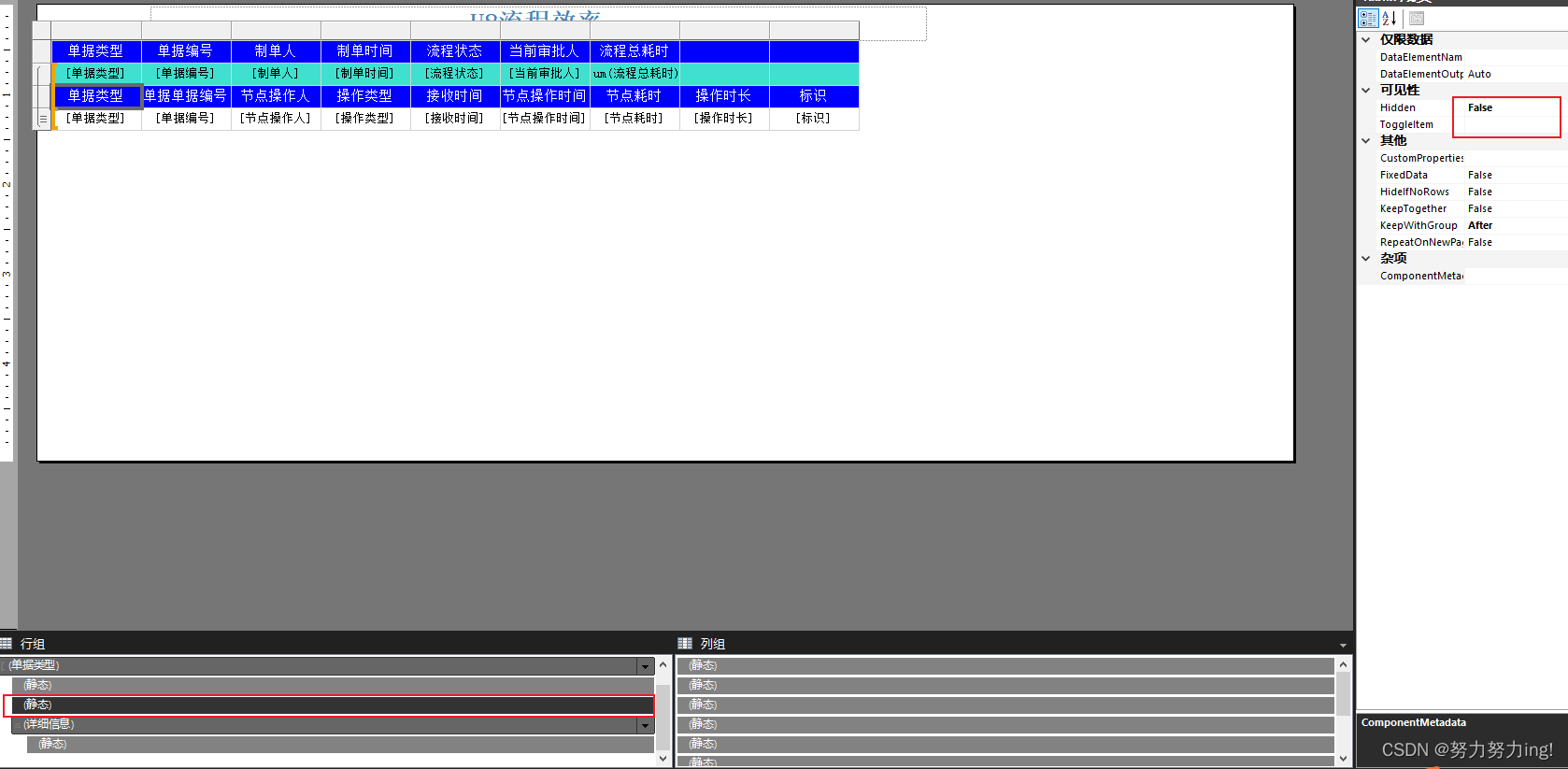

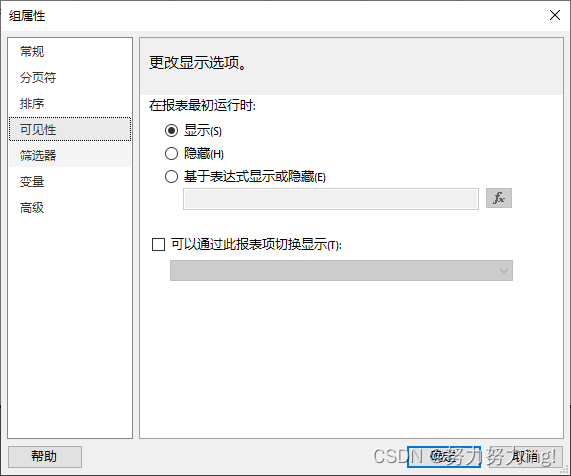

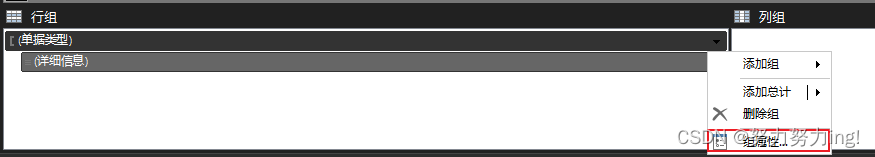

采用了SSRS上面的明细表折叠，点击+可以进行展开

在这里插入图片描述

2、 思路及SQL语句

1、在U8数据库中审批相关的表有WFAudit和Table_Task。根据这两张表中的内容观察，可以从Table_Task中取待审批的消息，从WFAudit中取其他的内容

2、VoucherType的含义： 01为销售发货单、0301为其他入库单、0302为其他出库单、0304为调拨单、0305为形态转换单、0324为调拨申请单、0412为材料出库单、17为销售订单、24为采购入库单、26为采购到货单、27为请购单、88为采购订单、AP40为应付付款申请单、BO11为物料清单、BO19为委外商物料清单、MO21为生产订单、om01为委外订单、OM26为委外到货单、PU01为供应商资格审批表、pu03为供应商存货调价单、SA19为客户调价单、SR01为服务单、U870_0003为存货申请

3、Action审批动作的意义：0为提交，1为批准，3为转签，5为撤销，6为不同意（可以退回给任何人），7为弃审，8为重新提交，11为会签给谁、12为会签同意、13为会签不同意

4、有MessageId代表的是在提交人节点
5、Table_Task表中creatime和endtime相同为待操作
6、流程状态、制单人、制单时间、当前审批人需要关联以上23种单据类型（通过单据编号进行关联）
7、VoucherCode一样代表是一个完整的审批过程

/*
U8审批效率
VoucherCode是工单
1.VoucherType的含义： 01为销售发货单、0301为其他入库单、0302为其他出库单、0304为调拨单、0305为形态转换单、0324为调拨申请单
0412为材料出库单、17为销售订单、24为采购入库单、26为采购到货单、27为请购单、88为采购订单、AP40为应付付款申请单
BO11为物料清单、BO19为委外商物料清单、MO21为生产订单、om01为委外订单、OM26为委外到货单、PU01为供应商资格审批表
pu03为供应商存货调价单、SA19为客户调价单、SR01为服务单、U870_0003为存货申请
2.Action审批动作0、1、3、5、6、7、8、11、12、13
0为提交，1为批准，3为转签，5为撤销，6为不同意（可以退回给任何人），7为弃审，8为重新提交，11为会签给谁、12为会签同意、13为会签不同意
会签给别人，是需要会签的人同意才能进入下一步，转签和会签有来源和来自哪里
有MessageId代表的是在提交人节点
关联各个单子对应的iverifystateex：-1是终审不同意，0是未提交，1是已提交，2是终审同意（终审同意就是归档）
3.VoucherCode一样代表是一个完整的审批过程，order by时间则为具体的时间
4.table_task中creatime和endtime相同为待操作
5.cMaker制单人.dcreatesytime制单时间,cCurrentAuditor当前审批人
*/
SELECT * FROM (
SELECT *,
DATEDIFF(MINUTE, MIN(节点操作时间) OVER (PARTITION BY 单据类型, 单据编号),
MAX(节点操作时间) OVER (PARTITION BY 单据类型, 单据编号)) AS 流程总耗时,
		CASE
 WHEN DATEDIFF(MINUTE, MIN(节点操作时间) OVER (PARTITION BY 单据类型, 单据编号),
MAX(节点操作时间) OVER (PARTITION BY 单据类型, 单据编号))  BETWEEN 0 AND 1440 THEN '1天之内'
    WHEN DATEDIFF(MINUTE, MIN(节点操作时间) OVER (PARTITION BY 单据类型, 单据编号),
MAX(节点操作时间) OVER (PARTITION BY 单据类型, 单据编号))  BETWEEN 1441 AND 4320 THEN '2-3天'
    WHEN DATEDIFF(MINUTE, MIN(节点操作时间) OVER (PARTITION BY 单据类型, 单据编号),
MAX(节点操作时间) OVER (PARTITION BY 单据类型, 单据编号))  BETWEEN 4321 AND 10080 THEN '4-7天'
    WHEN DATEDIFF(MINUTE, MIN(节点操作时间) OVER (PARTITION BY 单据类型, 单据编号),
MAX(节点操作时间) OVER (PARTITION BY 单据类型, 单据编号))  BETWEEN 10081 AND 20160 THEN '8-14天'
    WHEN DATEDIFF(MINUTE, MIN(节点操作时间) OVER (PARTITION BY 单据类型, 单据编号),
MAX(节点操作时间) OVER (PARTITION BY 单据类型, 单据编号))  BETWEEN 20161 AND 43200 THEN '15-30天'
    WHEN DATEDIFF(MINUTE, MIN(节点操作时间) OVER (PARTITION BY 单据类型, 单据编号),
MAX(节点操作时间) OVER (PARTITION BY 单据类型, 单据编号))  BETWEEN 43201 AND 86400 THEN '31-60天'
    WHEN DATEDIFF(MINUTE, MIN(节点操作时间) OVER (PARTITION BY 单据类型, 单据编号),
MAX(节点操作时间) OVER (PARTITION BY 单据类型, 单据编号))  BETWEEN 86401 AND 129600 THEN '61-90天'
    ELSE '90天以上'
	END AS 总耗时标识
 FROM(
SELECT DISTINCT * FROM(
	SELECT
	CASE WHEN VoucherType='01' THEN '销售发货单'
	  WHEN VoucherType='0301' THEN '其他入库单'
	  WHEN VoucherType='0302' THEN '其他出库单'
	  WHEN VoucherType='0304' THEN '调拨单'
	  WHEN VoucherType='0305' THEN '形态转换单'
	  WHEN VoucherType='0324' THEN '调拨申请单'
	  WHEN VoucherType='0412' THEN '材料出库单'
	  WHEN VoucherType='17' THEN '销售订单'
	  WHEN VoucherType='24' THEN '采购入库单'
	  WHEN VoucherType='26' THEN '采购到货单'
	  WHEN VoucherType='27' THEN '请购单'
	  WHEN VoucherType='88' THEN '采购订单'
	  WHEN VoucherType='AP40' THEN '应付付款申请单'
	  WHEN VoucherType='BO11' THEN '物料清单'
	  WHEN VoucherType='BO19' THEN '委外商物料清单'
	  WHEN VoucherType='MO21' THEN '生产订单'
	  WHEN VoucherType='om01' THEN '委外订单'
	  WHEN VoucherType='OM26' THEN '委外到货单'
	  WHEN VoucherType='PU01' THEN '供应商资格审批表'
	  WHEN VoucherType='pu03' THEN '供应商存货调价单'
	  WHEN VoucherType='SA19' THEN '客户调价单'
	  WHEN VoucherType='SR01' THEN '服务单'
	  WHEN VoucherType='U870_0003' THEN '存货申请'
	  END AS 单据类型,
	 Vouchercode AS 单据编号,
	 OperatorName AS 节点操作人,
	--操作类型
	--0为提交，1为批准，3为转签，5为撤销，6为不同意（可以退回给任何人），7为弃审，8为重新提交，11为会签给谁、12为会签同意、13为会签不同意
	CASE WHEN Action='0' THEN '提交'
		 WHEN Action='1' THEN '同意'
		 WHEN Action='3' THEN '转签'
		 WHEN Action='5' THEN '撤销'
		 WHEN Action='6' THEN '不同意'
		 WHEN Action='7' THEN '弃审'
		 WHEN Action='8' THEN '重新提交'
		 WHEN Action='11' THEN '会签'
		 WHEN Action='12' THEN '会签同意'
		 WHEN Action='13' THEN '会签不同意'
		 END AS 操作类型,
	-- 使用LAG函数获取同一张单子的上一个审批操作时间
    LAG(OperationDate) OVER (PARTITION BY VoucherType, VoucherCode ORDER BY OperationDate) AS 接收时间,
	OperationDate AS 节点操作时间,
	DATEDIFF(MINUTE, CAST(LAG(OperationDate) OVER (PARTITION BY VoucherType, VoucherCode ORDER BY OperationDate) AS DATETIME),
	CAST(OperationDate AS DATETIME) ) AS 节点耗时,
	dbo.CONCAT_ALL_6(
		(CONVERT(NVARCHAR(10),(DATEDIFF(MINUTE, CAST(LAG(OperationDate) OVER (PARTITION BY VoucherType, VoucherCode ORDER BY OperationDate) AS DATETIME),
	CAST(COALESCE(OperationDate, GETDATE()) AS DATETIME) ))) / 1440), '天',
		(CONVERT(NVARCHAR(10),((DATEDIFF(MINUTE, CAST(LAG(OperationDate) OVER (PARTITION BY VoucherType, VoucherCode ORDER BY OperationDate) AS DATETIME),
	CAST(COALESCE(OperationDate, GETDATE()) AS DATETIME) ))) % 1440) / 60),'小时',
		(CONVERT(NVARCHAR(10),((DATEDIFF(MINUTE, CAST(LAG(OperationDate) OVER (PARTITION BY VoucherType, VoucherCode ORDER BY OperationDate) AS DATETIME),
	CAST(COALESCE(OperationDate, GETDATE()) AS DATETIME) ))))% 60) ,'分钟') AS 操作时长,

	CASE
		WHEN Action<>'0' THEN
		CASE
		 WHEN DATEDIFF(MINUTE, CAST(LAG(OperationDate) OVER (PARTITION BY VoucherType, VoucherCode ORDER BY OperationDate) AS DATETIME),
	CAST(OperationDate AS DATETIME) ) BETWEEN 0 AND 1440 THEN '1天之内'
    WHEN DATEDIFF(MINUTE, CAST(LAG(OperationDate) OVER (PARTITION BY VoucherType, VoucherCode ORDER BY OperationDate) AS DATETIME),
	CAST(OperationDate AS DATETIME) ) BETWEEN 1441 AND 4320 THEN '2-3天'
    WHEN DATEDIFF(MINUTE, CAST(LAG(OperationDate) OVER (PARTITION BY VoucherType, VoucherCode ORDER BY OperationDate) AS DATETIME),
	CAST(OperationDate AS DATETIME) ) BETWEEN 4321 AND 10080 THEN '4-7天'
    WHEN DATEDIFF(MINUTE, CAST(LAG(OperationDate) OVER (PARTITION BY VoucherType, VoucherCode ORDER BY OperationDate) AS DATETIME),
	CAST(OperationDate AS DATETIME) ) BETWEEN 10081 AND 20160 THEN '8-14天'
    WHEN DATEDIFF(MINUTE, CAST(LAG(OperationDate) OVER (PARTITION BY VoucherType, VoucherCode ORDER BY OperationDate) AS DATETIME),
	CAST(OperationDate AS DATETIME) ) BETWEEN 20161 AND 43200 THEN '15-30天'
    WHEN DATEDIFF(MINUTE, CAST(LAG(OperationDate) OVER (PARTITION BY VoucherType, VoucherCode ORDER BY OperationDate) AS DATETIME),
	CAST(OperationDate AS DATETIME) ) BETWEEN 43201 AND 86400 THEN '31-60天'
    WHEN DATEDIFF(MINUTE, CAST(LAG(OperationDate) OVER (PARTITION BY VoucherType, VoucherCode ORDER BY OperationDate) AS DATETIME),
	CAST(OperationDate AS DATETIME) ) BETWEEN 86401 AND 129600 THEN '61-90天'
    ELSE '90天以上'
	END
	END AS 标识,
		--是否归档,需要关联所有的表
	--iverifystat：-1是终审不同意，0是未提交，1是已提交，2是终审结束
	CASE
			--A为销售发货单
		WHEN dbo.WFAudit.VoucherType ='01' THEN
			CASE WHEN A.iverifystate='-1' THEN '终审不同意'
				 WHEN A.iverifystate='0' THEN '未提交'
				 WHEN A.iverifystate='1' THEN '已提交'
				 WHEN A.iverifystate='2' THEN '终审结束'
				 ELSE 'NULL'
				 END
			--B为其他入库单
		WHEN dbo.WFAudit.VoucherType='0301' THEN
			CASE WHEN B.iverifystate='-1' THEN '终审不同意'
				 WHEN B.iverifystate='0' THEN '未提交'
				 WHEN B.iverifystate='1' THEN '已提交'
				 WHEN B.iverifystate='2' THEN '终审结束'
			   ELSE 'NULL'
				 END
			--C为其他出库单
		WHEN WFAudit.VoucherType='0302' THEN
			CASE WHEN C.iverifystate='-1' THEN '终审不同意'
				 WHEN C.iverifystate='0' THEN '未提交'
				 WHEN C.iverifystate='1' THEN '已提交'
				 WHEN C.iverifystate='2' THEN '终审结束'
				 ELSE 'NULL'
				 END
			--VoucherType=0304关联调拨单TransVouch 作为D
		WHEN WFAudit.VoucherType='0304' THEN
			CASE WHEN D.iverifystate='-1' THEN '终审不同意'
				 WHEN D.iverifystate='0' THEN '未提交'
				 WHEN D.iverifystate='1' THEN '已提交'
				 WHEN D.iverifystate='2' THEN '终审结束'
				 ELSE 'NULL'
				 END
			--VoucherType=0305关联形态转换单AssemVouch
		WHEN dbo.WFAudit.VoucherType='0305' THEN
			CASE WHEN E.iverifystate='-1' THEN '终审不同意'
				 WHEN E.iverifystate='0' THEN '未提交'
				 WHEN E.iverifystate='1' THEN '已提交'
				 WHEN E.iverifystate='2' THEN '终审结束'
				 ELSE 'NULL'
				 END
			--VoucherType=0324关联调拨申请单ST_AppTransVouch
		WHEN dbo.WFAudit.VoucherType='0324' THEN
			CASE WHEN F.iverifystate='-1' THEN '终审不同意'
				 WHEN F.iverifystate='0' THEN '未提交'
				 WHEN F.iverifystate='1' THEN '已提交'
				 WHEN F.iverifystate='2' THEN '终审结束'
				 ELSE 'NULL'
				 END
			--VoucherType=0412关联材料出库单rdrecord11
		WHEN dbo.WFAudit.VoucherType='0412' THEN
			CASE WHEN G.iverifystate='-1' THEN '终审不同意'
				 WHEN G.iverifystate='0' THEN '未提交'
				 WHEN G.iverifystate='1' THEN '已提交'
				 WHEN G.iverifystate='2' THEN '终审结束'
				 ELSE 'NULL'
				 END
			--VoucherType=17关联销售订单SO_SOMain
		WHEN dbo.WFAudit.VoucherType='17' THEN
			CASE WHEN H.iverifystate='-1' THEN '终审不同意'
				 WHEN H.iverifystate='0' THEN '未提交'
				 WHEN H.iverifystate='1' THEN '已提交'
				 WHEN H.iverifystate='2' THEN '终审结束'
				 ELSE 'NULL'
				 END
		--VoucherType=24关联采购入库单RdRecord01
		WHEN dbo.WFAudit.VoucherType='24' THEN
			CASE WHEN I.iverifystate='-1' THEN '终审不同意'
				 WHEN I.iverifystate='0' THEN '未提交'
				 WHEN I.iverifystate='1' THEN '已提交'
				 WHEN I.iverifystate='2' THEN '终审结束'
				 ELSE 'NULL'
				 END
			--VoucherType=26关联采购到货单PU_ArrivalVouch
		WHEN dbo.WFAudit.VoucherType='26' THEN
			CASE WHEN J.iverifystateex='-1' THEN '终审不同意'
				 WHEN J.iverifystateex='0' THEN '未提交'
				 WHEN J.iverifystateex='1' THEN '已提交'
				 WHEN J.iverifystateex='2' THEN '终审结束'
				 ELSE 'NULL'
				 END
			--VoucherType=OM26关联委外到货单PU_ArrivalVouch
		WHEN dbo.WFAudit.VoucherType='OM26' THEN
			CASE WHEN J.iverifystateex='-1' THEN '终审不同意'
				 WHEN J.iverifystateex='0' THEN '未提交'
				 WHEN J.iverifystateex='1' THEN '已提交'
				 WHEN J.iverifystateex='2' THEN '终审结束'
				 ELSE 'NULL'
				 END
			--VoucherType=27关联请购单PU_AppVouch
		WHEN dbo.WFAudit.VoucherType='27' THEN
			CASE WHEN K.iverifystateex='-1' THEN '终审不同意'
				 WHEN K.iverifystateex='0' THEN '未提交'
				 WHEN K.iverifystateex='1' THEN '已提交'
				 WHEN K.iverifystateex='2' THEN '终审结束'
				 ELSE 'NULL'
				 END
			--VoucherType=88关联采购订单PO_Pomain
		WHEN dbo.WFAudit.VoucherType='88' THEN
			CASE WHEN L.iverifystateex='-1' THEN '终审不同意'
				 WHEN L.iverifystateex='0' THEN '未提交'
				 WHEN L.iverifystateex='1' THEN '已提交'
				 WHEN L.iverifystateex='2' THEN '终审结束'
				 ELSE 'NULL'
				 END
			--VoucherType=AP40关联应付付款申请单AP_ApplyPayVouch
		WHEN dbo.WFAudit.VoucherType='AP40' THEN
			CASE WHEN M.iverifystate='-1' THEN '终审不同意'
				 WHEN M.iverifystate='0' THEN '未提交'
				 WHEN M.iverifystate='1' THEN '已提交'
				 WHEN M.iverifystate='2' THEN '终审结束'
				 ELSE 'NULL'
				 END
			--VoucherType=BO11关联物料清单bom_bom
		WHEN dbo.WFAudit.VoucherType='BO11' THEN
			CASE WHEN N.iVerifyState='-1' THEN '终审不同意'
				 WHEN N.iVerifyState='0' THEN '未提交'
				 WHEN N.iVerifyState='1' THEN '已提交'
				 WHEN N.iVerifyState='2' THEN '终审结束'
				 ELSE 'NULL'
				 END
			--VoucherType=BO19关联委外商物料清单bom_bom
		WHEN dbo.WFAudit.VoucherType='BO19' THEN
			CASE WHEN N.iVerifyState='-1' THEN '终审不同意'
				 WHEN N.iVerifyState='0' THEN '未提交'
				 WHEN N.iVerifyState='1' THEN '已提交'
				 WHEN N.iVerifyState='2' THEN '终审结束'
				 ELSE 'NULL'
				 END
			--VoucherType=MO21关联生产订单PP_ProductPO,这个cbSysBarCode格式为 ||MO21|0000024390|6   作为O
		WHEN dbo.WFAudit.VoucherType='MO21' THEN
			CASE WHEN O.iVerifyState='-1' THEN '终审不同意'
				 WHEN O.iVerifyState='0' THEN '未提交'
				 WHEN O.iVerifyState='1' THEN '已提交'
				 WHEN O.iVerifyState='2' THEN '终审结束'
				 ELSE 'NULL'
				 END
			--VoucherType=om01关联委外订单OM_MOMain
		WHEN dbo.WFAudit.VoucherType='om01' THEN
			CASE WHEN P.iVerifyStateNew='-1' THEN '终审不同意'
				 WHEN P.iVerifyStateNew='0' THEN '未提交'
				 WHEN P.iVerifyStateNew='1' THEN '已提交'
				 WHEN P.iVerifyStateNew='2' THEN '终审结束'
				 ELSE 'NULL'
				 END
			--VoucherType=PU01关联供应商资格审批表pu_vendorverify
		WHEN dbo.WFAudit.VoucherType='PU01' THEN
			CASE WHEN Q.iverifystate='-1' THEN '终审不同意'
				 WHEN Q.iverifystate='0' THEN '未提交'
				 WHEN Q.iverifystate='1' THEN '已提交'
				 WHEN Q.iverifystate='2' THEN '终审结束'
				 ELSE 'NULL'
				 END
			--VoucherType=pu03关联供应商存货调价单PU_PriceJustMain
		WHEN dbo.WFAudit.VoucherType='pu03' THEN
			CASE WHEN R.iverifystate='-1' THEN '终审不同意'
				 WHEN R.iverifystate='0' THEN '未提交'
				 WHEN R.iverifystate='1' THEN '已提交'
				 WHEN R.iverifystate='2' THEN '终审结束'
				 ELSE 'NULL'
				 END
			--VoucherType=SA19关联客户调价单SA_CusPriceJustMain
		WHEN dbo.WFAudit.VoucherType='SA19' THEN
			CASE WHEN S.iverifystate='-1' THEN '终审不同意'
				 WHEN S.iverifystate='0' THEN '未提交'
				 WHEN S.iverifystate='1' THEN '已提交'
				 WHEN S.iverifystate='2' THEN '终审结束'
				 ELSE 'NULL'
				 END
			--VoucherType=SR01关联服务单SR_ServiceBill
		WHEN dbo.WFAudit.VoucherType='SR01' THEN
			CASE WHEN T.iverifystateex='-1' THEN '终审不同意'
				 WHEN T.iverifystateex='0' THEN '未提交'
				 WHEN T.iverifystateex='1' THEN '已提交'
				 WHEN T.iverifystateex='2' THEN '终审结束'
				 ELSE 'NULL'
				 END
			--VoucherType=U870_0003关联存货申请AA_NewInvenApp
		WHEN dbo.WFAudit.VoucherType='U870_0003' THEN
			CASE WHEN U.iverifystate='-1' THEN '终审不同意'
				 WHEN U.iverifystate='0' THEN '未提交'
				 WHEN U.iverifystate='1' THEN '已提交'
				 WHEN U.iverifystate='2' THEN '终审结束'
				 ELSE 'NULL'
				 END
		END AS 流程状态,
		CASE
			--A为销售发货单
		WHEN dbo.WFAudit.VoucherType ='01' THEN
			A.cMaker
			--B为其他入库单
		WHEN dbo.WFAudit.VoucherType='0301' THEN
			 B.cMaker
			--C为其他出库单
		WHEN WFAudit.VoucherType='0302' THEN
			 C.cMaker
			--VoucherType=0304关联调拨单TransVouch 作为D
		WHEN WFAudit.VoucherType='0304' THEN
			D.cMaker
			--VoucherType=0305关联形态转换单AssemVouch
		WHEN dbo.WFAudit.VoucherType='0305' THEN
			E.cMaker
			--VoucherType=0324关联调拨申请单ST_AppTransVouch
		WHEN dbo.WFAudit.VoucherType='0324' THEN
			F.cMaker
			--VoucherType=0412关联材料出库单rdrecord11
		WHEN dbo.WFAudit.VoucherType='0412' THEN
			G.cMaker
			--VoucherType=17关联销售订单SO_SOMain
		WHEN dbo.WFAudit.VoucherType='17' THEN
			H.cMaker
		--VoucherType=24关联采购入库单RdRecord01
		WHEN dbo.WFAudit.VoucherType='24' THEN
			I.cMaker
			--VoucherType=26关联采购到货单PU_ArrivalVouch
		WHEN dbo.WFAudit.VoucherType='26' THEN
			J.cMaker
			--VoucherType=OM26关联委外到货单PU_ArrivalVouch
		WHEN dbo.WFAudit.VoucherType='OM26' THEN
			J.cMaker
			--VoucherType=27关联请购单PU_AppVouch
		WHEN dbo.WFAudit.VoucherType='27' THEN
			K.cMaker
			--VoucherType=88关联采购订单PO_Pomain
		WHEN dbo.WFAudit.VoucherType='88' THEN
			L.cMaker
			--VoucherType=AP40关联应付付款申请单AP_ApplyPayVouch
		WHEN dbo.WFAudit.VoucherType='AP40' THEN
			M.cOperator
			--VoucherType=BO11关联物料清单bom_bom
		WHEN dbo.WFAudit.VoucherType='BO11' THEN
			N.CreateUser
			--VoucherType=BO19关联委外商物料清单bom_bom
		WHEN dbo.WFAudit.VoucherType='BO19' THEN
			N.CreateUser
			--VoucherType=MO21关联生产订单PP_ProductPO,这个cbSysBarCode格式为 ||MO21|0000024390|6   作为O
		WHEN dbo.WFAudit.VoucherType='MO21' THEN
			O.CreateUser
			--VoucherType=om01关联委外订单OM_MOMain
		WHEN dbo.WFAudit.VoucherType='om01' THEN
			P.cMaker
			--VoucherType=PU01关联供应商资格审批表pu_v orverify
		WHEN dbo.WFAudit.VoucherType='PU01' THEN
			Q.cmaker
			--VoucherType=pu03关联供应商存货调价单PU_PriceJustMain
		WHEN dbo.WFAudit.VoucherType='pu03' THEN
			R.cmaker
			--VoucherType=SA19关联客户调价单SA_CusPriceJustMain
		WHEN dbo.WFAudit.VoucherType='SA19' THEN
			S.cmaker
			--VoucherType=SR01关联服务单SR_ServiceBill
		WHEN dbo.WFAudit.VoucherType='SR01' THEN
			T.cCreator
			--VoucherType=U870_0003关联存货申请AA_NewInvenApp
		WHEN dbo.WFAudit.VoucherType='U870_0003' THEN
			U.cMaker
		END AS 制单人,
			CASE
			--A为销售发货单
		WHEN dbo.WFAudit.VoucherType ='01' THEN
			A.dcreatesystime
			--B为其他入库单
		WHEN dbo.WFAudit.VoucherType='0301' THEN
			 B.dnmaketime
			--C为其他出库单
		WHEN WFAudit.VoucherType='0302' THEN
			 C.dnmaketime
			--VoucherType=0304关联调拨单TransVouch 作为D
		WHEN WFAudit.VoucherType='0304' THEN
			D.dnmaketime
			--VoucherType=0305关联形态转换单AssemVouch
		WHEN dbo.WFAudit.VoucherType='0305' THEN
			E.dnmaketime
			--VoucherType=0324关联调拨申请单ST_AppTransVouch
		WHEN dbo.WFAudit.VoucherType='0324' THEN
			F.dnmaketime
			--VoucherType=0412关联材料出库单rdrecord11
		WHEN dbo.WFAudit.VoucherType='0412' THEN
			G.dnmaketime
			--VoucherType=17关联销售订单SO_SOMain
		WHEN dbo.WFAudit.VoucherType='17' THEN
			H.dcreatesystime
		--VoucherType=24关联采购入库单RdRecord01
		WHEN dbo.WFAudit.VoucherType='24' THEN
			I.dnmaketime
			--VoucherType=26关联采购到货单PU_ArrivalVouch
		WHEN dbo.WFAudit.VoucherType='26' THEN
			J.cMakeTime
			--VoucherType=OM26关联委外到货单PU_ArrivalVouch
		WHEN dbo.WFAudit.VoucherType='OM26' THEN
			J.cMakeTime
			--VoucherType=27关联请购单PU_AppVouch
		WHEN dbo.WFAudit.VoucherType='27' THEN
			K.cMakeTime
			--VoucherType=88关联采购订单PO_Pomain
		WHEN dbo.WFAudit.VoucherType='88' THEN
			L.cmaketime
			--VoucherType=AP40关联应付付款申请单AP_ApplyPayVouch
		WHEN dbo.WFAudit.VoucherType='AP40' THEN
			M.dcreatesystime
			--VoucherType=BO11关联物料清单bom_bom
		WHEN dbo.WFAudit.VoucherType='BO11' THEN
			N.CreateTime
			--VoucherType=BO19关联委外商物料清单bom_bom
		WHEN dbo.WFAudit.VoucherType='BO19' THEN
			N.CreateTime
			--VoucherType=MO21关联生产订单PP_ProductPO,这个cbSysBarCode格式为 ||MO21|0000024390|6   作为O
		WHEN dbo.WFAudit.VoucherType='MO21' THEN
			O.CreateTime
			--VoucherType=om01关联委外订单OM_MOMain
		WHEN dbo.WFAudit.VoucherType='om01' THEN
			P.dCreateTime
			--VoucherType=PU01关联供应商资格审批表pu_v orverify
		WHEN dbo.WFAudit.VoucherType='PU01' THEN
			Q.cMakeTime
			--VoucherType=pu03关联供应商存货调价单PU_PriceJustMain
		WHEN dbo.WFAudit.VoucherType='pu03' THEN
			R.cMakeTime
			--VoucherType=SA19关联客户调价单SA_CusPriceJustMain
		WHEN dbo.WFAudit.VoucherType='SA19' THEN
			S.dcreatesystime
			--VoucherType=SR01关联服务单SR_ServiceBill
		WHEN dbo.WFAudit.VoucherType='SR01' THEN
			T.dCreatedDate
			--VoucherType=U870_0003关联存货申请AA_NewInvenApp
		WHEN dbo.WFAudit.VoucherType='U870_0003' THEN
			U.dMakeDateTime
		END AS 制单时间,
			CASE
			--A为销售发货单
		WHEN dbo.WFAudit.VoucherType ='01' THEN
			A.cCurrentAuditor
			--B为其他入库单
		WHEN dbo.WFAudit.VoucherType='0301' THEN
			 B.cCurrentAuditor
			--C为其他出库单
		WHEN WFAudit.VoucherType='0302' THEN
			 C.cCurrentAuditor
			--VoucherType=0304关联调拨单TransVouch 作为D
		WHEN WFAudit.VoucherType='0304' THEN
			D.cCurrentAuditor
			--VoucherType=0305关联形态转换单AssemVouch
		WHEN dbo.WFAudit.VoucherType='0305' THEN
			E.cCurrentAuditor
			--VoucherType=0324关联调拨申请单ST_AppTransVouch
		WHEN dbo.WFAudit.VoucherType='0324' THEN
			F.cCurrentAuditor
			--VoucherType=0412关联材料出库单rdrecord11
		WHEN dbo.WFAudit.VoucherType='0412' THEN
			G.cCurrentAuditor
			--VoucherType=17关联销售订单SO_SOMain
		WHEN dbo.WFAudit.VoucherType='17' THEN
			H.cCurrentAuditor
		--VoucherType=24关联采购入库单RdRecord01
		WHEN dbo.WFAudit.VoucherType='24' THEN
			I.cCurrentAuditor
			--VoucherType=26关联采购到货单PU_ArrivalVouch
		WHEN dbo.WFAudit.VoucherType='26' THEN
			J.cCurrentAuditor
			--VoucherType=OM26关联委外到货单PU_ArrivalVouch
		WHEN dbo.WFAudit.VoucherType='OM26' THEN
			J.cCurrentAuditor
			--VoucherType=27关联请购单PU_AppVouch
		WHEN dbo.WFAudit.VoucherType='27' THEN
			K.cCurrentAuditor
			--VoucherType=88关联采购订单PO_Pomain
		WHEN dbo.WFAudit.VoucherType='88' THEN
			L.cCurrentAuditor
			--VoucherType=AP40关联应付付款申请单AP_ApplyPayVouch
		WHEN dbo.WFAudit.VoucherType='AP40' THEN
			M.cCurrentAuditor
			--VoucherType=BO11关联物料清单bom_bom
		WHEN dbo.WFAudit.VoucherType='BO11' THEN
			N.cCurrentAuditor
			--VoucherType=BO19关联委外商物料清单bom_bom
		WHEN dbo.WFAudit.VoucherType='BO19' THEN
			N.cCurrentAuditor
			--VoucherType=MO21关联生产订单PP_ProductPO,这个cbSysBarCode格式为 ||MO21|0000024390|6   作为O
		WHEN dbo.WFAudit.VoucherType='MO21' THEN
			O.cCurrentAuditor
			--VoucherType=om01关联委外订单OM_MOMain
		WHEN dbo.WFAudit.VoucherType='om01' THEN
			P.cCurrentAuditor
			--VoucherType=PU01关联供应商资格审批表pu_v orverify
		WHEN dbo.WFAudit.VoucherType='PU01' THEN
			Q.cCurrentAuditor
			--VoucherType=pu03关联供应商存货调价单PU_PriceJustMain
		WHEN dbo.WFAudit.VoucherType='pu03' THEN
			R.cCurrentAuditor
			--VoucherType=SA19关联客户调价单SA_CusPriceJustMain
		WHEN dbo.WFAudit.VoucherType='SA19' THEN
			S.cCurrentAuditor
			--VoucherType=SR01关联服务单SR_ServiceBill
		WHEN dbo.WFAudit.VoucherType='SR01' THEN
			'NULL'
			--VoucherType=U870_0003关联存货申请AA_NewInvenApp
		WHEN dbo.WFAudit.VoucherType='U870_0003' THEN
			U.cApproved
		END AS 当前审批人
FROM dbo.WFAudit
--VoucherType=01关联销售发货单主表DispatchList  作为A
LEFT JOIN(SELECT cDLCode,iverifystate,cMaker,dcreatesystime,cCurrentAuditor FROM dbo.DispatchList) AS A ON A.cDLCode=dbo.WFAudit.VoucherCode
--VoucherType=0301关联其他入库单RdRecord08  作为B
LEFT JOIN(SELECT cCode,iverifystate,cMaker,dnmaketime,cCurrentAuditor FROM dbo.RdRecord08) AS B ON B.cCode=dbo.WFAudit.VoucherCode
--VoucherType=0302关联其他出库单RdRecord09 作为C
LEFT JOIN(SELECT cCode,iverifystate,cMaker,dnmaketime,cCurrentAuditor FROM dbo.RdRecord09) AS C ON C.cCode=dbo.WFAudit.VoucherCode
--VoucherType=0304关联调拨单TransVouch 作为D
LEFT JOIN(SELECT cTVCode,iverifystate,cMaker,dnmaketime,cCurrentAuditor FROM dbo.TransVouch) AS D ON D.cTVCode=dbo.WFAudit.VoucherCode
--VoucherType=0305关联形态转换单AssemVouch
LEFT JOIN(SELECT cAVCode,iverifystate,cMaker,dnmaketime,cCurrentAuditor FROM dbo.AssemVouch) AS E ON E.cAVCode=dbo.WFAudit.VoucherCode
--VoucherType=0324关联调拨申请单ST_AppTransVouch
LEFT JOIN(SELECT cTVCode,iverifystate,cMaker,dnmaketime,cCurrentAuditor FROM dbo.ST_AppTransVouch) AS F ON F.cTVCode=dbo.WFAudit.VoucherCode
--VoucherType=0412关联材料出库单rdrecord11
LEFT JOIN(SELECT cCode,iverifystate,cMaker,dnmaketime,cCurrentAuditor FROM dbo.rdrecord11) AS G ON G.cCode=dbo.WFAudit.VoucherCode
--VoucherType=17关联销售订单SO_SOMain
LEFT JOIN(SELECT cSOCode,iverifystate,cMaker,dcreatesystime,cCurrentAuditor FROM dbo.SO_SOMain) AS H ON H.cSOCode=dbo.WFAudit.VoucherCode
--VoucherType=24关联采购入库单RdRecord01
LEFT JOIN(SELECT cCode,iverifystate,cMaker,dnmaketime,cCurrentAuditor FROM dbo.RdRecord01) AS I ON I.cCode=dbo.WFAudit.VoucherCode
--VoucherType=26关联采购到货单PU_ArrivalVouch
--VoucherType=OM26关联委外到货单PU_ArrivalVouch
LEFT JOIN(SELECT cCode,iverifystateex,cMaker,cMakeTime,cCurrentAuditor FROM dbo.PU_ArrivalVouch) AS J ON J.cCode=dbo.WFAudit.VoucherCode
--VoucherType=27关联请购单PU_AppVouch
LEFT JOIN(SELECT cCode,iverifystateex,cMaker,cMakeTime,cCurrentAuditor FROM dbo.PU_AppVouch) AS K ON K.cCode=dbo.WFAudit.VoucherCode
--VoucherType=88关联采购订单PO_Pomain
LEFT JOIN(SELECT cPOID,iverifystateex,cMaker,cmaketime,cCurrentAuditor FROM dbo.PO_Pomain) AS L ON L.cPOID=dbo.WFAudit.VoucherCode
--VoucherType=AP40关联应付付款申请单AP_ApplyPayVouch
LEFT JOIN(SELECT cVouchID,iverifystate,cOperator,dcreatesystime,cCurrentAuditor FROM dbo.AP_ApplyPayVouch) AS M ON M.cVouchID=dbo.WFAudit.VoucherCode
--VoucherType=BO11关联物料清单bom_bom
--VoucherType=BO19关联委外商物料清单bom_bom
LEFT JOIN(SELECT BomId,iVerifyState,CreateUser,CreateTime,cCurrentAuditor FROM dbo.bom_bom) AS N ON CAST(N.BomId AS NVARCHAR(512))=dbo.WFAudit.VoucherCode
--VoucherType=MO21关联生产订单PP_ProductPO,这个cbSysBarCode格式为 ||MO21|0000024390|6   作为O
LEFT JOIN(SELECT IG.CreateTime,mom_orderdetail.cCurrentAuditor,IG.CreateUser,mom_orderdetail.MoId,mom_orderdetail.iVerifyState,
 SUBSTRING(mom_orderdetail.cbSysBarCode,CHARINDEX( '|',mom_orderdetail.cbSysBarCode, CHARINDEX( '|',mom_orderdetail.cbSysBarCode, CHARINDEX('|', mom_orderdetail.cbSysBarCode) + 1) + 1) + 1, CHARINDEX('|',mom_orderdetail.cbSysBarCode, CHARINDEX('|',mom_orderdetail.cbSysBarCode, CHARINDEX( '|',mom_orderdetail.cbSysBarCode,CHARINDEX('|', mom_orderdetail.cbSysBarCode) + 1) + 1) + 1 )- CHARINDEX( '|',mom_orderdetail.cbSysBarCode,CHARINDEX('|',mom_orderdetail.cbSysBarCode,CHARINDEX('|', mom_orderdetail.cbSysBarCode) + 1 ) + 1 ) - 1 ) AS ExtractedCode
FROM mom_orderdetail LEFT JOIN (SELECT MoId,CreateUser,CreateTime FROM dbo.mom_order) AS IG ON IG.MoId = mom_orderdetail.MoId) AS O ON O.ExtractedCode=dbo.WFAudit.VoucherCode
--VoucherType=om01关联委外订单OM_MOMain
LEFT JOIN(SELECT cCode,iVerifyStateNew,cMaker,dCreateTime,cCurrentAuditor FROM dbo.OM_MOMain) AS P ON P.cCode=dbo.WFAudit.VoucherCode
--VoucherType=PU01关联供应商资格审批表pu_vendorverify
LEFT JOIN(SELECT ccode,iverifystate,cmaker,cMakeTime,cCurrentAuditor FROM dbo.pu_vendorverify) AS Q ON Q.ccode=dbo.WFAudit.VoucherCode
--VoucherType=pu03关联供应商存货调价单PU_PriceJustMain
LEFT JOIN(SELECT ccode,iverifystate,cmaker,cMakeTime,cCurrentAuditor FROM dbo.PU_PriceJustMain) AS R ON R.ccode=dbo.WFAudit.VoucherCode
--VoucherType=SA19关联客户调价单SA_CusPriceJustMain
LEFT JOIN(SELECT ccode,iverifystate,cmaker,dcreatesystime,cCurrentAuditor FROM dbo.SA_CusPriceJustMain) AS S ON S.ccode=dbo.WFAudit.VoucherCode
--VoucherType=SR01关联服务单SR_ServiceBill
LEFT JOIN(SELECT cSerBillCode,iverifystateex,cCreator,dCreatedDate FROM dbo.SR_ServiceBill) AS T ON T.cSerBillCode=dbo.WFAudit.VoucherCode
--VoucherType=U870_0003关联存货申请AA_NewInvenApp
LEFT JOIN(SELECT cNewInvenAppCode,iverifystate,cMaker,dMakeDateTime,cApproved FROM dbo.AA_NewInvenApp) AS U ON U.cNewInvenAppCode=dbo.WFAudit.VoucherCode

UNION ALL
SELECT
 单据类型,单据编号,节点操作人,操作类型,接收时间,节点操作时间,
DATEDIFF(MINUTE, 接收时间,节点操作时间) AS 节点耗时,		--节点耗时
	dbo.CONCAT_ALL_6(
		(CONVERT(NVARCHAR(10),DATEDIFF(MINUTE, 接收时间,节点操作时间 )) / 1440), '天',
		(CONVERT(NVARCHAR(10),(DATEDIFF(MINUTE, 接收时间,节点操作时间 )) % 1440) / 60),'小时',
		(CONVERT(NVARCHAR(10),((DATEDIFF(MINUTE, 接收时间,节点操作时间 ))))% 60) ,'分钟') AS 操作时长,			--操作时长
CASE
			WHEN DATEDIFF(MINUTE, 接收时间,节点操作时间) BETWEEN 0 AND 1440 THEN '1天之内'
			WHEN DATEDIFF(MINUTE, 接收时间,节点操作时间) BETWEEN 1441 AND 4320 THEN '2-3天'
			WHEN DATEDIFF(MINUTE, 接收时间,节点操作时间) BETWEEN 4321 AND 10080 THEN '4-7天'
			WHEN DATEDIFF(MINUTE, 接收时间,节点操作时间) BETWEEN 10081 AND 20160 THEN '8-14天'
			WHEN DATEDIFF(MINUTE, 接收时间,节点操作时间) BETWEEN 20161 AND 43200 THEN '15-30天'
			WHEN DATEDIFF(MINUTE, 接收时间,节点操作时间) BETWEEN 43201 AND 86400 THEN '31-60天'
			WHEN DATEDIFF(MINUTE, 接收时间,节点操作时间) BETWEEN 86401 AND 129600 THEN '61-90天'
			ELSE '90天以上'
			END AS 标识,
	流程状态,制单人,制单时间,当前审批人
FROM (
SELECT
 CASE WHEN cVoucherType='01' THEN '销售发货单'
	  WHEN cVoucherType='0301' THEN '其他入库单'
	  WHEN cVoucherType='0302' THEN '其他出库单'
	  WHEN cVoucherType='0304' THEN '调拨单'
	  WHEN cVoucherType='0305' THEN '形态转换单'
	  WHEN cVoucherType='0324' THEN '调拨申请单'
	  WHEN cVoucherType='0412' THEN '材料出库单'
	  WHEN cVoucherType='17' THEN '销售订单'
	  WHEN cVoucherType='24' THEN '采购入库单'
	  WHEN cVoucherType='26' THEN '采购到货单'
	  WHEN cVoucherType='27' THEN '请购单'
	  WHEN cVoucherType='88' THEN '采购订单'
	  WHEN cVoucherType='AP40' THEN '应付付款申请单'
	  WHEN cVoucherType='BO11' THEN '物料清单'
	  WHEN cVoucherType='BO19' THEN '委外商物料清单'
	  WHEN cVoucherType='MO21' THEN '生产订单'
	  WHEN cVoucherType='om01' THEN '委外订单'
	  WHEN cVoucherType='OM26' THEN '委外到货单'
	  WHEN cVoucherType='PU01' THEN '供应商资格审批表'
	  WHEN cVoucherType='pu03' THEN '供应商存货调价单'
	  WHEN cVoucherType='SA19' THEN '客户调价单'
	  WHEN cVoucherType='SR01' THEN '服务单'
	  WHEN cVoucherType='U870_0003' THEN '存货申请'
	  END AS 单据类型,
	ExtendField3 单据编号,
	HR.cPsn_Name 节点操作人,
		'未操作' 操作类型,			  --操作类型
	cCreateTime 接收时间,
	CASE WHEN cCreateTime = cEndTime THEN GETDATE()
		ELSE cEndTime
		END AS 节点操作时间,
	CASE
			--A为销售发货单
		WHEN cVoucherType ='01' THEN
			CASE WHEN A.iverifystate='-1' THEN '终审不同意'
				 WHEN A.iverifystate='0' THEN '未提交'
				 WHEN A.iverifystate='1' THEN '已提交'
				 WHEN A.iverifystate='2' THEN '终审结束'
				 ELSE 'NULL'
				 END
			--B为其他入库单
		WHEN cVoucherType='0301' THEN
			CASE WHEN B.iverifystate='-1' THEN '终审不同意'
				 WHEN B.iverifystate='0' THEN '未提交'
				 WHEN B.iverifystate='1' THEN '已提交'
				 WHEN B.iverifystate='2' THEN '终审结束'
			   ELSE 'NULL'
				 END
			--C为其他出库单
		WHEN cVoucherType='0302' THEN
			CASE WHEN C.iverifystate='-1' THEN '终审不同意'
				 WHEN C.iverifystate='0' THEN '未提交'
				 WHEN C.iverifystate='1' THEN '已提交'
				 WHEN C.iverifystate='2' THEN '终审结束'
				 ELSE 'NULL'
				 END
			--VoucherType=0304关联调拨单TransVouch 作为D
		WHEN cVoucherType='0304' THEN
			CASE WHEN D.iverifystate='-1' THEN '终审不同意'
				 WHEN D.iverifystate='0' THEN '未提交'
				 WHEN D.iverifystate='1' THEN '已提交'
				 WHEN D.iverifystate='2' THEN '终审结束'
				 ELSE 'NULL'
				 END
			--VoucherType=0305关联形态转换单AssemVouch
		WHEN cVoucherType='0305' THEN
			CASE WHEN E.iverifystate='-1' THEN '终审不同意'
				 WHEN E.iverifystate='0' THEN '未提交'
				 WHEN E.iverifystate='1' THEN '已提交'
				 WHEN E.iverifystate='2' THEN '终审结束'
				 ELSE 'NULL'
				 END
			--VoucherType=0324关联调拨申请单ST_AppTransVouch
		WHEN cVoucherType='0324' THEN
			CASE WHEN F.iverifystate='-1' THEN '终审不同意'
				 WHEN F.iverifystate='0' THEN '未提交'
				 WHEN F.iverifystate='1' THEN '已提交'
				 WHEN F.iverifystate='2' THEN '终审结束'
				 ELSE 'NULL'
				 END
			--VoucherType=0412关联材料出库单rdrecord11
		WHEN cVoucherType='0412' THEN
			CASE WHEN G.iverifystate='-1' THEN '终审不同意'
				 WHEN G.iverifystate='0' THEN '未提交'
				 WHEN G.iverifystate='1' THEN '已提交'
				 WHEN G.iverifystate='2' THEN '终审结束'
				 ELSE 'NULL'
				 END
			--VoucherType=17关联销售订单SO_SOMain
		WHEN cVoucherType='17' THEN
			CASE WHEN H.iverifystate='-1' THEN '终审不同意'
				 WHEN H.iverifystate='0' THEN '未提交'
				 WHEN H.iverifystate='1' THEN '已提交'
				 WHEN H.iverifystate='2' THEN '终审结束'
				 ELSE 'NULL'
				 END
		--VoucherType=24关联采购入库单RdRecord01
		WHEN cVoucherType='24' THEN
			CASE WHEN I.iverifystate='-1' THEN '终审不同意'
				 WHEN I.iverifystate='0' THEN '未提交'
				 WHEN I.iverifystate='1' THEN '已提交'
				 WHEN I.iverifystate='2' THEN '终审结束'
				 ELSE 'NULL'
				 END
			--VoucherType=26关联采购到货单PU_ArrivalVouch
		WHEN cVoucherType='26' THEN
			CASE WHEN J.iverifystateex='-1' THEN '终审不同意'
				 WHEN J.iverifystateex='0' THEN '未提交'
				 WHEN J.iverifystateex='1' THEN '已提交'
				 WHEN J.iverifystateex='2' THEN '终审结束'
				 ELSE 'NULL'
				 END
			--VoucherType=OM26关联委外到货单PU_ArrivalVouch
		WHEN cVoucherType='OM26' THEN
			CASE WHEN J.iverifystateex='-1' THEN '终审不同意'
				 WHEN J.iverifystateex='0' THEN '未提交'
				 WHEN J.iverifystateex='1' THEN '已提交'
				 WHEN J.iverifystateex='2' THEN '终审结束'
				 ELSE 'NULL'
				 END
			--VoucherType=27关联请购单PU_AppVouch
		WHEN cVoucherType='27' THEN
			CASE WHEN K.iverifystateex='-1' THEN '终审不同意'
				 WHEN K.iverifystateex='0' THEN '未提交'
				 WHEN K.iverifystateex='1' THEN '已提交'
				 WHEN K.iverifystateex='2' THEN '终审结束'
				 ELSE 'NULL'
				 END
			--VoucherType=88关联采购订单PO_Pomain
		WHEN cVoucherType='88' THEN
			CASE WHEN L.iverifystateex='-1' THEN '终审不同意'
				 WHEN L.iverifystateex='0' THEN '未提交'
				 WHEN L.iverifystateex='1' THEN '已提交'
				 WHEN L.iverifystateex='2' THEN '终审结束'
				 ELSE 'NULL'
				 END
			--VoucherType=AP40关联应付付款申请单AP_ApplyPayVouch
		WHEN cVoucherType='AP40' THEN
			CASE WHEN M.iverifystate='-1' THEN '终审不同意'
				 WHEN M.iverifystate='0' THEN '未提交'
				 WHEN M.iverifystate='1' THEN '已提交'
				 WHEN M.iverifystate='2' THEN '终审结束'
				 ELSE 'NULL'
				 END
			--VoucherType=BO11关联物料清单bom_bom
		WHEN cVoucherType='BO11' THEN
			CASE WHEN N.iVerifyState='-1' THEN '终审不同意'
				 WHEN N.iVerifyState='0' THEN '未提交'
				 WHEN N.iVerifyState='1' THEN '已提交'
				 WHEN N.iVerifyState='2' THEN '终审结束'
				 ELSE 'NULL'
				 END
			--VoucherType=BO19关联委外商物料清单bom_bom
		WHEN cVoucherType='BO19' THEN
			CASE WHEN N.iVerifyState='-1' THEN '终审不同意'
				 WHEN N.iVerifyState='0' THEN '未提交'
				 WHEN N.iVerifyState='1' THEN '已提交'
				 WHEN N.iVerifyState='2' THEN '终审结束'
				 ELSE 'NULL'
				 END
			--VoucherType=MO21关联生产订单PP_ProductPO,这个cbSysBarCode格式为 ||MO21|0000024390|6   作为O
		WHEN cVoucherType='MO21' THEN
			CASE WHEN O.iVerifyState='-1' THEN '终审不同意'
				 WHEN O.iVerifyState='0' THEN '未提交'
				 WHEN O.iVerifyState='1' THEN '已提交'
				 WHEN O.iVerifyState='2' THEN '终审结束'
				 ELSE 'NULL'
				 END
			--VoucherType=om01关联委外订单OM_MOMain
		WHEN cVoucherType='om01' THEN
			CASE WHEN P.iVerifyStateNew='-1' THEN '终审不同意'
				 WHEN P.iVerifyStateNew='0' THEN '未提交'
				 WHEN P.iVerifyStateNew='1' THEN '已提交'
				 WHEN P.iVerifyStateNew='2' THEN '终审结束'
				 ELSE 'NULL'
				 END
			--VoucherType=PU01关联供应商资格审批表pu_vendorverify
		WHEN cVoucherType='PU01' THEN
			CASE WHEN Q.iverifystate='-1' THEN '终审不同意'
				 WHEN Q.iverifystate='0' THEN '未提交'
				 WHEN Q.iverifystate='1' THEN '已提交'
				 WHEN Q.iverifystate='2' THEN '终审结束'
				 ELSE 'NULL'
				 END
			--VoucherType=pu03关联供应商存货调价单PU_PriceJustMain
		WHEN cVoucherType='pu03' THEN
			CASE WHEN R.iverifystate='-1' THEN '终审不同意'
				 WHEN R.iverifystate='0' THEN '未提交'
				 WHEN R.iverifystate='1' THEN '已提交'
				 WHEN R.iverifystate='2' THEN '终审结束'
				 ELSE 'NULL'
				 END
			--VoucherType=SA19关联客户调价单SA_CusPriceJustMain
		WHEN cVoucherType='SA19' THEN
			CASE WHEN S.iverifystate='-1' THEN '终审不同意'
				 WHEN S.iverifystate='0' THEN '未提交'
				 WHEN S.iverifystate='1' THEN '已提交'
				 WHEN S.iverifystate='2' THEN '终审结束'
				 ELSE 'NULL'
				 END
			--VoucherType=SR01关联服务单SR_ServiceBill
		WHEN cVoucherType='SR01' THEN
			CASE WHEN T.iverifystateex='-1' THEN '终审不同意'
				 WHEN T.iverifystateex='0' THEN '未提交'
				 WHEN T.iverifystateex='1' THEN '已提交'
				 WHEN T.iverifystateex='2' THEN '终审结束'
				 ELSE 'NULL'
				 END
			--VoucherType=U870_0003关联存货申请AA_NewInvenApp
		WHEN cVoucherType='U870_0003' THEN
			CASE WHEN U.iverifystate='-1' THEN '终审不同意'
				 WHEN U.iverifystate='0' THEN '未提交'
				 WHEN U.iverifystate='1' THEN '已提交'
				 WHEN U.iverifystate='2' THEN '终审结束'
				 ELSE 'NULL'
				 END
		END AS 流程状态,
		CASE
			--A为销售发货单
		WHEN cVoucherType ='01' THEN
			A.cMaker
			--B为其他入库单
		WHEN cVoucherType='0301' THEN
			 B.cMaker
			--C为其他出库单
		WHEN cVoucherType='0302' THEN
			 C.cMaker
			--VoucherType=0304关联调拨单TransVouch 作为D
		WHEN cVoucherType='0304' THEN
			D.cMaker
			--VoucherType=0305关联形态转换单AssemVouch
		WHEN cVoucherType='0305' THEN
			E.cMaker
			--VoucherType=0324关联调拨申请单ST_AppTransVouch
		WHEN cVoucherType='0324' THEN
			F.cMaker
			--VoucherType=0412关联材料出库单rdrecord11
		WHEN cVoucherType='0412' THEN
			G.cMaker
			--VoucherType=17关联销售订单SO_SOMain
		WHEN cVoucherType='17' THEN
			H.cMaker
		--VoucherType=24关联采购入库单RdRecord01
		WHEN cVoucherType='24' THEN
			I.cMaker
			--VoucherType=26关联采购到货单PU_ArrivalVouch
		WHEN cVoucherType='26' THEN
			J.cMaker
			--VoucherType=OM26关联委外到货单PU_ArrivalVouch
		WHEN cVoucherType='OM26' THEN
			J.cMaker
			--VoucherType=27关联请购单PU_AppVouch
		WHEN cVoucherType='27' THEN
			K.cMaker
			--VoucherType=88关联采购订单PO_Pomain
		WHEN cVoucherType='88' THEN
			L.cMaker
			--VoucherType=AP40关联应付付款申请单AP_ApplyPayVouch
		WHEN cVoucherType='AP40' THEN
			M.cOperator
			--VoucherType=BO11关联物料清单bom_bom
		WHEN cVoucherType='BO11' THEN
			N.CreateUser
			--VoucherType=BO19关联委外商物料清单bom_bom
		WHEN cVoucherType='BO19' THEN
			N.CreateUser
			--VoucherType=MO21关联生产订单PP_ProductPO,这个cbSysBarCode格式为 ||MO21|0000024390|6   作为O
		WHEN cVoucherType='MO21' THEN
			O.CreateUser
			--VoucherType=om01关联委外订单OM_MOMain
		WHEN cVoucherType='om01' THEN
			P.cMaker
			--VoucherType=PU01关联供应商资格审批表pu_v orverify
		WHEN cVoucherType='PU01' THEN
			Q.cmaker
			--VoucherType=pu03关联供应商存货调价单PU_PriceJustMain
		WHEN cVoucherType='pu03' THEN
			R.cmaker
			--VoucherType=SA19关联客户调价单SA_CusPriceJustMain
		WHEN cVoucherType='SA19' THEN
			S.cmaker
			--VoucherType=SR01关联服务单SR_ServiceBill
		WHEN cVoucherType='SR01' THEN
			T.cCreator
			--VoucherType=U870_0003关联存货申请AA_NewInvenApp
		WHEN cVoucherType='U870_0003' THEN
			U.cMaker
		END AS 制单人,
			CASE
			--A为销售发货单
		WHEN cVoucherType ='01' THEN
			A.dcreatesystime
			--B为其他入库单
		WHEN cVoucherType='0301' THEN
			 B.dnmaketime
			--C为其他出库单
		WHEN cVoucherType='0302' THEN
			 C.dnmaketime
			--VoucherType=0304关联调拨单TransVouch 作为D
		WHEN cVoucherType='0304' THEN
			D.dnmaketime
			--VoucherType=0305关联形态转换单AssemVouch
		WHEN cVoucherType='0305' THEN
			E.dnmaketime
			--VoucherType=0324关联调拨申请单ST_AppTransVouch
		WHEN cVoucherType='0324' THEN
			F.dnmaketime
			--VoucherType=0412关联材料出库单rdrecord11
		WHEN cVoucherType='0412' THEN
			G.dnmaketime
			--VoucherType=17关联销售订单SO_SOMain
		WHEN cVoucherType='17' THEN
			H.dcreatesystime
		--VoucherType=24关联采购入库单RdRecord01
		WHEN cVoucherType='24' THEN
			I.dnmaketime
			--VoucherType=26关联采购到货单PU_ArrivalVouch
		WHEN cVoucherType='26' THEN
			J.cMakeTime
			--VoucherType=OM26关联委外到货单PU_ArrivalVouch
		WHEN cVoucherType='OM26' THEN
			J.cMakeTime
			--VoucherType=27关联请购单PU_AppVouch
		WHEN cVoucherType='27' THEN
			K.cMakeTime
			--VoucherType=88关联采购订单PO_Pomain
		WHEN cVoucherType='88' THEN
			L.cmaketime
			--VoucherType=AP40关联应付付款申请单AP_ApplyPayVouch
		WHEN cVoucherType='AP40' THEN
			M.dcreatesystime
			--VoucherType=BO11关联物料清单bom_bom
		WHEN cVoucherType='BO11' THEN
			N.CreateTime
			--VoucherType=BO19关联委外商物料清单bom_bom
		WHEN cVoucherType='BO19' THEN
			N.CreateTime
			--VoucherType=MO21关联生产订单PP_ProductPO,这个cbSysBarCode格式为 ||MO21|0000024390|6   作为O
		WHEN cVoucherType='MO21' THEN
			O.CreateTime
			--VoucherType=om01关联委外订单OM_MOMain
		WHEN cVoucherType='om01' THEN
			P.dCreateTime
			--VoucherType=PU01关联供应商资格审批表pu_v orverify
		WHEN cVoucherType='PU01' THEN
			Q.cMakeTime
			--VoucherType=pu03关联供应商存货调价单PU_PriceJustMain
		WHEN cVoucherType='pu03' THEN
			R.cMakeTime
			--VoucherType=SA19关联客户调价单SA_CusPriceJustMain
		WHEN cVoucherType='SA19' THEN
			S.dcreatesystime
			--VoucherType=SR01关联服务单SR_ServiceBill
		WHEN cVoucherType='SR01' THEN
			T.dCreatedDate
			--VoucherType=U870_0003关联存货申请AA_NewInvenApp
		WHEN cVoucherType='U870_0003' THEN
			U.dMakeDateTime
		END AS 制单时间,
			CASE
			--A为销售发货单
		WHEN cVoucherType ='01' THEN
			A.cCurrentAuditor
			--B为其他入库单
		WHEN cVoucherType='0301' THEN
			 B.cCurrentAuditor
			--C为其他出库单
		WHEN cVoucherType='0302' THEN
			 C.cCurrentAuditor
			--VoucherType=0304关联调拨单TransVouch 作为D
		WHEN cVoucherType='0304' THEN
			D.cCurrentAuditor
			--VoucherType=0305关联形态转换单AssemVouch
		WHEN cVoucherType='0305' THEN
			E.cCurrentAuditor
			--VoucherType=0324关联调拨申请单ST_AppTransVouch
		WHEN cVoucherType='0324' THEN
			F.cCurrentAuditor
			--VoucherType=0412关联材料出库单rdrecord11
		WHEN cVoucherType='0412' THEN
			G.cCurrentAuditor
			--VoucherType=17关联销售订单SO_SOMain
		WHEN cVoucherType='17' THEN
			H.cCurrentAuditor
		--VoucherType=24关联采购入库单RdRecord01
		WHEN cVoucherType='24' THEN
			I.cCurrentAuditor
			--VoucherType=26关联采购到货单PU_ArrivalVouch
		WHEN cVoucherType='26' THEN
			J.cCurrentAuditor
			--VoucherType=OM26关联委外到货单PU_ArrivalVouch
		WHEN cVoucherType='OM26' THEN
			J.cCurrentAuditor
			--VoucherType=27关联请购单PU_AppVouch
		WHEN cVoucherType='27' THEN
			K.cCurrentAuditor
			--VoucherType=88关联采购订单PO_Pomain
		WHEN cVoucherType='88' THEN
			L.cCurrentAuditor
			--VoucherType=AP40关联应付付款申请单AP_ApplyPayVouch
		WHEN cVoucherType='AP40' THEN
			M.cCurrentAuditor
			--VoucherType=BO11关联物料清单bom_bom
		WHEN cVoucherType='BO11' THEN
			N.cCurrentAuditor
			--VoucherType=BO19关联委外商物料清单bom_bom
		WHEN cVoucherType='BO19' THEN
			N.cCurrentAuditor
			--VoucherType=MO21关联生产订单PP_ProductPO,这个cbSysBarCode格式为 ||MO21|0000024390|6   作为O
		WHEN cVoucherType='MO21' THEN
			O.cCurrentAuditor
			--VoucherType=om01关联委外订单OM_MOMain
		WHEN cVoucherType='om01' THEN
			P.cCurrentAuditor
			--VoucherType=PU01关联供应商资格审批表pu_v orverify
		WHEN cVoucherType='PU01' THEN
			Q.cCurrentAuditor
			--VoucherType=pu03关联供应商存货调价单PU_PriceJustMain
		WHEN cVoucherType='pu03' THEN
			R.cCurrentAuditor
			--VoucherType=SA19关联客户调价单SA_CusPriceJustMain
		WHEN cVoucherType='SA19' THEN
			S.cCurrentAuditor
			--VoucherType=SR01关联服务单SR_ServiceBill
		WHEN cVoucherType='SR01' THEN
			'NULL'
			--VoucherType=U870_0003关联存货申请AA_NewInvenApp
		WHEN cVoucherType='U870_0003' THEN
			U.cApproved
		END AS 当前审批人
				--流程状态
FROM Table_Task
LEFT JOIN(SELECT cPsn_Num,cPsn_Name FROM hr_hi_person) AS HR ON HR.cPsn_Num=dbo.Table_Task.cUserID
LEFT JOIN(SELECT TaskId,Action,VoucherCode FROM dbo.WFAudit) AS SPXX ON SPXX.TaskId=UPPER(dbo.Table_Task.cTK_ID)
--VoucherType=01关联销售发货单主表DispatchList  作为A
LEFT JOIN(SELECT cDLCode,iverifystate,cMaker,dcreatesystime,cCurrentAuditor FROM dbo.DispatchList) AS A ON A.cDLCode=Table_Task.ExtendField3
--VoucherType=0301关联其他入库单RdRecord08  作为B
LEFT JOIN(SELECT cCode,iverifystate,cMaker,dnmaketime,cCurrentAuditor FROM dbo.RdRecord08) AS B ON B.cCode=Table_Task.ExtendField3
--VoucherType=0302关联其他出库单RdRecord09 作为C
LEFT JOIN(SELECT cCode,iverifystate,cMaker,dnmaketime,cCurrentAuditor FROM dbo.RdRecord09) AS C ON C.cCode=Table_Task.ExtendField3
--VoucherType=0304关联调拨单TransVouch 作为D
LEFT JOIN(SELECT cTVCode,iverifystate,cMaker,dnmaketime,cCurrentAuditor FROM dbo.TransVouch) AS D ON D.cTVCode=Table_Task.ExtendField3
--VoucherType=0305关联形态转换单AssemVouch
LEFT JOIN(SELECT cAVCode,iverifystate,cMaker,dnmaketime,cCurrentAuditor FROM dbo.AssemVouch) AS E ON E.cAVCode=Table_Task.ExtendField3
--VoucherType=0324关联调拨申请单ST_AppTransVouch
LEFT JOIN(SELECT cTVCode,iverifystate,cMaker,dnmaketime,cCurrentAuditor FROM dbo.ST_AppTransVouch) AS F ON F.cTVCode=Table_Task.ExtendField3
--VoucherType=0412关联材料出库单rdrecord11
LEFT JOIN(SELECT cCode,iverifystate,cMaker,dnmaketime,cCurrentAuditor FROM dbo.rdrecord11) AS G ON G.cCode=Table_Task.ExtendField3
--VoucherType=17关联销售订单SO_SOMain
LEFT JOIN(SELECT cSOCode,iverifystate,cMaker,dcreatesystime,cCurrentAuditor FROM dbo.SO_SOMain) AS H ON H.cSOCode=Table_Task.ExtendField3
--VoucherType=24关联采购入库单RdRecord01
LEFT JOIN(SELECT cCode,iverifystate,cMaker,dnmaketime,cCurrentAuditor FROM dbo.RdRecord01) AS I ON I.cCode=Table_Task.ExtendField3
--VoucherType=26关联采购到货单PU_ArrivalVouch
--VoucherType=OM26关联委外到货单PU_ArrivalVouch
LEFT JOIN(SELECT cCode,iverifystateex,cMaker,cMakeTime,cCurrentAuditor FROM dbo.PU_ArrivalVouch) AS J ON J.cCode=Table_Task.ExtendField3
--VoucherType=27关联请购单PU_AppVouch
LEFT JOIN(SELECT cCode,iverifystateex,cMaker,cMakeTime,cCurrentAuditor FROM dbo.PU_AppVouch) AS K ON K.cCode=Table_Task.ExtendField3
--VoucherType=88关联采购订单PO_Pomain
LEFT JOIN(SELECT cPOID,iverifystateex,cMaker,cmaketime,cCurrentAuditor FROM dbo.PO_Pomain) AS L ON L.cPOID=Table_Task.ExtendField3
--VoucherType=AP40关联应付付款申请单AP_ApplyPayVouch
LEFT JOIN(SELECT cVouchID,iverifystate,cOperator,dcreatesystime,cCurrentAuditor FROM dbo.AP_ApplyPayVouch) AS M ON M.cVouchID=Table_Task.ExtendField3
--VoucherType=BO11关联物料清单bom_bom
--VoucherType=BO19关联委外商物料清单bom_bom
LEFT JOIN(SELECT BomId,iVerifyState,CreateUser,CreateTime,cCurrentAuditor FROM dbo.bom_bom) AS N ON CAST(N.BomId AS NVARCHAR(512))=Table_Task.ExtendField3
--VoucherType=MO21关联生产订单PP_ProductPO,这个cbSysBarCode格式为 ||MO21|0000024390|6   作为O
LEFT JOIN(SELECT IG.CreateTime,mom_orderdetail.cCurrentAuditor,IG.CreateUser,mom_orderdetail.MoId,mom_orderdetail.iVerifyState,
 SUBSTRING(mom_orderdetail.cbSysBarCode,CHARINDEX( '|',mom_orderdetail.cbSysBarCode, CHARINDEX( '|',mom_orderdetail.cbSysBarCode, CHARINDEX('|', mom_orderdetail.cbSysBarCode) + 1) + 1) + 1, CHARINDEX('|',mom_orderdetail.cbSysBarCode, CHARINDEX('|',mom_orderdetail.cbSysBarCode, CHARINDEX( '|',mom_orderdetail.cbSysBarCode,CHARINDEX('|', mom_orderdetail.cbSysBarCode) + 1) + 1) + 1 )- CHARINDEX( '|',mom_orderdetail.cbSysBarCode,CHARINDEX('|',mom_orderdetail.cbSysBarCode,CHARINDEX('|', mom_orderdetail.cbSysBarCode) + 1 ) + 1 ) - 1 ) AS ExtractedCode
FROM mom_orderdetail LEFT JOIN (SELECT MoId,CreateUser,CreateTime FROM dbo.mom_order) AS IG ON IG.MoId = mom_orderdetail.MoId) AS O ON O.ExtractedCode=Table_Task.ExtendField3
--VoucherType=om01关联委外订单OM_MOMain
LEFT JOIN(SELECT cCode,iVerifyStateNew,cMaker,dCreateTime,cCurrentAuditor FROM dbo.OM_MOMain) AS P ON P.cCode=Table_Task.ExtendField3
--VoucherType=PU01关联供应商资格审批表pu_vendorverify
LEFT JOIN(SELECT ccode,iverifystate,cmaker,cMakeTime,cCurrentAuditor FROM dbo.pu_vendorverify) AS Q ON Q.ccode=Table_Task.ExtendField3
--VoucherType=pu03关联供应商存货调价单PU_PriceJustMain
LEFT JOIN(SELECT ccode,iverifystate,cmaker,cMakeTime,cCurrentAuditor FROM dbo.PU_PriceJustMain) AS R ON R.ccode=Table_Task.ExtendField3
--VoucherType=SA19关联客户调价单SA_CusPriceJustMain
LEFT JOIN(SELECT ccode,iverifystate,cmaker,dcreatesystime,cCurrentAuditor FROM dbo.SA_CusPriceJustMain) AS S ON S.ccode=Table_Task.ExtendField3
--VoucherType=SR01关联服务单SR_ServiceBill
LEFT JOIN(SELECT cSerBillCode,iverifystateex,cCreator,dCreatedDate FROM dbo.SR_ServiceBill) AS T ON T.cSerBillCode=Table_Task.ExtendField3
--VoucherType=U870_0003关联存货申请AA_NewInvenApp
LEFT JOIN(SELECT cNewInvenAppCode,iverifystate,cMaker,dMakeDateTime,cApproved FROM dbo.AA_NewInvenApp) AS U ON U.cNewInvenAppCode=Table_Task.ExtendField3 WHERE cCreateTime=cEndTime
) T1
) T2
) T3
) T4

3、实现折叠明细表

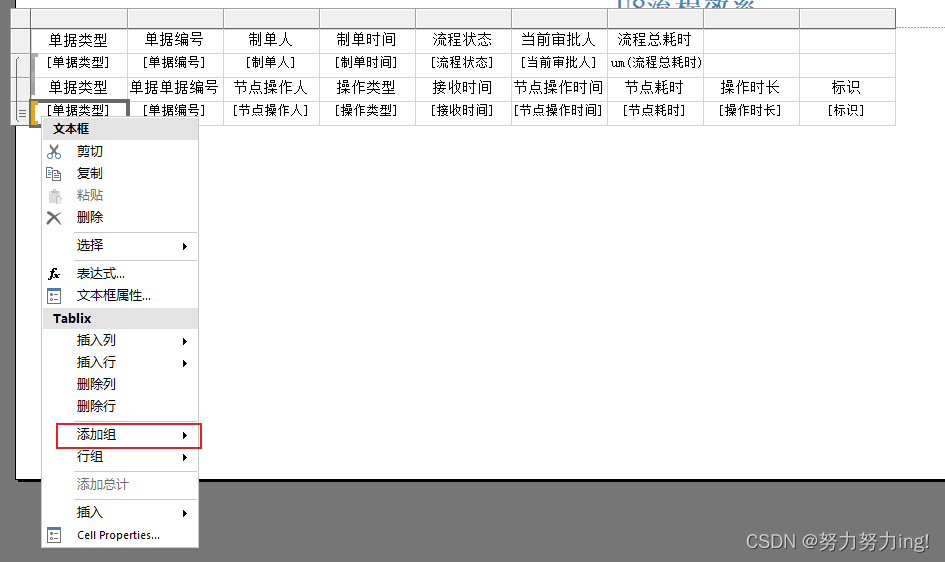

1、添加行父组
在这里插入图片描述

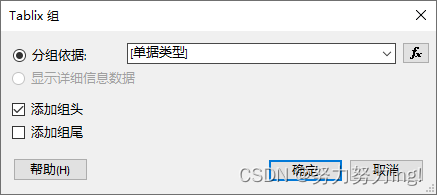

2、勾选组头，这个分组依据是加号所在位置的字段
在这里插入图片描述
3、删除因为添加父组多出来的那一列，最终呈现这种形式的表格在这里插入图片描述

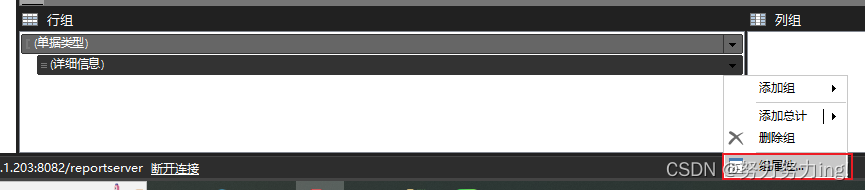

4、单据类型->组属性
在这里插入图片描述

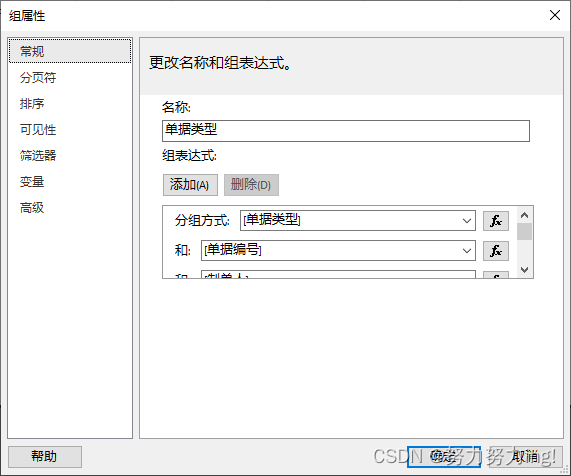

5、将非折叠的所有字段添加到组表达式中
在这里插入图片描述
6、可见性设置为显示
在这里插入图片描述
7.详细信息->组属性
在这里插入图片描述
8、可见性设置为隐藏，切换显示（为加号所在位置的字段）
在这里插入图片描述

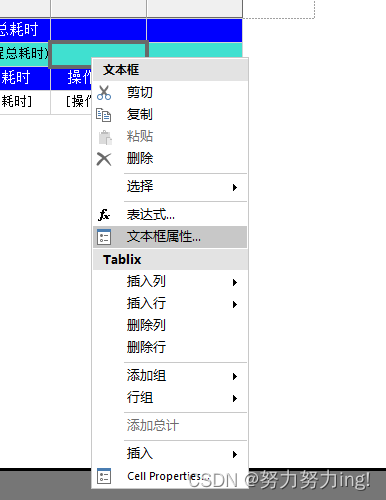

9、其他多余的表格可以设置为隐藏，更加美观
在这里插入图片描述

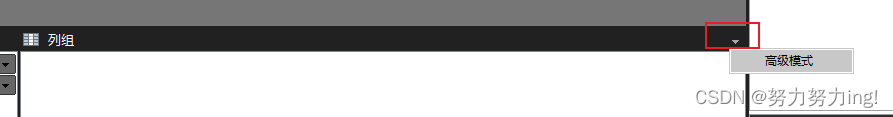

10、列组->高级模式
在这里插入图片描述
11、详细信息上下静态需要设置：Hidden：true；Toggleitem：单据类型1
在这里插入图片描述
12、最终呈现的就是这种效果了
在这里插入图片描述

4、结语

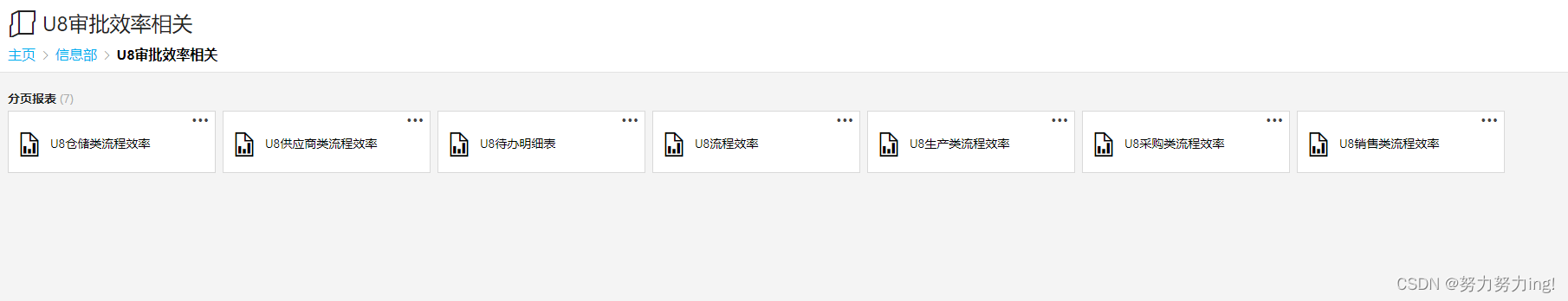

U8的查询语句存在多个函数，查询较慢，我采用根据单据类型进行分开做表（类似与以下图）。生产订单的语句有些问题，还未进行修改。
SQL语句可以一层一层的看，注释写的也比较清楚，UNION ALL下面的只是用来取待办。如有问题请和我探讨，感谢。

在这里插入图片描述

用友U8接口-系统管理(3)
243927103的博客
01-27 1577
介绍系统管理模块接口使用
用友U8接口-部署和简要说明(1)
243927103的博客
01-27 2692
用友U8接口API部署和简要说明
SQL Server 2008+ Reporting Services （SSRS）使用USER登录问题
12-15
我的数据库和报表服务的版本如下： 数据库：SQL Server 2008 R2 报表服务：SQL Server 2008 R2 Reporting Services 我本想让用户像访问网站一样访问我的报表服务，该死的SQL Server Reporting Services从2005以后就不依赖于IIS，造成用户不能匿名访问了。 网上有关于“SQL Server 2008 Reporting Services匿名访问”的教程，通过修改Reporting Services下的配置文件来实现，我对着着教程做了一遍，没有成功。 突然想到，我只是让有权限的USER账号能访问就行，没必要实现匿名访问。当
U8邮件审批的配置
04-24
目录 1.1. 人员档案中设置邮箱 1 1.2. 配置应用服务器邮件信息 2 1.3. 在采购订单模板设计中，指定邮件审批模板 2 1.4. 设置工作流，启用邮件通知与邮件审批（或只要启用邮件审批） 3 1.5. 设置审批节点的协同工作 4 1.6. 设置用邮件通知 4 1.7. 设置协同工作 5 1.8. 收到邮件后，打开附件，在IE里审批 5 1.9. 公网审批设置 6
SQL SERVER数据库 Sqlserver 2008 SSRS 使用手册 报表开发手册 共166页.pdf
05-29
SQL SERVER数据库 Sqlserver 2008 SSRS 使用手册 报表开发手册 共166页.pdf
U8审批流对接功能
weixin_47221893的博客
09-26 850
使用易对接U8审批流对接功能，可以实现以下业务流程： 在U8创建单据，输入数据后保存 对接应用读取单据内容，根据映射规则，将表单内容写入钉钉或者企业微信审批流 单据在钉钉或者企业微信中流转完成审批 如果审批通过，U8中的单据变为已审核；如果审批拒绝或者撤销，U8单据维持草稿状态，修改内容后可以再次发起审批
用友U8审批流相关开发
1989的博客
05-26 1722
今天给大家整理介绍下，U8审批流相关开发功能。 组件位置和类名称 组件：U8SOFT\Workflow\Lib\UFIDA.U8.Audit.ServiceProxy.dll 类：AuditServiceProxy 接口函数 1.单据是否启用了审批流 public bool IsFlowEnabled(stringbizObjectId, string eventId, CalledContext calledCtx, refstring errMsg) 参数：bizOb...
FlowAble基于U8审批流程表分析
LiuCJ_20000的博客
09-21 935
基于Flowable、U8Cloud，业务单据审核流程相关的最基础数据表
U8+售后服务单使用触发器实现日志记录-SQLServer
tyloonulinuli的博客
10-22 929
用友U8服务单日志检测
【U8+】用友U8+产品版本-操作系统、数据库、浏览器推荐支持一览表
努力不懈的为广大客户提供优质的产品与真诚、贴心、专业的服务！
04-27 3446
【U8+】用友U8+产品-操作系统、数据库、浏览器推荐支持一览表
如何使用C#编写用友U8软件相关功能,适用于插件和二次开发
热门推荐
zzlufida的博客
07-15 1万+
介绍如何使用C#语言调用VB6开发的COM组件以及OCX控件。并完整介绍了所有的技术细节。该技术主要用于使用C#语言开发用友U8系列产品的插件。
【用友U8】常用数据库表名
qq_44759590的博客
07-21 1万+
9、不良品处理方式档案(不良品处理方式)8、质量原因码档案(原因码档案)3、来料不良品处理单。
用友U8使用手册
10-26
用友U8使用手册用友U8使用手册用友U8使用手册用友U8使用手册用友U8使用手册
cn-sql-server-2012-express-sqlexpr-x64
11-16
7. **报表服务 (SSRS)**：尽管Express版不包含完整的报表服务，但可以创建基本的报表，并通过其他方式如SQL Server Management Studio进行部署。 8. **Integration Services (SSIS)**：这是一个ETL（提取、转换、...
资源专区-小白必看-SQL Server数据库基本使用
05-09
除了基础操作，SQL Server还提供许多高级功能，如分区表、全文搜索、空间数据、XML支持、BI工具（如SSAS、SSIS、SSRS）等，这些都能帮助企业实现更复杂的数据管理需求。 通过这个"SQL Server数据库基本使用"资源，...
×××S 2008 明细报表
weixin_34318272的博客
06-29 145
使用×××S的明细报表，可制作分级汇总样式的报表。在明细报表中，用户单击加号或减号按钮即可展开或折叠报表的某个部分，以显示详细信息数据。 1、效果图： 2、数据集SQL脚本： select accper ,warehouse ,sum(inqty) AS inqty FROM ec_invtory GROUP BY accper,ware...
用友U8安装部署
m0_70611788的博客
01-06 3638
用友U8安装部署
用友U8接口-基础档案(4)
243927103的博客
01-27 957
介绍来基础档案的新增、修改、查询
基于ssm的校园外卖配送系统（源码+文档）
最新发布
luoluoal的博客
04-30 1326
校园外卖配送系统的主要使用者分为：1、用户的功能及权限用户登录注册后，进入系统对个人中心，订单信息管理，订单取消管理，配送接单管理，取消配送管理，送达通知管理等功能进行操作管理。2、配送员的功能及权限用户登录注册后，进入系统对个人中心，订单信息管理，配送接单管理，取消配送管理，送达通知管理等功能进行操作管理。3、管理员的功能及权限用户信息的添加和管理，校园外卖配送详细信息添加和管理和文档信息添加和管理以及网站信息管理，这些都是管理员的功能💕💕作者：落落。
评论 3
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
