android,bindService实例

package com.example.bindservice;

import com.example.bindservice.BindService.MyBinder;

import android.os.Bundle;
import android.os.IBinder;
import android.app.Activity;
import android.content.ComponentName;
import android.content.Context;
import android.content.Intent;
import android.content.ServiceConnection;
import android.util.Log;
import android.view.Menu;
import android.view.View;
import android.view.View.OnClickListener;
import android.widget.Button;

public class MainActivity extends Activity {
	private Button startBtn;
	private Button stopBtn;
	private boolean flag;
	private static final String TAG = "BindService";

	@Override
	protected void onCreate(Bundle savedInstanceState) {
		super.onCreate(savedInstanceState);
		setContentView(R.layout.activity_main);
		flag = false;
		startBtn = (Button)this.findViewById(R.id.startBtn);
		stopBtn = (Button)this.findViewById(R.id.stopBtn);
		startBtn.setOnClickListener(listener);
		stopBtn.setOnClickListener(listener);
	}onCreate

	private OnClickListener listener = new OnClickListener() {

        @Override
        public void onClick(View v) {
            // TODO Auto-generated method stub
            switch (v.getId()) {
            case R.id.startBtn:
                bindService();
                break;
            case R.id.stopBtn:
                unBind();
                break;
            default:
                break;
            }
        }


    };

    private void bindService(){
        Intent intent = new Intent(MainActivity.this,BindService.class);
        bindService(intent, conn, Context.BIND_AUTO_CREATE);
//  -----  boolean bindService(Intent service, ServiceConnection conn, int flags)
//         Connect to an application service, creating it if needed.
//   ---- conn - Receives information as the service is started and stopped.
//        flags - Operation options for the binding. May be 0 or Context.BIND_AUTO_CREATE.
//   ----- 第3个参数Context.BIND_AUTO_CREATE表明只要绑定存在，就自动建立
//        Service；同时也告知Android系统，这个Service的重要程度与调用者相同，
//        除非考虑终止调用者，否则不要关闭这个Service
        Log.i(TAG, " bindService111111111------bindService(intent, conn, Context.BIND_AUTO_CREATE);");
    }

    private void unBind(){
        if(flag == true){
        	Log.i(TAG, "unbindService111111--------BindService-->unBind()");
            unbindService(conn);
            flag = false;
        }
    }

    private ServiceConnection conn = new ServiceConnection() {

        @Override
        public void onServiceDisconnected(ComponentName name) {
            // TODO Auto-generated method stub
        	Log.i(TAG, "unbindService(conn)--onServiceDisconnected--");/单击   stop按钮未执行
//        	需注意的是，unbindService()方法成功后，系统并不会调用
//        	onServiceDisconnected()，因为onServiceDisconnected()仅在意外断开
//        	绑定时才被调用
        }
      // log.i(TAG, " bindService-----IBinder service");
        @Override
        public void onServiceConnected(ComponentName name, IBinder service) {
            // TODO Auto-generated method stub
            Log.i(TAG, " bindService33333333-----bindService--onServiceConnected");
            MyBinder binder = (MyBinder)service;
            BindService bindService = binder.getService();
            bindService.MyMethod();
            Log.i(TAG, " bindService66666-----bindService--onServiceConnected");
            flag = true;
        }
    };

}


/*
 *

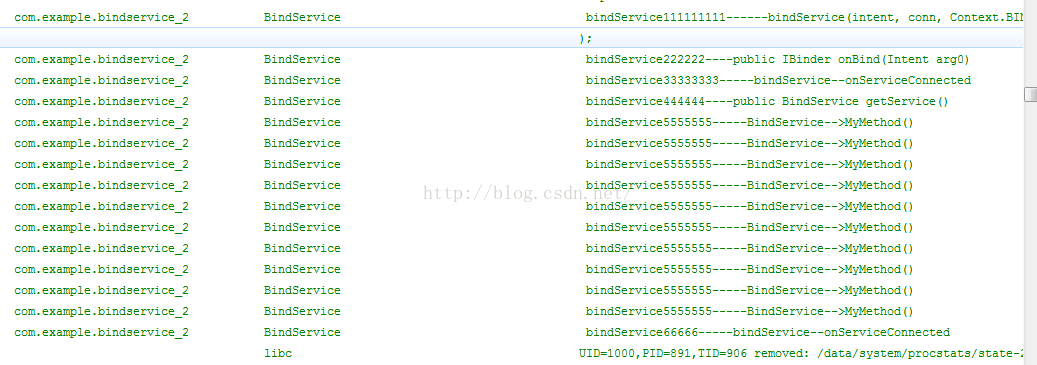

 * 没创建时绑定  执行BindService 1 2 3 4 5 6
 * 已创建时绑定  执行BindService  1
 *
 * 绑定后解绑定 执行 unBindService 1
 *
 *
 *
 *
 */

package com.example.bindservice;


import android.app.Service;
import android.content.Intent;
import android.os.Binder;
import android.os.IBinder;
import android.util.Log;

public class BindService extends Service {

	private static final String TAG = "BindService";

	public void MyMethod() {
		for (int i = 0; i < 10; i++) {
			Log.i(TAG, " bindService5555555-----BindService-->MyMethod()");
		}
	}//MyMethod

	@Override
	public IBinder onBind(Intent arg0) {
		// TODO Auto-generated method stub

		Log.i(TAG, " bindService222222----public IBinder onBind(Intent arg0)");

		return myBinder;
	}///onBind

	public class MyBinder extends Binder {

		public BindService getService() {
			Log.i(TAG, " bindService444444----public BindService getService()");
			return BindService.this;
		}
	}///MyBinder

	private MyBinder myBinder = new MyBinder();

}// class BindService

<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context="${relativePackage}.${activityClass}" >

    <Button
        android:id="@+id/startBtn"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_alignParentTop="true"
        android:layout_centerHorizontal="true"
        android:text="Start" />

    <Button
        android:id="@+id/stopBtn"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_alignLeft="@+id/startBtn"
        android:layout_below="@+id/startBtn"
        android:layout_marginTop="46dp"
        android:text="Stop" />

</RelativeLayout>

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    package="com.example.bindservice"
    android:versionCode="1"
    android:versionName="1.0" >

    <uses-sdk
        android:minSdkVersion="15"
        android:targetSdkVersion="16" />

    <application
        android:allowBackup="true"
        android:icon="@drawable/ic_launcher"
        android:label="@string/app_name"
        android:theme="@style/AppTheme" >
        <activity
            android:name=".MainActivity"
            android:label="@string/app_name" >
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />

                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
        </activity>
        <service android:name="com.example.bindservice.BindService"></service>
    </application>

</manifest>
