Gatling 入门

1.新建一个测试接口项目

里面代码非常简单，就一个hi接口：

package com.example.gatlingdemo.controller;

import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

import java.time.LocalDateTime;
import java.util.concurrent.atomic.AtomicInteger;

@RestController
public class HelloController {

    private static AtomicInteger atomicInteger=new AtomicInteger(0);

    @GetMapping("/hi")
    public String hi(){
        System.out.println(atomicInteger.getAndIncrement());
        return LocalDateTime.now().toString();
    }

}

建议大家直接使用SpringBoot完成这个API，

2.新建一个Gatling测试项目

使用的jdk是1.8

1.新建Maven项目，添加依赖，最新的gatlin依赖是3.9.5， 整个pom.xml是：

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">

  <modelVersion>4.0.0</modelVersion>

  <groupId>io.gatling.demo</groupId>
  <artifactId>gatling-maven-plugin-demo-java</artifactId>
  <version>3.9.5</version>

  <properties>
    <!-- use the following if you're compiling with JDK 8-->
    <maven.compiler.source>1.8</maven.compiler.source>
    <maven.compiler.target>1.8</maven.compiler.target>
    <!-- comment the 2 lines above and uncomment the line bellow if you're compiling with JDK 11 or 17 -->
    <!--    <maven.compiler.release>11</maven.compiler.release>-->
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <gatling.version>${project.version}</gatling.version>
    <gatling-maven-plugin.version>4.3.4</gatling-maven-plugin.version>
    <maven-compiler-plugin.version>3.10.1</maven-compiler-plugin.version>
    <maven-jar-plugin.version>3.2.2</maven-jar-plugin.version>
  </properties>

  <dependencies>
    <dependency>
      <groupId>io.gatling.highcharts</groupId>
      <artifactId>gatling-charts-highcharts</artifactId>
      <version>${gatling.version}</version>
      <scope>test</scope>
    </dependency>
  </dependencies>

  <build>
    <plugins>
      <plugin>
        <artifactId>maven-compiler-plugin</artifactId>
        <version>${maven-compiler-plugin.version}</version>
      </plugin>
      <plugin>
        <artifactId>maven-jar-plugin</artifactId>
        <version>${maven-jar-plugin.version}</version>
      </plugin>
      <plugin>
        <groupId>io.gatling</groupId>
        <artifactId>gatling-maven-plugin</artifactId>
        <version>${gatling-maven-plugin.version}</version>
        <configuration>
          <!-- Enterprise Cloud (https://cloud.gatling.io/) configuration reference: https://gatling.io/docs/gatling/reference/current/extensions/maven_plugin/#working-with-gatling-enterprise-cloud -->
          <!-- Enterprise Self-Hosted configuration reference: https://gatling.io/docs/gatling/reference/current/extensions/maven_plugin/#working-with-gatling-enterprise-self-hosted -->
        </configuration>
      </plugin>
    </plugins>
  </build>
</project>

在resource下新建配置gatling.conf文件：

#########################
# Gatling Configuration #
#########################

# This file contains all the settings configurable for Gatling with their default values

gatling {
  core {
    #outputDirectoryBaseName = "" # The prefix for each simulation result folder (then suffixed by the report generation timestamp)
    #runDescription = ""          # The description for this simulation run, displayed in each report
    #encoding = "utf-8"           # Encoding to use throughout Gatling for file and string manipulation
    #simulationClass = ""         # The FQCN of the simulation to run (when used in conjunction with noReports, the simulation for which assertions will be validated)
    #elFileBodiesCacheMaxCapacity = 200      # Cache size for request body EL templates, set to 0 to disable
    #rawFileBodiesCacheMaxCapacity = 200     # Cache size for request body Raw templates, set to 0 to disable
    #rawFileBodiesInMemoryMaxSize = 1000     # Below this limit, raw file bodies will be cached in memory
    #pebbleFileBodiesCacheMaxCapacity = 200  # Cache size for request body Peeble templates, set to 0 to disable
    #feederAdaptiveLoadModeThreshold = 100   # File size threshold (in MB). Below load eagerly in memory, above use batch mode with default buffer size
    #shutdownTimeout = 10000                 # Milliseconds to wait for the actor system to shutdown
    extract {
      regex {
        #cacheMaxCapacity = 200 # Cache size for the compiled regexes, set to 0 to disable caching
      }
      xpath {
        #cacheMaxCapacity = 200 # Cache size for the compiled XPath queries,  set to 0 to disable caching
      }
      jsonPath {
        #cacheMaxCapacity = 200 # Cache size for the compiled jsonPath queries, set to 0 to disable caching
      }
      css {
        #cacheMaxCapacity = 200 # Cache size for the compiled CSS selectors queries,  set to 0 to disable caching
      }
    }
    directory {
      #simulations = user-files/simulations # Directory where simulation classes are located (for bundle packaging only)
      #resources = user-files/resources     # Directory where resources, such as feeder files and request bodies are located (for bundle packaging only)
      #reportsOnly = ""                     # If set, name of report folder to look for in order to generate its report
      #binaries = ""                        # If set, name of the folder where compiles classes are located: Defaults to GATLING_HOME/target.
      #results = results                    # Name of the folder where all reports folder are located
    }
  }
  socket {
    #connectTimeout = 10000                 # Timeout in millis for establishing a TCP socket
    #tcpNoDelay = true
    #soKeepAlive = false                    # if TCP keepalive configured at OS level should be used
    #soReuseAddress = false
  }
  netty {
    #useNativeTransport = true              # if Netty native transport should be used instead of Java NIO
    #allocator = "pooled"                   # switch to unpooled for unpooled ByteBufAllocator
    #maxThreadLocalCharBufferSize = 200000  # Netty's default is 16k
  }
  ssl {
    #useOpenSsl = true                    # if OpenSSL should be used instead of JSSE (only the latter can be debugged with -Djava.net.debug=ssl)
    #useOpenSslFinalizers = false         # if OpenSSL contexts should be freed with Finalizer or if using RefCounted is fine
    #handshakeTimeout = 10000             # TLS handshake timeout in millis
    #useInsecureTrustManager = true       # Use an insecure TrustManager that trusts all server certificates
    #enabledProtocols = []             # Array of enabled protocols for HTTPS, if empty use Netty's defaults
    #enabledCipherSuites = []          # Array of enabled cipher suites for HTTPS, if empty enable all available ciphers
    #sessionCacheSize = 0              # SSLSession cache size, set to 0 to use JDK's default
    #sessionTimeout = 0                # SSLSession timeout in seconds, set to 0 to use JDK's default (24h)
    #enableSni = true                     # When set to true, enable Server Name indication (SNI)
    keyStore {
      #type = ""      # Type of SSLContext's KeyManagers store
      #file = ""      # Location of SSLContext's KeyManagers store
      #password = ""  # Password for SSLContext's KeyManagers store
      #algorithm = "" # Algorithm used SSLContext's KeyManagers store
    }
    trustStore {
      #type = ""      # Type of SSLContext's TrustManagers store
      #file = ""      # Location of SSLContext's TrustManagers store
      #password = ""  # Password for SSLContext's TrustManagers store
      #algorithm = "" # Algorithm used by SSLContext's TrustManagers store
    }
  }
  charting {
    #noReports = false       # When set to true, don't generate HTML reports
    #maxPlotPerSeries = 1000 # Number of points per graph in Gatling reports
    #useGroupDurationMetric = false  # Switch group timings from cumulated response time to group duration.
    indicators {
      #lowerBound = 800      # Lower bound for the requests' response time to track in the reports and the console summary
      #higherBound = 1200    # Higher bound for the requests' response time to track in the reports and the console summary
      #percentile1 = 50      # Value for the 1st percentile to track in the reports, the console summary and Graphite
      #percentile2 = 75      # Value for the 2nd percentile to track in the reports, the console summary and Graphite
      #percentile3 = 95      # Value for the 3rd percentile to track in the reports, the console summary and Graphite
      #percentile4 = 99      # Value for the 4th percentile to track in the reports, the console summary and Graphite
    }
  }
  http {
    #fetchedCssCacheMaxCapacity = 200          # Cache size for CSS parsed content, set to 0 to disable
    #fetchedHtmlCacheMaxCapacity = 200         # Cache size for HTML parsed content, set to 0 to disable
    #perUserCacheMaxCapacity = 200             # Per virtual user cache size, set to 0 to disable
    #warmUpUrl = "https://gatling.io"          # The URL to use to warm-up the HTTP stack (blank means disabled)
    #enableGA = true                           # Very light Google Analytics (Gatling and Java version), please support
    #pooledConnectionIdleTimeout = 60000       # Timeout in millis for a connection to stay idle in the pool
    #requestTimeout = 60000                    # Timeout in millis for performing an HTTP request
    #enableHostnameVerification = false        # When set to true, enable hostname verification: SSLEngine.setHttpsEndpointIdentificationAlgorithm("HTTPS")
    dns {
      #queryTimeout = 5000                     # Timeout in millis of each DNS query in millis
      #maxQueriesPerResolve = 6                # Maximum allowed number of DNS queries for a given name resolution
    }
  }
  jms {
    #replyTimeoutScanPeriod = 1000  # scan period for timedout reply messages
  }
  data {
    #writers = [console, file]      # The list of DataWriters to which Gatling write simulation data (currently supported : console, file, graphite)
    console {
      #light = false                # When set to true, displays a light version without detailed request stats
      #writePeriod = 5              # Write interval, in seconds
    }
    file {
      #bufferSize = 8192            # FileDataWriter's internal data buffer size, in bytes
    }
    leak {
      #noActivityTimeout = 30  # Period, in seconds, for which Gatling may have no activity before considering a leak may be happening
    }
    graphite {
      #light = false              # only send the all* stats
      #host = "localhost"         # The host where the Carbon server is located
      #port = 2003                # The port to which the Carbon server listens to (2003 is default for plaintext, 2004 is default for pickle)
      #protocol = "tcp"           # The protocol used to send data to Carbon (currently supported : "tcp", "udp")
      #rootPathPrefix = "gatling" # The common prefix of all metrics sent to Graphite
      #bufferSize = 8192          # Internal data buffer size, in bytes
      #writePeriod = 1            # Write period, in seconds
    }
  }
}

配置日志文件logback-test.xml：

<?xml version="1.0" encoding="UTF-8"?>
<configuration>

	<appender name="CONSOLE" class="ch.qos.logback.core.ConsoleAppender">
		<encoder>
			<pattern>%d{HH:mm:ss.SSS} [%-5level] %logger{15} - %msg%n%rEx</pattern>
		</encoder>
		<immediateFlush>false</immediateFlush>
	</appender>

	<!-- uncomment and set to DEBUG to log all failing HTTP requests -->
	<!-- uncomment and set to TRACE to log all HTTP requests -->
	<!--<logger name="io.gatling.http.engine.response" level="TRACE" />-->

	<root level="WARN">
		<appender-ref ref="CONSOLE" />
	</root>

</configuration>

新建IDEAPathHelper类：

import java.net.URISyntaxException;
import java.nio.file.Path;
import java.nio.file.Paths;
import static java.util.Objects.requireNonNull;

public class IDEPathHelper {

  static final Path mavenSourcesDirectory;
  static final Path mavenResourcesDirectory;
  static final Path mavenBinariesDirectory;
  static final Path resultsDirectory;
  static final Path recorderConfigFile;

  static {
    try {
      Path projectRootDir = Paths.get(requireNonNull(IDEPathHelper.class.getResource("gatling.conf"), "Couldn't locate gatling.conf").toURI()).getParent().getParent().getParent();
      Path mavenTargetDirectory = projectRootDir.resolve("target");
      Path mavenSrcTestDirectory = projectRootDir.resolve("src").resolve("test");

      mavenSourcesDirectory = mavenSrcTestDirectory.resolve("java");
      mavenResourcesDirectory = mavenSrcTestDirectory.resolve("resources");
      mavenBinariesDirectory = mavenTargetDirectory.resolve("test-classes");
      resultsDirectory = mavenTargetDirectory.resolve("gatling");
      recorderConfigFile = mavenResourcesDirectory.resolve("recorder.conf");
    } catch (URISyntaxException e) {
      throw new ExceptionInInitializerError(e);
    }
  }
}

新建类Recorder：

import io.gatling.recorder.GatlingRecorder;
import io.gatling.recorder.config.RecorderPropertiesBuilder;
import scala.Option;

public class Recorder {
  public static void main(String[] args) {
    RecorderPropertiesBuilder props = new RecorderPropertiesBuilder()
      .simulationsFolder(IDEPathHelper.mavenSourcesDirectory.toString())
      .resourcesFolder(IDEPathHelper.mavenResourcesDirectory.toString())
      .simulationPackage("computerdatabase")
      .simulationFormatJava();

    GatlingRecorder.fromMap(props.build(), Option.apply(IDEPathHelper.recorderConfigFile));
  }
}

新建包computerdatabase，新建类ComputerDatabaseSimulation：

package computerdatabase;

import io.gatling.javaapi.core.ChainBuilder;
import static io.gatling.javaapi.core.CoreDsl.exec;
import static io.gatling.javaapi.core.CoreDsl.rampUsers;
import static io.gatling.javaapi.core.CoreDsl.repeat;
import static io.gatling.javaapi.core.CoreDsl.scenario;
import io.gatling.javaapi.core.ScenarioBuilder;
import io.gatling.javaapi.core.Simulation;
import static io.gatling.javaapi.http.HttpDsl.http;
import static io.gatling.javaapi.http.HttpDsl.status;
import io.gatling.javaapi.http.HttpProtocolBuilder;

public class ComputerDatabaseSimulation extends Simulation {

    ChainBuilder myApp =
            // Note how we force the counter name, so we can reuse it
            repeat(4, "i").on(
                    exec(
                            http("test Hi")
                                    .get("/hi")
                                    .check(status().is(200))
                    ).pause(1)
            );

    HttpProtocolBuilder httpProtocol =
            http.baseUrl("http://127.0.0.1:8080")
                    .header("Accept", "text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,image/apng,*/*;q=0.8,application/signed-exchange;v=b3;q=0.9")
                    .userAgentHeader("Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/88.0.4324.190 Safari/537.36")
                    .inferHtmlResources()
                    .acceptEncodingHeader("gzip, deflate, br");

    ScenarioBuilder keTest = scenario("test Hi").exec(myApp);

    {
        setUp(
                keTest.injectOpen(rampUsers(2).during(10))
        ).protocols(httpProtocol);
    }
}

注意：

1.http中的名字必须和scenario 名字一致。

  2.http.baseUrl("http://127.0.0.1:8080") 必须加上前缀http或者https。

构建完成后使用命令：mvn gatling:test 进行测试。

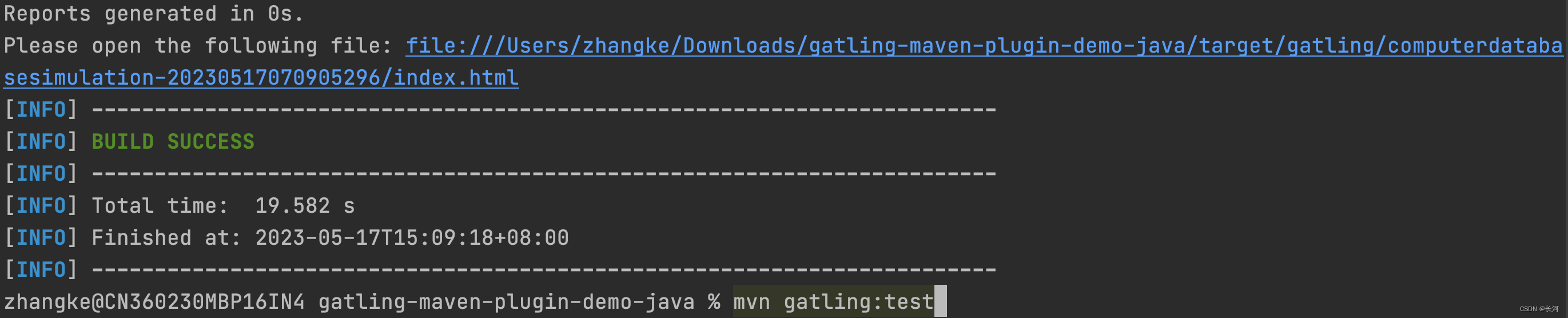

看到下面就是运行成功了

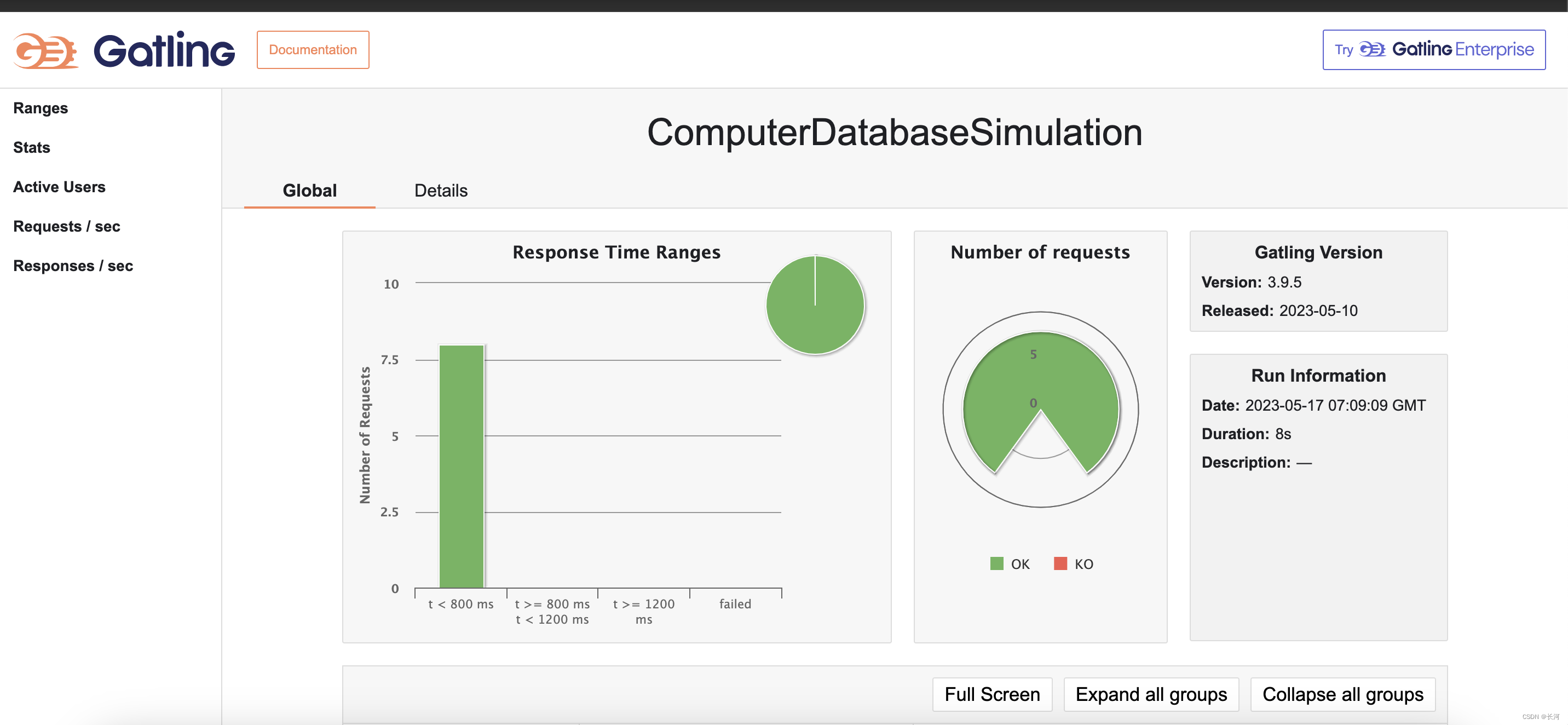

可以查看结果了。

这是最基本的入门了，建议大家查看官方文档：

Gatling - Quickstart

本文的Maven例子来自官网：https://github.com/gatling/gatling-maven-plugin-demo-java
