前言

// 无论贫穷富贵, 家能给与我们的都是一样的

呵呵 这是一个 老生常谈的问题

从官方文档, 或者 各种博客 中都可以找到这个问题的相关描述

我们这里 只关注 location 上面的这五种写法, 不关注 location @name

可以看到的是 存在五种写法

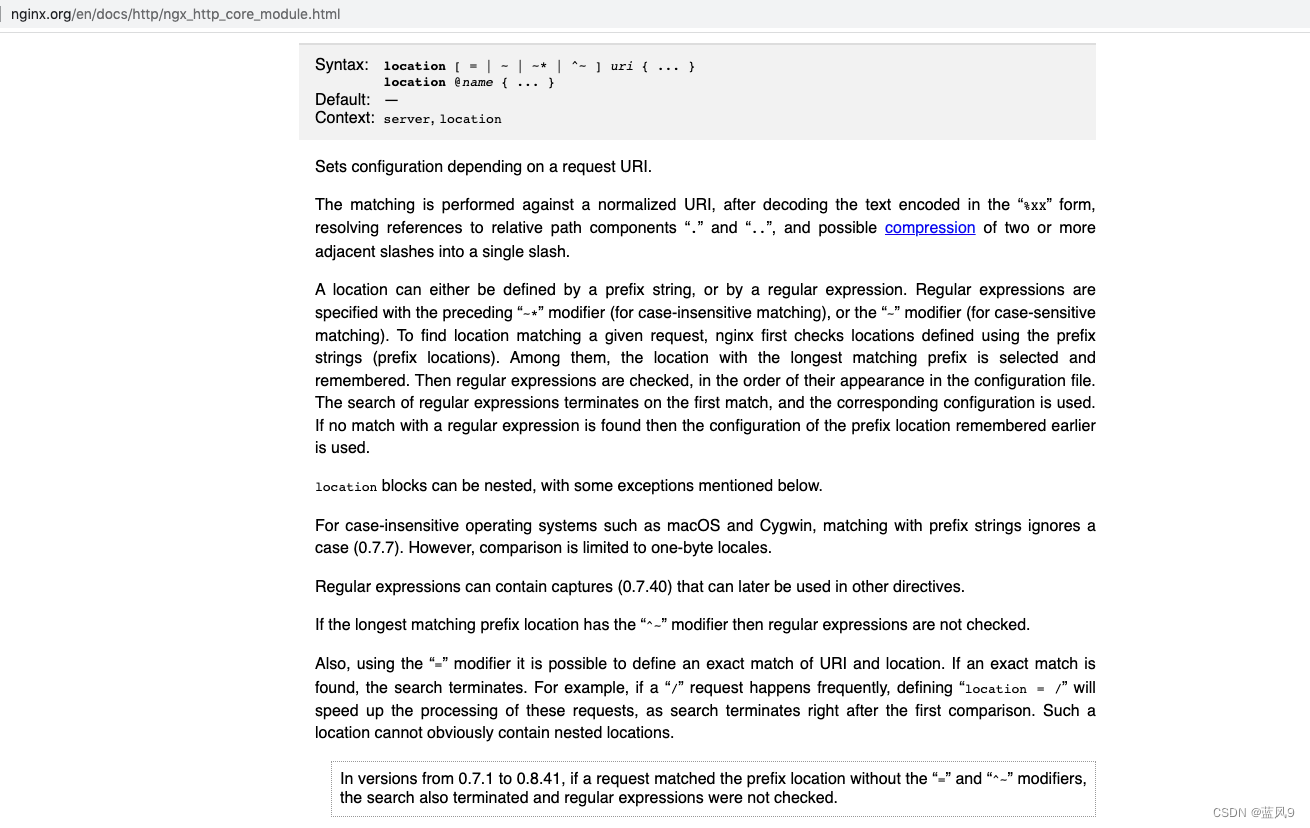

从下面文档也可以看出 优先级大概是 精确匹配 > 前缀匹配2 > 正则匹配, 忽略大小写正则匹配 > 前缀匹配1

我们这里 核心关注的就是 这个顺序是如何实现的?

以下截图, 调试基于 nginx-1.18.0

location /api       // 前缀匹配1
location = /api     // 精确匹配
location ^~ /api    // 前缀匹配2
location ~ /api     // 正则匹配
location ~* /api    // 忽略大小写正则匹配

测试用例

这里构造了一下 几种 location 都存在的配置

    server {
        listen       80;
        server_name  localhost;

        #charset koi8-r;

        #access_log  logs/host.access.log  main;

        location / {
            root   html;
            index  index.html index.htm;
        }

        #error_page  404              /404.html;

        # redirect server error pages to the static page /50x.html
        #
        error_page   500 502 503 504  /50x.html;
        location = /50x.html {
            root   html;
        }

        location ^~ /api/ {
               root html;
               index  index.html index.htm;
               proxy_pass http://localhost:8080/;
        }

        location = /exactly.html {
               root html/exactly;
               index  index.html index.htm;
        }

        location ^~ /exactly.html {
               root html/exactly;
               index  index.html index.htm;
        }

        location ~ /regex.* {
               root html/regex;
               index  index.html index.htm;
        }

        location ~* /RgxIgnoreCase.* {
               root html/regexIgnoreCase;
               index  index.html index.htm;
        }

    }

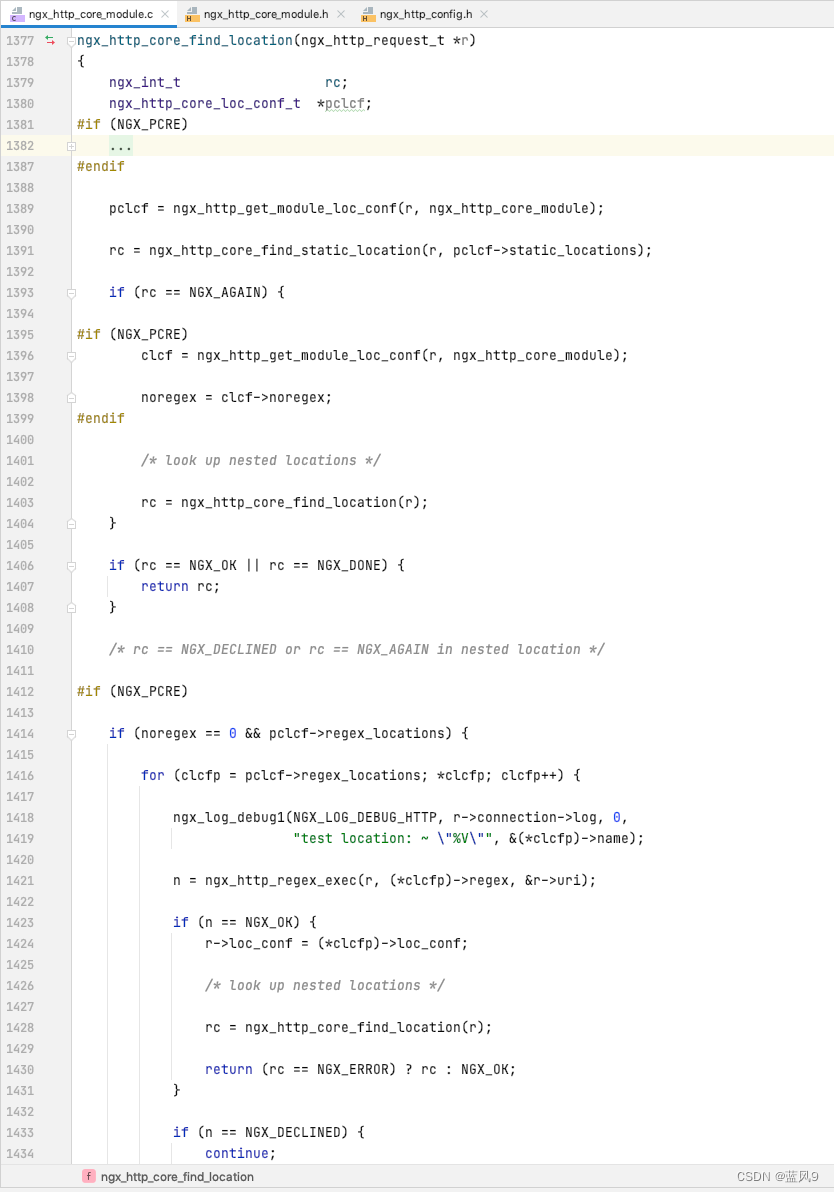

ngx_http_core_find_location

这个函数是 查询 location 的主要驱动

ngx_http_core_find_static_location 是查询前缀匹配相关的 locations

pclcf->regex_locations 是查询正则匹配相关的 locations

首先是查询 前缀匹配相关的 locations

如果是 匹配到 "location =", ngx_http_core_find_static_location 响应的是 NGX_OK, 这里直接响应 匹配到的结果, 速度最快

如果是 匹配到 "location ~^", ngx_http_core_find_static_location 响应的是 NGX_AGAIN | NGX_DECLINED, 但是它的 noregex 为 1, 因此 会跳过后面的 正则匹配相关

如果 匹配到  "location ", ngx_http_core_find_static_location 响应的是 NGX_AGAIN | NGX_DECLINED, 但是它的 noregex 为 0, 因此 如果接下来会尝试正则匹配, 如果匹配上使用 正则的结果, 如果匹配不上, 使用 "location " 匹配到的结果

如果 匹配到 "location ~", "location ~*", 那么走的是 下面的正则匹配相关, 结果为 正则匹配到的 loc_conf

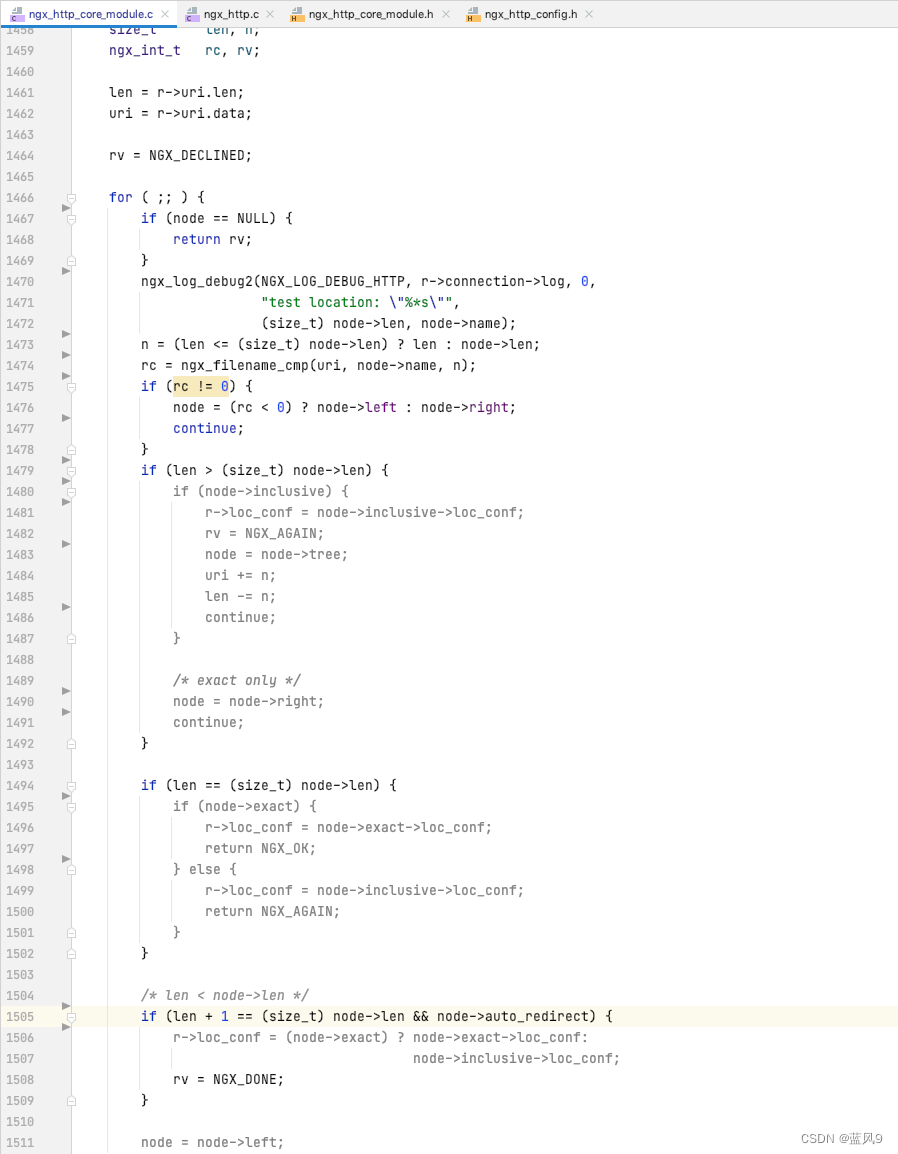

ngx_http_core_find_static_location 这里面就是根据当前 uri 和前缀树进行匹配

如果是 uri 和 node->name 不匹配, 则根据大小 向左或者向右 迭代 node 节点

否则 uri 是 node->name 的一部分, 或者 node->name 是 uri 的一部分, 或者 完全匹配

如果 node->name 是 uri 的一部分, 继续向右迭代, 保留当前记录作为 最长匹配

如果 node->name 和 uri 完全匹配, 如果存在精确匹配, 则返回 NGX_OK

        如果是 其他前缀匹配, 则记录当前记录作为最长匹配

如果 uri 是 node->name 的一部分, 继续向左迭代

        这里有一个 auto_redirect 的配置是使用于 uri 为 "/api", 然后存在 "location /api/", "location ^~ /api/" 的场景, 这里之所以没有校验配置的最后一位为 "/", 是一位配置 auto_redirect 的地方会进行校验

对应于这里前缀匹配有 "location /", "location = /50x.html", "location ^~ /api/", "location = /exactly.html", "location ^~ /exactly.html"

构造出来的匹配树如下

# pclcf->static_locations 的 pattern 树如下
/ -> null, "/api/", null
"/api/" -> "/50x.html", null, "/exactly.html"

(gdb) print pclcf->static_locations
$16 = (ngx_http_location_tree_node_t *) 0x7fa048023f10
(gdb) print pclcf->static_locations->name
$17 = "/"
(gdb) print pclcf->static_locations->left
$18 = (ngx_http_location_tree_node_t *) 0x0
(gdb) print pclcf->static_locations->tree
$19 = (ngx_http_location_tree_node_t *) 0x7fa048023f40
(gdb) print pclcf->static_locations->right
$20 = (ngx_http_location_tree_node_t *) 0x0

(gdb) print pclcf->static_locations->tree->name
$21 = "a"
(gdb) print pclcf->static_locations->tree->left
$22 = (ngx_http_location_tree_node_t *) 0x7fa048023f70
(gdb) print pclcf->static_locations->tree->tree
$23 = (ngx_http_location_tree_node_t *) 0x0
(gdb) print pclcf->static_locations->tree->right
$24 = (ngx_http_location_tree_node_t *) 0x7fa048023fa8

(gdb) print pclcf->static_locations->tree->left->name
$25 = "5"
(gdb) print pclcf->static_locations->tree->left->left
$26 = (ngx_http_location_tree_node_t *) 0x0
(gdb) print pclcf->static_locations->tree->left->tree
$27 = (ngx_http_location_tree_node_t *) 0x0
(gdb) print pclcf->static_locations->tree->left->right
$28 = (ngx_http_location_tree_node_t *) 0x0

(gdb) print pclcf->static_locations->tree->right->name
$29 = "e"
(gdb) print pclcf->static_locations->tree->right->left
$30 = (ngx_http_location_tree_node_t *) 0x0
(gdb) print pclcf->static_locations->tree->right->tree
$31 = (ngx_http_location_tree_node_t *) 0x0
(gdb) print pclcf->static_locations->tree->right->right
$32 = (ngx_http_location_tree_node_t *) 0x0




(gdb) print pclcf->static_locations->exactly->name
There is no member named exactly.
(gdb) print pclcf->static_locations->inclusive->name
$33 = {len = 1, data = 0x7fa04800f7fe "/"}
(gdb) print pclcf->static_locations->exact->name
Cannot access memory at address 0x0
(gdb) print pclcf->static_locations->tree->exact->name
Cannot access memory at address 0x0
(gdb) print pclcf->static_locations->tree->inclusive->name
$34 = {len = 5, data = 0x7fa048007a94 "/api/"}
(gdb) print pclcf->static_locations->tree->left->exact->name
$35 = {len = 9, data = 0x7fa048006653 "/50x.html"}
(gdb) print pclcf->static_locations->tree->left->inclusive->name
Cannot access memory at address 0x0
(gdb) print pclcf->static_locations->tree->right->exact->name
$36 = {len = 13, data = 0x7fa048008feb "/exactly.html"}
(gdb) print pclcf->static_locations->tree->right->inclusive->name
$37 = {len = 13, data = 0x7fa04801d8ec "/exactly.html"}

location = /exactly.html

Breakpoint 2, ngx_http_core_find_static_location (r=0x7fa049800050,
    node=0x7fa048023fa8) at src/http/ngx_http_core_module.c:1509
1509	            if (node->exact) {
(gdb) print node
$38 = (ngx_http_location_tree_node_t *) 0x7fa048023fa8
(gdb) print node->exact->name
$39 = {len = 13, data = 0x7fa048008feb "/exactly.html"}
(gdb) print r.uri
$40 = {len = 13, data = 0x7fa04b800004 "/exactly.html HTTP/1.1\r\nHost"}
(gdb) next
1510
(gdb) next
1511
(gdb) next
1530
(gdb) next
ngx_http_core_find_location (r=0x7fa049800050) at src/http/ngx_http_core_module.c:1393
1393	    if (rc == NGX_AGAIN) {
(gdb) next
1406	    if (rc == NGX_OK || rc == NGX_DONE) {
(gdb) next
1407	        return rc;
(gdb) bt
#0  ngx_http_core_find_location (r=0x7fa049800050)
    at src/http/ngx_http_core_module.c:1407
#1  0x0000000107d22f03 in ngx_http_core_find_config_phase (r=0x7fa049800050,
    ph=0x7fa048025258) at src/http/ngx_http_core_module.c:953
#2  0x0000000107d22d3e in ngx_http_core_run_phases (r=0x7fa049800050)
    at src/http/ngx_http_core_module.c:868
#3  0x0000000107d22cae in ngx_http_handler (r=0x7fa049800050)
    at src/http/ngx_http_core_module.c:851
#4  0x0000000107d31f36 in ngx_http_process_request (r=0x7fa049800050)
    at src/http/ngx_http_request.c:2060
#5  0x0000000107d3407a in ngx_http_process_request_headers (rev=0x107ee40d0)
    at src/http/ngx_http_request.c:1480
#6  0x0000000107d33415 in ngx_http_process_request_line (rev=0x107ee40d0)
    at src/http/ngx_http_request.c:1151
#7  0x0000000107d35979 in ngx_http_keepalive_handler (rev=0x107ee40d0)
    at src/http/ngx_http_request.c:3333
#8  0x0000000107d1cc10 in ngx_kqueue_process_events (cycle=0x7fa048800c50,
    timer=55093, flags=1) at src/event/modules/ngx_kqueue_module.c:669
#9  0x0000000107d0c9f6 in ngx_process_events_and_timers (cycle=0x7fa048800c50)
    at src/event/ngx_event.c:247
#10 0x0000000107d1aac5 in ngx_worker_process_cycle (cycle=0x7fa048800c50, data=0x0)
    at src/os/unix/ngx_process_cycle.c:750
#11 0x0000000107d17cfa in ngx_spawn_process (cycle=0x7fa048800c50,
    proc=0x107d1aa10 <ngx_worker_process_cycle>, data=0x0,
    name=0x107de2a1e "worker process", respawn=-3) at src/os/unix/ngx_process.c:199
#12 0x0000000107d19be7 in ngx_start_worker_processes (cycle=0x7fa048800c50, n=1,
    type=-3) at src/os/unix/ngx_process_cycle.c:359
#13 0x0000000107d19558 in ngx_master_process_cycle (cycle=0x7fa048800c50)
    at src/os/unix/ngx_process_cycle.c:131
#14 0x0000000107cd18ba in main (argc=3, argv=0x7ffee7f2f548) at src/core/nginx.c:382

location ^~ /api/

请注意下面 noregex 为 1, 不进行正则匹配

Breakpoint 3, ngx_http_core_find_static_location (r=0x7fa049804c50,
    node=0x7fa048023f10) at src/http/ngx_http_core_module.c:1464
(gdb) print r->uri
$47 = {len = 37,
  data = 0x7fa049800004 "/api/HelloWorld/listFormWithoutHeader HTTP/1.1\r\nHost"}
1464	    rv = NGX_DECLINED;
(gdb) next
1468	        if (node == NULL) {
(gdb) next
1476	        n = (len <= (size_t) node->len) ? len : node->len;
(gdb) print node->name
$44 = "/"
(gdb) next
1478	        rc = ngx_filename_cmp(uri, node->name, n);
(gdb) next
1480	        if (rc != 0) {
(gdb) next
1486	        if (len > (size_t) node->len) {
(gdb) next
1488	            if (node->inclusive) {
(gdb) next
1490	                r->loc_conf = node->inclusive->loc_conf;
(gdb) next
1491	                rv = NGX_AGAIN;
(gdb) next
1493	                node = node->tree;
(gdb) next
1494	                uri += n;
(gdb) next
1495	                len -= n;
(gdb) next
1497	                continue;
(gdb) next
1468	        if (node == NULL) {
(gdb) next
1476	        n = (len <= (size_t) node->len) ? len : node->len;
(gdb) print node->name
$45 = "a"
(gdb) next
1478	        rc = ngx_filename_cmp(uri, node->name, n);
(gdb) next
1480	        if (rc != 0) {
(gdb) next
1486	        if (len > (size_t) node->len) {
(gdb) next
1488	            if (node->inclusive) {
(gdb) next
1490	                r->loc_conf = node->inclusive->loc_conf;
(gdb) next
1491	                rv = NGX_AGAIN;
(gdb) next
1493	                node = node->tree;
(gdb) next
1494	                uri += n;
(gdb) next
1495	                len -= n;
(gdb) next
1497	                continue;
(gdb) next
1468	        if (node == NULL) {
(gdb) next
1469	            return rv;
(gdb) next
1530
(gdb) next
ngx_http_core_find_location (r=0x7fa049804c50) at src/http/ngx_http_core_module.c:1393
1393	    if (rc == NGX_AGAIN) {
(gdb) next
1396	        clcf = ngx_http_get_module_loc_conf(r, ngx_http_core_module);
(gdb) next
1398	        noregex = clcf->noregex;
(gdb) next
1403	        rc = ngx_http_core_find_location(r);
(gdb) print noregex
$46 = 1
(gdb) next

Breakpoint 3, ngx_http_core_find_static_location (r=0x7fa049804c50, node=0x0)
    at src/http/ngx_http_core_module.c:1464
1464	    rv = NGX_DECLINED;
(gdb) next
1468	        if (node == NULL) {
(gdb) next
1469	            return rv;
(gdb) next
1530
(gdb) next
ngx_http_core_find_location (r=0x7fa049804c50) at src/http/ngx_http_core_module.c:1393
1393	    if (rc == NGX_AGAIN) {
(gdb) next
1406	    if (rc == NGX_OK || rc == NGX_DONE) {
(gdb) next
1414	    if (noregex == 0 && pclcf->regex_locations) {
(gdb) next
1442	    return rc;
(gdb) bt
#0  ngx_http_core_find_location (r=0x7fa049804c50)
    at src/http/ngx_http_core_module.c:1442
#1  0x0000000107d23366 in ngx_http_core_find_location (r=0x7fa049804c50)
    at src/http/ngx_http_core_module.c:1403
#2  0x0000000107d22f03 in ngx_http_core_find_config_phase (r=0x7fa049804c50,
    ph=0x7fa048025258) at src/http/ngx_http_core_module.c:953
#3  0x0000000107d22d3e in ngx_http_core_run_phases (r=0x7fa049804c50)
    at src/http/ngx_http_core_module.c:868
#4  0x0000000107d22cae in ngx_http_handler (r=0x7fa049804c50)
    at src/http/ngx_http_core_module.c:851
#5  0x0000000107d31f36 in ngx_http_process_request (r=0x7fa049804c50)
    at src/http/ngx_http_request.c:2060
#6  0x0000000107d3407a in ngx_http_process_request_headers (rev=0x107ee40d0)
    at src/http/ngx_http_request.c:1480
#7  0x0000000107d33415 in ngx_http_process_request_line (rev=0x107ee40d0)
    at src/http/ngx_http_request.c:1151
#8  0x0000000107d3076d in ngx_http_wait_request_handler (rev=0x107ee40d0)
    at src/http/ngx_http_request.c:500
#9  0x0000000107d1cc10 in ngx_kqueue_process_events (cycle=0x7fa048800c50,
    timer=59999, flags=1) at src/event/modules/ngx_kqueue_module.c:669
#10 0x0000000107d0c9f6 in ngx_process_events_and_timers (cycle=0x7fa048800c50)
    at src/event/ngx_event.c:247
#11 0x0000000107d1aac5 in ngx_worker_process_cycle (cycle=0x7fa048800c50, data=0x0)
    at src/os/unix/ngx_process_cycle.c:750
#12 0x0000000107d17cfa in ngx_spawn_process (cycle=0x7fa048800c50,
    proc=0x107d1aa10 <ngx_worker_process_cycle>, data=0x0,
    name=0x107de2a1e "worker process", respawn=-3) at src/os/unix/ngx_process.c:199
#13 0x0000000107d19be7 in ngx_start_worker_processes (cycle=0x7fa048800c50, n=1,
    type=-3) at src/os/unix/ngx_process_cycle.c:359
#14 0x0000000107d19558 in ngx_master_process_cycle (cycle=0x7fa048800c50)
    at src/os/unix/ngx_process_cycle.c:131
#15 0x0000000107cd18ba in main (argc=3, argv=0x7ffee7f2f548) at src/core/nginx.c:382
(gdb)

location ~ /regex.*

没有 "location =" 或者 "location ^~" 的匹配, 查询正则匹配

Breakpoint 1, ngx_http_core_find_location (r=0x7fa04800f850)
    at src/http/ngx_http_core_module.c:1391
1391	    rc = ngx_http_core_find_static_location(r, pclcf->static_locations);
(gdb) next
1393	    if (rc == NGX_AGAIN) {
(gdb) next
1406	    if (rc == NGX_OK || rc == NGX_DONE) {
(gdb) next
1414	    if (noregex == 0 && pclcf->regex_locations) {
(gdb) next
1442	    return rc;
(gdb) next
1443	}
(gdb) next
1406	    if (rc == NGX_OK || rc == NGX_DONE) {
(gdb) next
1414	    if (noregex == 0 && pclcf->regex_locations) {
(gdb) next
1416	        for (clcfp = pclcf->regex_locations; *clcfp; clcfp++) {
(gdb) next
1421	            n = ngx_http_regex_exec(r, (*clcfp)->regex, &r->uri);
(gdb) print (*clcfp)->regex
$54 = (ngx_http_regex_t *) 0x7fa048020248
(gdb) print (*clcfp)->regex->pattern
There is no member named pattern.
(gdb) print (*clcfp)->regex->name
$55 = {len = 8, data = 0x7fa04801edcb "/regex.*"}
(gdb) next
1423	            if (n == NGX_OK) {
(gdb) next
1424	                r->loc_conf = (*clcfp)->loc_conf;
(gdb) next
1428	                rc = ngx_http_core_find_location(r);
(gdb) next

Breakpoint 1, ngx_http_core_find_location (r=0x7fa04800f850)
    at src/http/ngx_http_core_module.c:1391
1391	    rc = ngx_http_core_find_static_location(r, pclcf->static_locations);
(gdb) next
1393	    if (rc == NGX_AGAIN) {
(gdb) next
1406	    if (rc == NGX_OK || rc == NGX_DONE) {
(gdb) next
1414	    if (noregex == 0 && pclcf->regex_locations) {
(gdb) next
1442	    return rc;
(gdb) next
1443	}
(gdb) next
1430	                return (rc == NGX_ERROR) ? rc : NGX_OK;

location ~* /RgxIgnoreCase.*

没有 "location =" 或者 "location ^~" 的匹配, 查询正则匹配

Breakpoint 1, ngx_http_core_find_location (r=0x7fa04a004e50)
    at src/http/ngx_http_core_module.c:1391
1391	    rc = ngx_http_core_find_static_location(r, pclcf->static_locations);
(gdb) print r->uri
$56 = {len = 21, data = 0x7fa04a000004 "/rgxIGNORECASExx.html HTTP/1.1\r\nHost"}
(gdb) next
1393	    if (rc == NGX_AGAIN) {
(gdb) next
1396	        clcf = ngx_http_get_module_loc_conf(r, ngx_http_core_module);
(gdb) next
1398	        noregex = clcf->noregex;
(gdb) next
1403	        rc = ngx_http_core_find_location(r);
(gdb) next

Breakpoint 1, ngx_http_core_find_location (r=0x7fa04a004e50)
    at src/http/ngx_http_core_module.c:1391
1391	    rc = ngx_http_core_find_static_location(r, pclcf->static_locations);
(gdb) next
1393	    if (rc == NGX_AGAIN) {
(gdb) next
1406	    if (rc == NGX_OK || rc == NGX_DONE) {
(gdb) next
1414	    if (noregex == 0 && pclcf->regex_locations) {
(gdb) next
1442	    return rc;
(gdb) next
1443	}
(gdb) next
1406	    if (rc == NGX_OK || rc == NGX_DONE) {
(gdb) next
1414	    if (noregex == 0 && pclcf->regex_locations) {
(gdb) next
1416	        for (clcfp = pclcf->regex_locations; *clcfp; clcfp++) {
(gdb) next
1421	            n = ngx_http_regex_exec(r, (*clcfp)->regex, &r->uri);
(gdb) print (*clcfp)->regex->name
$57 = {len = 8, data = 0x7fa04801edcb "/regex.*"}
(gdb) next
1423	            if (n == NGX_OK) {
(gdb) next
1433	            if (n == NGX_DECLINED) {
(gdb) next
1434	                continue;
(gdb) next
1416	        for (clcfp = pclcf->regex_locations; *clcfp; clcfp++) {
(gdb) next
1421	            n = ngx_http_regex_exec(r, (*clcfp)->regex, &r->uri);
(gdb) print (*clcfp)->regex->name
$58 = {len = 16, data = 0x7fa048020334 "/RgxIgnoreCase.*"}
(gdb) next
1423	            if (n == NGX_OK) {
(gdb) next
1424	                r->loc_conf = (*clcfp)->loc_conf;
(gdb) next
1428	                rc = ngx_http_core_find_location(r);
(gdb) next

Breakpoint 1, ngx_http_core_find_location (r=0x7fa04a004e50)
    at src/http/ngx_http_core_module.c:1391
1391	    rc = ngx_http_core_find_static_location(r, pclcf->static_locations);
(gdb) next
1393	    if (rc == NGX_AGAIN) {
(gdb) next
1406	    if (rc == NGX_OK || rc == NGX_DONE) {
(gdb) next
1414	    if (noregex == 0 && pclcf->regex_locations) {
(gdb) next
1442	    return rc;
(gdb) next
1443	}
(gdb) next
1430	                return (rc == NGX_ERROR) ? rc : NGX_OK;

location /

找到 "location /" 的匹配, 然后尝试 查询正则匹配

然后 没有找到 合适的正则匹配

最终使用 "location /" 匹配

Breakpoint 1, ngx_http_core_find_location (r=0x7fa04b004e50)
    at src/http/ngx_http_core_module.c:1391
1391	    rc = ngx_http_core_find_static_location(r, pclcf->static_locations);
(gdb) print r->uri
$59 = {len = 11, data = 0x7fa04b000004 "/index.html HTTP/1.1\r\nHost"}
(gdb) enable 3
(gdb) c
Continuing.

Breakpoint 3, ngx_http_core_find_static_location (r=0x7fa04b004e50,
    node=0x7fa048023f10) at src/http/ngx_http_core_module.c:1464
1464	    rv = NGX_DECLINED;
(gdb) next
1468	        if (node == NULL) {
(gdb) next
1476	        n = (len <= (size_t) node->len) ? len : node->len;
(gdb) next
1478	        rc = ngx_filename_cmp(uri, node->name, n);
(gdb) next
1480	        if (rc != 0) {
(gdb) next
1486	        if (len > (size_t) node->len) {
(gdb) next
1488	            if (node->inclusive) {
(gdb) next
1490	                r->loc_conf = node->inclusive->loc_conf;
(gdb) next
1491	                rv = NGX_AGAIN;
(gdb) print node->name
$60 = "/"
(gdb) next
1493	                node = node->tree;
(gdb) next
1494	                uri += n;
(gdb) next
1495	                len -= n;
(gdb) next
1497	                continue;
(gdb) next
1468	        if (node == NULL) {
(gdb) next
1476	        n = (len <= (size_t) node->len) ? len : node->len;
(gdb) next
1478	        rc = ngx_filename_cmp(uri, node->name, n);
(gdb) print node->name
$61 = "a"
(gdb) next
1480	        if (rc != 0) {
(gdb) next
1481	            node = (rc < 0) ? node->left : node->right;
(gdb) next
1483	            continue;
(gdb) next
1468	        if (node == NULL) {
(gdb) next
1476	        n = (len <= (size_t) node->len) ? len : node->len;
(gdb) next
1478	        rc = ngx_filename_cmp(uri, node->name, n);
(gdb) print node->name
$62 = "e"
(gdb) next
1480	        if (rc != 0) {
(gdb) next
1481	            node = (rc < 0) ? node->left : node->right;
(gdb) next
1483	            continue;
(gdb) next
1468	        if (node == NULL) {
(gdb) next
1469	            return rv;
(gdb) next
1530
(gdb) next
ngx_http_core_find_location (r=0x7fa04b004e50) at src/http/ngx_http_core_module.c:1393
1393	    if (rc == NGX_AGAIN) {
(gdb) next
1396	        clcf = ngx_http_get_module_loc_conf(r, ngx_http_core_module);
(gdb) next
1398	        noregex = clcf->noregex;
(gdb) next
1403	        rc = ngx_http_core_find_location(r);
(gdb) next

Breakpoint 1, ngx_http_core_find_location (r=0x7fa04b004e50)
    at src/http/ngx_http_core_module.c:1391
1391	    rc = ngx_http_core_find_static_location(r, pclcf->static_locations);
(gdb) next

Breakpoint 3, ngx_http_core_find_static_location (r=0x7fa04b004e50, node=0x0)
    at src/http/ngx_http_core_module.c:1464
1464	    rv = NGX_DECLINED;
(gdb) next
1468	        if (node == NULL) {
(gdb) next
1469	            return rv;
(gdb) next
1530
(gdb) next
ngx_http_core_find_location (r=0x7fa04b004e50) at src/http/ngx_http_core_module.c:1393
1393	    if (rc == NGX_AGAIN) {
(gdb) next
1406	    if (rc == NGX_OK || rc == NGX_DONE) {
(gdb) next
1414	    if (noregex == 0 && pclcf->regex_locations) {
(gdb) print noregex
$63 = 0
(gdb) next
1442	    return rc;
(gdb) next
1443	}
(gdb) next
1406	    if (rc == NGX_OK || rc == NGX_DONE) {
(gdb) next
1414	    if (noregex == 0 && pclcf->regex_locations) {
(gdb) next
1416	        for (clcfp = pclcf->regex_locations; *clcfp; clcfp++) {
(gdb) next
1421	            n = ngx_http_regex_exec(r, (*clcfp)->regex, &r->uri);
(gdb) print (*clcfp)->regex->name
$64 = {len = 8, data = 0x7fa04801edcb "/regex.*"}
(gdb) next
1423	            if (n == NGX_OK) {
(gdb) next
1433	            if (n == NGX_DECLINED) {
(gdb) next
1434	                continue;
(gdb) next
1416	        for (clcfp = pclcf->regex_locations; *clcfp; clcfp++) {
(gdb) next
1421	            n = ngx_http_regex_exec(r, (*clcfp)->regex, &r->uri);
(gdb) (*clcfp)->regex
Undefined command: "".  Try "help".
(gdb) print (*clcfp)->regex->name
$65 = {len = 16, data = 0x7fa048020334 "/RgxIgnoreCase.*"}
(gdb) next
1423	            if (n == NGX_OK) {
(gdb) next
1433	            if (n == NGX_DECLINED) {
(gdb) next
1434	                continue;
(gdb) next
1416	        for (clcfp = pclcf->regex_locations; *clcfp; clcfp++) {
(gdb) next
1439	    }
(gdb) next
1442	    return rc;
(gdb) print ((ngx_http_core_loc_conf_t  *)r->loc_conf[0])->name
$66 = {len = 1, data = 0x7fa04800f7fe "/"}
(gdb) print rc
$67 = -5

完

Nginx的location优先级
三人行，必有我师焉。
07-30 679
1 匹配优先级如下① = 精确匹配② ^~ 优先匹配常规字符串，匹配后，不检查正则③ ~* 正则匹配 示例： ~*.(gif|jpg|jpeg)$④ / documents/ 匹配常规字符 documents 代表目录，可以是其他值⑤ / 所有location无法匹配，则显示该默认匹配以上可以都有，也可以都没有，如果都有，则按照以上优先级匹配。
Nginx配置之location的匹配优先级浅析
09-29
理解`location`的匹配优先级对于编写高效的Nginx配置至关重要，有助于确保请求被正确路由，并减少不必要的性能开销。在编写配置时，应结合业务需求和性能考虑，精心设计每个`location`指令，以实现最佳的请求处理...
nginx的location指令详解
NIEEPN的博客
03-12 793
nginx的location指令详解 Nginx 的 HTTP 配置主要包括三个区块，结构如下： http { # 这个是协议级别 　　include mime.types; 　　default_type application/octet-stream; 　　keepalive_timeout 65; 　　gzip on; 　　　　server {...
NGINX location 在配置中的优先级
下一个艺术家
02-17 795
location表达式类型 ~ 表示执行一个正则匹配，区分大小写 ~* 表示执行一个正则匹配，不区分大小写 ^~ 表示普通字符匹配。使用前缀匹配。如果匹配成功，则不再匹配其他location。 = 进行普通字符精确匹配。也就是完全匹配。 @ 它定义一个命名的 location，使用在内部定向时，例如 error_page, try_files location优先级说明 在nginx的location和配置中location的顺序没有太大关系。正location表达式的类型有关。相同类型的表达式，字符串长的
Nginx中location多条件匹配
最新发布
流浪的干尸的博客
03-05 2465
在 Nginx 中，location指令用于匹配请求的 URI，并根据匹配结果执行相应的逻辑。虽然location本身是基于单一匹配规则的，但可以通过多种方式实现多个条件的匹配逻辑。多个location块：适合简单的条件匹配，Nginx 会根据优先级选择最匹配的location。正则表达式：适合需要匹配多个路径的场景。map指令：适合动态选择后端服务器。if条件：可以实现复杂的逻辑，但性能较低，应谨慎使用。try_files：适合根据文件存在性选择不同的处理逻辑。include。
Nginx 配置 Location 规则优先级问题
weixin_33979203的博客
11-09 150
nginx 的 location与配置中 location 顺序没有关系，与 location 表达式的类型有关。相同类型的表达式，字符串长的会优先匹配。 以下是按优先级排列说明： 等号类型（=）的优先级最高。一旦匹配成功，则不再查找其他匹配项。 ^~类型表达式。一旦匹配成功，则不再查找其他匹配项。 正则表达式类型（~ ~*）的优先级次之。如果有多个location的正则能匹配的话，则使用正...
nginx location优先级
wyl9527的博客
05-07 278
目录 1 nginx location语法规则 2 规则优先级 3 规则示例 4 优先级演示示例 1 nginx location语法规则 语法规则：location [=|~|~*|^~] /uri/ { … } nginx的location匹配的变量是$uri 符号 说明 = 表示精确匹配 ^~ 表示uri以指定字符或字符串开头 ~* ...
nginx配置
qq_23729609的博客
12-20 614
网上看到的，记录下： location = / { # 精确匹配 / ，主机名后面不能带任何字符串 [ configuration A ] } location / { # 因为所有的地址都以 / 开头，所以这条规则将匹配到所有请求 # 但是正则和最长字符串会优先匹配 [ configuration B ] } location /documents/ { ...
Nginx配置指令location匹配符优先级和安全问题
09-30
在配置Nginx时，`location`指令是核心部分，用于处理不同URI的请求。理解`location`匹配符的优先级和正确配置对于优化服务器性能和确保安全性至关重要。 **一、location匹配符** 1. **等于匹配符：=`** - 精确...
NGINX location 在配置中的优先级.docx
10-29
NGINX 中的 location 表达式可以分为以下几种类型： * `=`：精确匹配，字符串完全匹配。 * `~`：正则匹配，区分大小写。 * `~*`：正则匹配，不区分大小写。 * `^~`：普通字符匹配，使用前缀匹配。如果匹配成功，则...
nginx中location的优先级
我是Longer的博客
11-09 3251
nginx
nginx中location的优先级别
yxf2009的博客
03-10 6931
nginx中location的优先级别
nginx location在配置中的优先级
weixin_30408675的博客
06-12 119
location表达式类型 ~ 表示执行一个正则匹配，区分大小写~* 表示执行一个正则匹配，不区分大小写^~ 表示普通字符匹配。使用前缀匹配。如果匹配成功，则不再匹配其他location。= 进行普通字符精确匹配。也就是完全匹配。@ “@” 定义一个命名的 location，使用在内部定向时，例如 error_page, try_files location优先级说明 在nginx的loca...
NGINX 之 location 匹配优先级
m0_74825488的博客
11-23 1594
与~* 的区别 ~ 匹配内容区分大小写 ~* 匹配内容不区分的小写!~ 取反^~ 但多个匹配同时存在，优先匹配 ^~匹配的内容;不做正则表达式的检查 （优先处理）location 指令的作用是根据用户请求的URI来执行不同的应用。不同uri及特殊字符组合匹配的顺序说明2 location 匹配优先级2.1 URI匹配的规则与顺序顺序不用URI及特殊字符组合匹配匹配说明1精确匹配 /2匹配常规字符串，不做正则表达式匹配检查3正则匹配区分大小写与不区分大小写4。
Nginx配置 - Location 优先级
LeoForBest的博客
04-03 524
文章目录Nginx Location 优先级测试环境总结1.`=`号前缀（精确匹配)2.`^~`号前缀3.`~`, `~*`号前缀3. 无前缀 Nginx Location 优先级 测试环境 Nginx 1.10.3 (nginx version: nginx/1.10.3 (Ubuntu)) Ubuntu 16.04.4 LTS x64 （ip：192.168.241.132） Chrome ...
nginx location优先级详解
sliang733的博客
05-10 1353
nginx中location有几种： 1.前缀，可以有=或^~修饰，比如 location  /       /开头的 location /img/     /img/开头的 location = /a.htm      刚好/a.htm location ^~ /d    匹配后不再检查正则表达式location 2.正则表达式，固定~或~*(不区分大小写)开头，比如： l
nginx中的location匹配的优先级
02-08
### Nginx Location 匹配优先级规则解释 #### 精确匹配 `=` 优先级最高 当使用 `=` 进行精确路径匹配时，此类型的匹配具有最高的优先级。一旦找到完全一致的 URI 路径，Nginx 将立即停止查找其他匹配项并应用相应的配置[^1]。 ```nginx location = /exact/path { # 配置内容 } ``` #### 前缀匹配 `^~` 排名第二 带有 `^~` 的前缀匹配次之，在处理过程中只要发现以指定字符串开头的 URL 请求就会触发该规则，即使后面还有更具体的正则表达式也不会再继续尝试匹配[^2]。 ```nginx location ^~ /prefix/path/ { # 配置内容 } ``` #### 正则表达式匹配 `~`, `~*` 居第三位 对于标记为 `~`(区分大小写) 或者 `~*`(不区分大小写) 的正则模式来说，这些位于常规前缀之后但在默认 `/` 之前被评估。值得注意的是如果有超过一条正则定义能够适用同一个请求的话，那么最先出现在配置文件里的那条会被采纳[^4]。 ```nginx location ~ /regex/path/(.*)$ { # 配置内容 } location ~* \.(jpg|jpeg)$ { # 图片扩展名不分大小写的匹配 } ``` #### 默认情况下的根目录 `/` 最后才是最宽泛的形式——单斜杠 `/` 表示它可以适用于所有的 HTTP 请求作为兜底选项；只有在没有任何特定条件满足的情况下才会启用它来响应客户端的要求[^3]。 ```nginx location / { # 所有未命中前面规则的情况都会到这里 } ```
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
