BIOS实战之读取文件--BMP图片显示

本节直接贴主要的代码：

#include "DisplayBmpTest.h"

EFI_STATUS
EFIAPI
ShellAppMain (
  IN UINTN Argc,
  IN CHAR16 **Argv
  )
{
  EFI_STATUS                       Status;
  EFI_GRAPHICS_OUTPUT_PROTOCOL     *GraphicsOutput = NULL;
  UINT8                            *DataBuffer;
  UINTN                           DataSize;
  EFI_GRAPHICS_OUTPUT_BLT_PIXEL    *Blt = NULL;
  UINTN                            BltSize;
  UINTN                            Height;
  UINTN                            Width;

  Status = gBS->LocateProtocol (
                  &gEfiGraphicsOutputProtocolGuid,
                  NULL,
                  (VOID **)&GraphicsOutput
                  );
  if (EFI_ERROR (Status)) {
    GraphicsOutput = NULL;
    Print (L"locate protocol gEfiGraphicsOutputProtocolGuid is error!\n");
    return Status;
  }

 Status = ReadFile (Argv[1], &DataBuffer, &DataSize);
  if (EFI_ERROR (Status)) {
    Print (L"Read bmp file to buffer is error!\n");
    return Status;
  }

  Status = TranslateBmpToGopBlt (
             (VOID *)DataBuffer,
             DataSize,
             &Blt,
             &BltSize,
             &Height,
             &Width
             );
  if (EFI_ERROR (Status)) {
    if (Blt != NULL) {
      FreePool (Blt);
    }
    Print (L"TranslateBmpToGopBlt is error!\n");
    return Status;
  }

  Status = GraphicsOutput->Blt (
                             GraphicsOutput,
                             Blt,
                             EfiBltBufferToVideo,
                             0,
                             0,
                             0x0,
                             0x0,
                             Width,
                             Height,
                             Width * sizeof (EFI_GRAPHICS_OUTPUT_BLT_PIXEL)
                             );
  if (EFI_ERROR (Status)) {
    Print (L"GraphicsOutput Blt is error!\n");
    return Status;
  }
  if (Blt != NULL)
    FreePool (Blt);

  Status = gST->ConOut->EnableCursor(gST->ConOut,TRUE);

  return Status;
}

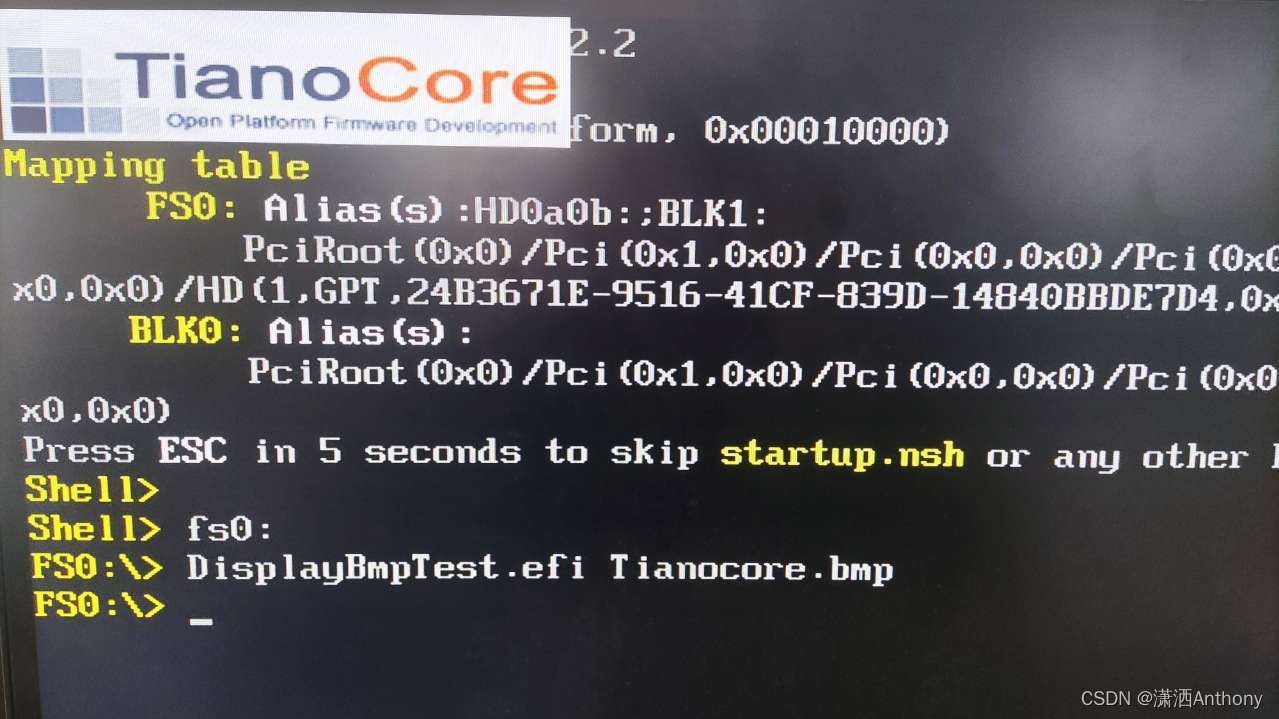

运行后，我们就能读取自己想要显示的图片，并进行显示：

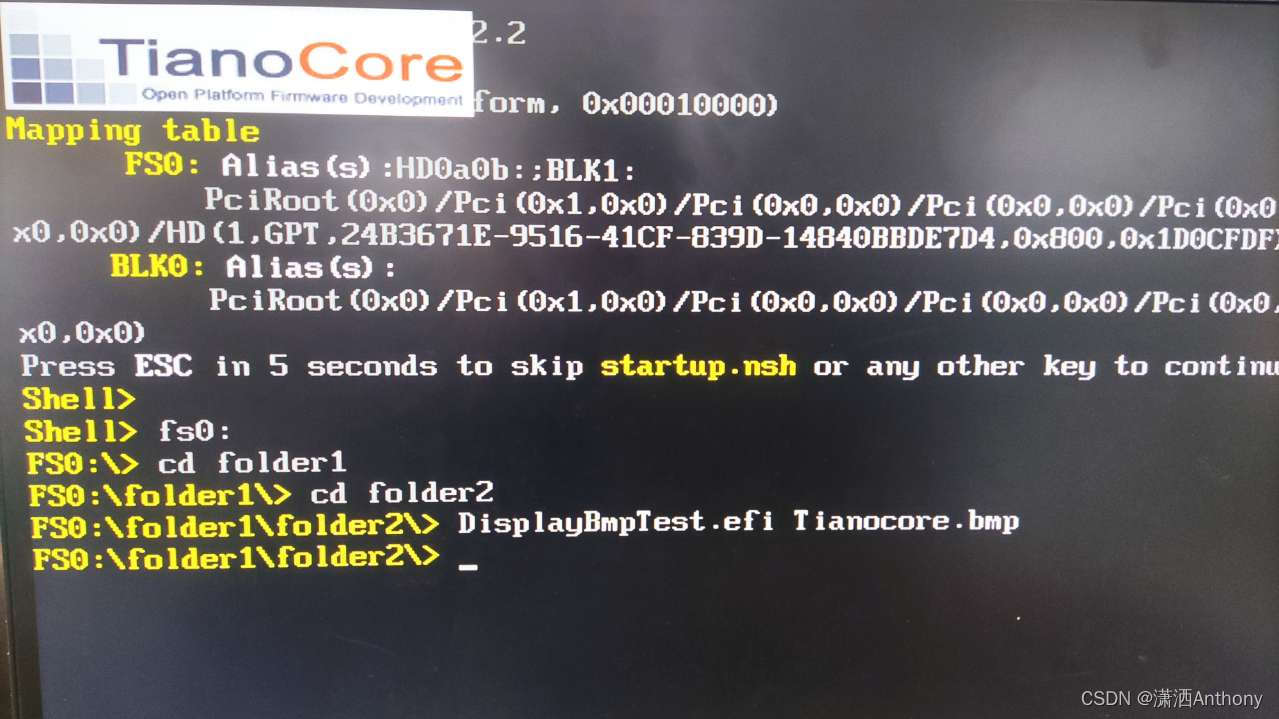

 这里存放了两个位置，一个根目录，一个自己创建的目录，都能正常显示，进行BIOS更新也是同样的道理，读取文件后，进行SPI FLASH的擦写，擦写要注意一点，最小擦写为4k，也就是0x1000。
