GPU架构近些年也有不少的变化，具体的可以参考别的博主的介绍，都比较详细。还有一些cuda中的专有名词的含义，可以参考《详解CUDA的Context、Stream、Warp、SM、SP、Kernel、Block、Grid》
常见的NppStatus，可以看这里。
如有问题，请指出，谢谢
本节内容主要涉及到使用NPP进行一些图像色域变换等，类似功能的就不细说，仅针对一些常见的。由于Debayer，不同yuv之间的转换（Color Sampling Format Conversion），Gamma校正，Complement Color Key（一直不清楚这个啥）以及Color Processing（调色相关）的接触不对，后面就不介绍了，按需。
Color Model Conversion
当前模块主要涉及到的RGB，BGR，YUV，YUV420，YUV422，NV12，YCbCr，YCbCr422和YCbCr420之间的相互转换，以及批处理（分为同样ROI和不同ROI两个接口）的接口。其他还有一些未接触过的XYZ，LUV，Lab，YCC，CMYK_JPEG，HLS，HSV等与RGB或者BGR之间的转换。
本文就那比较简单的转换，以为RGB和YUV之间的相互转换为例子。
// 此处介绍的RGB和YUV都是三通道的，如果是packed的相互转换，则后缀是C3R，如果都是planar的，则后缀是P3R，反之则是P3C3R或者C3P3R。
// =========== RGB2YUV原理 ===========
// Npp32f nY = 0.299F * R + 0.587F * G + 0.114F * B;
// Npp32f nU = (0.492F * ((Npp32f)nB - nY)) + 128.0F;
// Npp32f nV = (0.877F * ((Npp32f)nR - nY)) + 128.0F;
// if (nV > 255.0F)
// nV = 255.0F;
NppStatus nppiRGBToYUV_8u_C3R(const Npp8u *pSrc,
int nSrcStep,
Npp8u *pDst,
int nDstStep,
NppiSize oSizeROI);
// =========== RGB2YUV原理 ===========
// Npp32f nY = (Npp32f)Y;
// Npp32f nU = (Npp32f)U - 128.0F;
// Npp32f nV = (Npp32f)V - 128.0F;
// Npp32f nR = nY + 1.140F * nV;
// if (nR < 0.0F) nR = 0.0F;
// if (nR > 255.0F) nR = 255.0F;
// Npp32f nG = nY - 0.394F * nU - 0.581F * nV;
// if (nG < 0.0F) nG = 0.0F;
// if (nG > 255.0F) nG = 255.0F;
// Npp32f nB = nY + 2.032F * nU;
// if (nB < 0.0F) nB = 0.0F;
// if (nB > 255.0F) nB = 255.0F;
NppStatus nppiYUVToRGB_8u_C3R(const Npp8u *pSrc,
int nSrcStep,
Npp8u *pDst,
int nDstStep,
NppiSize oSizeROI);
code
#include <iostream>
#include <cuda_runtime.h>
#include <npp.h>
#include <opencv2/opencv.hpp>
#define CUDA_FREE(ptr) { if (ptr != nullptr) { cudaFree(ptr); ptr = nullptr; } }
int main() {
std::string directory = "../";
// =============== load image ===============
cv::Mat image_dog = cv::imread(directory + "dog.png");
int image_width = image_dog.cols;
int image_height = image_dog.rows;
int image_size = image_width * image_height * 3;
// =============== device memory ===============
uint8_t *in_ptr, *yuv, *out_ptr;
cudaMalloc((void**)&in_ptr, image_size * sizeof(uint8_t));
cudaMalloc((void**)&yuv, image_size * sizeof(uint8_t));
cudaMalloc((void**)&out_ptr, image_size * sizeof(uint8_t));
cudaMemcpy(in_ptr, image_dog.data, image_size, cudaMemcpyHostToDevice);
NppiSize roi1, roi2;
roi1.width = image_width;
roi1.height = image_height;
roi2.width = image_width / 2;
roi2.height = image_height / 2;
// =============== nppiRGBToYUV_8u_C3R ===============
uint8_t *host_yuv = (uint8_t *)malloc(image_size);
NppStatus status;
status = nppiRGBToYUV_8u_C3R(in_ptr, image_width * 3, yuv, image_width * 3, roi1);
if (status != NPP_SUCCESS) {
std::cout << "[GPU] ERROR nppiRGBToYUV_8u_C3R failed, status = " << status << std::endl;
return false;
}
cudaMemcpy(host_yuv, yuv, image_size, cudaMemcpyDeviceToHost);
std::string out_yuv_file = directory + "yuv.bin";
FILE *fp = fopen(out_yuv_file.c_str(), "wb");
fwrite(host_yuv, image_size, 1, fp);
fclose(fp);
// =============== nppiYUVToRGB_8u_C3R ===============
cv::Mat out_image = cv::Mat::zeros(image_height, image_width, CV_8UC3);
status = nppiYUVToRGB_8u_C3R(yuv, image_width * 3, out_ptr, image_width * 3, roi2);
if (status != NPP_SUCCESS) {
std::cout << "[GPU] ERROR nppiYUVToRGB_8u_C3R failed, status = " << status << std::endl;
return false;
}
cudaMemcpy(out_image.data, out_ptr, image_size, cudaMemcpyDeviceToHost);
cv::imwrite(directory + "out_rgb.jpg", out_image);
// free
CUDA_FREE(in_ptr)
CUDA_FREE(yuv)
CUDA_FREE(out_ptr)
if (host_yuv != nullptr) { free(host_yuv); host_yuv = nullptr; }
}
make
cmake_minimum_required(VERSION 3.20)
project(test)
find_package(OpenCV REQUIRED)
include_directories(${OpenCV_INCLUDE_DIRS})
find_package(CUDA REQUIRED)
include_directories(${CUDA_INCLUDE_DIRS})
file(GLOB CUDA_LIBS "/usr/local/cuda/lib64/*.so")
add_executable(test test.cpp)
target_link_libraries(test
${OpenCV_LIBS}
${CUDA_LIBS}
)
result
yuv的结果，使用7yuv工具查看

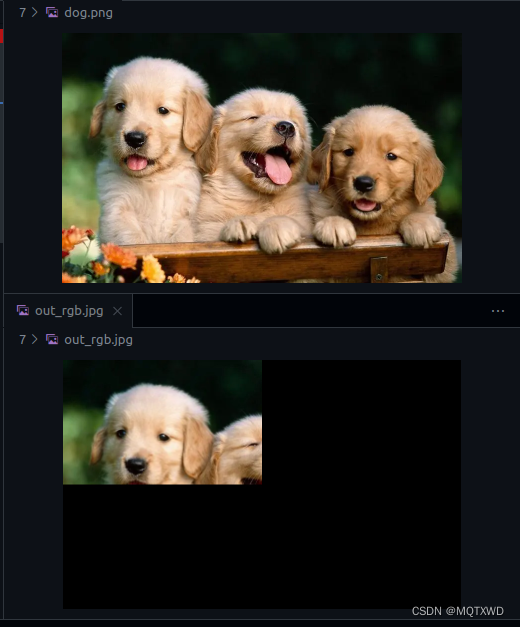

使用转换之后的yuv，再转回RGB，在限定ROI之后的结果:
注意点：
- 可以使用7yuv进行yuv图像的查看，7yuv，下载对应的版本即可，可以体验。
- 还有一个接口是基于JPEG的，主要介绍的是JPEG的Color Conversion，由于平时接触较少，这里暂时不介绍了，按需取《JPEG Color Conversion》.
ColorToGray Conversion
当前模块也主要分为三个大方向：RGBToGray，ColorToGray和GradientColorToGray。三个大方向都只选取一个比较常见的进行介绍：
// nGray = 0.299F * R + 0.587F * G + 0.114F * B;
NppStatus nppiRGBToGray_8u_C3C1R(const Npp8u *pSrc,
int nSrcStep,
Npp8u *pDst,
int nDstStep,
NppiSize oSizeROI);
// nGray = aCoeffs[0] * R + aCoeffs[1] * G + aCoeffs[2] * B;
NppStatus nppiColorToGray_8u_C3C1R(const Npp8u *pSrc,
int nSrcStep,
Npp8u *pDst,
int nDstStep,
NppiSize oSizeROI,
const Npp32f aCoeffs[3]);
// NppiNorm { max(inf) / sum(L1) / square root of sum of squares(L2) }
NppStatus nppiGradientColorToGray_8u_C3C1R(const Npp8u *pSrc,
int nSrcStep,
Npp8u *pDst,
int nDstStep,
NppiSize oSizeROI,
NppiNorm eNorm);
code
#include <iostream>
#include <cuda_runtime.h>
#include <npp.h>
#include <opencv2/opencv.hpp>
#define CUDA_FREE(ptr) { if (ptr != nullptr) { cudaFree(ptr); ptr = nullptr; } }
int main() {
std::string directory = "../";
// =============== load image ===============
cv::Mat image_dog = cv::imread(directory + "dog.png");
cv::cvtColor(image_dog, image_dog, CV_RGB2BGR);
int image_width = image_dog.cols;
int image_height = image_dog.rows;
int image_size = image_width * image_height;
// =============== device memory ===============
uint8_t *in_ptr;
cudaMalloc((void**)&in_ptr, image_size * 3 * sizeof(uint8_t));
cudaMemcpy(in_ptr, image_dog.data, image_size * 3 * sizeof(uint8_t), cudaMemcpyHostToDevice);
uint8_t *out_ptr1, *out_ptr2, *out_ptr3;
cudaMalloc((void**)&out_ptr1, image_size * sizeof(uint8_t));
cudaMalloc((void**)&out_ptr2, image_size * sizeof(uint8_t));
cudaMalloc((void**)&out_ptr3, image_size * sizeof(uint8_t));
NppiSize roi1, roi2;
roi1.width = image_width;
roi1.height = image_height;
roi2.width = image_width / 2;
roi2.height = image_height / 2;
// =============== nppiRGBToGray_8u_C3C1R ===============
cv::Mat out_image_gray = cv::Mat::zeros(image_height, image_width, CV_8UC1);
NppStatus status;
status = nppiRGBToGray_8u_C3C1R(in_ptr, image_width * 3, out_ptr1, image_width, roi1);
if (status != NPP_SUCCESS) {
std::cout << "[GPU] ERROR nppiRGBToGray_8u_C3C1R failed, status = " << status << std::endl;
return false;
}
cudaMemcpy(out_image_gray.data, out_ptr1, image_size, cudaMemcpyDeviceToHost);
cv::imwrite(directory + "rgb2gray.jpg", out_image_gray);
// =============== nppiColorToGray_8u_C3C1R ===============
float coeffs[3] = { 0.1f, 0.8f, 0.1f};
status = nppiColorToGray_8u_C3C1R(in_ptr, image_width * 3, out_ptr2, image_width, roi1, coeffs);
if (status != NPP_SUCCESS) {
std::cout << "[GPU] ERROR nppiColorToGray_8u_C3C1R failed, status = " << status << std::endl;
return false;
}
cudaMemcpy(out_image_gray.data, out_ptr2, image_size, cudaMemcpyDeviceToHost);
cv::imwrite(directory + "color2rgb.jpg", out_image_gray);
// =============== nppiGradientColorToGray_8u_C3C1R_Ctx ===============
status = nppiGradientColorToGray_8u_C3C1R(in_ptr, image_width * 3, out_ptr3, image_width, roi1, nppiNormInf);
if (status != NPP_SUCCESS) {
std::cout << "[GPU] ERROR nppiGradientColorToGray_8u_C3C1R failed, status = " << status << std::endl;
return false;
}
cudaMemcpy(out_image_gray.data, out_ptr3, image_size, cudaMemcpyDeviceToHost);
cv::imwrite(directory + "gradient.jpg", out_image_gray);
// free
CUDA_FREE(in_ptr)
CUDA_FREE(out_ptr1)
CUDA_FREE(out_ptr2)
CUDA_FREE(out_ptr3)
}
make
cmake_minimum_required(VERSION 3.20)
project(test)
find_package(OpenCV REQUIRED)
include_directories(${OpenCV_INCLUDE_DIRS})
find_package(CUDA REQUIRED)
include_directories(${CUDA_INCLUDE_DIRS})
file(GLOB CUDA_LIBS "/usr/local/cuda/lib64/*.so")
add_executable(test test.cpp)
target_link_libraries(test
${OpenCV_LIBS}
${CUDA_LIBS}
)

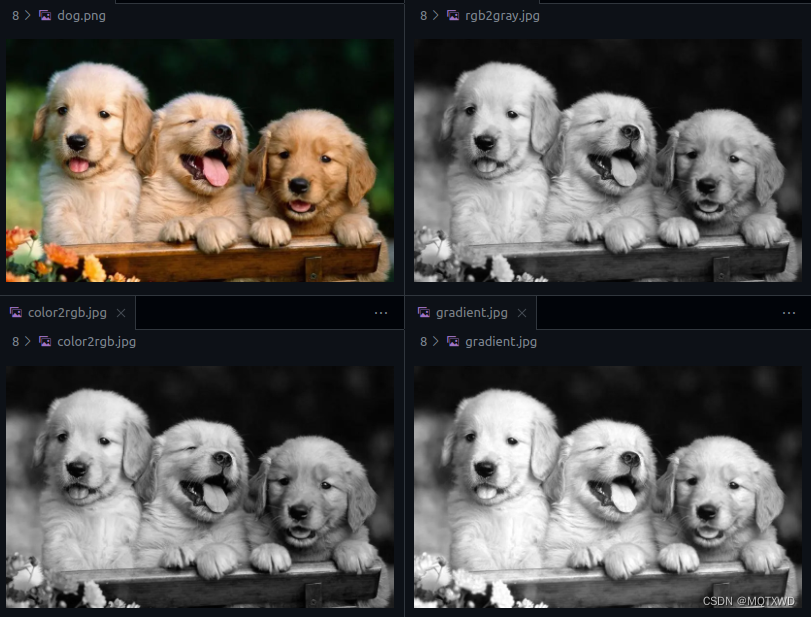

result
注意点：
- Color2Gray的接口与RGB2Gray的区别主要在于三个通道是不是比例关系。由于都是灰度图的，ColorGray的变化与直接rgb的转换结果差异性不易从肉眼看出来，但是通过不同的比例组合明显看出图像是有区别的。
