采用Web Serial Api 实现串口通讯
业务需求要和物流秤进行数据对接,实现数据可以定制化显示,和后台系统互通,Web Serial Api目前只适用于谷歌、火狐等。后端语言均可以实现。
什么是网络串行 API?
串行端口是一种双向通信接口,允许逐字节发送和接收数据。
Web Serial API 为网站提供了一种使用 JavaScript 读取和写入串行设备的方法。串行设备通过用户系统上的串行端口或通过模拟串行端口的可移动 USB 和蓝牙设备连接。
换句话说,Web Serial API 通过允许网站与串行设备(例如微控制器和 3D 打印机)进行通信,从而在 Web 和物理世界之间架起了一座桥梁。
此 API 也是WebUSB的绝佳伴侣,因为操作系统要求应用程序使用其高级串行 API 而不是低级 USB API 与某些串行端口进行通信。
Html部分
<html>
<head>
<title>
测试串口
</title>
</head>
<body>
<form id="myForm">
<table cellspacing="5" cellpadding="10">
<tr>
<td>波特率</td>
<td>
<select name="baudRate">
<option value="300">300</option>
<option value="600">600</option>
<option value="1200">1200</option>
<option value="2400">2400</option>
<option value="4800">4800</option>
<option value="9600" selected>9600</option>
<option value="19200">19200</option>
<option value="38400">38400</option>
<option value="57600">57600</option>
<option value="115200">115200</option>
</select>
</td>
</tr>
<tr>
<td>数据位</td>
<td>
<select name="dataBits">
<option value="5">5</option>
<option value="6">6</option>
<option value="7">7</option>
<option value="8" selected="">8</option>
</select>
</td>
</tr>
<tr>
<td>校验位</td>
<td>
<select name="parity">
<option value="none" selected="">None</option>
<option value="odd">Odd</option>
<option value="even">Even</option>
</select>
</td>
</tr>
<tr>
<td>停止位</td>
<td>
<select name="stopBits" lay-filter="stopBits">
<option value="1" selected="">1</option>
<option value="2">2</option>
</select>
</td>
</tr>
<tr>
<td>接收信息区域</td>
<td>
<textarea rows="6" cols="90" name="getMessageArea"></textarea>
</td>
</tr>
</table>
</form>
<div>

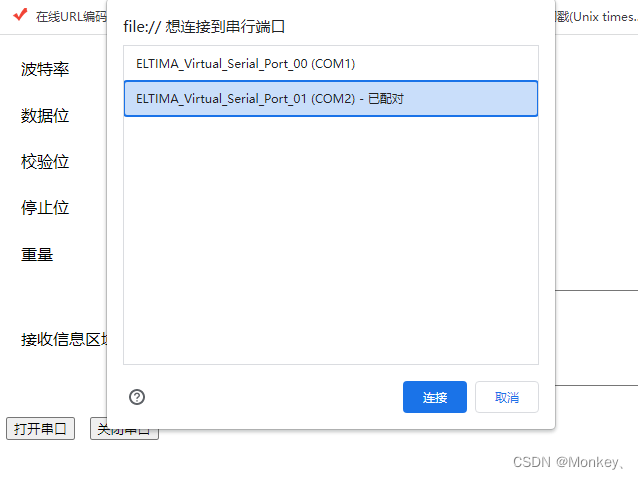

<button id="connect">打开串口</button>
<button id="close">关闭串口</button>
</div>
</body>
<script type="application/javascript" src="jquery-3-3-1.min.js"></script>
<script type="application/javascript" src="lineBreakTransformer.js"></script>
<script type="application/javascript" src="serial-reader.js"></script>
<script>
let serialReader = new SerialReader();
//初始化扫码机
const initSweep = async () => {
try {
var baudRate = $("#myForm").find("select[name='baudRate']").val();
var parity = $("#myForm").find("select[name='parity']").val();
var dataBits = $("#myForm").find("select[name='dataBits']").val();
var stopBits = $("#myForm").find("select[name='stopBits']").val();
await serialReader.initSweepPrinter(baudRate, dataBits, stopBits, parity);
} catch (e) {
console.error('扫码机读取失败', e);
}
}
//连接串口
$('#connect').click(function () {
initSweep();
});
//断开
$('#close').click(function () {
serialReader.disconnect().then(() => {
console.log('断开成功!');
});
});
</script>
</html>
serial-reader.js(封装成一个类)
class SerialReader {
port;//串口
reader;//读取
inputDone;
constructor() {
if (!("serial" in navigator)) {
alert('当前浏览器不支持串口');
return;
}
this.filtersSweep = [
{ usbVendorId: 0x2341, usbProductId: 0x0043 },//指定显示的设备ID,好像只有USB接口才有
];//串口识别码-扫码机
}
//初始化
initSweepPrinter = async (baudRate, dataBits, stopBits, parity) => {
let requestOptions = {filters: this.filtersSweep};
this.port = await navigator.serial.requestPort(requestOptions);
await this.port.open({
baudRate: baudRate,// 一个正的、非零的值,表示串口通信应该建立的波特率
dataBits: dataBits,// 7或8的整数值,表示每帧的数据位数。默认值为8
stopBits: stopBits,// 1或2的整数值,表示帧结束时的停止位数。默认值为1。
parity: parity,// 奇偶校验模式为“none”、“偶”或“奇”。默认值为none。
bufferSize: 255, // 一个无符号长整数,指示要建立的读和写缓冲区的大小。如果未通过,默认值为255。
flowControl: 'none', // 流控制类型,“none”或“hardware”。默认值为none。
});
const decoder = new TextDecoderStream();
this.inputDone = this.port.readable.pipeTo(decoder.writable);
// this.reader = decoder.readable.pipeThrough(new TransformStream(new LineBreakTransformer())).getReader();//USB好像需要特殊处理,没有测试过
this.reader = decoder.readable.getReader();//显示器接头直接返回数据
console.log('连接成功');
return new Promise(async (resolve, reject) => {
while (true) {
const {value, done} = await this.reader.read();
if (value) {
$('#myForm').find("textarea[name='getMessageArea']").append(value)
console.log('扫码机数据 = ', value);
resolve(value);
}
if (done) {
this.reader.releaseLock();
break;
}
}
})
}
//断开
disconnect = async () => {
return new Promise(async (resolve, reject) => {
if (this.reader && this.port && this.inputDone) {
await this.reader.cancel();
await this.inputDone.catch(() => { });
this.reader = null;
this.inputDone = null;
await this.port.close();
this.port = null;
resolve();
}
})
}
}
LineBreakTransformer.js(好像只有USB接口设备需要这样处理)
// 将原本可能截断成多个字符串的内容按顺序合并一个字符串
class LineBreakTransformer {
constructor() {
// 保存流数据直到新行出现的容器
this.container = "";
}
transform(chunk, controller) {
// 将新块追加到现有块。
this.container += chunk;
// 对于每一行分段,将解析后的行发送出去。
const lines = this.container.split("\r");
this.container = lines.pop();
lines.forEach((line) => controller.enqueue(line));
}
flush(controller) {
// 当流关闭时,清除所有剩余的块。
controller.enqueue(this.container);
}
}
