Rocketmq踩坑之消息无法发送原因之磁盘占满

最近在使用rocketmq时遇到一个问题，测试同学说通知收不到了

通过查看程序日志发现

service not available now. It may be caused by one of the following reasons:the broker's disk is full

表示磁盘满了消息存储器已经停止
赶紧用df命令查看磁盘占用情况，发现已用%指标还没有达到百分之百呀，怎么会提示磁盘占满了呢？

看下rocketmq的源码

发现在SendMessageProcessor类中handlePutMessageResult方法中有如下代码

...
 case SERVICE_NOT_AVAILABLE:
                response.setCode(ResponseCode.SERVICE_NOT_AVAILABLE);
                response.setRemark(
                    "service not available now. It may be caused by one of the following reasons: " +
                        "the broker's disk is full [" + diskUtil() + "], messages are put to the slave, message store has been shut down, etc.");
                break;
...

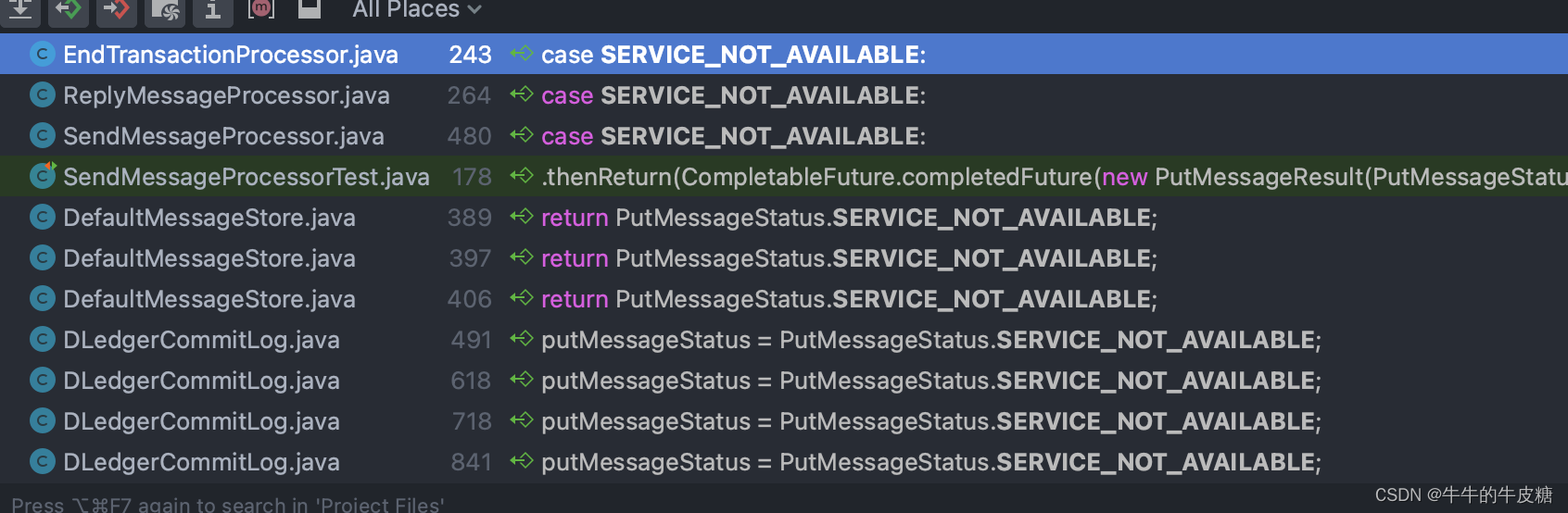

继续找是什么导致出现SERVICE_NOT_AVAILABLE 的原因
找到了

在org.apache.rocketmq.store.DefaultMessageStore#checkStoreStatus方法里会有三种原因返回PutMessageStatus.SERVICE_NOT_AVAILABLE

1. 当消息存储器DefaultMessageStore已经shutdown时

2. 当消息存储器配置的broker角色为SLAVE时

3. 当his.runningFlags.isWriteable()不可写时

明显我们的问题应该是第三种情况，那么什么时候his.runningFlags.isWriteable()返回false呢，继续深入源码看看，找到如下代码

 if ((this.flagBits & (NOT_WRITEABLE_BIT | WRITE_LOGICS_QUEUE_ERROR_BIT | DISK_FULL_BIT | WRITE_INDEX_FILE_ERROR_BIT)) == 0) {
     return true;
 }

 return false;

这是我们发现一个关键的变量DISK_FULL_BIT和报错日志很有关联呀，继续找，找到如下代码

public boolean getAndMakeDiskFull() {
     boolean result = !((this.flagBits & DISK_FULL_BIT) == DISK_FULL_BIT);
     this.flagBits |= DISK_FULL_BIT;
     return result;
 }

 public boolean getAndMakeDiskOK() {
     boolean result = !((this.flagBits & DISK_FULL_BIT) == DISK_FULL_BIT);
     this.flagBits &= ~DISK_FULL_BIT;
     return result;
 }

哇、找到了两个方法，根据字面意思，相信我们能够知道应该继续看哪个，当然是getAndMakeDiskFull方法啦 哈哈

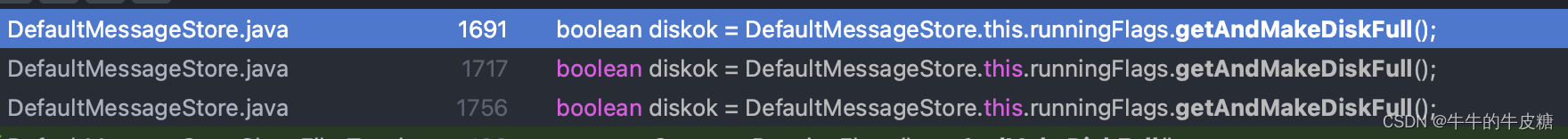

上图显示有三个地方会设置磁盘满的标志位
看下第一个代码如下

double physicRatio = UtilAll.getDiskPartitionSpaceUsedPercent(getStorePathPhysic());
 if (physicRatio > diskSpaceWarningLevelRatio) {
     boolean diskok = DefaultMessageStore.this.runningFlags.getAndMakeDiskFull();
     if (diskok) {
         DefaultMessageStore.log.error("physic disk maybe full soon " + physicRatio + ", so mark disk full");
     }

     cleanImmediately = true;
 } else if (physicRatio > diskSpaceCleanForciblyRatio) {
     cleanImmediately = true;
 } else {
     boolean diskok = DefaultMessageStore.this.runningFlags.getAndMakeDiskOK();
     if (!diskok) {
         DefaultMessageStore.log.info("physic disk space OK " + physicRatio + ", so mark disk ok");
     }
 }

第二个代码如下

String storePathLogics = StorePathConfigHelper
    .getStorePathConsumeQueue(DefaultMessageStore.this.getMessageStoreConfig().getStorePathRootDir());
double logicsRatio = UtilAll.getDiskPartitionSpaceUsedPercent(storePathLogics);
if (logicsRatio > diskSpaceWarningLevelRatio) {
    boolean diskok = DefaultMessageStore.this.runningFlags.getAndMakeDiskFull();
    if (diskok) {
        DefaultMessageStore.log.error("logics disk maybe full soon " + logicsRatio + ", so mark disk full");
    }

    cleanImmediately = true;
} else if (logicsRatio > diskSpaceCleanForciblyRatio) {
    cleanImmediately = true;
} else {
    boolean diskok = DefaultMessageStore.this.runningFlags.getAndMakeDiskOK();
    if (!diskok) {
        DefaultMessageStore.log.info("logics disk space OK " + logicsRatio + ", so mark disk ok");
    }
}

if (logicsRatio < 0 || logicsRatio > ratio) {
    DefaultMessageStore.log.info("logics disk maybe full soon, so reclaim space, " + logicsRatio);
    return true;
}

第三个代码如下

String storePathPhysic = DefaultMessageStore.this.getMessageStoreConfig().getStorePathCommitLog();
double physicRatio = UtilAll.getDiskPartitionSpaceUsedPercent(storePathPhysic);
double ratio = DefaultMessageStore.this.getMessageStoreConfig().getDiskMaxUsedSpaceRatio() / 100.0;
if (physicRatio > ratio) {
    DefaultMessageStore.log.info("physic disk of commitLog used: " + physicRatio);
}
if (physicRatio > this.diskSpaceWarningLevelRatio) {
    boolean diskok = DefaultMessageStore.this.runningFlags.getAndMakeDiskFull();
    if (diskok) {
        DefaultMessageStore.log.error("physic disk of commitLog maybe full soon, used " + physicRatio + ", so mark disk full");
    }

    return true;
} else {
    boolean diskok = DefaultMessageStore.this.runningFlags.getAndMakeDiskOK();

    if (!diskok) {
        DefaultMessageStore.log.info("physic disk space of commitLog OK " + physicRatio + ", so mark disk ok");
    }

    return false;
}

最终我们会找到如下代码

private final double diskSpaceWarningLevelRatio =
            Double.parseDouble(System.getProperty("rocketmq.broker.diskSpaceWarningLevelRatio", "0.90"));

因此我们可以发现，当磁盘占用达到百分之90时，消息就不会被发送啦，那么怎么解决这个问题呢

当然清数据了
