VYOS容器运行DaloRadius实现AAA认证登录

本文链接：https://blog.csdn.net/u012836361/article/details/145218136

整体架构

freeradius 提供AAA认证服务

mysql 提供用户认证授权信息存储

daloradius 提供Web界面管理用户认证授权信息

mysql

添加镜像

add container image mysql:5.6

配置

set container name mysql56 description 'mysql56'

set container name mysql56 image 'docker.io/library/mysql:5.6'

set container name mysql56 allow-host-networks

set container name mysql56 cap-add 'net-admin'

set container name mysql56 cap-add 'net-bind-service'

set container name mysql56 cap-add 'sys-time'

set container name mysql56 cap-add 'sys-admin'

set container name mysql56 cap-add 'net-raw'

set container name mysql56 restart 'always'

set container name mysql56 environment 'MYSQL_ROOT_PASSWORD' value 'root123345678'

set container name mysql56 environment 'MYSQL_ROOT_HOST' value '%'

freeradius-mysql-daloradius

https://hub.docker.com/r/asdaru/freeradius-mysql-daloradius

GitHub 上Dockerfile

https://github.com/asdaru/freeradius-mysql-daloradius

配置命令

add container image asdaru/freeradius-mysql-daloradius:nomysql

set container name daloradius description 'daloradius'

set container name daloradius image 'asdaru/freeradius-mysql-daloradius:nomysql'

set container name daloradius allow-host-networks

set container name daloradius cap-add 'net-admin'

set container name daloradius cap-add 'net-bind-service'

set container name daloradius cap-add 'sys-time'

set container name daloradius cap-add 'sys-admin'

set container name daloradius cap-add 'net-raw'

set container name daloradius restart 'always'

set container name daloradius environment CLIENT_SECRET value 'freeradius'

set container name daloradius environment CLIENT_NET value '0.0.0.0/0'

set container name daloradius environment RADIUS_DB_SERVER value '127.0.0.1'

set container name daloradius environment RADIUS_DB_USER value 'root'

set container name daloradius environment RADIUS_DB_PWD value 'root123345678'

默认账户密码

administrator / radius

配置详细

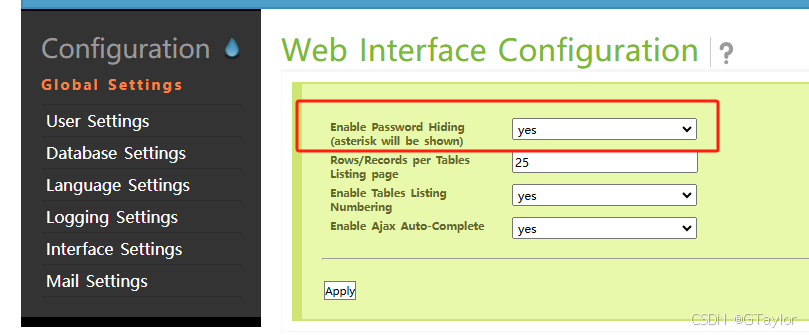

隐藏密码信息

测试验证

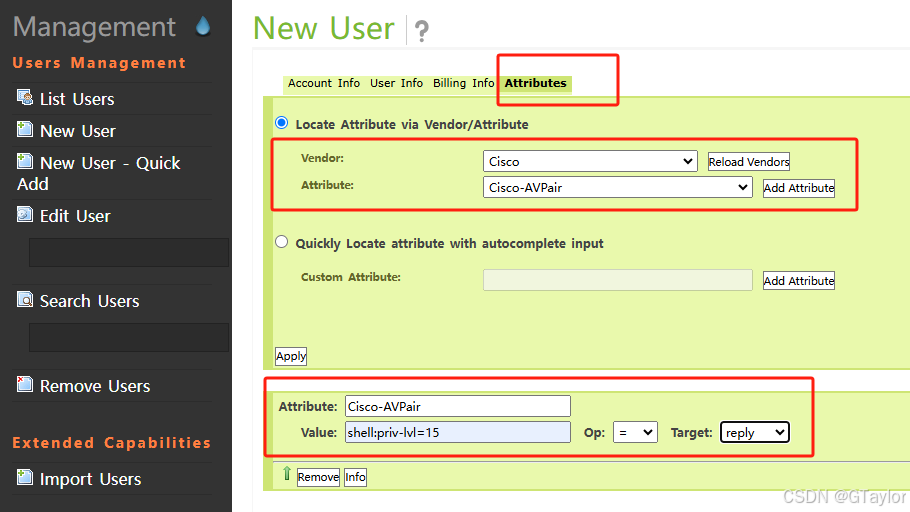

添加用户

用户名密码：

username	attribute	op	value
taylorg	Cleartext-Password	:=	123456

Reply属性：

username	attribute	op	value
taylorg	Cisco-AVPair	=	shell:priv-lvl=15

vyos配置用户登录Radius

set system login radius server 192.168.75.13 key 'freeradius'

登录认证

test2@192.168.75.241's password:

Creating directory '/home/test2'.

Last login: Mon Jan 13 17:52:38 2025 from 192.168.75.31

test2@GZ-test241:~$
