文章目录
一、单子 Widget 嵌套布局:
单子 Widget是指只有一个子组件的Widget,这样布局Widget有三个:Container、Padding、Center
1、Container
Container,是一种允许在其内部添加其他控件的控件,也是 UI 框架中的一个常见概念。
在 Flutter 中,Container 本身可以单独作为控件存在(比如单独设置背景色、宽高),也可以作为其他控件的父级存在:Container 可以定义布局过程中子 Widget 如何摆放,以及如何展示。与其他框架不同的是,Flutter 的 Container 仅能包含一个子 Widget。
先简单写一个Container,尺寸200x200;在内部居左上放一个子Container,尺寸80x80
- 代码如下:
@override
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(
// Here we take the value from the MyHomePage object that was created by
// the App.build method, and use it to set our appbar title.
title: Text(widget.title),
),
body: _container(), // This trailing comma makes auto-formatting nicer for build methods.
);
}
Container _container(){
return Container(
width: 200,
height: 200,
color: Colors.yellow,
alignment: Alignment.topLeft,
child: Container(
color: Colors.red,
width: 80,
height: 80,
),
);
}

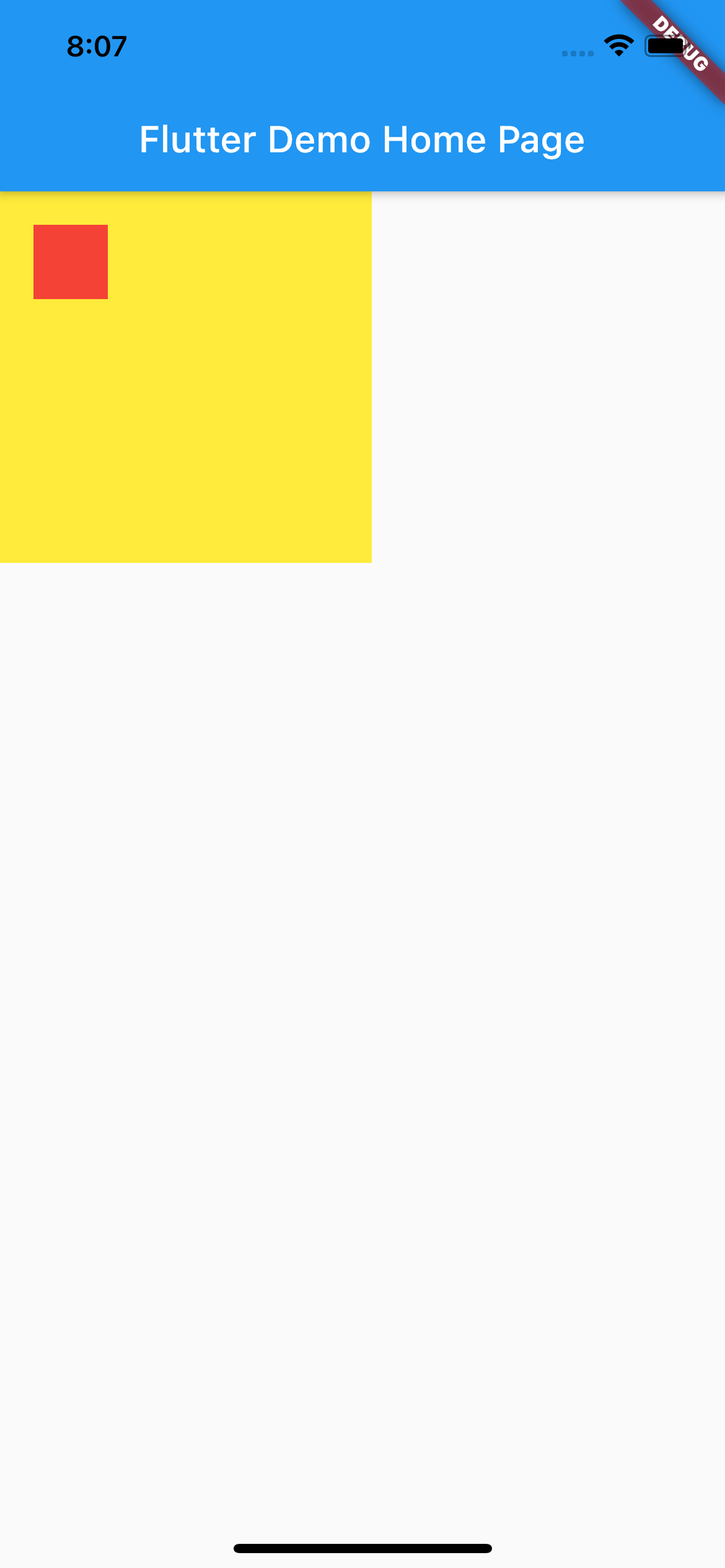

- 展示效果:
a、padding
padding可以理解为是Container的"内边框",他会影响内部子控件的位置,示例代码:
Container _container(){
return Container(
width: 200,
height: 200,
padding: EdgeInsets.all(20),
color: Colors.yellow,
child: Container(
color: Colors.red,
),
);
}

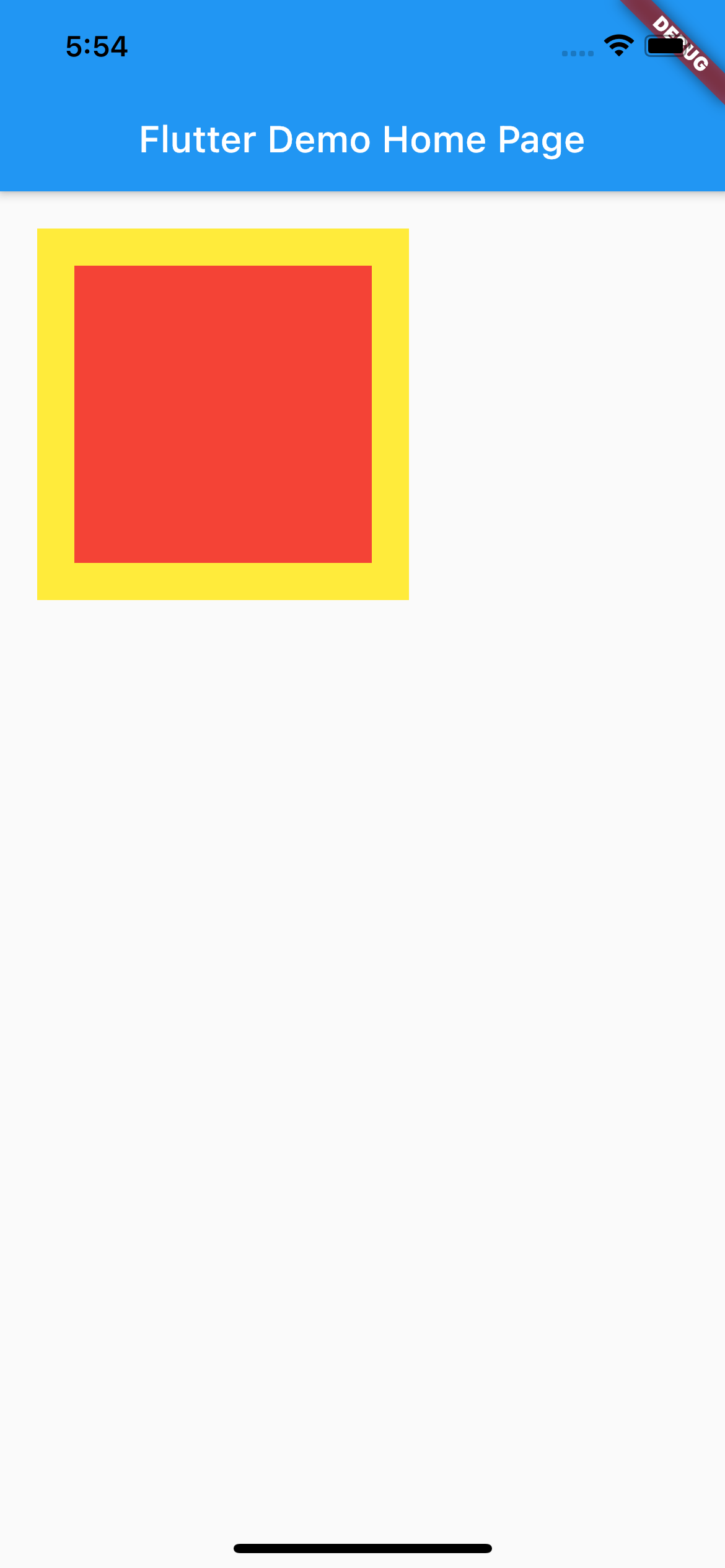

上面代码把子Container的宽高限制去掉,这样它就可以尽可能的充满父Container,但是父Container有padding,导致它无法充满,效果如下:
b、margin
margin可以理解为是Container
