前言
缓存的重要性是不言而喻的。使用缓存,我们可以避免频繁的与数据库进行交互,尤其是在查询越多、缓存命中率越高的情况下,使用缓存对性能的提高更明显。
mybatis 也提供了对缓存的支持,分为一级缓存和二级缓存。但是在默认的情况下,只开启一级缓存(一级缓存是对同一个 SqlSession 而言的)。代码在(Idea创建简单的MyBatis项目)基础上进行修改
1. 一级缓存
1.1. 什么是一级缓存
同一个 SqlSession 对象, 在参数和 SQL 完全一样的情况先, 只执行一次 SQL 语句(如果缓存没有过期)。
因为使用SelSession第一次查询后,MyBatis 会将其放在缓存中,以后再查询的时候,如果没有声明需要刷新,并且缓存没有超时的情况下,SqlSession 都会取出当前缓存的数据,而不会再次发送 SQL 到数据库。
1.2. 测试1-同一个SqlSession
StudentMapperTest.java 添加下面代码
@Test
public void oneSqlSession() {
SqlSession sqlSession = null;
try {
sqlSession = sqlSessionFactory.openSession();
StudentMapper studentMapper = sqlSession.getMapper(StudentMapper.class);
// 执行第一次查询
System.out.println("=============开始同一个 Sqlsession 的第一次查询============");
List<Student> students = studentMapper.selectAll();
for (int i = 0; i < students.size(); i++) {
System.out.println(students.get(i));
}
System.out.println("=============开始同一个 Sqlsession 的第二次查询============");
// 同一个 sqlSession 进行第二次查询
List<Student> stus = studentMapper.selectAll();
Assert.assertEquals(students, stus);
for (int i = 0; i < stus.size(); i++) {
System.out.println("stus:" + stus.get(i));
}
} catch (Exception e) {
e.printStackTrace();
} finally {
if (sqlSession != null) {
sqlSession.close();
}
}
}

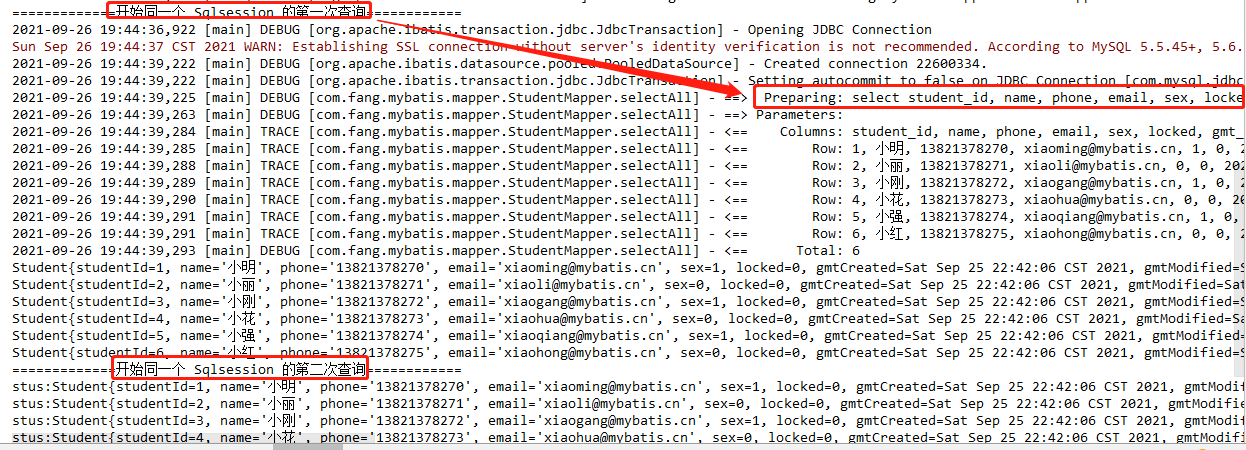

执行上面代码,进行了两次查询, 使用相同的 SqlSession,得到以下结果
在日志和输出中:
第一次查询发送了 SQL 语句,后返回了结果;
第二次查询没有发送 SQL 语句,直接从内存中获取了结果。
而且两次结果输入一致,同时断言两个对象相同也通过。
1.3. 测试2-不同的SqlSession
StudentMapperTest.java 添加下面代码
@Test
public void differSqlSession() {
SqlSession sqlSession1 = null;
SqlSession sqlSession2 = null;
try {
sqlSession1 = sqlSessionFactory.openSession();
StudentMapper studentMapper = sqlSession1.getMapper(StudentMapper.class);
// 执行第一次查询
System.out.println("=============开始不同 Sqlsession 的第一次查询============");
List<Student> students = studentMapper.selectAll();
for (int i = 0; i < students.size(); i++) {
System.out.println(students.get(i));
}
System.out.println("=============开始不同 Sqlsession 的第二次查询============");
// 从新创建一个 sqlSession2 进行第二次查询
sqlSession2 = sqlSessionFactory.openSession();
StudentMapper studentMapper2 = sqlSession2.getMapper(StudentMapper.class);
List<Student> stus = studentMapper2.selectAll();
// 不相等
Assert.assertNotEquals(students, stus);
for (int i = 0; i < stus.size(); i++) {
System.out.println("stus:" + stus.get(i));
}
} catch (Exception e) {
e.printStackTrace();
} finally {
if (sqlSession1 != null) {
sqlSession1.close();
}
if (sqlSession2 != null) {
sqlSession2.close();
}
}
}
执行上面代码,进行了两次查询, 分别使用SqlSession1和SqlSession2进行相同的查询,得到以下结果
从日志中可以看到两次查询都分别从数据库中取出了数据。 虽然结果相同, 但两个是不同的对象。
1.4. 测试3-刷新缓存
刷新缓存是清空这个 SqlSession 的所有缓存, 不单单是某个键。
StudentMapper.java 添加selectByPrimaryKey()方法
package com.fang.mybatis.mapper;
import com.fang.mybatis.entity.Student;
import java.util.List;
public interface StudentMapper {
/**
*
* @return
*/
List<Student> selectAll();
Student selectByPrimaryKey(int id);
}
StudentMapper.xml添加下面配置,如果没有配置 flushCache=“true”,结果还是第二个不发 SQL 语句。
<select id="selectByPrimaryKey" flushCache="true" parameterType="java.lang.Integer" resultMap="BaseResultMap">
select
<include refid="Base_Column_List" />
from student
where student_id=#{student_id, jdbcType=INTEGER}
</select>
StudentMapperTest.java 添加下面代码
@Test
public void sameSqlSessionNoCache() {
SqlSession sqlSession = null;
try {
sqlSession = sqlSessionFactory.openSession();
StudentMapper studentMapper = sqlSession.getMapper(StudentMapper.class);
// 执行第一次查询
Student student = studentMapper.selectByPrimaryKey(1);
System.out.println("=============开始同一个 Sqlsession 的第二次查询============");
// 同一个 sqlSession 进行第二次查询
Student stu = studentMapper.selectByPrimaryKey(1);
Assert.assertEquals(student, stu);
} catch (Exception e) {
e.printStackTrace();
} finally {
if (sqlSession != null) {
sqlSession.close();
}
}
}

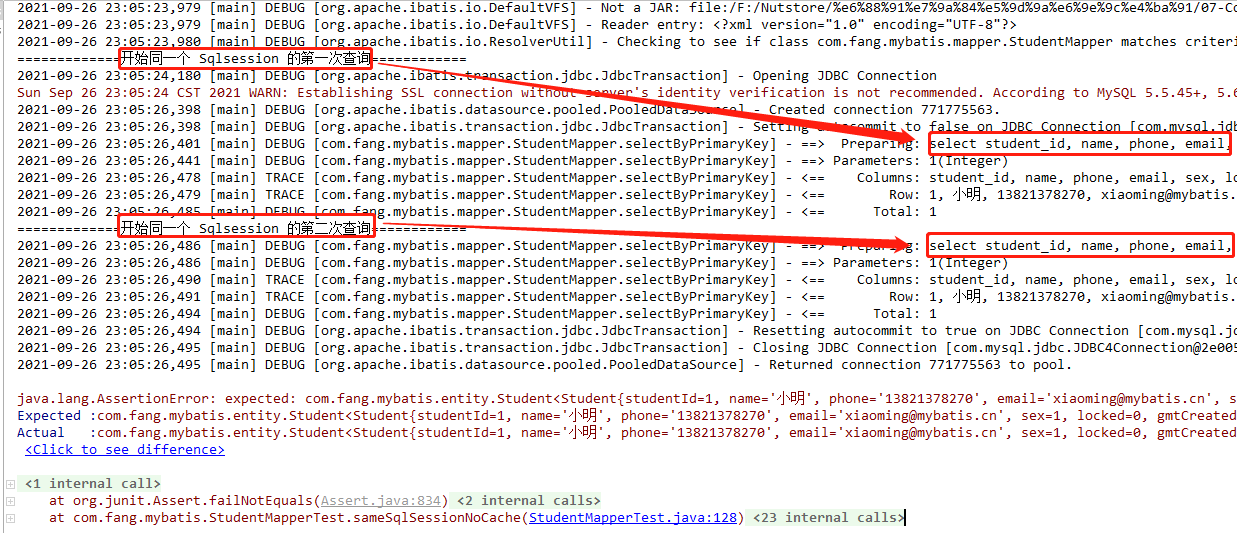

执行上面代码,得到以下结果,第一次, 第二次都发送了 SQL 语句, 同时, 断言两个对象相同出错。
1.5. 总结
1.在同一个 SqlSession 中, Mybatis 会把执行的方法和参数通过算法生成缓存的键值, 将键值和结果存放在一个 Map 中, 如果后续的键值一样, 则直接从 Map 中获取数据;
2.不同的 SqlSession 之间的缓存是相互隔离的;
3.用一个 SqlSession, 可以通过配置使得在查询前清空缓存;
4.任何的 UPDATE, INSERT, DELETE 语句都会清空缓存。
2. 二级缓存
2.1. 什么是二级缓存
二级缓存存在于 SqlSessionFactory 生命周期中。
2.2. 配置二级缓存
在 mybatis 中, 二级缓存有全局开关和分开关。全局开关默认开启,一般配置是为了方便团队知道已经使用了二级缓存。
2.2.1. 全局开关
全局开关, 在 mybatis-config.xml 中如下配置,默认是为 true, 即默认开启总开关。
<settings>
<!--全局地开启或关闭配置文件中的所有映射器已经配置的任何缓存。 -->
<setting name="cacheEnabled" value="true"/>
</settings>
2.2.2. 分开关
分开关就是说在 *Mapper.xml 中开启或关闭二级缓存, 默认是不开启的,如果要使用二级缓存cache标签一定要配置。
若要使用进行如下配置:
<!--在当前 Mapper.xml文件开启二级缓存-->
<cache/>
或者自定义cache标签参数
<cache eviction="FIFO" flushInterval="60000" size="512" readOnly="true"/>
eviction:清除策略为FIFO缓存,先进先出原则,默认的清除策略是 LRU
flushInterval:属性可以被设置为任意的正整数,设置的值应该是一个以毫秒为单位的合理时间量
size:最多可以存储结果对象或列表的引用数
readOnly:只读属性,可以被设置为 true 或 false。
2.2.3. 代码配置
1. StudentMapper.xml 进行如下配置:
<cache readOnly="false"/>
StudentMapper.xml 的完整代码如下:
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.fang.mybatis.mapper.StudentMapper">
<cache readOnly="false"/>
<resultMap id="BaseResultMap" type="com.fang.mybatis.entity.Student">
<id column="student_id" jdbcType="INTEGER" property="studentId" />
<result column="name" jdbcType="VARCHAR" property="name" />
<result column="phone" jdbcType="VARCHAR" property="phone" />
<result column="email" jdbcType="VARCHAR" property="email" />
<result column="sex" jdbcType="TINYINT" property="sex" />
<result column="locked" jdbcType="TINYINT" property="locked" />
<result column="gmt_created" jdbcType="TIMESTAMP" property="gmtCreated" />
<result column="gmt_modified" jdbcType="TIMESTAMP" property="gmtModified" />
</resultMap>
<sql id="Base_Column_List">
student_id, name, phone, email, sex, locked, gmt_created, gmt_modified
</sql>
<select id="selectAll" resultMap="BaseResultMap">
select
<include refid="Base_Column_List" />
from student
</select>
<select id="selectByPrimaryKey" parameterType="java.lang.Integer" resultMap="BaseResultMap">
select
<include refid="Base_Column_List" />
from student
where student_id=#{student_id, jdbcType=INTEGER}
</select>
</mapper>
2.实体类实现序列化
Student 实现序列化接口
package com.fang.mybatis.entity;
import java.io.Serializable;
import java.util.Date;
public class Student implements Serializable {
private static final long serialVersionUID = -4852658907724408209L;
private Integer studentId;
private String name;
private String phone;
private String email;
private Byte sex;
private Byte locked;
private Date gmtCreated;
private Date gmtModified;
/**
* 以下部分为setter和getter, 省略
*/
public Integer getStudentId() {
return studentId;
}
public void setStudentId(Integer studentId) {
this.studentId = studentId;
}
public String getName() {
return name;
}
public void setName(String name) {
this.name = name;
//this.name = (name == null) ? null : name.trim();
}
public String getPhone() {
return phone;
}
public void setPhone(String phone) {
this.phone = phone;
//this.phone = (phone == null) ? null : phone.trim();
}
public String getEmail() {
return email;
}
public void setEmail(String email) {
this.email = email;
//this.email = (email == null) ? null : email.trim();
}
public Byte getSex() {
return sex;
}
public void setSex(Byte sex) {
this.sex = sex;
}
public Byte getLocked() {
return locked;
}
public void setLocked(Byte locked) {
this.locked = locked;
}
public Date getGmtCreated() {
return gmtCreated;
}
public void setGmtCreated(Date gmtCreated) {
this.gmtCreated = gmtCreated;
}
public Date getGmtModified() {
return gmtModified;
}
public void setGmtModified(Date gmtModified) {
this.gmtModified = gmtModified;
}
@Override
public String toString() {
return "Student{" +
"studentId=" + studentId +
", name='" + name + '\'' +
", phone='" + phone + '\'' +
", email='" + email + '\'' +
", sex=" + sex +
", locked=" + locked +
", gmtCreated=" + gmtCreated +
", gmtModified=" + gmtModified +
'}';
}
}
3. StudentMapperTest.java 添加下面代码
@Test
public void secendLevelCacheTest() {
// 获取 SqlSession 对象
SqlSession sqlSession = sqlSessionFactory.openSession();
// 获取 Mapper 对象
StudentMapper studentMapper = sqlSession.getMapper(StudentMapper.class);
// 使用 Mapper 接口的对应方法,查询 id=2 的对象
Student student = studentMapper.selectByPrimaryKey(2);
// 更新对象的名称
student.setName("奶茶");
// 再次使用相同的 SqlSession 查询id=2 的对象
Student student1 = studentMapper.selectByPrimaryKey(2);
/* Assert.assertEquals("奶茶", student1.getName());
// 同一个 SqlSession 使用缓存, 则得到的对象都一样的
Assert.assertEquals(student, student1);*/
sqlSession.close();
SqlSession sqlSession1 = sqlSessionFactory.openSession();
StudentMapper studentMapper1 = sqlSession1.getMapper(StudentMapper.class);
Student student2 = studentMapper1.selectByPrimaryKey(2);
Student student3 = studentMapper1.selectByPrimaryKey(2);
Assert.assertEquals("奶茶", student2.getName());
Assert.assertNotEquals(student3, student2);
sqlSession1.close();
}

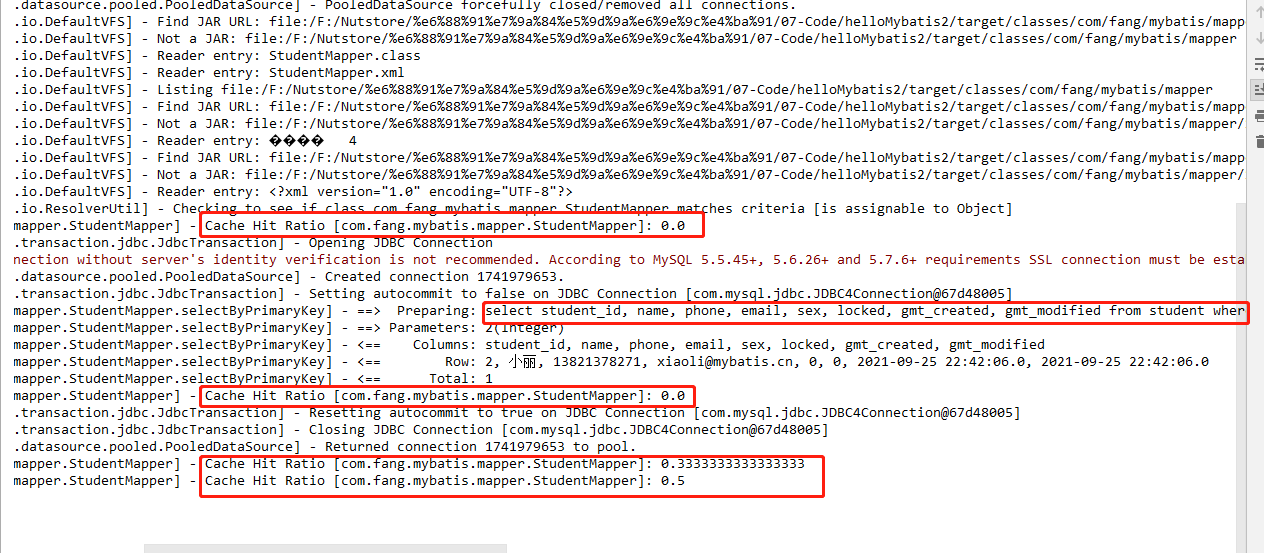

执行上面代码,得到以下结果
第一阶段:
1.在第一个 SqlSession 中, 查询出 student 对象, 此时发送了 SQL 语句;
2.student更改了name 属性;(先查二级缓存,再查一级缓存,再查数据库;即使在一个sqlSession中,也会先查二级缓存)
3.SqlSession 再次查询出 student1 对象, 此时不发送 SQL 语句, 日志中打印了 「Cache Hit Ratio」, 代表二级缓存使用了, 但是没有命中。 然后查一级缓存,在一级缓存中查到了。
4.由于是一级缓存, 因此, 此时两个对象是相同的。
5.调用了 sqlSession.close(), 此时将数据序列化并保持到二级缓存中。
第二阶段:
1.新创建一个 SqlSession 对象;
2.查询出 student2 对象,直接从二级缓存中拿了数据, 因此没有发送 SQL 语句, 此时是第 3 次3.进行查询,但只有一个命中, 因此 命中率 1/3=0.333333;
4.查询出 student3 对象,直接从二级缓存中拿了数据, 因此没有发送 SQL 语句, 此时是第4次进行查询,这次加上一次次命中共两次, 因此 命中率 2/4=0.5;
5.由于 readOnly=“true”, 因此 student2 和 student3 都是反序列化得到的, 为相同的实例。
2.2.4. cache 标签配置详解
查看 dtd 文件, 可以看到如下约束:
<!ELEMENT cache (property*)>
<!ATTLIST cache
type CDATA #IMPLIED
eviction CDATA #IMPLIED
flushInterval CDATA #IMPLIED
size CDATA #IMPLIED
readOnly CDATA #IMPLIED
blocking CDATA #IMPLIED
>
从中可以看出:
cache 中可以出现任意多个 property子元素;
cache 有一些可选的属性 type, eviction, flushInterval, size, readOnly, blocking.
1.type
type 用于指定缓存的实现类型, 默认是PERPETUAL, 对应的是 mybatis 本身的缓存实现类 org.apache.ibatis.cache.impl.PerpetualCache。
后续如果我们要实现自己的缓存或者使用第三方的缓存, 都需要更改此处。
2.eviction
eviction 对应的是回收策略, 默认为 LRU。
LRU: 最近最少使用, 移除最长时间不被使用的对象。
FIFO: 先进先出, 按对象进入缓存的顺序来移除对象。
SOFT: 软引用, 移除基于垃圾回收器状态和软引用规则的对象。
WEAK: 弱引用, 移除基于垃圾回收器状态和弱引用规则的对象。
3.flushInterval
flushInterval 对应刷新间隔, 单位毫秒, 默认值不设置, 即没有刷新间隔, 缓存仅仅在刷新语句时刷新。
如果设定了之后, 到了对应时间会过期, 再次查询需要从数据库中取数据。
4.size
size 对应为引用的数量,即最多的缓存对象数据, 默认为 1024。
5.readOnly
readOnly 为只读属性, 默认为 false
false: 可读写, 在创建对象时, 会通过反序列化得到缓存对象的拷贝。 因此在速度上会相对慢一点, 但重在安全。
true: 只读, 只读的缓存会给所有调用者返回缓存对象的相同实例。 因此性能很好, 但如果修改了对象, 有可能会导致程序出问题。
6.blocking
blocking 为阻塞, 默认值为 false。 当指定为 true 时将采用 BlockingCache 进行封装。

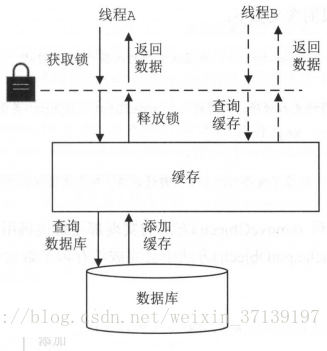

使用 BlockingCache 会在查询缓存时锁住对应的 Key,如果缓存命中了则会释放对应的锁,否则会在查询数据库以后再释放锁,这样可以阻止并发情况下多个线程同时查询数据。
总结
由于在更新时会刷新缓存, 因此需要注意使用场合:查询频率很高, 更新频率很低时使用, 即经常使用 select, 相对较少使用delete, insert, update。
缓存是以 namespace 为单位的,不同 namespace 下的操作互不影响。但刷新缓存是刷新整个 namespace 的缓存, 也就是你 update 了一个, 则整个缓存都刷新了。最好在 「只有单表操作」 的表的 namespace 使用缓存, 而且对该表的操作都在这个 namespace 中。 否则可能会出现数据不一致的情况。
