阅读本章将了解：
四大组件：Activity、Service、BroadCastReceiver、ContentProvider的工作过程，而不是使用
9.1 四大组件的运行状态
除了BroadCastReceiver，其他都必须在Manifest中注册
BroadCastReceiver既可以在Manifest中注册，也可以通过代码注册；
在调用方式上，Activity、Service、BroadCastReceiver都需要借助Intent，ContentProvider不用借助Intent
Activity :
展示型组件，展示界面、用户交互
Service ：
计算型组件，主线程运行，有启动状态（无需外界交互）和绑定状态（方便外界交互）
BroadCastReceiver ：
消息型组件，不适合执行耗时操作，
静态注册（不启动应用就可以接收消息）和动态注册（启动应用才可以接收消息）
ContentProvider：数据共享型组件，不需要手动停止，内部需要实现增删改查操作，是在Binder线程池中调用，所以要处理好方法线程同步。
下面进入正题：
9.2 Activitiy的工作过程
本节主要分析activity的启动流程，而不是陷入代码细节无法自拔，避免出现“只见树木，不见树林”，也不涉及启动模式和任务栈，主要是内部启动过程。
我们从Activity的startActivity方法开始分析，startActivity有好几种重载方式，但是最终都会调用startActivityForResult
public void startActivityForResult(Intent intent, int requestCode, @Nullable Bundle options) {
if (mParent == null) {
Instrumentation.ActivityResult ar =
mInstrumentation.execStartActivity(
this, mMainThread.getApplicationThread(), mToken, this,
intent, requestCode, options);
if (ar != null) {
mMainThread.sendActivityResult(
mToken, mEmbeddedID, requestCode, ar.getResultCode(),
ar.getResultData());
}
if (requestCode >= 0) {
mStartedActivity = true;
}
cancelInputsAndStartExitTransition(options);
// TODO Consider clearing/flushing other event sources and events for child windows.
} else {
if (options != null) {
mParent.startActivityFromChild(this, intent, requestCode, options);
} else {
// Note we want to go through this method for compatibility with
// existing applications that may have overridden it.
mParent.startActivityFromChild(this, intent, requestCode);
}
}
}我们只需要关注mParent == null的逻辑即可，我们看mMainThread.getApplicationThread()参数，ApplicationThread是ActivityThread的内部类，在activity的启动过程发挥着重要作用
下面我们看execStartActivity方法：
public ActivityResult execStartActivity(
Context who, IBinder contextThread, IBinder token, Activity target,
Intent intent, int requestCode, Bundle options) {
IApplicationThread whoThread = (IApplicationThread) contextThread;
Uri referrer = target != null ? target.onProvideReferrer() : null;
if (referrer != null) {
intent.putExtra(Intent.EXTRA_REFERRER, referrer);
}
if (mActivityMonitors != null) {
synchronized (mSync) {
final int N = mActivityMonitors.size();
for (int i=0; i<N; i++) {
final ActivityMonitor am = mActivityMonitors.get(i);
if (am.match(who, null, intent)) {
am.mHits++;
if (am.isBlocking()) {
return requestCode >= 0 ? am.getResult() : null;
}
break;
}
}
}
}
try {
intent.migrateExtraStreamToClipData();
intent.prepareToLeaveProcess();
//真正实现启动activity方法
int result = ActivityManagerNative.getDefault()
.startActivity(whoThread, who.getBasePackageName(), intent,
intent.resolveTypeIfNeeded(who.getContentResolver()),
token, target != null ? target.mEmbeddedID : null,
requestCode, 0, null, options);
//启动之后检查Activity的启动结果（是否成功，如果Manifest没注册，那么就会返回失败）
checkStartActivityResult(result, intent);
} catch (RemoteException e) {
throw new RuntimeException("Failure from system", e);
}
return null;
}其中：ActivityManagerNative.getDefault()是通过单例获取的，代码如下：
private static final Singleton<IActivityManager> gDefault = new Singleton<IActivityManager>() {
protected IActivityManager create() {
IBinder b = ServiceManager.getService("activity");
if (false) {
Log.v("ActivityManager", "default service binder = " + b);
}
IActivityManager am = asInterface(b);
if (false) {
Log.v("ActivityManager", "default service = " + am);
}
return am;
}
};
static public IActivityManager getDefault() {
return gDefault.get();
}另外我们再看看启动之后有个checkStartActivityResult方法，作用是检查Activity的结果
/** @hide */
public static void checkStartActivityResult(int res, Object intent) {
if (res >= ActivityManager.START_SUCCESS) {
return;
}
//检查各种情况
switch (res) {
case ActivityManager.START_INTENT_NOT_RESOLVED:
case ActivityManager.START_CLASS_NOT_FOUND:
if (intent instanceof Intent && ((Intent)intent).getComponent() != null)
throw new ActivityNotFoundException(
"Unable to find explicit activity class "
+ ((Intent)intent).getComponent().toShortString()
+ "; have you declared this activity in your AndroidManifest.xml?");
throw new ActivityNotFoundException(
"No Activity found to handle " + intent);
case ActivityManager.START_PERMISSION_DENIED:
throw new SecurityException("Not allowed to start activity "
+ intent);
case ActivityManager.START_FORWARD_AND_REQUEST_CONFLICT:
throw new AndroidRuntimeException(
"FORWARD_RESULT_FLAG used while also requesting a result");
case ActivityManager.START_NOT_ACTIVITY:
throw new IllegalArgumentException(
"PendingIntent is not an activity");
case ActivityManager.START_NOT_VOICE_COMPATIBLE:
throw new SecurityException(
"Starting under voice control not allowed for: " + intent);
case ActivityManager.START_NOT_CURRENT_USER_ACTIVITY:
// Fail silently for this case so we don't break current apps.
// TODO(b/22929608): Instead of failing silently or throwing an exception,
// we should properly position the activity in the stack (i.e. behind all current
// user activity/task) and not change the positioning of stacks.
Log.e(TAG,
"Not allowed to start background user activity that shouldn't be displayed"
+ " for all users. Failing silently...");
break;
default:
throw new AndroidRuntimeException("Unknown error code "
+ res + " when starting " + intent);
}
}最后我们来看看类结构关系 ：
public abstract class ActivityManagerNative extends Binder implements IActivityManager另外它的子类才是具体实现：
public final class ActivityManagerService extends ActivityManagerNative {
@Override
public final int startActivity(IApplicationThread caller, String callingPackage,
Intent intent, String resolvedType, IBinder resultTo, String resultWho, int requestCode,
int startFlags, ProfilerInfo profilerInfo, Bundle options) {
return startActivityAsUser(caller, callingPackage, intent, resolvedType, resultTo,
resultWho, requestCode, startFlags, profilerInfo, options,
UserHandle.getCallingUserId());
}
@Override
public final int startActivityAsUser(IApplicationThread caller, String callingPackage,
Intent intent, String resolvedType, IBinder resultTo, String resultWho, int requestCode,
int startFlags, ProfilerInfo profilerInfo, Bundle options, int userId) {
enforceNotIsolatedCaller("startActivity");
userId = handleIncomingUser(Binder.getCallingPid(), Binder.getCallingUid(), userId,
false, ALLOW_FULL_ONLY, "startActivity", null);
// 切换到用户应用程序堆栈
return mStackSupervisor.startActivityMayWait(caller, -1, callingPackage, intent,
resolvedType, null, null, resultTo, resultWho, requestCode, startFlags,
profilerInfo, null, null, options, false, userId, null, null);
}
}可以看到，启动方法又转移到了mStackSupervisor.startActivityMayWait方法中去了，

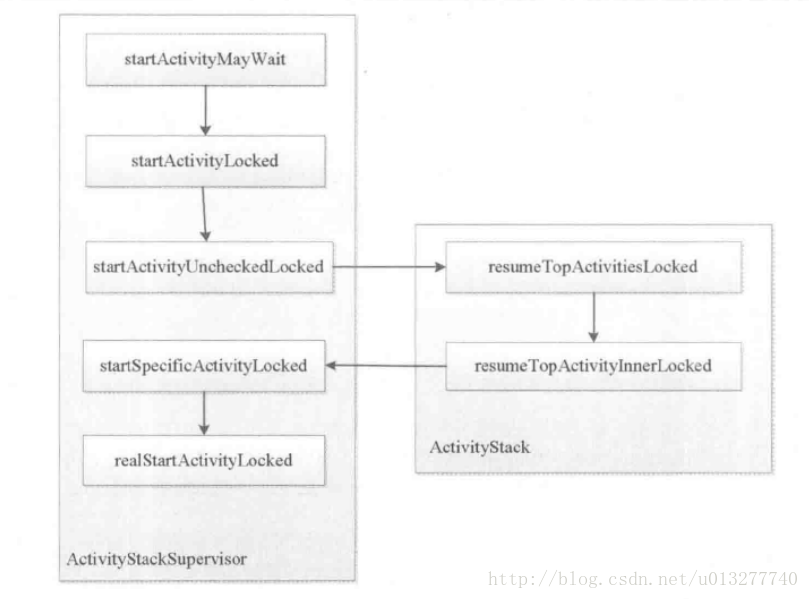

接着步骤如下：
startActivityMayWait中调用了startActivityLocked方法；
startActivityLocked中调用了startActivityUncheckedLocked方法；
startActivityUncheckedLocked中调用了ActivityStack的resumeTopActivitysLocked方法直接看重点：
final boolean resumeTopActivityLocked(ActivityRecord prev, Bundle options) {
if (mStackSupervisor.inResumeTopActivity) {
// Don't even start recursing.
return false;
}
boolean result = false;
try {
// Protect against recursion.
mStackSupervisor.inResumeTopActivity = true;
if (mService.mLockScreenShown == ActivityManagerService.LOCK_SCREEN_LEAVING) {
mService.mLockScreenShown = ActivityManagerService.LOCK_SCREEN_HIDDEN;
mService.updateSleepIfNeededLocked();
}
//看这里
result = resumeTopActivityInnerLocked(prev, options);
} finally {
mStackSupervisor.inResumeTopActivity = false;
}
return result;
}看代码可以知道，resumeTopActivityLocked又调用了resumeTopActivityInnerLocked
resumeTopActivityInnerLocked又调用了ActivityStackSupervisor的startSpecificActivityLocked方法
void startSpecificActivityLocked(ActivityRecord r,
boolean andResume, boolean checkConfig) {
// Is this activity's application already running?
ProcessRecord app = mService.getProcessRecordLocked(r.processName,
r.info.applicationInfo.uid, true);
r.task.stack.setLaunchTime(r);
if (app != null && app.thread != null) {
try {
if ((r.info.flags&ActivityInfo.FLAG_MULTIPROCESS) == 0
|| !"android".equals(r.info.packageName)) {
// Don't add this if it is a platform component that is marked
// to run in multiple processes, because this is actually
// part of the framework so doesn't make sense to track as a
// separate apk in the process.
app.addPackage(r.info.packageName, r.info.applicationInfo.versionCode,
mService.mProcessStats);
}
//看这里
realStartActivityLocked(r, app, andResume, checkConfig);
return;
} catch (RemoteException e) {
Slog.w(TAG, "Exception when starting activity "
+ r.intent.getComponent().flattenToShortString(), e);
}
// If a dead object exception was thrown -- fall through to
// restart the application.
}
mService.startProcessLocked(r.processName, r.info.applicationInfo, true, 0,
"activity", r.intent.getComponent(), false, false, true);
}看代码可以知道，startSpecificActivityLocked又调用了realStartActivityLocked
我们继续来看realStartActivityLocked方法，其中最重要的代码是：
app.thread.scheduleLaunchActivity(new Intent(r.intent), r.appToken,
System.identityHashCode(r), r.info, new Configuration(mService.mConfiguration),
new Configuration(stack.mOverrideConfig), r.compat, r.launchedFromPackage,
task.voiceInteractor, app.repProcState, r.icicle, r.persistentState, results,
newIntents, !andResume, mService.isNextTransitionForward(), profilerInfo);这段代码很重要，app.thread的类型是IApplicationThread ，IApplicationThread 的声明如下：
public interface IApplicationThread extends IInterface {
void schedulePauseActivity(IBinder token, boolean finished, boolean userLeaving,
int configChanges, boolean dontReport) throws RemoteException;
void scheduleStopActivity(IBinder token, boolean showWindow,
int configChanges) throws RemoteException;
void scheduleWindowVisibility(IBinder token, boolean showWindow) throws RemoteException;
void scheduleSleeping(IBinder token, boolean sleeping) throws RemoteException;
void scheduleResumeActivity(IBinder token, int procState, boolean isForward, Bundle resumeArgs)
throws RemoteException;
void scheduleSendResult(IBinder token, List<ResultInfo> results) throws RemoteException;
void scheduleLaunchActivity(Intent intent, IBinder token, int ident,
ActivityInfo info, Configuration curConfig, Configuration overrideConfig,
CompatibilityInfo compatInfo, String referrer, IVoiceInteractor voiceInteractor,
int procState, Bundle state, PersistableBundle persistentState,
List<ResultInfo> pendingResults, List<ReferrerIntent> pendingNewIntents,
boolean notResumed, boolean isForward, ProfilerInfo profilerInfo) throws RemoteException;
void scheduleRelaunchActivity(IBinder token, List<ResultInfo> pendingResults,
List<ReferrerIntent> pendingNewIntents, int configChanges, boolean notResumed,
Configuration config, Configuration overrideConfig) throws RemoteException;
void scheduleNewIntent(List<ReferrerIntent> intent, IBinder token) throws RemoteException;
void scheduleDestroyActivity(IBinder token, boolean finished,
int configChanges) throws RemoteException;
void scheduleReceiver(Intent intent, ActivityInfo info, CompatibilityInfo compatInfo,
int resultCode, String data, Bundle extras, boolean sync,
int sendingUser, int processState) throws RemoteException;
static final int BACKUP_MODE_INCREMENTAL = 0;
static final int BACKUP_MODE_FULL = 1;
static final int BACKUP_MODE_RESTORE = 2;
static final int BACKUP_MODE_RESTORE_FULL = 3;
void scheduleCreateBackupAgent(ApplicationInfo app, CompatibilityInfo compatInfo,
int backupMode) throws RemoteException;
void scheduleDestroyBackupAgent(ApplicationInfo app, CompatibilityInfo compatInfo)
throws RemoteException;
void scheduleCreateService(IBinder token, ServiceInfo info,
CompatibilityInfo compatInfo, int processState) throws RemoteException;
void scheduleBindService(IBinder token,
Intent intent, boolean rebind, int processState) throws RemoteException;
void scheduleUnbindService(IBinder token,
Intent intent) throws RemoteException;
void scheduleServiceArgs(IBinder token, boolean taskRemoved, int startId,
int flags, Intent args) throws RemoteException;
void scheduleStopService(IBinder token) throws RemoteException;因为它 extends IInterface，所以它是Binder类型的接口，包含了大量activity的启动停止和service的启动停止服务的方法。
那么IApplicationThread 的实现类是哪个类呢？
答案就是ActivityThread的内部类：ApplicationThread
类关系如下：
private class ApplicationThread extends ApplicationThreadNative {
public abstract class ApplicationThreadNative extends Binder implements IApplicationThread {绕了一大圈，Activity的启动过程最终回到了ApplicationThread中，ApplicationThread通过scheduleLaunchActivity来启动Activity
代码如下：
@Override
public final void scheduleLaunchActivity(Intent intent, IBinder token, int ident,
ActivityInfo info, Configuration curConfig, Configuration overrideConfig,
CompatibilityInfo compatInfo, String referrer, IVoiceInteractor voiceInteractor,
int procState, Bundle state, PersistableBundle persistentState,
List<ResultInfo> pendingResults, List<ReferrerIntent> pendingNewIntents,
boolean notResumed, boolean isForward, ProfilerInfo profilerInfo) {
updateProcessState(procState, false);
ActivityClientRecord r = new ActivityClientRecord();
r.token = token;
r.ident = ident;
r.intent = intent;
r.referrer = referrer;
r.voiceInteractor = voiceInteractor;
r.activityInfo = info;
r.compatInfo = compatInfo;
r.state = state;
r.persistentState = persistentState;
r.pendingResults = pendingResults;
r.pendingIntents = pendingNewIntents;
r.startsNotResumed = notResumed;
r.isForward = isForward;
r.profilerInfo = profilerInfo;
r.overrideConfig = overrideConfig;
updatePendingConfiguration(curConfig);
//发送消息
sendMessage(H.LAUNCH_ACTIVITY, r);
}在ApplicationThread中，scheduleLaunchActivity实现很简单，就是发送一个启动Activity的消息交由Handle处理，Handle处理如下：
public void handleMessage(Message msg) {
if (DEBUG_MESSAGES) Slog.v(TAG, ">>> handling: " + codeToString(msg.what));
switch (msg.what) {
case LAUNCH_ACTIVITY: {
Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "activityStart");
final ActivityClientRecord r = (ActivityClientRecord) msg.obj;
r.packageInfo = getPackageInfoNoCheck(
r.activityInfo.applicationInfo, r.compatInfo);
//最终实现看这里
handleLaunchActivity(r, null);
Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER);
} break;我们再看handleLaunchActivity方法
private void handleLaunchActivity(ActivityClientRecord r, Intent customIntent) {
Activity a = performLaunchActivity(r, customIntent);
if (a != null) {
r.createdConfig = new Configuration(mConfiguration);
Bundle oldState = r.state;
handleResumeActivity(r.token, false, r.isForward,
!r.activity.mFinished && !r.startsNotResumed);从代码可以看出，performLaunchActivity方法最终完成了Activity的创建和启动，并且通过handleResumeActivity来调用被Activity启动的onResume方法
看performLaunchActivity方法的实现可以知道它完成了如下几件事：
1、从ActivityRecord中获取待启动的Activity的组件信息
ActivityInfo aInfo = r.activityInfo;
if (r.packageInfo == null) {
r.packageInfo = getPackageInfo(aInfo.applicationInfo, r.compatInfo,
Context.CONTEXT_INCLUDE_CODE);
}
ComponentName component = r.intent.getComponent();
if (component == null) {
component = r.intent.resolveActivity(
mInitialApplication.getPackageManager());
r.intent.setComponent(component);
}
if (r.activityInfo.targetActivity != null) {
component = new ComponentName(r.activityInfo.packageName,
r.activityInfo.targetActivity);
}2、通过Instrumentation的newActivity方法使用类加载器创建Activity对象
Activity activity = null;
try {
java.lang.ClassLoader cl = r.packageInfo.getClassLoader();
activity = mInstrumentation.newActivity(
cl, component.getClassName(), r.intent);
StrictMode.incrementExpectedActivityCount(activity.getClass());
r.intent.setExtrasClassLoader(cl);
r.intent.prepareToEnterProcess();
if (r.state != null) {
r.state.setClassLoader(cl);
}
} catch (Exception e) {
if (!mInstrumentation.onException(activity, e)) {
throw new RuntimeException(
"Unable to instantiate activity " + component
+ ": " + e.toString(), e);
}
}3、通过LoadedApk的makeApplication方法来尝试创建Application对象
try {
Application app = r.packageInfo.makeApplication(false, mInstrumentation);我们继续看makeApplication方法的实现：
public Application makeApplication(boolean forceDefaultAppClass,
Instrumentation instrumentation) {
if (mApplication != null) {
return mApplication;
}
Application app = null;
String appClass = mApplicationInfo.className;
if (forceDefaultAppClass || (appClass == null)) {
appClass = "android.app.Application";
}
try {
java.lang.ClassLoader cl = getClassLoader();
if (!mPackageName.equals("android")) {
initializeJavaContextClassLoader();
}
ContextImpl appContext = ContextImpl.createAppContext(mActivityThread, this);
app = mActivityThread.mInstrumentation.newApplication(
cl, appClass, appContext);
appContext.setOuterContext(app);
} catch (Exception e) {
if (!mActivityThread.mInstrumentation.onException(app, e)) {
throw new RuntimeException(
"Unable to instantiate application " + appClass
+ ": " + e.toString(), e);
}
}
mActivityThread.mAllApplications.add(app);
mApplication = app;
if (instrumentation != null) {
try {
instrumentation.callApplicationOnCreate(app);
} catch (Exception e) {
if (!instrumentation.onException(app, e)) {
throw new RuntimeException(
"Unable to create application " + app.getClass().getName()
+ ": " + e.toString(), e);
}
}
}
// Rewrite the R 'constants' for all library apks.
SparseArray<String> packageIdentifiers = getAssets(mActivityThread)
.getAssignedPackageIdentifiers();
final int N = packageIdentifiers.size();
for (int i = 0; i < N; i++) {
final int id = packageIdentifiers.keyAt(i);
if (id == 0x01 || id == 0x7f) {
continue;
}
rewriteRValues(getClassLoader(), packageIdentifiers.valueAt(i), id);
}
return app;
}从makeApplication的实现可以看出，如果Application创建过了就不再创建了，也就意味着一个应用就一个Application对象，Application的创建和Activity的创建过程一样，都是通过类加载器创建的，创建完毕后，系统会通过instrumentation.callApplicationOnCreate(app);方法来调用Application的onCreate方法。
4、创建创建ContextImpl对象并通过Activity的Attach方法来完成重要数据的初始化
if (activity != null) {
Context appContext = createBaseContextForActivity(r, activity);
CharSequence title = r.activityInfo.loadLabel(appContext.getPackageManager());
Configuration config = new Configuration(mCompatConfiguration);
if (DEBUG_CONFIGURATION) Slog.v(TAG, "Launching activity "
+ r.activityInfo.name + " with config " + config);
activity.attach(appContext, this, getInstrumentation(), r.token,
r.ident, app, r.intent, r.activityInfo, title, r.parent,
r.embeddedID, r.lastNonConfigurationInstances, config,
r.referrer, r.voiceInteractor);ContextImpl是Context的具体实现，ContextImpl是通过Activity的Attach方法和Activity建立关联的；另外，attach方法中，activity还会完成window的创建并建立自己和window的关联，这样当window接收外部事件就可以把事件传递给Activity了。
5、调用Activity的onCreate方法
mInstrumentation.callActivityOnCreate(activity, r.state);onCreate方法被调用，那么Activity的启动也就完成了。
为了更清楚的说明activity的启动过程，来看图：
扫一扫
748
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
