grafana-prometheus mac 环境搭建

grafana搭建

安装与服务开启

• 下载

https://grafana.com/grafana/download?platform=mac
https://prometheus.io/download/


https://github.com/prometheus/prometheus/releases/download/v2.53.0/prometheus-2.53.0.darwin-amd64.tar.gz


curl -O https://dl.grafana.com/enterprise/release/grafana-enterprise-11.0.0.darwin-amd64.tar.gz

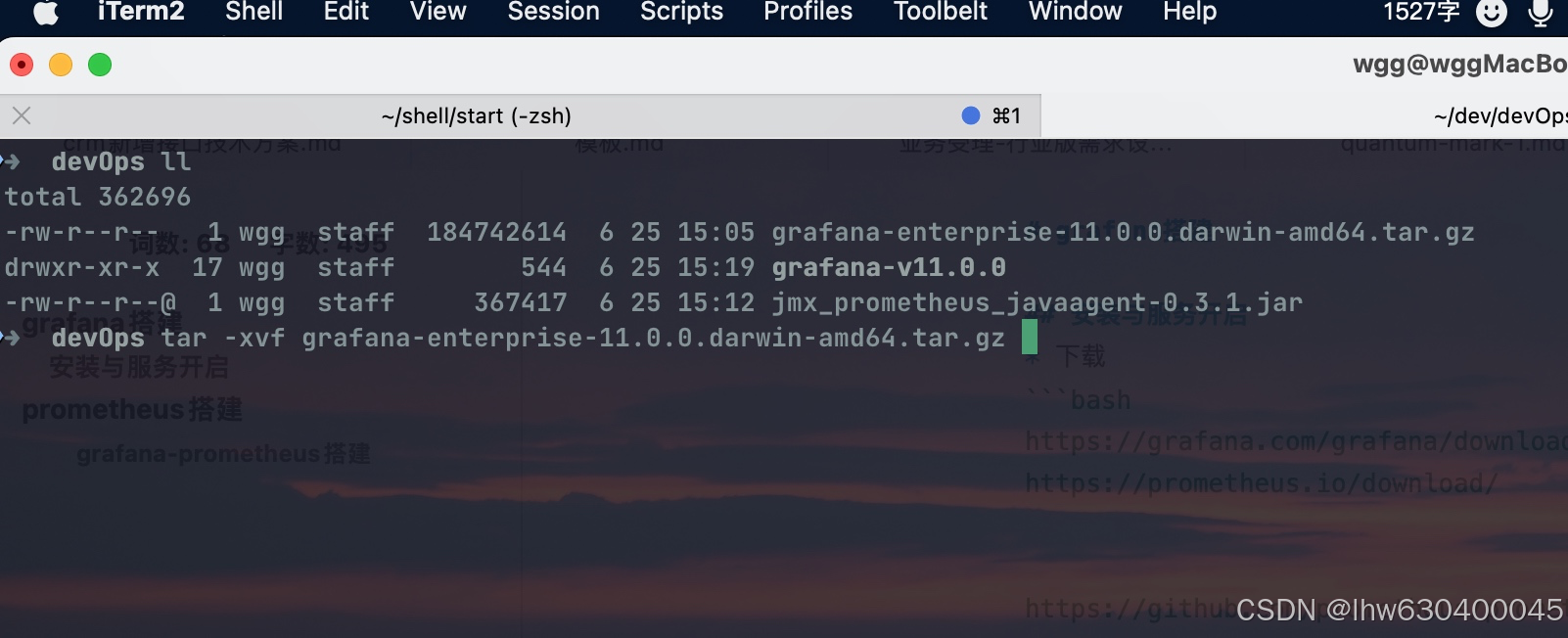

• 安装

tar -xvf grafana-enterprise-11.0.0.darwin-amd64.tar.gz

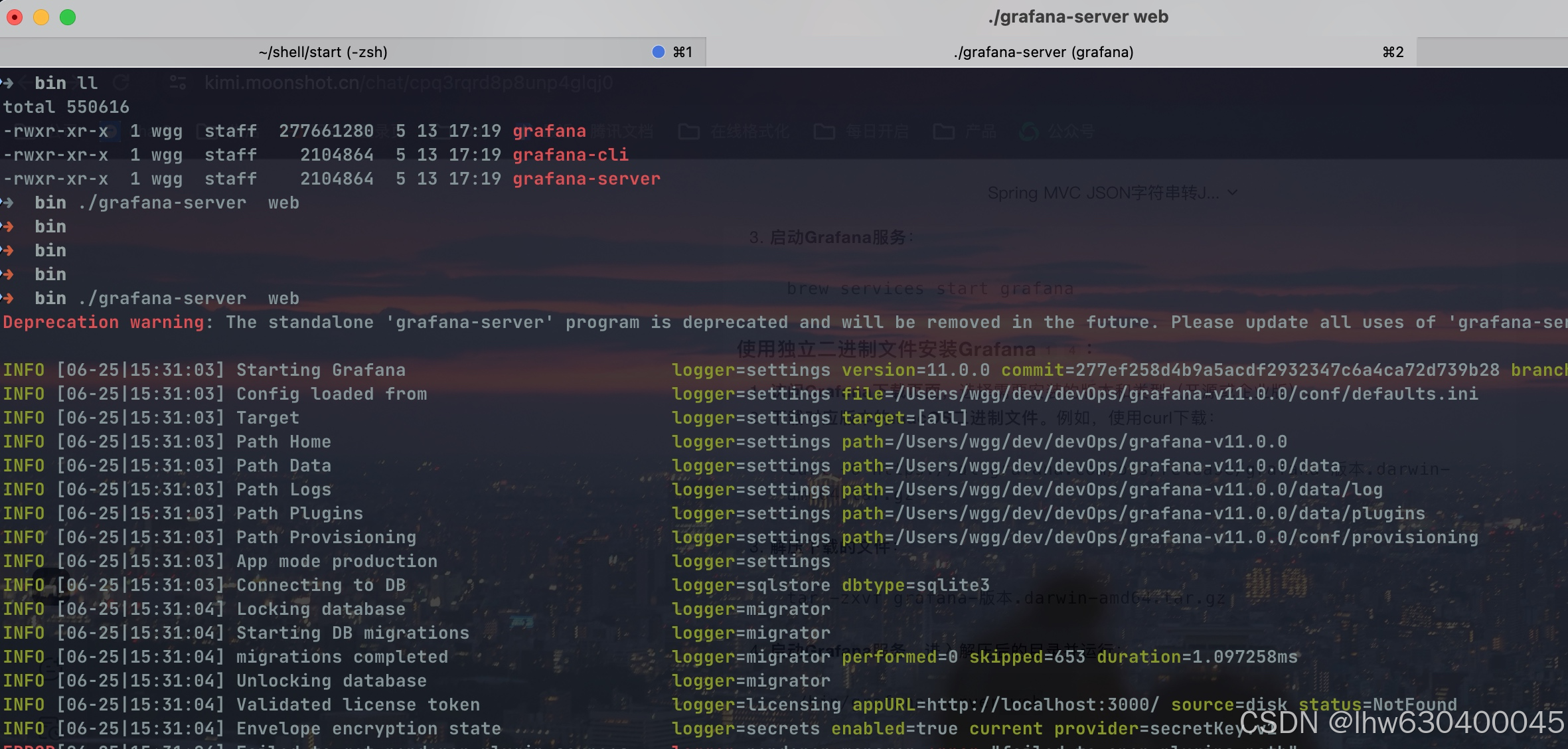

• 运行

./grafana-server  web

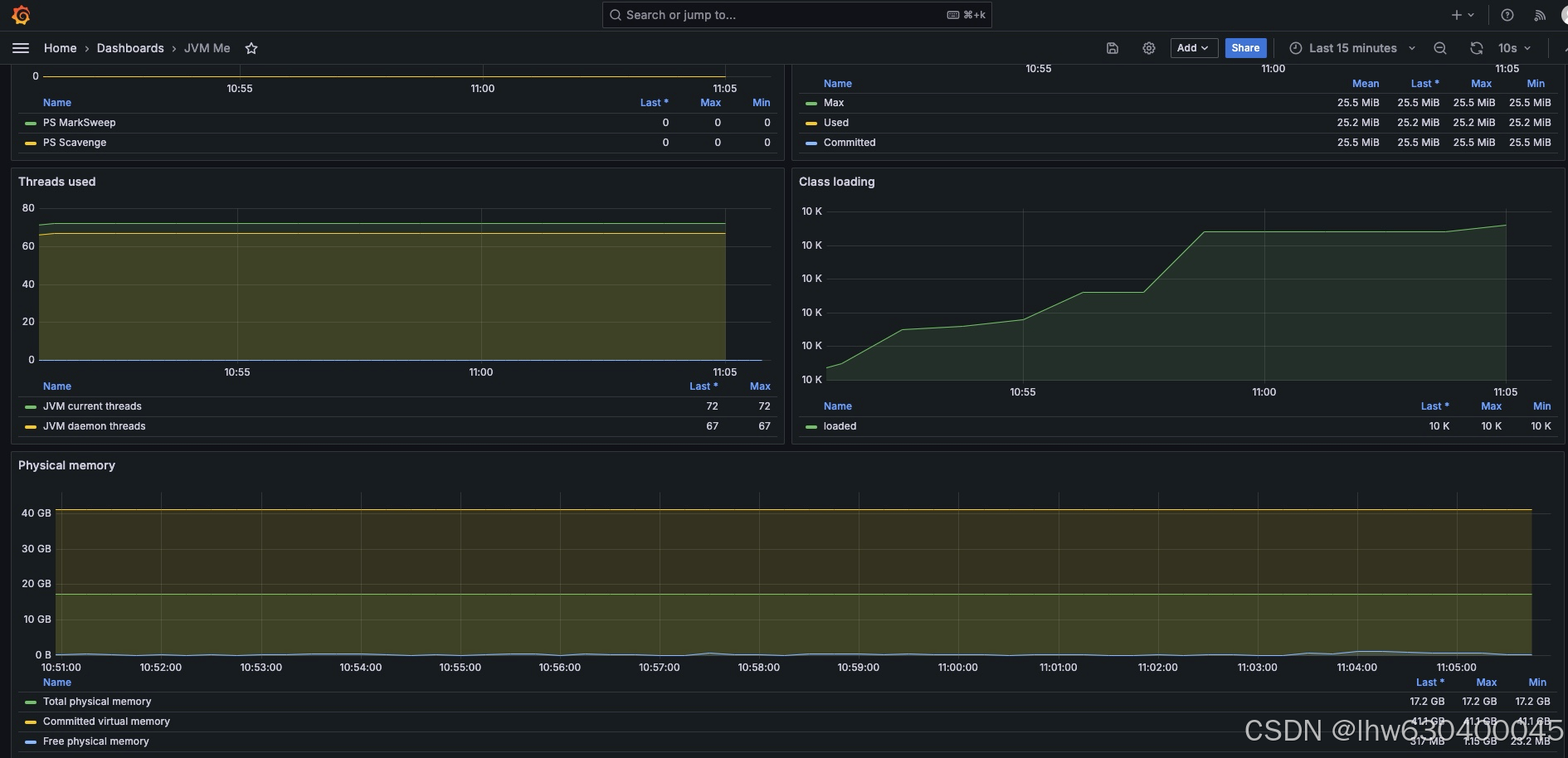

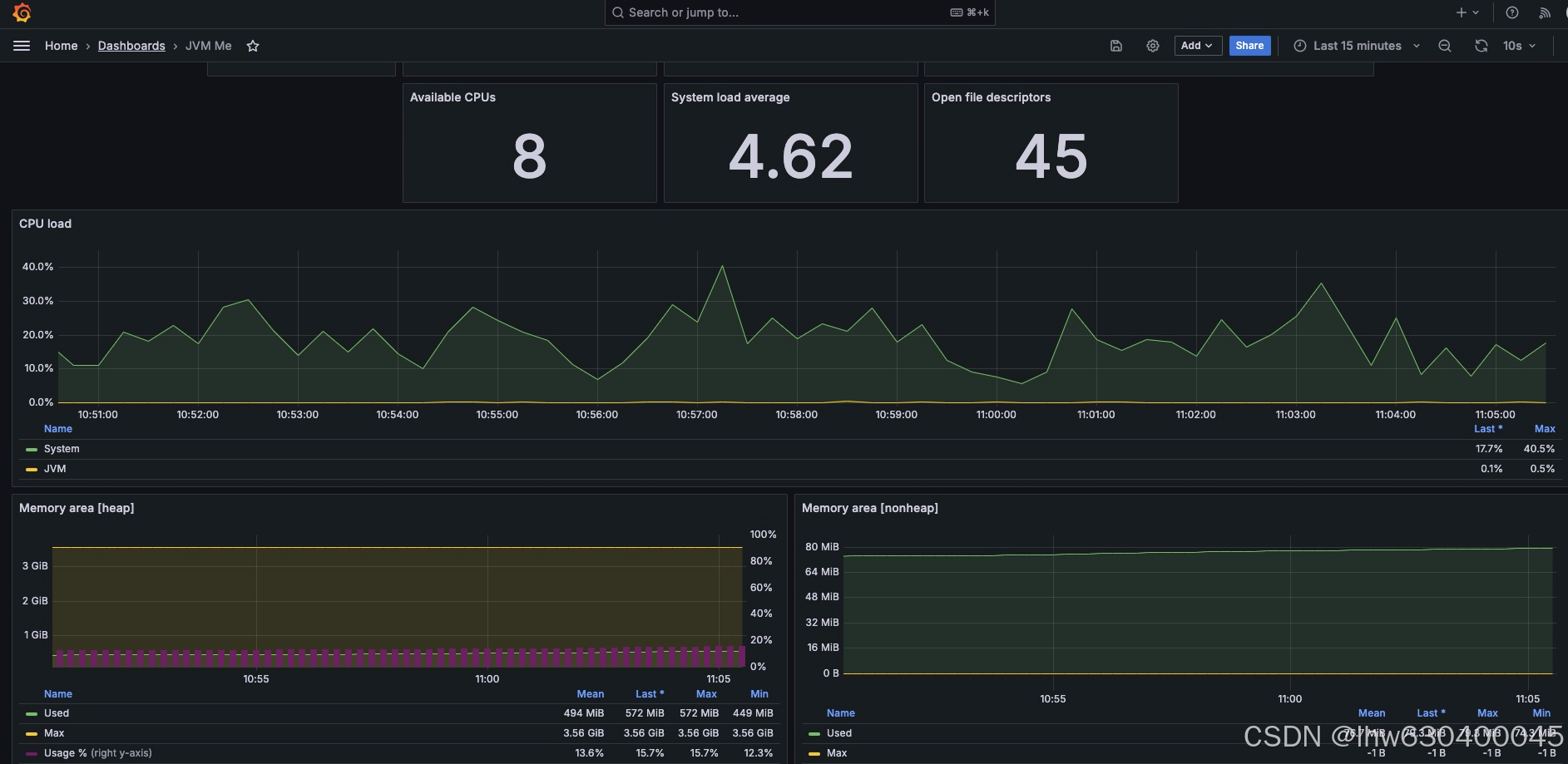

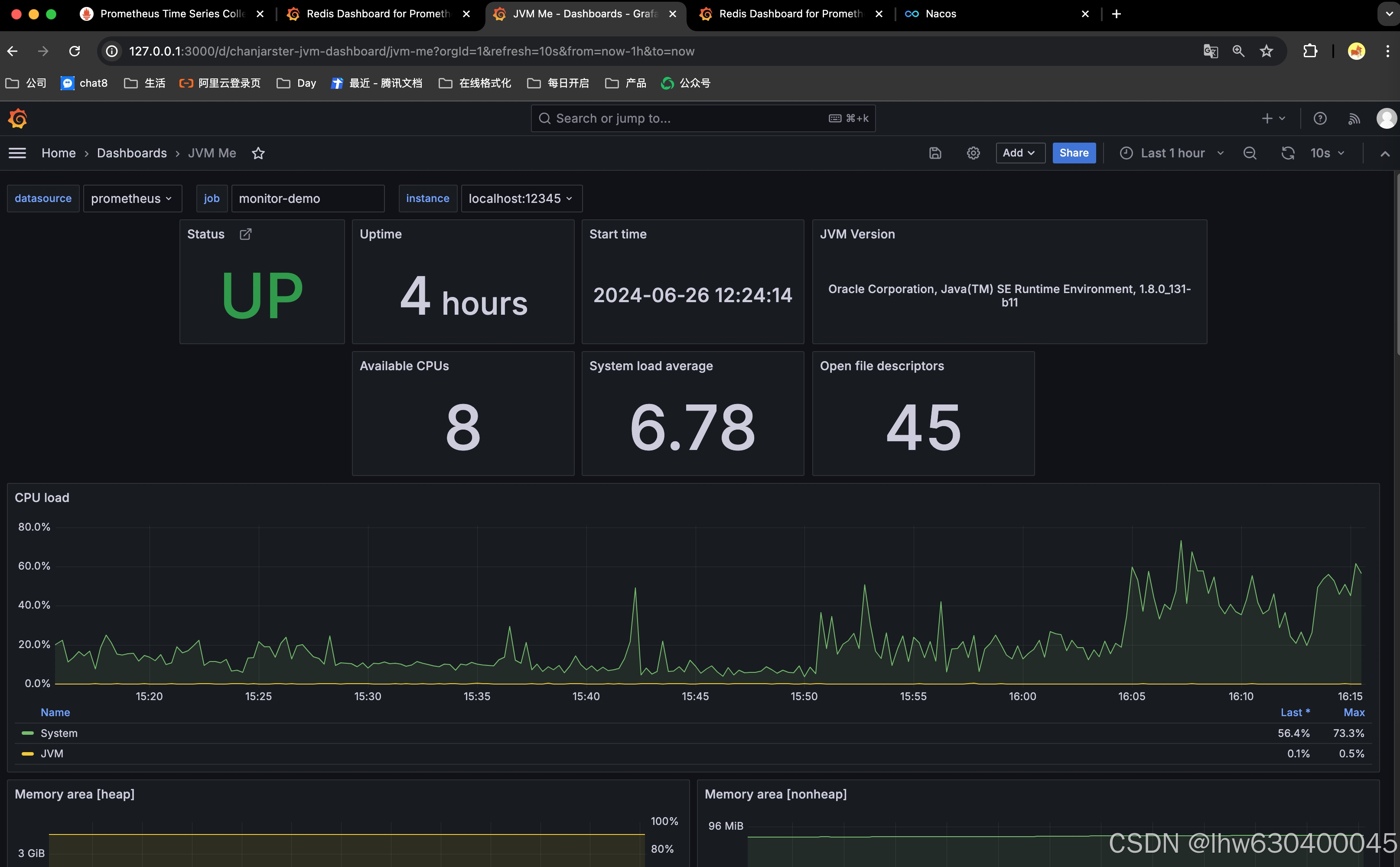

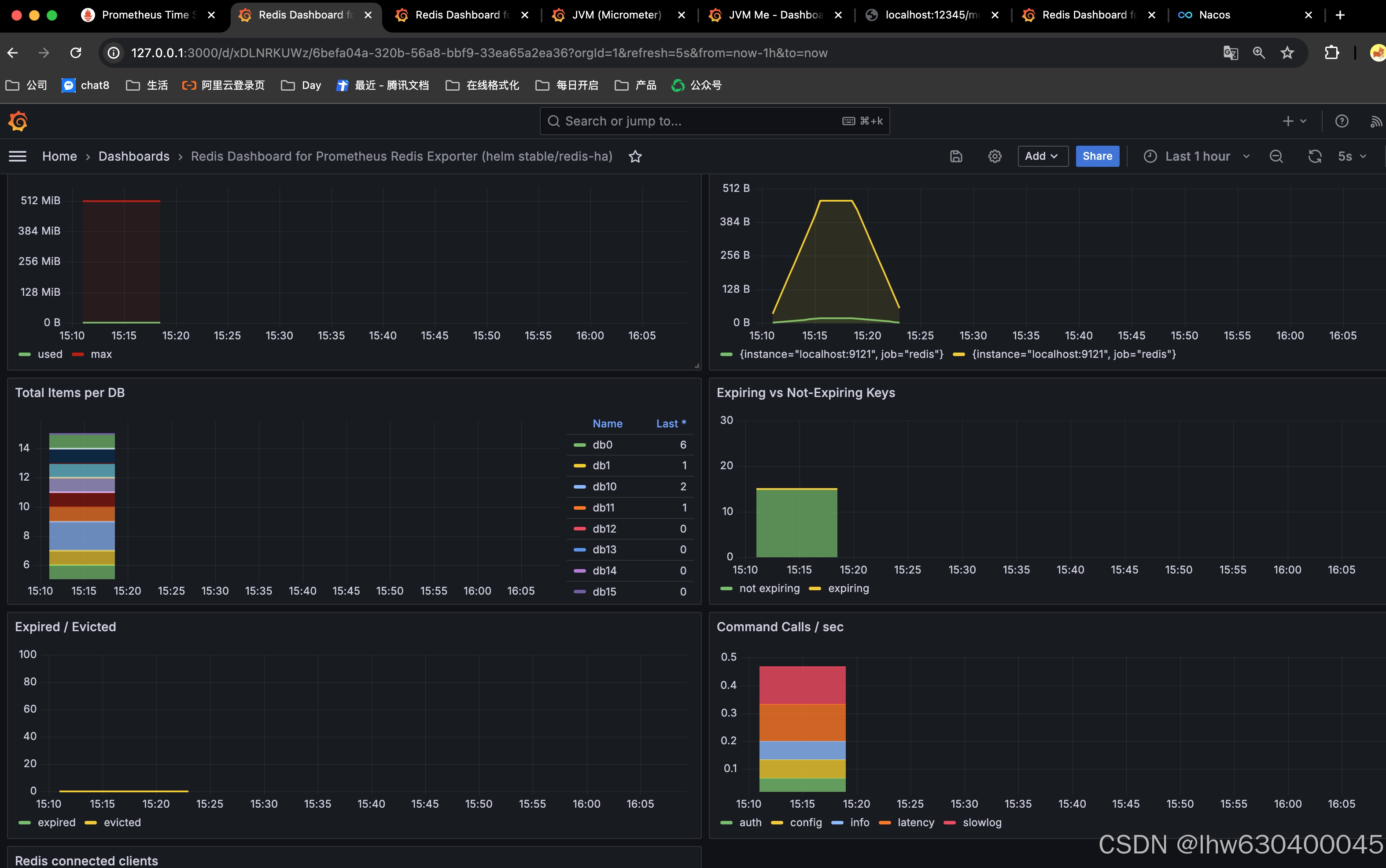

监控界面配置

http://127.0.0.1:3000/dashboards

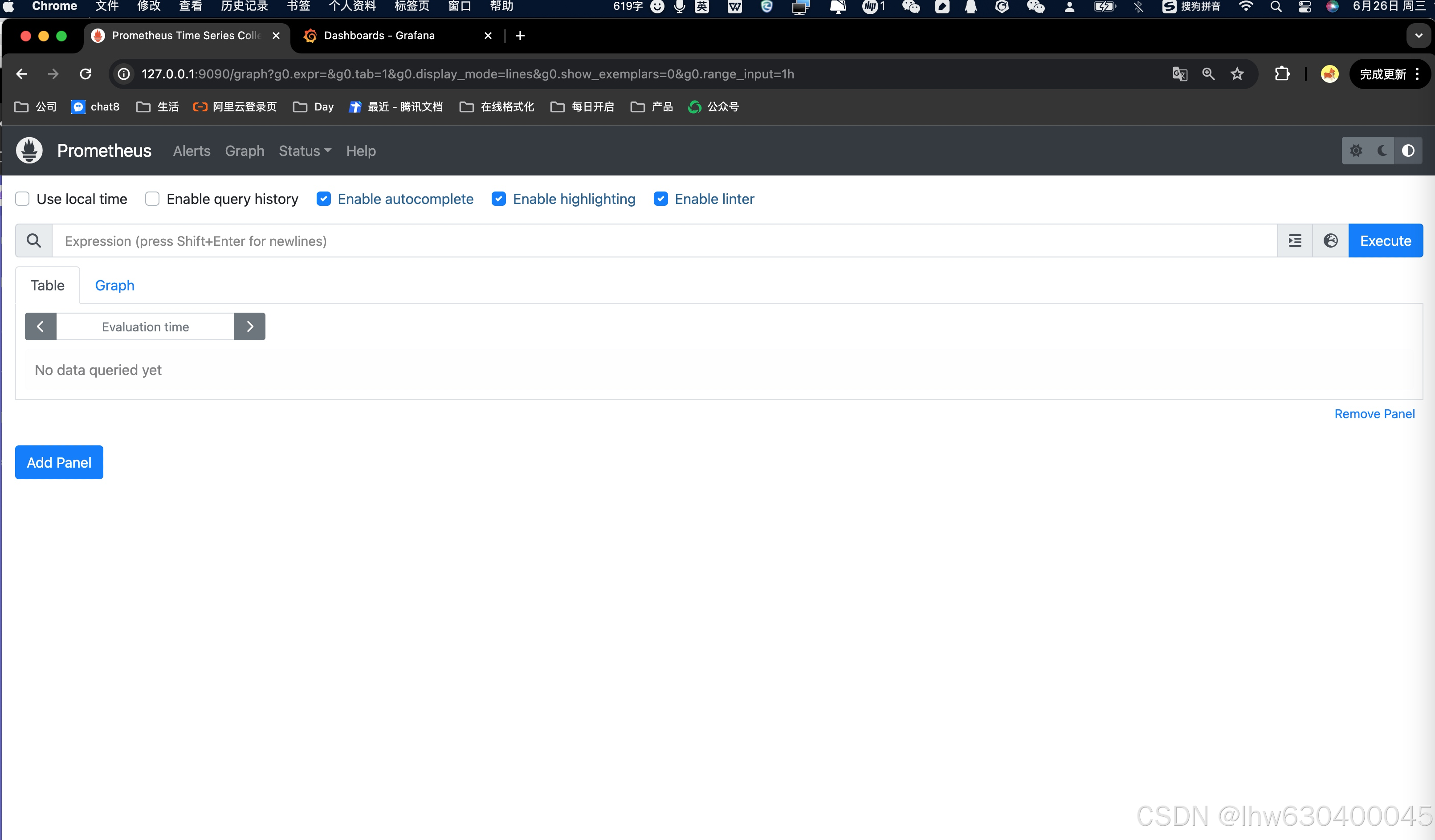

prometheus搭建

安装

https://github.com/prometheus/prometheus/releases/download/v2.53.0/prometheus-2.53.0.darwin-amd64.tar.gz

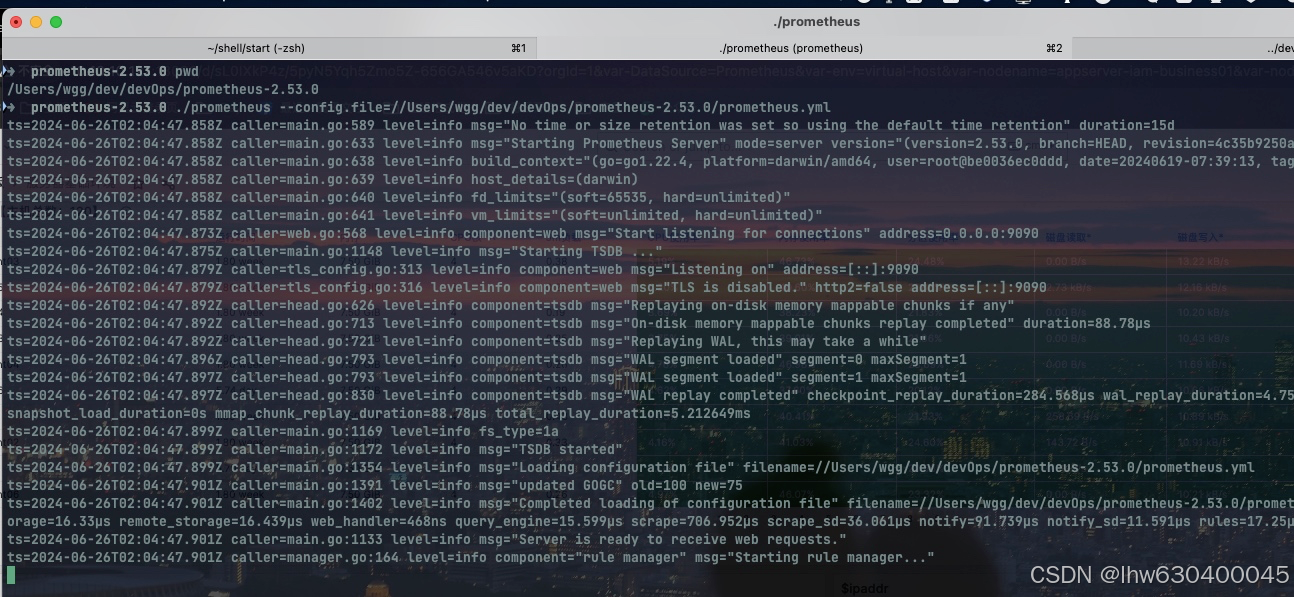

启动

➜  prometheus-2.53.0 pwd
/Users/wgg/dev/devOps/prometheus-2.53.0
➜  prometheus-2.53.0 ./prometheus --config.file=//Users/wgg/dev/devOps/prometheus-2.53.0/prometheus.yml

默认配置

# my global config
global:
  scrape_interval: 15s # Set the scrape interval to every 15 seconds. Default is every 1 minute.
  evaluation_interval: 15s # Evaluate rules every 15 seconds. The default is every 1 minute.
  # scrape_timeout is set to the global default (10s).

# Alertmanager configuration
alerting:
  alertmanagers:
    - static_configs:
        - targets:
          # - alertmanager:9093

# Load rules once and periodically evaluate them according to the global 'evaluation_interval'.
rule_files:
  # - "first_rules.yml"
  # - "second_rules.yml"

# A scrape configuration containing exactly one endpoint to scrape:
# Here it's Prometheus itself.
scrape_configs:
  # The job name is added as a label `job=<job_name>` to any timeseries scraped from this config.
  - job_name: "prometheus"

    # metrics_path defaults to '/metrics'
    # scheme defaults to 'http'.

    static_configs:
      - targets: ["localhost:9090"]

  - job_name: 'monitor-demo'

    # metrics_path defaults to '/metrics'
    metrics_path: '/actuator/prometheus'
    # scheme defaults to 'http'.

    static_configs:
    - targets: ['localhost:12345']

  - job_name: 'springboot'
    scrape_interval: 5s
    metrics_path: '/actuator/prometheus'
    static_configs:
      - targets: ['localhost:8087']

java应用对接

探针安装

https://repo1.maven.org/maven2/io/prometheus/jmx/jmx_prometheus_javaagent/0.3.1/jmx_prometheus_javaagent-0.3.1.jar

maven依赖

<dependency>
    <groupId>io.micrometer</groupId>
    <artifactId>micrometer-registry-prometheus</artifactId>
    <scope>runtime</scope>
</dependency>
<dependency>
    <groupId>io.github.mweirauch</groupId>
    <artifactId>micrometer-jvm-extras</artifactId>
    <version>0.2.0</version>
</dependency>

Bean

  /**
     * prometheus
     * https://grafana.com/grafana/dashboards/4701-jvm-micrometer/
     * @param applicationName
     * @return
     */
    @Bean
    MeterRegistryCustomizer<MeterRegistry> configurer(
            @Value("${spring.application.name}") String applicationName) {
        return (registry) -> registry.config().commonTags("application", applicationName);
    }

application.yml

management:
  endpoints:
    web:
      exposure:
        include: "*"
        #include: health, info, metrics
  endpoint:
    health:
      show-details: always
    heapdump:
      enabled: false
  #prometheus
  metrics:
    export:
      prometheus:
        enabled: true
        step: 1ms
        descriptions: true
    tags:
      application: ${spring.application.name}

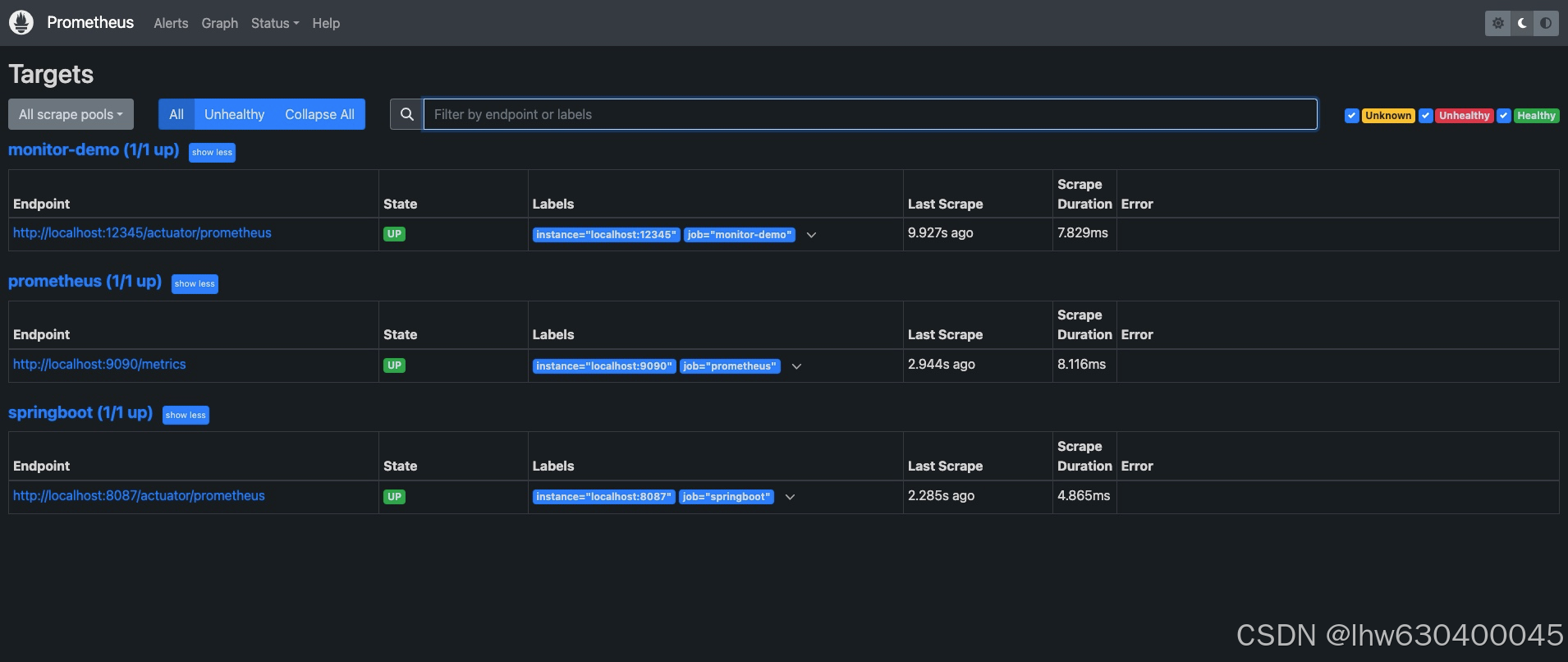

配置Prometheus：在Prometheus的配置文件prometheus.yml中添加一个新的scrape配置，指向Spring Boot应用程序：

  - job_name: 'springboot'
    scrape_interval: 5s
    metrics_path: '/actuator/prometheus'
    static_configs:
      - targets: ['localhost:8087']

Agent

-javaagent:/Users/wgg/dev/devOps/agent/jmx_prometheus_javaagent-0.3.1.jar=12345:/Users/wgg/dev/devOps/agent/config.yaml

lowercaseOutputLabelNames: true
lowercaseOutputName: true
whitelistObjectNames: ["java.lang:type=OperatingSystem"]
blacklistObjectNames: []
rules:
  - pattern: 'java.lang<type=OperatingSystem><>(committed_virtual_memory|free_physical_memory|free_swap_space|total_physical_memory|total_swap_space)_size:'
    name: os_$1_bytes
    type: GAUGE
    attrNameSnakeCase: true
  - pattern: 'java.lang<type=OperatingSystem><>((?!process_cpu_time)\w+):'
    name: os_$1
    type: GAUGE
    attrNameSnakeCase: true

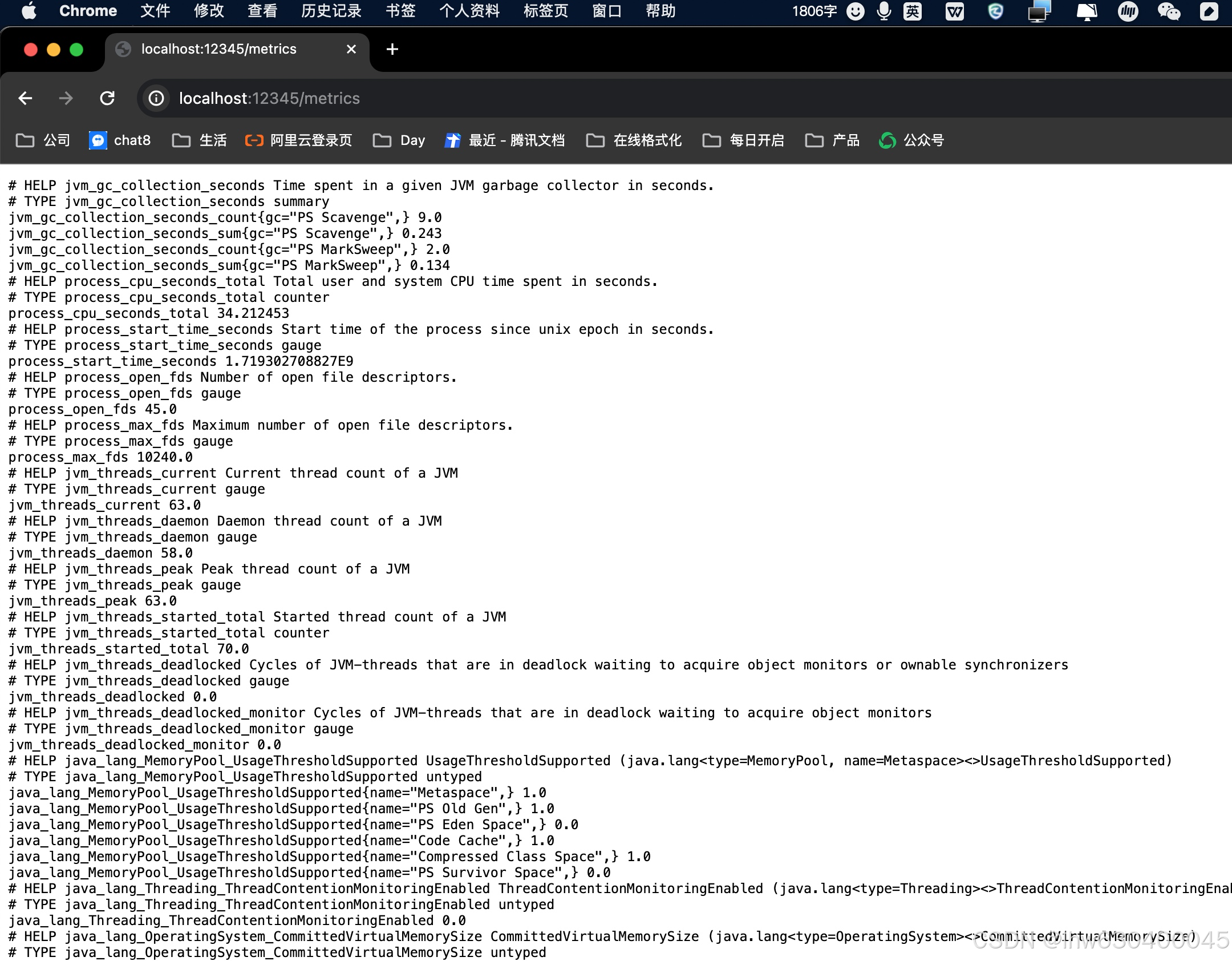

查看探测状态

http://localhost:12345/metrics

# HELP jvm_gc_collection_seconds Time spent in a given JVM garbage collector in seconds.
# TYPE jvm_gc_collection_seconds summary
jvm_gc_collection_seconds_count{gc="PS Scavenge",} 9.0
jvm_gc_collection_seconds_sum{gc="PS Scavenge",} 0.243
jvm_gc_collection_seconds_count{gc="PS MarkSweep",} 2.0
jvm_gc_collection_seconds_sum{gc="PS MarkSweep",} 0.134
# HELP process_cpu_seconds_total Total user and system CPU time spent in seconds.
# TYPE process_cpu_seconds_total counter
process_cpu_seconds_total 39.04159
# HELP process_start_time_seconds Start time of the process since unix epoch in seconds.
# TYPE process_start_time_seconds gauge
process_start_time_seconds 1.719302708827E9
# HELP process_open_fds Number of open file descriptors.
# TYPE process_open_fds gauge
process_open_fds 45.0
# HELP process_max_fds Maximum number of open file descriptors.
# TYPE process_max_fds gauge
process_max_fds 10240.0
# HELP jvm_threads_current Current thread count of a JVM
# TYPE jvm_threads_current gauge
jvm_threads_current 71.0
# HELP jvm_threads_daemon Daemon thread count of a JVM
# TYPE jvm_threads_daemon gauge
jvm_threads_daemon 66.0
# HELP jvm_threads_peak Peak thread count of a JVM
# TYPE jvm_threads_peak gauge
jvm_threads_peak 71.0
# HELP jvm_threads_started_total Started thread count of a JVM
# TYPE jvm_threads_started_total counter
jvm_threads_started_total 79.0
# HELP jvm_threads_deadlocked Cycles of JVM-threads that are in deadlock waiting to acquire object monitors or ownable synchronizers
# TYPE jvm_threads_deadlocked gauge
jvm_threads_deadlocked 0.0
# HELP jvm_threads_deadlocked_monitor Cycles of JVM-threads that are in deadlock waiting to acquire object monitors
# TYPE jvm_threads_deadlocked_monitor gauge
jvm_threads_deadlocked_monitor 0.0
# HELP java_lang_MemoryPool_UsageThresholdSupported UsageThresholdSupported (java.lang<type=MemoryPool, name=Metaspace><>UsageThresholdSupported)
# TYPE java_lang_MemoryPool_UsageThresholdSupported untyped
java_lang_MemoryPool_UsageThresholdSupported{name="Metaspace",} 1.0
java_lang_MemoryPool_UsageThresholdSupported{name="PS Old Gen",} 1.0
java_lang_MemoryPool_UsageThresholdSupported{name="PS Eden Space",} 0.0
java_lang_MemoryPool_UsageThresholdSupported{name="Code Cache",} 1.0
java_lang_MemoryPool_UsageThresholdSupported{name="Compressed Class Space",} 1.0
java_lang_MemoryPool_UsageThresholdSupported{name="PS Survivor Space",} 0.0
# HELP java_lang_Threading_ThreadContentionMonitoringEnabled ThreadContentionMonitoringEnabled (java.lang<type=Threading><>ThreadContentionMonitoringEnabled)
# TYPE java_lang_Threading_ThreadContentionMonitoringEnabled untyped
java_lang_Threading_ThreadContentionMonitoringEnabled 0.0
# HELP java_lang_OperatingSystem_CommittedVirtualMemorySize CommittedVirtualMemorySize (java.lang<type=OperatingSystem><>CommittedVirtualMemorySize)
# TYPE java_lang_OperatingSystem_CommittedVirtualMemorySize untyped
java_lang_OperatingSystem_CommittedVirtualMemorySize 4.1049010176E10
# HELP java_lang_GarbageCollector_LastGcInfo_memoryUsageAfterGc_used java.lang.management.MemoryUsage (java.lang<type=GarbageCollector, name=PS Scavenge, key=Compressed Class Space><LastGcInfo, memoryUsageAfterGc>used)
# TYPE java_lang_GarbageCollector_LastGcInfo_memoryUsageAfterGc_used untyped
java_lang_GarbageCollector_LastGcInfo_memoryUsageAfterGc_used{name="PS Scavenge",key="Compressed Class Space",} 6155544.0
java_lang_GarbageCollector_LastGcInfo_memoryUsageAfterGc_used{name="PS Scavenge",key="PS Survivor Space",} 2.4391712E7
java_lang_GarbageCollector_LastGcInfo_memoryUsageAfterGc_used{name="PS Scavenge",key="PS Old Gen",} 3.1466864E7
java_lang_GarbageCollector_LastGcInfo_memoryUsageAfterGc_used{name="PS Scavenge",key="Metaspace",} 4.7901736E7
java_lang_GarbageCollector_LastGcInfo_memoryUsageAfterGc_used{name="PS Scavenge",key="PS Eden Space",} 0.0
java_lang_GarbageCollector_LastGcInfo_memoryUsageAfterGc_used{name="PS Scavenge",key="Code Cache",} 1.7657152E7
java_lang_GarbageCollector_LastGcInfo_memoryUsageAfterGc_used{name="PS MarkSweep",key="Compressed Class Space",} 4497592.0
java_lang_GarbageCollector_LastGcInfo_memoryUsageAfterGc_used{name="PS MarkSweep",key="PS Survivor Space",} 0.0
java_lang_GarbageCollector_LastGcInfo_memoryUsageAfterGc_used{name="PS MarkSweep",key="PS Old Gen",} 3.1458672E7
java_lang_GarbageCollector_LastGcInfo_memoryUsageAfterGc_used{name="PS MarkSweep",key="Metaspace",} 3.4892056E7
java_lang_GarbageCollector_LastGcInfo_memoryUsageAfterGc_used{name="PS MarkSweep",key="PS Eden Space",} 0.0
java_lang_GarbageCollector_LastGcInfo_memoryUsageAfterGc_used{name="PS MarkSweep",key="Code Cache",} 1.2280768E7
# HELP java_lang_OperatingSystem_TotalSwapSpaceSize TotalSwapSpaceSize (java.lang<type=OperatingSystem><>TotalSwapSpaceSize)
# TYPE java_lang_OperatingSystem_TotalSwapSpaceSize untyped
java_lang_OperatingSystem_TotalSwapSpaceSize 1.3958643712E10
# HELP java_lang_Threading_ThreadContentionMonitoringSupported ThreadContentionMonitoringSupported (java.lang<type=Threading><>ThreadContentionMonitoringSupported)
# TYPE java_lang_Threading_ThreadContentionMonitoringSupported untyped
java_lang_Threading_ThreadContentionMonitoringSupported 1.0
# HELP java_lang_Memory_HeapMemoryUsage_committed java.lang.management.MemoryUsage (java.lang<type=Memory><HeapMemoryUsage>committed)
# TYPE java_lang_Memory_HeapMemoryUsage_committed untyped
java_lang_Memory_HeapMemoryUsage_committed 9.08591104E8
# HELP java_lang_MemoryPool_CollectionUsage_max java.lang.management.MemoryUsage (java.lang<type=MemoryPool, name=PS Old Gen><CollectionUsage>max)
# TYPE java_lang_MemoryPool_CollectionUsage_max untyped
java_lang_MemoryPool_CollectionUsage_max{name="PS Old Gen",} 2.863661056E9
java_lang_MemoryPool_CollectionUsage_max{name="PS Eden Space",} 1.374683136E9
java_lang_MemoryPool_CollectionUsage_max{name="PS Survivor Space",} 2.6738688E7
# HELP java_lang_Runtime_StartTime StartTime (java.lang<type=Runtime><>StartTime)
# TYPE java_lang_Runtime_StartTime untyped
java_lang_Runtime_StartTime 1.719302708827E12
# HELP java_lang_GarbageCollector_LastGcInfo_endTime CompositeType for GC info for PS Scavenge (java.lang<type=GarbageCollector, name=PS Scavenge><LastGcInfo>endTime)
# TYPE java_lang_GarbageCollector_LastGcInfo_endTime untyped
java_lang_GarbageCollector_LastGcInfo_endTime{name="PS Scavenge",} 8821.0
java_lang_GarbageCollector_LastGcInfo_endTime{name="PS MarkSweep",} 6044.0
# HELP java_lang_Memory_HeapMemoryUsage_max java.lang.management.MemoryUsage (java.lang<type=Memory><HeapMemoryUsage>max)
# TYPE java_lang_Memory_HeapMemoryUsage_max untyped
java_lang_Memory_HeapMemoryUsage_max 3.817865216E9
# HELP java_lang_MemoryPool_UsageThreshold UsageThreshold (java.lang<type=MemoryPool, name=Metaspace><>UsageThreshold)
# TYPE java_lang_MemoryPool_UsageThreshold untyped
java_lang_MemoryPool_UsageThreshold{name="Metaspace",} 0.0
java_lang_MemoryPool_UsageThreshold{name="PS Old Gen",} 0.0
java_lang_MemoryPool_UsageThreshold{name="Code Cache",} 0.0
java_lang_MemoryPool_UsageThreshold{name="Compressed Class Space",} 0.0
# HELP java_lang_MemoryPool_CollectionUsageThresholdCount CollectionUsageThresholdCount (java.lang<type=MemoryPool, name=PS Old Gen><>CollectionUsageThresholdCount)
# TYPE java_lang_MemoryPool_CollectionUsageThresholdCount untyped
java_lang_MemoryPool_CollectionUsageThresholdCount{name="PS Old Gen",} 0.0
java_lang_MemoryPool_CollectionUsageThresholdCount{name="PS Eden Space",} 0.0
java_lang_MemoryPool_CollectionUsageThresholdCount{name="PS Survivor Space",} 0.0
# HELP java_lang_Memory_NonHeapMemoryUsage_used java.lang.management.MemoryUsage (java.lang<type=Memory><NonHeapMemoryUsage>used)
# TYPE java_lang_Memory_NonHeapMemoryUsage_used untyped
java_lang_Memory_NonHeapMemoryUsage_used 7.6296072E7
# HELP java_lang_Threading_PeakThreadCount PeakThreadCount (java.lang<type=Threading><>PeakThreadCount)
# TYPE java_lang_Threading_PeakThreadCount untyped
java_lang_Threading_PeakThreadCount 71.0
# HELP java_lang_MemoryPool_PeakUsage_used java.lang.management.MemoryUsage (java.lang<type=MemoryPool, name=Metaspace><PeakUsage>used)
# TYPE java_lang_MemoryPool_PeakUsage_used untyped
java_lang_MemoryPool_PeakUsage_used{name="Metaspace",} 5.1653472E7
java_lang_MemoryPool_PeakUsage_used{name="PS Old Gen",} 3.1466864E7
java_lang_MemoryPool_PeakUsage_used{name="PS Eden Space",} 7.1565312E8
java_lang_MemoryPool_PeakUsage_used{name="Code Cache",} 1.8493568E7
java_lang_MemoryPool_PeakUsage_used{name="Compressed Class Space",} 6583368.0
java_lang_MemoryPool_PeakUsage_used{name="PS Survivor Space",} 2.4391712E7
# HELP java_lang_ClassLoading_TotalLoadedClassCount TotalLoadedClassCount (java.lang<type=ClassLoading><>TotalLoadedClassCount)
# TYPE java_lang_ClassLoading_TotalLoadedClassCount untyped
java_lang_ClassLoading_TotalLoadedClassCount 9899.0
# HELP java_lang_OperatingSystem_MaxFileDescriptorCount MaxFileDescriptorCount (java.lang<type=OperatingSystem><>MaxFileDescriptorCount)
# TYPE java_lang_OperatingSystem_MaxFileDescriptorCount untyped
java_lang_OperatingSystem_MaxFileDescriptorCount 10240.0
# HELP java_lang_ClassLoading_Verbose Verbose (java.lang<type=ClassLoading><>Verbose)
# TYPE java_lang_ClassLoading_Verbose untyped
java_lang_ClassLoading_Verbose 0.0
# HELP java_lang_GarbageCollector_LastGcInfo_id CompositeType for GC info for PS Scavenge (java.lang<type=GarbageCollector, name=PS Scavenge><LastGcInfo>id)
# TYPE java_lang_GarbageCollector_LastGcInfo_id untyped
java_lang_GarbageCollector_LastGcInfo_id{name="PS Scavenge",} 9.0
java_lang_GarbageCollector_LastGcInfo_id{name="PS MarkSweep",} 2.0
# HELP java_lang_Threading_CurrentThreadUserTime CurrentThreadUserTime (java.lang<type=Threading><>CurrentThreadUserTime)
# TYPE java_lang_Threading_CurrentThreadUserTime untyped
java_lang_Threading_CurrentThreadUserTime 1.1849E7
# HELP java_lang_GarbageCollector_LastGcInfo_memoryUsageAfterGc_committed java.lang.management.MemoryUsage (java.lang<type=GarbageCollector, name=PS Scavenge, key=Compressed Class Space><LastGcInfo, memoryUsageAfterGc>committed)
# TYPE java_lang_GarbageCollector_LastGcInfo_memoryUsageAfterGc_committed untyped
java_lang_GarbageCollector_LastGcInfo_memoryUsageAfterGc_committed{name="PS Scavenge",key="Compressed Class Space",} 6684672.0
java_lang_GarbageCollector_LastGcInfo_memoryUsageAfterGc_committed{name="PS Scavenge",key="PS Survivor Space",} 2.6738688E7
java_lang_GarbageCollector_LastGcInfo_memoryUsageAfterGc_committed{name="PS Scavenge",key="PS Old Gen",} 1.66199296E8
java_lang_GarbageCollector_LastGcInfo_memoryUsageAfterGc_committed{name="PS Scavenge",key="Metaspace",} 5.042176E7
java_lang_GarbageCollector_LastGcInfo_memoryUsageAfterGc_committed{name="PS Scavenge",key="PS Eden Space",} 7.1565312E8
java_lang_GarbageCollector_LastGcInfo_memoryUsageAfterGc_committed{name="PS Scavenge",key="Code Cache",} 1.7760256E7
java_lang_GarbageCollector_LastGcInfo_memoryUsageAfterGc_committed{name="PS MarkSweep",key="Compressed Class Space",} 4849664.0
java_lang_GarbageCollector_LastGcInfo_memoryUsageAfterGc_committed{name="PS MarkSweep",key="PS Survivor Space",} 2.0447232E7
java_lang_GarbageCollector_LastGcInfo_memoryUsageAfterGc_committed{name="PS MarkSweep",key="PS Old Gen",} 1.66199296E8
java_lang_GarbageCollector_LastGcInfo_memoryUsageAfterGc_committed{name="PS MarkSweep",key="Metaspace",} 3.6265984E7
java_lang_GarbageCollector_LastGcInfo_memoryUsageAfterGc_committed{name="PS MarkSweep",key="PS Eden Space",} 7.1565312E8
java_lang_GarbageCollector_LastGcInfo_memoryUsageAfterGc_committed{name="PS MarkSweep",key="Code Cache",} 1.2386304E7
# HELP java_lang_Threading_ThreadCount ThreadCount (java.lang<type=Threading><>ThreadCount)
# TYPE java_lang_Threading_ThreadCount untyped
java_lang_Threading_ThreadCount 71.0
# HELP java_lang_MemoryPool_PeakUsage_committed java.lang.management.MemoryUsage (java.lang<type=MemoryPool, name=Metaspace><PeakUsage>committed)
# TYPE java_lang_MemoryPool_PeakUsage_committed untyped
java_lang_MemoryPool_PeakUsage_committed{name="Metaspace",} 5.4484992E7
java_lang_MemoryPool_PeakUsage_committed{name="PS Old Gen",} 1.79306496E8
java_lang_MemoryPool_PeakUsage_committed{name="PS Eden Space",} 7.1565312E8
java_lang_MemoryPool_PeakUsage_committed{name="Code Cache",} 1.8743296E7
java_lang_MemoryPool_PeakUsage_committed{name="Compressed Class Space",} 7077888.0
java_lang_MemoryPool_PeakUsage_committed{name="PS Survivor Space",} 2.6738688E7
# HELP java_lang_Memory_ObjectPendingFinalizationCount ObjectPendingFinalizationCount (java.lang<type=Memory><>ObjectPendingFinalizationCount)
# TYPE java_lang_Memory_ObjectPendingFinalizationCount untyped
java_lang_Memory_ObjectPendingFinalizationCount 0.0
# HELP java_lang_MemoryPool_Usage_used java.lang.management.MemoryUsage (java.lang<type=MemoryPool, name=Metaspace><Usage>used)
# TYPE java_lang_MemoryPool_Usage_used untyped
java_lang_MemoryPool_Usage_used{name="Metaspace",} 5.165232E7
java_lang_MemoryPool_Usage_used{name="PS Old Gen",} 3.1466864E7
java_lang_MemoryPool_Usage_used{name="PS Eden Space",} 3.63383144E8
java_lang_MemoryPool_Usage_used{name="Code Cache",} 1.8002816E7
java_lang_MemoryPool_Usage_used{name="Compressed Class Space",} 6583368.0
java_lang_MemoryPool_Usage_used{name="PS Survivor Space",} 2.4391712E7
# HELP java_lang_GarbageCollector_CollectionCount CollectionCount (java.lang<type=GarbageCollector, name=PS Scavenge><>CollectionCount)
# TYPE java_lang_GarbageCollector_CollectionCount untyped
java_lang_GarbageCollector_CollectionCount{name="PS Scavenge",} 9.0
java_lang_GarbageCollector_CollectionCount{name="PS MarkSweep",} 2.0
# HELP java_lang_Threading_SynchronizerUsageSupported SynchronizerUsageSupported (java.lang<type=Threading><>SynchronizerUsageSupported)
# TYPE java_lang_Threading_SynchronizerUsageSupported untyped
java_lang_Threading_SynchronizerUsageSupported 1.0
# HELP java_lang_Runtime_BootClassPathSupported BootClassPathSupported (java.lang<type=Runtime><>BootClassPathSupported)
# TYPE java_lang_Runtime_BootClassPathSupported untyped
java_lang_Runtime_BootClassPathSupported 1.0
# HELP java_nio_BufferPool_Count Count (java.nio<type=BufferPool, name=direct><>Count)
# TYPE java_nio_BufferPool_Count untyped
java_nio_BufferPool_Count{name="direct",} 4.0
java_nio_BufferPool_Count{name="mapped",} 0.0
# HELP java_lang_GarbageCollector_LastGcInfo_GcThreadCount CompositeType for GC info for PS Scavenge (java.lang<type=GarbageCollector, name=PS Scavenge><LastGcInfo>GcThreadCount)
# TYPE java_lang_GarbageCollector_LastGcInfo_GcThreadCount untyped
java_lang_GarbageCollector_LastGcInfo_GcThreadCount{name="PS Scavenge",} 8.0
java_lang_GarbageCollector_LastGcInfo_GcThreadCount{name="PS MarkSweep",} 8.0
# HELP java_lang_GarbageCollector_LastGcInfo_memoryUsageBeforeGc_committed java.lang.management.MemoryUsage (java.lang<type=GarbageCollector, name=PS Scavenge, key=Compressed Class Space><LastGcInfo, memoryUsageBeforeGc>committed)
# TYPE java_lang_GarbageCollector_LastGcInfo_memoryUsageBeforeGc_committed untyped
java_lang_GarbageCollector_LastGcInfo_memoryUsageBeforeGc_committed{name="PS Scavenge",key="Compressed Class Space",} 6684672.0
java_lang_GarbageCollector_LastGcInfo_memoryUsageBeforeGc_committed{name="PS Scavenge",key="PS Survivor Space",} 2.0447232E7
java_lang_GarbageCollector_LastGcInfo_memoryUsageBeforeGc_committed{name="PS Scavenge",key="PS Old Gen",} 1.66199296E8
java_lang_GarbageCollector_LastGcInfo_memoryUsageBeforeGc_committed{name="PS Scavenge",key="Metaspace",} 5.042176E7
java_lang_GarbageCollector_LastGcInfo_memoryUsageBeforeGc_committed{name="PS Scavenge",key="PS Eden Space",} 7.1565312E8
java_lang_GarbageCollector_LastGcInfo_memoryUsageBeforeGc_committed{name="PS Scavenge",key="Code Cache",} 1.7760256E7
java_lang_GarbageCollector_LastGcInfo_memoryUsageBeforeGc_committed{name="PS MarkSweep",key="Compressed Class Space",} 4849664.0
java_lang_GarbageCollector_LastGcInfo_memoryUsageBeforeGc_committed{name="PS MarkSweep",key="PS Survivor Space",} 2.0447232E7
java_lang_GarbageCollector_LastGcInfo_memoryUsageBeforeGc_committed{name="PS MarkSweep",key="PS Old Gen",} 1.04333312E8
java_lang_GarbageCollector_LastGcInfo_memoryUsageBeforeGc_committed{name="PS MarkSweep",key="Metaspace",} 3.6265984E7
java_lang_GarbageCollector_LastGcInfo_memoryUsageBeforeGc_committed{name="PS MarkSweep",key="PS Eden Space",} 7.1565312E8
java_lang_GarbageCollector_LastGcInfo_memoryUsageBeforeGc_committed{name="PS MarkSweep",key="Code Cache",} 1.2386304E7
# HELP java_lang_Threading_CurrentThreadCpuTimeSupported CurrentThreadCpuTimeSupported (java.lang<type=Threading><>CurrentThreadCpuTimeSupported)
# TYPE java_lang_Threading_CurrentThreadCpuTimeSupported untyped
java_lang_Threading_CurrentThreadCpuTimeSupported 1.0
# HELP java_lang_ClassLoading_LoadedClassCount LoadedClassCount (java.lang<type=ClassLoading><>LoadedClassCount)
# TYPE java_lang_ClassLoading_LoadedClassCount untyped
java_lang_ClassLoading_LoadedClassCount 9897.0
# HELP java_lang_MemoryPool_CollectionUsage_init java.lang.management.MemoryUsage (java.lang<type=MemoryPool, name=PS Old Gen><CollectionUsage>init)
# TYPE java_lang_MemoryPool_CollectionUsage_init untyped
java_lang_MemoryPool_CollectionUsage_init{name="PS Old Gen",} 1.79306496E8
java_lang_MemoryPool_CollectionUsage_init{name="PS Eden Space",} 6.7108864E7
java_lang_MemoryPool_CollectionUsage_init{name="PS Survivor Space",} 1.1010048E7
# HELP java_lang_MemoryPool_PeakUsage_max java.lang.management.MemoryUsage (java.lang<type=MemoryPool, name=Metaspace><PeakUsage>max)
# TYPE java_lang_MemoryPool_PeakUsage_max untyped
java_lang_MemoryPool_PeakUsage_max{name="Metaspace",} -1.0
java_lang_MemoryPool_PeakUsage_max{name="PS Old Gen",} 2.863661056E9
java_lang_MemoryPool_PeakUsage_max{name="PS Eden Space",} 1.41033472E9
java_lang_MemoryPool_PeakUsage_max{name="Code Cache",} 2.5165824E8
java_lang_MemoryPool_PeakUsage_max{name="Compressed Class Space",} 1.073741824E9
java_lang_MemoryPool_PeakUsage_max{name="PS Survivor Space",} 2.6738688E7
# HELP java_lang_MemoryPool_Usage_max java.lang.management.MemoryUsage (java.lang<type=MemoryPool, name=Metaspace><Usage>max)
# TYPE java_lang_MemoryPool_Usage_max untyped
java_lang_MemoryPool_Usage_max{name="Metaspace",} -1.0
java_lang_MemoryPool_Usage_max{name="PS Old Gen",} 2.863661056E9
java_lang_MemoryPool_Usage_max{name="PS Eden Space",} 1.374683136E9
java_lang_MemoryPool_Usage_max{name="Code Cache",} 2.5165824E8
java_lang_MemoryPool_Usage_max{name="Compressed Class Space",} 1.073741824E9
java_lang_MemoryPool_Usage_max{name="PS Survivor Space",} 2.6738688E7
# HELP java_lang_GarbageCollector_Valid Valid (java.lang<type=GarbageCollector, name=PS Scavenge><>Valid)
# TYPE java_lang_GarbageCollector_Valid untyped
java_lang_GarbageCollector_Valid{name="PS Scavenge",} 1.0
java_lang_GarbageCollector_Valid{name="PS MarkSweep",} 1.0
# HELP java_lang_GarbageCollector_LastGcInfo_memoryUsageBeforeGc_used java.lang.management.MemoryUsage (java.lang<type=GarbageCollector, name=PS Scavenge, key=Compressed Class Space><LastGcInfo, memoryUsageBeforeGc>used)
# TYPE java_lang_GarbageCollector_LastGcInfo_memoryUsageBeforeGc_used untyped
java_lang_GarbageCollector_LastGcInfo_memoryUsageBeforeGc_used{name="PS Scavenge",key="Compressed Class Space",} 6155544.0
java_lang_GarbageCollector_LastGcInfo_memoryUsageBeforeGc_used{name="PS Scavenge",key="PS Survivor Space",} 0.0
java_lang_GarbageCollector_LastGcInfo_memoryUsageBeforeGc_used{name="PS Scavenge",key="PS Old Gen",} 3.1458672E7
java_lang_GarbageCollector_LastGcInfo_memoryUsageBeforeGc_used{name="PS Scavenge",key="Metaspace",} 4.7901736E7
java_lang_GarbageCollector_LastGcInfo_memoryUsageBeforeGc_used{name="PS Scavenge",key="PS Eden Space",} 7.1565312E8
java_lang_GarbageCollector_LastGcInfo_memoryUsageBeforeGc_used{name="PS Scavenge",key="Code Cache",} 1.7657152E7
java_lang_GarbageCollector_LastGcInfo_memoryUsageBeforeGc_used{name="PS MarkSweep",key="Compressed Class Space",} 4497592.0
java_lang_GarbageCollector_LastGcInfo_memoryUsageBeforeGc_used{name="PS MarkSweep",key="PS Survivor Space",} 2.041456E7
java_lang_GarbageCollector_LastGcInfo_memoryUsageBeforeGc_used{name="PS MarkSweep",key="PS Old Gen",} 3.144316E7
java_lang_GarbageCollector_LastGcInfo_memoryUsageBeforeGc_used{name="PS MarkSweep",key="Metaspace",} 3.4892056E7
java_lang_GarbageCollector_LastGcInfo_memoryUsageBeforeGc_used{name="PS MarkSweep",key="PS Eden Space",} 0.0
java_lang_GarbageCollector_LastGcInfo_memoryUsageBeforeGc_used{name="PS MarkSweep",key="Code Cache",} 1.2280768E7
# HELP java_lang_Threading_ThreadAllocatedMemoryEnabled ThreadAllocatedMemoryEnabled (java.lang<type=Threading><>ThreadAllocatedMemoryEnabled)
# TYPE java_lang_Threading_ThreadAllocatedMemoryEnabled untyped
java_lang_Threading_ThreadAllocatedMemoryEnabled 1.0
# HELP java_lang_MemoryManager_Valid Valid (java.lang<type=MemoryManager, name=CodeCacheManager><>Valid)
# TYPE java_lang_MemoryManager_Valid untyped
java_lang_MemoryManager_Valid{name="CodeCacheManager",} 1.0
java_lang_MemoryManager_Valid{name="Metaspace Manager",} 1.0
# HELP java_lang_MemoryPool_Usage_init java.lang.management.MemoryUsage (java.lang<type=MemoryPool, name=Metaspace><Usage>init)
# TYPE java_lang_MemoryPool_Usage_init untyped
java_lang_MemoryPool_Usage_init{name="Metaspace",} 0.0
java_lang_MemoryPool_Usage_init{name="PS Old Gen",} 1.79306496E8
java_lang_MemoryPool_Usage_init{name="PS Eden Space",} 6.7108864E7
java_lang_MemoryPool_Usage_init{name="Code Cache",} 2555904.0
java_lang_MemoryPool_Usage_init{name="Compressed Class Space",} 0.0
java_lang_MemoryPool_Usage_init{name="PS Survivor Space",} 1.1010048E7
# HELP java_lang_OperatingSystem_ProcessCpuLoad ProcessCpuLoad (java.lang<type=OperatingSystem><>ProcessCpuLoad)
# TYPE java_lang_OperatingSystem_ProcessCpuLoad untyped
java_lang_OperatingSystem_ProcessCpuLoad 0.0010338047346828178
# HELP java_lang_MemoryPool_CollectionUsage_committed java.lang.management.MemoryUsage (java.lang<type=MemoryPool, name=PS Old Gen><CollectionUsage>committed)
# TYPE java_lang_MemoryPool_CollectionUsage_committed untyped
java_lang_MemoryPool_CollectionUsage_committed{name="PS Old Gen",} 1.66199296E8
java_lang_MemoryPool_CollectionUsage_committed{name="PS Eden Space",} 7.1565312E8
java_lang_MemoryPool_CollectionUsage_committed{name="PS Survivor Space",} 2.6738688E7
# HELP java_lang_OperatingSystem_TotalPhysicalMemorySize TotalPhysicalMemorySize (java.lang<type=OperatingSystem><>TotalPhysicalMemorySize)
# TYPE java_lang_OperatingSystem_TotalPhysicalMemorySize untyped
java_lang_OperatingSystem_TotalPhysicalMemorySize 1.7179869184E10
# HELP java_lang_Memory_NonHeapMemoryUsage_committed java.lang.management.MemoryUsage (java.lang<type=Memory><NonHeapMemoryUsage>committed)
# TYPE java_lang_Memory_NonHeapMemoryUsage_committed untyped
java_lang_Memory_NonHeapMemoryUsage_committed 8.056832E7
# HELP java_lang_Compilation_TotalCompilationTime TotalCompilationTime (java.lang<type=Compilation><>TotalCompilationTime)
# TYPE java_lang_Compilation_TotalCompilationTime untyped
java_lang_Compilation_TotalCompilationTime 24199.0
# HELP java_lang_Memory_Verbose Verbose (java.lang<type=Memory><>Verbose)
# TYPE java_lang_Memory_Verbose untyped
java_lang_Memory_Verbose 0.0
# HELP java_lang_MemoryPool_Valid Valid (java.lang<type=MemoryPool, name=Metaspace><>Valid)
# TYPE java_lang_MemoryPool_Valid untyped
java_lang_MemoryPool_Valid{name="Metaspace",} 1.0
java_lang_MemoryPool_Valid{name="PS Old Gen",} 1.0
java_lang_MemoryPool_Valid{name="PS Eden Space",} 1.0
java_lang_MemoryPool_Valid{name="Code Cache",} 1.0
java_lang_MemoryPool_Valid{name="Compressed Class Space",} 1.0
java_lang_MemoryPool_Valid{name="PS Survivor Space",} 1.0
# HELP java_lang_OperatingSystem_FreeSwapSpaceSize FreeSwapSpaceSize (java.lang<type=OperatingSystem><>FreeSwapSpaceSize)
# TYPE java_lang_OperatingSystem_FreeSwapSpaceSize untyped
java_lang_OperatingSystem_FreeSwapSpaceSize 1.455947776E9
# HELP java_lang_MemoryPool_UsageThresholdExceeded UsageThresholdExceeded (java.lang<type=MemoryPool, name=Metaspace><>UsageThresholdExceeded)
# TYPE java_lang_MemoryPool_UsageThresholdExceeded untyped
java_lang_MemoryPool_UsageThresholdExceeded{name="Metaspace",} 0.0
java_lang_MemoryPool_UsageThresholdExceeded{name="PS Old Gen",} 0.0
java_lang_MemoryPool_UsageThresholdExceeded{name="Code Cache",} 0.0
java_lang_MemoryPool_UsageThresholdExceeded{name="Compressed Class Space",} 0.0
# HELP java_lang_Threading_CurrentThreadCpuTime CurrentThreadCpuTime (java.lang<type=Threading><>CurrentThreadCpuTime)
# TYPE java_lang_Threading_CurrentThreadCpuTime untyped
java_lang_Threading_CurrentThreadCpuTime 5.7732E7
# HELP java_lang_MemoryPool_CollectionUsageThreshold CollectionUsageThreshold (java.lang<type=MemoryPool, name=PS Old Gen><>CollectionUsageThreshold)
# TYPE java_lang_MemoryPool_CollectionUsageThreshold untyped
java_lang_MemoryPool_CollectionUsageThreshold{name="PS Old Gen",} 0.0
java_lang_MemoryPool_CollectionUsageThreshold{name="PS Eden Space",} 0.0
java_lang_MemoryPool_CollectionUsageThreshold{name="PS Survivor Space",} 0.0
# HELP java_lang_GarbageCollector_CollectionTime CollectionTime (java.lang<type=GarbageCollector, name=PS Scavenge><>CollectionTime)
# TYPE java_lang_GarbageCollector_CollectionTime untyped
java_lang_GarbageCollector_CollectionTime{name="PS Scavenge",} 243.0
java_lang_GarbageCollector_CollectionTime{name="PS MarkSweep",} 134.0
# HELP java_lang_Compilation_CompilationTimeMonitoringSupported CompilationTimeMonitoringSupported (java.lang<type=Compilation><>CompilationTimeMonitoringSupported)
# TYPE java_lang_Compilation_CompilationTimeMonitoringSupported untyped
java_lang_Compilation_CompilationTimeMonitoringSupported 1.0
# HELP java_lang_MemoryPool_Usage_committed java.lang.management.MemoryUsage (java.lang<type=MemoryPool, name=Metaspace><Usage>committed)
# TYPE java_lang_MemoryPool_Usage_committed untyped
java_lang_MemoryPool_Usage_committed{name="Metaspace",} 5.4484992E7
java_lang_MemoryPool_Usage_committed{name="PS Old Gen",} 1.66199296E8
java_lang_MemoryPool_Usage_committed{name="PS Eden Space",} 7.1565312E8
java_lang_MemoryPool_Usage_committed{name="Code Cache",} 1.8743296E7
java_lang_MemoryPool_Usage_committed{name="Compressed Class Space",} 7077888.0
java_lang_MemoryPool_Usage_committed{name="PS Survivor Space",} 2.6738688E7
# HELP java_lang_Memory_NonHeapMemoryUsage_init java.lang.management.MemoryUsage (java.lang<type=Memory><NonHeapMemoryUsage>init)
# TYPE java_lang_Memory_NonHeapMemoryUsage_init untyped
java_lang_Memory_NonHeapMemoryUsage_init 2555904.0
# HELP java_lang_MemoryPool_PeakUsage_init java.lang.management.MemoryUsage (java.lang<type=MemoryPool, name=Metaspace><PeakUsage>init)
# TYPE java_lang_MemoryPool_PeakUsage_init untyped
java_lang_MemoryPool_PeakUsage_init{name="Metaspace",} 0.0
java_lang_MemoryPool_PeakUsage_init{name="PS Old Gen",} 1.79306496E8
java_lang_MemoryPool_PeakUsage_init{name="PS Eden Space",} 6.7108864E7
java_lang_MemoryPool_PeakUsage_init{name="Code Cache",} 2555904.0
java_lang_MemoryPool_PeakUsage_init{name="Compressed Class Space",} 0.0
java_lang_MemoryPool_PeakUsage_init{name="PS Survivor Space",} 1.1010048E7
# HELP java_lang_GarbageCollector_LastGcInfo_startTime CompositeType for GC info for PS Scavenge (java.lang<type=GarbageCollector, name=PS Scavenge><LastGcInfo>startTime)
# TYPE java_lang_GarbageCollector_LastGcInfo_startTime untyped
java_lang_GarbageCollector_LastGcInfo_startTime{name="PS Scavenge",} 8771.0
java_lang_GarbageCollector_LastGcInfo_startTime{name="PS MarkSweep",} 5949.0
# HELP java_lang_OperatingSystem_AvailableProcessors AvailableProcessors (java.lang<type=OperatingSystem><>AvailableProcessors)
# TYPE java_lang_OperatingSystem_AvailableProcessors untyped
java_lang_OperatingSystem_AvailableProcessors 8.0
# HELP java_lang_MemoryPool_CollectionUsageThresholdSupported CollectionUsageThresholdSupported (java.lang<type=MemoryPool, name=Metaspace><>CollectionUsageThresholdSupported)
# TYPE java_lang_MemoryPool_CollectionUsageThresholdSupported untyped
java_lang_MemoryPool_CollectionUsageThresholdSupported{name="Metaspace",} 0.0
java_lang_MemoryPool_CollectionUsageThresholdSupported{name="PS Old Gen",} 1.0
java_lang_MemoryPool_CollectionUsageThresholdSupported{name="PS Eden Space",} 1.0
java_lang_MemoryPool_CollectionUsageThresholdSupported{name="Code Cache",} 0.0
java_lang_MemoryPool_CollectionUsageThresholdSupported{name="Compressed Class Space",} 0.0
java_lang_MemoryPool_CollectionUsageThresholdSupported{name="PS Survivor Space",} 1.0
# HELP java_lang_GarbageCollector_LastGcInfo_memoryUsageBeforeGc_max java.lang.management.MemoryUsage (java.lang<type=GarbageCollector, name=PS Scavenge, key=Compressed Class Space><LastGcInfo, memoryUsageBeforeGc>max)
# TYPE java_lang_GarbageCollector_LastGcInfo_memoryUsageBeforeGc_max untyped
java_lang_GarbageCollector_LastGcInfo_memoryUsageBeforeGc_max{name="PS Scavenge",key="Compressed Class Space",} 1.073741824E9
java_lang_GarbageCollector_LastGcInfo_memoryUsageBeforeGc_max{name="PS Scavenge",key="PS Survivor Space",} 2.0447232E7
java_lang_GarbageCollector_LastGcInfo_memoryUsageBeforeGc_max{name="PS Scavenge",key="PS Old Gen",} 2.863661056E9
java_lang_GarbageCollector_LastGcInfo_memoryUsageBeforeGc_max{name="PS Scavenge",key="Metaspace",} -1.0
java_lang_GarbageCollector_LastGcInfo_memoryUsageBeforeGc_max{name="PS Scavenge",key="PS Eden Space",} 1.38412032E9
java_lang_GarbageCollector_LastGcInfo_memoryUsageBeforeGc_max{name="PS Scavenge",key="Code Cache",} 2.5165824E8
java_lang_GarbageCollector_LastGcInfo_memoryUsageBeforeGc_max{name="PS MarkSweep",key="Compressed Class Space",} 1.073741824E9
java_lang_GarbageCollector_LastGcInfo_memoryUsageBeforeGc_max{name="PS MarkSweep",key="PS Survivor Space",} 2.0447232E7
java_lang_GarbageCollector_LastGcInfo_memoryUsageBeforeGc_max{name="PS MarkSweep",key="PS Old Gen",} 2.863661056E9
java_lang_GarbageCollector_LastGcInfo_memoryUsageBeforeGc_max{name="PS MarkSweep",key="Metaspace",} -1.0
java_lang_GarbageCollector_LastGcInfo_memoryUsageBeforeGc_max{name="PS MarkSweep",key="PS Eden Space",} 1.38412032E9
java_lang_GarbageCollector_LastGcInfo_memoryUsageBeforeGc_max{name="PS MarkSweep",key="Code Cache",} 2.5165824E8
# HELP java_lang_ClassLoading_UnloadedClassCount UnloadedClassCount (java.lang<type=ClassLoading><>UnloadedClassCount)
# TYPE java_lang_ClassLoading_UnloadedClassCount untyped
java_lang_ClassLoading_UnloadedClassCount 2.0
# HELP java_nio_BufferPool_MemoryUsed MemoryUsed (java.nio<type=BufferPool, name=direct><>MemoryUsed)
# TYPE java_nio_BufferPool_MemoryUsed untyped
java_nio_BufferPool_MemoryUsed{name="direct",} 32768.0
java_nio_BufferPool_MemoryUsed{name="mapped",} 0.0
# HELP java_nio_BufferPool_TotalCapacity TotalCapacity (java.nio<type=BufferPool, name=direct><>TotalCapacity)
# TYPE java_nio_BufferPool_TotalCapacity untyped
java_nio_BufferPool_TotalCapacity{name="direct",} 32768.0
java_nio_BufferPool_TotalCapacity{name="mapped",} 0.0
# HELP java_lang_Memory_HeapMemoryUsage_used java.lang.management.MemoryUsage (java.lang<type=Memory><HeapMemoryUsage>used)
# TYPE java_lang_Memory_HeapMemoryUsage_used untyped
java_lang_Memory_HeapMemoryUsage_used 4.21030984E8
# HELP java_lang_MemoryPool_CollectionUsage_used java.lang.management.MemoryUsage (java.lang<type=MemoryPool, name=PS Old Gen><CollectionUsage>used)
# TYPE java_lang_MemoryPool_CollectionUsage_used untyped
java_lang_MemoryPool_CollectionUsage_used{name="PS Old Gen",} 3.1458672E7
java_lang_MemoryPool_CollectionUsage_used{name="PS Eden Space",} 0.0
java_lang_MemoryPool_CollectionUsage_used{name="PS Survivor Space",} 2.4391712E7
# HELP java_lang_Memory_HeapMemoryUsage_init java.lang.management.MemoryUsage (java.lang<type=Memory><HeapMemoryUsage>init)
# TYPE java_lang_Memory_HeapMemoryUsage_init untyped
java_lang_Memory_HeapMemoryUsage_init 2.68435456E8
# HELP java_lang_OperatingSystem_SystemCpuLoad SystemCpuLoad (java.lang<type=OperatingSystem><>SystemCpuLoad)
# TYPE java_lang_OperatingSystem_SystemCpuLoad untyped
java_lang_OperatingSystem_SystemCpuLoad 0.2423765083516614
# HELP java_lang_GarbageCollector_LastGcInfo_memoryUsageAfterGc_init java.lang.management.MemoryUsage (java.lang<type=GarbageCollector, name=PS Scavenge, key=Compressed Class Space><LastGcInfo, memoryUsageAfterGc>init)
# TYPE java_lang_GarbageCollector_LastGcInfo_memoryUsageAfterGc_init untyped
java_lang_GarbageCollector_LastGcInfo_memoryUsageAfterGc_init{name="PS Scavenge",key="Compressed Class Space",} 0.0
java_lang_GarbageCollector_LastGcInfo_memoryUsageAfterGc_init{name="PS Scavenge",key="PS Survivor Space",} 1.1010048E7
java_lang_GarbageCollector_LastGcInfo_memoryUsageAfterGc_init{name="PS Scavenge",key="PS Old Gen",} 1.79306496E8
java_lang_GarbageCollector_LastGcInfo_memoryUsageAfterGc_init{name="PS Scavenge",key="Metaspace",} 0.0
java_lang_GarbageCollector_LastGcInfo_memoryUsageAfterGc_init{name="PS Scavenge",key="PS Eden Space",} 6.7108864E7
java_lang_GarbageCollector_LastGcInfo_memoryUsageAfterGc_init{name="PS Scavenge",key="Code Cache",} 2555904.0
java_lang_GarbageCollector_LastGcInfo_memoryUsageAfterGc_init{name="PS MarkSweep",key="Compressed Class Space",} 0.0
java_lang_GarbageCollector_LastGcInfo_memoryUsageAfterGc_init{name="PS MarkSweep",key="PS Survivor Space",} 1.1010048E7
java_lang_GarbageCollector_LastGcInfo_memoryUsageAfterGc_init{name="PS MarkSweep",key="PS Old Gen",} 1.79306496E8
java_lang_GarbageCollector_LastGcInfo_memoryUsageAfterGc_init{name="PS MarkSweep",key="Metaspace",} 0.0
java_lang_GarbageCollector_LastGcInfo_memoryUsageAfterGc_init{name="PS MarkSweep",key="PS Eden Space",} 6.7108864E7
java_lang_GarbageCollector_LastGcInfo_memoryUsageAfterGc_init{name="PS MarkSweep",key="Code Cache",} 2555904.0
# HELP java_lang_GarbageCollector_LastGcInfo_memoryUsageBeforeGc_init java.lang.management.MemoryUsage (java.lang<type=GarbageCollector, name=PS Scavenge, key=Compressed Class Space><LastGcInfo, memoryUsageBeforeGc>init)
# TYPE java_lang_GarbageCollector_LastGcInfo_memoryUsageBeforeGc_init untyped
java_lang_GarbageCollector_LastGcInfo_memoryUsageBeforeGc_init{name="PS Scavenge",key="Compressed Class Space",} 0.0
java_lang_GarbageCollector_LastGcInfo_memoryUsageBeforeGc_init{name="PS Scavenge",key="PS Survivor Space",} 1.1010048E7
java_lang_GarbageCollector_LastGcInfo_memoryUsageBeforeGc_init{name="PS Scavenge",key="PS Old Gen",} 1.79306496E8
java_lang_GarbageCollector_LastGcInfo_memoryUsageBeforeGc_init{name="PS Scavenge",key="Metaspace",} 0.0
java_lang_GarbageCollector_LastGcInfo_memoryUsageBeforeGc_init{name="PS Scavenge",key="PS Eden Space",} 6.7108864E7
java_lang_GarbageCollector_LastGcInfo_memoryUsageBeforeGc_init{name="PS Scavenge",key="Code Cache",} 2555904.0
java_lang_GarbageCollector_LastGcInfo_memoryUsageBeforeGc_init{name="PS MarkSweep",key="Compressed Class Space",} 0.0
java_lang_GarbageCollector_LastGcInfo_memoryUsageBeforeGc_init{name="PS MarkSweep",key="PS Survivor Space",} 1.1010048E7
java_lang_GarbageCollector_LastGcInfo_memoryUsageBeforeGc_init{name="PS MarkSweep",key="PS Old Gen",} 1.79306496E8
java_lang_GarbageCollector_LastGcInfo_memoryUsageBeforeGc_init{name="PS MarkSweep",key="Metaspace",} 0.0
java_lang_GarbageCollector_LastGcInfo_memoryUsageBeforeGc_init{name="PS MarkSweep",key="PS Eden Space",} 6.7108864E7
java_lang_GarbageCollector_LastGcInfo_memoryUsageBeforeGc_init{name="PS MarkSweep",key="Code Cache",} 2555904.0
# HELP java_lang_Threading_ThreadAllocatedMemorySupported ThreadAllocatedMemorySupported (java.lang<type=Threading><>ThreadAllocatedMemorySupported)
# TYPE java_lang_Threading_ThreadAllocatedMemorySupported untyped
java_lang_Threading_ThreadAllocatedMemorySupported 1.0
# HELP java_lang_Memory_NonHeapMemoryUsage_max java.lang.management.MemoryUsage (java.lang<type=Memory><NonHeapMemoryUsage>max)
# TYPE java_lang_Memory_NonHeapMemoryUsage_max untyped
java_lang_Memory_NonHeapMemoryUsage_max -1.0
# HELP java_lang_Threading_ThreadCpuTimeSupported ThreadCpuTimeSupported (java.lang<type=Threading><>ThreadCpuTimeSupported)
# TYPE java_lang_Threading_ThreadCpuTimeSupported untyped
java_lang_Threading_ThreadCpuTimeSupported 1.0
# HELP java_lang_Threading_DaemonThreadCount DaemonThreadCount (java.lang<type=Threading><>DaemonThreadCount)
# TYPE java_lang_Threading_DaemonThreadCount untyped
java_lang_Threading_DaemonThreadCount 66.0
# HELP java_lang_OperatingSystem_SystemLoadAverage SystemLoadAverage (java.lang<type=OperatingSystem><>SystemLoadAverage)
# TYPE java_lang_OperatingSystem_SystemLoadAverage untyped
java_lang_OperatingSystem_SystemLoadAverage 5.630859375
# HELP java_lang_Threading_TotalStartedThreadCount TotalStartedThreadCount (java.lang<type=Threading><>TotalStartedThreadCount)
# TYPE java_lang_Threading_TotalStartedThreadCount untyped
java_lang_Threading_TotalStartedThreadCount 79.0
# HELP java_lang_OperatingSystem_ProcessCpuTime ProcessCpuTime (java.lang<type=OperatingSystem><>ProcessCpuTime)
# TYPE java_lang_OperatingSystem_ProcessCpuTime untyped
java_lang_OperatingSystem_ProcessCpuTime 3.9107079E10
# HELP java_lang_OperatingSystem_FreePhysicalMemorySize FreePhysicalMemorySize (java.lang<type=OperatingSystem><>FreePhysicalMemorySize)
# TYPE java_lang_OperatingSystem_FreePhysicalMemorySize untyped
java_lang_OperatingSystem_FreePhysicalMemorySize 1.268965376E9
# HELP java_lang_Runtime_Uptime Uptime (java.lang<type=Runtime><>Uptime)
# TYPE java_lang_Runtime_Uptime untyped
java_lang_Runtime_Uptime 590085.0
# HELP java_lang_MemoryPool_CollectionUsageThresholdExceeded CollectionUsageThresholdExceeded (java.lang<type=MemoryPool, name=PS Old Gen><>CollectionUsageThresholdExceeded)
# TYPE java_lang_MemoryPool_CollectionUsageThresholdExceeded untyped
java_lang_MemoryPool_CollectionUsageThresholdExceeded{name="PS Old Gen",} 0.0
java_lang_MemoryPool_CollectionUsageThresholdExceeded{name="PS Eden Space",} 0.0
java_lang_MemoryPool_CollectionUsageThresholdExceeded{name="PS Survivor Space",} 0.0
# HELP java_lang_GarbageCollector_LastGcInfo_duration CompositeType for GC info for PS Scavenge (java.lang<type=GarbageCollector, name=PS Scavenge><LastGcInfo>duration)
# TYPE java_lang_GarbageCollector_LastGcInfo_duration untyped
java_lang_GarbageCollector_LastGcInfo_duration{name="PS Scavenge",} 50.0
java_lang_GarbageCollector_LastGcInfo_duration{name="PS MarkSweep",} 95.0
# HELP java_lang_Threading_ObjectMonitorUsageSupported ObjectMonitorUsageSupported (java.lang<type=Threading><>ObjectMonitorUsageSupported)
# TYPE java_lang_Threading_ObjectMonitorUsageSupported untyped
java_lang_Threading_ObjectMonitorUsageSupported 1.0
# HELP java_lang_GarbageCollector_LastGcInfo_memoryUsageAfterGc_max java.lang.management.MemoryUsage (java.lang<type=GarbageCollector, name=PS Scavenge, key=Compressed Class Space><LastGcInfo, memoryUsageAfterGc>max)
# TYPE java_lang_GarbageCollector_LastGcInfo_memoryUsageAfterGc_max untyped
java_lang_GarbageCollector_LastGcInfo_memoryUsageAfterGc_max{name="PS Scavenge",key="Compressed Class Space",} 1.073741824E9
java_lang_GarbageCollector_LastGcInfo_memoryUsageAfterGc_max{name="PS Scavenge",key="PS Survivor Space",} 2.6738688E7
java_lang_GarbageCollector_LastGcInfo_memoryUsageAfterGc_max{name="PS Scavenge",key="PS Old Gen",} 2.863661056E9
java_lang_GarbageCollector_LastGcInfo_memoryUsageAfterGc_max{name="PS Scavenge",key="Metaspace",} -1.0
java_lang_GarbageCollector_LastGcInfo_memoryUsageAfterGc_max{name="PS Scavenge",key="PS Eden Space",} 1.374683136E9
java_lang_GarbageCollector_LastGcInfo_memoryUsageAfterGc_max{name="PS Scavenge",key="Code Cache",} 2.5165824E8
java_lang_GarbageCollector_LastGcInfo_memoryUsageAfterGc_max{name="PS MarkSweep",key="Compressed Class Space",} 1.073741824E9
java_lang_GarbageCollector_LastGcInfo_memoryUsageAfterGc_max{name="PS MarkSweep",key="PS Survivor Space",} 2.0447232E7
java_lang_GarbageCollector_LastGcInfo_memoryUsageAfterGc_max{name="PS MarkSweep",key="PS Old Gen",} 2.863661056E9
java_lang_GarbageCollector_LastGcInfo_memoryUsageAfterGc_max{name="PS MarkSweep",key="Metaspace",} -1.0
java_lang_GarbageCollector_LastGcInfo_memoryUsageAfterGc_max{name="PS MarkSweep",key="PS Eden Space",} 1.38412032E9
java_lang_GarbageCollector_LastGcInfo_memoryUsageAfterGc_max{name="PS MarkSweep",key="Code Cache",} 2.5165824E8
# HELP java_lang_MemoryPool_UsageThresholdCount UsageThresholdCount (java.lang<type=MemoryPool, name=Metaspace><>UsageThresholdCount)
# TYPE java_lang_MemoryPool_UsageThresholdCount untyped
java_lang_MemoryPool_UsageThresholdCount{name="Metaspace",} 0.0
java_lang_MemoryPool_UsageThresholdCount{name="PS Old Gen",} 0.0
java_lang_MemoryPool_UsageThresholdCount{name="Code Cache",} 0.0
java_lang_MemoryPool_UsageThresholdCount{name="Compressed Class Space",} 0.0
# HELP java_lang_Threading_ThreadCpuTimeEnabled ThreadCpuTimeEnabled (java.lang<type=Threading><>ThreadCpuTimeEnabled)
# TYPE java_lang_Threading_ThreadCpuTimeEnabled untyped
java_lang_Threading_ThreadCpuTimeEnabled 1.0
# HELP java_lang_OperatingSystem_OpenFileDescriptorCount OpenFileDescriptorCount (java.lang<type=OperatingSystem><>OpenFileDescriptorCount)
# TYPE java_lang_OperatingSystem_OpenFileDescriptorCount untyped
java_lang_OperatingSystem_OpenFileDescriptorCount 45.0
# HELP jmx_scrape_duration_seconds Time this JMX scrape took, in seconds.
# TYPE jmx_scrape_duration_seconds gauge
jmx_scrape_duration_seconds 0.094517347
# HELP jmx_scrape_error Non-zero if this scrape failed.
# TYPE jmx_scrape_error gauge
jmx_scrape_error 0.0
# HELP jvm_memory_bytes_used Used bytes of a given JVM memory area.
# TYPE jvm_memory_bytes_used gauge
jvm_memory_bytes_used{area="heap",} 4.22820136E8
jvm_memory_bytes_used{area="nonheap",} 7.6338312E7
# HELP jvm_memory_bytes_committed Committed (bytes) of a given JVM memory area.
# TYPE jvm_memory_bytes_committed gauge
jvm_memory_bytes_committed{area="heap",} 9.08591104E8
jvm_memory_bytes_committed{area="nonheap",} 8.056832E7
# HELP jvm_memory_bytes_max Max (bytes) of a given JVM memory area.
# TYPE jvm_memory_bytes_max gauge
jvm_memory_bytes_max{area="heap",} 3.817865216E9
jvm_memory_bytes_max{area="nonheap",} -1.0
# HELP jvm_memory_bytes_init Initial bytes of a given JVM memory area.
# TYPE jvm_memory_bytes_init gauge
jvm_memory_bytes_init{area="heap",} 2.68435456E8
jvm_memory_bytes_init{area="nonheap",} 2555904.0
# HELP jvm_memory_pool_bytes_used Used bytes of a given JVM memory pool.
# TYPE jvm_memory_pool_bytes_used gauge
jvm_memory_pool_bytes_used{pool="Code Cache",} 1.80384E7
jvm_memory_pool_bytes_used{pool="Metaspace",} 5.1716544E7
jvm_memory_pool_bytes_used{pool="Compressed Class Space",} 6583368.0
jvm_memory_pool_bytes_used{pool="PS Eden Space",} 3.6696156E8
jvm_memory_pool_bytes_used{pool="PS Survivor Space",} 2.4391712E7
jvm_memory_pool_bytes_used{pool="PS Old Gen",} 3.1466864E7
# HELP jvm_memory_pool_bytes_committed Committed bytes of a given JVM memory pool.
# TYPE jvm_memory_pool_bytes_committed gauge
jvm_memory_pool_bytes_committed{pool="Code Cache",} 1.8743296E7
jvm_memory_pool_bytes_committed{pool="Metaspace",} 5.4747136E7
jvm_memory_pool_bytes_committed{pool="Compressed Class Space",} 7077888.0
jvm_memory_pool_bytes_committed{pool="PS Eden Space",} 7.1565312E8
jvm_memory_pool_bytes_committed{pool="PS Survivor Space",} 2.6738688E7
jvm_memory_pool_bytes_committed{pool="PS Old Gen",} 1.66199296E8
# HELP jvm_memory_pool_bytes_max Max bytes of a given JVM memory pool.
# TYPE jvm_memory_pool_bytes_max gauge
jvm_memory_pool_bytes_max{pool="Code Cache",} 2.5165824E8
jvm_memory_pool_bytes_max{pool="Metaspace",} -1.0
jvm_memory_pool_bytes_max{pool="Compressed Class Space",} 1.073741824E9
jvm_memory_pool_bytes_max{pool="PS Eden Space",} 1.374683136E9
jvm_memory_pool_bytes_max{pool="PS Survivor Space",} 2.6738688E7
jvm_memory_pool_bytes_max{pool="PS Old Gen",} 2.863661056E9
# HELP jvm_memory_pool_bytes_init Initial bytes of a given JVM memory pool.
# TYPE jvm_memory_pool_bytes_init gauge
jvm_memory_pool_bytes_init{pool="Code Cache",} 2555904.0
jvm_memory_pool_bytes_init{pool="Metaspace",} 0.0
jvm_memory_pool_bytes_init{pool="Compressed Class Space",} 0.0
jvm_memory_pool_bytes_init{pool="PS Eden Space",} 6.7108864E7
jvm_memory_pool_bytes_init{pool="PS Survivor Space",} 1.1010048E7
jvm_memory_pool_bytes_init{pool="PS Old Gen",} 1.79306496E8
# HELP jvm_classes_loaded The number of classes that are currently loaded in the JVM
# TYPE jvm_classes_loaded gauge
jvm_classes_loaded 9897.0
# HELP jvm_classes_loaded_total The total number of classes that have been loaded since the JVM has started execution
# TYPE jvm_classes_loaded_total counter
jvm_classes_loaded_total 9899.0
# HELP jvm_classes_unloaded_total The total number of classes that have been unloaded since the JVM has started execution
# TYPE jvm_classes_unloaded_total counter
jvm_classes_unloaded_total 2.0
# HELP jmx_config_reload_failure_total Number of times configuration have failed to be reloaded.
# TYPE jmx_config_reload_failure_total counter
jmx_config_reload_failure_total 0.0
# HELP jvm_info JVM version info
# TYPE jvm_info gauge
jvm_info{version="1.8.0_131-b11",vendor="Oracle Corporation",runtime="Java(TM) SE Runtime Environment",} 1.0
# HELP jmx_config_reload_success_total Number of times configuration have successfully been reloaded.
# TYPE jmx_config_reload_success_total counter
jmx_config_reload_success_total 0.0
# HELP jvm_buffer_pool_used_bytes Used bytes of a given JVM buffer pool.
# TYPE jvm_buffer_pool_used_bytes gauge
jvm_buffer_pool_used_bytes{pool="direct",} 32768.0
jvm_buffer_pool_used_bytes{pool="mapped",} 0.0
# HELP jvm_buffer_pool_capacity_bytes Bytes capacity of a given JVM buffer pool.
# TYPE jvm_buffer_pool_capacity_bytes gauge
jvm_buffer_pool_capacity_bytes{pool="direct",} 32768.0
jvm_buffer_pool_capacity_bytes{pool="mapped",} 0.0
# HELP jvm_buffer_pool_used_buffers Used buffers of a given JVM buffer pool.
# TYPE jvm_buffer_pool_used_buffers gauge
jvm_buffer_pool_used_buffers{pool="direct",} 4.0
jvm_buffer_pool_used_buffers{pool="mapped",} 0.0

• http://127.0.0.1:8087/actuator/prometheus

# HELP jvm_gc_memory_promoted_bytes_total Count of positive increases in the size of the old generation memory pool before GC to after GC
# TYPE jvm_gc_memory_promoted_bytes_total counter
jvm_gc_memory_promoted_bytes_total{application="es-statck",} 8192.0
# HELP process_uptime_seconds The uptime of the Java virtual machine
# TYPE process_uptime_seconds gauge
process_uptime_seconds{application="es-statck",} 53.101
# HELP tomcat_sessions_rejected_sessions_total
# TYPE tomcat_sessions_rejected_sessions_total counter
tomcat_sessions_rejected_sessions_total{application="es-statck",} 0.0
# HELP process_start_time_seconds Start time of the process since unix epoch.
# TYPE process_start_time_seconds gauge
process_start_time_seconds{application="es-statck",} 1.719370072029E9
# HELP jvm_threads_peak_threads The peak live thread count since the Java virtual machine started or peak was reset
# TYPE jvm_threads_peak_threads gauge
jvm_threads_peak_threads{application="es-statck",} 65.0
# HELP jvm_threads_live_threads The current number of live threads including both daemon and non-daemon threads
# TYPE jvm_threads_live_threads gauge
jvm_threads_live_threads{application="es-statck",} 65.0
# HELP jvm_threads_states_threads The current number of threads having NEW state
# TYPE jvm_threads_states_threads gauge
jvm_threads_states_threads{application="es-statck",state="waiting",} 42.0
jvm_threads_states_threads{application="es-statck",state="blocked",} 0.0
jvm_threads_states_threads{application="es-statck",state="timed-waiting",} 13.0
jvm_threads_states_threads{application="es-statck",state="runnable",} 10.0
jvm_threads_states_threads{application="es-statck",state="terminated",} 0.0
jvm_threads_states_threads{application="es-statck",state="new",} 0.0
# HELP jvm_memory_used_bytes The amount of used memory
# TYPE jvm_memory_used_bytes gauge
jvm_memory_used_bytes{application="es-statck",area="nonheap",id="Metaspace",} 5.3211192E7
jvm_memory_used_bytes{application="es-statck",area="heap",id="PS Old Gen",} 3.0897584E7
jvm_memory_used_bytes{application="es-statck",area="nonheap",id="Compressed Class Space",} 6824808.0
jvm_memory_used_bytes{application="es-statck",area="heap",id="PS Survivor Space",} 2.645072E7
jvm_memory_used_bytes{application="es-statck",area="nonheap",id="Code Cache",} 1.6954368E7
jvm_memory_used_bytes{application="es-statck",area="heap",id="PS Eden Space",} 3.91357448E8
# HELP jvm_memory_max_bytes The maximum amount of memory in bytes that can be used for memory management
# TYPE jvm_memory_max_bytes gauge
jvm_memory_max_bytes{application="es-statck",area="nonheap",id="Metaspace",} -1.0
jvm_memory_max_bytes{application="es-statck",area="heap",id="PS Old Gen",} 2.863661056E9
jvm_memory_max_bytes{application="es-statck",area="nonheap",id="Compressed Class Space",} 1.073741824E9
jvm_memory_max_bytes{application="es-statck",area="heap",id="PS Survivor Space",} 2.6738688E7
jvm_memory_max_bytes{application="es-statck",area="nonheap",id="Code Cache",} 2.5165824E8
jvm_memory_max_bytes{application="es-statck",area="heap",id="PS Eden Space",} 1.37363456E9
# HELP jvm_threads_daemon_threads The current number of live daemon threads
# TYPE jvm_threads_daemon_threads gauge
jvm_threads_daemon_threads{application="es-statck",} 60.0
# HELP tomcat_sessions_expired_sessions_total
# TYPE tomcat_sessions_expired_sessions_total counter
tomcat_sessions_expired_sessions_total{application="es-statck",} 0.0
# HELP jvm_gc_live_data_size_bytes Size of old generation memory pool after a full GC
# TYPE jvm_gc_live_data_size_bytes gauge
jvm_gc_live_data_size_bytes{application="es-statck",} 0.0
# HELP jvm_classes_loaded_classes The number of classes that are currently loaded in the Java virtual machine
# TYPE jvm_classes_loaded_classes gauge
jvm_classes_loaded_classes{application="es-statck",} 10223.0
# HELP jvm_buffer_count_buffers An estimate of the number of buffers in the pool
# TYPE jvm_buffer_count_buffers gauge
jvm_buffer_count_buffers{application="es-statck",id="direct",} 6.0
jvm_buffer_count_buffers{application="es-statck",id="mapped",} 0.0
# HELP process_files_open_files The open file descriptor count
# TYPE process_files_open_files gauge
process_files_open_files{application="es-statck",} 46.0
# HELP tomcat_sessions_created_sessions_total
# TYPE tomcat_sessions_created_sessions_total counter
tomcat_sessions_created_sessions_total{application="es-statck",} 0.0
# HELP jvm_gc_memory_allocated_bytes_total Incremented for an increase in the size of the young generation memory pool after one GC to before the next
# TYPE jvm_gc_memory_allocated_bytes_total counter
jvm_gc_memory_allocated_bytes_total{application="es-statck",} 7.3662464E8
# HELP jvm_buffer_memory_used_bytes An estimate of the memory that the Java virtual machine is using for this buffer pool
# TYPE jvm_buffer_memory_used_bytes gauge
jvm_buffer_memory_used_bytes{application="es-statck",id="direct",} 49152.0
jvm_buffer_memory_used_bytes{application="es-statck",id="mapped",} 0.0
# HELP system_load_average_1m The sum of the number of runnable entities queued to available processors and the number of runnable entities running on the available processors averaged over a period of time
# TYPE system_load_average_1m gauge
system_load_average_1m{application="es-statck",} 7.7265625
# HELP system_cpu_usage The "recent cpu usage" for the whole system
# TYPE system_cpu_usage gauge
system_cpu_usage{application="es-statck",} 0.16555201152381932
# HELP logback_events_total Number of error level events that made it to the logs
# TYPE logback_events_total counter
logback_events_total{application="es-statck",level="debug",} 0.0
logback_events_total{application="es-statck",level="error",} 0.0
logback_events_total{application="es-statck",level="warn",} 2.0
logback_events_total{application="es-statck",level="trace",} 0.0
logback_events_total{application="es-statck",level="info",} 46.0
# HELP tomcat_sessions_active_max_sessions
# TYPE tomcat_sessions_active_max_sessions gauge
tomcat_sessions_active_max_sessions{application="es-statck",} 0.0
# HELP jvm_classes_unloaded_classes_total The total number of classes unloaded since the Java virtual machine has started execution
# TYPE jvm_classes_unloaded_classes_total counter
jvm_classes_unloaded_classes_total{application="es-statck",} 1.0
# HELP http_server_requests_seconds
# TYPE http_server_requests_seconds summary
http_server_requests_seconds_count{application="es-statck",exception="None",method="GET",outcome="SUCCESS",status="200",uri="/actuator/prometheus",} 1.0
http_server_requests_seconds_sum{application="es-statck",exception="None",method="GET",outcome="SUCCESS",status="200",uri="/actuator/prometheus",} 0.087217779
http_server_requests_seconds_count{application="es-statck",exception="None",method="GET",outcome="SUCCESS",status="200",uri="/actuator",} 1.0
http_server_requests_seconds_sum{application="es-statck",exception="None",method="GET",outcome="SUCCESS",status="200",uri="/actuator",} 0.063249629
# HELP http_server_requests_seconds_max
# TYPE http_server_requests_seconds_max gauge
http_server_requests_seconds_max{application="es-statck",exception="None",method="GET",outcome="SUCCESS",status="200",uri="/actuator/prometheus",} 0.0
http_server_requests_seconds_max{application="es-statck",exception="None",method="GET",outcome="SUCCESS",status="200",uri="/actuator",} 0.0
# HELP jvm_buffer_total_capacity_bytes An estimate of the total capacity of the buffers in this pool
# TYPE jvm_buffer_total_capacity_bytes gauge
jvm_buffer_total_capacity_bytes{application="es-statck",id="direct",} 49152.0
jvm_buffer_total_capacity_bytes{application="es-statck",id="mapped",} 0.0
# HELP jvm_gc_pause_seconds Time spent in GC pause
# TYPE jvm_gc_pause_seconds summary
jvm_gc_pause_seconds_count{action="end of minor GC",application="es-statck",cause="Allocation Failure",} 1.0
jvm_gc_pause_seconds_sum{action="end of minor GC",application="es-statck",cause="Allocation Failure",} 0.263
# HELP jvm_gc_pause_seconds_max Time spent in GC pause
# TYPE jvm_gc_pause_seconds_max gauge
jvm_gc_pause_seconds_max{action="end of minor GC",application="es-statck",cause="Allocation Failure",} 0.0
# HELP jvm_memory_committed_bytes The amount of memory in bytes that is committed for the Java virtual machine to use
# TYPE jvm_memory_committed_bytes gauge
jvm_memory_committed_bytes{application="es-statck",area="nonheap",id="Metaspace",} 5.6057856E7
jvm_memory_committed_bytes{application="es-statck",area="heap",id="PS Old Gen",} 1.63053568E8
jvm_memory_committed_bytes{application="es-statck",area="nonheap",id="Compressed Class Space",} 7340032.0
jvm_memory_committed_bytes{application="es-statck",area="heap",id="PS Survivor Space",} 2.6738688E7
jvm_memory_committed_bytes{application="es-statck",area="nonheap",id="Code Cache",} 1.8415616E7
jvm_memory_committed_bytes{application="es-statck",area="heap",id="PS Eden Space",} 7.3662464E8
# HELP process_files_max_files The maximum file descriptor count
# TYPE process_files_max_files gauge
process_files_max_files{application="es-statck",} 10240.0
# HELP tomcat_sessions_alive_max_seconds
# TYPE tomcat_sessions_alive_max_seconds gauge
tomcat_sessions_alive_max_seconds{application="es-statck",} 0.0
# HELP process_cpu_usage The "recent cpu usage" for the Java Virtual Machine process
# TYPE process_cpu_usage gauge
process_cpu_usage{application="es-statck",} 0.011353700822255647
# HELP tomcat_sessions_active_current_sessions
# TYPE tomcat_sessions_active_current_sessions gauge
tomcat_sessions_active_current_sessions{application="es-statck",} 0.0
# HELP jvm_gc_max_data_size_bytes Max size of old generation memory pool
# TYPE jvm_gc_max_data_size_bytes gauge
jvm_gc_max_data_size_bytes{application="es-statck",} 2.863661056E9
# HELP system_cpu_count The number of processors available to the Java virtual machine
# TYPE system_cpu_count gauge
system_cpu_count{application="es-statck",} 8.0

效果查看

监控中间件

redis

探针

  redis_exporter-v1.61.0.darwin-amd64 ./redis_exporter --redis.addr redis://:KYUIAPErZz2Xb0f8XIQOKfuv7dYURu@localhost:6379
INFO[0000] Redis Metrics Exporter v1.61.0    build date: 2024-06-09-17:28:51    sha1: e9871c1465679cd3543953f57bd4d015bc73c990    Go: go1.22.3    GOOS: darwin    GOARCH: amd64
INFO[0000] Providing metrics at :9121/metrics
ERRO[0021] WARNING, LOGGED ONCE ONLY: cmd LATENCY HISTOGRAM, err: ERR syntax error



./redis_exporter --redis.addr redis://:KYUIAPErZz2Xb0f8XIQOKfuv7dYURu@localhost:6379

./redis_exporter --redis.addr redis://:unwpZP#PdNnj@117.89.254.0:6379

• https://grafana.com/grafana/dashboards/11835-redis-dashboard-for-prometheus-redis-exporter-helm-stable-redis-ha/

• http://localhost:9121/metrics

# HELP go_gc_duration_seconds A summary of the pause duration of garbage collection cycles.
# TYPE go_gc_duration_seconds summary
go_gc_duration_seconds{quantile="0"} 0
go_gc_duration_seconds{quantile="0.25"} 0
go_gc_duration_seconds{quantile="0.5"} 0
go_gc_duration_seconds{quantile="0.75"} 0
go_gc_duration_seconds{quantile="1"} 0
go_gc_duration_seconds_sum 0
go_gc_duration_seconds_count 0
# HELP go_goroutines Number of goroutines that currently exist.
# TYPE go_goroutines gauge
go_goroutines 10
# HELP go_info Information about the Go environment.
# TYPE go_info gauge
go_info{version="go1.22.3"} 1
# HELP go_memstats_alloc_bytes Number of bytes allocated and still in use.
# TYPE go_memstats_alloc_bytes gauge
go_memstats_alloc_bytes 194304
# HELP go_memstats_alloc_bytes_total Total number of bytes allocated, even if freed.
# TYPE go_memstats_alloc_bytes_total counter
go_memstats_alloc_bytes_total 194304
# HELP go_memstats_buck_hash_sys_bytes Number of bytes used by the profiling bucket hash table.
# TYPE go_memstats_buck_hash_sys_bytes gauge
go_memstats_buck_hash_sys_bytes 7654
# HELP go_memstats_frees_total Total number of frees.
# TYPE go_memstats_frees_total counter
go_memstats_frees_total 0
# HELP go_memstats_gc_sys_bytes Number of bytes used for garbage collection system metadata.
# TYPE go_memstats_gc_sys_bytes gauge
go_memstats_gc_sys_bytes 1.406488e+06
# HELP go_memstats_heap_alloc_bytes Number of heap bytes allocated and still in use.
# TYPE go_memstats_heap_alloc_bytes gauge
go_memstats_heap_alloc_bytes 194304
# HELP go_memstats_heap_idle_bytes Number of heap bytes waiting to be used.
# TYPE go_memstats_heap_idle_bytes gauge
go_memstats_heap_idle_bytes 1.777664e+06
# HELP go_memstats_heap_inuse_bytes Number of heap bytes that are in use.
# TYPE go_memstats_heap_inuse_bytes gauge
go_memstats_heap_inuse_bytes 1.957888e+06
# HELP go_memstats_heap_objects Number of allocated objects.
# TYPE go_memstats_heap_objects gauge
go_memstats_heap_objects 723
# HELP go_memstats_heap_released_bytes Number of heap bytes released to OS.
# TYPE go_memstats_heap_released_bytes gauge
go_memstats_heap_released_bytes 1.777664e+06
# HELP go_memstats_heap_sys_bytes Number of heap bytes obtained from system.
# TYPE go_memstats_heap_sys_bytes gauge
go_memstats_heap_sys_bytes 3.735552e+06
# HELP go_memstats_last_gc_time_seconds Number of seconds since 1970 of last garbage collection.
# TYPE go_memstats_last_gc_time_seconds gauge
go_memstats_last_gc_time_seconds 0
# HELP go_memstats_lookups_total Total number of pointer lookups.
# TYPE go_memstats_lookups_total counter
go_memstats_lookups_total 0
# HELP go_memstats_mallocs_total Total number of mallocs.
# TYPE go_memstats_mallocs_total counter
go_memstats_mallocs_total 723
# HELP go_memstats_mcache_inuse_bytes Number of bytes in use by mcache structures.
# TYPE go_memstats_mcache_inuse_bytes gauge
go_memstats_mcache_inuse_bytes 9600
# HELP go_memstats_mcache_sys_bytes Number of bytes used for mcache structures obtained from system.
# TYPE go_memstats_mcache_sys_bytes gauge
go_memstats_mcache_sys_bytes 15600
# HELP go_memstats_mspan_inuse_bytes Number of bytes in use by mspan structures.
# TYPE go_memstats_mspan_inuse_bytes gauge
go_memstats_mspan_inuse_bytes 54880
# HELP go_memstats_mspan_sys_bytes Number of bytes used for mspan structures obtained from system.
# TYPE go_memstats_mspan_sys_bytes gauge
go_memstats_mspan_sys_bytes 65280
# HELP go_memstats_next_gc_bytes Number of heap bytes when next garbage collection will take place.
# TYPE go_memstats_next_gc_bytes gauge
go_memstats_next_gc_bytes 4.194304e+06
# HELP go_memstats_other_sys_bytes Number of bytes used for other system allocations.
# TYPE go_memstats_other_sys_bytes gauge
go_memstats_other_sys_bytes 953378
# HELP go_memstats_stack_inuse_bytes Number of bytes in use by the stack allocator.
# TYPE go_memstats_stack_inuse_bytes gauge
go_memstats_stack_inuse_bytes 458752
# HELP go_memstats_stack_sys_bytes Number of bytes obtained from system for stack allocator.
# TYPE go_memstats_stack_sys_bytes gauge
go_memstats_stack_sys_bytes 458752
# HELP go_memstats_sys_bytes Number of bytes obtained from system.
# TYPE go_memstats_sys_bytes gauge
go_memstats_sys_bytes 6.642704e+06
# HELP go_threads Number of OS threads created.
# TYPE go_threads gauge
go_threads 8
# HELP redis_active_defrag_running active_defrag_running metric
# TYPE redis_active_defrag_running gauge
redis_active_defrag_running 0
# HELP redis_aof_base_size_bytes aof_base_size_bytes metric
# TYPE redis_aof_base_size_bytes gauge
redis_aof_base_size_bytes 2002
# HELP redis_aof_buffer_length aof_buffer_length metric
# TYPE redis_aof_buffer_length gauge
redis_aof_buffer_length 0
# HELP redis_aof_current_rewrite_duration_sec aof_current_rewrite_duration_sec metric
# TYPE redis_aof_current_rewrite_duration_sec gauge
redis_aof_current_rewrite_duration_sec -1
# HELP redis_aof_current_size_bytes aof_current_size_bytes metric
# TYPE redis_aof_current_size_bytes gauge
redis_aof_current_size_bytes 2002
# HELP redis_aof_delayed_fsync aof_delayed_fsync metric
# TYPE redis_aof_delayed_fsync gauge
redis_aof_delayed_fsync 0
# HELP redis_aof_enabled aof_enabled metric
# TYPE redis_aof_enabled gauge
redis_aof_enabled 1
# HELP redis_aof_last_bgrewrite_status aof_last_bgrewrite_status metric
# TYPE redis_aof_last_bgrewrite_status gauge
redis_aof_last_bgrewrite_status 1
# HELP redis_aof_last_cow_size_bytes aof_last_cow_size_bytes metric
# TYPE redis_aof_last_cow_size_bytes gauge
redis_aof_last_cow_size_bytes 0
# HELP redis_aof_last_rewrite_duration_sec aof_last_rewrite_duration_sec metric
# TYPE redis_aof_last_rewrite_duration_sec gauge
redis_aof_last_rewrite_duration_sec -1
# HELP redis_aof_last_write_status aof_last_write_status metric
# TYPE redis_aof_last_write_status gauge
redis_aof_last_write_status 1
# HELP redis_aof_pending_bio_fsync aof_pending_bio_fsync metric
# TYPE redis_aof_pending_bio_fsync gauge
redis_aof_pending_bio_fsync 0
# HELP redis_aof_pending_rewrite aof_pending_rewrite metric
# TYPE redis_aof_pending_rewrite gauge
redis_aof_pending_rewrite 0
# HELP redis_aof_rewrite_buffer_length aof_rewrite_buffer_length metric
# TYPE redis_aof_rewrite_buffer_length gauge
redis_aof_rewrite_buffer_length 0
# HELP redis_aof_rewrite_in_progress aof_rewrite_in_progress metric
# TYPE redis_aof_rewrite_in_progress gauge
redis_aof_rewrite_in_progress 0
# HELP redis_aof_rewrite_scheduled aof_rewrite_scheduled metric
# TYPE redis_aof_rewrite_scheduled gauge
redis_aof_rewrite_scheduled 0
# HELP redis_blocked_clients blocked_clients metric
# TYPE redis_blocked_clients gauge
redis_blocked_clients 0
# HELP redis_client_biggest_input_buf client_biggest_input_buf metric
# TYPE redis_client_biggest_input_buf gauge
redis_client_biggest_input_buf 0
# HELP redis_client_longest_output_list client_longest_output_list metric
# TYPE redis_client_longest_output_list gauge
redis_client_longest_output_list 0
# HELP redis_cluster_enabled cluster_enabled metric
# TYPE redis_cluster_enabled gauge
redis_cluster_enabled 0
# HELP redis_commands_duration_seconds_total Total amount of time in seconds spent per command
# TYPE redis_commands_duration_seconds_total counter
redis_commands_duration_seconds_total{cmd="auth"} 3.2e-05
redis_commands_duration_seconds_total{cmd="client"} 1.4e-05
redis_commands_duration_seconds_total{cmd="command"} 0.000981
redis_commands_duration_seconds_total{cmd="config"} 0.004213
redis_commands_duration_seconds_total{cmd="slowlog"} 1.3e-05
# HELP redis_commands_processed_total commands_processed_total metric
# TYPE redis_commands_processed_total counter
redis_commands_processed_total 14
# HELP redis_commands_total Total number of calls per command
# TYPE redis_commands_total counter
redis_commands_total{cmd="auth"} 4
redis_commands_total{cmd="client"} 1
redis_commands_total{cmd="command"} 2
redis_commands_total{cmd="config"} 5
redis_commands_total{cmd="slowlog"} 2
# HELP redis_config_maxclients config_maxclients metric
# TYPE redis_config_maxclients gauge
redis_config_maxclients 10000
# HELP redis_config_maxmemory config_maxmemory metric
# TYPE redis_config_maxmemory gauge
redis_config_maxmemory 5.36870912e+08
# HELP redis_connected_clients connected_clients metric
# TYPE redis_connected_clients gauge
redis_connected_clients 1
# HELP redis_connected_slaves connected_slaves metric
# TYPE redis_connected_slaves gauge
redis_connected_slaves 0
# HELP redis_connections_received_total connections_received_total metric
# TYPE redis_connections_received_total counter
redis_connections_received_total 4
# HELP redis_cpu_sys_children_seconds_total cpu_sys_children_seconds_total metric
# TYPE redis_cpu_sys_children_seconds_total counter
redis_cpu_sys_children_seconds_total 0
# HELP redis_cpu_sys_seconds_total cpu_sys_seconds_total metric
# TYPE redis_cpu_sys_seconds_total counter
redis_cpu_sys_seconds_total 150.28
# HELP redis_cpu_user_children_seconds_total cpu_user_children_seconds_total metric
# TYPE redis_cpu_user_children_seconds_total counter
redis_cpu_user_children_seconds_total 0
# HELP redis_cpu_user_seconds_total cpu_user_seconds_total metric
# TYPE redis_cpu_user_seconds_total counter
redis_cpu_user_seconds_total 67.14
# HELP redis_db_avg_ttl_seconds Avg TTL in seconds
# TYPE redis_db_avg_ttl_seconds gauge
redis_db_avg_ttl_seconds{db="db3"} 0
# HELP redis_db_keys Total number of keys by DB
# TYPE redis_db_keys gauge
redis_db_keys{db="db0"} 0
redis_db_keys{db="db1"} 0
redis_db_keys{db="db10"} 0
redis_db_keys{db="db11"} 0
redis_db_keys{db="db12"} 0
redis_db_keys{db="db13"} 0
redis_db_keys{db="db14"} 0
redis_db_keys{db="db15"} 0
redis_db_keys{db="db16"} 0
redis_db_keys{db="db17"} 0
redis_db_keys{db="db18"} 0
redis_db_keys{db="db19"} 0
redis_db_keys{db="db2"} 0
redis_db_keys{db="db20"} 0
redis_db_keys{db="db21"} 0
redis_db_keys{db="db22"} 0
redis_db_keys{db="db23"} 0
redis_db_keys{db="db24"} 0
redis_db_keys{db="db25"} 0
redis_db_keys{db="db26"} 0
redis_db_keys{db="db27"} 0
redis_db_keys{db="db28"} 0
redis_db_keys{db="db29"} 0
redis_db_keys{db="db3"} 1
redis_db_keys{db="db30"} 0
redis_db_keys{db="db31"} 0
redis_db_keys{db="db32"} 0
redis_db_keys{db="db33"} 0
redis_db_keys{db="db34"} 0
redis_db_keys{db="db35"} 0
redis_db_keys{db="db36"} 0
redis_db_keys{db="db37"} 0
redis_db_keys{db="db38"} 0
redis_db_keys{db="db39"} 0
redis_db_keys{db="db4"} 0
redis_db_keys{db="db40"} 0
redis_db_keys{db="db41"} 0
redis_db_keys{db="db42"} 0
redis_db_keys{db="db43"} 0
redis_db_keys{db="db44"} 0
redis_db_keys{db="db45"} 0
redis_db_keys{db="db46"} 0
redis_db_keys{db="db47"} 0
redis_db_keys{db="db48"} 0
redis_db_keys{db="db49"} 0
redis_db_keys{db="db5"} 0
redis_db_keys{db="db50"} 0
redis_db_keys{db="db51"} 0
redis_db_keys{db="db52"} 0
redis_db_keys{db="db53"} 0
redis_db_keys{db="db54"} 0
redis_db_keys{db="db55"} 0
redis_db_keys{db="db56"} 0
redis_db_keys{db="db57"} 0
redis_db_keys{db="db58"} 0
redis_db_keys{db="db59"} 0
redis_db_keys{db="db6"} 0
redis_db_keys{db="db60"} 0
redis_db_keys{db="db61"} 0
redis_db_keys{db="db62"} 0
redis_db_keys{db="db63"} 0
redis_db_keys{db="db7"} 0
redis_db_keys{db="db8"} 0
redis_db_keys{db="db9"} 0
# HELP redis_db_keys_expiring Total number of expiring keys by DB
# TYPE redis_db_keys_expiring gauge
redis_db_keys_expiring{db="db0"} 0
redis_db_keys_expiring{db="db1"} 0
redis_db_keys_expiring{db="db10"} 0
redis_db_keys_expiring{db="db11"} 0
redis_db_keys_expiring{db="db12"} 0
redis_db_keys_expiring{db="db13"} 0
redis_db_keys_expiring{db="db14"} 0
redis_db_keys_expiring{db="db15"} 0
redis_db_keys_expiring{db="db16"} 0
redis_db_keys_expiring{db="db17"} 0
redis_db_keys_expiring{db="db18"} 0
redis_db_keys_expiring{db="db19"} 0
redis_db_keys_expiring{db="db2"} 0
redis_db_keys_expiring{db="db20"} 0
redis_db_keys_expiring{db="db21"} 0
redis_db_keys_expiring{db="db22"} 0
redis_db_keys_expiring{db="db23"} 0
redis_db_keys_expiring{db="db24"} 0
redis_db_keys_expiring{db="db25"} 0
redis_db_keys_expiring{db="db26"} 0
redis_db_keys_expiring{db="db27"} 0
redis_db_keys_expiring{db="db28"} 0
redis_db_keys_expiring{db="db29"} 0
redis_db_keys_expiring{db="db3"} 0
redis_db_keys_expiring{db="db30"} 0
redis_db_keys_expiring{db="db31"} 0
redis_db_keys_expiring{db="db32"} 0
redis_db_keys_expiring{db="db33"} 0
redis_db_keys_expiring{db="db34"} 0
redis_db_keys_expiring{db="db35"} 0
redis_db_keys_expiring{db="db36"} 0
redis_db_keys_expiring{db="db37"} 0
redis_db_keys_expiring{db="db38"} 0
redis_db_keys_expiring{db="db39"} 0
redis_db_keys_expiring{db="db4"} 0
redis_db_keys_expiring{db="db40"} 0
redis_db_keys_expiring{db="db41"} 0
redis_db_keys_expiring{db="db42"} 0
redis_db_keys_expiring{db="db43"} 0
redis_db_keys_expiring{db="db44"} 0
redis_db_keys_expiring{db="db45"} 0
redis_db_keys_expiring{db="db46"} 0
redis_db_keys_expiring{db="db47"} 0
redis_db_keys_expiring{db="db48"} 0
redis_db_keys_expiring{db="db49"} 0
redis_db_keys_expiring{db="db5"} 0
redis_db_keys_expiring{db="db50"} 0
redis_db_keys_expiring{db="db51"} 0
redis_db_keys_expiring{db="db52"} 0
redis_db_keys_expiring{db="db53"} 0
redis_db_keys_expiring{db="db54"} 0
redis_db_keys_expiring{db="db55"} 0
redis_db_keys_expiring{db="db56"} 0
redis_db_keys_expiring{db="db57"} 0
redis_db_keys_expiring{db="db58"} 0
redis_db_keys_expiring{db="db59"} 0
redis_db_keys_expiring{db="db6"} 0
redis_db_keys_expiring{db="db60"} 0
redis_db_keys_expiring{db="db61"} 0
redis_db_keys_expiring{db="db62"} 0
redis_db_keys_expiring{db="db63"} 0
redis_db_keys_expiring{db="db7"} 0
redis_db_keys_expiring{db="db8"} 0
redis_db_keys_expiring{db="db9"} 0
# HELP redis_defrag_hits defrag_hits metric
# TYPE redis_defrag_hits gauge
redis_defrag_hits 0
# HELP redis_defrag_key_hits defrag_key_hits metric
# TYPE redis_defrag_key_hits gauge
redis_defrag_key_hits 0
# HELP redis_defrag_key_misses defrag_key_misses metric
# TYPE redis_defrag_key_misses gauge
redis_defrag_key_misses 0
# HELP redis_defrag_misses defrag_misses metric
# TYPE redis_defrag_misses gauge
redis_defrag_misses 0
# HELP redis_evicted_keys_total evicted_keys_total metric
# TYPE redis_evicted_keys_total counter
redis_evicted_keys_total 0
# HELP redis_expired_keys_total expired_keys_total metric
# TYPE redis_expired_keys_total counter
redis_expired_keys_total 0
# HELP redis_exporter_build_info redis exporter build_info
# TYPE redis_exporter_build_info gauge
redis_exporter_build_info{build_date="2024-06-09-17:28:51",commit_sha="e9871c1465679cd3543953f57bd4d015bc73c990",golang_version="go1.22.3",version="v1.61.0"} 1
# HELP redis_exporter_last_scrape_connect_time_seconds exporter_last_scrape_connect_time_seconds metric
# TYPE redis_exporter_last_scrape_connect_time_seconds gauge
redis_exporter_last_scrape_connect_time_seconds 3.020054922
# HELP redis_exporter_last_scrape_duration_seconds exporter_last_scrape_duration_seconds metric
# TYPE redis_exporter_last_scrape_duration_seconds gauge
redis_exporter_last_scrape_duration_seconds 3.030147012
# HELP redis_exporter_last_scrape_error The last scrape error status.
# TYPE redis_exporter_last_scrape_error gauge
redis_exporter_last_scrape_error{err=""} 0
# HELP redis_exporter_scrape_duration_seconds Durations of scrapes by the exporter
# TYPE redis_exporter_scrape_duration_seconds summary
redis_exporter_scrape_duration_seconds_sum 3.030147012
redis_exporter_scrape_duration_seconds_count 1
# HELP redis_exporter_scrapes_total Current total redis scrapes.
# TYPE redis_exporter_scrapes_total counter
redis_exporter_scrapes_total 1
# HELP redis_instance_info Information about the Redis instance
# TYPE redis_instance_info gauge
redis_instance_info{maxmemory_policy="noeviction",os="Darwin 21.6.0 x86_64",process_id="32920",redis_build_id="c356ec55e850ff2",redis_mode="standalone",redis_version="4.0.8",role="master",run_id="2a0352cf759133b9bc67dbb6555816bc9ccad60d",tcp_port="6379"} 1
# HELP redis_keyspace_hits_total keyspace_hits_total metric
# TYPE redis_keyspace_hits_total counter
redis_keyspace_hits_total 0
# HELP redis_keyspace_misses_total keyspace_misses_total metric
# TYPE redis_keyspace_misses_total counter
redis_keyspace_misses_total 0
# HELP redis_last_key_groups_scrape_duration_milliseconds Duration of the last key group metrics scrape in milliseconds
# TYPE redis_last_key_groups_scrape_duration_milliseconds gauge
redis_last_key_groups_scrape_duration_milliseconds 0
# HELP redis_last_slow_execution_duration_seconds The amount of time needed for last slow execution, in seconds
# TYPE redis_last_slow_execution_duration_seconds gauge
redis_last_slow_execution_duration_seconds 0
# HELP redis_latest_fork_seconds latest_fork_seconds metric
# TYPE redis_latest_fork_seconds gauge
redis_latest_fork_seconds 0.000549
# HELP redis_lazyfree_pending_objects lazyfree_pending_objects metric
# TYPE redis_lazyfree_pending_objects gauge
redis_lazyfree_pending_objects 0
# HELP redis_loading_dump_file loading_dump_file metric
# TYPE redis_loading_dump_file gauge
redis_loading_dump_file 0
# HELP redis_master_repl_offset master_repl_offset metric
# TYPE redis_master_repl_offset gauge
redis_master_repl_offset 0
# HELP redis_mem_fragmentation_ratio mem_fragmentation_ratio metric
# TYPE redis_mem_fragmentation_ratio gauge
redis_mem_fragmentation_ratio 0.41
# HELP redis_memory_max_bytes memory_max_bytes metric
# TYPE redis_memory_max_bytes gauge
redis_memory_max_bytes 5.36870912e+08
# HELP redis_memory_used_bytes memory_used_bytes metric
# TYPE redis_memory_used_bytes gauge
redis_memory_used_bytes 1.057952e+06
# HELP redis_memory_used_dataset_bytes memory_used_dataset_bytes metric
# TYPE redis_memory_used_dataset_bytes gauge
redis_memory_used_dataset_bytes 14394
# HELP redis_memory_used_lua_bytes memory_used_lua_bytes metric
# TYPE redis_memory_used_lua_bytes gauge
redis_memory_used_lua_bytes 37888
# HELP redis_memory_used_overhead_bytes memory_used_overhead_bytes metric
# TYPE redis_memory_used_overhead_bytes gauge
redis_memory_used_overhead_bytes 1.043558e+06
# HELP redis_memory_used_peak_bytes memory_used_peak_bytes metric
# TYPE redis_memory_used_peak_bytes gauge
redis_memory_used_peak_bytes 1.080832e+06
# HELP redis_memory_used_rss_bytes memory_used_rss_bytes metric
# TYPE redis_memory_used_rss_bytes gauge
redis_memory_used_rss_bytes 434176
# HELP redis_memory_used_startup_bytes memory_used_startup_bytes metric
# TYPE redis_memory_used_startup_bytes gauge
redis_memory_used_startup_bytes 993824
# HELP redis_migrate_cached_sockets_total migrate_cached_sockets_total metric
# TYPE redis_migrate_cached_sockets_total gauge
redis_migrate_cached_sockets_total 0
# HELP redis_net_input_bytes_total net_input_bytes_total metric
# TYPE redis_net_input_bytes_total counter
redis_net_input_bytes_total 587
# HELP redis_net_output_bytes_total net_output_bytes_total metric
# TYPE redis_net_output_bytes_total counter
redis_net_output_bytes_total 23595
# HELP redis_process_id process_id metric
# TYPE redis_process_id gauge
redis_process_id 32920
# HELP redis_pubsub_channels pubsub_channels metric
# TYPE redis_pubsub_channels gauge
redis_pubsub_channels 0
# HELP redis_pubsub_patterns pubsub_patterns metric
# TYPE redis_pubsub_patterns gauge
redis_pubsub_patterns 0
# HELP redis_rdb_bgsave_in_progress rdb_bgsave_in_progress metric
# TYPE redis_rdb_bgsave_in_progress gauge
redis_rdb_bgsave_in_progress 0
# HELP redis_rdb_changes_since_last_save rdb_changes_since_last_save metric
# TYPE redis_rdb_changes_since_last_save gauge
redis_rdb_changes_since_last_save 0
# HELP redis_rdb_current_bgsave_duration_sec rdb_current_bgsave_duration_sec metric
# TYPE redis_rdb_current_bgsave_duration_sec gauge
redis_rdb_current_bgsave_duration_sec -1
# HELP redis_rdb_last_bgsave_duration_sec rdb_last_bgsave_duration_sec metric
# TYPE redis_rdb_last_bgsave_duration_sec gauge
redis_rdb_last_bgsave_duration_sec 0
# HELP redis_rdb_last_bgsave_status rdb_last_bgsave_status metric
# TYPE redis_rdb_last_bgsave_status gauge
redis_rdb_last_bgsave_status 1
# HELP redis_rdb_last_cow_size_bytes rdb_last_cow_size_bytes metric
# TYPE redis_rdb_last_cow_size_bytes gauge
redis_rdb_last_cow_size_bytes 0
# HELP redis_rdb_last_save_timestamp_seconds rdb_last_save_timestamp_seconds metric
# TYPE redis_rdb_last_save_timestamp_seconds gauge
redis_rdb_last_save_timestamp_seconds 1.718353133e+09
# HELP redis_rejected_connections_total rejected_connections_total metric
# TYPE redis_rejected_connections_total counter
redis_rejected_connections_total 0
# HELP redis_repl_backlog_first_byte_offset repl_backlog_first_byte_offset metric
# TYPE redis_repl_backlog_first_byte_offset gauge
redis_repl_backlog_first_byte_offset 0
# HELP redis_repl_backlog_history_bytes repl_backlog_history_bytes metric
# TYPE redis_repl_backlog_history_bytes gauge
redis_repl_backlog_history_bytes 0
# HELP redis_repl_backlog_is_active repl_backlog_is_active metric
# TYPE redis_repl_backlog_is_active gauge
redis_repl_backlog_is_active 0
# HELP redis_replica_partial_resync_accepted replica_partial_resync_accepted metric
# TYPE redis_replica_partial_resync_accepted gauge
redis_replica_partial_resync_accepted 0
# HELP redis_replica_partial_resync_denied replica_partial_resync_denied metric
# TYPE redis_replica_partial_resync_denied gauge
redis_replica_partial_resync_denied 0
# HELP redis_replica_resyncs_full replica_resyncs_full metric
# TYPE redis_replica_resyncs_full gauge
redis_replica_resyncs_full 0
# HELP redis_replication_backlog_bytes replication_backlog_bytes metric
# TYPE redis_replication_backlog_bytes gauge
redis_replication_backlog_bytes 1.048576e+06
# HELP redis_second_repl_offset second_repl_offset metric
# TYPE redis_second_repl_offset gauge
redis_second_repl_offset -1
# HELP redis_slave_expires_tracked_keys slave_expires_tracked_keys metric
# TYPE redis_slave_expires_tracked_keys gauge
redis_slave_expires_tracked_keys 0
# HELP redis_slowlog_last_id Last id of slowlog
# TYPE redis_slowlog_last_id gauge
redis_slowlog_last_id 0
# HELP redis_slowlog_length Total slowlog
# TYPE redis_slowlog_length gauge
redis_slowlog_length 0
# HELP redis_start_time_seconds Start time of the Redis instance since unix epoch in seconds.
# TYPE redis_start_time_seconds gauge
redis_start_time_seconds 1.718352232e+09
# HELP redis_target_scrape_request_errors_total Errors in requests to the exporter
# TYPE redis_target_scrape_request_errors_total counter
redis_target_scrape_request_errors_total 0
# HELP redis_up Information about the Redis instance
# TYPE redis_up gauge
redis_up 1
# HELP redis_uptime_in_seconds uptime_in_seconds metric
# TYPE redis_uptime_in_seconds gauge
redis_uptime_in_seconds 1.030998e+06

拉取

- job_name: 'redis'
  static_configs:
  - targets: ['localhost:9121']

监控实时
