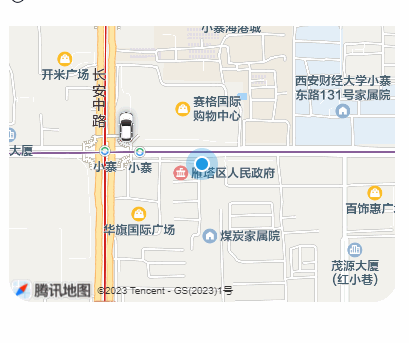

效果显示
说明:此功能是在微信小程序上实现的;其实原理就是两个坐标点之间的移动;具体可以看一下小程序的说明文档:MapContext.translateMarker(Object object) | 微信开放文档
一、前端界面
<view class="mapshow">
<map class="mapUI" id="myMap" markers="{{markers}}" polyline="{{polyline}}" include-points='{{points}}' latitude="{{latitude}}" longitude="{{longitude}}" covers="13" show-location></map>
</view>
说明:这块我在做的时候这个地图是圆角显示的,如下图:
对于地图而言直接设置他的border-radius: 45rpx;是没有效果的;必须要在他的外层套一层View;然后在view上设置圆角才可以的:
.mapshow{
margin: 25rpx;
transform: translateY(0);
border-radius: 45rpx;
overflow:hidden;
}
二、js逻辑处理
1:定义第一个点的坐标
data: {
latitude: "",
longitude: "",
markers: [{
id: 9001,
latitude: 34.222893,
longitude: 108.946898,
name: "终点",
iconPath: '../image/mocar.png',
content: "111",
width: '30px',
height: '45px',
}],
},
2:定义第二个点的坐标
/**
* 生命周期函数--监听页面加载
*/
onLoad() {
var mapCtx = wx.createMapContext("myMap");
wx.getLocation({
isHighAccuracy: true, // 开启地图精准定位
type: 'gcj02', // 地图类型写这个
success: res => {
console.log(res);
this.setData({
mylatitude: res.latitude,
mylongitude: res.longitude,
location: res,
latitude: res.latitude,
longitude: res.longitude
})
mapCtx.translateMarker({
markerId: 9001,
destination: {
latitude: res.latitude,
longitude: res.longitude,
},
rotate: 0,
autoRotate: true,
duration: 8000,
animationEnd: function () {
console.log('marker end')
},
fail: function (res) {
console.log(res)
}
})
},
})
},
说明:我这看因为是模拟实现此功能;所以第二个点的坐标使用的是我的定位数据;也就是获取到自己的坐标数据之后,marker也就是点的位置移动到我所在的位置;
定位数据获取:
wx.getLocation();
点的移动:
mapCtx.translateMarker({
markerId: 9001,
destination: {
latitude: res.latitude,
longitude: res.longitude,
},
rotate: 0,
autoRotate: true,
duration: 8000,
animationEnd: function () {
console.log('marker end')
},
fail: function (res) {
console.log(res)
}
})
说明:这块的markerId一定是需要定义的第一个点的id才可以,因为需要一一对应;
三、说明
对于真实的项目开发,坐标点一定的很多的;所以当多个点移动的时候,通过每个点的markerid,就可以拿到对应的点的数据;然后获取最新的点的数据,使用点的移动的方法进行实现就可以了
