一、下载h5Player官网demo
demo地址:https://open.hikvision.com/download/5c67f1e2f05948198c909700?type=20
二、集成
将demo同目录的文件放到项目资源目录下:
注意:必须是demo同级的资源文件!!!,不要使用bin目录下的,因为有的版本可能会出现资源找不到的问题!!!

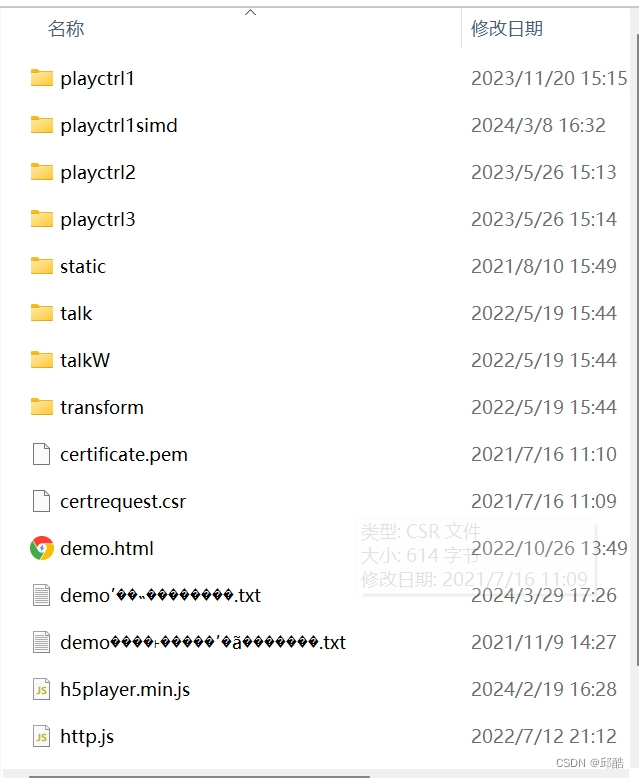

1、demo文件图片:

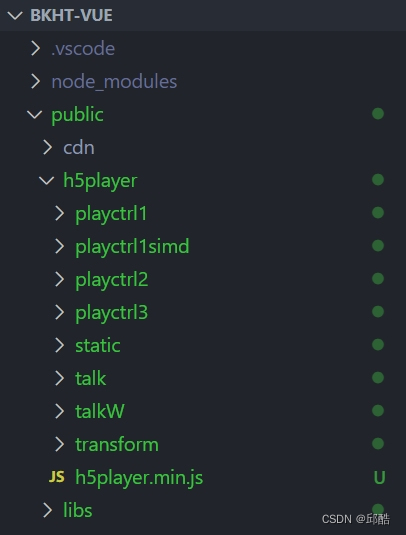

2、项目文件图片:
3、在index.html中引用
<script src="/h5player/h5player.min.js"></script>
4、封转一个子组件,供其他模块使用
<template>
<div id="play_window"></div>
</template>
<script>
export default {
name: 'hkvideo',
data() {
return {
myPlugin: null
}
},
methods: {
initH5Player(split) {
this.myPlugin = new window.JSPlugin({
szId: 'play_window', //需要英文字母开头,唯一性,必填
szBasePath: '/h5player/', // 必填,与h5player.min.js的引用目录一致 填写的是pulblic下的路径!!!
bSupporDoubleClickFull: true,//是否支持双击全屏,默认true
openDebug: true,
oStyle: {
borderSelect: '#000',
},
// 当容器div#play_window有固定宽高时,可不传iWidth和iHeight,窗口大小将自适应容器宽高
// iWidth: 200,
// iHeight: 200,
// 分屏播放,默认最大分屏4*4
iMaxSplit: split,
iCurrentSplit: split,
})
// 事件回调绑定
this.myPlugin.JS_SetWindowControlCallback({
windowEventSelect: function (iWndIndex) { //插件选中窗口回调
console.log('windowSelect callback: ', iWndIndex);
},
pluginErrorHandler: function (iWndIndex, iErrorCode, oError) { //插件错误回调
console.log('pluginError callback: ', iWndIndex, iErrorCode, oError);
},
windowEventOver: function (iWndIndex) { //鼠标移过回调
//console.log(iWndIndex);
},
windowEventOut: function (iWndIndex) { //鼠标移出回调
//console.log(iWndIndex);
},
windowEventUp: function (iWndIndex) { //鼠标mouseup事件回调
//console.log(iWndIndex);
},
windowFullCcreenChange: function (bFull) { //全屏切换回调
console.log('fullScreen callback: ', bFull);
},
firstFrameDisplay: function (iWndIndex, iWidth, iHeight) { //首帧显示回调
console.log('firstFrame loaded callback: ', iWndIndex, iWidth, iHeight);
},
performanceLack: function () { //性能不足回调
console.log('performanceLack callback: ');
}
});
},
play(url, index) {
this.myPlugin.JS_Play(url,
{
playURL: url, // 流媒体播放时必传
mode: 0, // 解码类型:0=普通模式; 1=高级模式 默认为0
// ...
},
index, //当前窗口下标
).then(
() => {
console.info('JS_Play success');
// do you want...
},
(err) => {
console.info('JS_Play failed:', err);
// do you want...
}
);
}
},
}
</script>
5、父组件调用
<h5player ref="h5player"></h5player>
import h5player from '封转的组件地址'
components: {
h5player
},
mounted() {
setTimeout(() => {
this.$refs.h5player.initH5Player(2)
this.$refs.h5player.play('视频地址',0)
}, 200);
},
至此,视频已经可以完成播放!
