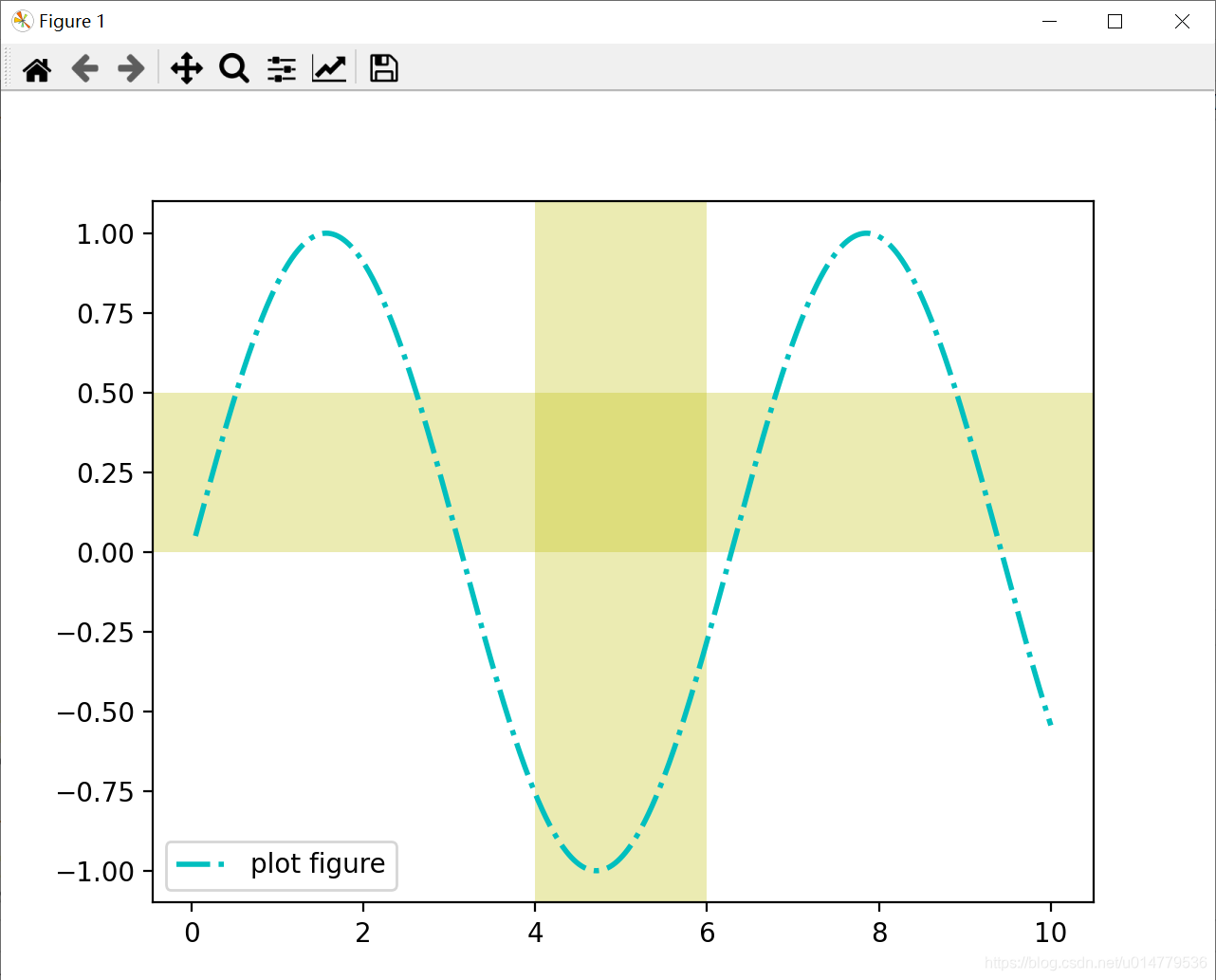

数据可视化之matplotlib实战：plt.axvspan() axhspan()函数 绘制水平or垂直参考区域

import matplotlib.pyplot as plt
import numpy as np

x = np.linspace(0.05,10,1000)
y = np.sin(x)

plt.plot(x,y,ls="-.",lw=2,c="c",label="plot figure")

plt.legend()

plt.axvspan(xmin=4.0,xmax=6.0,facecolor="y",alpha=0.3)
plt.axhspan(ymin=0.0,ymax=0.5,facecolor="y",alpha=0.3)

plt.show()
