ESP8266上传数据到MYSQL通过PHP服务器

ESP8266上传数据到MYSQL通过PHP服务器

关键点说明:

原文地址:

ESP32/ESP8266 Insert Data into MySQL Database using PHP and Arduino IDE

完成项目的步骤:

软件部分:
1,使用phpstudu_pro架构建立php+mysqlh服务器
2,使用ARDUINO IDE在ESP8266或ESP12F上编写WIFICLIENT
硬件部分:
ESP8266/ESP32/ESP12F等带数据线

DO IT:

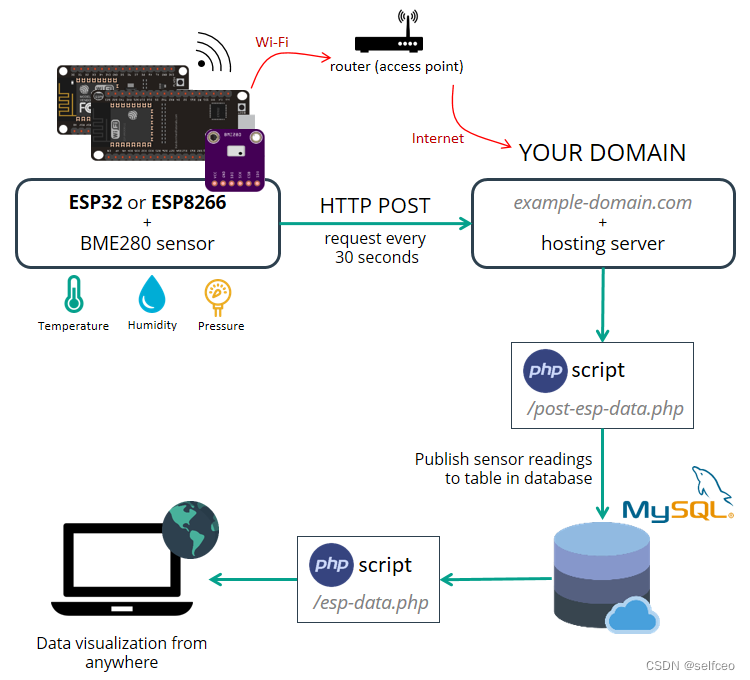

具体方案如图所示
服务器制作部分这里就不再赘述了,这个得自己弄,简单点的就用phpstudy_pro,很快就搞定了。
我们说说ESP这边。

#include <ESP8266WiFi.h>
const char* ssid     = "your-ssid";
const char* password = "your-password";
const char* host = "your host ip address";
const String apiKeyValue = "tPmAT5Ab3j7F9";
const String sensorName = "BME280";
const String sensorLocation = "Office";
const int httpPort = 80;
const String url = "/replace with your serve page location that post-html-data.php";
void setup() {

  Serial.begin(115200);
  delay(10);
  // We start by connecting to a WiFi network
  Serial.println();
  Serial.println();
  Serial.print("Connecting to ");
  Serial.println(ssid);
  WiFi.begin(ssid, password);
  while (WiFi.status() != WL_CONNECTED) {

    delay(500);
    Serial.print(".");
  }
  Serial.println("");
  Serial.println("WiFi connected");
  Serial.println("IP address: ");
  Serial.println(WiFi.
