Docker入门详细教程-Swarm集群

Swarm

集群的管理和编号, docker初始化一个swarm集群, 其他节点可以加入 (管理者, 工作者)

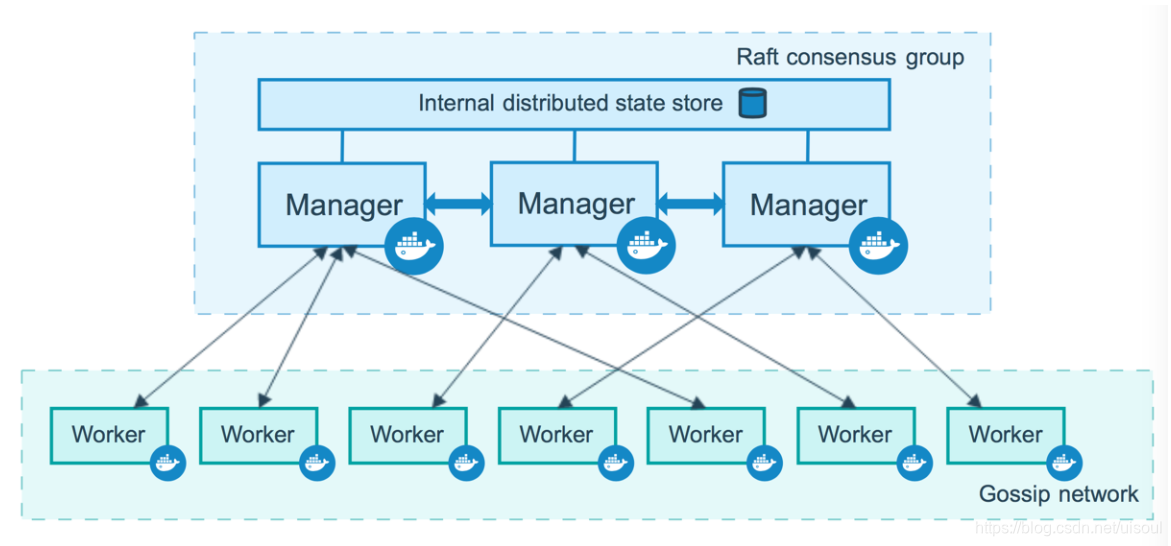

Swarm工作模式: 管理节点(至少3个), 工作节点

官方文档: https://docs.docker.com/engine/swarm/how-swarm-mode-works/nodes/

Swarm命令帮助

[root@localhost ~]# docker swarm --help

Usage:	docker swarm COMMAND

Manage Swarm

Commands:
  ca          Display and rotate the root CA
  init        Initialize a swarm
  join        Join a swarm as a node and/or manager
  join-token  Manage join tokens
  leave       Leave the swarm
  unlock      Unlock swarm
  unlock-key  Manage the unlock key
  update      Update the swarm

Run 'docker swarm COMMAND --help' for more information on a command.

Swarm初始化命令

[root@localhost ~]# docker swarm init --help

Usage:	docker swarm init [OPTIONS]

Initialize a swarm

Options:
      --advertise-addr string                  Advertised address (format: <ip|interface>[:port])
      --autolock                               Enable manager autolocking (requiring an unlock key to start a stopped manager)
      --availability string                    Availability of the node ("active"|"pause"|"drain") (default "active")
      --cert-expiry duration                   Validity period for node certificates (ns|us|ms|s|m|h) (default 2160h0m0s)
      --data-path-addr string                  Address or interface to use for data path traffic (format: <ip|interface>)
      --data-path-port uint32                  Port number to use for data path traffic (1024 - 49151). If no value is set or is set to 0, the default port (4789) is used.
      --default-addr-pool ipNetSlice           default address pool in CIDR format (default [])
      --default-addr-pool-mask-length uint32   default address pool subnet mask length (default 24)
      --dispatcher-heartbeat duration          Dispatcher heartbeat period (ns|us|ms|s|m|h) (default 5s)
      --external-ca external-ca                Specifications of one or more certificate signing endpoints
      --force-new-cluster                      Force create a new cluster from current state
      --listen-addr node-addr                  Listen address (format: <ip|interface>[:port]) (default 0.0.0.0:2377)
      --max-snapshots uint                     Number of additional Raft snapshots to retain
      --snapshot-interval uint                 Number of log entries between Raft snapshots (default 10000)
      --task-history-limit int                 Task history retention limit (default 5)

初始化Swarm集群, 生成主节点

[root@localhost ~]# docker swarm init --advertise-addr 192.168.0.250
Swarm initialized: current node (xa4tcvtx0ss80pu7zsy975xf1) is now a manager.

To add a worker to this swarm, run the following command:

    docker swarm join --token SWMTKN-1-2nz7pe5u74to8kkyqam343fa1ldkwbui5o5ang480nxcl55wvq-2o0qo4iazn44s0h4akqo00su5 192.168.0.250:2377

To add a manager to this swarm, run 'docker swarm join-token manager' and follow the instructions.

获取添加节点令牌

# 管理节点令牌
docker swarm join-token manager
# 工作节点令牌
docker swarm join-token worker

加入节点(manager, worker)

[root@localhost ~]# docker swarm join --token SWMTKN-1-2nz7pe5u74to8kkyqam343fa1ldkwbui5o5ang480nxcl55wvq-2o0qo4iazn44s0h4akqo00su5 192.168.0.250:2377
This node joined a swarm as a worker.

启动两个manager节点和两个worker节点, 查看当前节点状态

[root@localhost ~]# docker node ls
ID                            HOSTNAME                STATUS              AVAILABILITY        MANAGER STATUS      ENGINE VERSION
4detbmr2ziwikj91j9x6lsbhs     localhost.localdomain   Ready               Active                                  19.03.13
7j34gp7d1xrijkwxy2nprmp89     localhost.localdomain   Ready               Active              Reachable           19.03.13
tgvu8ep05zohd6x5h7ab9n8c6     localhost.localdomain   Ready               Active                                  19.03.13
xa4tcvtx0ss80pu7zsy975xf1 *   localhost.localdomain   Ready               Active              Leader              19.03.13

Raft协议

保证大多数节点存活才可用 (至少>2)

将主节点1停止测试

[root@localhost ~]# systemctl stop docker
Warning: Stopping docker.service, but it can still be activated by:
  docker.socket

在给一个manager节点查看状态(剩余一个主节点, 集群不能工作)

[root@localhost ~]# docker node ls
Error response from daemon: rpc error: code = DeadlineExceeded desc = context deadline exceeded
[root@localhost ~]# docker node ls
Error response from daemon: rpc error: code = Unknown desc = The swarm does not have a leader. It's possible that too few managers are online. Make sure more than half of the managers are online.

重新启动主节点1, 重新查看节点状态

[root@localhost ~]# systemctl start docker
[root@localhost ~]# docker node ls
ID                            HOSTNAME                STATUS              AVAILABILITY        MANAGER STATUS      ENGINE VERSION
4detbmr2ziwikj91j9x6lsbhs     localhost.localdomain   Ready               Active                                  19.03.13
7j34gp7d1xrijkwxy2nprmp89     localhost.localdomain   Ready               Active              Leader              19.03.13
tgvu8ep05zohd6x5h7ab9n8c6     localhost.localdomain   Ready               Active                                  19.03.13
xa4tcvtx0ss80pu7zsy975xf1 *   localhost.localdomain   Ready               Active              Reachable           19.03.13

把其中一个worker离开集群

[root@localhost ~]# docker swarm leave
Node left the swarm.

查看节点状态

[root@localhost ~]# docker node ls
ID                            HOSTNAME                STATUS              AVAILABILITY        MANAGER STATUS      ENGINE VERSION
4detbmr2ziwikj91j9x6lsbhs     localhost.localdomain   Ready               Active                                  19.03.13
7j34gp7d1xrijkwxy2nprmp89     localhost.localdomain   Ready               Active              Leader              19.03.13
tgvu8ep05zohd6x5h7ab9n8c6     localhost.localdomain   Down                Active                                  19.03.13
xa4tcvtx0ss80pu7zsy975xf1 *   localhost.localdomain   Ready               Active              Reachable           19.03.13

重新作为manager加入集群

[root@localhost ~]# docker swarm join --token SWMTKN-1-2nz7pe5u74to8kkyqam343fa1ldkwbui5o5ang480nxcl55wvq-boj74lujjljzvyvtlprh0fqpa 192.168.0.250:2377
This node joined a swarm as a manager.

查看节点状态

[root@localhost ~]# docker node ls
ID                            HOSTNAME                STATUS              AVAILABILITY        MANAGER STATUS      ENGINE VERSION
4detbmr2ziwikj91j9x6lsbhs     localhost.localdomain   Ready               Active                                  19.03.13
7j34gp7d1xrijkwxy2nprmp89     localhost.localdomain   Ready               Active              Leader              19.03.13
msrkboug93zfzmf1s3koxtyx0     localhost.localdomain   Ready               Active              Reachable           19.03.13
tgvu8ep05zohd6x5h7ab9n8c6     localhost.localdomain   Down                Active                                  19.03.13
xa4tcvtx0ss80pu7zsy975xf1 *   localhost.localdomain   Ready               Active              Reachable           19.03.13

再次停止一个主节点, 查看状态 (剩余两个主节点, 集群正常工作)

[root@localhost ~]# docker node ls
ID                            HOSTNAME                STATUS              AVAILABILITY        MANAGER STATUS      ENGINE VERSION
4detbmr2ziwikj91j9x6lsbhs     localhost.localdomain   Ready               Active                                  19.03.13
7j34gp7d1xrijkwxy2nprmp89 *   localhost.localdomain   Ready               Active              Leader              19.03.13
msrkboug93zfzmf1s3koxtyx0     localhost.localdomain   Ready               Active              Reachable           19.03.13
tgvu8ep05zohd6x5h7ab9n8c6     localhost.localdomain   Down                Active                                  19.03.13
xa4tcvtx0ss80pu7zsy975xf1     localhost.localdomain   Ready               Active              Unreachable         19.03.13

弹性扩缩容

弹性, 扩缩容, 集群, 告别 docker run !

单机: 启动一个项目: docker-compose up

集群: swarm, docker service

容器=>服务=>副本

redis服务=>10个副本 (同时开启10个redis容器)

docker服务

命令帮助

[root@localhost ~]# docker service --help

Usage:	docker service COMMAND

Manage services

Commands:
  create      Create a new service
  inspect     Display detailed information on one or more services
  logs        Fetch the logs of a service or task
  ls          List services
  ps          List the tasks of one or more services
  rm          Remove one or more services
  rollback    Revert changes to a service's configuration
  scale       Scale one or multiple replicated services
  update      Update a service

Run 'docker service COMMAND --help' for more information on a command.

体验: 创建服务, 动态扩展服务, 动态更新服务

灰度发布: 金丝雀发布! (滚动发布)

创建服务命令帮助

[root@localhost ~]# docker service create --help

Usage:	docker service create [OPTIONS] IMAGE [COMMAND] [ARG...]

Create a new service

Options:
      --config config                      Specify configurations to expose to the service
      --constraint list                    Placement constraints
      --container-label list               Container labels
      --credential-spec credential-spec    Credential spec for managed service account (Windows only)
  -d, --detach                             Exit immediately instead of waiting for the service to converge
      --dns list                           Set custom DNS servers
      --dns-option list                    Set DNS options
      --dns-search list                    Set custom DNS search domains
      --endpoint-mode string               Endpoint mode (vip or dnsrr) (default "vip")
      --entrypoint command                 Overwrite the default ENTRYPOINT of the image
  -e, --env list                           Set environment variables
      --env-file list                      Read in a file of environment variables
      --generic-resource list              User defined resources
      --group list                         Set one or more supplementary user groups for the container
      --health-cmd string                  Command to run to check health
      --health-interval duration           Time between running the check (ms|s|m|h)
      --health-retries int                 Consecutive failures needed to report unhealthy
      --health-start-period duration       Start period for the container to initialize before counting retries towards unstable (ms|s|m|h)
      --health-timeout duration            Maximum time to allow one check to run (ms|s|m|h)
      --host list                          Set one or more custom host-to-IP mappings (host:ip)
      --hostname string                    Container hostname
      --init                               Use an init inside each service container to forward signals and reap processes
      --isolation string                   Service container isolation mode
  -l, --label list                         Service labels
      --limit-cpu decimal                  Limit CPUs
      --limit-memory bytes                 Limit Memory
      --log-driver string                  Logging driver for service
      --log-opt list                       Logging driver options
      --mode string                        Service mode (replicated or global) (default "replicated")
      --mount mount                        Attach a filesystem mount to the service
      --name string                        Service name
      --network network                    Network attachments
      --no-healthcheck                     Disable any container-specified HEALTHCHECK
      --no-resolve-image                   Do not query the registry to resolve image digest and supported platforms
      --placement-pref pref                Add a placement preference
  -p, --publish port                       Publish a port as a node port
  -q, --quiet                              Suppress progress output
      --read-only                          Mount the container's root filesystem as read only
      --replicas uint                      Number of tasks
      --replicas-max-per-node uint         Maximum number of tasks per node (default 0 = unlimited)
      --reserve-cpu decimal                Reserve CPUs
      --reserve-memory bytes               Reserve Memory
      --restart-condition string           Restart when condition is met ("none"|"on-failure"|"any") (default "any")
      --restart-delay duration             Delay between restart attempts (ns|us|ms|s|m|h) (default 5s)
      --restart-max-attempts uint          Maximum number of restarts before giving up
      --restart-window duration            Window used to evaluate the restart policy (ns|us|ms|s|m|h)
      --rollback-delay duration            Delay between task rollbacks (ns|us|ms|s|m|h) (default 0s)
      --rollback-failure-action string     Action on rollback failure ("pause"|"continue") (default "pause")
      --rollback-max-failure-ratio float   Failure rate to tolerate during a rollback (default 0)
      --rollback-monitor duration          Duration after each task rollback to monitor for failure (ns|us|ms|s|m|h) (default 5s)
      --rollback-order string              Rollback order ("start-first"|"stop-first") (default "stop-first")
      --rollback-parallelism uint          Maximum number of tasks rolled back simultaneously (0 to roll back all at once) (default 1)
      --secret secret                      Specify secrets to expose to the service
      --stop-grace-period duration         Time to wait before force killing a container (ns|us|ms|s|m|h) (default 10s)
      --stop-signal string                 Signal to stop the container
      --sysctl list                        Sysctl options
  -t, --tty                                Allocate a pseudo-TTY
      --update-delay duration              Delay between updates (ns|us|ms|s|m|h) (default 0s)
      --update-failure-action string       Action on update failure ("pause"|"continue"|"rollback") (default "pause")
      --update-max-failure-ratio float     Failure rate to tolerate during an update (default 0)
      --update-monitor duration            Duration after each task update to monitor for failure (ns|us|ms|s|m|h) (default 5s)
      --update-order string                Update order ("start-first"|"stop-first") (default "stop-first")
      --update-parallelism uint            Maximum number of tasks updated simultaneously (0 to update all at once) (default 1)
  -u, --user string                        Username or UID (format: <name|uid>[:<group|gid>])
      --with-registry-auth                 Send registry authentication details to swarm agents
  -w, --workdir string                     Working directory inside the container

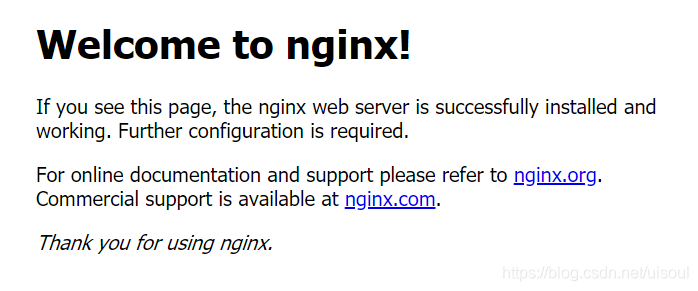

创建nginx服务

[root@localhost ~]# docker service create -p 8888:80 --name mynginx nginx
pqn9zyf0dvrrxwh8mwo66hwth
overall progress: 1 out of 1 tasks
1/1: running   [==================================================>]
verify: Service converged

docker run 容器启动, 不具备扩缩容器

docker service 服务启动, 具备扩缩容器, 滚动更新

查看服务状态 (在任意一台manager节点都可查看)

[root@localhost ~]# docker service ps mynginx
ID                  NAME                IMAGE               NODE                    DESIRED STATE       CURRENT STATE           ERROR               PORTS
tjr17l8ryj6e        mynginx.1           nginx:latest        localhost.localdomain   Running             Running 2 minutes ago

[root@localhost ~]# docker service ls
ID                  NAME                MODE                REPLICAS            IMAGE               PORTS
pqn9zyf0dvrr        mynginx             replicated          1/1                 nginx:latest        *:8888->80/tcp

查看服务详细信息

[root@localhost ~]# docker service inspect mynginx
[
    {
        "ID": "pqn9zyf0dvrrxwh8mwo66hwth",
        "Version": {
            "Index": 49
        },
        "CreatedAt": "2020-12-09T09:10:21.105987803Z",
        "UpdatedAt": "2020-12-09T09:10:21.110402331Z",
        "Spec": {
            "Name": "mynginx",
            "Labels": {},
            "TaskTemplate": {
                "ContainerSpec": {
                    "Image": "nginx:latest@sha256:6b1daa9462046581ac15be20277a7c75476283f969cb3a61c8725ec38d3b01c3",
                    "Init": false,
                    "StopGracePeriod": 10000000000,
                    "DNSConfig": {},
                    "Isolation": "default"
                },
                "Resources": {
                    "Limits": {},
                    "Reservations": {}
                },
                "RestartPolicy": {
                    "Condition": "any",
                    "Delay": 5000000000,
                    "MaxAttempts": 0
                },
                "Placement": {
                    "Platforms": [
                        {
                            "Architecture": "amd64",
                            "OS": "linux"
                        },
                        {
                            "OS": "linux"
                        },
                        {
                            "OS": "linux"
                        },
                        {
                            "Architecture": "arm64",
                            "OS": "linux"
                        },
                        {
                            "Architecture": "386",
                            "OS": "linux"
                        },
                        {
                            "Architecture": "mips64le",
                            "OS": "linux"
                        },
                        {
                            "Architecture": "ppc64le",
                            "OS": "linux"
                        },
                        {
                            "Architecture": "s390x",
                            "OS": "linux"
                        }
                    ]
                },
                "ForceUpdate": 0,
                "Runtime": "container"
            },
            "Mode": {
                "Replicated": {
                    "Replicas": 1
                }
            },
            "UpdateConfig": {
                "Parallelism": 1,
                "FailureAction": "pause",
                "Monitor": 5000000000,
                "MaxFailureRatio": 0,
                "Order": "stop-first"
            },
            "RollbackConfig": {
                "Parallelism": 1,
                "FailureAction": "pause",
                "Monitor": 5000000000,
                "MaxFailureRatio": 0,
                "Order": "stop-first"
            },
            "EndpointSpec": {
                "Mode": "vip",
                "Ports": [
                    {
                        "Protocol": "tcp",
                        "TargetPort": 80,
                        "PublishedPort": 8888,
                        "PublishMode": "ingress"
                    }
                ]
            }
        },
        "Endpoint": {
            "Spec": {
                "Mode": "vip",
                "Ports": [
                    {
                        "Protocol": "tcp",
                        "TargetPort": 80,
                        "PublishedPort": 8888,
                        "PublishMode": "ingress"
                    }
                ]
            },
            "Ports": [
                {
                    "Protocol": "tcp",
                    "TargetPort": 80,
                    "PublishedPort": 8888,
                    "PublishMode": "ingress"
                }
            ],
            "VirtualIPs": [
                {
                    "NetworkID": "lh400xvkoitl0j2m82fo36zfy",
                    "Addr": "10.0.0.7/24"
                }
            ]
        }
    }
]

动态扩缩容, 命令帮助

[root@localhost ~]# docker service update --help

Usage:	docker service update [OPTIONS] SERVICE

Update a service

Options:
      --args command                       Service command args
      --config-add config                  Add or update a config file on a service
      --config-rm list                     Remove a configuration file
      --constraint-add list                Add or update a placement constraint
      --constraint-rm list                 Remove a constraint
      --container-label-add list           Add or update a container label
      --container-label-rm list            Remove a container label by its key
      --credential-spec credential-spec    Credential spec for managed service account (Windows only)
  -d, --detach                             Exit immediately instead of waiting for the service to converge
      --dns-add list                       Add or update a custom DNS server
      --dns-option-add list                Add or update a DNS option
      --dns-option-rm list                 Remove a DNS option
      --dns-rm list                        Remove a custom DNS server
      --dns-search-add list                Add or update a custom DNS search domain
      --dns-search-rm list                 Remove a DNS search domain
      --endpoint-mode string               Endpoint mode (vip or dnsrr)
      --entrypoint command                 Overwrite the default ENTRYPOINT of the image
      --env-add list                       Add or update an environment variable
      --env-rm list                        Remove an environment variable
      --force                              Force update even if no changes require it
      --generic-resource-add list          Add a Generic resource
      --generic-resource-rm list           Remove a Generic resource
      --group-add list                     Add an additional supplementary user group to the container
      --group-rm list                      Remove a previously added supplementary user group from the container
      --health-cmd string                  Command to run to check health
      --health-interval duration           Time between running the check (ms|s|m|h)
      --health-retries int                 Consecutive failures needed to report unhealthy
      --health-start-period duration       Start period for the container to initialize before counting retries towards unstable (ms|s|m|h)
      --health-timeout duration            Maximum time to allow one check to run (ms|s|m|h)
      --host-add list                      Add a custom host-to-IP mapping (host:ip)
      --host-rm list                       Remove a custom host-to-IP mapping (host:ip)
      --hostname string                    Container hostname
      --image string                       Service image tag
      --init                               Use an init inside each service container to forward signals and reap processes
      --isolation string                   Service container isolation mode
      --label-add list                     Add or update a service label
      --label-rm list                      Remove a label by its key
      --limit-cpu decimal                  Limit CPUs
      --limit-memory bytes                 Limit Memory
      --log-driver string                  Logging driver for service
      --log-opt list                       Logging driver options
      --mount-add mount                    Add or update a mount on a service
      --mount-rm list                      Remove a mount by its target path
      --network-add network                Add a network
      --network-rm list                    Remove a network
      --no-healthcheck                     Disable any container-specified HEALTHCHECK
      --no-resolve-image                   Do not query the registry to resolve image digest and supported platforms
      --placement-pref-add pref            Add a placement preference
      --placement-pref-rm pref             Remove a placement preference
      --publish-add port                   Add or update a published port
      --publish-rm port                    Remove a published port by its target port
  -q, --quiet                              Suppress progress output
      --read-only                          Mount the container's root filesystem as read only
      --replicas uint                      Number of tasks
      --replicas-max-per-node uint         Maximum number of tasks per node (default 0 = unlimited)
      --reserve-cpu decimal                Reserve CPUs
      --reserve-memory bytes               Reserve Memory
      --restart-condition string           Restart when condition is met ("none"|"on-failure"|"any")
      --restart-delay duration             Delay between restart attempts (ns|us|ms|s|m|h)
      --restart-max-attempts uint          Maximum number of restarts before giving up
      --restart-window duration            Window used to evaluate the restart policy (ns|us|ms|s|m|h)
      --rollback                           Rollback to previous specification
      --rollback-delay duration            Delay between task rollbacks (ns|us|ms|s|m|h)
      --rollback-failure-action string     Action on rollback failure ("pause"|"continue")
      --rollback-max-failure-ratio float   Failure rate to tolerate during a rollback
      --rollback-monitor duration          Duration after each task rollback to monitor for failure (ns|us|ms|s|m|h)
      --rollback-order string              Rollback order ("start-first"|"stop-first")
      --rollback-parallelism uint          Maximum number of tasks rolled back simultaneously (0 to roll back all at once)
      --secret-add secret                  Add or update a secret on a service
      --secret-rm list                     Remove a secret
      --stop-grace-period duration         Time to wait before force killing a container (ns|us|ms|s|m|h)
      --stop-signal string                 Signal to stop the container
      --sysctl-add list                    Add or update a Sysctl option
      --sysctl-rm list                     Remove a Sysctl option
  -t, --tty                                Allocate a pseudo-TTY
      --update-delay duration              Delay between updates (ns|us|ms|s|m|h)
      --update-failure-action string       Action on update failure ("pause"|"continue"|"rollback")
      --update-max-failure-ratio float     Failure rate to tolerate during an update
      --update-monitor duration            Duration after each task update to monitor for failure (ns|us|ms|s|m|h)
      --update-order string                Update order ("start-first"|"stop-first")
      --update-parallelism uint            Maximum number of tasks updated simultaneously (0 to update all at once)
  -u, --user string                        Username or UID (format: <name|uid>[:<group|gid>])
      --with-registry-auth                 Send registry authentication details to swarm agents
  -w, --workdir string                     Working directory inside the container

扩容增加3个服务

[root@localhost ~]# docker service update --replicas 3 mynginx
mynginx
overall progress: 3 out of 3 tasks
1/3: running   [==================================================>]
2/3: running   [==================================================>]
3/3: running   [==================================================>]
verify: Service converged

打开浏览器访问其中一台机器 (集群中任意节点都可以访问服务)

http://192.168.0.251:8888/
http://192.168.0.252:8888/

查看服务状态

[root@localhost ~]# docker service ps mynginx
ID                  NAME                IMAGE               NODE                    DESIRED STATE       CURRENT STATE            ERROR               PORTS
tjr17l8ryj6e        mynginx.1           nginx:latest        localhost.localdomain   Running             Running 13 minutes ago
mhueaz21flcd        mynginx.2           nginx:latest        localhost.localdomain   Running             Running 3 minutes ago
4mm5nofddu9l        mynginx.3           nginx:latest        localhost.localdomain   Running             Running 3 minutes ago

同理可以开10个服务

[root@localhost ~]# docker service update --replicas 10 mynginx
mynginx
overall progress: 10 out of 10 tasks
1/10: running   [==================================================>]
2/10: running   [==================================================>]
3/10: running   [==================================================>]
4/10: running   [==================================================>]
5/10: running   [==================================================>]
6/10: running   [==================================================>]
7/10: running   [==================================================>]
8/10: running   [==================================================>]
9/10: running   [==================================================>]
10/10: running   [==================================================>]
verify: Service converged

查看状态

[root@localhost ~]# docker service ps mynginx
ID                  NAME                IMAGE               NODE                    DESIRED STATE       CURRENT STATE            ERROR               PORTS
tjr17l8ryj6e        mynginx.1           nginx:latest        localhost.localdomain   Running             Running 14 minutes ago
mhueaz21flcd        mynginx.2           nginx:latest        localhost.localdomain   Running             Running 5 minutes ago
4mm5nofddu9l        mynginx.3           nginx:latest        localhost.localdomain   Running             Running 5 minutes ago
mejqy2fkwgjk        mynginx.4           nginx:latest        localhost.localdomain   Running             Running 32 seconds ago
z5eg7bh0ptcw        mynginx.5           nginx:latest        localhost.localdomain   Running             Running 25 seconds ago
gq8eqxysahty        mynginx.6           nginx:latest        localhost.localdomain   Running             Running 24 seconds ago
gwlev9d97r4k        mynginx.7           nginx:latest        localhost.localdomain   Running             Running 33 seconds ago
iyxfjoo95n4i        mynginx.8           nginx:latest        localhost.localdomain   Running             Running 33 seconds ago
zbc1bnaylyet        mynginx.9           nginx:latest        localhost.localdomain   Running             Running 33 seconds ago
6r52v2moaz1h        mynginx.10          nginx:latest        localhost.localdomain   Running             Running 23 seconds ago

在其他节点查看启动的容器 (每台机平均分布启动)

[root@localhost ~]# docker ps
CONTAINER ID        IMAGE               COMMAND                  CREATED             STATUS              PORTS               NAMES
7050665da76b        nginx:latest        "/docker-entrypoint.…"   54 seconds ago      Up 53 seconds       80/tcp              mynginx.9.zbc1bnaylyet5qu9xlzodl6op
b95f4c501d85        nginx:latest        "/docker-entrypoint.…"   5 minutes ago       Up 5 minutes        80/tcp              mynginx.3.4mm5nofddu9lhtqkxnuwah0gg

[root@localhost ~]# docker ps
CONTAINER ID        IMAGE               COMMAND                  CREATED              STATUS              PORTS               NAMES
cc30d604f1dc        nginx:latest        "/docker-entrypoint.…"   About a minute ago   Up About a minute   80/tcp              mynginx.10.6r52v2moaz1hd9tby9xa4xw5m
070e89444be0        nginx:latest        "/docker-entrypoint.…"   About a minute ago   Up About a minute   80/tcp              mynginx.6.gq8eqxysahtyw764pvgjd5t83
206a10c1165b        nginx:latest        "/docker-entrypoint.…"   About a minute ago   Up About a minute   80/tcp              mynginx.5.z5eg7bh0ptcwxcg83y8dy3hv1

回滚容器(减少)

[root@localhost ~]# docker service update --replicas 1 mynginx
mynginx
overall progress: 1 out of 1 tasks
1/1: running   [==================================================>]
verify: Service converged

查看状态

[root@localhost ~]# docker service ps mynginx
ID                  NAME                IMAGE               NODE                    DESIRED STATE       CURRENT STATE            ERROR               PORTS
tjr17l8ryj6e        mynginx.1           nginx:latest        localhost.localdomain   Running             Running 18 minutes ago

scale命令扩缩容 (等于update)

[root@localhost ~]# docker service scale mynginx=5
mynginx scaled to 5
overall progress: 5 out of 5 tasks
1/5: running   [==================================================>]
2/5: running   [==================================================>]
3/5: running   [==================================================>]
4/5: running   [==================================================>]
5/5: running   [==================================================>]
verify: Service converged

扩展

查看网络信息

[root@localhost ~]# docker network ls
NETWORK ID          NAME                DRIVER              SCOPE
c4fd6b7dd5af        bridge              bridge              local
c7ddd4a70168        docker_gwbridge     bridge              local
129beacda410        host                host                local
lh400xvkoitl        ingress             overlay             swarm
21a55cd7b645        none                null                local

指定工作节点创建服务

--mode string                        Service mode (replicated or global) (default "replicated")
# 只在工作节点启动服务
docker service create --mode replicated -p 8888:80 --name mynginx nginx

Docker Stack

单机部署: docker-compose

集群部署: docker-Stack

# 单机
docker-compose up -d docker-compose.yml
# 集群
docker stack deploy docker-compose.yml

命令帮助

[root@localhost ~]# docker stack --help

Usage:	docker stack [OPTIONS] COMMAND

Manage Docker stacks

Options:
      --orchestrator string   Orchestrator to use (swarm|kubernetes|all)

Commands:
  deploy      Deploy a new stack or update an existing stack
  ls          List stacks
  ps          List the tasks in the stack
  rm          Remove one or more stacks
  services    List the services in the stack

Run 'docker stack COMMAND --help' for more information on a command.

docker stack服务docker-compose.yml

version: "3"
services:
  redis:
    image: redis:alpine
    ports:
      - "6379"
    networks:
      - frontend
    deploy:
      replicas: 2
      update_config:
        parallelism: 2
        delay: 10s
      restart_policy:
        condition: on-failure
  db:
    image: postgres:9.4
    volumes:
      - db-data:/var/lib/postgresql/data
    networks:
      - backend
    deploy:
      placement:
        constraints: [node.role == manager]
  vote:
    image: dockersamples/examplevotingapp_vote:before
    ports:
      - 5000:80
    networks:
      - frontend
    depends_on:
      - redis
    deploy:
      replicas: 2
      update_config:
        parallelism: 2
      restart_policy:
        condition: on-failure
  result:
    image: dockersamples/examplevotingapp_result:before
    ports:
      - 5001:80
    networks:
      - backend
    depends_on:
      - db
    deploy:
      replicas: 1
      update_config:
        parallelism: 2
        delay: 10s
      restart_policy:
        condition: on-failure
  worker:
    image: dockersamples/examplevotingapp_worker
    networks:
      - frontend
      - backend
    deploy:
      mode: replicated
      replicas: 1
      labels: [APP=VOTING]
      restart_policy:
        condition: on-failure
        delay: 10s
        max_attempts: 3
        window: 120s
      placement:
        constraints: [node.role == manager]
  visualizer:
    image: dockersamples/visualizer:stable
    ports:
      - "8080:8080"
    stop_grace_period: 1m30s
    volumes:
      - "/var/run/docker.sock:/var/run/docker.sock"
    deploy:
      placement:
        constraints: [node.role == manager]
  portainer:
    image: portainer/portainer
    ports:
      - "9000:9000"
    volumes:
      - "/var/run/docker.sock:/var/run/docker.sock"
    deploy:
      replicas: 1
      placement:
        constraints: [node.role == manager]
networks:
  frontend:
  backend:
volumes:
  db-data:

Docker Secret

[root@localhost ~]# docker secret --help

Usage:	docker secret COMMAND

Manage Docker secrets

Commands:
  create      Create a secret from a file or STDIN as content
  inspect     Display detailed information on one or more secrets
  ls          List secrets
  rm          Remove one or more secrets

Run 'docker secret COMMAND --help' for more information on a command.

Docker Config

[root@localhost ~]# docker config --help

Usage:	docker config COMMAND

Manage Docker configs

Commands:
  create      Create a config from a file or STDIN
  inspect     Display detailed information on one or more configs
  ls          List configs
  rm          Remove one or more configs

Run 'docker config COMMAND --help' for more information on a command.
