炫龙笔记本怎么进bios设置u盘启动图文教程

  炫龙笔记本从u盘启动有两种方法,一种是使用u盘启动快捷键直接进入u盘装系统,另一种则需要进bios设置u盘为第一启动项,下面详细为大家介绍如何操作。



  方法一:使用u盘启动快捷键直接进入u盘装系统

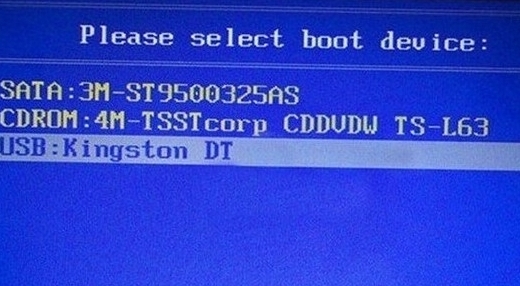

  炫龙笔记本u盘启动快捷键是F12,下载u盘启动盘制作工具,将制作好的快启动u盘(u盘启动盘制作教程)连接到电脑后,重启电脑,看到开机画面后狂按F12会出现一个启动项顺序选择的窗口,用键盘上的方向键将光标移动到U盘启动项,也就是USB选项,如下图所示:



  之后电脑就会从u盘启动并进入快启动win10pe系统了,当然,这是在设置u盘启动项成功的情况下,如果大家狂按炫龙笔记本u盘启动快捷键后依然无事发生,没有弹出u盘启动项选择窗口怎么办?一般出现这种情况的原因有如下四种:

  1、电脑未启用启动快捷键功能,需要进bios启用一下启动快捷键功能。

  2、USB接口不支持,建议更换USB接口尝试一下。

  3、U盘引导文件丢失,如何修复参考“使用快启动软件进行启动项修复教程”。

  4、PE加载失败,由于在加载pe系统的过程中,需要分配内存,倘若内存不足,容易导致pe加载失败,操作无法继续。建议大家买一个更大的内存条再尝试进行操作。

  方法二:进bios设置U盘为第一启动项

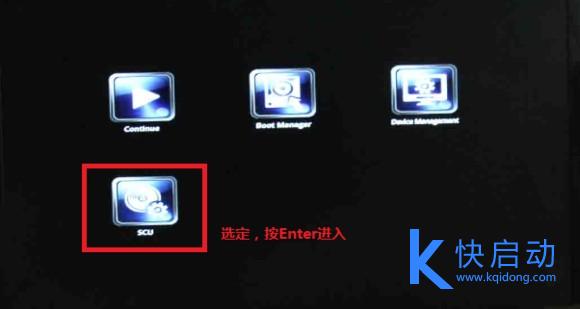

  1、开机,连续按进入bios快捷键Esc键,电脑会出现下面的操作界面。键盘的方向键【↑、↓、←、→】键调节至【SCU】图标,按Enter键进入该图标对应的菜单。如下图所示:



bios设置U盘启动

  2、在上图所示界面中,选择SCU的图标,将进入如下菜单界面,如下图所示:

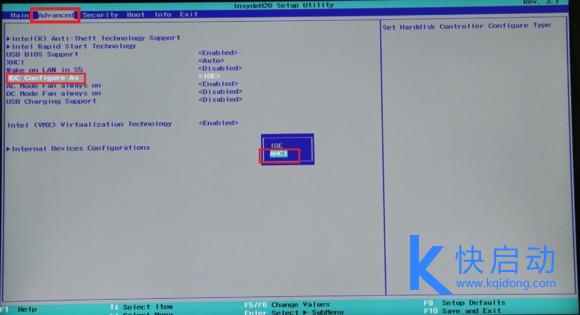

  方向键“←”和“→”可以选择顶部的菜单目录,方向键“↓”和“↑”可以选择顶部菜单下对应的目录,我们在【Advanced】目录下选择【HDC Configure As】,按【Enter】键出现,如下图所示:



设置ahci

  选择【AHCI】选项,按【Enter】键确认。(注意:安装Win7/8选择AHCI,XP选择IDE)

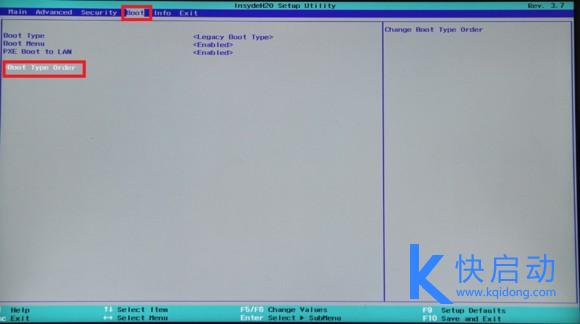

  3、在顶部Boot菜单下选定Boot Type Order选项,按Enter键进入设置,如下图所示:



炫龙U盘启动

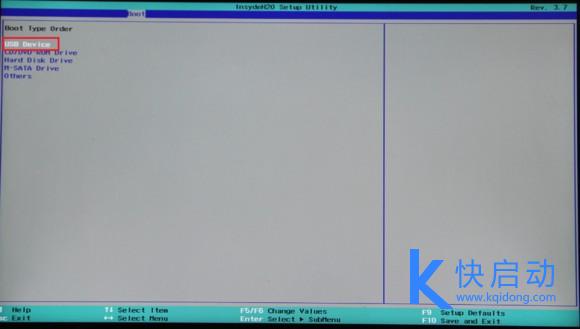

  4、接着出现下列选项,因为要用U盘装系统,就需要把USB Device这个选项移到最上面。具体做法是先用方向键选择USB Device这个选项,然后用“Shift”+“+”或者“—”来将该选项上移或者下移。如下图所示:



U盘启动设置

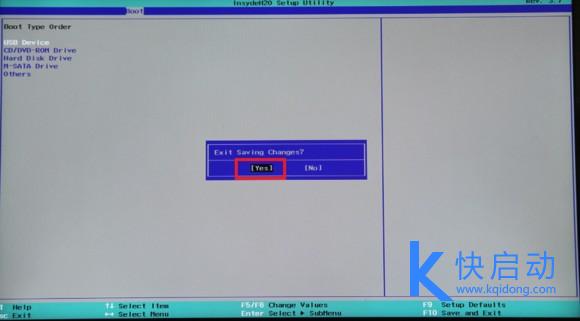

  5、然后按F10保存退出,然后重启电脑也可以进入启动U盘。



U盘装系统设置

  如果设置失败,建议咨询电脑销售人员。如果狂按Esc后无法进入bios的话,可以多试几次,一般电脑开机界面都有提示bios快捷键,可以留意一下屏幕提示。

  以上全部就是炫龙笔记本bios设置u盘启动教程,大家记得在进bios设置u盘启动前,一定不要忘记制作u盘启动盘,以及在操作的时候保持u盘连接电脑,参考以上教程一步步设置即可顺利从u盘启动进pe重装系统了。
