kubernetes安装ingress-nginx详细步骤

目录

一、安装环境

二、开始安装

1、参考文章

2、下载deploy.yaml文件

3、修改deploy.yaml文件

4、执行安装

三、新建一个ingress进行测试

1、部署一个服务：webapp

2、创建一个ingress：mywebsite-ingress

3、在浏览器中测试

四、相关文件

1、修改后的完整deploy.yaml文件

2、webapp-deploy-svc.yaml文件

3、mywebsite-ingress.yaml文件

---

一、安装环境

• kubernetes 1.22
• ingress-nginx 1.1.0
• 安装方式：yaml文件方式

二、开始安装

1、参考文章

官方文档：Installation Guide - NGINX Ingress Controllerhttps://kubernetes.github.io/ingress-nginx/deploy/

个人博客：k8s- nginx ingress 高可用部署（最新版，支持 k8s 1.22---1.19）第一篇 - 沐雪小程序开发者 - 博客园一、找安装的yaml文件 ingress-nginx的官网地址为： https://github.com/kubernetes/ingress-nginx 我们可以找到安装的yaml文件，网址为： hhttps://www.cnblogs.com/puzi0315/p/15656727.html

以及：

《Kubernetes权威指南》第5版

本文用到的各种文件，请移步第【四】部分。

2、下载deploy.yaml文件

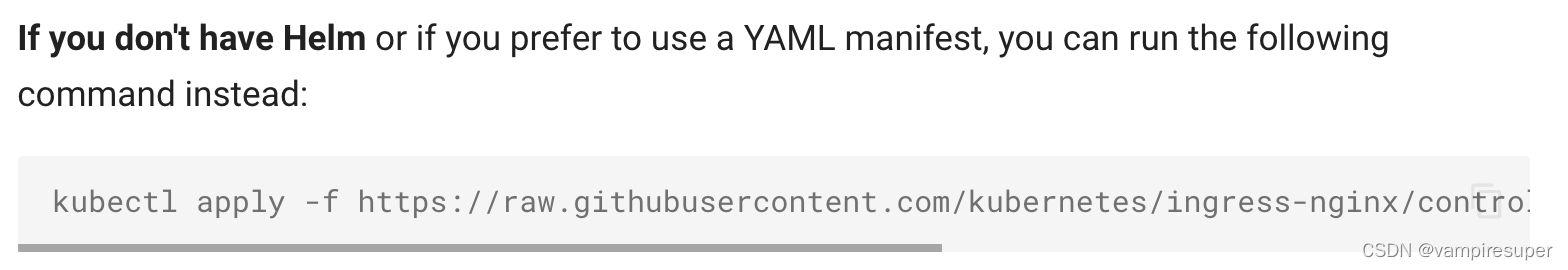

按照官网的提示，获取到文件地址，下载到本地：



wget https://raw.githubusercontent.com/kubernetes/ingress-nginx/controller-v1.1.0/deploy/static/provider/cloud/deploy.yaml



3、修改deploy.yaml文件

因为官方文件中的镜像地址国内无法下载，所以需要进行修改；另外，使用的kubernetes环境是自己在服务器（腾讯云）上手动安装的，没有使用loadBalance，也需要进行相应的修改。一共有3处，如下：

（1）将yaml文件中的镜像（image）地址替换为国内地址，可以先拉取下来：

docker pull registry.cn-hangzhou.aliyuncs.com/google_containers/kube-webhook-certgen:v1.1.1

docker pull registry.cn-hangzhou.aliyuncs.com/google_containers/nginx-ingress-controller:v1.1.0

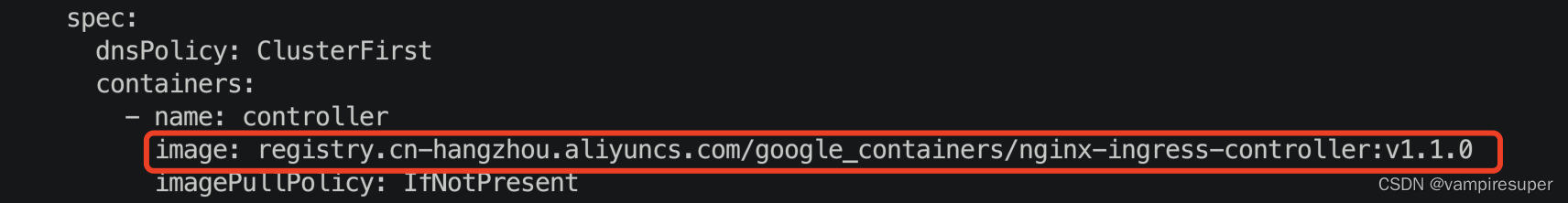

一共需要修改3个地方的image信息，示例：

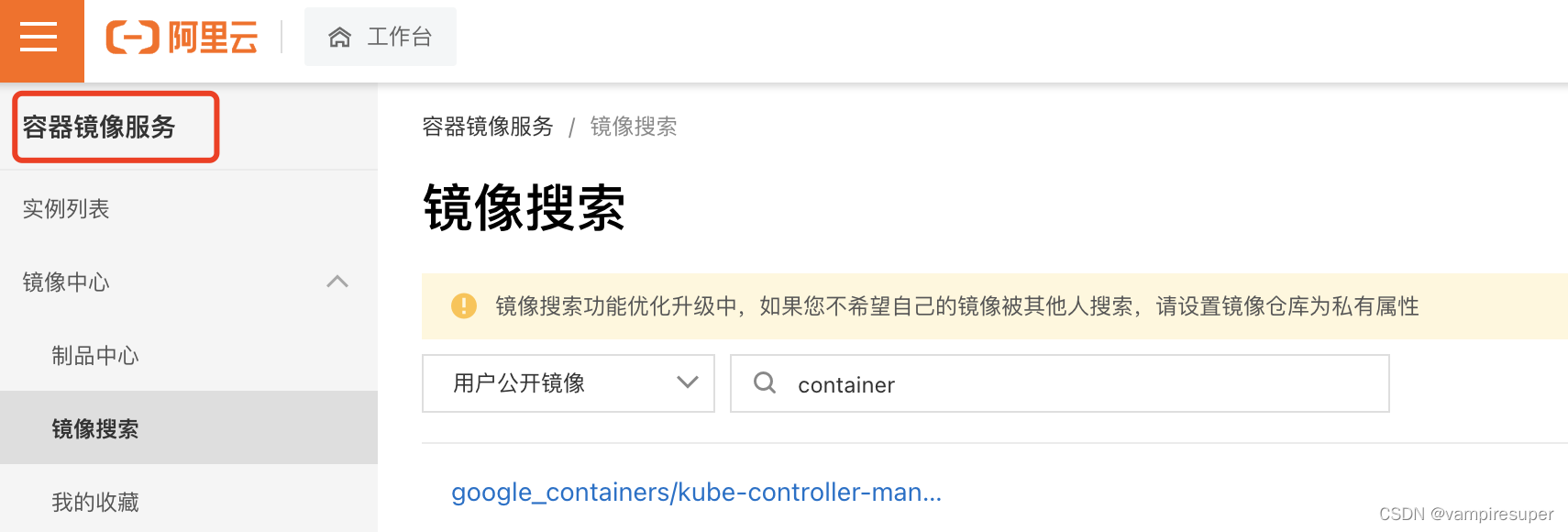

tips：查找国内镜像地址，可以去阿里云查找：登陆阿里云控制台--容器镜像服务

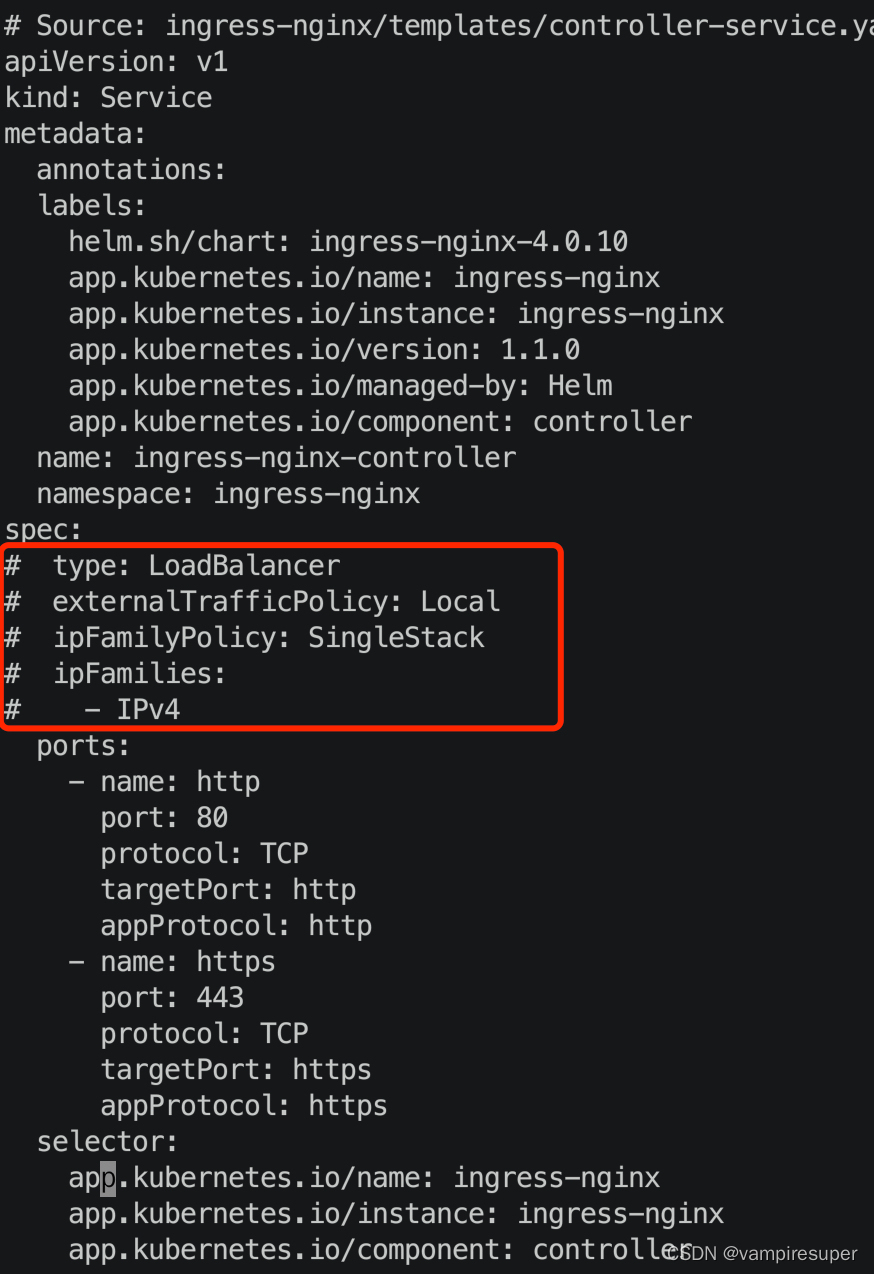

（2） 修改name=ingress-nginx-controller的Service，注释掉type=LoadBalancer的相关配置：

（3）修改Deployment的ports配置信息：添加hostPort: 80 和 443



4、执行安装

kubectl apply -f deploy.yaml

tips-0：安装时会创建一个namespace=ingress-nginx的名称空间，对于第一次安装，难免各种出错，可以直接删除名称空间后：kubectl delete ns ingress-nginx，再多尝试几次;

tips-1：注意下yaml文件中deployment的nodeSelector，如果部署pod失败可能是没有对应label的node，在期望的node上打一下标签：kubectl label nodes <node-name> <label-key>=<label-value>

查看各个资源是否创建成功：

kubectl get all -n ingress-nginx

类似上面的内容，说明安装成功了。



三、新建一个ingress进行测试

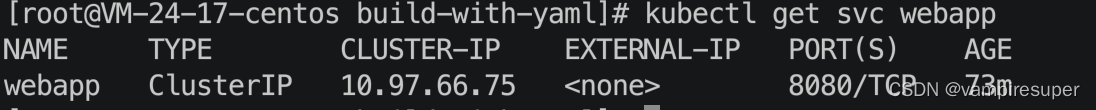

1、部署一个服务：webapp

kubectl apply -f webapp-deploy-svc.yaml

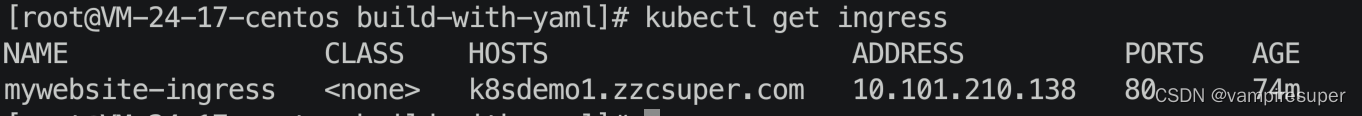

2、创建一个ingress：mywebsite-ingress

kubectl apply -f mywebsite-ingress.yaml

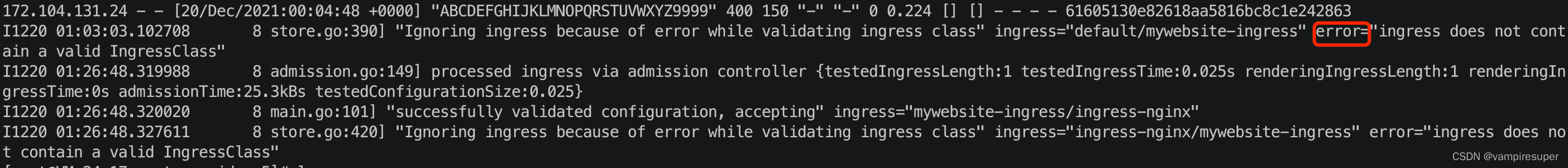

小坑：创建ingress的时候，提示创建成功，但是使用域名进行访问一致提示404，可以去看一下创建ingress时的日志，因为是由ingress-controller进行创建ingress的，所以要查看ingress-nginx-controller这个pod的日志：

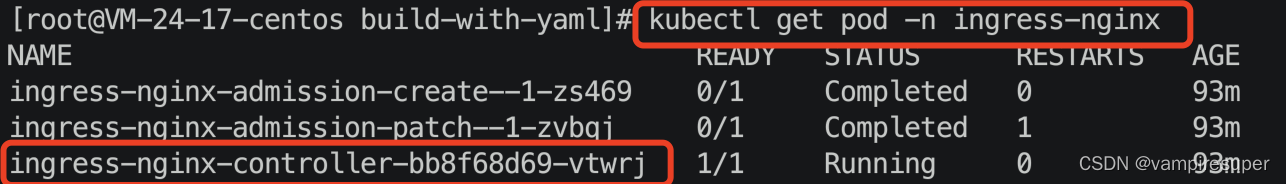

• 获取controller：

•  查看运行日志：

kubectl -n ingress-nginx logs <controller-pod-name>

发现是没有指定IngressClass，在《权威指南》的示例中是没有指定的，可能由于版本变化需要指定一下：

annotations:
    kubernetes.io/ingress.class: "nginx"

 再次执行一下：kubectl apply -f mywebsite-ingress.yaml

3、在浏览器中测试

出现下面的页面表示ingress可以正确使用了，其中的域名可以去阿里云或者腾讯云花几十块买一个：





四、相关文件

1、修改后的完整deploy.yaml文件

apiVersion: v1
kind: Namespace
metadata:
  name: ingress-nginx
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx

---
# Source: ingress-nginx/templates/controller-serviceaccount.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
  labels:
    helm.sh/chart: ingress-nginx-4.0.10
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 1.1.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: controller
  name: ingress-nginx
  namespace: ingress-nginx
automountServiceAccountToken: true
---
# Source: ingress-nginx/templates/controller-configmap.yaml
apiVersion: v1
kind: ConfigMap
metadata:
  labels:
    helm.sh/chart: ingress-nginx-4.0.10
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 1.1.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: controller
  name: ingress-nginx-controller
  namespace: ingress-nginx
data:
  allow-snippet-annotations: 'true'
---
# Source: ingress-nginx/templates/clusterrole.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  labels:
    helm.sh/chart: ingress-nginx-4.0.10
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 1.1.0
    app.kubernetes.io/managed-by: Helm
  name: ingress-nginx
rules:
  - apiGroups:
      - ''
    resources:
      - configmaps
      - endpoints
      - nodes
      - pods
      - secrets
      - namespaces
    verbs:
      - list
      - watch
  - apiGroups:
      - ''
    resources:
      - nodes
    verbs:
      - get
  - apiGroups:
      - ''
    resources:
      - services
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - networking.k8s.io
    resources:
      - ingresses
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - ''
    resources:
      - events
    verbs:
      - create
      - patch
  - apiGroups:
      - networking.k8s.io
    resources:
      - ingresses/status
    verbs:
      - update
  - apiGroups:
      - networking.k8s.io
    resources:
      - ingressclasses
    verbs:
      - get
      - list
      - watch
---
# Source: ingress-nginx/templates/clusterrolebinding.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  labels:
    helm.sh/chart: ingress-nginx-4.0.10
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 1.1.0
    app.kubernetes.io/managed-by: Helm
  name: ingress-nginx
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: ingress-nginx
subjects:
  - kind: ServiceAccount
    name: ingress-nginx
    namespace: ingress-nginx
---
# Source: ingress-nginx/templates/controller-role.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  labels:
    helm.sh/chart: ingress-nginx-4.0.10
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 1.1.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: controller
  name: ingress-nginx
  namespace: ingress-nginx
rules:
  - apiGroups:
      - ''
    resources:
      - namespaces
    verbs:
      - get
  - apiGroups:
      - ''
    resources:
      - configmaps
      - pods
      - secrets
      - endpoints
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - ''
    resources:
      - services
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - networking.k8s.io
    resources:
      - ingresses
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - networking.k8s.io
    resources:
      - ingresses/status
    verbs:
      - update
  - apiGroups:
      - networking.k8s.io
    resources:
      - ingressclasses
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - ''
    resources:
      - configmaps
    resourceNames:
      - ingress-controller-leader
    verbs:
      - get
      - update
  - apiGroups:
      - ''
    resources:
      - configmaps
    verbs:
      - create
  - apiGroups:
      - ''
    resources:
      - events
    verbs:
      - create
      - patch
---
# Source: ingress-nginx/templates/controller-rolebinding.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  labels:
    helm.sh/chart: ingress-nginx-4.0.10
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 1.1.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: controller
  name: ingress-nginx
  namespace: ingress-nginx
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: ingress-nginx
subjects:
  - kind: ServiceAccount
    name: ingress-nginx
    namespace: ingress-nginx
---
# Source: ingress-nginx/templates/controller-service-webhook.yaml
apiVersion: v1
kind: Service
metadata:
  labels:
    helm.sh/chart: ingress-nginx-4.0.10
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 1.1.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: controller
  name: ingress-nginx-controller-admission
  namespace: ingress-nginx
spec:
  type: ClusterIP
  ports:
    - name: https-webhook
      port: 443
      targetPort: webhook
      appProtocol: https
  selector:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/component: controller
---
# Source: ingress-nginx/templates/controller-service.yaml
apiVersion: v1
kind: Service
metadata:
  annotations:
  labels:
    helm.sh/chart: ingress-nginx-4.0.10
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 1.1.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: controller
  name: ingress-nginx-controller
  namespace: ingress-nginx
spec:
#  type: LoadBalancer
#  externalTrafficPolicy: Local
#  ipFamilyPolicy: SingleStack
#  ipFamilies:
#    - IPv4
  ports:
    - name: http
      port: 80
      protocol: TCP
      targetPort: http
      appProtocol: http
    - name: https
      port: 443
      protocol: TCP
      targetPort: https
      appProtocol: https
  selector:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/component: controller
---
# Source: ingress-nginx/templates/controller-deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    helm.sh/chart: ingress-nginx-4.0.10
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 1.1.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: controller
  name: ingress-nginx-controller
  namespace: ingress-nginx
spec:
  selector:
    matchLabels:
      app.kubernetes.io/name: ingress-nginx
      app.kubernetes.io/instance: ingress-nginx
      app.kubernetes.io/component: controller
  revisionHistoryLimit: 10
  minReadySeconds: 0
  template:
    metadata:
      labels:
        app.kubernetes.io/name: ingress-nginx
        app.kubernetes.io/instance: ingress-nginx
        app.kubernetes.io/component: controller
    spec:
      dnsPolicy: ClusterFirst
      containers:
        - name: controller
          image: registry.cn-hangzhou.aliyuncs.com/google_containers/nginx-ingress-controller:v1.1.0
          imagePullPolicy: IfNotPresent
          lifecycle:
            preStop:
              exec:
                command:
                  - /wait-shutdown
          args:
            - /nginx-ingress-controller
            - --publish-service=$(POD_NAMESPACE)/ingress-nginx-controller
            - --election-id=ingress-controller-leader
            - --controller-class=k8s.io/ingress-nginx
            - --configmap=$(POD_NAMESPACE)/ingress-nginx-controller
            - --validating-webhook=:8443
            - --validating-webhook-certificate=/usr/local/certificates/cert
            - --validating-webhook-key=/usr/local/certificates/key
          securityContext:
            capabilities:
              drop:
                - ALL
              add:
                - NET_BIND_SERVICE
            runAsUser: 101
            allowPrivilegeEscalation: true
          env:
            - name: POD_NAME
              valueFrom:
                fieldRef:
                  fieldPath: metadata.name
            - name: POD_NAMESPACE
              valueFrom:
                fieldRef:
                  fieldPath: metadata.namespace
            - name: LD_PRELOAD
              value: /usr/local/lib/libmimalloc.so
          livenessProbe:
            failureThreshold: 5
            httpGet:
              path: /healthz
              port: 10254
              scheme: HTTP
            initialDelaySeconds: 10
            periodSeconds: 10
            successThreshold: 1
            timeoutSeconds: 1
          readinessProbe:
            failureThreshold: 3
            httpGet:
              path: /healthz
              port: 10254
              scheme: HTTP
            initialDelaySeconds: 10
            periodSeconds: 10
            successThreshold: 1
            timeoutSeconds: 1
          ports:
            - name: http
              containerPort: 80
              hostPort: 80
              protocol: TCP
            - name: https
              containerPort: 443
              hostPort: 443
              protocol: TCP
            - name: webhook
              containerPort: 8443
              protocol: TCP
          volumeMounts:
            - name: webhook-cert
              mountPath: /usr/local/certificates/
              readOnly: true
          resources:
            requests:
              cpu: 100m
              memory: 90Mi
      nodeSelector:
        kubernetes.io/os: linux
      serviceAccountName: ingress-nginx
      terminationGracePeriodSeconds: 300
      volumes:
        - name: webhook-cert
          secret:
            secretName: ingress-nginx-admission
---
# Source: ingress-nginx/templates/controller-ingressclass.yaml
# We don't support namespaced ingressClass yet
# So a ClusterRole and a ClusterRoleBinding is required
apiVersion: networking.k8s.io/v1
kind: IngressClass
metadata:
  labels:
    helm.sh/chart: ingress-nginx-4.0.10
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 1.1.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: controller
  name: nginx
  namespace: ingress-nginx
spec:
  controller: k8s.io/ingress-nginx
---
# Source: ingress-nginx/templates/admission-webhooks/validating-webhook.yaml
# before changing this value, check the required kubernetes version
# https://kubernetes.io/docs/reference/access-authn-authz/extensible-admission-controllers/#prerequisites
apiVersion: admissionregistration.k8s.io/v1
kind: ValidatingWebhookConfiguration
metadata:
  labels:
    helm.sh/chart: ingress-nginx-4.0.10
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 1.1.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: admission-webhook
  name: ingress-nginx-admission
webhooks:
  - name: validate.nginx.ingress.kubernetes.io
    matchPolicy: Equivalent
    rules:
      - apiGroups:
          - networking.k8s.io
        apiVersions:
          - v1
        operations:
          - CREATE
          - UPDATE
        resources:
          - ingresses
    failurePolicy: Fail
    sideEffects: None
    admissionReviewVersions:
      - v1
    clientConfig:
      service:
        namespace: ingress-nginx
        name: ingress-nginx-controller-admission
        path: /networking/v1/ingresses
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/serviceaccount.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
  name: ingress-nginx-admission
  namespace: ingress-nginx
  annotations:
    helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade
    helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
  labels:
    helm.sh/chart: ingress-nginx-4.0.10
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 1.1.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: admission-webhook
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/clusterrole.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: ingress-nginx-admission
  annotations:
    helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade
    helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
  labels:
    helm.sh/chart: ingress-nginx-4.0.10
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 1.1.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: admission-webhook
rules:
  - apiGroups:
      - admissionregistration.k8s.io
    resources:
      - validatingwebhookconfigurations
    verbs:
      - get
      - update
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/clusterrolebinding.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: ingress-nginx-admission
  annotations:
    helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade
    helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
  labels:
    helm.sh/chart: ingress-nginx-4.0.10
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 1.1.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: admission-webhook
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: ingress-nginx-admission
subjects:
  - kind: ServiceAccount
    name: ingress-nginx-admission
    namespace: ingress-nginx
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/role.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  name: ingress-nginx-admission
  namespace: ingress-nginx
  annotations:
    helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade
    helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
  labels:
    helm.sh/chart: ingress-nginx-4.0.10
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 1.1.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: admission-webhook
rules:
  - apiGroups:
      - ''
    resources:
      - secrets
    verbs:
      - get
      - create
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/rolebinding.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  name: ingress-nginx-admission
  namespace: ingress-nginx
  annotations:
    helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade
    helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
  labels:
    helm.sh/chart: ingress-nginx-4.0.10
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 1.1.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: admission-webhook
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: ingress-nginx-admission
subjects:
  - kind: ServiceAccount
    name: ingress-nginx-admission
    namespace: ingress-nginx
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/job-createSecret.yaml
apiVersion: batch/v1
kind: Job
metadata:
  name: ingress-nginx-admission-create
  namespace: ingress-nginx
  annotations:
    helm.sh/hook: pre-install,pre-upgrade
    helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
  labels:
    helm.sh/chart: ingress-nginx-4.0.10
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 1.1.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: admission-webhook
spec:
  template:
    metadata:
      name: ingress-nginx-admission-create
      labels:
        helm.sh/chart: ingress-nginx-4.0.10
        app.kubernetes.io/name: ingress-nginx
        app.kubernetes.io/instance: ingress-nginx
        app.kubernetes.io/version: 1.1.0
        app.kubernetes.io/managed-by: Helm
        app.kubernetes.io/component: admission-webhook
    spec:
      containers:
        - name: create
          image: registry.cn-hangzhou.aliyuncs.com/google_containers/kube-webhook-certgen:v1.1.1
          imagePullPolicy: IfNotPresent
          args:
            - create
            - --host=ingress-nginx-controller-admission,ingress-nginx-controller-admission.$(POD_NAMESPACE).svc
            - --namespace=$(POD_NAMESPACE)
            - --secret-name=ingress-nginx-admission
          env:
            - name: POD_NAMESPACE
              valueFrom:
                fieldRef:
                  fieldPath: metadata.namespace
          securityContext:
            allowPrivilegeEscalation: false
      restartPolicy: OnFailure
      serviceAccountName: ingress-nginx-admission
      nodeSelector:
        kubernetes.io/os: linux
      securityContext:
        runAsNonRoot: true
        runAsUser: 2000
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/job-patchWebhook.yaml
apiVersion: batch/v1
kind: Job
metadata:
  name: ingress-nginx-admission-patch
  namespace: ingress-nginx
  annotations:
    helm.sh/hook: post-install,post-upgrade
    helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
  labels:
    helm.sh/chart: ingress-nginx-4.0.10
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 1.1.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: admission-webhook
spec:
  template:
    metadata:
      name: ingress-nginx-admission-patch
      labels:
        helm.sh/chart: ingress-nginx-4.0.10
        app.kubernetes.io/name: ingress-nginx
        app.kubernetes.io/instance: ingress-nginx
        app.kubernetes.io/version: 1.1.0
        app.kubernetes.io/managed-by: Helm
        app.kubernetes.io/component: admission-webhook
    spec:
      containers:
        - name: patch
          image: registry.cn-hangzhou.aliyuncs.com/google_containers/kube-webhook-certgen:v1.1.1
          imagePullPolicy: IfNotPresent
          args:
            - patch
            - --webhook-name=ingress-nginx-admission
            - --namespace=$(POD_NAMESPACE)
            - --patch-mutating=false
            - --secret-name=ingress-nginx-admission
            - --patch-failure-policy=Fail
          env:
            - name: POD_NAMESPACE
              valueFrom:
                fieldRef:
                  fieldPath: metadata.namespace
          securityContext:
            allowPrivilegeEscalation: false
      restartPolicy: OnFailure
      serviceAccountName: ingress-nginx-admission
      nodeSelector:
        kubernetes.io/os: linux
      securityContext:
        runAsNonRoot: true
        runAsUser: 2000

2、webapp-deploy-svc.yaml文件

# webapp-deployment.yaml
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: webapp
spec:
  replicas: 1
  selector:
    matchLabels:
      app: webapp
  template:
    metadata:
      labels:
        app: webapp
    spec:
      containers:
      - name: webapp
        image: kubeguide/tomcat-app:v1
        ports:
        - containerPort: 8080


# webapp-service.yaml
---
apiVersion: v1
kind: Service
metadata:
  name: webapp
spec:
#  type: NodePort
  ports:
  - port: 8080
    targetPort: 8080
#    nodePort: 30001
    protocol: TCP
  selector:
    app: webapp

3、mywebsite-ingress.yaml文件

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: mywebsite-ingress
  annotations:
    kubernetes.io/ingress.class: "nginx"
spec:
  rules:
  - host: k8sdemo1.zzcsuper.com
    http:
      paths:
      - path: /demo
        pathType: ImplementationSpecific
        backend:
          service:
            name: webapp
            port:
              number: 8080
