谈android组件化之ARouter简单使用

ARouter是阿里巴巴开源出来的一款android路由框架，github地址为 ： https://github.com/alibaba/ARouter

至于ARouter的诸多好处我就不介绍了，这里主要讲解在项目组件化下，ARouter的一些简单使用

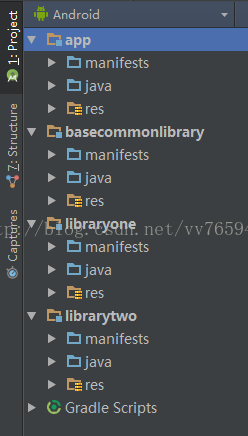

先贴上工程目录:

工程一共分为4个模块，基础组件app、基础服务（包涵路由服务）basecommonlibrary模块、业务模块libraryone、业务模块librarytwo;

在4个模块的gradle文件当中加入如下代码：

android {
    ...
    defaultConfig {
        ...
        javaCompileOptions {
            annotationProcessorOptions {
                arguments = [moduleName: project.getName()]
            }
        }
    }
}

dependencies {
    ...
    compile 'com.alibaba:arouter-api:1.2.1'
    annotationProcessor 'com.alibaba:arouter-compiler:1.1.2'
}

依赖包的具体版本可自行选择。

接下来就是具体讲解ARouter如何在这几个模块中充当路由的角色了。

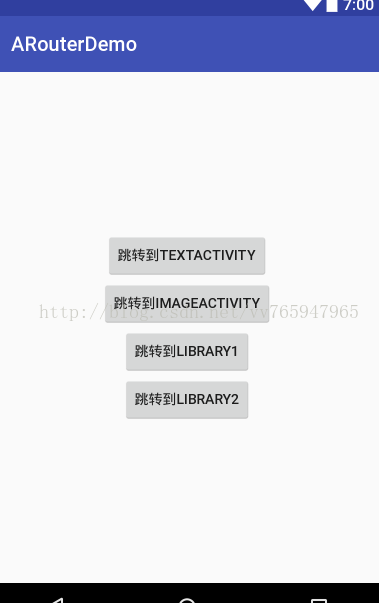

首先是app模块中定义的一个页面，布局很简单，就不贴代码了，效果如下；

Activity 部分代码如下：

    @Override
    public void onClick(View v) {
        switch (v.getId()) {
            case R.id.bt1:
                RouterCommonUtil.startMainTextActivity(this, "测试文本");
                break;
            case R.id.bt2:
                RouterCommonUtil.startMainImageActivity(this, "https://timgsa.baidu.com/timg?image&quality=80&size=b9999_10000&sec=1492584424522&di=5dcde77431914e0b944b8af9ff5f9277&imgtype=jpg&src=http%3A%2F%2Fimg3.imgtn.bdimg.com%2Fit%2Fu%3D1489971249%2C1618541505%26fm%3D214%26gp%3D0.jpg");
                break;
            case R.id.bt3:
                RouterCommonUtil.startLibraryOneActivity(this);
                break;
            case R.id.bt4:
                RouterCommonUtil.startLibraryTwoActivity(this);
                break;
        }
    }

    @Override
    protected void onActivityResult(int requestCode, int resultCode, Intent data) {
        super.onActivityResult(requestCode, resultCode, data);
        if (resultCode == 1002) {
            Toast.makeText(this, data.getStringExtra("arg2"), Toast.LENGTH_SHORT).show();
        }
    }

点击事件分别响应到本module（app）中的两个activity以及libraryone和librarytwo中的activity，其中第一个用来测试ForResult方式启动的Acitivty。

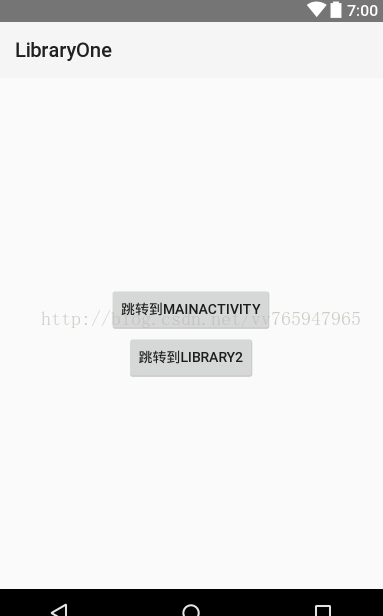

接下来是libraryone中Activity布局截图：

activity部分代码如下：

    @Override
    public void onClick(View v) {
        int i = v.getId();
        if (i == R.id.bt1) {
            RouterCommonUtil.startMainActivity(this);

        } else if (i == R.id.bt2) {
            RouterCommonUtil.startLibraryTwoActivity(this);
        }
    }

也是测试了两个跳转，分别跳转到主Module中的Activity中和libraryTwo的Activity中，libraryTwo中的布局和代码跟libraryone中大同小异，这里就不继续贴出了，本项目会在附件中提供源码，欢迎下载。这里还需要贴出封装在basecommonlibrary模块中的公共跳转类，所有的module，都是通过该模块中的路由公共类来实现跳转的，完整代码如下:

import android.app.Activity;
import android.text.TextUtils;
import android.widget.Toast;

import com.alibaba.android.arouter.facade.Postcard;
import com.alibaba.android.arouter.launcher.ARouter;
import com.example.basecommonlibrary.router.IInterceptor.InterruptCallback;

import rx.Observable;
import rx.Subscriber;
import rx.android.schedulers.AndroidSchedulers;
import rx.functions.Action1;

/**
 * @author: xiewenliang
 * @Filename:
 * @Description:
 * @date: 2017/4/25 15:06
 */

public class RouterCommonUtil {

    private static void toastInterruptInfo(final Activity activity, final Postcard postcard) {
        if (postcard.getTag() != null && postcard.getTag() instanceof String) {
            Observable.create(new Observable.OnSubscribe<String>() {
                @Override
                public void call(Subscriber<? super String> subscriber) {
                    subscriber.onNext((String) postcard.getTag());
                }
            }).observeOn(AndroidSchedulers.mainThread()).subscribe(new Action1<String>() {
                @Override
                public void call(String s) {
                    if (!TextUtils.isEmpty(s) && activity != null) {
                        Toast.makeText(activity, (String) postcard.getTag(), Toast.LENGTH_SHORT).show();
                    }
                }
            });
        }
    }

    public static void startMainActivity(final Activity activity) {
        ARouter.getInstance().build("/ui/主页").navigation(activity, new InterruptCallback() {
            @Override
            public void onInterrupt(Postcard postcard) {
                toastInterruptInfo(activity, postcard);
            }
        });
    }

    public static void startMainTextActivity(final Activity activity, String value) {
        ARouter.getInstance().build("/ui/text", "文本").withString("arg1", value).navigation(activity, 1001, new InterruptCallback() {
            @Override
            public void onInterrupt(Postcard postcard) {
                toastInterruptInfo(activity, postcard);
            }
        });
    }

    public static void startMainImageActivity(final Activity activity, String value) {
        ARouter.getInstance().build("/ui/image", "图片").withString("arg1", value).navigation(activity, new InterruptCallback() {
            @Override
            public void onInterrupt(Postcard postcard) {
                toastInterruptInfo(activity, postcard);
            }
        });
    }

    public static void startLibraryOneActivity(final Activity activity) {
        ARouter.getInstance().build("/libraryOne/主页").navigation(activity, new InterruptCallback() {
            @Override
            public void onInterrupt(Postcard postcard) {
                toastInterruptInfo(activity, postcard);
            }
        });
    }

    public static void startLibraryTwoActivity(final Activity activity) {
        ARouter.getInstance().build("/libraryTwo/主页").navigation(activity, new InterruptCallback() {
            @Override
            public void onInterrupt(Postcard postcard) {
                toastInterruptInfo(activity, postcard);
            }
        });
    }
}

该类中主要提供了几个类的跳转方法，以及跳转失败后的信息打印方法，接下来就是测试跳转是否能够正常执行了，请大家自行构建代码或者下载本demo源码查看执行效果。

接下来讲解拦截器，以libraryone中的activity为例

@Route(path = "/libraryOne/主页", extras = CommonStation.CHECK_LOADING)

我们在activity上添加如上注解，其中extras的值可以作为判断的类型，具体看拦截器代码

import android.content.Context;

import com.alibaba.android.arouter.facade.Postcard;
import com.alibaba.android.arouter.facade.annotation.Interceptor;
import com.alibaba.android.arouter.facade.callback.InterceptorCallback;
import com.alibaba.android.arouter.facade.template.IInterceptor;
import com.example.basecommonlibrary.CommonStation;

/**
 * @author: xiewenliang
 * @Filename:
 * @Description:
 * @date: 2017/4/25 15:37
 */
@Interceptor(priority = 1, name = "拦截未登录")
public class TestOneIInterceptor implements IInterceptor {
    @Override
    public void process(Postcard postcard, InterceptorCallback callback) {
        if (postcard.getExtra() == CommonStation.CHECK_LOADING && !CommonStation.checkLoading()) {
            callback.onInterrupt(new RuntimeException("账号未登录"));
        } else {
            callback.onContinue(postcard);
        }
    }

    @Override
    public void init(Context context) {

    }
}

在拦截器中，可以根据extra属性判断是否是需要拦截的类型，如果需要拦截，则执行callback的onInterrupt方法，并注明拦截原因，可以在路由跳转中提取拦截原因信息并打印。

当然ARouter中其它功能就不再一一介绍了，大家可以自行研究，附源码下载地址：http://download.csdn.net/download/vv765947965/9825296
