在eNSP上模拟华为S5700三层交换机的vlan入门配置

在eNSP上模拟华为S5700三层交换机的vlan入门配置

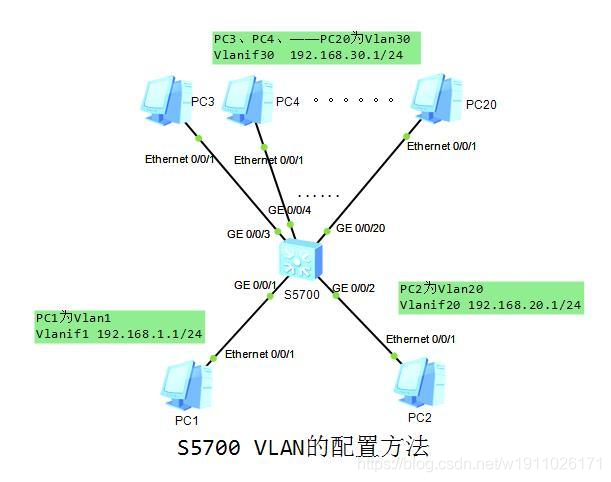

一、实验拓扑图如下

二、实验目的

1、将S5700交换机上端口G0/0/1按照默认在vlan1，并设置网关为192.168.1.1；

2、G0/0/2划入vlan20，并设置网关为192.168.20.1；

3、通过创建端口组将G0/0/3——G0/0/20加入端口组中并将整个端口组划入vlan30，并设置网关为192.168.30.1

三、配置命令如下

<Huawei>system-view //进入系统视图模式

Enter system view, return user view with Ctrl+Z.

[Huawei]sysname S5700 //更改交换机名为S5700

[S5700]vlan batch 20 30 // 批量创建vlan20 vlan30

[S5700]int vlanif 1

[S5700-Vlanif1]ip add 192.168.1.1 24 //给PC1配置网关地址192.168.1.1 255.255.255.0

[S5700-Vlanif1]quit

[S5700] interface g0/0/1

[S5700-GigabitEthernet0/0/1]port link-type access //端口链路类型为access连接计算机的端口

[S5700-GigabitEthernet0/0/1]port default vlan1 //此操作可以省略，默认情况下所有端口都在vlan1

[S5700-GigabitEthernet0/0/1]int g0/0/2

[S5700-GigabitEthernet0/0/2]port link-type access

[S5700-GigabitEthernet0/0/2]port default vlan 20

[S5700-GigabitEthernet0/0/2]int vlanif 20

[S5700-Vlanif20]ip add 192.168.20.1 24 //给PC2配置网关地址192.168.20.1 255.255.255.0

[S5700-Vlanif20]q

[S5700]port-group g3-g20-vlan30 //创建端口组，组名为g3-g20-vlan30

[S5700]port-group-g3-g20-vlan30]group-member g0/0/3 to g0/0/20 //将端口3到端口20全部加入g3-g20-vlan30端口组中

[S5700-port-group-g3-g20-vlan30]port link-type access //以下部分为系统自动批量添加显示
	[S5700-GigabitEthernet0/0/3]port link-type access
	[S5700-GigabitEthernet0/0/4]port link-type access
	[S5700-GigabitEthernet0/0/5]port link-type access
	[S5700-GigabitEthernet0/0/6]port link-type access
	[S5700-GigabitEthernet0/0/7]port link-type access
	[S5700-GigabitEthernet0/0/8]port link-type access
	[S5700-GigabitEthernet0/0/9]port link-type access
	[S5700-GigabitEthernet0/0/10]port link-type access
	[S5700-GigabitEthernet0/0/11]port link-type access
	[S5700-GigabitEthernet0/0/12]port link-type access
	[S5700-GigabitEthernet0/0/13]port link-type access
	[S5700-GigabitEthernet0/0/14]port link-type access
	[S5700-GigabitEthernet0/0/15]port link-type access
	[S5700-GigabitEthernet0/0/16]port link-type access
	[S5700-GigabitEthernet0/0/17]port link-type access
	[S5700-GigabitEthernet0/0/18]port link-type access
	[S5700-GigabitEthernet0/0/19]port link-type access
	[S5700-GigabitEthernet0/0/20]port link-type access
[S5700-port-group-g3-g20-vlan30]port default vlan 30 //将端口组所有端口划入vlan30
	[S5700-GigabitEthernet0/0/3]port default vlan 30
	[S5700-GigabitEthernet0/0/4]port default vlan 30
	[S5700-GigabitEthernet0/0/5]port default vlan 30
	[S5700-GigabitEthernet0/0/6]port default vlan 30
	[S5700-GigabitEthernet0/0/7]port default vlan 30
	[S5700-GigabitEthernet0/0/8]port default vlan 30
	[S5700-GigabitEthernet0/0/9]port default vlan 30
	[S5700-GigabitEthernet0/0/10]port default vlan 30
	[S5700-GigabitEthernet0/0/11]port default vlan 30
	[S5700-GigabitEthernet0/0/12]port default vlan 30
	[S5700-GigabitEthernet0/0/13]port default vlan 30
	[S5700-GigabitEthernet0/0/14]port default vlan 30
	[S5700-GigabitEthernet0/0/15]port default vlan 30
	[S5700-GigabitEthernet0/0/16]port default vlan 30
	[S5700-GigabitEthernet0/0/17]port default vlan 30
	[S5700-GigabitEthernet0/0/18]port default vlan 30
	[S5700-GigabitEthernet0/0/19]port default vlan 30
	[S5700-GigabitEthernet0/0/20]port default vlan 30
[S5700-port-group-port3-20vlan30]q

[S5700]int vlanif 30

[S5700-Vlanif30]ip add 192.168.30.1 24 //给PC3、PC4……PC20配置网关地址192.168.30.1 255.255.255.0

[S5700-Vlanif30]q

[S5700]display vlan

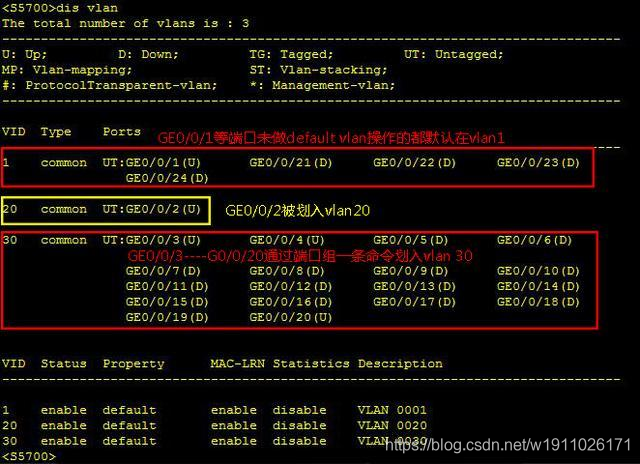

实验结果如图：

注：该文章仅供参考！！！
