本文详细解析了Netty中ServerBootstrap的构造、配置过程及关键方法，如bind、group、channelFactory等，揭示了其如何创建Channel并初始化ChannelPipeline。
构造
public ServerBootstrap() { }
private ServerBootstrap(ServerBootstrap bootstrap) {
super(bootstrap);
childGroup = bootstrap.childGroup;
childHandler = bootstrap.childHandler;
synchronized (bootstrap.childOptions) {
childOptions.putAll(bootstrap.childOptions);
}
synchronized (bootstrap.childAttrs) {
childAttrs.putAll(bootstrap.childAttrs);
}
}
我们采用的是无参构造，就啥也没做。
传入bootstrap的话，就是把一些属性抄下来，还不够理解，先这样吧。
配置
group
public ServerBootstrap group(EventLoopGroup parentGroup, EventLoopGroup childGroup) {
super.group(parentGroup);
if (childGroup == null) {
throw new NullPointerException("childGroup");
}
if (this.childGroup != null) {
throw new IllegalStateException("childGroup set already");
}
this.childGroup = childGroup;
return this;
}
赋值，也没做啥。
不过仔细观察一点
public B group(EventLoopGroup group) {
if (group == null) {
throw new NullPointerException("group");
}
if (this.group != null) {
throw new IllegalStateException("group set already");
}
this.group = group;
return (B) this;
}

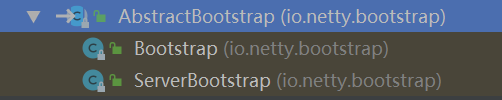

parentGroup是父类里面的，childGroup是当前类ServerBootstrap的。
这样一看，就知道为什么Bootstrap就一个group了，因为额外的是ServerBootstrap自己加的。
channel
public B channel(Class<? extends C> channelClass) {
if (channelClass == null) {
throw new NullPointerException("channelClass");
}
return channelFactory(new ReflectiveChannelFactory<C>(channelClass));
}
channelFactory
public B channelFactory(io.netty.channel.ChannelFactory<? extends C> channelFactory) {
return channelFactory((ChannelFactory<C>) channelFactory);
}
public B channelFactory(ChannelFactory<? extends C> channelFactory) {
if (channelFactory == null) {
throw new NullPointerException("channelFactory");
}
if (this.channelFactory != null) {
throw new IllegalStateException("channelFactory set already");
}
this.channelFactory = channelFactory;
return (B) this;
}
调来调去，还是赋值了一个channelFactory。
ReflectiveChannelFactory
public class ReflectiveChannelFactory<T extends Channel> implements ChannelFactory<T> {
private final Class<? extends T> clazz;
public ReflectiveChannelFactory(Class<? extends T> clazz) {
if (clazz == null) {
throw new NullPointerException("clazz");
}
this.clazz = clazz;
}
@Override
public T newChannel() {
try {
return clazz.newInstance();
} catch (Throwable t) {
throw new ChannelException("Unable to create Channel from class " + clazz, t);
}
}
@Override
public String toString() {
return StringUtil.simpleClassName(clazz) + ".class";
}
}
看到了newInstance，也看到了newChannel。
这就是通过反射实现的Channel工厂啊，创建channel就靠他了。
不过，结合channelFactory方法，我们也可以传入一个工厂，还可以制定一些控制操作。
最主要的是，反射的newInstance必须无参构造哦。
// 无参构造
public NioServerSocketChannel() {
this(newSocket(DEFAULT_SELECTOR_PROVIDER));
}
//
private static ServerSocketChannel newSocket(SelectorProvider provider) {
try {
return provider.openServerSocketChannel();
} catch (IOException e) {
throw new ChannelException(
"Failed to open a server socket.", e);
}
}
嗯哼？ServerSocketChannel，回归NIO了吧。
childHandler
public ServerBootstrap childHandler(ChannelHandler childHandler) {
if (childHandler == null) {
throw new NullPointerException("childHandler");
}
this.childHandler = childHandler;
return this;
}
还是赋值。
public B handler(ChannelHandler handler) {
if (handler == null) {
throw new NullPointerException("handler");
}
this.handler = handler;
return (B) this;
}
看一下handler，还是赋值。
Future
多线程中，
ThreadPool、Thread、Runnable都熟知了。但是
Future在非异步的线程当中，应用基本没有，这下来好好回顾一下。
Callable
和Runnable一样，唯一的区别就是会有返回值，返回的类型就是Future。
因为线程中结果不一定是马上就能够得出来，所以未来(Future)就是这个结果。
concurrent-Future
public interface Future<V> {
boolean cancel(boolean mayInterruptIfRunning);
boolean isCancelled();
boolean isDone();
V get() throws InterruptedException, ExecutionException;
V get(long timeout, TimeUnit unit)
throws InterruptedException, ExecutionException, TimeoutException;
}
用任务提交的概念来理解
cancel：取消任务执行
isCancelled：已取消
isDone：任务完成
get：获取结果
与其说是单纯的结果，Future还掺杂了各种调度。
executor算作执行器，Future就是任务的调度器，可以对任务进行终止、结果获取等操作。
netty-Future
@SuppressWarnings("ClassNameSameAsAncestorName")
public interface Future<V> extends java.util.concurrent.Future<V> {
boolean isSuccess();
boolean isCancellable();
Throwable cause();
Future<V> addListener(GenericFutureListener<? extends Future<? super V>> listener);
Future<V> addListeners(GenericFutureListener<? extends Future<? super V>>... listeners);
Future<V> removeListener(GenericFutureListener<? extends Future<? super V>> listener);
Future<V> removeListeners(GenericFutureListener<? extends Future<? super V>>... listeners);
Future<V> sync() throws InterruptedException;
Future<V> syncUninterruptibly();
Future<V> await() throws InterruptedException;
Future<V> awaitUninterruptibly();
boolean await(long timeout, TimeUnit unit) throws InterruptedException;
boolean awaitUninterruptibly(long timeout, TimeUnit unit);
boolean awaitUninterruptibly(long timeoutMillis);
V getNow();
@Override
boolean cancel(boolean mayInterruptIfRunning);
}
继承concurrent-Future，重要的是，添加了三个方面的管理调度：
- 状态判断
原来的状态判断就是执行完毕，或者已经被取消，但是还可能发生异常而中断。
增加的新方法，让任务状态更加明晰。
- 阻塞操作
其他的阻塞呢，不建议菜鸟使用，能乱用的，也就是sync了。
我们代码里面，方法链末尾总有sync。
sync表示的就是阻塞，直到任务执行完毕返回，相当于死循环一直等待执行完毕。
- 监听器
这就是为了菜鸟准备的。
利用观察者模式，在准确时刻执行我们的定制方法。
阻塞什么的，为我们已经准备好了，菜鸟放心使用。
ChannelFuture
public interface ChannelFuture extends Future<Void> {
Channel channel();
@Override
ChannelFuture addListener(GenericFutureListener<? extends Future<? super Void>> listener);
@Override
ChannelFuture addListeners(GenericFutureListener<? extends Future<? super Void>>... listeners);
@Override
ChannelFuture removeListener(GenericFutureListener<? extends Future<? super Void>> listener);
@Override
ChannelFuture removeListeners(GenericFutureListener<? extends Future<? super Void>>... listeners);
@Override
ChannelFuture sync() throws InterruptedException;
@Override
ChannelFuture syncUninterruptibly();
@Override
ChannelFuture await() throws InterruptedException;
@Override
ChannelFuture awaitUninterruptibly();
boolean isVoid();
}
结构上没有什么更突出的点，但是注意它的功用。
Future是执行结果的话，ChannelFuture就是建立Channel的结果状态了。
其中的channel方法就是执行完毕后所建立的channel链接。
+---------------------------+
| Completed successfully |
+---------------------------+
+----> isDone() = true |
+--------------------------+ | | isSuccess() = true |
| Uncompleted | | +===========================+
+--------------------------+ | | Completed with failure |
| isDone() = false | | +---------------------------+
| isSuccess() = false |----+----> isDone() = true |
| isCancelled() = false | | | cause() = non-null |
| cause() = null | | +===========================+
+--------------------------+ | | Completed by cancellation |
| +---------------------------+
+----> isDone() = true |
| isCancelled() = true |
+---------------------------+
三种结果状态，要分清楚哟。
动作
bind
- 一级
public ChannelFuture bind(int inetPort) {
return bind(new InetSocketAddress(inetPort));
}
创建了个地址，没啥，继续。
- 二级
public ChannelFuture bind(SocketAddress localAddress) {
validate();
if (localAddress == null) {
throw new NullPointerException("localAddress");
}
return doBind(localAddress);
}
还要深入，先看看validate
public B validate() {
if (group == null) {
throw new IllegalStateException("group not set");
}
if (channelFactory == null) {
throw new IllegalStateException("channel or channelFactory not set");
}
return (B) this;
}
group和channelFactory的非空校验。
- 三级
private ChannelFuture doBind(final SocketAddress localAddress) {
final ChannelFuture regFuture = initAndRegister();
final Channel channel = regFuture.channel();
if (regFuture.cause() != null) {
return regFuture;
}
if (regFuture.isDone()) {
ChannelPromise promise = channel.newPromise();
doBind0(regFuture, channel, localAddress, promise);
return promise;
} else {
final PendingRegistrationPromise promise = new PendingRegistrationPromise(channel);
regFuture.addListener(new ChannelFutureListener() {
@Override
public void operationComplete(ChannelFuture future) throws Exception {
Throwable cause = future.cause();
if (cause != null) {
promise.setFailure(cause);
} else {
promise.registered();
doBind0(regFuture, channel, localAddress, promise);
}
}
});
return promise;
}
}
重头戏终于到了
initAndRegisterfinal ChannelFuture initAndRegister() { Channel channel = null; try { channel = channelFactory.newChannel(); init(channel); } catch (Throwable t) { if (channel != null) { channel.unsafe().closeForcibly(); } return new DefaultChannelPromise(channel, GlobalEventExecutor.INSTANCE).setFailure(t); } ChannelFuture regFuture = config().group().register(channel); if (regFuture.cause() != null) { if (channel.isRegistered()) { channel.close(); } else { channel.unsafe().closeForcibly(); } } return regFuture; }
newChannel看到了，终于生成channel了，不过更多控制是Future。我们使用的是
NioServerSocketChannel，看看构造方法。private static final SelectorProvider DEFAULT_SELECTOR_PROVIDER = SelectorProvider.provider(); public NioServerSocketChannel() { this(newSocket(DEFAULT_SELECTOR_PROVIDER)); } public NioServerSocketChannel(ServerSocketChannel channel) { super(null, channel, SelectionKey.OP_ACCEPT); config = new NioServerSocketChannelConfig(this, javaChannel().socket()); }
OP_ACCEPT，回归NIO就容易明白了。还有一个
init(channel);，不过跟进去也就是属性的赋值而已。void init(Channel channel) throws Exception { final Map<ChannelOption<?>, Object> options = options0(); synchronized (options) { setChannelOptions(channel, options, logger); } final Map<AttributeKey<?>, Object> attrs = attrs0(); synchronized (attrs) { for (Entry<AttributeKey<?>, Object> e: attrs.entrySet()) { @SuppressWarnings("unchecked") AttributeKey<Object> key = (AttributeKey<Object>) e.getKey(); channel.attr(key).set(e.getValue()); } } ChannelPipeline p = channel.pipeline(); final EventLoopGroup currentChildGroup = childGroup; final ChannelHandler currentChildHandler = childHandler; final Entry<ChannelOption<?>, Object>[] currentChildOptions; final Entry<AttributeKey<?>, Object>[] currentChildAttrs; synchronized (childOptions) { currentChildOptions = childOptions.entrySet().toArray(newOptionArray(childOptions.size())); } synchronized (childAttrs) { currentChildAttrs = childAttrs.entrySet().toArray(newAttrArray(childAttrs.size())); } p.addLast(new ChannelInitializer<Channel>() { @Override public void initChannel(final Channel ch) throws Exception { final ChannelPipeline pipeline = ch.pipeline(); ChannelHandler handler = config.handler(); if (handler != null) { pipeline.addLast(handler); } ch.eventLoop().execute(new Runnable() { @Override public void run() { pipeline.addLast(new ServerBootstrapAcceptor( ch, currentChildGroup, currentChildHandler, currentChildOptions, currentChildAttrs)); } }); } }); }设置
Options和Attrs，接下来就是把handler添加到pipeline末尾了。说实话，最关键的应该是这里
p.addLast(new ChannelInitializer<Channel>() { @Override public void initChannel(final Channel ch) throws Exception { final ChannelPipeline pipeline = ch.pipeline(); ChannelHandler handler = config.handler(); if (handler != null) { pipeline.addLast(handler); } ch.eventLoop().execute(new Runnable() { @Override public void run() { pipeline.addLast(new ServerBootstrapAcceptor( ch, currentChildGroup, currentChildHandler, currentChildOptions, currentChildAttrs)); } }); } });但是呢，最后的一句是懵逼的，或者说整个的流程都是一知半解的。
隐约的感觉，就是知道底层的连接
Channel已经成了pipeline,并可以add我们自定的拦截器Handler。还需要慢慢积累。
doBind0private static void doBind0( final ChannelFuture regFuture, final Channel channel, final SocketAddress localAddress, final ChannelPromise promise) { channel.eventLoop().execute(new Runnable() { @Override public void run() { if (regFuture.isSuccess()) { channel.bind(localAddress, promise).addListener(ChannelFutureListener.CLOSE_ON_FAILURE); } else { promise.setFailure(regFuture.cause()); } } }); }
eventLoop的execute，就算还不太明白，我们也能看见绑定了address，也做了其他设置。
小结
就此，属性设置，对象创建和地址绑定大致有了了解。
虽然具体是如何实现的、Channel又是如何组织的、ChannelFuture如何监听响应的，pipeline到底是如何工作的、Handler又是怎么连接组织起来的。。。好像都还不知道。
说实际一点，我们创建的是个什么鬼我们都不知道，只是大概就是这么一个东西。
这也足够了，能够有这些新的疑问，至少有些老的疑问已经解决了。
