2020.10.01（401882644@qq.com）

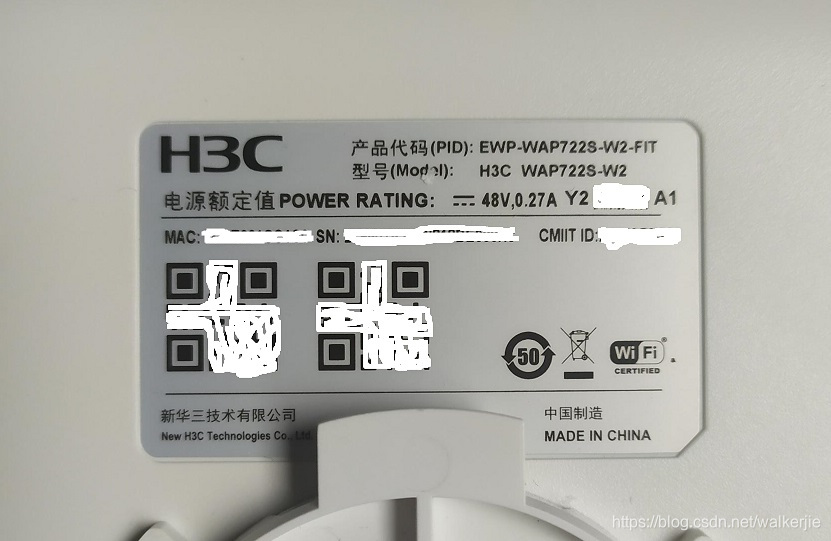

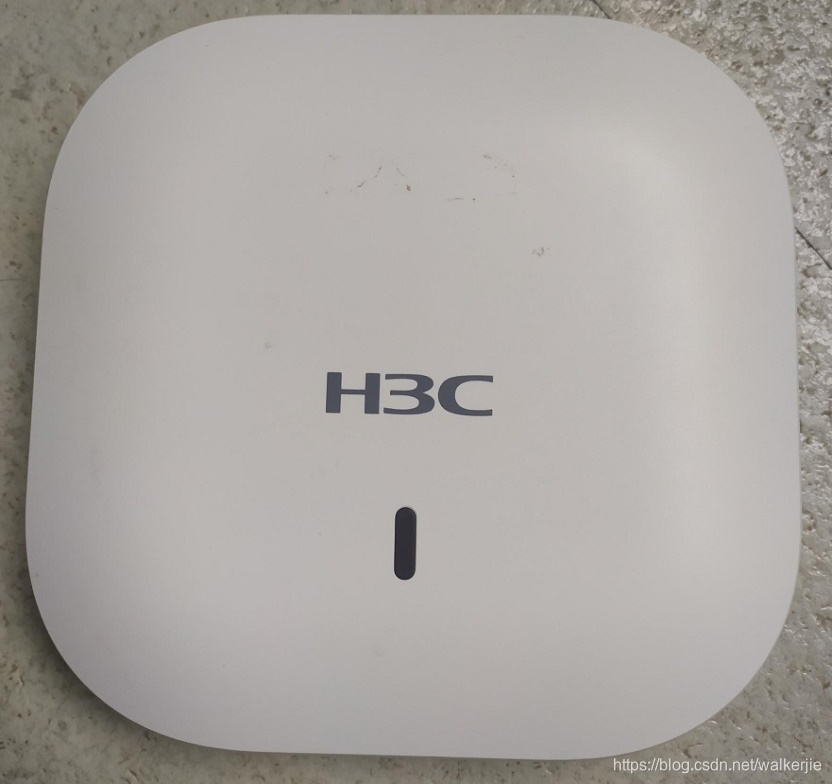

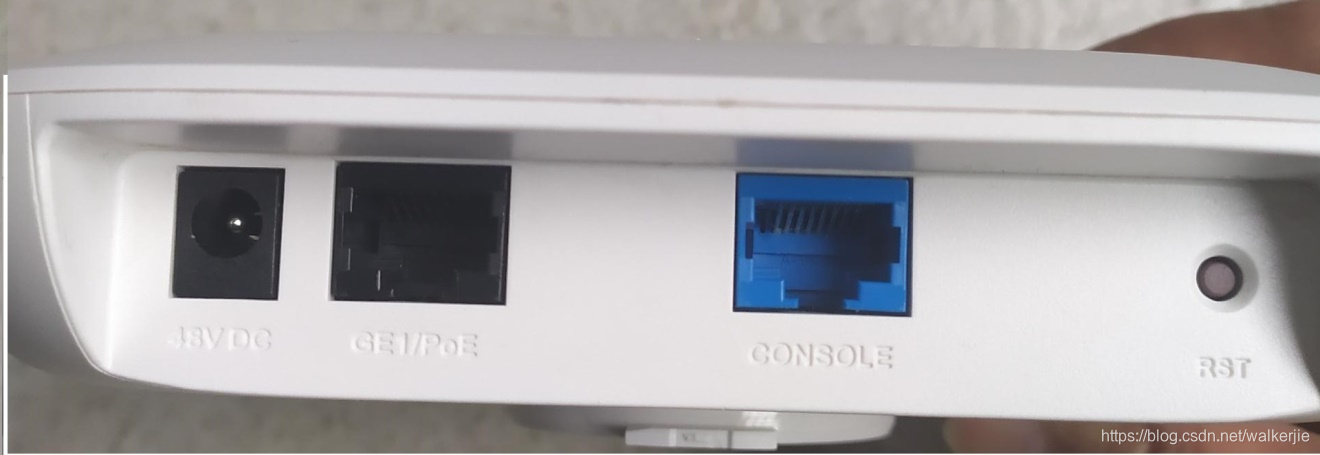

    偶然得到一个H3C AP，型号WAP722S-W2，一共有三个口：48V DC、GE1/PoE、console

咨询别人得知这是一个瘦（fit）AP，需要连接AC才能使用，但可以刷成胖（fat）AP，就可以单独作为企业级路由器使用了。想着就来劲，动手干吧。

首先，这个东东是需要电才能用的，到手之前它是使用PoE交换机供电使用的，家里可没有这个，那么就网上淘了一个48V电源，插左边那个48V DC口使用，完全没有问题。除了电源外，还需要用到的硬件有：调试线、网线、电脑；需要用到的软件有：3Cdaemon（TFTP上传升级文件）、putty（telnet软件）、WAP722S-W2对应的升级文件（版本为：R2433P01,本人CSDN提供下载，ID：walkerjie）

开始了，先运行3CDaemon，第二个按钮停止服务，第一个按钮设置服务器，把上传/下载目录设置为升级所在文件夹，然后确定，确定。

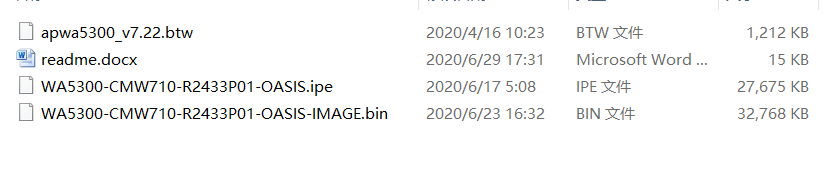

升级文件夹里的东东，注意，ipe那个后边要改名！

电脑网口设置ip：192.168.0.1

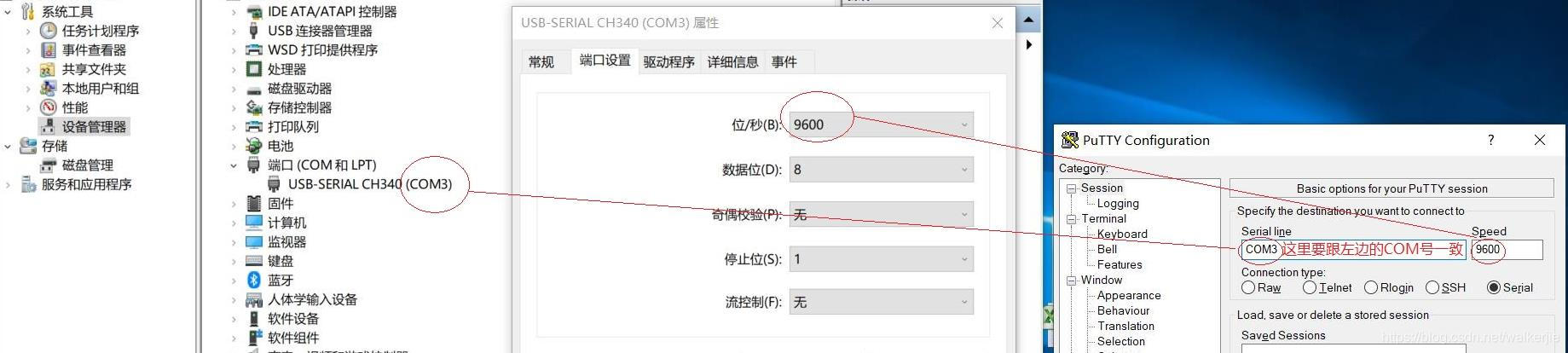

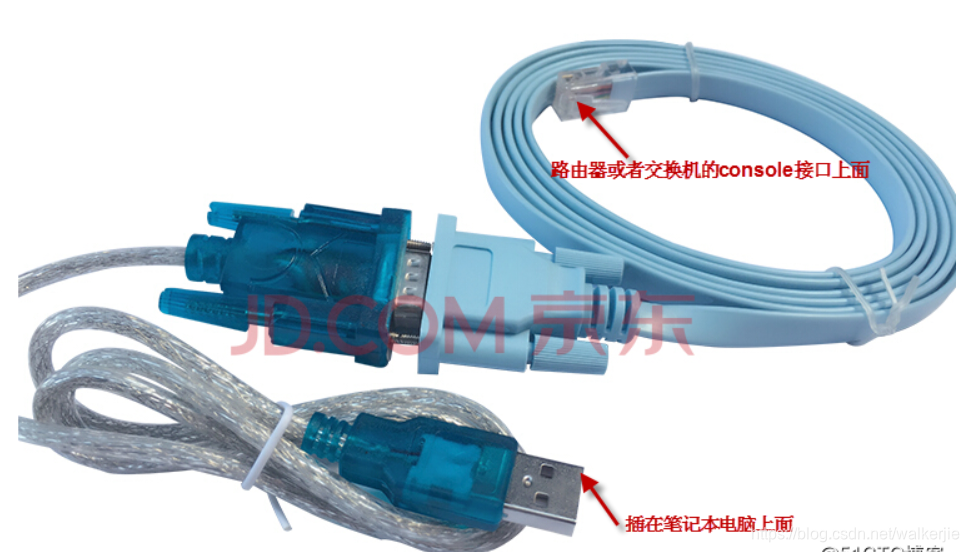

调试线插入电脑usb口，安装驱动，打开putty，配置如下：

点击putty的open按钮，调试线网口那头插入AP的console口，网线一头插电脑，一头插入AP的GE1/PoE口，AP上电：

System is starting...

Press Ctrl+D to access BASIC-BOOTWARE MENU

Booting Normal Extended BootWare

The Extended BootWare is self-decompressing.................................

..Done.



****************************************************************************

*                                                                          *

*                 H3C WAP722S-W2 BootWare, Version 7.12  这个是bootwarer 版本，后边会升级 *

*                                                                          *

****************************************************************************

Copyright (c) 2004-2017 New H3C Technologies Co., Ltd.



Compiled Date       : Dec 19 2017

CPU Type            : ARM

CPU L1 Cache        : 32KB

CPU L2 Cache        : 256KB

CPU Clock Speed     : 710MHz

Memory Type         : DDR3 SDRAM

Memory Size         : 256MB   内存256

Memory Speed        : 533MHz

Flash Size          : 32MB   存储只有32

PCB Version         : Ver.B





BootWare Validating...

Press Ctrl+B to access EXTENDED-BOOTWARE MENU...这里赶紧按Ctrl+B



Password recovery capability is enabled.

Note: The current operating device is flash

Enter < Storage Device Operation > to select device.

以下是主菜单

==========================<EXTENDED-BOOTWARE MENU>==========================

|<1> Boot System                                                           |

|<2> Enter Serial SubMenu                                                  |

|<3> Enter Ethernet SubMenu                                                |

|<4> File Control                                                          |

|<5> Restore to Factory Default Configuration                              |

|<6> Skip Current System Configuration                                     |

|<7> BootWare Operation Menu                                               |

|<8> Skip Authentication for Console Login                                 |

|<9> Storage Device Operation                                              |

|<0> Reboot                                                                |

============================================================================

Ctrl+Z: Access EXTENDED ASSISTANT MENU

Ctrl+F: Format File System

Ctrl+C: Display Copyright

Ctrl+Y: Change AP Mode

Enter your choice(0-9): 4先看看里边的文件



===============================<File CONTROL>===============================

|Note:the operating device is flash                                        |

|<1> Display All File(s)                                                   |

|<2> Set Image File type                                                   |

|<3> Set Bin File type                                                     |

|<4> Set Configuration File type                                           |

|<5> Delete File                                                           |

|<0> Exit To Main Menu                                                     |

============================================================================

Enter your choice(0-5): 1看看所有文件



Display all file(s) in flash:

 'M' = MAIN      'B' = BACKUP      'N/A' = NOT ASSIGNED

============================================================================

|NO. Size(B)   Time                 Type   Name                            |

|1   4296704   Jan/01/2016 00:02:15 M      flash:/wa5300-boot.bin          |

|2   13932544  Jan/01/2016 00:04:27 M      flash:/wa5300-system.bin        |

============================================================================

两个文件加一块儿就17MB多了

===============================<File CONTROL>===============================

|Note:the operating device is flash                                        |

|<1> Display All File(s)                                                   |

|<2> Set Image File type                                                   |

|<3> Set Bin File type                                                     |

|<4> Set Configuration File type                                           |

|<5> Delete File                                                           |

|<0> Exit To Main Menu                                                     |

============================================================================

Enter your choice(0-5): 0退到上级菜单



==========================<EXTENDED-BOOTWARE MENU>==========================

|<1> Boot System                                                           |

|<2> Enter Serial SubMenu                                                  |

|<3> Enter Ethernet SubMenu                                                |

|<4> File Control                                                          |

|<5> Restore to Factory Default Configuration                              |

|<6> Skip Current System Configuration                                     |

|<7> BootWare Operation Menu                                               |

|<8> Skip Authentication for Console Login                                 |

|<9> Storage Device Operation                                              |

|<0> Reboot                                                                |

============================================================================

Ctrl+Z: Access EXTENDED ASSISTANT MENU

Ctrl+F: Format File System

Ctrl+C: Display Copyright

Ctrl+Y: Change AP Mode

Enter your choice(0-9): 按下Ctrl+Y看看现在AP运行在什么模式下



Please select the new mode

Current mode is Fit当前运行在Fit模式下

============================================================================

|NO.  Mode                                                                 |

|1    Fat Mode                                                             |

|2    Fit Mode                                                             |

|0    Exit                                                                 |

============================================================================

Enter your choice(0-2):0你可以把它改为Fat模式，不过没卵用，重启会找不到相应文件，这里退回主菜单



==========================<EXTENDED-BOOTWARE MENU>==========================

|<1> Boot System                                                           |

|<2> Enter Serial SubMenu                                                  |

|<3> Enter Ethernet SubMenu                                                |

|<4> File Control                                                          |

|<5> Restore to Factory Default Configuration                              |

|<6> Skip Current System Configuration                                     |

|<7> BootWare Operation Menu                                               |

|<8> Skip Authentication for Console Login                                 |

|<9> Storage Device Operation                                              |

|<0> Reboot                                                                |

============================================================================

Ctrl+Z: Access EXTENDED ASSISTANT MENU

Ctrl+F: Format File System

Ctrl+C: Display Copyright

Ctrl+Y: Change AP Mode

Enter your choice(0-9): 按Ctrl+F格式化flash，原因是它总共只有32MB，不格式化就不能把升级文件下载下来，没那么多空间

Warning:All files on flash will be lost! Are you sure to format? [Y/N]Y.....

............................................................................

..................

Format success.



==========================<EXTENDED-BOOTWARE MENU>==========================

|<1> Boot System                                                           |

|<2> Enter Serial SubMenu                                                  |

|<3> Enter Ethernet SubMenu                                                |

|<4> File Control                                                          |

|<5> Restore to Factory Default Configuration                              |

|<6> Skip Current System Configuration                                     |

|<7> BootWare Operation Menu                                               |

|<8> Skip Authentication for Console Login                                 |

|<9> Storage Device Operation                                              |

|<0> Reboot                                                                |

============================================================================

Ctrl+Z: Access EXTENDED ASSISTANT MENU

Ctrl+F: Format File System

Ctrl+C: Display Copyright

Ctrl+Y: Change AP Mode

Enter your choice(0-9): 4再来看看flash里的情况



===============================<File CONTROL>===============================

|Note:the operating device is flash                                        |

|<1> Display All File(s)                                                   |

|<2> Set Image File type                                                   |

|<3> Set Bin File type                                                     |

|<4> Set Configuration File type                                           |

|<5> Delete File                                                           |

|<0> Exit To Main Menu                                                     |

============================================================================

Enter your choice(0-5): 1显示所有文件



Display all file(s) in flash:

 'M' = MAIN      'B' = BACKUP      'N/A' = NOT ASSIGNED

============================================================================

|NO. Size(B)   Time                 Type   Name                            |

============================================================================

空空如也

===============================<File CONTROL>===============================

|Note:the operating device is flash                                        |

|<1> Display All File(s)                                                   |

|<2> Set Image File type                                                   |

|<3> Set Bin File type                                                     |

|<4> Set Configuration File type                                           |

|<5> Delete File                                                           |

|<0> Exit To Main Menu                                                     |

============================================================================

Enter your choice(0-5): 0退回上级菜单



==========================<EXTENDED-BOOTWARE MENU>==========================

|<1> Boot System                                                           |

|<2> Enter Serial SubMenu                                                  |

|<3> Enter Ethernet SubMenu                                                |

|<4> File Control                                                          |

|<5> Restore to Factory Default Configuration                              |

|<6> Skip Current System Configuration                                     |

|<7> BootWare Operation Menu                                               |

|<8> Skip Authentication for Console Login                                 |

|<9> Storage Device Operation                                              |

|<0> Reboot                                                                |

============================================================================

Ctrl+Z: Access EXTENDED ASSISTANT MENU

Ctrl+F: Format File System

Ctrl+C: Display Copyright

Ctrl+Y: Change AP Mode

Enter your choice(0-9):7 先升级BootWare，不然决逼失败



=========================<BootWare Operation Menu>==========================

|Note:the operating device is flash                                        |

|<1> Backup Full BootWare                                                  |

|<2> Restore Full BootWare                                                 |

|<3> Update BootWare By Serial                                             |

|<4> Update BootWare By Ethernet                                           |

|<0> Exit To Main Menu                                                     |

============================================================================

Enter your choice(0-4):4网络升级



===================<BOOTWARE OPERATION ETHERNET SUB-MENU>===================

|<1> Update Full BootWare                                                  |

|<2> Update Extended BootWare                                              |

|<3> Update Basic BootWare                                                 |

|<4> Modify Ethernet Parameter                                             |

|<0> Exit To Main Menu                                                     |

============================================================================

Enter your choice(0-4):4先查看配置内容



==========================<ETHERNET PARAMETER SET>==========================

|Note:       '.' = Clear field.                                            |

|            '-' = Go to previous field.                                   |

|         Ctrl+D = Quit.                                                   |

============================================================================

Protocol (FTP or TFTP) :ftp tftp配置为3CDaemon使用的tftp

Load File Name         :wa5300-fat.ipe

                       :apwa5300_7.22.btw改为升级文件夹里的btw文件名

Target File Name       :wa5300-fat.ipe

                       :apwa5300_7.22.btw改为升级文件夹里的btw文件名

Server IP Address      :192.168.0.1

Local IP Address       :192.168.0.50

Subnet Mask            :0.0.0.0

Gateway IP Address     :0.0.0.0



===================<BOOTWARE OPERATION ETHERNET SUB-MENU>===================

|<1> Update Full BootWare                                                  |

|<2> Update Extended BootWare                                              |

|<3> Update Basic BootWare                                                 |

|<4> Modify Ethernet Parameter                                             |

|<0> Exit To Main Menu                                                     |

============================================================================

Enter your choice(0-4): 1升级所有BootWare文件，3CDaemon开启服务

Loading...........................Done.

1241088 bytes downloaded!从3CDaemon下载成功

Updating Basic BootWare? [Y/N]Y肯定选择Y升级

Updating Basic BootWare.........Done.完成

Updating Extended BootWare? [Y/N]Y肯定选择Y升级

Updating Extended BootWare.........Done.完成



===================<BOOTWARE OPERATION ETHERNET SUB-MENU>===================

|<1> Update Full BootWare                                                  |

|<2> Update Extended BootWare                                              |

|<3> Update Basic BootWare                                                 |

|<4> Modify Ethernet Parameter                                             |

|<0> Exit To Main Menu                                                     |

============================================================================

Enter your choice(0-4): 0返回上级



=========================<BootWare Operation Menu>==========================

|Note:the operating device is flash                                        |

|<1> Backup Full BootWare                                                  |

|<2> Restore Full BootWare                                                 |

|<3> Update BootWare By Serial                                             |

|<4> Update BootWare By Ethernet                                           |

|<0> Exit To Main Menu                                                     |

============================================================================

Enter your choice(0-4): 0返回上级



==========================<EXTENDED-BOOTWARE MENU>==========================

|<1> Boot System                                                           |

|<2> Enter Serial SubMenu                                                  |

|<3> Enter Ethernet SubMenu                                                |

|<4> File Control                                                          |

|<5> Restore to Factory Default Configuration                              |

|<6> Skip Current System Configuration                                     |

|<7> BootWare Operation Menu                                               |

|<8> Skip Authentication for Console Login                                 |

|<9> Storage Device Operation                                              |

|<0> Reboot                                                                |

============================================================================

Ctrl+Z: Access EXTENDED ASSISTANT MENU

Ctrl+F: Format File System

Ctrl+C: Display Copyright

Ctrl+Y: Change AP Mode

Enter your choice(0-9): 0重启一下

System is starting...

Press Ctrl+D to access BASIC-BOOTWARE MENU

Booting Normal Extended BootWare

The Extended BootWare is self-decompressing.................................

............Done.



****************************************************************************

*                                                                          *

*                 H3C WAP722S-W2 BootWare, Version 7.22                    *

*                          注意查看BootWare版本已经升级                   *

****************************************************************************

Copyright (c) 2004-2020 New H3C Technologies Co., Ltd.



Compiled Date       : Apr 16 2020编译日期也是最新的

CPU Type            : ARM

CPU L1 Cache        : 32KB

CPU L2 Cache        : 256KB

CPU Clock Speed     : 710MHz

Memory Type         : DDR3 SDRAM

Memory Size         : 256MB

Memory Speed        : 533MHz

Flash Size          : 32MB

PCB Version         : Ver.B





BootWare Validating...

Normal Extended BootWare Version is newer than Backup Extended BootWare!

Begin to Update the Backup Extended BootWare.........Done.

Press Ctrl+B to access EXTENDED-BOOTWARE MENU...



Password recovery capability is enabled.

Note: The current operating device is flash

Enter < Storage Device Operation > to select device.



==========================<EXTENDED-BOOTWARE MENU>==========================

|<1> Boot System                                                           |

|<2> Enter Serial SubMenu                                                  |

|<3> Enter Ethernet SubMenu                                                |

|<4> File Control                                                          |

|<5> Restore to Factory Default Configuration                              |

|<6> Skip Current System Configuration                                     |

|<7> BootWare Operation Menu                                               |

|<8> Skip Authentication for Console Login                                 |

|<9> Storage Device Operation                                              |

|<0> Reboot                                                                |

============================================================================

Ctrl+Z: Access EXTENDED ASSISTANT MENU

Ctrl+F: Format File System

Ctrl+C: Display Copyright

Ctrl+Y: Change AP Mode

Enter your choice(0-9):3进入Ethernet菜单，准备升级

注意，进行下一步之前，请在升级文件夹内把WA5300-CMW710-R2433P01-OASIS.ipe改名为wa5300-fat.ipe，并在3CDaemon中启动tftp服务



==========================<Enter Ethernet SubMenu>==========================

|Note:the operating device is flash                                        |

|<1> Download Image Program To SDRAM And Run                               |

|<2> Update Main Image File                                                |

|<3> Update Backup Image File                                              |

|<4> Download Files(*.*)                                                   |

|<5> Modify Ethernet Parameter                                             |

|<0> Exit To Main Menu                                                     |

|<Ensure The Parameter Be Modified Before Downloading!>                    |

============================================================================

Enter your choice(0-5): 5



==========================<ETHERNET PARAMETER SET>==========================

|Note:       '.' = Clear field.                                            |

|            '-' = Go to previous field.                                   |

|         Ctrl+D = Quit.                                                   |

============================================================================

Protocol (FTP or TFTP) :tftp

Load File Name         :apwa5300_7.22.btw

                       :wa5300-fat.ipe改为要升级的ipe文件

Target File Name       :apwa5300_7.22.btw

                       :wa5300-fat.ipe改为要升级的ipe文件

Server IP Address      :192.168.0.1

Local IP Address       :192.168.0.50

Subnet Mask            :0.0.0.0

Gateway IP Address     :0.0.0.0



==========================<Enter Ethernet SubMenu>==========================

|Note:the operating device is flash                                        |

|<1> Download Image Program To SDRAM And Run                               |

|<2> Update Main Image File                                                |

|<3> Update Backup Image File                                              |

|<4> Download Files(*.*)                                                   |

|<5> Modify Ethernet Parameter                                             |

|<0> Exit To Main Menu                                                     |

|<Ensure The Parameter Be Modified Before Downloading!>                    |

============================================================================

Enter your choice(0-5):2开始升级了

Loading.....................................................................

............................................................................

............................................................................

............................................................................

............................................................................

............................................................................

............................................................................

...............................Done.

28339200 bytes downloaded!

如下图，同时你会在3CDaemon上看到正在从电脑上下载升级文件

Image file wa5300-oasis-boot.bin is self-decompressing...

Saving file flash:/wa5300-oasis-boot.bin ...................................

.............................Done.

Image file wa5300-oasis-system.bin is self-decompressing...

Saving file flash:/wa5300-oasis-system.bin .................................

............................................................................

............................................................................

............................................................................

............................................................................

.........................................Done.



==========================<Enter Ethernet SubMenu>==========================

|Note:the operating device is flash                                        |

|<1> Download Image Program To SDRAM And Run                               |

|<2> Update Main Image File                                                |

|<3> Update Backup Image File                                              |

|<4> Download Files(*.*)                                                   |

|<5> Modify Ethernet Parameter                                             |

|<0> Exit To Main Menu                                                     |

|<Ensure The Parameter Be Modified Before Downloading!>                    |

============================================================================

Enter your choice(0-5): 0返回上级



==========================<EXTENDED-BOOTWARE MENU>==========================

|<1> Boot System                                                           |

|<2> Enter Serial SubMenu                                                  |

|<3> Enter Ethernet SubMenu                                                |

|<4> File Control                                                          |

|<5> Restore to Factory Default Configuration                              |

|<6> Skip Current System Configuration                                     |

|<7> BootWare Operation Menu                                               |

|<8> Skip Authentication for Console Login                                 |

|<9> Storage Device Operation                                              |

|<0> Reboot                                                                |

============================================================================

Ctrl+Z: Access EXTENDED ASSISTANT MENU

Ctrl+F: Format File System

Ctrl+C: Display Copyright

Ctrl+Y: Change AP Mode

Enter your choice(0-9): 4查看一下升级的文件



===============================<File CONTROL>===============================

|Note:the operating device is flash                                        |

|<1> Display All File(s)                                                   |

|<2> Set Image File type                                                   |

|<3> Set Bin File type                                                     |

|<4> Set Configuration File type                                           |

|<5> Delete File                                                           |

|<0> Exit To Main Menu                                                     |

============================================================================

Enter your choice(0-5): 1显示所有文件



Display all file(s) in flash:

 'M' = MAIN      'B' = BACKUP      'N/A' = NOT ASSIGNED

============================================================================

|NO. Size(B)   Time                 Type   Name                            |

|1   4132864   Jan/01/2016 00:00:00 M      flash:/wa5300-oasis-boot.bin    |

|2   24199168  Jan/01/2016 00:00:00 M      flash:/wa5300-oasis-system.bin  |

============================================================================

果然升级文件保存在flash里了，M标记是主文件

===============================<File CONTROL>===============================

|Note:the operating device is flash                                        |

|<1> Display All File(s)                                                   |

|<2> Set Image File type                                                   |

|<3> Set Bin File type                                                     |

|<4> Set Configuration File type                                           |

|<5> Delete File                                                           |

|<0> Exit To Main Menu                                                     |

============================================================================

Enter your choice(0-5):0返回上级



==========================<EXTENDED-BOOTWARE MENU>==========================

|<1> Boot System                                                           |

|<2> Enter Serial SubMenu                                                  |

|<3> Enter Ethernet SubMenu                                                |

|<4> File Control                                                          |

|<5> Restore to Factory Default Configuration                              |

|<6> Skip Current System Configuration                                     |

|<7> BootWare Operation Menu                                               |

|<8> Skip Authentication for Console Login                                 |

|<9> Storage Device Operation                                              |

|<0> Reboot                                                                |

============================================================================

Ctrl+Z: Access EXTENDED ASSISTANT MENU

Ctrl+F: Format File System

Ctrl+C: Display Copyright

Ctrl+Y: Change AP Mode

Enter your choice(0-9):按下Ctrl+Y查看一下AP模式



Please select the new mode

Current mode is Oasis Mode当前是Oasis模式

============================================================================

|NO.  Mode                                                                 |

|1    Fat Mode                                                             |

|2    Fit Mode                                                             |

|3    Anchor-AC   (Virtual AC Mode)                                        |

|4    Anchor-Fit                                                           |

|5    Oasis Mode                                                           |

|0    Exit                                                                 |

============================================================================

Enter your choice(0-5):1可以看到这个菜单也与之前不一样了，试着切换为Fat模式



Not Support!不支持，新版本的软件，其实Oasis就是Fat



==========================<EXTENDED-BOOTWARE MENU>==========================

|<1> Boot System                                                           |

|<2> Enter Serial SubMenu                                                  |

|<3> Enter Ethernet SubMenu                                                |

|<4> File Control                                                          |

|<5> Restore to Factory Default Configuration                              |

|<6> Skip Current System Configuration                                     |

|<7> BootWare Operation Menu                                               |

|<8> Skip Authentication for Console Login                                 |

|<9> Storage Device Operation                                              |

|<0> Reboot                                                                |

============================================================================

Ctrl+Z: Access EXTENDED ASSISTANT MENU

Ctrl+F: Format File System

Ctrl+C: Display Copyright

Ctrl+Y: Change AP Mode

Enter your choice(0-9):0重新启动

System is starting...

Press Ctrl+D to access BASIC-BOOTWARE MENU

Booting Normal Extended BootWare

The Extended BootWare is self-decompressing.................................

............Done.



****************************************************************************

*                                                                          *

*                 H3C WAP722S-W2 BootWare, Version 7.22                    *

*                                                                          *

****************************************************************************

Copyright (c) 2004-2020 New H3C Technologies Co., Ltd.



Compiled Date       : Apr 16 2020

CPU Type            : ARM

CPU L1 Cache        : 32KB

CPU L2 Cache        : 256KB

CPU Clock Speed     : 710MHz

Memory Type         : DDR3 SDRAM

Memory Size         : 256MB

Memory Speed        : 533MHz

Flash Size          : 32MB

PCB Version         : Ver.B





BootWare Validating...

Press Ctrl+B to access EXTENDED-BOOTWARE MENU...

Loading the main image files...

Loading file flash:/wa5300-oasis-system.bin.................................

............................................................................

............................................................................

......Done.

Loading file flash:/wa5300-oasis-boot.bin...................................

.Done.



Image file flash:/wa5300-oasis-boot.bin is self-decompressing...............

............................................................................

............................................................................

............................................................................

............................................................................

...............................Done.

System image is starting...

Startup configuration file doesn't exist or is invalid.

Line con0 is available.





Press ENTER to get started.

<H3C>%Sep  3 15:34:03:895 2020 H3C SHELL/5/SHELL_LOGIN: Console logged in from con0.



<H3C>启动成功了，说明我们已经升级成功了

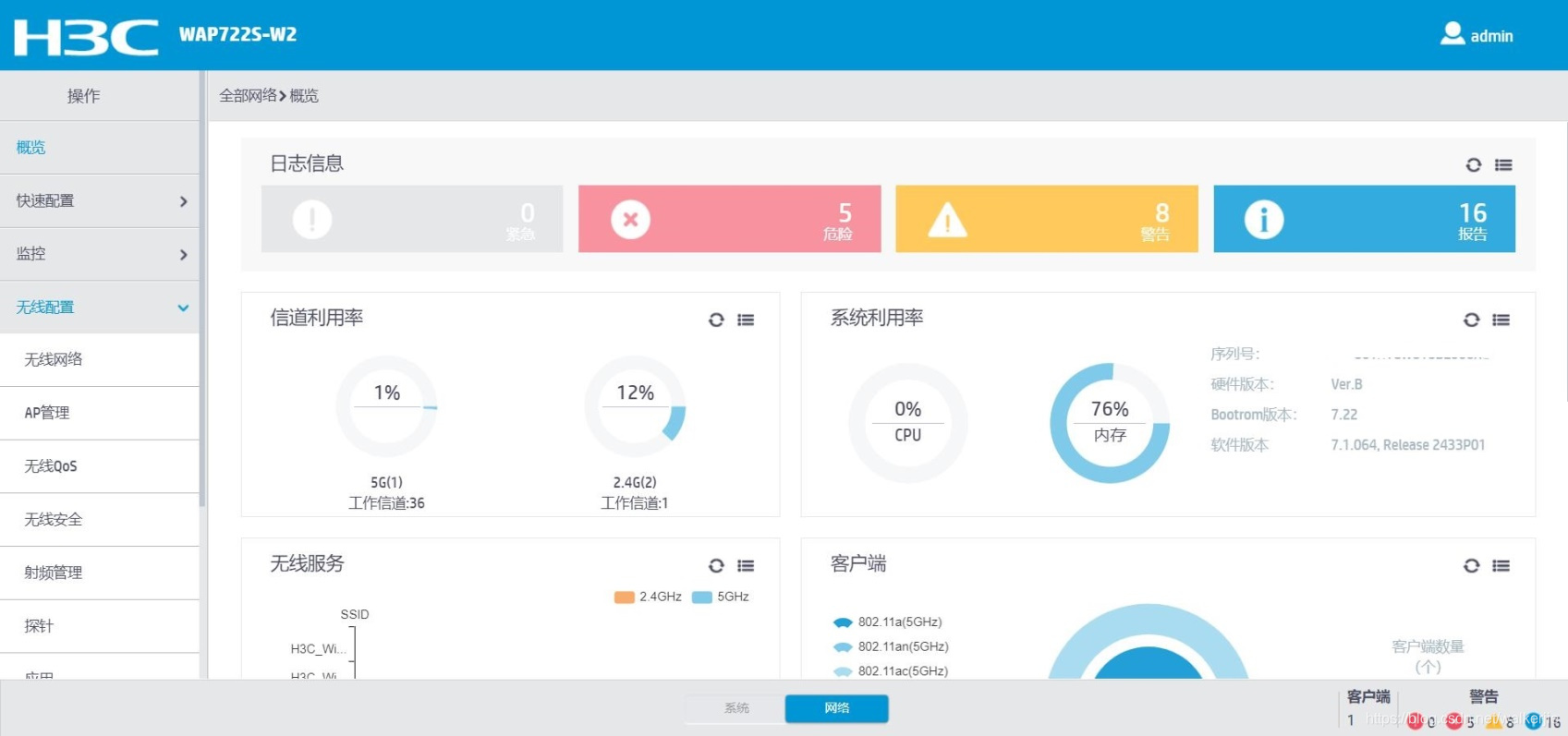

接下来这个AP就可以通过web访问了，当然你也可以继续通过putty进行配置。

（以下这段转自网文）

云AP是Fat AP。初次使用云AP，给云AP上电后，云AP会默认开启4个无线服务：其中一个称之为管理WIFI，也称内部WIFI，SSID为H3C_XXXXXX，XXXXXX为设备mac地址后六位。管理WIFI供商铺内部员工管理使用，一般在2.4G频段工作，当设备未连接到绿洲时，通过连接管理WIFI在浏览器输入10.40.94.1或myap.h3c.com访问本地web页面可进行本设备下的无线服务管理配置，一旦连接上绿洲，将只能通过绿洲平台进行统一的无线服务配置管理。其余3个称为用户WIFI，也称商业WIFI，SSID为H3C_WiFi_1、H3C_WiFi_2、H3C_WiFi_3，不加密，不认证，不隐藏。当设备连接到外网，可为已经连接上用户WIFI的用户提供上网服务。

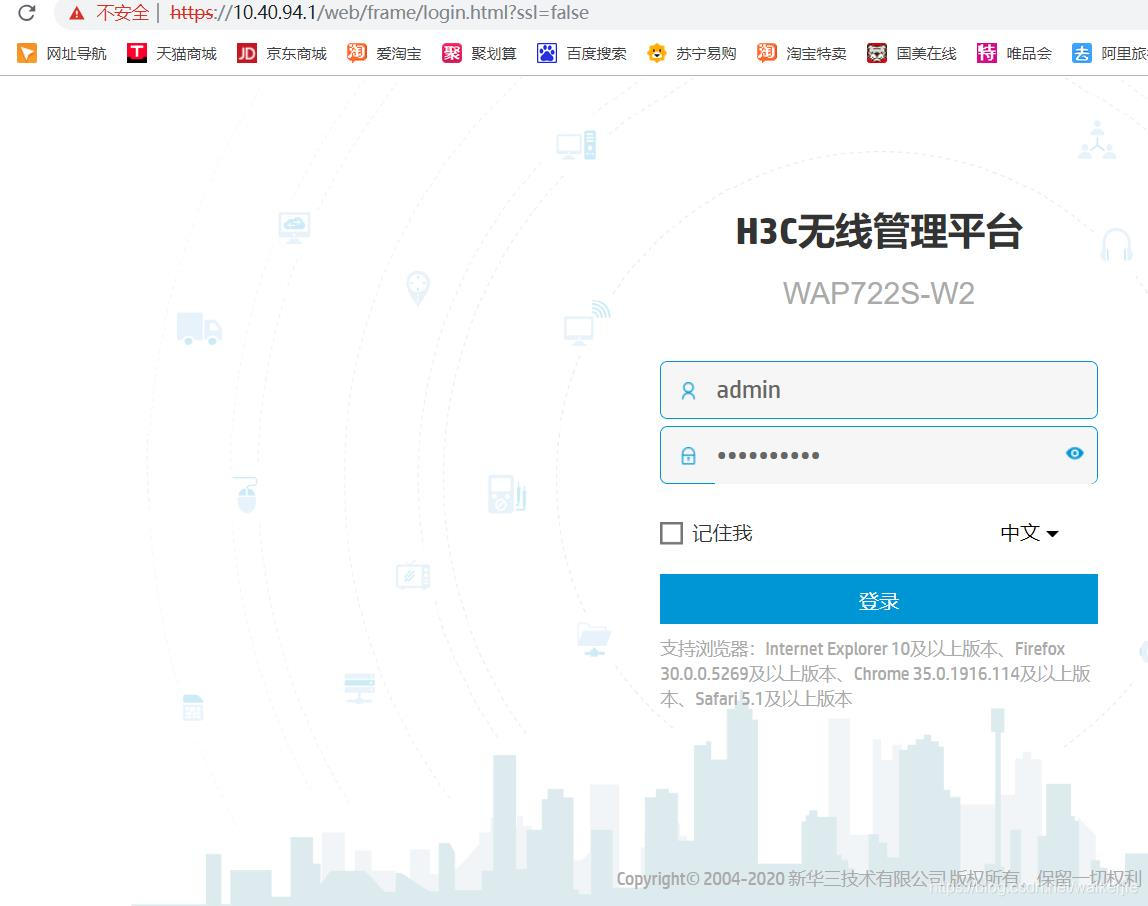

那么我们连上H3C_XXXXXX，打开浏览器，输入10.40.94.1或myap.h3c.com，用户名：admin密码：h3capadmin，你会看到功能之丰富，现在你可以体验企业级的路由器了！如果你有两个这种AP，那么可以尝试把它们桥接起来，房子再大也不怕！



本人CSDN（ID：walkerjie）提供相关升级文件、《版本说明书》、《云AP Web配置指导》、《云AP绿洲平台Web配置指导》、《WLAN配置指导-WDS配置》，欢迎下载



walkerjie
关注
  • 11
    点赞
  • 踩
  • 58
    收藏
    觉得还不错? 一键收藏
  • 8
    评论
H3C AP有瘦转胖的操作过程
weixin_33962923的博客
10-27 1380
公司使用的H3C 11N无线AP产品，在某些特定的环境下并不需要AC配合和管理，需要独立使用。这种情况下需要将AP由瘦AP转换成为胖AP，具体操作过程如下： 内容：AP瘦胖转换 示例产品：H3C W2620 版本下载：下载链接http://www.h3c.com.cn/Service/Software%5FDownload/IP%5FWlan/AP/WA2600%5FW...
H3C WA4320 FitAP刷成FatAP.docx
05-01
本文介绍如何通过3CDaemon软件和TFTP协议将H3C WA4320 FitAP刷成FatAP。
H3C2600系列瘦AP转胖AP含固件终端和TFTP
01-22
H3C 2600系列瘦AP转胖AP含固件终端和TFTP.压缩包里含操作方法超级终端 TFTP软件以及2600a_fat.bin固件.
华为AP升级、降级、刷FAT胖、刷FIT瘦教程，刷机教程
最新发布
weixin_44892284的博客
03-29 1120
等待AP从电脑下载版本文件，下载完成后，在电脑上可以看到一大堆“##########”，如果3CD中可以看到传输的字节数，如果没有反应，请检查电脑防火墙是否关闭，杀毒软件是否关闭等。7.当开机跳出“Press f or F to stop Auto-Boot in 3 seconds:”时，按F键，输入admin@huawei.com。10.重启后输入用户名：admin 密码admin@huawei.com，查看升级后的版本是否改变。2.先让我们看一下原来ap的版本是什么，圈红圈的为现在AP的版本。
H3C WA4320无线fit AP瘦模式转fat 胖模式 + 配置wifi上线
weixin_43075093的博客
04-25 1万+
H3C WA4320无线瘦AP转胖模式。在没有电源适配器，没有AC控制器的情况下，让单台瘦FIT 无线AP具备发射wifi信号，并能正常连接使用的功能。手上没有H3C的AC无线控制器的情况下，瘦无线AP仅能当摆设无法正常使用。现有1个瘦AP型号H3C WA-4320-fit，接到POE交换机上能正常启动FIT系统，本着硬件资源不浪费的原则，把它们的FIT系统更换为FAT系统后再进行WLAN配置，可用于实际工作或生活环境当中。操作过程与上一篇写的wa2620e稍有差异。
新华三H3C WA4320H-CAN刷FAT（胖AP）模式
taiman1225的博客
06-05 7215
新华三的AP设备从FIT（瘦AP）模式刷FAT（胖AP）模式记录。附有工具资源链接。
H3C-WA4320瘦AP改胖AP_fit_2_fat
weixin_41568101的博客
06-05 1253
选中“加密类型”前的复选框，选择“AES and TKIP”加密类型（请根据实际情况，选择需要的加密类型），· 在PSK预共享密钥下拉框里选择“pass-phrase”，输入密钥“12345678”（按自己需要设置）这时WA4320-ACN-SI是方括号，显示为[WA4320-ACN-SI]输入interface vlan 1回车，· 选中“端口安全--端口设置”前的复选框，在端口模式的下拉框中选择“psk”方式。
H3C无线接入器WA4320-ACN-SI之FIT转FAT（瘦版本转胖版本）
热门推荐
追寻上飞的博客
04-18 2万+
前提： 打开超级终端 一，硬件准备： 电脑一台 网线两条（在AP没有48V输入电源情况下） 具有poe功能的交换机 一条console线用于连接电脑和AP（调试AP） 二，实验原理 电脑和AP处于相同网段局域网内，二者即可通信。 交换机的作用，其一是给AP供电，其二是让电脑和AP处于同一网段内。 接着使用TFTP简单文件传输协议给AP进行配置。 网络拓扑图是： 三，检验 打开交换机，用...
华三无线设备系列 （瘦AP转胖AP的配置方法）
正月十六工作室
06-06 2万+
华三无线设备系列 （瘦AP转胖AP的配置方法） 1、从华三官网上下载WA4320-ACN的升级包。 （资源下载地址：https://download.csdn.net/download/hjx020/85452227） 2、将主机网卡的IP地址设置为192.168.0.1，子网掩码为255.255.255.0，如图1-1所示。 图1-1 3、主机关闭防火墙后，使用3CDaemon软件搭建TFTP服务器（升级包放在共享目录下），如图1-2所示。 图1-2 4、设备连接完成后，使用CRT软件登录，在设备.
H3C FIT AP转FAT AP家用配置文件
01-19
偶尔得到一个H3C WA2600的FIT AP，就想到更换原有的水星MW305R，经过一番摸索，终于成功。 一、FIT AP刷FAT AP过程： ...................... 二、FAT AP配置： ...H3C WA2600 FAT AP的bin文件以及详细过程
华三无线系统AP胖转瘦fit文件包大全
01-22
WA4300-CMW520-R1512P02-FAT.bin wa3600_fit.bin wa4600_fit.bin wa4300s_fit.bin la4300_fit.bin wa2600_fit.bin wa4300_fit.bin wa2600a_fit.bin wa2200_fit.bin wa1208h20_fit.bin wa1208_fit.bin wa1208_update....
H3C 4230I刷FAT胖模式固件+方法+配置
12-01
H3C 4230I刷FAT胖模式固件+方法+配置
WA4300S-CMW520-R1508P11-FAT固件(瘦刷胖)
09-08
H3C WA4300S系列(适用于WA4320、WA4320-ACN-C、WA4320-ACN-SI、WA4320-ACN-PI、WAP722S、WAP712、WAP712C、WA4320-ACN-E、WA4320-ACN-D、WA2610H)
H3C WAP722S-W2无线接入点 安装指导-5W100-整本手册
02-15
H3C WAP722S-W2无线接入点 安装指导-5W100-整本手册 本手册主要适用于如下工程师： • • 网络规划人员 • • 现场技术支持与维护人员 • • 负责网络配置和维护的网络管理员
华三AP改FAT模式操作说明
11-26
华三AP改FAT模式操作说明
H3C EWP-WA4330ACN-FIT刷FAT.zip
08-23
H3C EWP-WA4330ACN-FIT刷胖AP，内含固件版本：WA4300-CMW520-R1508P11-FAT.bin
4320FAT.7z（H3C 4320acn-c 瘦AP固件转胖AP固件下载）
05-25
H3C 4320acn-c 瘦AP固件转胖AP固件下载，通过终端配合tftp回灌即可。
华为AP3010DN-V2胖瘦互转Fat转Fit
10-13
10.setenv serverip 192.168.0.12 11.update system FitAP3010DN-V2_V200R007C20SPCd00.bin（此时TFTP服务器中根目录为C:\Users\Administrator\Desktop\AP3010_Fat_and_Fit） 12.reset
H3C AP当无线路由器静态IP上网配置
爱意随风起，人生不可弃。
09-20 1万+
配置需求或说明 V7 FAT AP当无线路由器固定ip上网配置（web页面） 适用产品系列 适用于如下产品：支持11ac协议的V5平台fat模式的ap，包含：WAP712C、WAP722S、WA4300系列等。 设备默认管理地址是192.168.0.50，登录账号是：admin 密码：h3capadmin。 配置需求及实现的效果 本案例介绍如何通过命令行给WAP722S配置静态ip地址上网。 假设WAP722S 以太网口连接上层交换机（可以直连运营商），分配的公网地址、网关及DNS如下： AP发射无线信号
H3C云AP瘦转胖fit转fat
07-28
瘦AP和胖AP是H3C云AP的两种不同模式。瘦AP是指将无线控制器的功能集中在云端，AP只负责数据转发的一种模式。而胖AP（也称为fit AP）是指将无线控制器的功能集成在AP中，AP具备了控制和数据转发的能力。 转换瘦AP到胖AP的过程通常称为fit转fat。在这个过程中，需要将AP的固件进行升级，使其具备无线控制器的功能。这样一来，AP就可以独立运行，无需依赖云端控制器。 请注意，以上回答仅针对IT类问题。如果你的问题不属于IT类，请提供更多信息以便我能更好地理解并回答你的问题。

“相关推荐”对你有帮助么？

  • 非常没帮助
  • 没帮助
  • 一般
  • 有帮助
  • 非常有帮助
提交
评论 8
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
