TextView特效
特效1 实现文字滚动效果的实现
满足条件
- 文本显示框的内容超过文本显示框的宽度
- 文本显示框设置单行显示,即
android:singleLine="true" 默认情况下,超出宽度的文字会自动换行显示
- 设置文字滚动显示,即
android:ellipsize="marquee" 在单行情况下,超过文本显示框的部分默认不显示、
- TextView 需要获取焦点,设置
android:focusableInTouchMode="true" <pre name="code" class="html"> android:focusable="true" 单文本显示框失去焦点时,文本将不再移动
特效2自动链接效果的实现
在Android应用中,特别是一些宣传页中,经常会使用到链接,单击链接后可以调用系统的相应程序来执行操作,例如网址链接、电话链接、邮箱链接等。在android中在TextView设置 android:autoLink="" 属性 即可,该属性有下面几个值。
- none:不匹配任何格式,这是默认值
- web :只匹配网址,文本中的网址会以超链接的形式显示
- map : 只匹配地图地址
- phone:只匹配电话号码
- all :匹配以上所有值
1 先看布局文件
Activity
<FrameLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent"
tools:context="${relativePackage}.${activityClass}" >
<TextView
android:id="@+id/title"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:ellipsize="marquee"
android:text="@string/hello_world"
android:focusable="true"
android:focusableInTouchMode="true"
android:singleLine="true"
android:textColor="#0000ff"
android:textSize="24sp"
android:layout_marginTop="20dp"
/>
<TextView
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:gravity="center"
android:textSize="30sp"
android:layout_gravity="center"
android:text="@string/content"
android:drawableTop="@drawable/ic_launcher"
android:drawableBottom="@drawable/ic_launcher"
android:drawableLeft="@drawable/ic_launcher"
android:drawableRight="@drawable/ic_launcher"
android:textColor="#0000ff"
/>
<TextView
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="@string/info"
android:textColor="#ffffff"
android:textSize="18sp"
android:autoLink="all"
android:layout_gravity="bottom|center_horizontal"
android:background="#0000ff"
android:padding="5dp"
/>
</FrameLayout>
2 string.xml文件
<pre name="code" class="html"><?xml version="1.0" encoding="utf-8"?>
<resources>
<string name="app_name">TextViewEffect</string>
<string name="hello_world">Hello world!</string>
<string name="title">欢迎使用计算机科学与技术公司软件<font color=red>手机助手</font></string>
<string name="content">零</string>
<string name="info">如有问题请联系我们\n联系电话;0379-6909089\nE\-mail:wbf@qq.com\n网址:http://iet.github.cn</string>
</resources>
3.Activity代码
public class MainActivity extends Activity {
private TextView mTitle;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
mTitle=(TextView) findViewById(R.id.title);
mTitle.setText(Html.fromHtml(getResources().getString(R.string.title)));
}

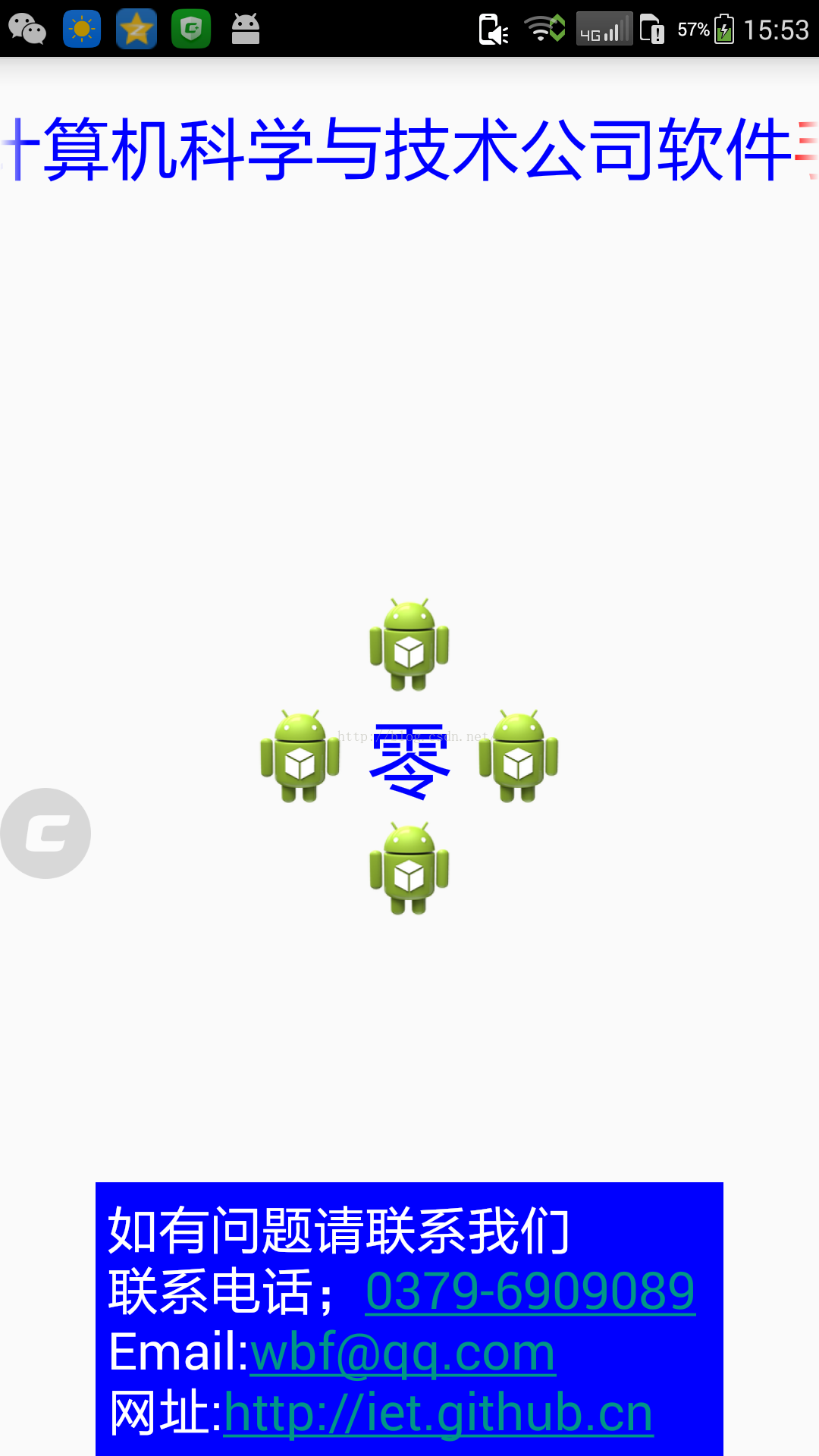

运行效果
其它几个要点:
A.指定图片的方位
android:drawableTop="@drawable/ic_launcher"
android:drawableBottom="@drawable/ic_launcher"
android:drawableLeft="@drawable/ic_launcher"
android:drawableRight="@drawable/ic_launcher"
B. android:padding="5dp" 设置图片与文字的边距。
C.android:layout_gravity和android:gravity的使用区别 :android:gravity表示的是本控件里面的对齐方式,android:layout_gravity表示是该控件在其父控件中的对齐方式
