1 数据结构 net_device

设备无关层一个重要的数据抽象是net_device{},net_device是一个承上启下的结构,对上层,对应网络层特定的数据结构,对下,对应驱动程序的私有数据,而作为一个抽象数据结构,其提供的抽象接口有效的隔离了不同网络硬件的变化。net_device是一个庞大的数据结构,它的数据成员我挑选重要的按类说明:

1.1 设备属性

struct net_device {
    char                name[IFNAMSIZ];    //设备名称
    unsigned long       state;             //设备状态
    int                 ifindex;           //ID
    unsigned int        flags;
    unsigned int        priv_flags;
    unsigned int        mtu;
    unsigned short      hard_header_len;    //L2
    unsigned char       addr_len;
    unsigned long       tx_queue_len

    struct netdev_rx_queue   *_rx;
    unsigned int             num_rx_queues;
    unsigned int             real_num_rx_queues;


    struct netdev_queue	  *_tx ____cacheline_aligned_in_smp;
    unsigned int          num_tx_queues;
    unsigned int          real_num_tx_queues;
    struct Qdisc          *qdisc;

    unsigned long		mem_end;           //驱动相关mmio
    unsigned long		mem_start;
    unsigned long		base_addr;
    int			        irq;
};

1.2 结构管理

struct net_device {
    struct hlist_node	name_hlist;

    struct list_head	dev_list;
	struct list_head	napi_list;
	struct list_head	unreg_list;
	struct list_head	close_list;
	struct list_head	ptype_all;
	struct list_head	ptype_specific;

    struct list_head napi_list
};

1.3 接口及其上下文

struct net_device {
    const struct header_ops *header_ops;
    const struct rtnl_link_ops *rtnl_link_ops;
    const struct net_device_ops *netdev_ops;
    const struct ethtool_ops *ethtool_ops;
    struct in_device __rcu	*ip_ptr;

    rx_handler_func_t __rcu	*rx_handler;
    void __rcu		*rx_handler_data;
}

2 相关 API 说明

2.1 net_device 分配 alloc_etherdev_mqs()->alloc_netdev_mqs

  1. net_device 的分配
  2. 初始化:dev_addr_init / dev_mc_init / dev_uc_init / dev_net_set
  3. 发送队列和接收队列初始化
/**
 * alloc_etherdev_mqs - Allocates and sets up an Ethernet device
 * @sizeof_priv: Size of additional driver-private structure to be allocated
 *	for this Ethernet device
 * @txqs: The number of TX queues this device has.
 * @rxqs: The number of RX queues this device has.
 *
 * Fill in the fields of the device structure with Ethernet-generic
 * values. Basically does everything except registering the device.
 *
 * Constructs a new net device, complete with a private data area of
 * size (sizeof_priv).  A 32-byte (not bit) alignment is enforced for
 * this private data area.
 */

struct net_device *alloc_etherdev_mqs(int sizeof_priv, unsigned int txqs,
				      unsigned int rxqs)
{
	return alloc_netdev_mqs(sizeof_priv, "eth%d", NET_NAME_UNKNOWN,
				ether_setup, txqs, rxqs);
}
EXPORT_SYMBOL(alloc_etherdev_mqs);

/**
 * alloc_netdev_mqs - allocate network device
 * @sizeof_priv: size of private data to allocate space for
 * @name: device name format string
 * @name_assign_type: origin of device name
 * @setup: callback to initialize device
 * @txqs: the number of TX subqueues to allocate
 * @rxqs: the number of RX subqueues to allocate
 *
 * Allocates a struct net_device with private data area for driver use
 * and performs basic initialization.  Also allocates subqueue structs
 * for each queue on the device.
 */
struct net_device *alloc_netdev_mqs(int sizeof_priv, const char *name,
		unsigned char name_assign_type,
		void (*setup)(struct net_device *),
		unsigned int txqs, unsigned int rxqs)
{
	struct net_device *dev;
	size_t alloc_size;
	struct net_device *p;

	BUG_ON(strlen(name) >= sizeof(dev->name));

	if (txqs < 1) {
		pr_err("alloc_netdev: Unable to allocate device with zero queues\n");
		return NULL;
	}

#ifdef CONFIG_SYSFS
	if (rxqs < 1) {
		pr_err("alloc_netdev: Unable to allocate device with zero RX queues\n");
		return NULL;
	}
#endif

    /*将net_device数据结构的大小按32字节对齐后,和sizeof_priv私有数据大小相加,产生分配的总内存字节大小*/

	alloc_size = sizeof(struct net_device);
	if (sizeof_priv) {
		/* ensure 32-byte alignment of private area */
		alloc_size = ALIGN(alloc_size, NETDEV_ALIGN);
		alloc_size += sizeof_priv;
	}
    /*在这里增加31个字节,是为后面将分配后net_device数据结构的地址调整到32字节边界对齐,预留空间*/

	/* ensure 32-byte alignment of whole construct */
	alloc_size += NETDEV_ALIGN - 1;

	p = kvzalloc(alloc_size, GFP_KERNEL | __GFP_RETRY_MAYFAIL);
	if (!p)
		return NULL;

    /*将net_device数据结构的地址对齐到32字节边界,并记录下调整后的地址和实际分配的地址之间的长度,便于释放空间时使用分配的实际起始地址*/

	dev = PTR_ALIGN(p, NETDEV_ALIGN);
	dev->padded = (char *)dev - (char *)p;

    /*分配一个per_cpu变量,记录该结构的引用计数*/
	dev->pcpu_refcnt = alloc_percpu(int);
	if (!dev->pcpu_refcnt)
		goto free_dev;

    /*初始化设备的硬件地址列表,并分配一个硬件地址成员*/
	if (dev_addr_init(dev))
		goto free_pcpu;

    /*初始化多播和单播硬件地址列表*/
	dev_mc_init(dev);
	dev_uc_init(dev);

    /*设置设备的网络空间*/
	dev_net_set(dev, &init_net);

	dev->gso_max_size = GSO_MAX_SIZE;
	dev->gso_max_segs = GSO_MAX_SEGS;

	INIT_LIST_HEAD(&dev->napi_list);
	INIT_LIST_HEAD(&dev->unreg_list);
	INIT_LIST_HEAD(&dev->close_list);
	INIT_LIST_HEAD(&dev->link_watch_list);
	INIT_LIST_HEAD(&dev->adj_list.upper);
	INIT_LIST_HEAD(&dev->adj_list.lower);
	INIT_LIST_HEAD(&dev->ptype_all);
	INIT_LIST_HEAD(&dev->ptype_specific);
#ifdef CONFIG_NET_SCHED
	hash_init(dev->qdisc_hash);
#endif
	dev->priv_flags = IFF_XMIT_DST_RELEASE | IFF_XMIT_DST_RELEASE_PERM;
	setup(dev);

	if (!dev->tx_queue_len) {
		dev->priv_flags |= IFF_NO_QUEUE;
		dev->tx_queue_len = DEFAULT_TX_QUEUE_LEN;
	}


   /*分配接收队列和发送队列*/
	dev->num_tx_queues = txqs;
	dev->real_num_tx_queues = txqs;
	if (netif_alloc_netdev_queues(dev))
		goto free_all;

#ifdef CONFIG_SYSFS
	dev->num_rx_queues = rxqs;
	dev->real_num_rx_queues = rxqs;
	if (netif_alloc_rx_queues(dev))
		goto free_all;
#endif

	strcpy(dev->name, name);
	dev->name_assign_type = name_assign_type;
	dev->group = INIT_NETDEV_GROUP;
	if (!dev->ethtool_ops)
		dev->ethtool_ops = &default_ethtool_ops;

	nf_hook_ingress_init(dev);

	return dev;

free_all:
	free_netdev(dev);
	return NULL;

free_pcpu:
	free_percpu(dev->pcpu_refcnt);
free_dev:
	netdev_freemem(dev);
	return NULL;
}
EXPORT_SYMBOL(alloc_netdev_mqs);

2.2 net_device 注册 register_netdev()

/**
 *	register_netdev	- register a network device
 *	@dev: device to register
 *
 *	Take a completed network device structure and add it to the kernel
 *	interfaces. A %NETDEV_REGISTER message is sent to the netdev notifier
 *	chain. 0 is returned on success. A negative errno code is returned
 *	on a failure to set up the device, or if the name is a duplicate.
 *
 *	This is a wrapper around register_netdevice that takes the rtnl semaphore
 *	and expands the device name if you passed a format string to
 *	alloc_netdev.
 */
int register_netdev(struct net_device *dev)
{
	int err;

	rtnl_lock();
	err = register_netdevice(dev);
	rtnl_unlock();
	return err;
}
EXPORT_SYMBOL(register_netdev);


/**
 *	register_netdevice	- register a network device
 *	@dev: device to register
 *
 *	Take a completed network device structure and add it to the kernel
 *	interfaces. A %NETDEV_REGISTER message is sent to the netdev notifier
 *	chain. 0 is returned on success. A negative errno code is returned
 *	on a failure to set up the device, or if the name is a duplicate.
 *
 *	Callers must hold the rtnl semaphore. You may want
 *	register_netdev() instead of this.
 *
 *	BUGS:
 *	The locking appears insufficient to guarantee two parallel registers
 *	will not get the same name.
 */

int register_netdevice(struct net_device *dev)
{
	int ret;
	struct net *net = dev_net(dev);

	BUG_ON(dev_boot_phase);
	ASSERT_RTNL();

	might_sleep();

	/* When net_device's are persistent, this will be fatal. */
	BUG_ON(dev->reg_state != NETREG_UNINITIALIZED);
	BUG_ON(!net);

	spin_lock_init(&dev->addr_list_lock);
	netdev_set_addr_lockdep_class(dev);

	ret = dev_get_valid_name(net, dev, dev->name);
	if (ret < 0)
		goto out;

	/* Init, if this function is available */
	if (dev->netdev_ops->ndo_init) {
		ret = dev->netdev_ops->ndo_init(dev);
		if (ret) {
			if (ret > 0)
				ret = -EIO;
			goto out;
		}
	}

	if (((dev->hw_features | dev->features) &
	     NETIF_F_HW_VLAN_CTAG_FILTER) &&
	    (!dev->netdev_ops->ndo_vlan_rx_add_vid ||
	     !dev->netdev_ops->ndo_vlan_rx_kill_vid)) {
		netdev_WARN(dev, "Buggy VLAN acceleration in driver!\n");
		ret = -EINVAL;
		goto err_uninit;
	}

	ret = -EBUSY;
	if (!dev->ifindex)
		dev->ifindex = dev_new_index(net);
	else if (__dev_get_by_index(net, dev->ifindex))
		goto err_uninit;

	/* Transfer changeable features to wanted_features and enable
	 * software offloads (GSO and GRO).
	 */
	dev->hw_features |= NETIF_F_SOFT_FEATURES;
	dev->features |= NETIF_F_SOFT_FEATURES;

	if (dev->netdev_ops->ndo_udp_tunnel_add) {
		dev->features |= NETIF_F_RX_UDP_TUNNEL_PORT;
		dev->hw_features |= NETIF_F_RX_UDP_TUNNEL_PORT;
	}

	dev->wanted_features = dev->features & dev->hw_features;

	if (!(dev->flags & IFF_LOOPBACK))
		dev->hw_features |= NETIF_F_NOCACHE_COPY;

	/* If IPv4 TCP segmentation offload is supported we should also
	 * allow the device to enable segmenting the frame with the option
	 * of ignoring a static IP ID value.  This doesn't enable the
	 * feature itself but allows the user to enable it later.
	 */
	if (dev->hw_features & NETIF_F_TSO)
		dev->hw_features |= NETIF_F_TSO_MANGLEID;
	if (dev->vlan_features & NETIF_F_TSO)
		dev->vlan_features |= NETIF_F_TSO_MANGLEID;
	if (dev->mpls_features & NETIF_F_TSO)
		dev->mpls_features |= NETIF_F_TSO_MANGLEID;
	if (dev->hw_enc_features & NETIF_F_TSO)
		dev->hw_enc_features |= NETIF_F_TSO_MANGLEID;

	/* Make NETIF_F_HIGHDMA inheritable to VLAN devices.
	 */
	dev->vlan_features |= NETIF_F_HIGHDMA;

	/* Make NETIF_F_SG inheritable to tunnel devices.
	 */
	dev->hw_enc_features |= NETIF_F_SG | NETIF_F_GSO_PARTIAL;

	/* Make NETIF_F_SG inheritable to MPLS.
	 */
	dev->mpls_features |= NETIF_F_SG;

	ret = call_netdevice_notifiers(NETDEV_POST_INIT, dev);
	ret = notifier_to_errno(ret);
	if (ret)
		goto err_uninit;

	ret = netdev_register_kobject(dev);
	if (ret)
		goto err_uninit;
	dev->reg_state = NETREG_REGISTERED;

	__netdev_update_features(dev);

	/*
	 *	Default initial state at registry is that the
	 *	device is present.
	 */

	set_bit(__LINK_STATE_PRESENT, &dev->state);

	linkwatch_init_dev(dev);

	dev_init_scheduler(dev);
	dev_hold(dev);
	list_netdevice(dev);
	add_device_randomness(dev->dev_addr, dev->addr_len);

	/* If the device has permanent device address, driver should
	 * set dev_addr and also addr_assign_type should be set to
	 * NET_ADDR_PERM (default value).
	 */
	if (dev->addr_assign_type == NET_ADDR_PERM)
		memcpy(dev->perm_addr, dev->dev_addr, dev->addr_len);

	/* Notify protocols, that a new device appeared. */
	ret = call_netdevice_notifiers(NETDEV_REGISTER, dev);
	ret = notifier_to_errno(ret);
	if (ret) {
		rollback_registered(dev);
		dev->reg_state = NETREG_UNREGISTERED;
	}
	/*
	 *	Prevent userspace races by waiting until the network
	 *	device is fully setup before sending notifications.
	 */
	if (!dev->rtnl_link_ops ||
	    dev->rtnl_link_state == RTNL_LINK_INITIALIZED)
		rtmsg_ifinfo(RTM_NEWLINK, dev, ~0U, GFP_KERNEL);

out:
	return ret;

err_uninit:
	if (dev->netdev_ops->ndo_uninit)
		dev->netdev_ops->ndo_uninit(dev);
	if (dev->priv_destructor)
		dev->priv_destructor(dev);
	goto out;
}
EXPORT_SYMBOL(register_netdevice);

2.3 端口状态管理api

  • netif_carrier_on  // 告诉内核子系统网络链接完整。
  • netif_carrier_off  // 告诉内核子系统网络断开。
  • netif_carrier_ok  //查询网络断开还是链接。

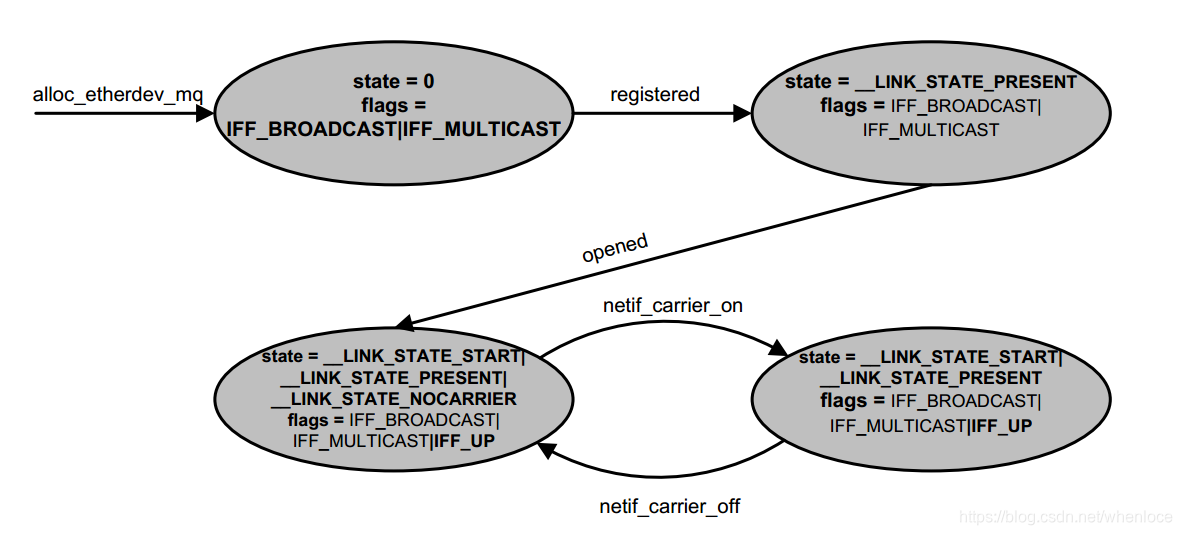

2.3.1 设备状态变迁





  • 可以看出open将设备状态置为__LINK_STATE_START,flags标记为IFF_UP
  • 而linkwatch的设备状态是__LINK_STATE_NOCARRIER
  • 而设备状态__LINK_STATE_PRESENT是设备注册的时候产生的
  • 0
    点赞
  • 0
    评论
  • 1
    收藏
  • 打赏
    打赏
  • 扫一扫,分享海报

参与评论 您还未登录,请先 登录 后发表或查看评论
©️2022 CSDN 皮肤主题:大白 设计师:CSDN官方博客 返回首页

打赏作者

老王不让用

你的鼓励将是我创作的最大动力

¥2 ¥4 ¥6 ¥10 ¥20
输入1-500的整数
余额支付 (余额:-- )
扫码支付
扫码支付:¥2
获取中
扫码支付

您的余额不足,请更换扫码支付或充值

打赏作者

实付
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明:

1.余额是钱包充值的虚拟货币,按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载,可以购买VIP、C币套餐、付费专栏及课程。

余额充值
